Ryobi OGS1820 User manual

ORIGINAL INSTRUCTIONS
Compact Hedge
Trimmer and Grass
Shear
RGS1822Li25
OGS1820

Important!
It is essential that you read the instructions in this manual before assembling,
operating, and maintaining the product.
Subject to technical modification.

1
Safety, performance, and dependability have been given
top priority in the design of your compact hedge trimmer
and grass shear.
INTENDED USE
The compact hedge trimmer and grass shear is only
intended for use outdoors in a well-ventilated area.
The product is designed for home or domestic use.
When used with a shear attachment, the product is
intended for light trimming of grass and weeds.
When used with a compact hedge trimmer attachment, the
product is intended for light trimming of shrubs, hedges,
and bushes.
Do not use the product for any other purpose.
GENERAL POWER TOOL SAFETY WARNINGS
WARNING
Read all safety warnings and all instructions. Failure
to follow the warnings and instructions may result in
electric shock, re and/or serious injury.
Save all warnings and instruction for future reference.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
Work area safety
■Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
■Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
■Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
Electrical safety
■Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
■Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
■Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
■Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
■When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
■If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
Personal safety
■Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
■Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injury.
■Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch
on invites accidents.
■Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal
injury.
■Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power in
unexpected situations.
■Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
■If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
Power tool use and care
■Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
■Do not use the power tool if the switch does not turn
it on and off.Any power tool that cannot be controlled
with switch is dangerous and must be repaired.
■Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
■Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
■Maintain power tools. Check for misalignment or

2
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
■Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
■Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
Battery tool use and care
■Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used with
another battery pack.
■Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire
■When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a fire.
■Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation or
burns.
Service
■Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that safety of the power tool is maintained.
COMPACT HEDGE TRIMMER AND GRASS SHEAR
SAFETY WARNINGS
WARNING
The cutting means continues to run after the motor is
switched off.
TRAINING
■Read the instructions carefully. Be familiar with the
controls and the correct use of the product.
■Never allow children, persons with reduced physical,
sensory, or mental capabilities or lack of experience
and knowledge, or people unfamiliar with these
instructions to use the product. Local regulations may
restrict the age of the operator.
■Keep in mind that the operator or user is responsible
for accidents or hazards occurring to other people or
their property.
PREPARATION
■Inspect the product before use. Replace damaged
parts.
■Clear the area to be cut before each use. Remove all
objects such as cords, lights, wire, or string that can
become entangled in the cutting means.
■Never operate the product while people, especially
children, or pets are nearby.
■Replace cutter blades or any other parts that are
cracked, chipped, or damaged. Make sure the cutting
means is properly installed and securely fastened.
Failure to do so can result in personal injury to the
operator and bystanders, as well as damage to the
product.
■Do not use the product if the switch will not turn the
product on or off. Any product that cannot be controlled
with the switch is dangerous and must be repaired.
■Form the habit of checking to see that keys and
adjusting wrenches are removed from the product
before turning it on.
OPERATION
■To reduce the risk of injury, always wear full eye
protection, footwear, and clothing when using the
product.
■Dress properly. Do not wear loose clothing or jewellery;
they can be caught in moving parts. Use of gloves,
substantial footwear, and long trousers is recommended
when working outdoors.
■Avoid using the product in bad weather conditions
especially when there is a risk of lightning.
■Switch on the motor only when the hands and feet are
away from the cutting means.
■Take care against injury to feet and hands from the
cutting means.
■Always be aware of your surroundings and stay alert
for possible hazards that you may not hear due to the
noise of the product.
■Never attempt to use an incomplete product or one
fitted with an unauthorised modification.
HEDGE TRIMMER SAFETY WARNINGS
■Keep all parts of the body away from the cutter
blade. Do not remove the cut material or hold the
material to be cut when blades are moving. Make
sure the battery is removed when clearing jammed
materials. A moment of inattention while operating the
hedge trimmer may result in serious personal injury.
■Carry the hedge trimmer by the handle with the
cutter blade stopped. When transporting or storing
the hedge trimmer, always fit the cutting device
cover. Proper handling of the hedge trimmer reduces
possible personal injury from the cutter blades.
■Hold the power tool by insulated gripping surfaces
only, because the cutter blade may contact hidden
wiring. Cutter blades contacting a “live” wire may make
exposed metal parts of the power tool “live” and could
give the operator an electric shock.
■Keep cable away from cutting area. During operation,

3
the cable may be hidden in shrubs and can be
accidentally cut by the blade.
■Check the hedge for foreign objects, such as wire
fences.
ADDITIONAL SAFETY WARNINGS
■To avoid accidental starting, never carry the product
with your finger on the trigger.
■Wear heavy, long trousers, substantial footwear, and
well-fitting gloves. Do not wear short trousers and
sandals, or go barefoot.
■Ensure the switch is in the off position before inserting
the battery pack. Inserting the battery pack into the
product with the switch on invites accidents.
■Do not operate in poor lighting. Use the product in
daylight or with good artificial light.
■Keep firm footing and balance. Do not overreach.
Overreaching can result in loss of balance. Always be
sure of your footing on slopes. Walk, never run.
■Do not force the product. It will do the job better and
safer at the speed for which it was designed.
■Before starting the product, make sure the cutting
means will not come in contact with anything. If the
cutting means strikes or becomes entangled with
foreign objects, stop the product immediately, remove
the battery pack, and check for damage. Do not operate
the product with loose or damaged parts.
■Check for damaged parts, alignment of moving parts,
binding of moving parts, and any other condition
that may affect the operation. Before further use of
the product, other parts that are damaged should
be carefully checked to determine that it will operate
properly and perform its intended function. Any
damaged parts should be properly repaired or replaced
by an authorised service centre.
■To reduce the risk of injury associated with contacting
moving parts, always stop the product, remove the
battery pack, make sure all moving parts have come to
a stop, and allow the product to cool down:
●whenever the product is left unattended
●before clearing a blockage
●before checking, cleaning, or working on the product
●after striking a foreign object
●whenever the product starts vibrating abnormally
■Keep hands away from the cutting means. Do not
attempt to remove cut material or hold the material to
be cut when the cutter blades are moving. Make sure
the battery pack is removed and the trigger is released
when clearing jammed material from the cutting means.
Do not grasp the exposed cutter blades or cutting
edges when picking up or holding the product.
■Keep hands, face, and feet at a safe distance from
the moving parts. Do not touch or try to stop the cutter
blades when they are moving.
■Always stop the motor when cutting is delayed or when
walking from one cutting location to another.
■Keep the product clean of grass clippings and other
materials. They may become lodged in the cutting
means.
■Fit the blade sheath when product is not in use.
■Never douse or squirt the product with water or any
other liquid. Keep handles dry, clean, and free from
debris.
TRANSPORTATION AND STORAGE
■Never operate the product with defective guards or
shields, or without safety devices.
■Immediately switch off and remove the battery in the
event of accident or breakdown. Don’t operate the
product again until it has been fully checked by an
authorised service centre.
■When transporting or storing the product, always fit the
product with the blade sheath.
■Clean the product thoroughly before storing. Store
the product in a dry, well-ventilated place that is
inaccessible to children. Keep away from corrosive
agents such as garden chemicals and de-icing salts.
■Store and charge the battery packs in a cool area.
Temperatures above or below normal room temperature
will shorten the battery life.
■Never store the battery packs in a discharged condition.
Wait for the battery pack to cool down and charge
immediately.
■When transporting the product in a vehicle, secure it
against movement or falling to prevent injury to persons
or damage to the product.
TRANSPORTING LITHIUM BATTERIES
Transport the battery in accordance with local and national
provisions and regulations.
Follow all special requirements on packaging and labelling
when transporting batteries by a third party. Ensure that
no batteries can come in contact with other batteries
or conductive materials while in transport by protecting
exposed connectors with insulating, nonconductive caps or
tape. Do not transport batteries that are cracked or leaking.
Check with the forwarding company for further advice.
MAINTENANCE
WARNING
Use only original manufacturer’s replacement parts,
accessories, and attachments. Failure to do so can
cause possible injury, contribute to poor performance,
and may void your warranty.
WARNING
Servicing requires extreme care and knowledge
and should be performed only bya qualified service
technician. For service, bring the product to an
authorised service centre for repair. When servicing, use
only original replacement parts.
■Use gloves when maintaining the cutting means.
■Maintain the product with care. Keep the cutter edge

4
sharp and clean for best performance and to reduce
the risk of injury. Follow instructions for lubricating and
changing accessories. Keep handles dry, clean, and
free from oil and grease.
■Switch off the product and remove the battery pack
before conducting any maintenance or cleaning work.
■After each use, clean the body and handles with a soft,
dry cloth.
■After each use, clean the debris from the blades with a
stiff brush, and then carefully apply a rust preventative
lubricant before refitting the blade sheath. The
manufacturer recommends you use a rust preventative
and lubricant spray to apply an even distribution and
reduce the risk of personal injury from contact with
the cutter blades. For information about suitable spray
product, check with an authorised service centre.
■Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types
of commercial solvents and may be damaged by their
use. Use clean cloths to remove dirt, dust, oil, and
grease.
■Always ensure that the ventilation openings are kept
clear of debris.
■Periodically inspect the cutting means for damage and
wear.
■Always use the manufacturer’s specified replacement
blades.
■For easier operation and longer blade life, lubricate
the cutter blades before and after each use. Before
lubricating, remove the battery pack and lay cutter
blades on a flat surface. Apply lightweight machine oil
along the edge of the top blade. Do not apply oil when
the product is running.
BATTERY PROTECTION FEATURES
Ryobi 18V Lithium-Ion batteries are designed with features
that protect the Lithium-Ion cells and maximise battery
life. If the tool stops during use, the following may be the
causes:
■The maximum current draw of the battery has been
exceeded, causing it to automatically stop powering the
tool. Release the trigger to reset the tool and pull the
trigger to resume operation.
■Excessive temperatures will cause the battery to stop
powering the tool. Feel the battery pack; if it is too
warm, allow it to cool down.
If the tool still does not work, recharge the battery.
NOTE: The battery pack indicator LED will not work if the
battery protection feature has caused the battery pack to
stop powering the tool. Release the tool trigger or remove
the battery pack from the tool and the battery pack LED
indicator will resume normal function.
RESIDUAL RISK
Even when the product is used as prescribed, it is still
impossible to completely eliminate certain residual risk
factors. The following hazards may arise in use, and the
operator should pay special attention to avoid the following:
■Injury caused by vibration
–Hold the product by designated handles and restrict
working time and exposure.
■Injury caused by exposure to noise
–Wear hearing protection and limit exposure.
■Injury caused by contact with the blades
–The blade cannot be guarded while cutting. Keep
the blade away from yourself and others. Cover it
with the blade sheath when the product is not in
use.
RISK REDUCTION
It has been reported that vibrations from handheld tools
may contribute to a condition called Raynaud’s Syndrome.
Symptoms may include tingling, numbness and blanching
of the ngers, usually apparent upon exposure to cold.
Hereditary factors, exposure to cold and dampness, diet,
smoking and work practices are all thought to contribute
to the development of the these symptoms. There are
measures that can be taken by the operator to possibly
reduce the effects of vibration:
■Keep your body warm in cold weather. When operating
the product wear gloves to keep the hands and wrists
warm. It is reported that cold weather is a major factor
contributing to Raynaud’s Syndrome.
■After each period of operation, exercise to increase
blood circulation.
■Take frequent work breaks. Limit the amount of
exposure per day.
If you experience any of the symptoms of this condition,
immediately discontinue use and see your physician.
WARNING
Injuries may be caused or aggravated, by prolonged use
of a tool. When using any tool for prolonged periods,
ensure you take regular breaks.
SYMBOLS ON THE PRODUCT
Safety alert
Remove the battery pack before starting
any work on the product.
Read and understand all instructions
before operating the product, follow all
warnings and safety instructions.
Wear eye protection.

5
Wear ear protection.
Wear non-slip, heavy-duty protective
gloves.
Do not expose to rain or damp condition.
To prevent serious injury, do not touch
cutting blades.
Beware of thrown or ying objects.
Keep all bystanders, especially children
and pets, at least 15m away from the
operating area.
Caution! Cutting means continues to run
after the motor is switched off.
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authority or retailer
for recycling advice.
Regulatory Compliance Mark (RCM).
Product meets applicable regulatory
requirements.
86
76
A-weighted sound pressure level at the
operator position is 76 dB.
The guaranteed sound power level
shown on this label is 86 dB.
The following signal words and meanings are intended to
explain the levels of risk associated with this product:
DANGER
Indicates an imminently hazardous situation, which, if
not avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.
CAUTION
Without safety alert symbol
Indicates a situation that may result in property damage.
SYMBOLS IN THIS MANUAL
Parts or accessories sold separately
Note
Warning

6
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
RGS1822Li25
UNPACKING

7
UNPACKING
x 1
x 1
x 1
x 1
x 1
x 1
x 1
OGS1820

8
1
4
5
11
12
6
7
3
2
8910

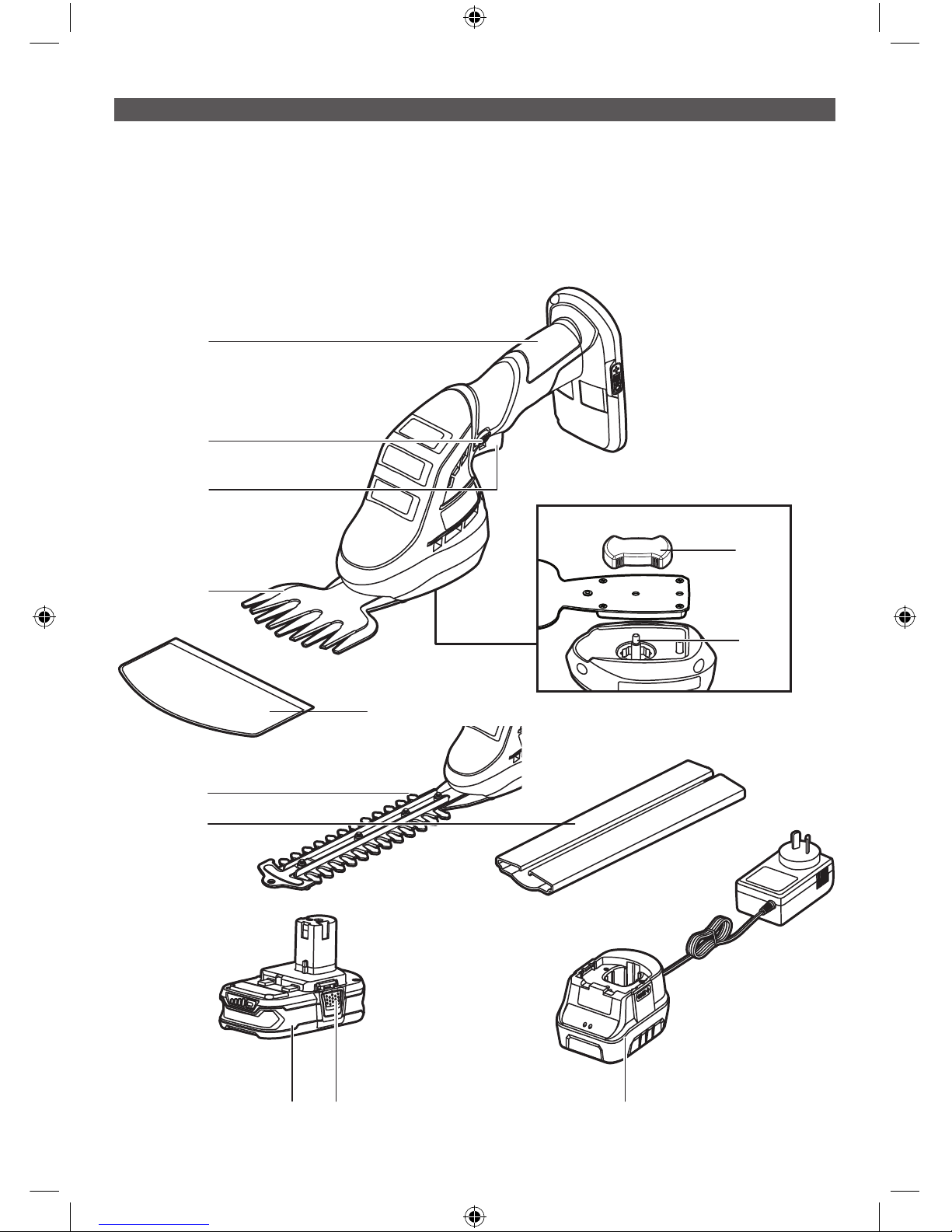

KNOW YOUR PRODUCT
1. Rear handle
2. Trigger lock out button
3. On/off trigger
4. Grass shear blade
5. Grass shear blade sheath
6. Compact hedge trimmer blade
7. Compact hedge trimmer blade sheath
8. Battery pack
9. Battery latch button
10. Charger
11. Blade securing knob
12. Blade post

9
2
1
3
1
45
2
GETTING STARTED
3a 3b
GETTING STARTED

10

11

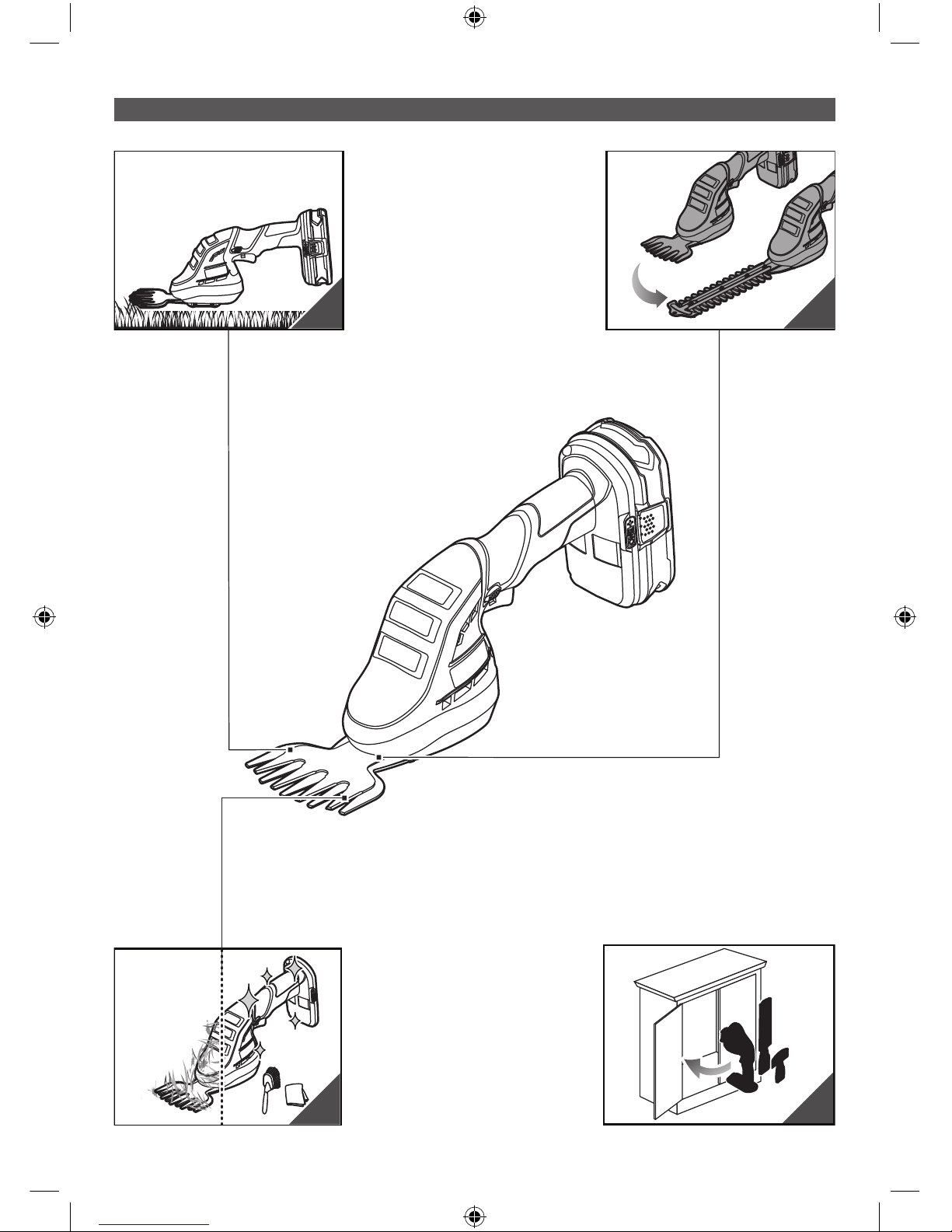

OVERVIEW
p.13 p.15
p.17 p.19

12
OVERVIEW
p.18
p.16
p.14

13
1
2
OPERATION

14
1
2
OPERATION

15
1
2
1
4
32
1
2
4
3
1
2
3
OPERATION

16
1
2
4
3
1
2
1
2
4
3
1
2
3
OPERATION

17
1
2
1
2
3
MAINTENANCE

18
1
2
1
2
3
MAINTENANCE
