Ryobi RHT600RLG User manual
OPERATOR’S MANUAL
It is essential that you read the instructions in this manual before
operating this machine.
RHT600RLG
9
3
410
5
8
Fig.1 Fig.2 Fig.3
Fig.6Fig.5Fig.4
Fig.8 Fig.9
1
2
6
7
Fig.7
2
Read and understand all instructions. Failure to
follow the warnings and instructions may result in
electric shock, fire and serious injury.
Save all warnings and instructions for future
reference
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool.
a) Cluttered or dark
areas invite accidents.
b)
Power tools
create sparks which may ignite the dust or fumes.
c)
Distractions can cause you
to lose control.
a)
Unmodied plugs and matching outlets will
reduce risk of electric shock.
b)
There is an increased risk of electric
shock if your body is earthed or grounded.
c)
Water entering a power tool will increase
the risk of electric shock.
d)
Damaged or entangled cords increase
the risk of electric shock.
e)
Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
f)
a)
A
moment of inattention while operating power tools
may result in serious personal injury.
b)
Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries
c)
Carrying
power tools with your nger on the switch or plugging
in power tools that have the switch on invites
accidents.
d)
A wrench or a key left
attached to a rotating part of the power tool may result
in personal injury.
e)
This enables better control of
the power tool in unexpected situations.
f)
Loose clothes, jewellery
or long hair can be caught in moving parts.
g)
Use of these
devices can reduce dust-related hazards.
a)
The correct power tool will
do the job better and safer at the rate for which it was
designed.
b)
Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
c)
Such preventative safety
measures reduce the risk of starting the power tool
accidentally.
d)
Power tools are dangerous in the hands
of untrained users.
e)
3
If damaged, have the power tool
repaired before use. Many accidents are caused by
poorly maintained power tools.
f) Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g)
Use of the power tool for
operations different from intended could result in a
hazardous situation.
a)
This will ensure that the safety of the power tool is
maintained.
n
A moment of inattention while operating the
hedge trimmer may result in serious personal injury.
n
. Proper handling of the hedge trimmer
will reduce possible injury from the cutter blades.
n . During
operation the cable may be hidden in shrubs and can
be accidentally cut by the blade.
n
Cutter blades
contacting a "live" wire may make exposed metal
parts of the power tool "live" and could give the
operator an electric shock.
n
Only
use the hedge trimmer for its intended use.
4

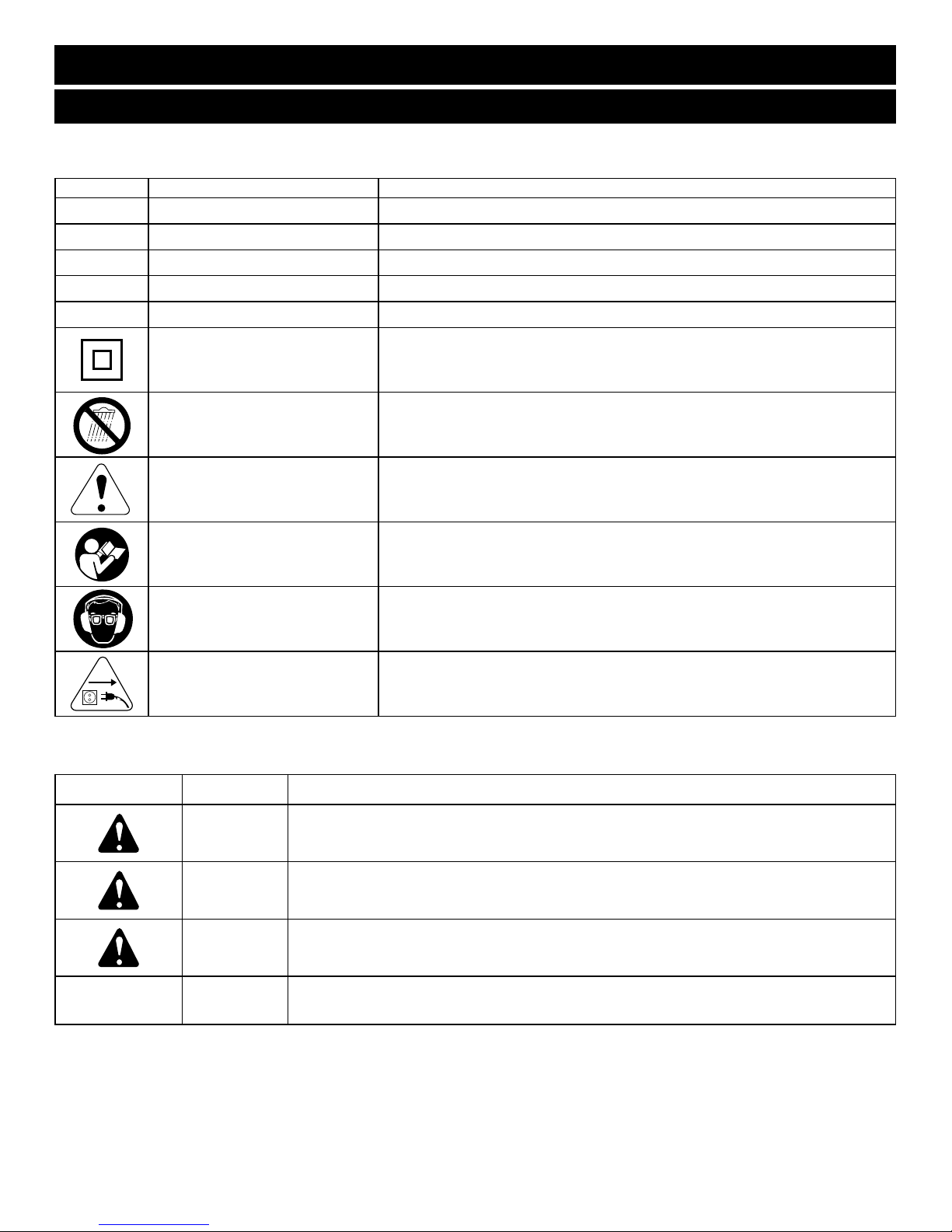

Some of the following symbols may be used on this product. Please study them and learn their meaning.
Proper interpretation of these symbols will allow you to operate the product safely.
Volts Voltage
Amperes Current
Hertz Frequency (cycles per second)
Watt Power
Hours Time
Class II Construction Double-insulated construction
Wet Conditions Alert Do not expose to rain or use in damp locations.
Safety Alert Symbol Precautions that involve your safety.
Read the Operator’s Manual To reduce the risk of injury, user must read and understand operator’s
manual before using this product.
Eye and ear Protection Wear eye and ear protection when operating this equipment.
Electric Shock Precaution Remove plug from the mains immediately if cable is damaged or cut.
The following signal words and meanings are intended to explain the levels of risk associated with this product.
Indicates an imminently hazardous situation, which, if not avoided, will result in
death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, could result in
death or serious injury.
Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
(Without Safety Alert Symbol) Indicates a situation that may result in property
damage.
5
Observe all normal safety precautions related to
avoiding electrical shock.
Voltage:
220-240V/50Hz
Power: 600W
Cutting Capacity: 27mm
Blade Length 600mm
Blade Speed 1500/min
Brake Time: <1s
Weight (without cord): 3.8kg
Sound Pressure Level: LpA: 84 dB(A) KpA:3.0 dB(A)
Sound Power Level: LwA: 99 dB(A) KwA:3.0 dB(A)
Vibration: ah=3.7 m/s² K=1.5 m/s²
Fig.1
1. Blade cover
2. Cutting blades
3. Safety Guard
4. Front trigger
5. Rear handle
6. Livetool indicator™
7. Cord retainer
8. Lock lever for rotating handle
9. HedgeSweep™ debris sweeper
10. Rear handle trigger
Always remove the blade cover before using the
hedge trimmer.
1. The blades continue to move for a fraction of a
second after the hedge trimmer is switched off.
2. Do not touch the moving blades.
3. When using the tool always ensure that the cord is
safely held in the cord retainer as described later in
this manual.
This hedge trimmer is intended for cutting and trimming
hedges and bushes in domestic use. It is not intended to
be used for cutting above shoulder level.
When using the hedge trimmer make sure that you
secure your extension cord in the cord retainer as shown
in Figure 3.
1. Place the hedge trimmer on a flat and even surface
and disconnect from the power supply.
2. Make sure that you release the triggers.
3. Pull the lock lever (8) out and rotate the rear handle
(Figure 9c).
4. Release the lock lever and ensure that it is fully
locked in before operating the hedge trimmer.
Make sure that you disconnect the hedge
trimmer from the power supply before attaching
or removing the HedgeSweep™ debris sweeper.
To avoid clippings and other debris falling back into the
hedge while cutting you can use the HedgeSweep™
debris sweeper to sweep the cuttings off the hedge. You
can attach the HedgeSweep™ debris sweeper by sliding
it onto the rail as shown in Figure 2. The sloped end
should be facing the motor housing of the hedge trimmer.
To remove HedgeSweep™ just pull it towards the front
of the blade.
If desired you can use a string to help cut your hedge
level. Decide how high you want the hedge then stretch
a piece of string along the hedge at this height. Trim the
hedge just above this guide line. See Figure 5. Trim the
side of a hedge so that it will be slightly narrower at the
top. See Figure 6. More of the hedge will be exposed
when shaped this way, and it will be more uniform.
Two handed operation is required. Hedge
trimmer will not operate unless both switches are
activated. Always use two hands when operating
the hedge trimmer.
Starting:
Press and hold rear trigger (10) and squeeze front trigger
(4).
Stopping:
Release either of the switch levers (4) and (10).
Before inspecting, cleaning, or servicing the
machine, disconnect the plug from power source
and wait for all moving parts to stop. Failure to
follow these instructions can result in serious
personal injury or property damage.
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
6
Use clean cloths to remove dirt, dust, oil, grease, etc.
Do not at any time let brake fluids, gasoline,
petroleum-based products, penetrating oils, etc.,
come in contact with plastic parts. Chemicals
can damage, weaken, or destroy plastic which
may result in serious personal injury.
Blades are sharp. When handling the blade
assembly, wear non-slip, heavy-duty protective
gloves. Do not place your hand or fingers
between blades or in any position where they
could get pinched or cut. NEVER touch blades
or service unit with the power supply connected.
nAlways clean the cutting blades after operation and
lubricate as described below.
n Perform regular visual checks/inspection on the
cutting edges of the blade and check the tightness of
the blade bolts.
For easier operation and longer blade life, lubricate the
hedge trimmer blade before and after each use.
n Stop the motor and disconnect from power supply.
n Lay the hedge trimmer on a flat surface. Apply light
weight machine oil along the edge of the top blade.
If you will be using the hedge trimmer for an extended
period, it is advisable to oil the blade during use. See
Figure 7.
n Stop the motor and disconnect from power supply.
n Clean dirt and debris from the body of the hedge
trimmer, using a damp cloth with a mild detergent.
Do not use any strong detergents on the
plastic housing or the handle. They can be damaged
by certain aromatic oils such as pine and lemon, and
by solvents such as kerosene.
n Clean all foreign material from the product.
n Always place blade cover on cutting blades before
storing. See Figure 8.
n Store it in a well-ventilated place that is inaccessible
to children.
n Keep away from corrosive agents such as garden
chemicals and salts.
This marking indicates that this product
should not be disposed with other household
wastes throughout the EU. To prevent
possible harm to the environment or human
health from uncontrolled waste disposal,
recycle it responsibly to promote the
sustainable reuse of material resources. To
return your used device, please use the
return and collection systems or contact the
retailer where the product was purchased.
They can take this product for environmental
safe recycling.
TECHTRONIC INDUSTRIES (AUSTRALIA) PTY. LTD.
Level 1, 660 Doncaster Road,
Doncaster, Victoria 3108,
Australia
Tel: 1300 361 505 Fax: 1800 807 993
TECHTRONIC INDUSTRIES N.Z. LIMITED
Auckland: 27 Clemow Drive, Mt Wellington, N.Z.
Tel: (09) 573 0230 Free Call: 0800 279 624 Fax: (09) 573 0231
Contact during normal business hours.
Subject to the guarantee condition below, this Ryobi
tool (hereinafter called “the product”) is guaranteed by
TECHTRONIC INDUSTRIES AUSTRALIA PTY
LIMITED (hereinafter called “the Company”) to be free
from defects in material or workmanship for a period
of 24 months from the date of original purchase
covering both parts and labour. Under the terms of
this guarantee, the repair or replacement of any part
shall be the opinion of the Company or its authorised
service centre. Should service become necessary
during the warranty period, the owner should contact
the customer service HELPLINE 1300 361 505 or
contact the retailer from whom the product was
purchased.
In order to obtain guarantee service, the owner must
present the sales docket and Guarantee Certificate to
confirm date of purchase. This product is sold by the
dealer or service centre as principal and the dealer
has no authority from the Company’s behalf except as
herein contained or herein referred to.
Guarantee Conditions
This guarantee only applies provided that the product
has been used in accordance with the manufacturer’s
recommendations under normal use and reasonable
care (in the opinion of the Company) and such
guarantee does not cover damage, malfunction or
failure resulting from misuse, neglect, abuse, or used
for a purpose for which it was not designed or is not
suited and no repairs, alterations or modifications
have been attempted by other than an authorised
service centre. This guarantee will not apply if the tool
is damaged by accident or if repairs arise from normal
wear and tear. The Company accepts no additional
liability pursuant to this guarantee for the costs of
travelling or transportation of the product or parts to
and from the service dealer or service centre - such
costs are not included in this guarantee.
Certain legislation, including the Trade Practices Act,
1974 (as amended) and other state and territorial laws
give rights to the buyer and impose liability on the
seller in certain circumstances. Nothing herein shall
have the effect of excluding, restricting or modifying
any condition, guarantee, right or liability imposed, to
the extent only that such exclusion, restriction or
modification would render any term herein void.
Table of contents
Other Ryobi Trimmer manuals
Ryobi
Ryobi P20102 User manual
Ryobi
Ryobi CS30 RY30020B, SS30 RY30040B, User manual
Ryobi
Ryobi RY29550 User manual
Ryobi
Ryobi RHT-600R User manual
Ryobi
Ryobi RLT5127 Operation instructions
Ryobi
Ryobi One+ OHT1800P User manual
Ryobi
Ryobi RBC254SESO User manual
Ryobi
Ryobi RLT30CD User manual
Ryobi
Ryobi 725rE User manual
Ryobi
Ryobi RPT400 User manual
Ryobi
Ryobi RLT5027 User manual
Ryobi
Ryobi Expand-it RXAHT01 User manual
Ryobi
Ryobi RY40640 User manual
Ryobi
Ryobi CS30, SS30, BC30 User manual
Ryobi
Ryobi RY25CSEMC User manual
Ryobi
Ryobi AHF04G User manual
Ryobi
Ryobi ZR51950A-250000001 User manual
Ryobi
Ryobi RLT26CDY User manual
Ryobi
Ryobi RY24200 User manual
Ryobi
Ryobi RBC30SET User manual
