TRIMMER
OPERATOR’S MANUAL (Original Instructions)
RLTGM25CS
Important! It is essential you read the instructions in this manual before starting and
operating this machine.
Subject to technical modications.

2
English (Original Instructions)
Dangerous Environments. To avoid falling, do not
use the product in damp or wet locations.
Controlling the Product. During carburetor
adjustments the cutting attachment may spin.
Therefore, you should wear protective equipment
and observe all safety instructions when adjusting
the carburetor. For products equipped with a clutch,
be sure the cutting attachment stops turning when the
engine idles. When the product is turned off, make
sure the cutting attachment has stopped before setting
down the product.
Use the Right Product. Use the product for the
intended purpose only.
Save these instructions. Refer to them frequently
and use them to instruct others who may use this
power tool. If you loan someone this power tool, loan
them these instructions also.
GENERAL SAFETY WARNINGS
WARNING
Read and understand all instructions. Failure to
follow all instructions may result in serious personal
injury as well as damage to the product.
Physical Condition of the Operator. Do not operate
this product when tired, ill or under the influence of
alcohol, drugs or medication.
Clothing Requirements. Always wear long heavy
pants, boots and gloves. Do not wear loose clothing,
jewelry, short pants, sandals or go barefoot. Secure
hair so that it is above shoulder level to avoid
entanglement in moving parts.
Protective Accessories Requirements. Wear eye
and hearing protection when operating this product.
Before use, inspect the condition of the trimmer.
Replace damaged parts. Check for fuel leaks.
Make sure all fasteners are in place and secure.
Replace cutting attachment parts that are cracked,
chipped or damaged in any way. Make sure the
cutting attachment is properly installed and securely
fastened. Be sure the cutting attachment shield is
properly attached and in the position recommended
by the manufacturer. Use only flexible, non-metallic
line recommended by the manufacturer. For example,
never use wire or wirerope, which can break off and
become a dangerous projectile.
Proper Stance. Keep firm footing and balance. Do
not overreach. Keep the cutting attachment below
waist level. Keep all parts of your body away from the
rotating cutting attachment and hot surfaces.
Exhaust Gases. Never start or run the product inside
a closed room or building; breathing exhaust fumes
can cause illness or death.
Fueling. Mix and pour fuel outdoors where there are
no sparks and flames. Slowly remove the fuel cap only
after stopping the engine. Do not smoke while fueling
or mixing fuel. Wipe spilled fuel from the product.
Move at least 30ft. (9m) away from the fueling source
and site before starting the engine.
Work Area. Clear the area to be cut before each use.
Remove all objects, such as rocks, broken glass,
nails, wire or string, that can be thrown or become
entangled in the cutting attachment. Clear the area
of children, bystanders and pets. At a minimum,
keep all children, bystanders and pets outside a 50
ft. (15 m) radius. Because there still may be a risk of
injury to bystanders from thrown objects, bystanders
should be encouraged to wear eye protection. If you
are approached while operating the product, stop the
engine and the cutting attachment.

3
English (Original Instructions)

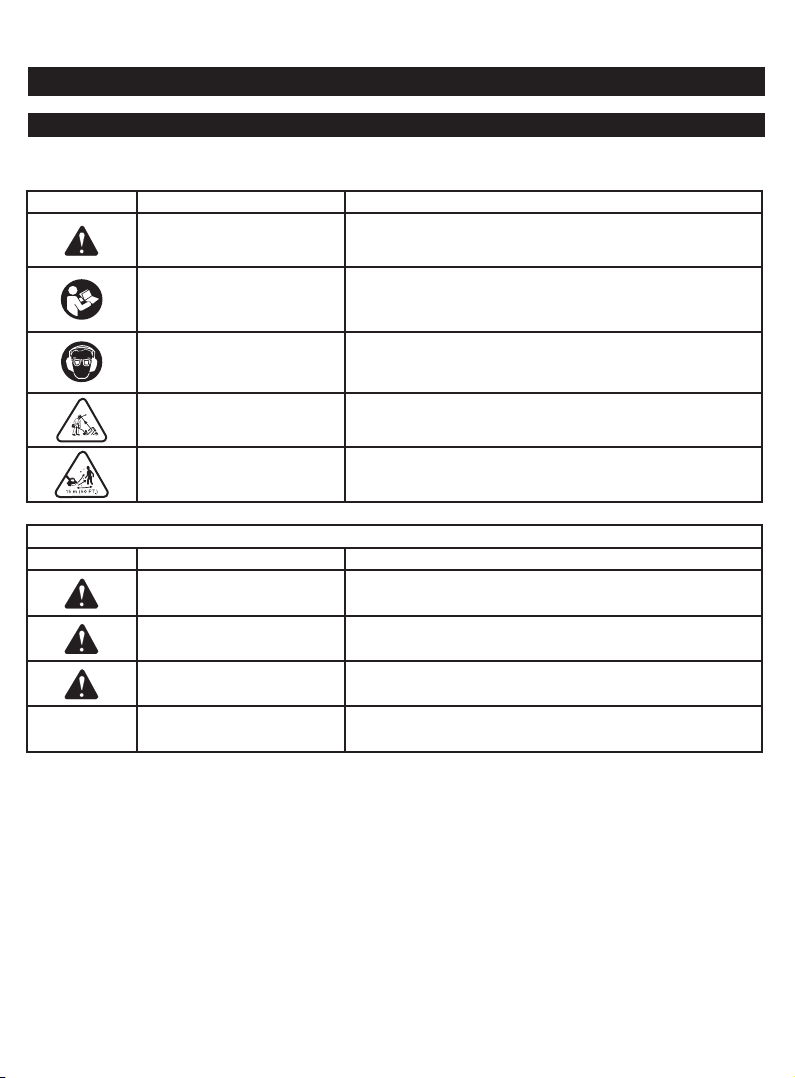

The following symbols are located on labels on the attachment shaft. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the tool better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
Safety Alert Precautions that involve your safety.
Read The Operator’s
Manual
Read the operatorʼs manual before starting or operating this
product. Failure to follow operating instructions and safety
precautions in the operatorʼs manual can result in serious injury.
Eye and Ear Protection
Thrown objects can cause severe eye injury. Wear eye
protection when operating this product.
Wear hearing protection during extended periods of operation.
Thrown Objects Thrown objects can cause severe injury. Wear protective
clothing and boots.
Keep Bystanders Away Keep all bystanders, especially children and pets, at least 50 feet
(15m) from the operating area.
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided,
may result in minor or moderate injury.
CAUTION: (Without Safety Alert Symbol) Indicates a situation that may
result in property damage.
SYMBOLS

4
English (Original Instructions)
5. Front handle
6. Safety guard
7. Trimmer line
8. Trimmer head
FIGURE 2
5. Front handle
9. Securing bolts
10. Bracket
FIGURE 3
11. Securing bolt
12. Flat washer
13. Lock washer
14. Wing nut
FIGURE 4
15. On/Off switch
16. Throttle lock out button
17. Throttle trigger
18. Primer bulb
19. Starter grip
FIGURE 8
26. Bump head cover
27. Bump knob
28. Line spool
29. Bump head spring
30. Bump head securing bolt
31. Cutting head housing
FIGURE 9
20. Foam air lter
21. Air lter cover
22. Cover securing knob
FIGURE 10
23. Spark plug boot
24. Spark plug
FIGURE 11
25. Spark arrestor
ASSEMBLY
ATTACHING THE POWER HEAD TO THE TRIMMER
ATTACHMENT (FIG. 1)
Follow these steps to connect the attachment to the
upper shaft (item 1).
Loosen the knob (item 2) by turning it counter
clockwise.
Align the button (item 3) on the attachment shaft with
the guide recess (item 4) on the upper shaft.
Slide the attachment shaft into the upper shaft until the
attachment shaft clicks into place.
Tighten the knob securely by turning it clockwise.
Removing the attachment from the upper shaft. Follow
these steps to remove the attachment from the upper
shaft.
SPECIFICATIONS
Weight without fuel
and trimmer head 3.56 Kg
Weight without fuel
with trimmer head 3.86 Kg
Fuel tank volume 620 cm3
Cutting swath 432 mm
Diameter of cutting line 2.4 mm
Engine displacement 25.4 cc
Maximum engine performance
(in accordance with ISO 8893) 0.9 kW
Maximum rotational frequency of
the spindle 10000 min-1
Engine speed (rotational
frequency) at recommended max.
spindle rotational frequency
12000 min-1
Engine speed (rotational
frequency) at idle 2600-3200 min-1
Fuel consumption (in accordance
with ISO 8893) at max. engine
performance
0.54 kg/h
Specific fuel consumption (in
accordance with ISO 8893) at
max. engine performance
0.50 kg/h
Vibration level idling
Left handle 6.4 m/s2
Right handle 14.9 m/s2
Vibration level racing
Left handle 5.8 m/s2
Right handle 3.7 m/s2
Sound pressure level (in
accordance with EN ISO22868) 98 LPA(dBA)
Sound power level (in accordance
with EN ISO22868) 113 LWA(dBpA)
DESCRIPTION
FIGURE 1
1. Upper shaft
2. Knob
3. Button
4. Guide recess

5
English (Original Instructions)
Replace the line trimmer head cover, aligning latches
with openings in the line trimmer head. Press cover
and line trimmer head together until both latches snap
into openings securely.
Install line as described in the next section of this
manual.
INSTALLING LINE IN REEL EASY LINE TRIMMER
HEAD
See Figures 8
Use 2.4mm diameter monolament line.
Stop the engine and disconnect the spark plug wire.
Cut one piece of line approximately 6.0 meters in
length.
Rotate the bump knob on line trimmer head until line
on the centre of the bump knob aligns with arrows on
top of line trimmer head. (image 6)
Insert one end of line into eyelet located on the side
of the line trimmer head and push until line comes out
through the eyelet on the other side. Continue to push
line through the line trimmer head until the middle
section of the line is inside the line trimmer head and
line outside the line trimmer head is evenly divided on
each side. (image 7-8)
Rotate the knob on the line trimmer head to wind
the line. If using a curved shaft attachment, the knob
should be rotated counterclockwise.
Wind the line until approximately 20cm remains
protruding from the line trimmer head.
Replace the spark plug boot.
OPERATION
FUEL AND REFUELING
Handling the fuel safely
Always handle fuel with care, it is highly flammable.
Always refuel outdoors where there are no sparks and
flames. Do not inhale fuel vapors.
Do not let petrol or oil come in contact with your skin.
Keep petrol and oil away from the eyes. If petrol
or oil comes in contact with the eyes, wash them
immediately with clean water. If irritation is still present,
see a doctor immediately.
Clean up spilled petrol immediately.
MIXING THE FUEL
This product is powered by a 2-stroke engine and
requires pre-mixing petrol and 2-stroke oil. Pre-mix
unleaded petrol and 2-stroke engine oil in a clean
container approved for petrol.
This engine is certified to operate on unleaded petrol
intended for automotive use with an octane rating of
87 ([R + M] / 2) or higher.
Loosen the knob by turning it counterclockwise.
Push the button while pulling out the attachment.
ATTACHING THE FRONT HANDLE (FIG. 2)
Remove the securing bolts (item 6) and bracket (item
7) from the front handle (item 5).
Install the front handle (item 5) onto the upper shaft
(item 1).
Note: The front handle should tilt slightly towards the
operator when correctly fitted.
Place the bolt through the front handle and securely
tighten them into the captive nuts on the bracket (item
10).
Note: Do no attempt to remove or modify the spacer,
this spacer limits the upper position of the handle grip.
SAFETY GUARD (FIG. 3)
Remove wing nut (item 14), flat washer (item 12), lock
washer (item 13) and bolt (item 11) from the Owner's
Kit.
Place safety guard (item 6) over shaft and bracket.
Install bolt through the slots in the tabs on safety guard
and bracket on driveshaft housing.
Install flat washer, lock washer and wing nut.
Tighten securely.
INSTALLING THE REEL EASY LINE TRIMMER HEAD
See Figures 8
Stop the engine and disconnect the spark plug wire.
Remove currently installed line trimmer head.
Open the Reel Easy Line Trimmer Head by
depressing the latches on each side. The contents
of the line trimmer head are spring loaded, so keep
your other hand over the line trimmer head cover while
depressing the latches. (image 3)
Remove the line trimmer head cover, bump knob, and
line spool and set aside.
Place the cutting head housing on the drive shaft.
Make sure the housing is fully seated.
Install the hex bolt to secure the line trimmer head
to the drive shaft. Tighten by using the hex-shaped
opening on the inside of the bump knob.
Note: Only use the bump knob to tighten the bolt. The
use of other tools may allow over tightening of the bolt,
which could damage the line trimmer head. (image 4)
Reinstall the bump head spring into the line trimmer
head and push down to seat. (image 5)
Reinstall the line spool. For the curved shaft
attachment with the Reel Easy cutting head the spool
should be placed so “This side out for curved shaft” is
visible on the line spool.
Replace the bump knob by inserting it into the centre
of the line spool.

6
English (Original Instructions)
Do not use any type of pre-mixed petrol / oil from fuel
service stations, this includes the pre-mixed petrol / oil
intended for use in mopeds, motorcycles, etc.
Use synthetic 2-stroke oil only. Do not use automotive
oil or 2-stroke outboard oil.
Mix 2% synthetic 2-stroke oil into the petrol. This is a
50:1 ratio.
Mix the fuel thoroughly and also each time before
fueling.
Mix in small quantities. Do not mix quantities larger
than usable in a 30 day period. Synthetic 2-stroke oil
containing a fuel stabilizer is recommended.
FILLING THE TANK
Clean surface around fuel cap to prevent
contamination.
Loosen fuel cap slowly to release pressure and to
keep fuel from escaping around the cap.
Carefully pour fuel mixture into the tank. Avoid spillage.
Prior to replacing the fuel cap, clean and inspect the
gasket.
Immediately replace fuel cap and hand tighten. Wipe
up any fuel spillage. Move 9 m away from refueling site
before starting engine.
Note: It is normal for smoke to be emitted from a new
engine during and after rst use.
WARNING
Always shut off engine before fueling. Never add fuel to
a machine with a running or hot engine. Move at least
9m from refueling site before starting engine. Do not
smoke!
50:1 Petrol to Oil Mixing Chart
1 litre + 20 ml =
2 litres + 40 ml =
3 litres + 60 ml = 50: 1 (2%)
4 litres + 80 ml =
5 litres + 100 ml =
WARNING
The product may throw objects during operation,
causing injury to the operator or to bystanders. Always
wear suitable eye protection, long heavy pants and
boots while operating the product.
STARTING THE PRODUCT (FIG. 4-5)
Starting the product differs depending on whether the
engine is cold or warm. Refer to the label on the air lter
cover.
TO START A COLD ENGINE
Follow these steps to start a cold engine.
1. Lay the product on a at, bare surface.
2. Ensure the engine switch is in the I (ON) position (item
16).
3. Push the primer bulb (item 18) approximately 10 times.
4. Set the choke lever to position A (Choke Closed).
5. Hold down the throttle lock out button (item 16) and
squeeze the throttle trigger (item 17).
6. Pull the starter grip (item 19) with a quick rm and
consistent upward motion (No more than 4x).
7. Set the choke lever to position B (Choke Open).
8. Hold down the throttle the lock-off button and squeeze
the throttle trigger.
9. Pull the starter grip with a quick rm and consistent
upward motion until the engine starts (No more than
6x).
Note: If engine does not start, return to step 4 and repeat
the steps.
Note: When the engine starts, let it run for 30 seconds
prior to operation.
TO START A WARM ENGINE
Follow these steps to start a warm engine.
1. Lay the product on a at, bare surface.
2. Ensure the engine switch is in the I (ON) position (item
15).
3. Ensure the choke lever is set to position B (Choke
Open).
4. Hold down the throttle lock out button (item 16) and
squeeze the throttle trigger (item 17).
5. Pull the starter grip with a quick rm and consistent
upward motion until the engine starts (No more than
6x).
Note: If engine does not start, return to step 4 on the "TO
START A COLD ENGINE" and repeat the steps.
STOPPING THE PRODUCT
Release the throttle trigger.
Hold down the engine switch to the O (OFF) position
until the engine comes to a complete stop.
OPERATING THE TRIMMER (FIG. 6)
Follow these steps to operate the curved shaft trimmer.
Start the trimmer.
Hold the trimmer at waist level with your right hand
on the trigger handle and your left hand on the front
handle.
Place the product on the right side of your body with
the engine behind and away from your body.

7
English (Original Instructions)
Trim grass and weeds in a left-to-right motion with the
line parallel to the ground.
TO ADVANCE THE CUTTING LINE
Follow these steps to advance the cutting line.
Start the trimmer.
Tap the bump knob lightly on the ground while the
motor is running. The line will only advance with the
engine at full throttle. Do not hold the bump knob on
the ground.
Note: The blade on the safety guard will cut the line to
the proper length.
Note: To help prevent line tangle, tap only once to
lengthen the line. If additional line is required, wait a
few seconds before retapping the bump knob. Do not
allow the line to wear too short. Keep the cutting line at
full length. MAINTENANCE
MAINTENANCE
WARNING
When servicing, use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
WARNING
Always wear safety goggles or safety glasses with side
shields during tool operation. If operation is dusty, also
wear a dust mask.
WARNING
Before inspecting, cleaning, or servicing the machine,
shut off engine, wait for all moving parts to stop, and
disconnect spark plug lead and move it away from
spark plug. Failure to follow these instructions can
result in serious personal injury or property damage.
WARNING
Neglected or poorly conducted maintenance may
create additional hazards. Do not attempt to repair or
maintain this product if you are not qualied to do so.
If in doubt, return to a service centre for professional
assistance.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, lubricant, grease.
WARNING
Do not at any time let brake uids, petrol, petroleum-
based products, penetrating lubricants, etc., come
in contact with plastic parts. Chemicals can damage,
weaken or destroy plastic which may result in serious
personal injury.
You can often make adjustments and repairs described in
this manual. For other repairs, have the trimmer serviced
by an authorised service dealer.
CLEANING THE AIR FILTER (FIG. 9)
A dirty air lter will cause starting difculty, loss of
performance, and shorten the life span of the engine.
Check the air lter monthly. For best performance, replace
the air lter at least once a year.
Loosen the air filter cover (item 21) by turning the knob
(item 22) counterclockwise.
Remove the air filter (item 20).
Clean the foam filter element with warm soapy water.
Rinse and let dry.
NOTE: If the foam lter element is damaged, it should be
replaced.
Apply a light coat of engine oil to the foam filter
element, then squeeze it out.
Reinstall the air filter.
NOTE: Make sure the lter is seated properly inside the
cover. Installing the lter incorrectly will allow dirt to enter
the engine, causing rapid engine wear.
Reinstall the cover and tighten knob to secure.
WARNING
Make sure the trimmer head stops rotating when you
release the trigger. Contact with a rotating trimmer head
could cause personal injury.
CHECKING THE FUEL CAP
WARNING
A leaking fuel cap is a re hazard and must be replaced
immediately.
The fuel cap contains a non-serviceable lter and
check valve. A clogged fuel lter causes poor engine
performance. If performance improves when the fuel cap
is loosened, the check valve may be faulty or the lter may
be clogged. Replace the fuel cap if necessary.

8
English (Original Instructions)
REPLACING THE SPARK PLUG (FIG. 10)
This engine uses a Champion RCJ6Y or NGK BPMR7A
spark plug. Use an exact replacement and replace
annually.
Follow these steps to replace the spark plug.
Remove the spark plug boot (item 23).
Loosen the spark plug (item 24) by turning it
counterclock wise with a 16mm socket.
Remove the spark plug.
Hand thread the new spark plug, turning it clockwise.
Tighten with a socket. Do not overtighten.
CAUTION
Be careful not to cross-thread the spark plug. Cross-
threading will seriously damage the engine.
CLEANING THE SPARK ARRESTOR (FIG. 11)
Follow these steps to clean the spark arrestor.
Locate the spark arrestor (item 25) through the hole on
the muffler exit hole.
Remove the spark arrestor using needle-nosed pliers.
Clean the spark arrestor with a small wire brush.
Replace the spark arrester.
STORING THE PRODUCT
Storing the product differs depending on the amount of
time it will be in storage.
Follow these steps for short term product storage.
Clean all foreign material from the product.
Store the product in a well-ventilated place that is
inaccessible to children.
If you do not intend to use the product for more than one
month, follow the storage procedures below.
Drain all fuel from the tank into a container approved
for petrol.
Run the engine until it stops.
Clean all foreign material from the product.
Store the product in a well-ventilated place that is
inaccessible to children.
Note: Keep the product away from corrosive agents
such as garden chemicals.
Important: Abide by all local and government
regulations for the safe storage and handling of petrol.

9
English (Original Instructions)
TROUBLE SHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
Engine will not start.
1. Switch set to the O (OFF) position. 1. Set switch to the I (ON) position.
2. No spark. 2. Remove the spark plug. Reattach the spark plug cap
and lay the spark plug on the metal cylinder. Pull
the starter cord and watch for a spark at the spark
plug tip. If there is no spark, repeat the test with a
new spark plug.
3. No fuel. 3. Push primer bulb until the bulb is full of fuel. If the
bulb does not ll, the primary fuel delivery system
is blocked. If the primer bulb lls, the engine may
be ooded. (See next item.)
4. Flooded engine. 4. Remove the spark plug. Turn the product so that
the spark plug hole is aimed at the ground. Make
sure the choke lever is set to position B and pull
the starter cord 10 to 14 times. This clears excess
fuel from the engine. Clean and reinstall the spark
plug. With the throttle trigger fully depressed, pull
the starter cord 3 times. If the engine does not start,
set the choke lever to A and follow normal starting
instructions. If the engine still fails to start, repeat
the procedure with a new spark plug.
5. Starter cord is hard to pull.
5. Contact an authorized service dealer.
Engine does not reach full speed
and emits excessive smoke.
1. Check oil fuel mixture. 1. Use fresh fuel and the correct 2-stroke oil mix.
2. Air filter is dirty. 2. Clean the air filter according to the instructions in
the Maintenance section.
3. Spark arrestor screen is dirty. 3. Contact an authorized service dealer.
Cutting line will not advance when
using bump feed action.
1. Line welded to itself. 1. Lubricate with silicone spray.
2. Not enough line on the spool. 2. Install more line.
3. Line worn too short. 3. Pull line while alternately pressing down on and
releasing the retaining cap.
4. Line tangled on spool. 4. Remove line from spool and rewind.
5. Engine speed too slow. 5. Advance line at full throttle.
6. Line spool installed back to front.
6. Ensure the writing on the line spool is facing the
correct way; THIS SIDE OUT FOR CURVED
SHAFT.
Grass wraps around the trimmer
head assembly and the attachment
shaft.
1. Cutting tall grass at ground level. 1. Cut tall grass from the top down.
2. Operating the product at part
throttle. 2. Operate the product at full throttle.
Oil drips from muffler.
1. Operating the product at part
throttle. 1. Operate the product at full throttle.
2. Check oil/fuel mixture. 2. Use fresh fuel and the correct 2-stroke oil mix.
3. Air filter is dirty. 3. Clean the air filter according to the instructions in
the Maintenance section.

TTI warrants this outdoor product to be free of defects in material and workmanship for 24 months from the date of purchase by the original
purchaser, subject to the limitations below. Please keep your invoice as proof of date of purchase.
This warranty is only applicable where the product is used for personal and non-commercial purposes. This warranty does not
cover damage or liability caused by / due to misuse, abuse, accidental or intentional acts by user, improper handling, unreasonable use,
negligence, failure by end user to follow operating procedures outlined in the user’s manual, attempted repair by non-qualied professional,
unauthorised repair, modication, or use of accessories and/or attachments not specically recommended by authorised party. Please see
your local dealer for list of authorised service centres in your area.
This warranty does not cover belts, brushes, bags, bulbs or any part which ordinary wear and tear results in required replacement during
warranty period. This warranty does not cover transportation cost or consumable items such as fuses and batteries.
This limited warranty is void if the product’s original identication (trade mark, serial number, etc.) markings have been defaced, altered or
removed or if product is not purchased from an authorised reseller or if product is sold AS IS and / or WITH ALL FAULTS.
Where permitted, the provisions of this limited warranty are in lieu of any other written warranty, whether express or implied, written or oral,
including any warranty of MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL WE BE LIABLE
FOR SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INCIDENTAL DAMAGES. OUR MAXIMUM LIABILITY SHALL NOT EXCEED THE
ACTUAL PURCHASE PRICE PAID BY YOU FOR THE PRODUCT.
This warranty is applicable only in the European Union, Australia, and New Zealand. Outside these areas, please contact your
authorised Ryobi dealer to determine if another warranty applies.
LIMITED WARRANTY (Original Instructions)

TECHTRONIC INDUSTRIES EMEA
Medina House, Field House Lane,
Marlow, Bucks
SL7 1TB - United Kingdom
RYOBI TECHNOLOGIES (UK) LIMITED
Medina House, Field House Lane,
Marlow, Bucks
SL7 1TB - United Kingdom
Tel: + 44 (0) 1628 894400
Fax: + 44 (0) 1628 894401
Technical Helpline : + 44 (0) 800 389 0305
TECHTRONIC INDUSTRIES FRANCE SAS
Immeuble Le Grand Roissy
Z.A. du Gué - 35 rue de Guivry
77990 Le Mesnil Amelot France
Phone: + 33(0)1 60 94 69 70
Fax: + 33(0)1 60 94 69 79
RYOBI BELGIUM
Avenue des Pâquerettes, 55
Zoning artisanal - bâtiment 5
B - 1410 Waterloo
Belgique
Tel : + 32(0) 2357 8140
Fax : + 32(0) 2357 8149
TTI ITALIA SRL
Via Fratelli Gracchi, 39
20092 Cinisello Balsamo (MI)
Italia
Tel : + 39 02 37050440
Fax : + 39 02 37050444
TECHTONIC INDUSTRIES IBERIA S.L
Av. De la Industria, 52
Coslada – Madrid – España
Tel: [phone]
TECHTRONIC INDUSTRIES SOUTH AFRICA
CO. (PTY) LTD
P.O Box 83888, South Hills,
Johannesburg, 2136
South Africa
TECHTRONIC INDUSTRIES (ASIA) CO., LTD.
24/F, CDW Building,
388 Castle Peak Road,
Tsuen Wan, Hong Kong
Tel : + 852 2402 6888
TECHTRONIC INDUSTRIES CENTRAL EUROPE GMBH
Itterpark 2
D-40724 Hilden
Deutschland
Tel: + 49 (0) 2103 960-0
Fax: + 49 (0) 2103 960-238
TECHTRONIC INDUSTRIES
AUSTRALIA PTY LIMITED
Building B, Rosehill Industrial Estate,
3 Shirley Street,
Rosehill NSW 2142
Australia
Tel: [phone] or 1300 361 505
Fax: [phone]
TECHTRONIC INDUSTRIES (NZ) LIMITED
27 Clemow Drive, Mt Wellington
PO Box 12-806, Penrose, Auckland
New Zealand
Tel: + 64 (0) 9 573 0230
Free Call: [phone]
Fax: + 64 (0) 9 573 0231
A&M MIDDLE EAST FZCO
P.O.Box 61254
Jedel Ali, Dubai
United Arab Emirates
Tel.: + 9714 8861399
Fax: + 9714 8861400
TECHTRONIC INDUSTRIES DENMARK APS
Stamholmen 147, 4
DK-2650 Hvidovre
Denmark
Tlf 43 56 55 55
Fax [phone]
E-mail: [e-mail]
TECHTRONIC INDUSTRIES NORWAY AS
Stamholmen 147, 4
DK-2650 Hvidovre
Denmark
Tlf.: ([phone]
Faks: ([phone]
E-mail: [e-mail]
TECHTRONIC INDUSTRIES SWEDEN AB
Stamholmen 147, 4
DK-2650 Hvidovre
Denmark
Tel [phone]
Fax [phone]
E-mail: [e-mail]
TECHTRONIC INDUSTRIES FINLAND OY
Stamholmen 147, 4
DK-2650 Hvidovre
Denmark
Tel. [phone]
Fax [phone]
E-mail: [e-mail]
Machine: TRIMMER
Name: Techtronic Outdoor Products
Technology Limited
Address: C/O TTI, 24/F, CDW Building,
388 Castle Peak Road, Tsuen Wan,
N.T., Hong Kong.
Type: RLTGM25CS
Name / title: Andrew John Eyre BEng, CEng, MIET
Vice President of Engineering
Signature:
9 / 2010
