Ryobi P3200 User manual

OPERATOR’S MANUAL
CANISTER VAC
P3200
BATTERIES AND
CHARGERS SOLD
SEPERATELY
SAVE THIS MANUAL FOR FUTURE REFERENCE
Your canister vac has been engineered and manufactured to our high standard for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator's manual before using
this product.
Thank you for your purchase.

2
 Introduction ..................................................................................................................................................................... 2
� Warranty .......................................................................................................................................................................... 2
 Important Safety Instructions .......................................................................................................................................... 3
 Safety Rules for Charger ................................................................................................................................................. 4
� Symbols ........................................................................................................................................................................5-6

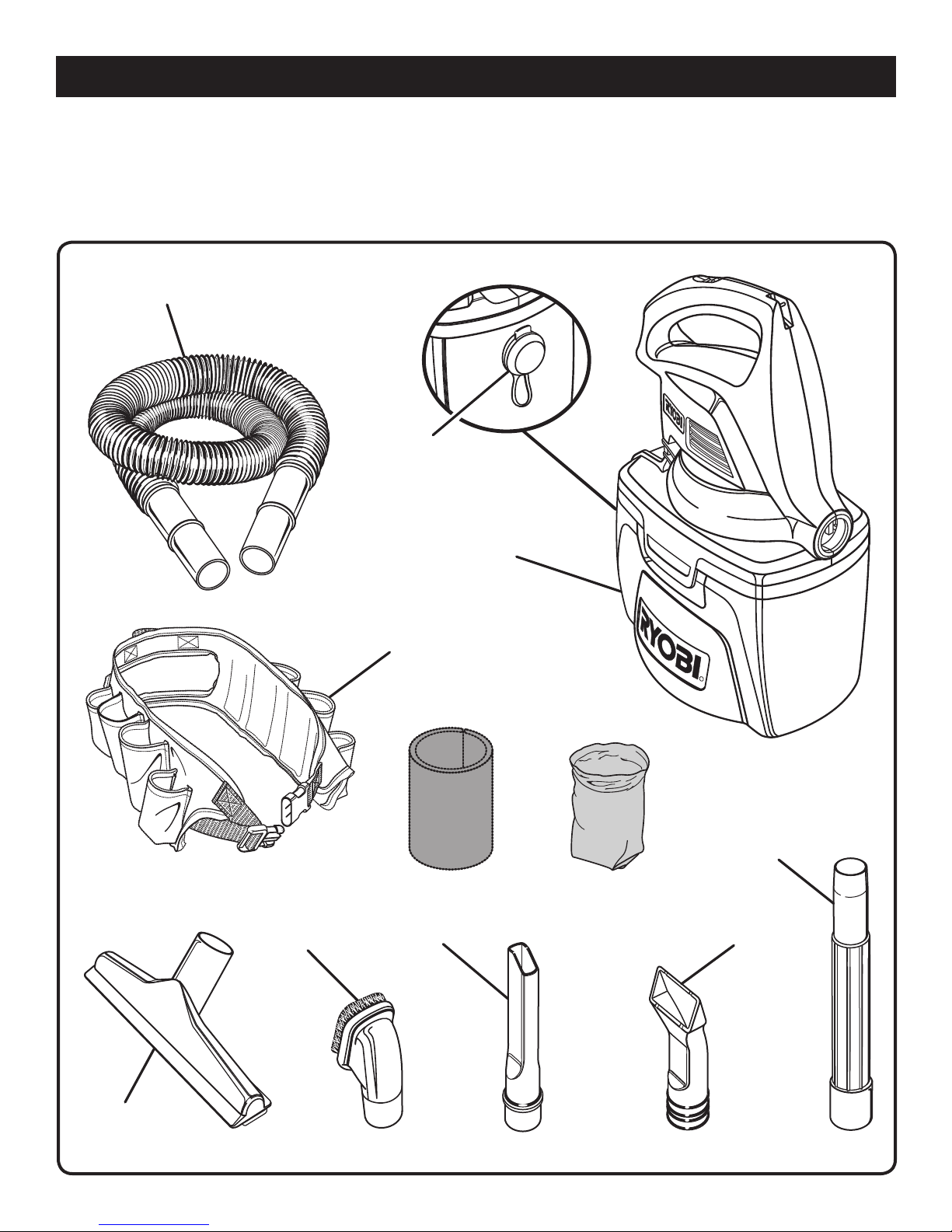

�� Features ........................................................................................................................................................................7-8
�� Assembly ......................................................................................................................................................................... 8
� Operation ....................................................................................................................................................................9-12
� Maintenance .............................................................................................................................................................13-14
� Parts Ordering / Service ...................................................................................................................................Back Page
TABLE OF CONTENTS
INTRODUCTION
This tool has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability have
been given top priority in the design of this product making it easy to maintain and operate.
WARRANTY
RYOBI® POWER TOOL - LIMITED TWO YEAR WARRANTY AND 30 DAY EXCHANGE POLICY
One World Technologies, Inc., warrants its RYOBI® power tools with the following conditions:
30-DAY EXCHANGE POLICY: During the first 30 days after date of purchase, you may either request service under this
warranty or you may exchange any RYOBI® power tool which does not work properly due to defective workmanship or
materials by returning the power tool to the dealer from which it was purchased. To receive a replacement power tool
or requested warranty service, you must present proof of purchase and return all original equipment packaged with the
original product. The replacement power tool will be covered by the limited warranty for the balance of the two year period
from the date of the original purchase.
WHAT THIS WARRANTY COVERS: This warranty covers all defects in workmanship or materials in your RYOBI® power
tool for a period of two years from the date of purchase. With the exception of batteries, power tool accessories are
warranted for ninety (90) days. Batteries are warranted for two years.
HOW TO GET SERVICE: Just return the power tool, properly packaged and postage prepaid, to an Authorized Service
Center. You can obtain the location of the Service Center nearest you by contacting a service representative at One
World Technologies, Inc., P.O. Box 1207, Anderson, SC 29622-1207, by calling 1-800-525-2579 or by logging on to www.
ryobitools.com. When you request warranty service, you must also present proof of purchase documentation, which
includes the date of purchase (for example, a bill of sale). We will repair any faulty workmanship, and either repair or replace
any defective part, at our option. We will do so without any charge to you. We will complete the work in a reasonable time,
but, in any case, within ninety (90) days or less.
WHAT’S NOT COVERED: This warranty applies only to the original purchaser at retail and may not be transferred. This
warranty only covers defects arising under normal usage and does not cover any malfunction, failure or defects resulting
from misuse, abuse, neglect, alteration, modification or repairs by other than Authorized Service Centers. One World
Technologies, Inc. makes no warranties, representations or promises as to the quality or performance of its power tools
other than those specifically stated in this warranty.
ADDITIONAL LIMITATIONS: Any implied warranties granted under state law, including warranties of merchantability or
fitness for a particular purpose, are limited to two years from the date of purchase. One World Technologies, Inc. is not
responsible for direct, indirect, or incidental damages, so the above limitations and exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

3
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS.
Failure to follow all instructions listed below, may result in
electric shock, fire and/or serious personal injury.
READ ALL INSTRUCTIONS BEFORE USING
THIS APPLIANCE
WARNING:
To reduce the risk of electric shock DO NOT expose to
rain. Store indoors.
 Dress properly. Do not wear loose clothing or jewelry.
Contain long hair. Keep your hair and clothing away
from moving parts. Loose clothes, jewelry, or long hair
can be caught in internal moving parts.
 Do not overreach. Keep proper footing and balance
at all times. Proper footing and balance enables better
control of the canister vac in unexpected situations. Do
not use on a ladder or unstable support.
 Use safety equipment. Dust mask must be used for
appropriate conditions.
 Do not allow children to operate canister vac or play
with canister vac as a toy. Close attention is necessary
when used by or near children.
 Use this product ONLY for its intended use as
described in this manual. Use only the attachments
recommended in this manual.
 If product is not working properly, has been dropped,
damaged, left outdoors, or dropped into water, return to
your nearest service center.
 Do not handle charger plug or canister vac with wet
hands.
 Do not put any objects in ventilation openings. Do
not use with any opening blocked. Keep openings free
of dust, lint, hair, and anything that may reduce air flow.
 NEVER vacuum materials such as hot coals, cigarette
butts, matches, burning or smoking ashes, etc.
 DO NOT use to pick up flammable or combustible
liquids, such as gasoline, or use in areas where they
may be present.
 Do not use without dust bowl or filter in place.
 Turn off all controls before unplugging from or
plugging into an electrical outlet for charging.
 Use extra care when using on stairs.
 Do not use to pick up hard objects such as nails,
screws, coins, etc. Damage or injury could result.
 Do not incinerate this appliance even if it is severely
damaged. The batteries can explode in a fire.
 Canister vac does not have to be plugged into an
electrical outlet, therefore it is always in operating
condition. Be aware of possible hazards when using the
canister vac or when changing accessories.
 Remove battery when the vacuum is not in use and
before servicing.
When using an electrical appliance, basic precautions
should always be followed, including the following:
 Use only the charger recommended for your canister
vac. Do not substitute any other charger. Use of another
charger could cause batteries to explode causing possible
serious injury.
 Use battery only with charger listed.
MODEL BATTERY PACK (P100) CHARGER (P110)
P3200 130255004 1423701, 140237021
or 130224028 or 140237023
 Do not place canister vac or batteries near fire or heat.
They may explode.
 The product should be charged in a location where the
temperature is more than 50°F but less than 100°F.
 Under extreme usage or temperature conditions,
battery leakage may occur. If liquid comes in contact
with skin, wash at least 10 minutes then seek immediate
medical attention.
 Batteries vent hydrogen gas and can explode in the
presence of a source of ignition, such as a pilot light.
To reduce the risk of serious personal injury, never use
any cordless product in the presence of an open flame.
An exploded battery can propel debris and chemicals. If
exposed, flush with water immediately.
 Protect your lungs. Wear a face or dust mask if the
operation is dusty. Following this rule will reduce the risk
of serious personal injury.
 Check for misalignment or binding of moving parts,
breakage of parts, and any other condition that may
affect the product’s operation. If damaged, have the
product serviced before using. Many accidents are
caused by poorly maintained products.
 Use only accessories that are recommended by the
manufacturer for your model. Accessories that may be
suitable for one canister vac may create a risk of injury
when used on another canister vac.
 Product service must be performed only by qualified
repair personnel. Service or maintenance performed by
unqualified personnel could result in a risk of injury.
 When servicing product, use only identical replacement
parts. Follow instructions in the Maintenance section
of this manual. Use of unauthorized parts or failure to
follow Maintenance instructions may create a risk of
electric shock or injury.
 Save these instructions. Refer to them frequently and
use them to instruct others who may use this product.
If you loan someone this product, loan them these
instructions also.
 When battery pack is not in use, keep it away from
other metal objects like paper clips, coins, keys, nails,
screws, or other small metal objects that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
 Do not crush, drop or damage battery pack. Do not
use a battery pack or charger that has been dropped
or received a sharp blow. A damaged battery is subject
to explosion. Properly dispose of a dropped or damaged
battery immediately.
 Do not charge battery tool in a damp or wet
location. Following this rule will reduce the risk of electric
shock.

4
 An extension cord should not be used unless
absolutely necessary. Use of improper extension cord
could result in a risk of fire and electric shock. If extension
cord must be used, make sure:
a. That pins on plug of extension cord are the same
number, size and shape as those of plug on charger.
b. That extension cord is properly wired and in good
electrical condition; and
c. That wire size is large enough for AC ampere rating of
charger as specified below:
Cord Length (Feet) 25' 50' 100'
Cord Size (AWG) 16 16 16
NOTE: AWG = American Wire Gauge
 Do not operate charger with a damaged cord or
plug, which could cause shorting and electric shock. If
damaged, have the charger replaced by an authorized
serviceman.
 Do not operate charger if it has received a sharp blow,
been dropped, or otherwise damaged in any way.
Take it to an authorized serviceman for electrical check
to determine if the charger is in good working order.
 Do not disassemble charger. Take it to an authorized
serviceman when service or repair is required. Incorrect
reassembly may result in a risk of electric shock or fire.
 Unplug charger from outlet before attempting any
maintenance or cleaning to reduce the risk of electric
shock.
 Disconnect charger from the power supply when
not in use. This will reduce the risk of electric shock or
damage to the charger if metal items should fall into the
opening. It also will help prevent damage to the charger
during a power surge.
 Risk of electric shock. Do not touch uninsulated portion
of output connector or uninsulated battery terminal.
 Save these instructions. Refer to them frequently and
use them to instruct others who may use this tool. If you
loan someone this tool, loan them these instructions also
to prevent misuse of the product and possible injury.
SAFETY RULES FOR CHARGER
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS.
Failure to follow all instructions listed below, may result in
electric shock, fire and/or serious personal injury.
 Before using battery charger, read all instructions and
cautionary markings in this manual, on battery charger,
battery, and product using battery to prevent misuse of
the products and possible injury or damage.
CAUTION:
To reduce the risk of electric shock or damage to the
charger and battery, charge only nickel-cadmium
rechargeable batteries as specifically designated on your
charger. Other types of batteries may burst, causing
personal injury or damage.
 Do not use charger outdoors or expose to wet or damp
conditions. Water entering charger will increase the risk
of electric shock.
 Use of an attachment not recommended or sold by the
battery charger manufacturer may result in a risk of
fire, electric shock, or injury to persons. Following this
rule will reduce the risk of electric shock, fire, or serious
personal injury.
 Do not abuse cord or charger. Never use the cord to
carry the charger. Do not pull the charger cord rather than
the plug when disconnecting from receptacle. Damage
to the cord or charger could occur and create an electric
shock hazard. Replace damaged cords immediately.
 Make sure cord is located so that it will not be stepped
on, tripped over, come in contact with sharp edges
or moving parts or otherwise subjected to damage or
stress. This will reduce the risk of accidental falls, which
could cause injury, and damage to the cord, which could
result in electric shock.
 Keep cord and charger from heat to prevent damage
to housing or internal parts.
 Do not let gasoline, oils, petroleum-based products,
etc. come in contact with plastic parts. They contain
chemicals that can damage, weaken, or destroy plastic.
IMPORTANT SAFETY INSTRUCTIONS
1. SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions for battery charger P110 (1423701, 140237021 or
140237023). .
2. Before using battery charger, read all instructions and cautionary markings on battery charger, battery, and product
using battery.
3. CAUTION: To reduce the risk of injury, charge only nickel-cadmium rechargeable batteries. Other types of batteries
may burst, causing personal injury or damage.

5
Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation
of these symbols will allow you to operate the tool better and safer.
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
n
o
No Load Speed Rotational speed, at no load
Class II Construction Double-insulated construction
.../min Per Minute Revolutions, strokes, surface speed, orbits etc., per minute
Wet Conditions Alert Do not expose to rain or use in damp locations.
Read The Operator’s Manual To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Eye Protection Always wear safety goggles or safety glasses with side shields and,
as necessary, a full face shield when operating this product.
Safety Alert Precautions that involve your safety.
Hot Surface To reduce the risk of injury or damage, avoid contact with any hot
surface.
SYMBOLS
SYMBOL NAME DESIGNATION/EXPLANATION
