Ryobi RVC-1430PPT-G Operation manual

RVC-1430PPT-G
OWNER’S OPERATING MANUAL
WET AND DRY VACUUM CLEANER

DESCRIPTION
1. Extension Wand (x2)
2. Floor tool
3. Crevice tool
4. Round brush
5. Hose set
6. Castor (x4)
7. Handle
8. Foam filter
9. Screws
10. Dust bag
11. Outlet-socket for Power Take Off
12. Blower connection
13. Filter basket
14. Safety float valve
15. Cartridge filter cap
16. Cartridge filter (non washable)
17. ON/OFF switch
18. Connection for the vacuum hose
19. Clamp (x2)
20. Tank
21. Drain outlet
Fig. 1
Components list
11
12
13
14
15
17
18
19
20
21
16
4
1
23
5
6
78910

DESCRIPTION
Please refer to pages 2 - 4 for instructions
2
1

DESCRIPTION
Please refer to pages 2 - 4 for instructions

DESCRIPTION
Please refer to pages 2 - 4 for instructions

DESCRIPTION
Please refer to pages 2 - 4 for instructions
Fig. 20 Fig. 21
Fig. 22 Fig. 23
Fig. 24 Fig. 25

Please refer to pages 2 - 4 for instructions
DESCRIPTION
Fig. 26 Fig. 27
Fig. 28

Important!
It is essential that you read the instructions in this manual before
operating this machine.
Subject to technical modifications

1
GENERAL POWER TOOL SAFETY WARNINGS
WARNING!
This appliance complies with the compulsory safety
regulations for electric equipment. However,
improper use can be harmful to people and property.
Please read these operating instructions carefully
and completely before switching the appliance on.
Keep the operating instructions, the guarantee certifi
cate, the receipt, as well as the packaging and
packaging material if at all possible.
This appliance is designed solely for use in the private
sector and for the designated purpose. The appliance is
not suitable for commercial use. Don’t use the appliance
outdoors (unless it has been specifically designed for
use outdoors). Don’t subject the appliance to heat, direct
sunshine or very high moisture (e.g., rain).
Never immerse the appliance in liquids and be aware of
sharp edges that may damage it. Never use the
appliance with wet or damp hands. Unplug it immediately
if the appliance becomes wet or damp when it is running.
Don’t immerse the appliance in water.
This wet/dry vacuum cleaner may only be used and kept
in a private home.
Don’t vacuum up liquids that are hotter than 60°C or any
poisonous or flammable dusts.
Never lay the appliance on its side. Pay particular
attention to a horizontal position and adequate stability
on stairs.
Always unplug the appliance after use and before
cleaning or changing the filters or accessories.
Only trained specialists may make repairs on electric
equipment. Improper repairs could result in considerable
danger to the user.
Do not store the appliance directly beside a hot oven
or radiator.
Children, disabled persons, and the aged are often not
aware of the dangers that can result from handling
electric appliances. The above mentioned persons and
untrained persons must never work with this electrical
appliance.
When cleaning or removing the appliance, always switch
it off. Pull the plug out of the receptacle, if you are not
going to use the appliance for an extended period of time.
Never pull on the cable to unplug the appliance, rather
pull on the plug itself. Also, remove any special
accessories from the appliance
Always keep the appliance clean. Don’t use any solvents
or cleaners that may damage or be harmful to the
appliance or user.
Never leave the appliance switched on unattended. If
you leave the work area, switch the appliance off or
unplug it from the receptacle (don’t pull the cord, but use
the plug).
In order to protect children from electric household
appliances, make sure that the cable can’t cause
children to stumble and don’t give children access to
the appliance.
Never use the appliance when you are under the
influence of medication, alcohol or drugs, if you are
currently under medical care, or if you are tired.
Check the appliance and the power cord regularly for
any possible damage. Don’t use damaged appliances.
Don’t try to repair the appliance yourself. Always use an
authorized technician for repairs. Always have faulty
power cords replaced immediately by the manufacturer
or a qualified service organization. Use the same type of
cable in order to prevent any danger of electric shock
and injury.
Only use original spare parts and accessories. Non
approved parts or third-party accessories may be a
possible source of danger and cause the guarantee to
become void.
Check the float often.
If you notice liquid leaking from your appliance, switch
it off immediately and unplug it.
Do not submerge the appliance in water. Make sure that
water is not spilled on the appliance.
When disposing of the wastewater, make sure that you
observe any legal regulations.
The appliance is designed to vacuum up materials that
are not hazardous to your health and that are not
flammable.
Never hold the connectors in front of your face
(especially your eyes, ears, etc.). Never direct the nozzle
towards persons or animals.
Only use the appliance for its designated purpose. Any
other types of use are at your own risk and are possibly
dangerous.
Other uses and unattended operation are not allowed.
The manufacturer cannot be made responsible for
damages that are caused by improper use or incorrect
operation.
Wear protective clothing and gloves.
Connect the appliance only to a 230-240V alternating
current receptacle.
Make sure that the correct dust bag has been inserted
securely in its holder before using the appliance. The
wrong dust bag or incorrectly installed dust bags can
cause damage to the appliance and cause the guarantee
to become void.
If the power cord is damaged, it must be comepletely
replaced along with the cable protector by an authorised
service centre or other qualified service organisation.
Do not vacuum up ashes, hot coals and the like, large
fragments of glass and sharp objects.
Never vacuum flammable or poisonous liquids like petrol,
oil, acids, or other volatile substances.
Don’t vacuum up any toner dust, which is used in printers
and copiers for example, because it is electrically
conductive. In addition, it is possible that it will not be
completely filtered out by the filter system of the wet/dry
vacuum cleaner and can be released into the air via the
exhaust fan.

DISPOSAL INFORMATION
SPECIFICATIONS
PACKAGING CONTENT
2
Only store the appliance in a safe and dry location
outside the reach of children.
WHEN USING BLOWER FUNCTION:
The appliance contains electric and electronic
components and may not be disposed of as household
garbage.
The local and currently applicable legislation must be
observed unconditionally.
Carefully unpack the contents of the box.
Hold the two clamps, which hold the upper section in its
position and fold them upwards.
Loosen the clamps, remove the upper section, and
remove the contents from the tank.
See Fig. 2 - Fig. 4
Please check the parts using the components list to
make sure they are complete and that there has been no
damage in transport.
If any parts are missing or damaged, then please contact
your dealer immediately.
Supply voltage:
Motor power:
Power take off:
Tank volume:
Hose system:
Filter - dry:
Filter - wet:
IP rating:
Suction:
Cord length:
240V ~ 50Hz
1400W
1000W
30L
Ø35mm
Cartridge filter
Foam filter
IPX4
17kpa/2.47PSI
4m
Don’t use the appliance without a dust bag (an exception
is wet vacuuming or with the cartridge filter). Make sure
that the dust bag is inserted into the appliance correctly.
SPECIAL SAFETY RULES
Never vacuum up hot ashes, pointed or sharp objects.
Never use the appliance in damp rooms.
When using the appliance, make sure that no hair,
clothing, or members are drawn in.
Keep the vacuum cleaner away from heat sources such
as radiant heaters, ovens, and so on.
Electrical power should be supplied via a residual current
device (RCD) with a tripping current of not more than
30mA.
Only use a weather proof extension cord. Check the
extension cord before every use for damage. Always
uncoil the extension cord during use because coiled
cords can overheat. Damaged extension cords should
not be repaired, they should be replaced with an
equivalent type.
ASSEMBLY
Ensure that the power cord is disconnected from the
power outlet.
Undo the clamps (Fig. 2).
Lift the top section off the tank (Fig. 3).
Remove the contents from inside the tank (Fig. 4).
Turn the tank upside down, and insert the casters on to
the four feet of the tank.
Ensure that they are mounted correctly. Do not over
tighten (Fig. 5).
Please also pay particular attention to the following
“Special Safety Rules”.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Always switch off and unplug the machine from the
electrical outlet before assembling, opening, emptying
the dirt container, before connecting/disconnecting the
attachments, or carrying out maintenance or
troubleshooting checks.
WARNING
If the hose or tools are blocked, switch off the cleaner and
remove the blockage(s) before re-starting your machine.
IMPORTANT!
Cleaning filters and replacing them regularly maintains
vacuum performance. Vax recommends that your filters
should be checked, cleaned and replaced periodically.
IMPORTANT!
DAMAGE TO THE VACUUM CLEANER CAUSED AS A
DIRECT RESULT OF NOT ADHERING TO THE GENERAL
SAFETY INFORMATION AND THE INSTRUCTIONS IN
THIS USER GUIDE INVALIDATES THE WARRANTY.
PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER
USE.
Direct air discharge at work area only – never at people
or animals.
Do not use blower as a sprayer in wet mode.
Wear a dust mask and protective eye wear.

OPERATION
Ensure that you read, understand, and apply the
safety instructions.
Reminder: DO NOT vacuum hazardous substances.
The use of an incorrect dust bag will invalidate the
warranty.
Ensure that the power cord is disconnected from the
outlet.
DRY VACUUMING
WET VACUUMING
Insert the handle into the slots on the power head and
pressure into place (Fig. 6).
For dry vacuum cleaning, install the supplied cartridge
filter and dust bag (Fig. 7, Fig. 8).
For wet vacuum cleaning, install the supplied foam filter
(Fig. 9)

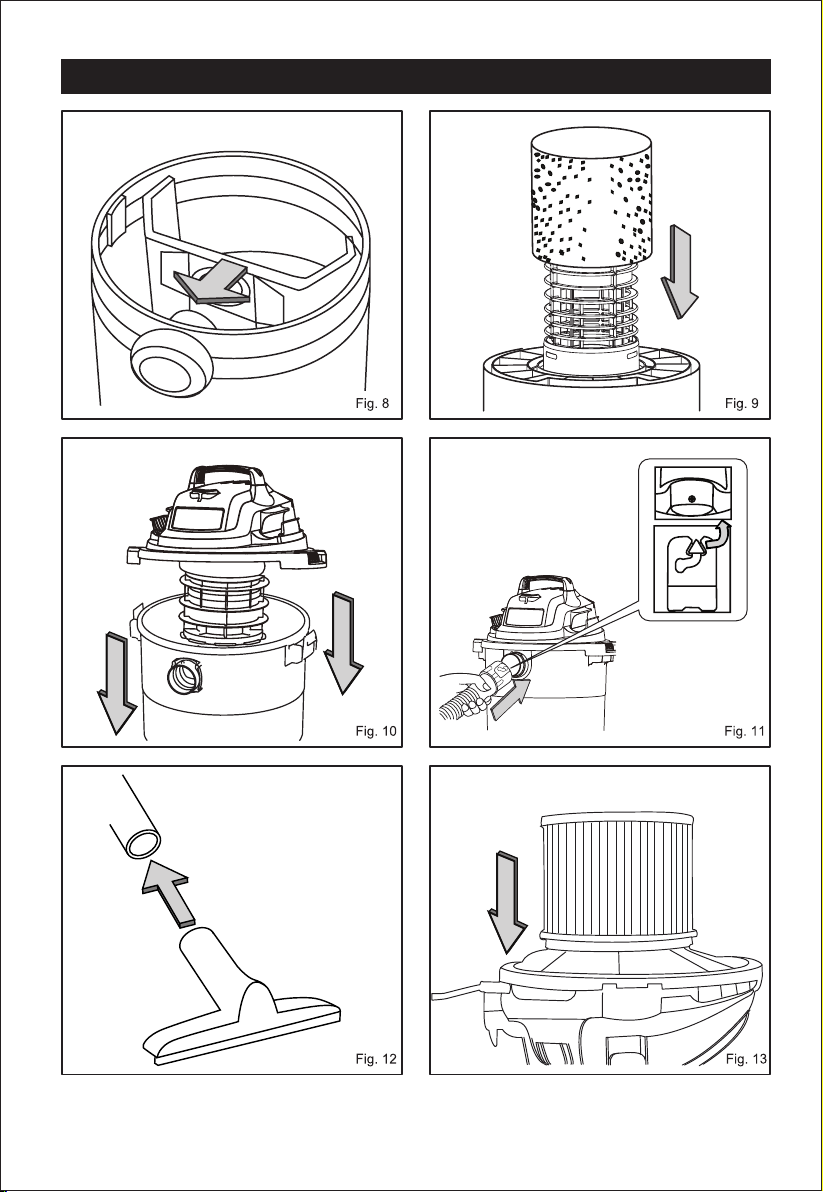

Replace the top section on the tank (Fig. 10).
Align the top section with the clamps and snap into place
by applying pressure until clamps click (Fig. 10).
Insert the large end of the hose into the front inlet of the
tank and turn to lock (Fig. 11).
Fit the required accessory on to the suction tube (Fig. 12).
Ensure that the cartridge filter is completely mounted.
Ensure that the filter is inserted all the way. (Fig. 13)
Verify that the dust bag is installed to the inside of the
tank (Fig. 8).
Replace the top section on the tank, and secure it in
place using the clamps (Fig. 10).
Insert the larger end of the hose into the front inlet on the
tank and lock it in place. Push the required attachment
on to the free end of the hose or extension (Fig.12).
3
Plug the power cord in to the power outlet.

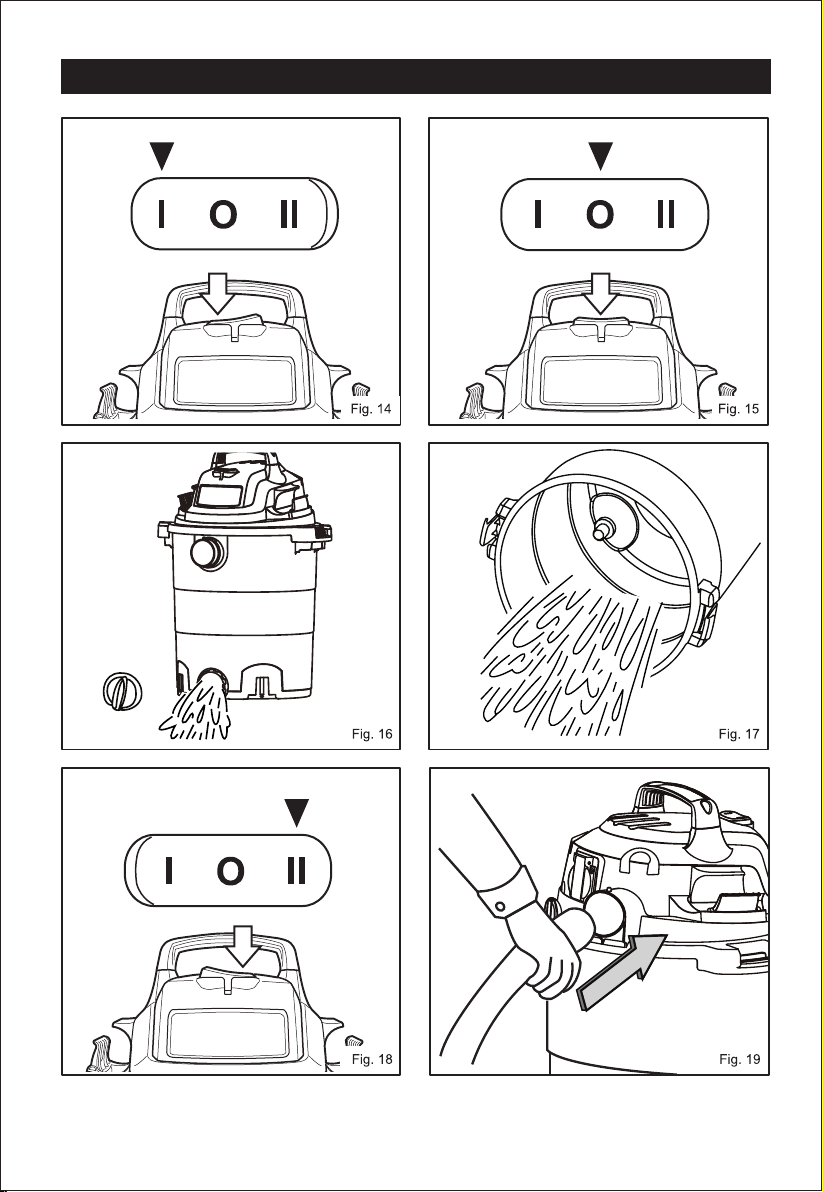

Turn the motor on by flipping the switch to the position
(Fig. 14).
Ensure that the power cord is disconnected from the
power outlet.
Ensure that the tank is clean and free of dust and dirt.
Flipping the switch to the position (Fig. 18).
Once the electrical appliance has been switched off, the
vacuum cleaner switches off following a time lapse.
Switch on electrical appliance. Only connect electrical
appliances with a maximum power rating of 1000W.
Once you have finished vacuuming, flip the switch to the
position and unplug the power cord from the power
outlet. (Fig. 15)
DO NOT USE THE CARTRIDGE FILTER FOR WET
OR SHARP MATERIALS.
DO NOT USE DUST BAG FOR LIQUID VACUUMING.
Remove the cartridge filter and dust bag, and install a
foam filter over the filter basket and place the top section
back on the tank (Fig. 9).
DO NOT use the cartridge filter for wet or sharp materials.
Fit the desired nozzle to the vacuum hose (Fig. 12).
Ensure that the switch is in the position before
plugging the power cord into the power outlet.
Turn the motor on by flipping the switch to the position
(Fig. 14).
Connect electrical appliance with Power Take Off on the
Shopvac.
After use, flip the switch to the position (Fig. 15) and
unplug the power cord, then empty and dry the tank
(Fig. 16, Fig. 17).
BLOWER OPERATION
CONNECT ELECTRICAL APPLIANCES
WARNING
The foam filter must be removed after wet vacuuming,
and a cartridge filter must be installed before dry
vacuuming again.
WARNING
Always wear safety goggles before using blower.
WARNING
Keep bystanders clear from blowing debris.
WARNING
Ensure that you read, understand, and apply the
safety instructions.
Reminder: DO NOT vacuum hazardous substances.
WARNING
When vacuuming large quantities of liquids, do not immerse
the nozzle completely in the liquid; leave a gap at the tip of
the nozzle opening to allow air inflow.
The machine is fitted with a float valve that stops the
suction action when the container reaches its maximum
capacity. You will notice an increase in motor speed.
When this happens, turn off the machine, disconnect from
power supply, and drain the liquid into a suitable receptacle
or drain. To continue vacuuming, refit the container with the
drain cap. After wet vacuuming, turn the machine off and
remove plug from power supply.
Empty the container, clean and dry the inside and outside
before storage.
This Wet/Dry Vac has blowing capabilities.
To use the blower feature follow the instructions listed.
IMPORTANT!
WARNING

ENVIRONMENTAL PROTECTION
Insert the large end of the hose into the blower
connection in the top of the motor housing (Fig. 19).
Fit the crevice to the vacuum hose (Fig. 20).
Ensure the power switch is turned off and plug in the
power supply.
Turn the motor on by flipping the switch to the position
(Fig. 14).
The unit will now blow through the vacuum hose and can
be used to clear obstructions within the hose.
Install the dry filter over the filter cage with the flat end of
the filter towards the vacuum power head. Carefully push
filter in until it stops against the power head. (Fig.21 & 22)
Place filter retainer on top of cartridge filter over the raise
lip and tighten down by turning retainer clockwise, do not
over tighten. (Fig. 23 & 24)
Unlock and remove the filter retainer by turning retainer
handle anticlockwise.
Carefully hold and pull the dry filter up for removal.
(Fig. 25)
Clean the cartridge filter by gently tapping or brushing
dirt off. For optimal performance it is recommended to
regularly change this filter depending on level of use
(eg. 3-6 months).
Install cleaned or new filter into place as instructed above.
Once you have finished operation, flip the switch to the
position and unplug the power cord from the power
outlet. (Fig. 15)
INSTALLING AND CLEANING THE DRY FILTER
Removing And Cleaning Dry Filter (THIS FILTER IS
NOT WASHABLE)
Installing Dry Filter
Follow instructions to remove dry dust filter first before
changing to foam filter.

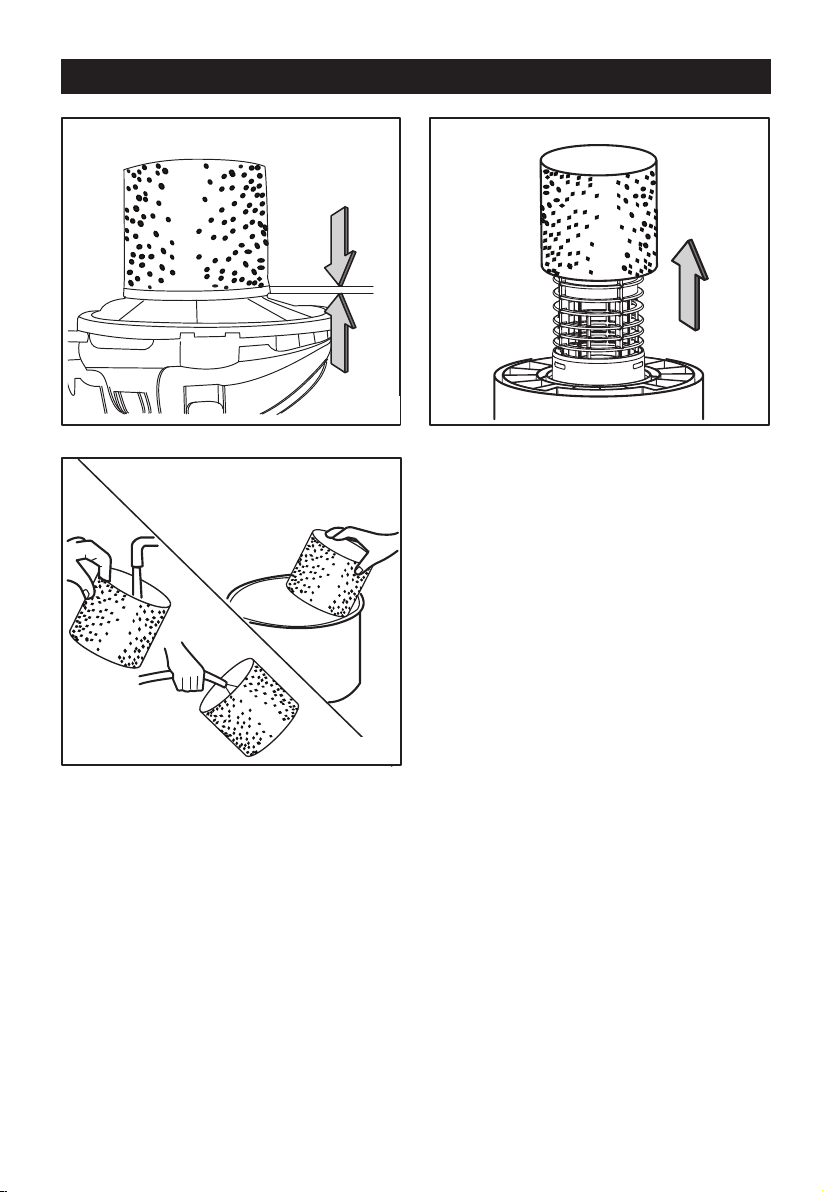

Carefully slide foam filter down over the filter cage
making sure the whole cage is covered. (Fig. 9 & 26)
Carefully remove foam filter. (Fig. 27)
Use a mild soap and water solution to wash foam filter
and rinse with clean water. (Fig. 28)
Allow filter to air dry before installing and using again.
Installing Foam Filter
Cleaning Foam Filter
INSTALLING AND CLEANING THE FOAM FILTER
Recycle raw materials instead of disposing of as
waste. The machine, accessories and packaging
should be sorted for environmental-friendly
recycling.
Wear a dust mask if blowing creates dust that might
be inhaled.
WARNING
If after a few seconds the hose continues to be
blocked, turn off the unit and clear the hose manually.
WARNING
Unplug machine from the power outlet before
performing maintenance.
NOTE:
Unplug machine from the power outlet before
performing maintenance.
NOTE:
4
SYMBOL
Recycle
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice.
Regulatory Compliance Mark (RCM).
Product meets applicable regulatory requirements.
Please read the instructions carefully before
starting the machine.
Safety Alert
Volts
Hertz
Alternating Current
Watts
MAINTENANCE

TROUBLE SHOOTING
WARNING
5
Problem Cause Solution
The appliance doesn’t work No power Check the power supply.
Have the damaged part checked by
qualified personnel or replace it.
Empty the tank
Functional fault in the power cord, switch,
or motor
Tank is full of liquid
Dust is escaping from the
motor cover The dust bag is missing or damaged Put in a dust bag or replace it.
Low suction power and high
motor speed / vibrations Dust bag is full Replace the dust bag
Check the suction nozzle, hose, and
tank inlet for obstructions.
Suction nozzle, hose, or tank inlet is blocked.
To reduce the risk of personal injury, unplug the cleaner before performing maintenance/troubleshooting checks.

Techtronic Industries (Australia) Pty. Ltd.
31Gilby Road,
Mt. Waverley, VIC 3149, Australia
Techtronic Industries New Zealand Ltd.
2 Landing Drive, Auckland Airport,
Mangere, New Zealand 2022
