Ryobi R18WV User manual

ORIGINAL INSTRUCTIONS
Window Vacuum
R18WV
For sign-off review, sent 28 Jan 2019

Important!
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.
It is essential that you read the instructions in this manual before
assembling, operating, and maintaining the product.
Subject to technical modifications.
For sign-off review, sent 28 Jan 2019

1
Safety, performance, and dependability have been given
top priority in the design of your window vacuum.
INTENDED USE
7KHZLQGRZYDFXXPLVRQO\LQWHQGHGIRUYDFXXPLQJÀXLGV
on smooth vertical surfaces such as windows, mirrors, and
tiles.
The product is not intended to vacuum up larger amounts
RI ÀXLGV IURP KRUL]RQWDO VXUIDFHV DQG LV QRW LQWHQGHG WR
suck dust.
The product is to be used with conventional window
cleaners only, not spirit or foam cleaners.
Do not use the product in any way other than those stated
for intended use.
WINDOW VACUUM SAFETY WARNINGS
ŶSave these instructions. Refer to them frequently and
use them to instruct others who may use this tool. If you
loan someone this tool, loan them these instructions
also.
ŶDo not let familiarity gained from frequent use of tools
allow you to become complacent and ignore tool safety
principles. A careless action can cause severe injury
within a fraction of a second.
ŶKeep handles and grasping surfaces dry, clean and
free from oil and grease. Slippery handles and grasping
surfaces do not allow for safe handling and control of
the tool in unexpected situations.
ŶThe product is intended for household use only.
ŶUse the product only for its intended use as described
in this manual.
ŶThe product is not intended to vacuum fluids from
KRUL]RQWDOVXUIDFHVDQGLVQRWLQWHQGHGWRVXFNGXVW
ŶIf the product is not working properly, has been
dropped, damaged, left outdoors or dropped into water,
return to your nearest service centre.
ŶDo not handle the product or charger with wet hands.
ŶDo not put any objects in ventilation openings. Do
not use the product with any opening blocked. Keep
openings free of dust, lint, hair and anything that may
reduce air flow.
ŶUse extra care when using the product on stairs.
ŶDo not place the product near fire or heat. They may
explode.
ŶThe product should be charged in a location where the
temperature is more than 10°C but less than 38°C.
CAUTION
If water is exiting from the exhaust vent, turn off the
product immediately and empty the catch tank. Dry the
product off and remove the battery to check for water.
Dry off any water immediately.
BATTERY AND CHARGER SAFETY WARNINGS
ŶConnect and disconnect the battery pack properly.
ƔTo install battery pack:
–Place the battery pack on the product.
–Make sure the latches on each side of the
battery pack snap into place and the battery
pack is secured on the product before beginning
operation.
ƔTo remove battery pack:
–Depress the latches on the side of the battery
pack.
–Remove the battery pack from the product.
ŶRemove battery when the product is not in use and
before servicing.
ŶUse power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
ŶWhen battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys, nails,
screws or other small metal objects, that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
ŶUnder abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes, additionally
seek medical help. Liquid ejected from the battery may
cause irritation or burns.
ŶDo not use a battery pack or tool that is damaged or
modified. Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire, explosion or
risk of injury.
ŶDo not expose a battery pack or tool to fire or excessive
temperature. Exposure to fire or temperature above
130 °C may cause explosion.
ŶRecharge only with the charger specified by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with
another battery pack.
ŶFollow all charging instructions and do not charge the
battery pack or tool outside the temperature range
specified in the instructions. Charging improperly or at
temperatures outside the specified range may damage
the battery and increase the risk of fire.
ŶDo not expose charger to wet or damp conditions.
ŶDo not place batteries near fire or heat. They may
explode.
ŶUse of an attachment not recommended or sold by the
battery charger manufacturer may result in a risk of fire,
electric shock, or injuries to person.
ŶTo reduce risk of damage to charger body and cord, pull
by charger plug rather than cord when disconnecting
charger.
ŶMake sure cord is located so that it will not be stepped
For sign-off review, sent 28 Jan 2019

2
on, tripped over, or otherwise subjected to damage and
stress.
ŶAn extension cord should not be used unless absolutely
necessary. Use of improper extension cord could result
in a risk of fire and electric shock. If extension cord must
be used, make sure:
a) That pins on plug of extension cord are the same
QXPEHU VL]H DQG VKDSH DV WKRVH RI SOXJ RQ
charger.
b) That extension cord is properly wired and in good
electrical condition.
ŶDo not operate charger with a damaged cord or plug. If
damaged, have it replaced immediately by a qualified
serviceman.
ŶDo not operate charger if it has received a sharp blow,
been dropped, or otherwise damaged in any way; take
it to a qualified serviceman.
ŶDo not disassemble charger; take it to a qualified
serviceman when service or repair is required. Incorrect
reassembly may result in a risk of electric shock or fire.
ŶTo reduce risk of electric shock, unplug the charger
from outlet before attempting any maintenance or
cleaning. Turning off controls will not reduce this risk.
ŶDisconnect charger from power supply when not in use.
ŶRisk of electric shock. Do not touch uninsulated portion
of output connector or uninsulated battery terminal.
ŶRechargeable batteries are to be removed from the
product before being charged.
ŶDifferent types of batteries or new and used batteries
are not to be mixed.
ŶBatteries are to be inserted with the correct polarity.
ŶExhausted batteries are to be removed from the product
and safely disposed of.
ŶIf the product is to be stored unused for a long period,
the batteries should be removed.
ŶThe supply terminals are not to be short-circuited.
ŶUnder extreme usage or temperature conditions,
battery leakage may occur. If liquid comes in contact
with skin, wash at least 10 minutes then seek immediate
medical attention.
ŶBatteries vent hydrogen gas and can explode in the
presence of a source of ignition, such as a pilot light.
To reduce the risk of serious personal in jury, never use
any cordless product in the presence of an open flame.
An exploded battery can propel debris and chemicals. If
exposed, flush with water immediately.
ŶElectric shock could occur if the battery is charged
outdoors or on wet surfaces.
TRANSPORTING LITHIUM BATTERIES
Transport the battery in accordance with local and national
provisions and regulations.
Follow all special requirements on packaging and labelling
when transporting batteries by a third party. Ensure that
no batteries can come in contact with other batteries
or conductive materials while in transport by protecting
exposed connectors with insulating, non-conductive caps
or tape. Do not transport batteries that are cracked or
leaking. Check with the forwarding company for further
advice.
WARNING
The product is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the product by a person responsible
for their safety.
Children should be supervised to ensure that they do not
play with the product.
RESIDUAL RISKS
Even when the vacuum is used as prescribed, it is still
impossible to completely eliminate certain residual risk
IDFWRUV7KHIROORZLQJKD]DUGVPD\DULVHDQGWKHRSHUDWRU
should pay special attention to avoid the following:
ŶUse the product only for its intended use. Do not alter or
modify the product from the original design or function.
ŶAlways be aware that misuse and improper handling
of this vacuum can cause injury to yourself and others.
Ŷ1HYHU YDFXXP XS ODUJHU DPRXQWV RI ÀXLGV IURP
KRUL]RQWDOVXUIDFHVDQGGRQRWYDFXXPGXVW
MAINTENANCE
ŶCleaning and user maintenance shall not be made by
children without supervision.
ŶWipe the product dry after every use. Ensure the
battery is dry.
ŶDo not clean with harsh chemicals or strong detergents.
ŶEmpty liquid container and clean wiping cloth after
every use for hygiene purposes.
Ŷ.HHSUXEEHUQR]]OHFOHDQDQGIUHHRIIRUHLJQREMHFWVIRU
optimal performance.
CAUTION
When the foam or liquid achieves MAX level of the
indicator, empty the liquid container.
ENVIRONMENTAL PROTECTION
Recycle raw materials instead of disposing
of as waste. The machine, accessories and
packaging should be sorted for environment-
friendly recycling.
For sign-off review, sent 28 Jan 2019

3

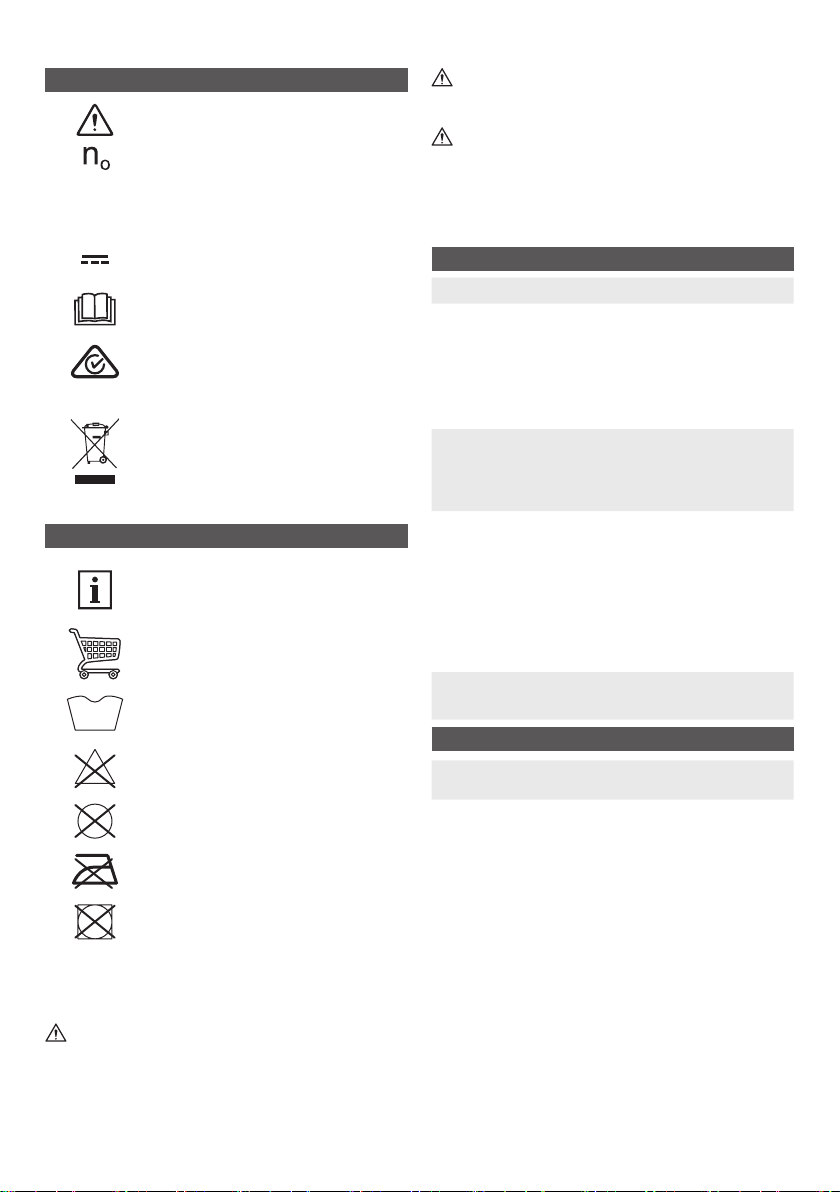

SYMBOLS ON THE PRODUCT
Safety alert
No-load speed
VVolts
Direct current
Please read the instructions carefully
before starting the machine.
Regulatory Compliance Mark (RCM).
Product meets applicable regulatory
requirements.
Waste electrical products should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your local authority or retailer
for recycling advice.
SYMBOLS IN THIS MANUAL
Note
Parts or accessories sold separately
60° Wash at or below 60°C.
Do not bleach.
Do not dry clean.
Do not iron.
Do not tumble dry.
The following signal words and meanings are intended to
explain the levels of risk associated with this product:
DANGER
,QGLFDWHVDQLPPLQHQWO\KD]DUGRXVVLWXDWLRQZKLFKLIQRW
avoided, will result in death or serious injury.
WARNING
,QGLFDWHVDSRWHQWLDOO\KD]DUGRXVVLWXDWLRQZKLFKLIQRW
avoided, could result in death or serious injury.
CAUTION
,QGLFDWHVDSRWHQWLDOO\KD]DUGRXVVLWXDWLRQZKLFKLIQRW
avoided, may result in minor or moderate injury.
CAUTION
(Without Safety Alert Symbol) Indicates a situation that
may result in property damage.
TROUBLESHOOTING
PROBLEM SOLUTION
Vacuum has poor suction Ensure that liquid container drain
hole cover is closed.
(QVXUHWKDWQR]]OHLVLQVHUWHGIXOO\
Ensure that liquid container
separator is assembled correctly.
(QVXUHWKDWWKHQR]]OHDQG
squeegee are clean. Remove
squeegee to clean if necessary.
Resistance when moving
VTXHHJHHQR]]OHRQ
surface
Check if the surface is wet across
WKHFRPSOHWHZLGWKRIQR]]OH
1R]]OHZLOOJULSDQGEHQRLV\RQ
dry surface.
Water is exiting from the
exhaust vent
Check if liquid container is over
¿OOHG'RQRWXVHLIOLTXLGOHYHOLV
above MAX indicator.
Check if detergent concentration
is too high. Strong soap will create
too much foam and raise above
the MAX level.
Avoid shaking the unit during use
as it could bring liquid close to the
suction port in liquid container.
Spray gun is not spraying &KHFNLIVSUD\QR]]OHLVLQ635$<
or STREAM position.
BATTERY AND CHARGER
Model Compatible battery pack
(not included)
Compatible charger
(not included)
Lithium-Ion
Model series RB18LXX**
includes models below:
RB18L13
RB18L15
RB18L20
RB18L20A
RB18L25
RB18L25A
RB18L40
RB18L50
BCS618G
BCL14181H
BCL14183H
BCL1418IV*
RC18150
RC18150U
RC18627U
RC18115
RC18120
*for vehicles with 12V DC outlets
** RB18L60A and RB18L90A is not suitable for use in this
product
For sign-off review, sent 28 Jan 2019

4
For sign-off review, sent 28 Jan 2019

5

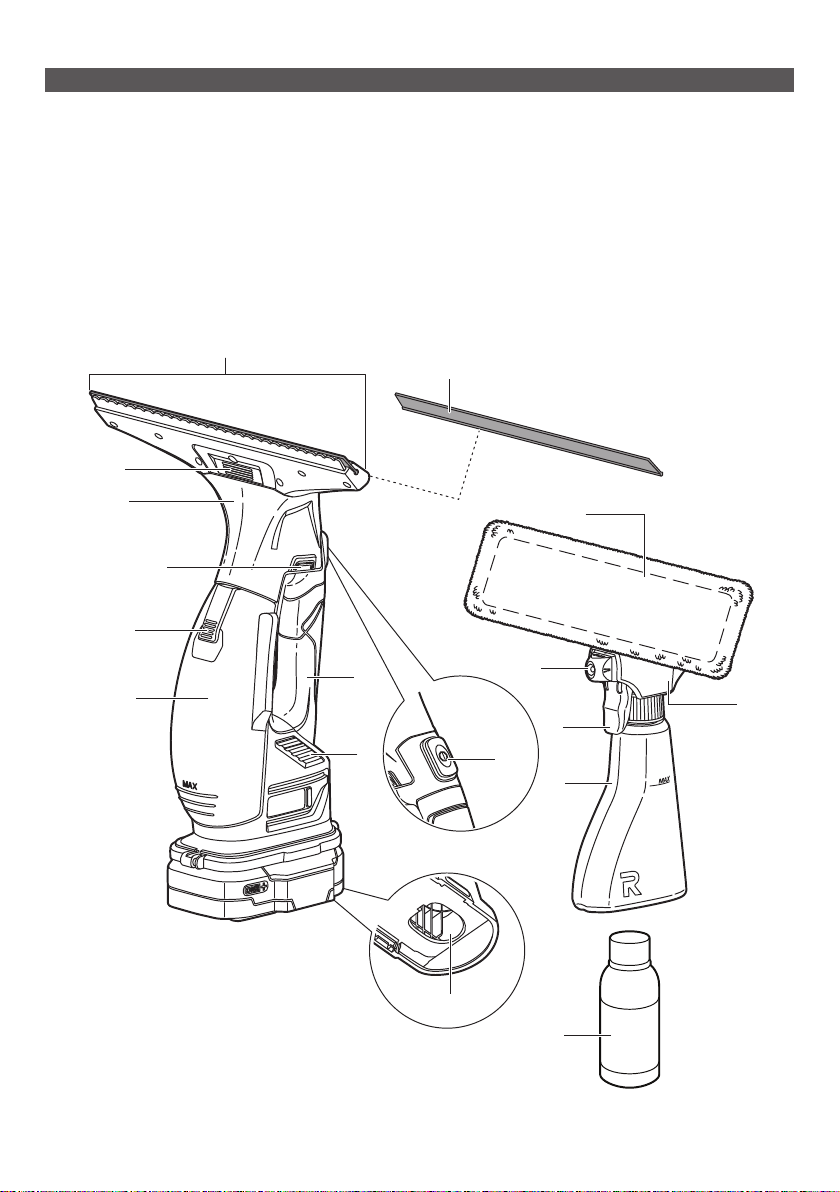

1. 1R]]OHZLWKVTXHHJHH
2. Squeegee
3. 1R]]OHODWFK
4. 1R]]OHFRQQHFWRU
5. 1R]]OHFRQQHFWRUODWFK
6. Liquid container drain hole cover
7. Liquid container
8. Handle
9. Exhaust Vent
10. On / off switch
11. Wiping cloth
12. 6SUD\QR]]OH
13. Wiping cloth holder
14. Spray trigger
15. Spray bottle
16. Battery port
17. Concentrate glass cleaner

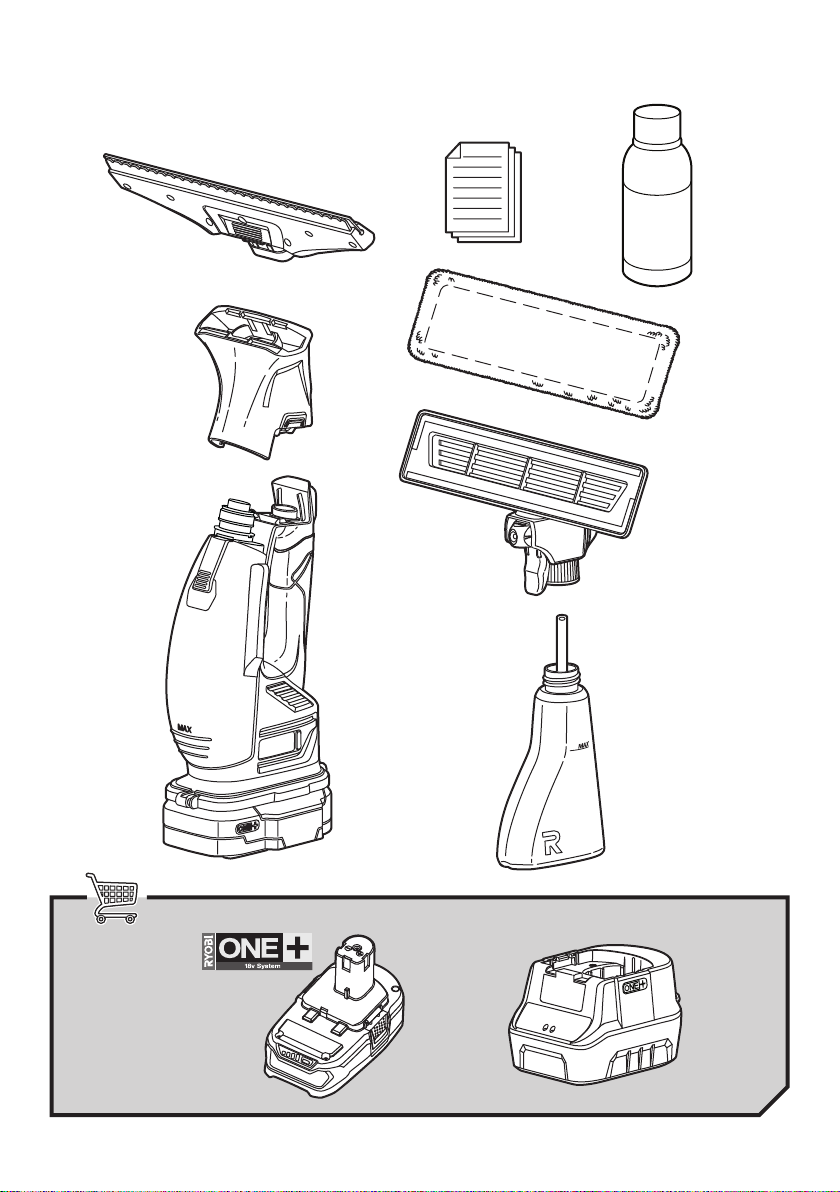

KNOW YOUR PRODUCT
10
16
11
3
1
2
4
5
8
9
12
14
13
15
17
6
7
* 13. Wiping cloth holder and 15. Spray bottle cannot be disassembled.
For sign-off review, sent 28 Jan 2019

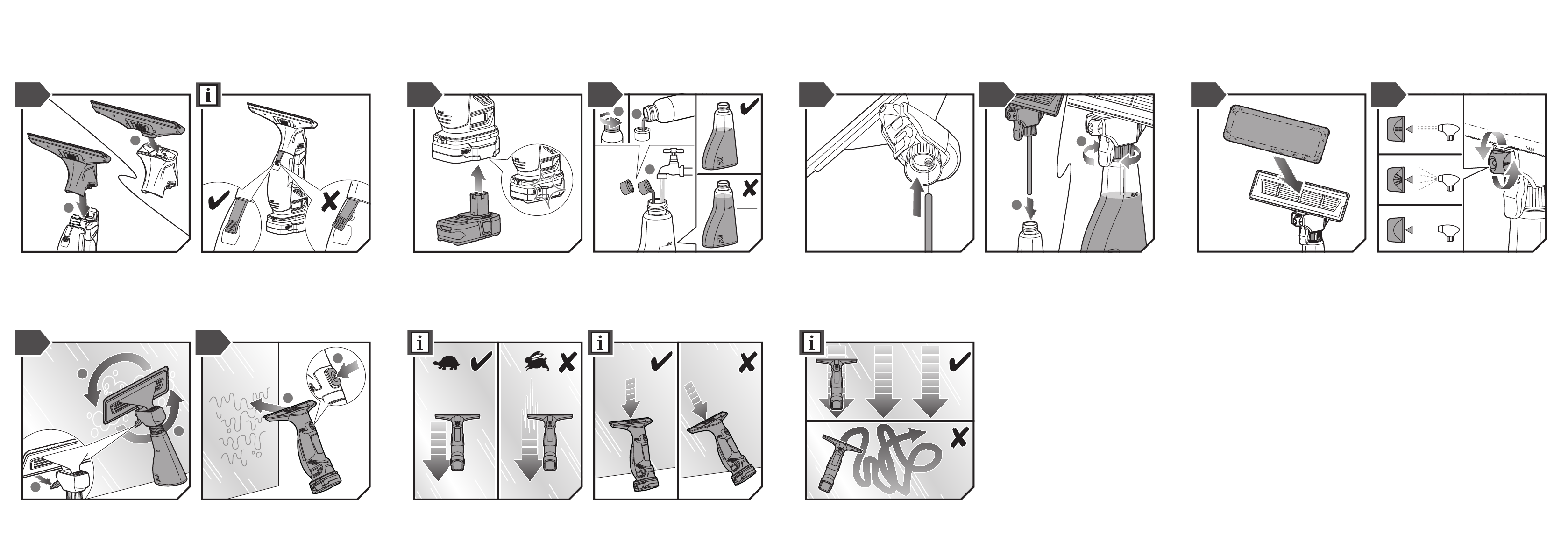

76
STOP
2
1
4 5
240 ml
3
2
1
x 2 = 12 ml
MAX
MAX
2
2
1
1
2
2
1
1 2 3 6 7
8 9
For sign-off review, sent 28 Jan 2019

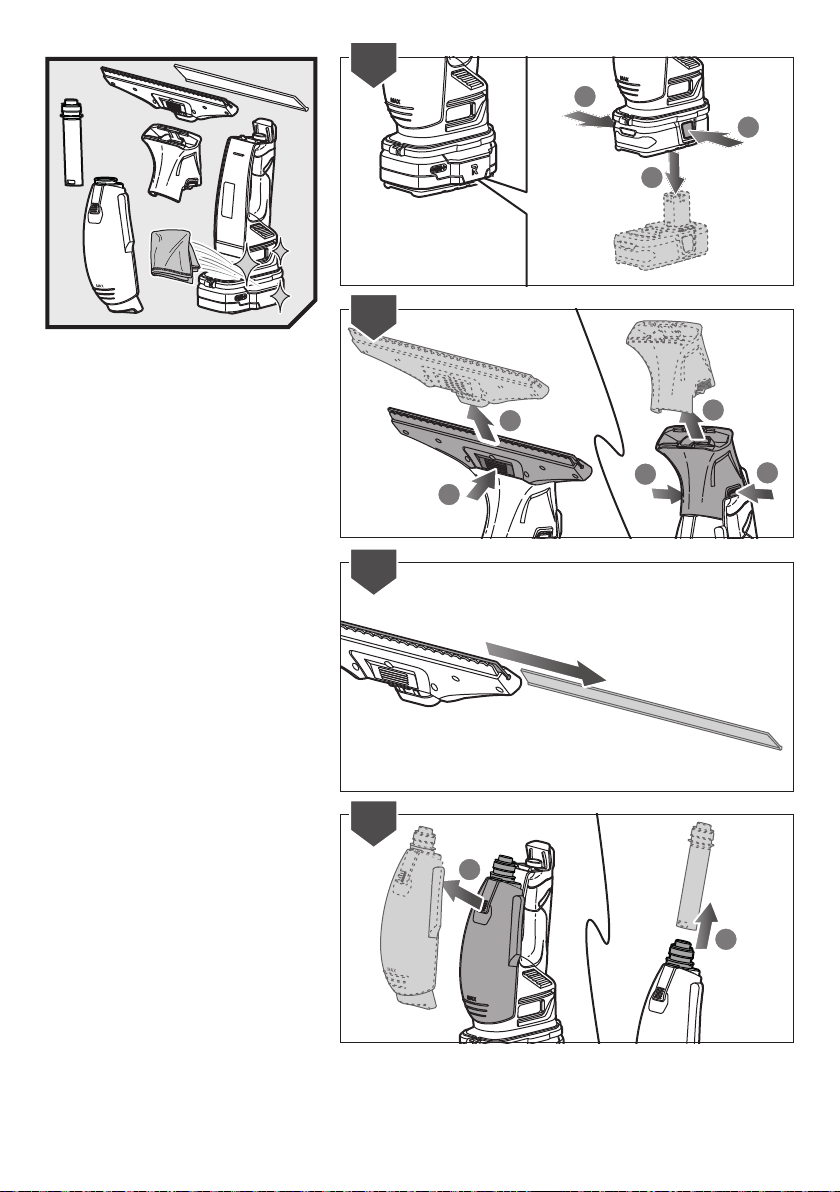

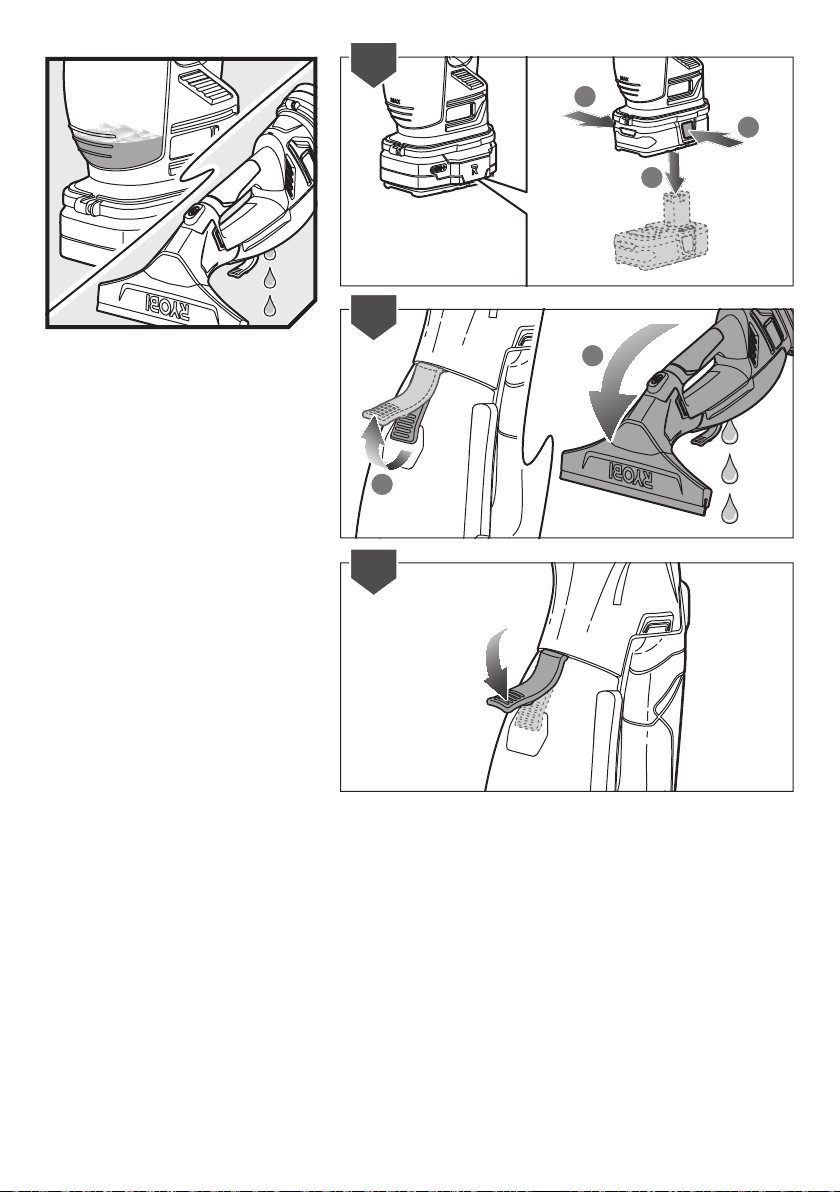

8
MAXMAX
1
2
2
1
1
2
1
3
For sign-off review, sent 28 Jan 2019

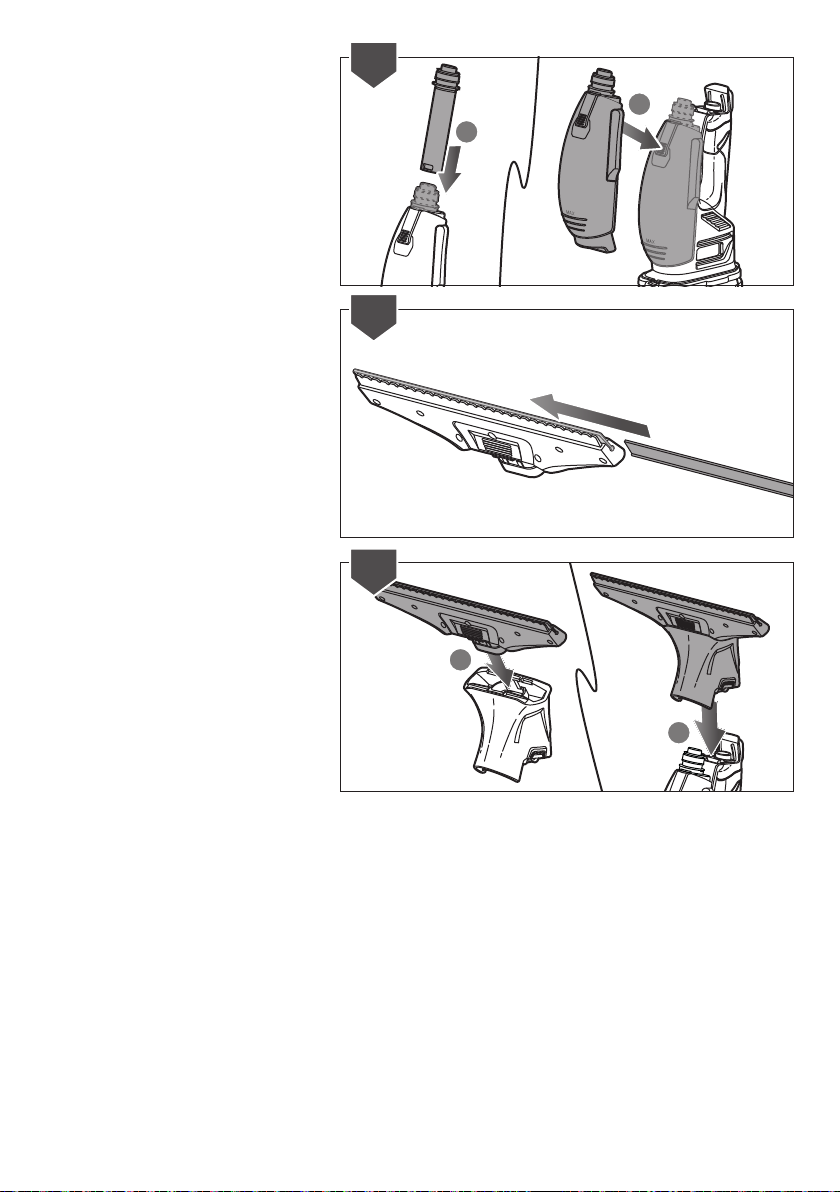

3
3
4
2
1
2
1
1
2
1
1
2
3
4
For sign-off review, sent 28 Jan 2019

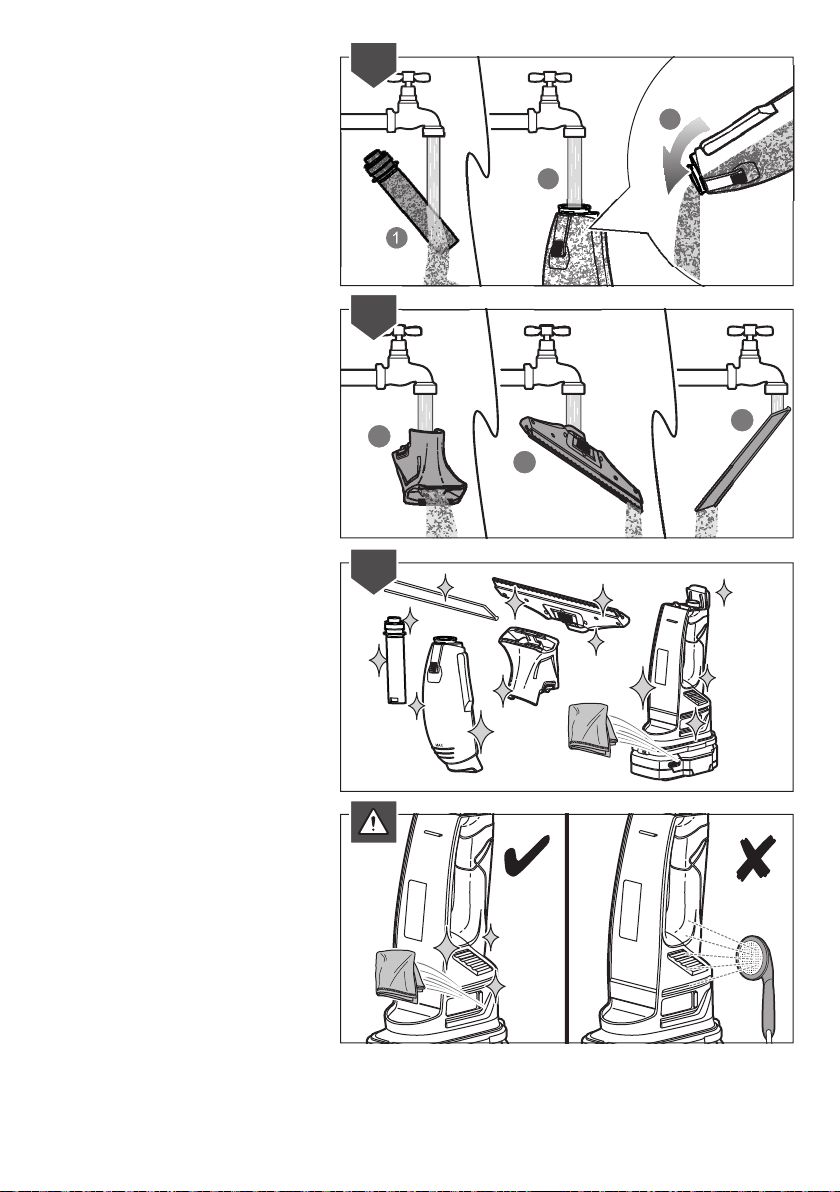

1
2
3
1
2
3
5
6
7
20190128v1_d14
For sign-off review, sent 28 Jan 2019

9
1
2
1
2
8
9
10
For sign-off review, sent 28 Jan 2019

Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley, VIC 3149
Melbourne, Australia
Techtronic Industries N.Z. Limited
2 Landing Drive, Mangere
Auckland, 2022, New Zealand
Imported by:

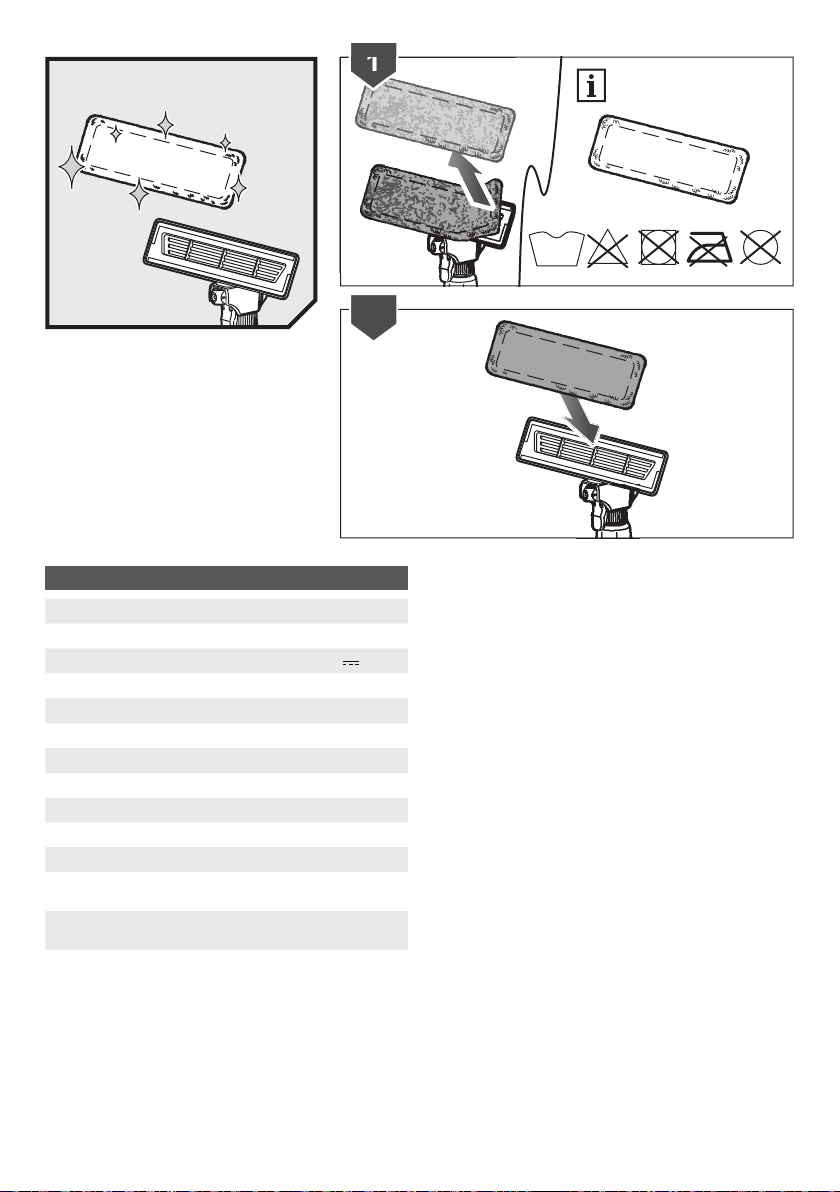

PRODUCT SPECIFICATIONS
Window vacuum
Model R18WV
Voltage 18 V
$LUÀRZYROXPH 0.36 m3 / min
Liquid container capacity 70 ml
Spray bottle capacity 256 ml
Ingress protection IPX4
Weight
Window vacuum - excluding battery pack 0.82 kg
Spray bottle - including wiping cloth 0.15 kg
Measured sound values determined according to IEC60704:
A-weighted sound pressure level
Uncertainty K
LpA = 65 dB(A)
3 dB
A-weighted sound power level
Uncertainty K
LwA = 76 dB(A)
3 dB
Wear ear protectors.
2
60°
1
RYOBI is a trademark of Ryobi Limited,
and is used under license.
For sign-off review, sent 28 Jan 2019
