S-BOL G0606X User manual

- 1 -
PANEL HEATER
INSTRUCTION MANUAL
(wall mounted only)

- 2 -
SYMBOLS
Warning
This signal word indicates a hazard with an average
risk level which, if not avoided, can result in serious
injury or death.
Warning of electrical voltage
This symbol indicates dangers to the life and health of
persons due to electrical voltage.
Symbols
Meaning
This symbol located on the device indicates that it is
prohibited to place objects (such as towels, clothes etc.)
above or directly in front of the device.
In order to avoid overheating and fire hazards, the device
must not be covered.
This symbol located on the device indicates dangers to the
life and health of persons due to hot surface.
This symbol located on the device indicates that it is
prohibited to spray the device.
This symbol located on the device and information marked
indicates that operating manual must be observed.

- 3 -
CONTENT
1┃WARNING & PRECAUTION
2┃FEATURES
3┃TECHNICAL INFORMATION
4┃SCOPE OF SUPPLY
5┃DEVICE STRUCTURE
6┃INSTALLATION
7┃TROUBLESHOOTING
8┃MAINTENANCE & SERVICING
9┃STORAGE
10┃TECHNICAL ANNEX
11┃DISPOSAL

- 4 -
1┃WARNING & PRECAUTION
Read this manual carefully before starting or using the
device. Always store the manual in the immediate vicinity
of the device or its site of use!
Read all safety warnings and all instructions.
Failure to follow the warnings and instructions may result in
electric shock, fire and / or serious injury. Save all warnings
and instructions for future reference.
Warning
Do not ceiling mount those devices designed for wall only!
Or else it may cause burning, fire and falling off risk!
Warning
This appliance can be used by children aged from
8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children
without supervision.
Warning
Children of less than 3 years should be kept away
unless continuously supervised.
Children aged from 3 years and less than 8 years shall
only switch on/off the appliance provided that it has
been placed or installed in its intended normal
operating position and they have been given

- 5 -
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved.
Children aged from 3 years and less than 8 years shall
not plug in, regulate and clean the appliance or
perform user maintenance.
Warning
Do not use the device in small rooms if persons are
present who cannot leave the room independently and
who are not under constant supervision.
Warning
Some parts of this product can become very hot and cause
burns. Particular attention has to be given where children
and vulnerable people are present. Its dangerous of
installation close to curtains and other combustible
materials. To avoid the possibility of burns, the following
people should be much more careful when using the
heaters: infants and kids, people with sensitive skin, the
old, the sick, people who is drunk, people who takes sleeping
pills.
•Remove all the blue protective films(both on the front and on the back)
before using.
•Be sure the usage voltage is between 220-240V, 50Hz, and power
supply has been strictly in accordance with IEC, left is null wire and right
is live wire, and also well grounded.
•The devices will draw more current than small appliances, so a
separate 5A socket is required.

- 6 -
•Do not use the device in potentially explosive rooms.
•Do not use the device in aggressive atmosphere.
•Set the device up in an upright and stable position.
•Let the device dry out after a wet clean. Do not operate it
when wet.
•Do not use the device with wet or damp hands.
•Do not expose the device to directly squirting water.
•Never insert any objects or limbs into the device.
•Do not cover or transport the device during operation.
•Do not sit on the device.
•This appliance is not a toy! Keep away from children and animals. Do
not leave the device unattended during operation.
•Check accessories and connection parts for possible damage prior to
every use of the device. Do not use any defective devices or device
parts.
•Ensure that all electric cables outside of the device are protected from
damage (e.g. caused by animals). Never use the device if electric cables
or the power connection are damaged!
•The electrical connection must be according to the specifications in
chapter Technical data.

- 7 -
•Insert the mains plug into a properly secured mains socket.
•Do not use the device when the socket or wire overloaded.
•Observe the device's power input, cable length and intended use when
selecting extensions to the power cable. Completely unroll extension
cables. Avoid electrical overload.
•Before carrying out maintenance, care or repair work on the device,
remove the mains plug from the mains socket. Hold onto the mains plug
while doing so.
•Switch the device off and disconnect the power cable from the mains
socket when the device is not in use.
•Do not under any circumstances use the device if you detect damages
on the mains plug or power cable. If the supply cord is damaged, it must
be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard. Defective power cables pose a
serious health risk.
•During the installation of the device observe the minimum distances
from walls and other objects as well as the storage and operating
conditions specified in the Technical data chapter.
•Never drill into the heating device.
•Do not use the device once any damage found on the glass or mirror
surface.
•Do not use the device in immediate proximity to curtains.

- 8 -
•Do not place the device on combustible ground.
•Do not transport the device during operation.
•Do not touch the surface during the device working to avoid burns.
•Allow the device to cool down before transport and / or maintenance
work.
•Do not use this device near bathtubs, shower trays, swimming pools or
other water containers. Risk of electric shock!
•The device must be placed where the switches and controllers cannot
be touched by a person in a bathtub or shower.
•Do not use this device in a child-care centre and bathroom.(Only for
Sweden)
•This series must be mounted above 0.6meters high！
2┃FEATURES
•The device is designed to provide an efficient, comfortable and
healthy heating system for any domestic users.
•These devices can reduce air circulation and help to maintain a
clean, silent, dust free environment.
•Warning again, all the devices should be wall mounted.
•A wide range of device devices available in a huge choice of colors,
sizes and styles.

- 9 -

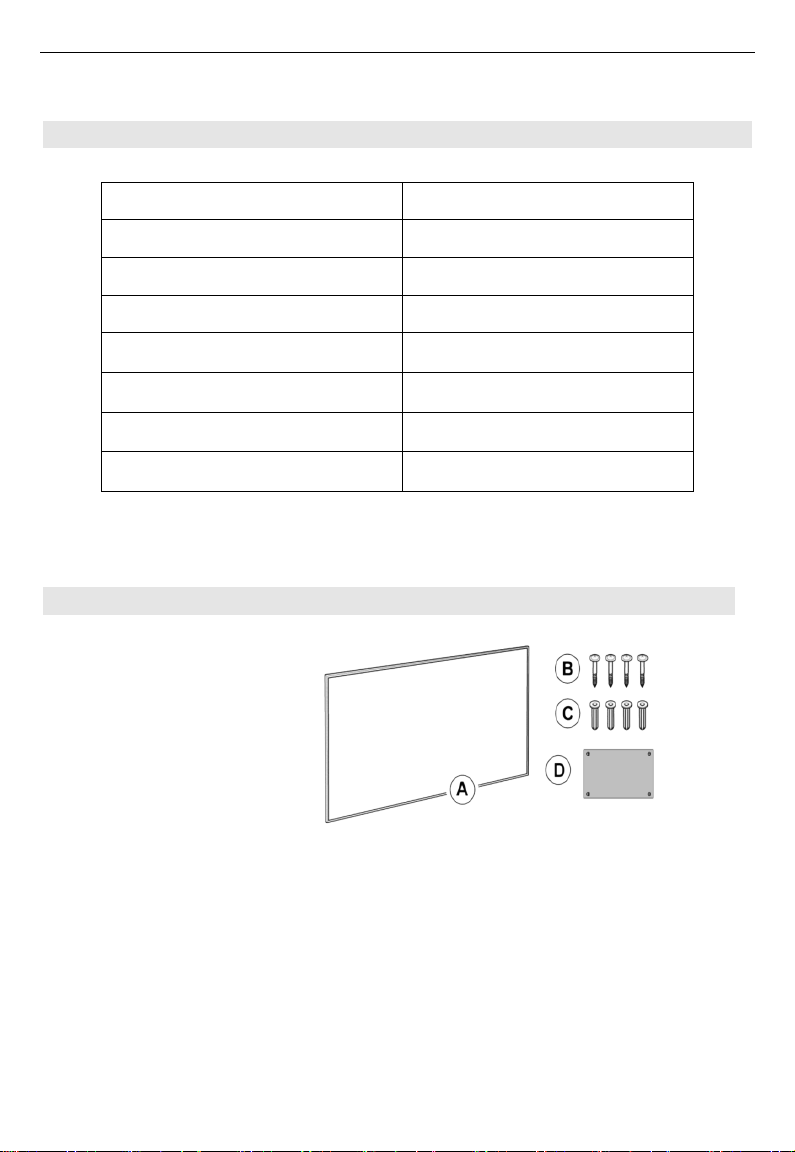

3┃TECHNICAL INFORMATION
Heating element
Carbon
Heating way
Far infrared heating
Voltage
220-240V/50Hz
Surface temperature
Main 70-90℃
Surface
Tempered Glass or mirror
IP grade
IP54 (exclude plug)
Over heating protection
Yes
Power cord length
1.9m
4┃SCOPE OF SUPPLY
•1 x heating device
•4 x Screws
•4 x Dowel
•1 x Manual
•1 x drilling template

- 10 -

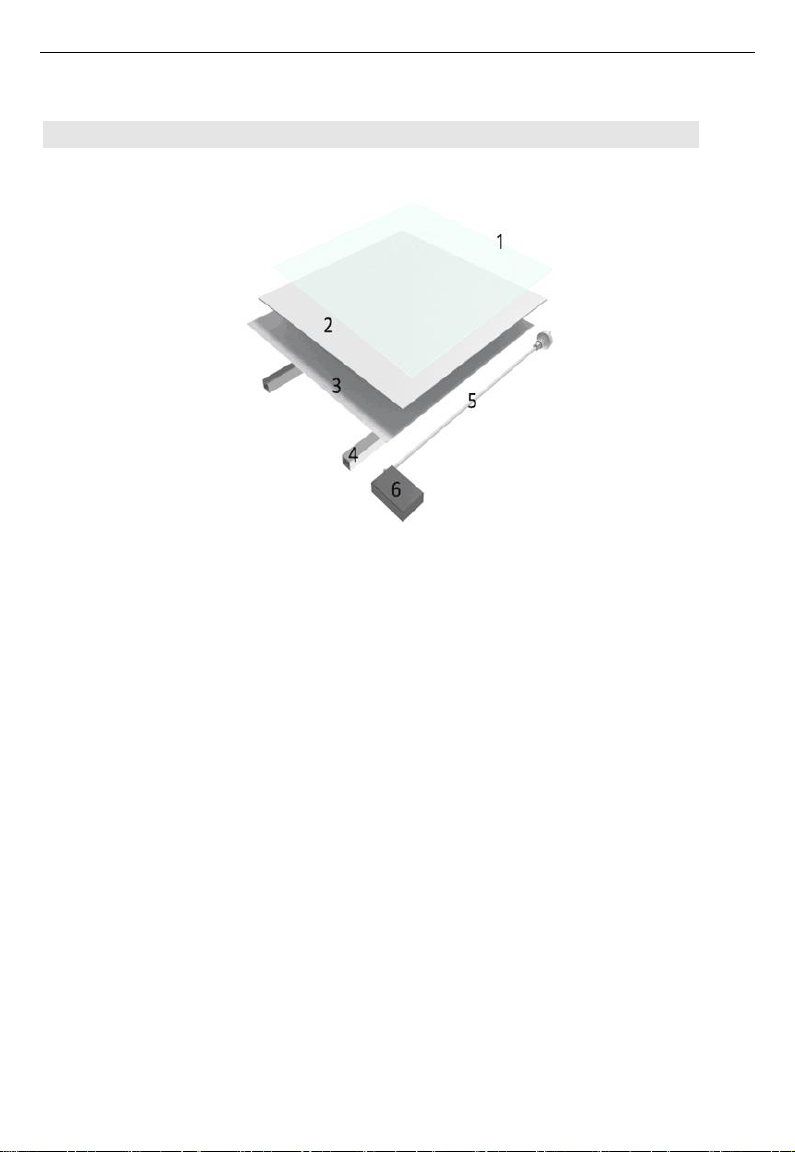

5┃DEVICE STRUCTURE
Designation
1 Surface(glass or mirror)
2 Heating element
3 rear metal sheet
4 Wall attachment
5 Power cord
6 Junction box

- 11 -
6┃INSTALLATION
Make sure remove all the protective films(both on the front and back)!
1. Choose the mounting position, keep the required minimum
distances.
Distances required for device mounting
front
Minimum 30cm
left
Minimum 10cm
right
Minimum 10cm
top
Minimum 50cm
2. Mark the positions for the bore holes onto the drilling template (D)
if there are no existing marks. Stick the drilling template on the wall.
Drill the holes with an 8mm rotary bit.
3. Insert the screws into the dowels and fasten the screws. The screws
should protrude approx.0.5 cm from the dowels.

- 12 -
4. Hang the infrared heating device (A) in.
5. Slid the device to make the screws into the correct positions as
showing in below drawing.
6. Plug in to start using the heating device .
Do pull out the plug when not in use .

- 13 -
7┃TROUBLESHOOTING
Problem
Reason
Measure
It has noise when
original charged with
electricity
Due to the structure stress
of the heat insulator.
It is a normal
phenomenon.
Don't worry about it.
The surface of the
heating device isn’t
70°-90°hot.
1. The voltage is low.
2. In a low-temperature
environment.
1. Install a voltage
regulator.
2. It is normal.
8┃MAINTENANCE & SERVICING
Activities required before starting maintenance
Warning of electrical voltage
Do not touch the mains plug with wet or damp hands.
•Hold onto the mains plug while pulling the power cable out
of the mains socket.
•Allow the device to cool down completely.
Warning of electrical voltage
Tasks which require the housing to be opened
must only be carried out by authorized specialist
companies.

- 14 -
Cleaning the device
Warning of electrical voltage
Never immerse the device in water!
Clean the device with a soft, damp and lint-free cloth. Ensure
that no moisture enters the housing. Protect electrical
components from moisture. Do not use any aggressive cleaning
agents such as cleaning sprays, solvents, alcohol-based or
abrasive cleaners to dampen the cloth.
Wipe the housing dry after cleaning
9┃STORAGE
When the device is not being used, observe the following
storage conditions:
•dry and protected from frost and heat
•in an upright position where it is protected from dust and
direct sunlight
•with acover to protect it from invasive dust, if necessary
•Place no further devices or objects on top of the device to
prevent it from being damaged.
10┃TECHNICAL ANNEX
Model NO.
Size(cm)
Power
(W)
Voltage
Frequency
Rated
Current
G0606X
60*60*1.2
320
230V/50HZ
1.4A
G0806X
80*60*1.2
450
2.0A
G1006X
100*60*1.2
580
2.5A
G1206X
120*60*1.2
700
3.0A
G1008X
100*80*1.2
800
3.5A
X=Null;M(Null=glass itself; M=mirror)

- 15 -
Model
Nominal
heat
output/
(Pnom)/
(KW)
Minimal
heat
output(in
dicative)/
(Pmin)/
(KW)
Maximum
continuous
heat output/
(Pmax.c)/
(KW)
At
nominal
heat
output/
(elmax)/
(KW)
At minimal
heat
output/
(elmin)/
(KW)
aGT-G0606X
0.3
N/A
0.3
0.335
N/A
aGT-G0806X
0.4
N/A
0.4
0.470
N/A
aGT-G1006X
0.6
N/A
0.6
0.608
N/A
aGT-G1206X
0.7
N/A
0.7
0.732
N/A
aGT-G1008X
0.8
N/A
0.8
0.836
N/A
Information requirements for electrical local space heaters
Item
Unit
Type of heat input, for electric storage local space heaters only (select one)
manual heat charge control, with integrated thermostat
N/A
manual heat charge control with room and/or outdoor
temperature feedback
N/A
electronic heat charge control with room and/or outdoor
temperature feedback
N/A
fan assisted heat output
N/A
Type of heat output/room temperature control (select one)
single stage heat output and no room temperature control
[no]
Two or more manual stages, no room temperature control
[no]
with mechanic thermostat room temperature control
[no]
with electronic room temperature control
[no]
More models are available

- 16 -
11┃DISPOSAL
The icon with the crossed-out waste bin on waste
electrical or electronic equipment stipulates that this equipment
must not be disposed of with the household waste at the end of
its life. You will find collection points for free return of waste
electrical and electronic equipment in your vicinity. The
addresses can be obtained from your municipality or local
administration.
The separate collection of waste electrical and electronic
equipment aims to enable the re-use, recycling and other forms
of recovery of waste equipment as well as to prevent negative
effects for the environment and human health caused by the
disposal of hazardous substances potentially contained in the
equipment.
electronic room temperature control plus day timer
[no]
electronic room temperature control plus week timer
[yes]
Other control options (multiple selections possible)
room temperature control, with presence detection
[no]
room temperature control, with open window detection
[no]
with distance control option
[no]
with adaptive start control
[yes]
with working time limitation
[no]
with black bulb sensor
[no]
