Saab 12 832 506 User manual

Saab 9-3 CV M04-
900 Installation instructions
SCdefault
MONTERINGSANVISNING ·INSTALLATION INSTRUCTIONS
MONTAGEANLEITUNG ·INSTRUCTIONS DE MONTAGE
SITdefault
Saab 9-3 CV M04-
Navigation system
Accessories Part No. Group Date Instruction Part No. Replaces
12 832 506
12 832 507
12 832 520
12 832 522 9:51-03 Jan 04 12 832 516 12 832 516 Aug 03
F930A259

2 12 832 516
Saab 9-3 CV M04-
1 DVD player
2 Control panel
3 Fibre optic cable (x3)
– Between the units in the luggage compart-
ment console (455 mm long)
– Amplifier - DVD player (1850 mm long)
– DVD player - Torsion compartment (1195 mm
long)
4 Fibre optic cable (A-pillar - Torsion compart-
ment, 2770 mm long)
(only in kit 12 832 520 and 12 832 522)
5 Wiring harness with fibre optic cable
(only in kit 12 832 520 and 12 832 522)
6 Wiring harness
7 Optical cable connector, 2-pin
(x1 in kit 12 832 506 and 12 832 507)
(x2 in kit 12 832 520 and 12 832 522)
8 Optical cable connector, 2-pin
(only in kit 12 832 506 and 12 832 507)
9 Bracket for telematics unit
(only in kit 12 832 520 and 12 832 522)
10 Telematics unit
(only in kit 12 832 520 and 12 832 522)
11 Bolt (x2)
(only in kit 12 832 520 and 12 832 522)
12 Cable tie
(x1 in kit 12 832 506 and 12 832 507)
(x17 in kit 12 832 520 and 12 832 522)
In addition, the following items are required
(ordered separately)
·Console for equipment in the luggage compart-
ment (certain cars)
·Antenna kit (certain cars)
·Microphone (certain cars)
F930A378
1
12
8
2
7
4
3
6
9
11
5
10

12 832 516 3
Saab 9-3 CV M04-
Bus Communication
Many parts of the car's electrical system communi-
cate using a bus. There are three types of bus com-
munication: P-bus (Powertrain Bus), I-bus (Instru-
ment Bus) and O-bus (Optical bus). The audio
system communicates via the O-bus together with
the navigation system, the telephone system and
others.
The O-bus is optical and is a ring bus. Two fibre
optical cables are connected to each control module
on the bus, one fibre optical cable for receiving and
one for sending. Messages received are converted
by each control module from a fibre optic signal to
electrical and then converted back to optical for
sending. The O-bus data transfer rate is 25 Mbit/s.
AMP1 is an amplifier behind the left-hand rear side
trim
AMP2 is an amplifier by the REC
CDC is a CD changer by the REC
DVD is a DVD player by the REC
When fitting new equipment to be connected to the
O-bus it is important that it is connected into the
correct side of the existing equipment.
Important
It is very important that everything connected to
the O-bus is connected in a specific order, see
illustration, and that the ring is closed the whole
time.
Connection in any other way than that described
in these fitting instructions may result in several of
the car's systems failing to work.
F930A100
1
2
CDC
1
2
DVD
1
2
AMP2
1
2
1
2
AMP2
CDC
1
2
1
2
AMP2
DVD
1
2
1
2DVD
CDC
1
2
1
2
1
2
AMP2
DVD
CDC
2 1
Important
Handle the fibre-optic cables with care or the
signal may be distorted.
·It is very important that the two leads in the
connector are not confused with one another.
·Do not splice the cables.
·Do not bend the cable in a radius smaller than
25 mm.
·Do not expose the cable to temperatures
exceeding 85°C.
·Keep the cable ends free from dirt and grime.
·Do not expose the cable to impact as this may
cause the transparent plastic to whiten,
thereby reducing the intensity of the light and
causing possible communication interruptions.
·The cable should not lie against any sharp
edges as this may cause increased signal
reduction.

4 12 832 516
Saab 9-3 CV M04-
1 Connect the diagnostic tool and disconnect the
infotainment system control panel from the car.
Go into the menu “All” and choose the control
module under “Add/Remove”. Then choose
“Remove” and follow the instructions. The igni-
tion key must be in the ON position. TIS2000
may need to be used. When the control module
is separated from the car the ignition key must
be turned to the OFF position. Following which
the control module can be removed.
Important
In cars where the left-hand front seat is electrically
adjustable and there is no bracket at the REC, the
left-hand front seat must be positioned in its most
forward position and with the backrest folded
forwards.
Important
The control module is sensitive to electrostatic
discharges. To avoid damaging the internal com-
ponents in the control module, a replacement
must be made with care in the following way:
·Never touch the pins on a control module with
hands or clothes.
·Ground yourself by touching the car's body/
engine. Remove the connector on the car's
control module.
·Ground yourself by touching the car's body/
engine. Connect the connector on the car's
control module.
·Deposit the replaced control module in the
returns packaging without touching its pin.
·Keep the new control module in its packaging
as long as possible.

12 832 516 5
Saab 9-3 CV M04-
2 Raise the soft top and open the boot lid.
3 Remove the carpet on the luggage compartment
floor and remove the luggage compartment scuff
plate.
4 Remove the rivets and lift out the front section of
the luggage compartment trim.
5 Remove the side scuff plate on the left-hand
side.
6 Remove the clips for the left-hand side trim and
fold the trim aside. Unhook the strap on the rear
side of the side trim and remove the connector
from the luggage compartment lighting. Remove
the side trim.
7 Check from the luggage compartment if there is
a connection for the antenna cable in the centre
of the torsion compartment and if a telematics
unit is fitted in the centre of the torsion compart-
ment. If there is a telematics unit fitted then it
must be removed without the connector being
removed.
No antenna cable connection: Continue with
step 8.
There is only one violet antenna cable
connection and there is no telematics unit:
Continue with step 8.
There is only one blue antenna cable
connection and there is no telematics unit:
Continue with step 10.
There is only one violet antenna cable
connection, there is a telematics unit: Con-
tinue with step 8.
There are two antenna cable connections,
but there is no telematics unit: Continue with
step 10.
There are two antenna cable connections,
there is a telematics unit, but only the violet
antenna cable is connected to the telematics
unit: Continue with step 10.
F930A261
5
6
6
6
3 3
6
44
44
4

6 12 832 516
Saab 9-3 CV M04-
8 Remove the side scuff plate on the right-hand
side.
9 Remove the clips for the right-hand side trim
and fold the trim aside. Unhook the strap on the
rear side of the side trim and remove the side
trim.
10 Fold down the soft top completely, but allow the
soft top cover to remain open.
11 Open the rear side window fully.
F930A262
8
9
9
9

12 832 516 7
Saab 9-3 CV M04-
12 Remove the screws which hold the rear seat
cushion at the front edge.
13 Lift up the cushion and pull it forwards so that it
loosens.
14 Pull up both of the rear head restraints to the
highest position.
15 Press in the lock on the head restraints' sleeves.
Hold the lock pressed in and remove the head
restraints.
16 Remove the screws for the seat belts' lower
mounting.
17 Remove the two screws for the back rest cushion
upper mounting.
18 Pull the back rest cushion lower section
forwards and lift the back rest cushion upwards.
19 Press out the seat belt guide from the back rest
cushion and move the seat belt out from the
guide and the back rest cushion.
F930A263
13 13 15 15
12
12
16
17
18
19 19

8 12 832 516
Saab 9-3 CV M04-
20 Carefully remove the speaker grille from the left-
hand rear side trim. Use removal tool 82 93 474.
21 Remove the screws which hold the rear side
trim on the left-hand side.
22 Lift the side trim upwards. Retain any rubber
protection.
23 Unhook the control module from the side trim,
but do not remove the control module connector
as this means a diagnostic trouble code being
generated.
24 Remove the speaker connector and remove the
side trim.
Remove the bass speakers or the covers.
Important
If the car has treble speakers the connector must
be separated so that the wiring harness between
the treble speakers and the mid-range speakers is
still connected to the speakers.
F930A379
20
21
21
22
24
23
24
24
24
24

12 832 516 9
Saab 9-3 CV M04-

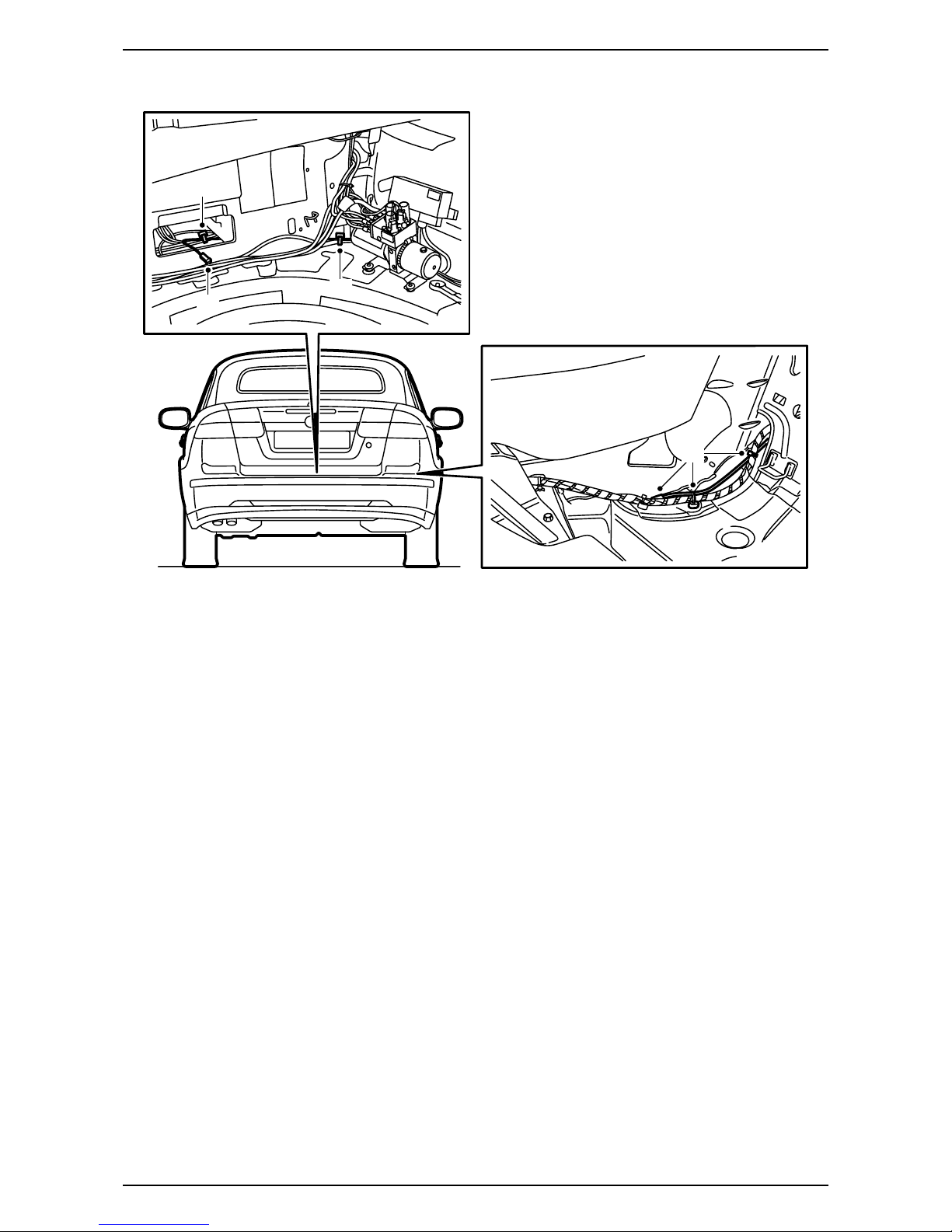

25 Check once more, in accordance with the follow-
ing alternatives, whether there is a connection for
the antenna cable in the centre of the torsion
compartment and whether a telematics unit is
fitted in the centre of the torsion compartment. In
addition, check whether there is a violet antenna
cable splice beside the right-hand seat belt lower
mounting. Following which, raise the soft top.
There is no antenna cable connection inside
the torsion compartment. There is a violet
antenna cable connection at the right-hand
seat belt lower mounting: Continue with
step 26.
There is only one violet antenna cable con-
nection inside the torsion compartment, but
no telematics unit. There is no antenna cable
connection at the right-hand seat belt lower
mounting: Continue with step 26.
Violet antenna cable connection and
telematics unit present. There is no antenna
cable connection at the right-hand seat belt
lower mounting: Continue with step 26.
There is only one blue antenna cable con-
nection inside the torsion compartment, but
no telematics unit. There is a violet antenna
cable connection at the right-hand seat belt
lower mounting: Continue with step 41.
There are two antenna cable connections
inside the torsion compartment, but no
telematics unit. There is no antenna cable
connection at the right-hand seat belt lower
mounting: Continue with step 41.
There are two antenna cable connections
inside the torsion compartment, there is a
telematics unit but only the violet antenna
cable is connected. There is no antenna
cable connection at the right-hand seat belt
lower mounting: Continue with step 40.

10 12 832 516
Saab 9-3 CV M04-

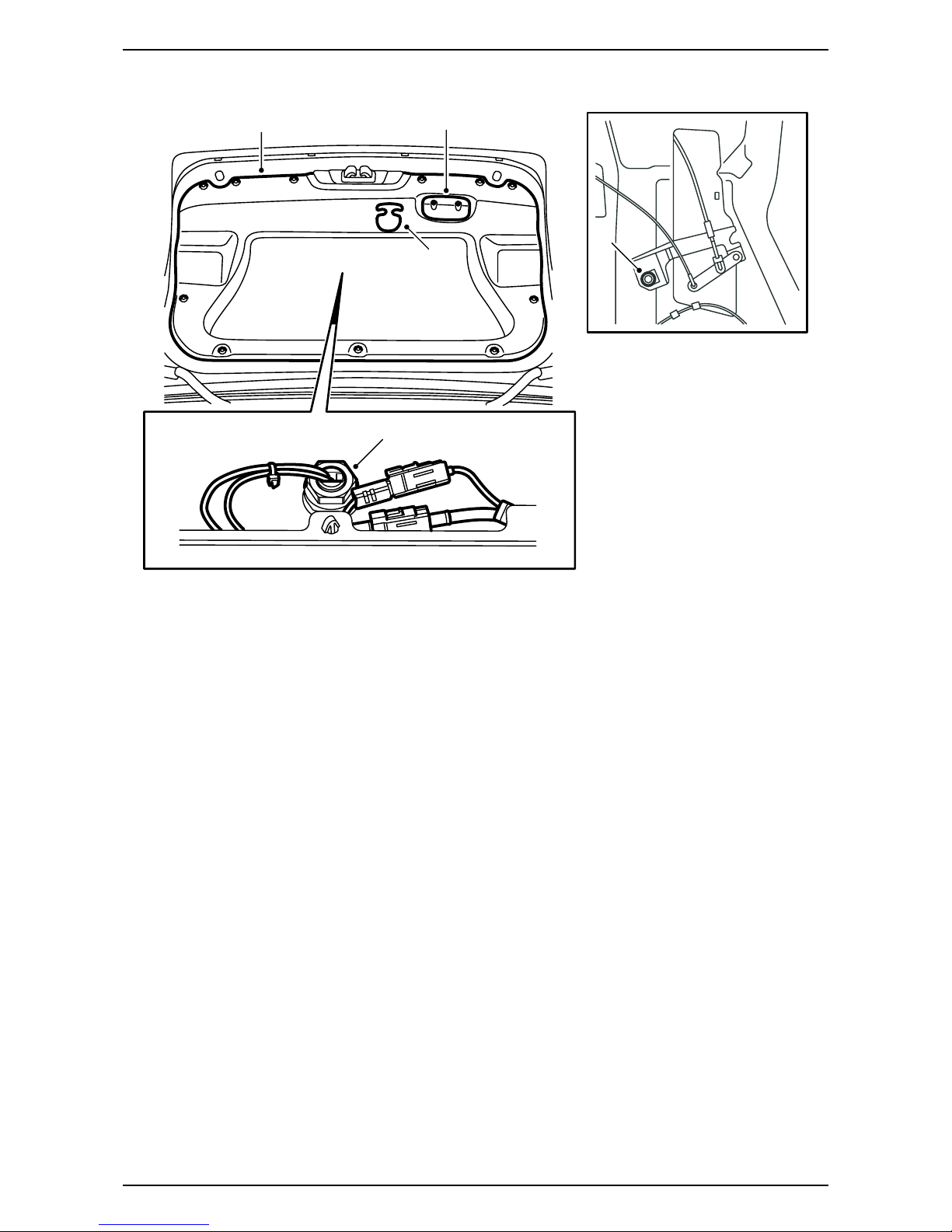

26 Remove the boot lid trim as follows:
–US: Remove the emergency opening handle
– Remove the closing handle on the inside of
the boot lid, remove the clips and remove the
boot lid trim.
–US: Remove the screws of the emergency
opening mechanism and move the mecha-
nism aside.

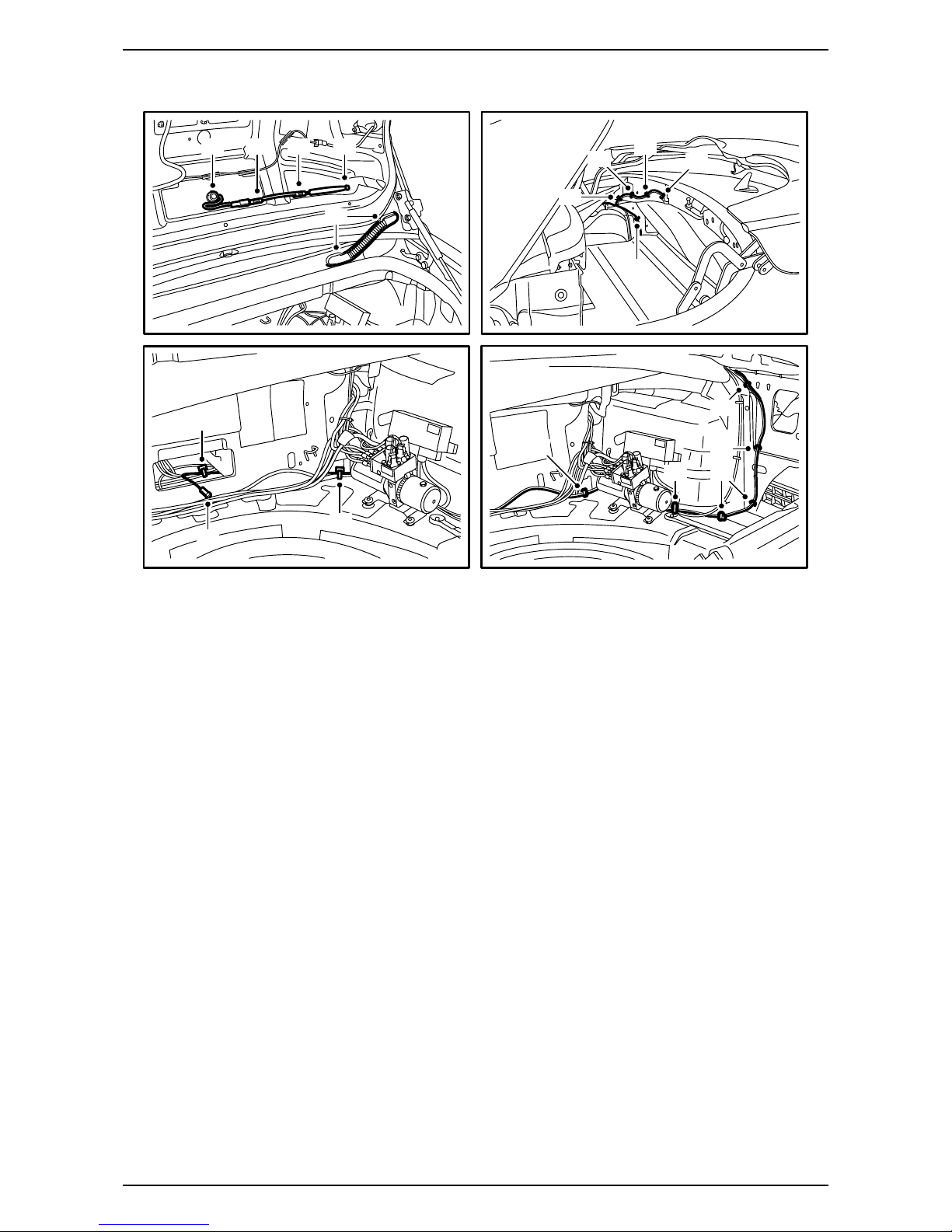

27 Remove the antenna cable from the antenna
and remove the antenna.
28 Cars with an antenna cable that runs further
than the centre of the torsion compartment:
Continue with step 36.
Cars with antenna cable that runs further
forward in the car: Continue with step 29.
F930A265
26
26
26
26
27
