Sacred Sun SP Series User manual

C on ten t s
Chapter I: Product Introduction
1. Product Characteristics ...............................................................................................01
2. Main Applications ........................................................................................................02
3. Battery Construction ....................................................................................................02
4. General Specification ..................................................................................................03
5. VRLA Technology ........................................................................................................04
Chapter II: Electrical Characteristics
1. Discharge/Charge Curve .............................................................................................05
2. Performance Data........................................................................................................07
Chapter III: Operation and Maintenance
3. Security Instruction ......................................................................................................13
4. Operation Parameters .................................................................................................14
5. Factors Influencing Capacity .........................................................................14
6. Charge ....................................................................................................15
7. Battery Calculations ....................................................................................16
8. Operating .................................................................................................18
9. Storage ...................................................................................................20
10. Maintenance .............................................................................................21

Chapter I: Product Introduction
Product Characteristics
Advantages
Design life: >20Ah,10 years; ≤20Ah, 5 years (25℃);
EUROBAT Classification: General Purpose (>20Ah) and Standard Commercial (≤20Ah);
Maximum charge efficiency;
High gas recombination efficiency;
Low self-discharge rate;
Easy handling;
Easy installation: vertical or horizontal.
Design features
Positive plates
Negative plates
Separators
Container and Lid
Electrolyte
Terminal posts
Post sealing
Vents
01
01
Flat pasted plate with lead-calcium-tin grid alloy;
Flat pasted plate with lead-calcium grid alloy;
Microporous AGM separator;
High-strength ABS (option: available in Flame Retardant UL94 V0 version)
Absorbed sulfuric acid;
High-conductivity terminals with threaded inserts;
Double sealing structure;
High-efficiency low pressure venting system.

Main Applications
UPS units
Emergency power
Alarms , Fire & Security Systems
Medical
General Electronics & Control Equipment
Communications Equipment
Standards
IEC61056-1/2:2002
GB/T 19639.1-2005
JIS C8702-1/2:2009
Eurobat Guide

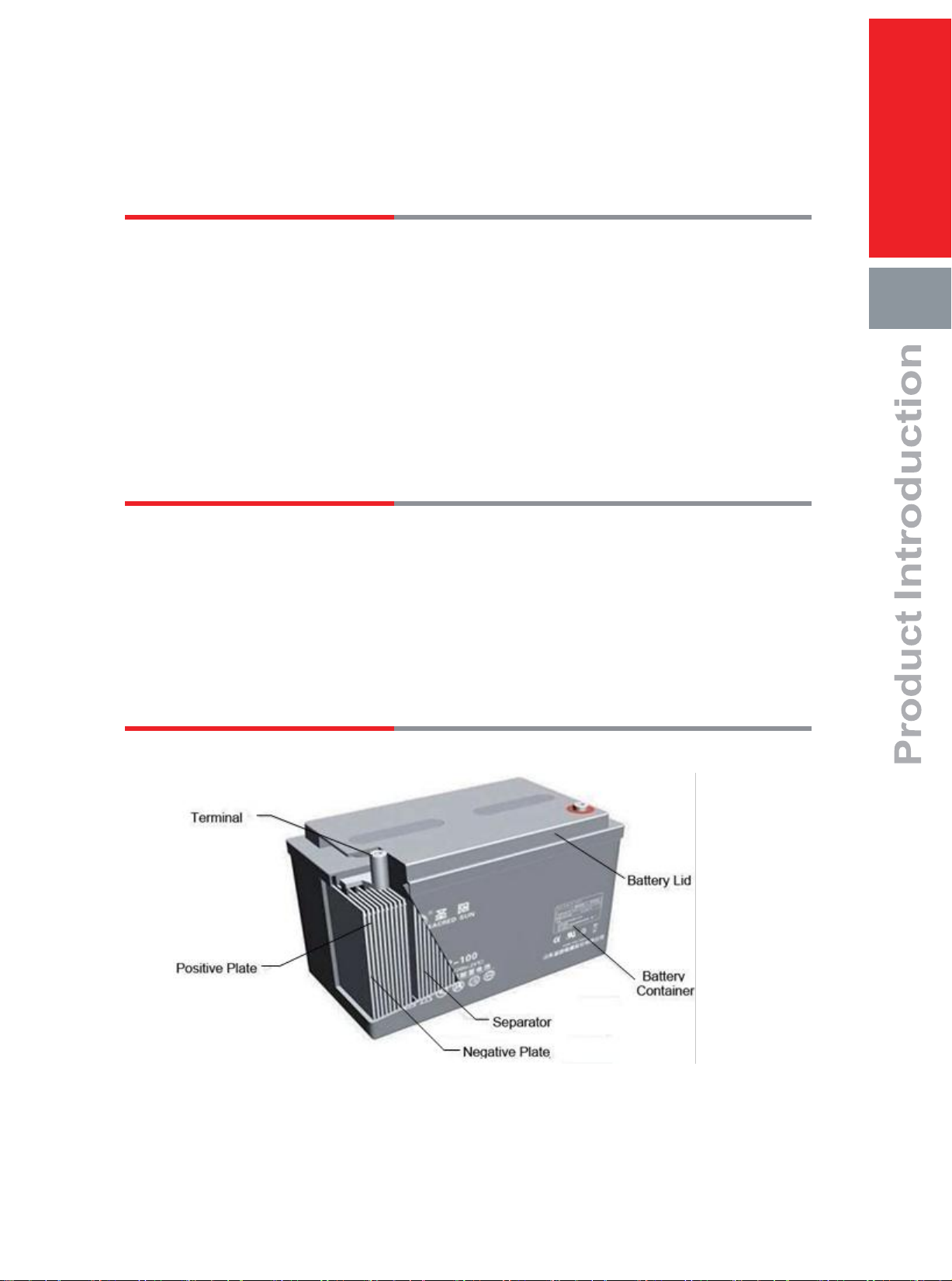

Battery Construction
02

General Specification
SP series
Table 1-1 SP series general specification
Battery Type
Rated
Voltage (V)
Rated
Capacity
(Ah,25℃)
Dimensions (mm)
Weight
(kg)
Short
Circuit
Current (A)
Internal
Resistance
(mΩ,25℃)
Terminal
Type
Terminal
Layout
C20
1.75V/cell
L
W
H
TH
SSP12-6.5
12
6.5
151
65.5
94
99
2.05
170
27
SP-03
D
SSP12-7
12
7
151
65.5
94
99
2.15
190
23
SP-03
D
SSP12-8
12
8
151
65.5
94
99
2.35
210
19
SP-03
D
SSP12-9HR
12
9
151
65.5
94
99
2.62
230
14
SP-03
D
SSP12-12
12
12
151
98.5
95.5
101.5
3.6
310
14
SP-03
D
SSP12-18
12
18
181
76.5
167
167
5.30
460
15
SP-11
B
SP12-26(R)
12
26
164.5
175
127
127
8.0
670
8.5
M6×Φ14
B
SP12-26(F)
12
26
164.5
175
127
127
8.0
670
8.5
SP-11
B
SP12-33
12
33
195
130
158
163
10.5
850
10.2
M6×Φ12
A
SP12-38
12
38
196
165
165
170
12.0
1310
9.0
M6×Φ16
B
SP12-42
12
42
196
165
165
170
12.9
1400
8.5
M6×Φ16
B
SP12-50
12
50
257
132
193
198
16.1
1600
7.2
M6×Φ16
A
SP12-65
12
65
314
166
169
174
20.2
1700
6.0
M6×Φ16
B
SP12-80
12
80
350
167
179.5
179.5
23.2
2600
5.0
M6×Φ16
A
SP12-100
12
100
330
174
217
226
29.8
3000
4.2
M8×Φ18
A
SP12-120
12
120
375
174
219
227
34.8
3300
3.5
M8×Φ18
A
SP12-150
12
150
483
171
219
227
42.5
3650
2.9
M8×Φ18
A
SP12-200
12
200
522
234
218
223
59.0
3900
2.8
M8×Φ18
C
SP12-245
12
245
534
271
225
233
71.5
4600
2.4
M8×Φ18
C
Terminal Layout
03

Terminal Type
SP-03 SP-02(Optional) SP-11
VRLATechnology
The electrochemical reaction of batteries in charge and discharge process as follows:
Discharge
PbO2 +2H2SO4 + Pb PbSO4 + 2H2O + PbSO4
Charge
In the final stage of charge process, active substance in positive plate transformed to lead dioxide,
negative plate has not reached fully charged stage, the process of active substance in negative
plate transformed to spongy lead has not finished, oxygen gas generated in positive plate reaches
the negative plate through separator pores and reacts active substance in negative plate, resulting
depolarized state in negative plate, and restraining the generation of hydrogen.
Principle of the oxygen reduction cycle follows:
04

Chapter II: Electrical Characteristics
Discharge/Charge Curve
Figure 2-1 Discharge capacity and temperature curve
Figure 2-2 Discharge capacity and storage time curve
Electrical Characteristics
05

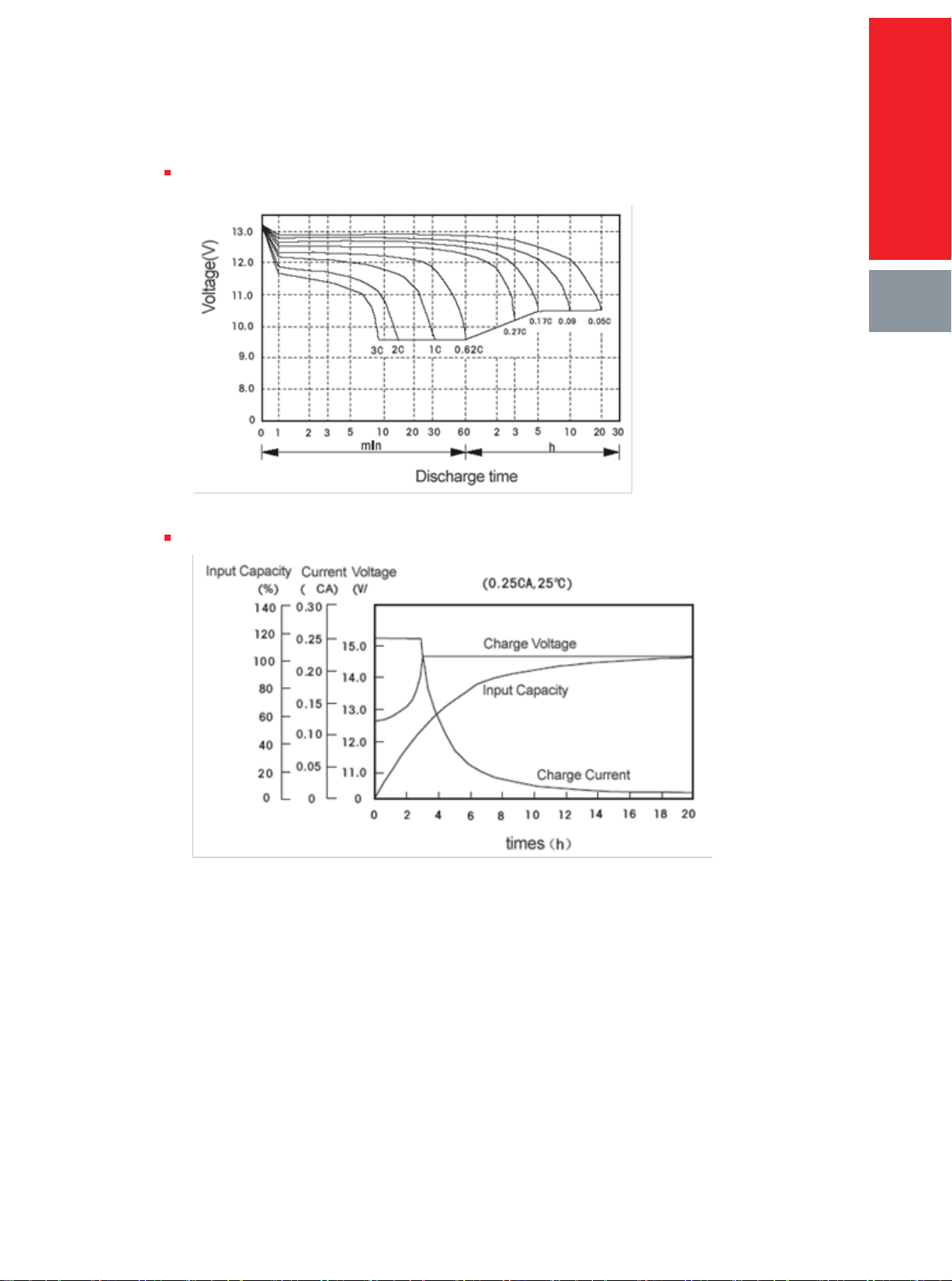

Figure 2-3 Discharge characteristic curve under different discharge rates (25 ℃)
Figure 2-4 Charge characteristic curve
Electrical Characteristics
06

Performance Data
Constant current discharge data
Table 2-1 SP Battery Constant Current Discharge Data Sheet (Amperes, 25 ℃)
Constant Current Discharge Data Sheet (25℃)-------Amperes(A)
Battery Type
End Voltage
(V/cell)
Discharge Time
5 min
10 min
15 min
20 min
30 min
45 min
1 h
1.5 h
2 h
3 h
5 h
10 h
20 h
SSP12-6.5
1.60
30.23
17.909
13.383
10.497
7.622
5.405
4.321
3.132
2.492
1.844
1.216
0.611
0.330
1.65
29.02
17.525
13.102
10.302
7.493
5.318
4.264
3.093
2.463
1.820
1.207
0.607
0.328
1.70
27.20
16.917
12.686
10.019
7.307
5.216
4.198
3.051
2.429
1.802
1.197
0.603
0.326
1.75
24.18
15.990
12.233
9.746
7.150
5.113
4.128
3.0117
2.405
1.786
1.187
0.600
0.325
1.80
19.83
14.631
11.413
9.230
6.864
4.945
4.033
2.960
2.371
1.765
1.174
0.595
0.323
SSP12-7
1.60
31.50
18.942
13.608
11.126
7.887
5.788
4.636
3.349
2.700
2.000
1.298
0.659
0.354
1.65
30.24
18.425
13.356
11.021
7.812
5.727
4.592
3.307
2.668
1.975
1.291
0.657
0.353
1.70
28.58
17.926
13.028
10.800
7.692
5.633
4.534
3.265
2.640
1.957
1.281
0.655
0.352
1.75
25.2
17.220
12.600
10.496
7.490
5.507
4.445
3.22
2.606
1.938
1.270
0.650
0.350
1.80
20.16
15.498
11.718
9.940
7.190
5.325
4.343
3.165
2.569
1.915
1.256
0.644
0.348
SSP12-8
1.60
37.16
22.539
16.454
12.919
9.296
6.652
5.319
3.827
3.087
2.265
1.493
0.761
0.405
1.65
36.02
21.974
16.108
12.679
9.139
6.545
5.248
3.779
3.052
2.236
1.486
0.758
0.404
1.70
35.26
21.652
15.882
12.499
9.016
6.463
5.192
3.743
3.022
2.217
1.474
0.756
0.402
1.75
31.68
20.160
15.040
11.995
8.720
6.293
5.080
3.680
2.980
2.195
1.461
0.750
0.400
1.80
28.20
18.446
14.032
11.359
8.371
6.086
4.963
3.617
2.938
2.168
1.445
0.743
0.398
SSP12-9HR
1.60
43.92
25.222
17.329
13.441
9.722
6.765
5.444
3.883
3.108
2.303
1.471
0.840
0.458
1.65
42.57
24.590
16.965
13.191
9.558
6.656
5.372
3.834
3.072
2.274
1.464
0.835
0.456
1.70
41.67
24.229
16.727
13.004
9.430
6.573
5.314
3.797
3.042
2.254
1.453
0.825
0.452
1.75
37.44
22.560
15.840
12.480
9.120
6.400
5.200
3.733
3.000
2.232
1.440
0.820
0.450
1.80
33.32
20.642
14.779
11.819
8.755
6.189
5.080
3.670
2.958
2.205
1.424
0.810
0.445
SSP12-12
1.60
45.71
29.034
22.055
17.415
13.005
9.724
7.673
5.491
4.248
2.993
1.970
1.122
0.611
1.65
44.34
28.361
21.591
17.092
12.786
9.568
7.571
5.423
4.198
2.955
1.953
1.115
0.607
1.70
43.02
27.817
21.289
16.849
12.615
9.448
7.490
5.370
4.157
2.929
1.937
1.107
0.604
1.75
39.00
25.900
20.160
16.170
12.200
9.200
7.329
5.280
4.100
2.900
1.920
1.100
0.600
1.80
34.79
23.699
18.809
15.313
11.712
8.896
7.160
5.190
4.043
2.865
1.899
1.090
0.596
SSP12-18
1.60
79.24
46.407
34.180
27.334
19.879
14.769
11.728
8.581
6.900
5.096
3.287
1.709
0.918
1.65
77.67
44.753
33.282
26.827
19.543
14.630
11.571
8.473
6.820
5.032
3.258
1.694
0.911
1.70
75.17
42.831
32.694
26.446
19.282
14.407
11.448
8.391
6.753
4.987
3.233
1.684
0.905
1.75
62.64
38.448
30.960
25.380
18.648
13.920
11.201
8.251
6.660
4.938
3.204
1.6704
0.900
1.80
54.50
35.180
28.886
24.035
17.902
13.461
10.944
8.110
6.567
4.879
3.169
1.655
0.895
Electrical Characteristics
07

Table 2-1 SP Battery Constant Current Discharge Data Sheet (Amperes, 25 ℃)
Constant Current Discharge Data Sheet (25℃)-------Amperes(A)
Battery Type
End Voltage
(V/cell)
Discharge Time
5 min
10 min
15 min
20 min
30 min
45 min
1 h
1.5 h
2 h
3 h
5 h
10 h
20 h
SP12-26
1.60
98.90
63.260
50.310
41.067
29.203
20.615
16.723
11.900
9.620
7.140
4.779
2.456
1.317
1.65
94.94
61.324
49.070
40.478
28.959
20.446
16.611
11.831
9.553
7.102
4.757
2.447
1.312
1.70
88.03
58.364
47.610
39.471
28.351
20.095
16.374
11.677
9.451
7.032
4.717
2.427
1.303
1.75
84.24
56.940
46.800
39.000
28.080
19.933
16.255
11.610
9.404
7.003
4.701
2.420
1.300
1.80
75.98
53.296
44.647
37.713
27.350
19.495
15.963
11.424
9.307
6.947
4.670
2.405
1.294
SP12-33
1.60
104.00
74.900
60.630
49.625
35.585
25.793
20.336
14.561
12.019
8.685
5.812
3.167
1.700
1.65
97.00
72.000
59.191
49.141
35.307
25.579
20.194
14.463
11.947
8.624
5.772
3.154
1.691
1.70
92.94
69.300
58.413
48.582
34.947
25.379
20.033
14.360
11.862
8.571
5.730
3.127
1.678
1.75
86
66.600
56.340
47.025
33.890
24.640
19.470
13.970
11.550
8.360
5.600
3.070
1.650
1.80
77.22
63.084
54.103
45.276
32.717
23.893
18.917
13.591
11.251
8.170
5.494
3.029
1.635
SP12-38
1.60
130.1
85.50
66.20
51.470
40.00
30.65
24.13
19.10
14.50
10.34
6.700
3.696
2.000
1.65
125.2
82.60
63.82
49.64
38.83
29.57
23.39
18.59
14.20
10.03
6.604
3.644
1.980
1.70
121.2
80.60
61.36
48.04
37.57
28.42
22.80
18.01
13.80
9.768
6.526
3.590
1.940
1.75
116.6
77.30
59.02
46.44
36.50
27.62
22.13
17.39
13.38
9.491
6.460
3.540
1.900
1.80
110.6
74.00
56.90
44.93
35.34
26.94
21.33
16.81
13.00
9.204
6.356
3.483
1.860
SP12-42
1.60
143.8
94.50
73.20
57.35
44.76
35.00
27.20
21.37
16.50
11.50
7.360
4.150
2.270
1.65
138.6
91.30
70.09
54.71
42.74
33.60
26.19
20.50
15.90
11.13
7.290
4.080
2.230
1.70
135.2
89.10
67.29
52.61
41.26
32.40
25.20
19.82
15.30
10.77
7.200
4.000
2.170
1.75
130.1
85.40
64.58
50.35
39.55
30.85
23.86
18.80
14.70
10.41
7.140
3.910
2.100
1.80
122.2
81.67
61.86
48.57
38.23
29.30
22.54
18.00
14.00
10.02
6.960
3.800
2.050
SP12-50
1.60
172.0
115.0
92.50
75.00
56.00
41.12
31.36
23.67
18.99
14.00
8.927
4.877
2.616
1.65
154.4
111.0
88.91
73.13
54.56
40.00
30.67
22.88
18.56
13.75
8.792
4.801
2.574
1.70
141.2
106.0
86.45
70.87
53.27
39.01
30.00
22.24
18.13
13.53
8.632
4.742
2.540
1.75
130.2
101.3
83.45
68.31
51.74
37.82
29.08
21.57
17.67
13.30
8.500
4.650
2.500
1.80
120.8
96.00
79.93
66.24
50.00
36.50
27.96
20.94
17.21
13.00
8.294
4.550
2.420
SP12-65
1.60
214.8
148.0
120.0
96.50
72.20
52.81
40.87
30.38
23.44
17.60
11.68
6.320
3.500
1.65
196.4
142.0
115.4
92.80
70.00
51.20
40.00
29.62
22.85
17.09
11.44
6.250
3.430
1.70
181.6
136.0
110.8
89.60
68.20
50.00
39.00
29.11
22.26
16.67
11.28
6.150
3.350
1.75
167.8
131.0
106.8
86.80
66.70
48.74
37.83
28.52
21.92
16.25
11.05
6.050
3.250
1.80
152.9
125.0
102.2
83.60
64.70
47.50
36.64
27.93
21.50
15.83
10.70
5.850
3.100
Electrical Characteristics
08

Table 2-1 SP Battery Constant Current Discharge Data Sheet (Amperes, 25 ℃)
Constant Current Discharge Data Sheet (25℃)-------Amperes(A)
Battery Type
End Voltage
(V/cell)
Discharge Time
5 min
10 min
15 min
20 min
30 min
45 min
1 h
1.5 h
2 h
3 h
5 h
10 h
20 h
SP12-80
1.60
261.0
181.0
137.0
110.0
82.60
61.80
49.41
36.42
29.18
21.08
13.74
7.630
4.080
1.65
249.0
176.0
133.0
108.0
81.10
60.70
48.60
36.12
28.95
20.89
13.66
7.570
4.060
1.70
234.0
166.7
129.2
105.3
80.00
59.80
48.00
35.82
28.75
20.71
13.57
7.520
4.040
1.75
212.0
157.0
124.7
102.4
78.10
58.40
46.90
35.45
28.50
20.56
13.50
7.440
4.000
1.80
188.6
146.0
120.0
98.50
75.30
56.50
45.70
34.82
28.14
20.33
13.41
7.360
3.950
SP12-100
1.60
335.0
236.0
181.0
148.0
110.0
80.00
63.50
47.30
37.30
26.80
17.63
9.600
5.130
1.65
315.0
227.0
175.0
144.0
107.0
78.00
61.90
46.50
36.90
26.50
17.40
9.500
5.100
1.70
292.0
216.0
169.0
140.0
104.0
76.00
60.00
45.60
36.20
26.20
17.20
9.400
5.050
1.75
262.0
201.0
162.0
135.0
101.0
74.00
58.70
45.00
35.30
25.70
17.00
9.300
5.000
1.80
237.0
184.0
153.9
129.0
97.00
72.50
57.10
43.50
34.50
25.20
16.60
9.100
4.900
SP12-120
1.60
372.0
280.0
217.0
174.5
132.0
97.50
75.60
56.52
44.50
32.20
21.73
11.40
6.250
1.65
366.0
275.0
213.0
170.0
128.9
95.90
73.80
55.75
43.64
31.79
21.25
11.32
6.150
1.70
351.0
264.0
205.0
163.9
126.0
93.50
72.00
54.72
42.74
31.24
20.75
11.24
6.070
1.75
317.0
243.0
193.0
157.4
122.0
90.00
70.00
53.45
42.00
30.60
20.40
11.16
6.000
1.80
268.0
219.6
179.0
146.8
114.0
85.00
67.00
51.00
40.50
29.50
19.70
10.80
5.860
SP12-150
1.60
465.0
330.0
253.1
190.3
160.5
117.8
94.50
70.80
56.00
40.30
26.34
14.14
7.640
1.65
450.0
322.1
245.9
184.6
155.4
114.2
92.50
69.10
54.70
39.80
26.07
14.08
7.600
1.70
435.0
310.8
238.3
178.9
150.7
110.7
90.00
67.30
53.30
39.00
25.90
14.02
7.550
1.75
390.0
293.8
229.1
172.7
146.4
107.1
87.60
65.70
52.20
38.10
25.50
13.95
7.500
1.80
350.0
271.9
214.8
163.7
141.1
102.9
84.80
64.00
50.90
37.00
24.94
13.72
7.400
SP12-200
1.60
553.6
440.0
335.0
262.0
203.0
151.0
124.0
95.00
74.50
53.00
35.30
19.00
10.22
1.65
535.7
415.0
325.0
253.0
198.0
147.0
122.0
93.50
73.40
52.20
34.80
18.80
10.19
1.70
508.9
400.0
310.0
244.0
190.0
143.0
120.0
91.50
72.40
51.30
34.40
18.70
10.15
1.75
464.3
364.0
290.0
234.0
182.0
138.0
117.0
89.00
71.50
50.00
34.00
18.60
10.00
1.80
401.8
335.0
273.0
220.0
175.0
133.0
112.0
86.50
69.00
49.00
33.20
18.40
9.800
SP12-245
1.60
663.7
500.0
390.0
314.0
246.0
190.0
153.0
116.0
89.00
62.50
42.90
23.60
12.50
1.65
637.2
487.0
379.0
307.0
240.0
186.0
150.0
114.0
88.00
62.00
42.50
23.40
12.43
1.70
601.8
470.0
367.0
298.0
232.0
180.0
147.0
111.0
86.00
61.30
42.05
23.10
12.34
1.75
561.9
450.0
353.0
287.0
223.0
174.0
142.0
107.0
83.00
59.70
41.65
22.78
12.25
1.80
513.3
425.0
332.0
270.0
210.0
167.0
136.0
103.0
80.00
59.00
41.20
22.50
12.15
Electrical Characteristics
09

Constant power discharge data
Table 2-2 SP Battery Constant Power Discharge Data Sheet (W/cell, 25℃)
Constant Power Discharge Data Sheet (25℃)-------Watt (W)
Battery Type
End Voltage
(V/cell)
Discharge Time
5 min
10 min
15 min
20 min
30 min
45 min
1 h
1.5 h
2 h
3 h
5 h
10 h
20 h
SSP12-6.5
1.60
55.06
33.65
25.46
20.17
14.76
10.54
8.47
6.17
4.92
3.65
2.42
1.22
0.66
1.65
53.08
33.01
24.99
19.83
14.54
10.39
8.38
6.10
4.88
3.62
2.40
1.21
0.66
1.70
50.19
32.06
24.31
19.36
14.23
10.23
8.27
6.04
4.82
3.59
2.39
1.21
0.65
1.75
44.86
30.41
23.52
18.90
13.96
10.06
8.15
5.97
4.78
3.56
2.38
1.20
0.65
1.80
37.08
27.97
22.05
17.95
13.44
9.74
7.99
5.89
4.73
3.53
2.35
1.19
0.65
SSP12-7
1.60
57.40
36.11
26.26
21.57
15.34
11.30
9.09
6.59
5.34
3.96
2.58
1.31
0.71
1.65
55.39
35.20
25.83
21.42
15.23
11.21
9.02
6.52
5.28
3.92
2.57
1.31
0.71
1.70
52.87
34.36
25.28
21.05
15.04
11.06
8.94
6.46
5.24
3.90
2.56
1.31
0.71
1.75
46.75
33.11
24.49
20.50
14.67
10.83
8.78
6.39
5.18
3.87
2.54
1.30
0.70
1.80
37.75
29.92
22.84
19.46
14.13
10.51
8.60
6.29
5.12
3.83
2.52
1.29
0.70
SSP12-8
1.60
67.69
42.49
31.30
24.83
18.00
12.97
10.43
7.53
6.10
4.49
2.97
1.52
0.81
1.65
65.92
41.52
30.74
24.43
17.74
12.80
10.31
7.46
6.05
4.44
2.96
1.51
0.81
1.70
65.05
41.13
30.44
24.16
17.56
12.68
10.23
7.41
6.00
4.41
2.94
1.51
0.81
1.75
58.66
38.40
28.91
23.26
17.03
12.38
10.03
7.30
5.93
4.38
2.92
1.50
0.80
1.80
52.63
35.30
27.11
22.10
16.39
11.99
9.83
7.19
5.86
4.33
2.90
1.49
0.80
SSP12-9HR
1.60
80.00
47.45
32.97
25.83
18.83
13.19
10.68
7.64
6.14
4.57
2.93
1.674
0.916
1.65
77.90
46.43
32.38
25.42
18.55
13.01
10.56
7.57
6.09
4.52
2.92
1.668
0.913
1.70
76.76
46.02
32.05
25.13
18.37
12.90
10.48
7.51
6.04
4.49
2.90
1.651
0.906
1.75
69.33
43.01
30.45
24.20
17.81
12.59
10.27
7.41
5.97
4.45
2.88
1.644
0.904
1.80
62.20
39.53
28.55
22.99
17.15
12.20
10.07
7.30
5.90
4.41
2.85
1.627
0.895
SSP12-12
1.60
83.57
54.50
41.90
33.39
25.16
18.96
15.05
10.81
8.39
5.93
3.92
2.24
1.22
1.65
81.30
53.42
41.13
32.86
24.80
18.71
14.89
10.71
8.31
5.87
3.89
2.23
1.22
1.70
79.15
52.58
40.70
32.49
24.54
18.52
14.76
10.63
8.25
5.83
3.87
2.22
1.21
1.75
72.22
49.10
38.66
31.30
23.82
18.10
14.47
10.47
8.15
5.79
3.84
2.21
1.21
1.80
64.76
45.07
36.25
29.79
22.94
17.53
14.19
10.32
8.06
5.73
3.81
2.19
1.20
SSP12-18
1.60
138.7
84.61
64.37
52.36
38.43
28.79
23.00
16.89
13.63
10.10
6.54
3.41
1.83
1.65
138.5
82.45
63.05
51.55
37.87
28.59
22.73
16.73
13.50
10.00
6.49
3.38
1.82
1.70
136.6
79.60
62.39
51.04
37.51
28.23
22.55
16.61
13.41
9.93
6.46
3.37
1.82
1.75
115.4
72.03
59.37
49.13
36.41
27.38
22.12
16.37
13.25
9.85
6.41
3.35
1.81
1.80
101.2
66.55
55.68
46.75
35.06
26.53
21.68
16.12
13.09
9.75
6.35
3.33
1.80
Electrical Characteristics
10

Table 2-2 SP Battery Constant Power Discharge Data Sheet (W/cell, 25℃)
Constant Power Discharge Data Sheet (25℃)-------Watt (W)
Battery Type
End Voltage
(V/cell)
Discharge Time
5 min
10 min
15 min
20 min
30 min
45 min
1 h
1.5 h
2 h
3 h
5 h
10 h
20 h
SP12-26
1.60
180.65
118.61
96.04
79.25
56.75
40.32
32.86
23.48
19.05
14.18
9.52
4.91
2.64
1.65
174.07
115.42
93.92
78.37
56.43
40.11
32.74
23.41
18.96
14.15
9.50
4.90
2.63
1.70
162.65
110.70
91.68
76.81
55.54
39.58
32.40
23.20
18.84
14.06
9.46
4.88
2.63
1.75
156.25
108.39
90.38
76.08
55.12
39.35
32.23
23.12
18.78
14.03
9.45
4.88
2.63
1.80
142.00
101.87
86.52
73.76
53.84
38.60
31.73
22.80
18.64
13.96
9.40
4.86
2.62
SP12-33
1.60
183.82
138.39
114.45
94.71
68.38
49.90
39.61
28.49
23.63
17.19
11.56
6.34
3.41
1.65
175.09
134.32
112.48
94.31
68.22
49.78
39.44
28.39
23.58
17.11
11.51
6.33
3.40
1.70
171.06
130.92
111.81
93.84
67.97
49.66
39.42
28.36
23.55
17.10
11.49
6.31
3.39
1.75
159.28
126.24
108.13
91.07
66.09
48.35
38.41
27.67
22.99
16.72
11.25
6.21
3.34
1.80
144.31
120.36
104.32
87.99
64.06
47.09
37.44
27.02
22.49
16.40
11.07
6.14
3.32
SP12-38
1.60
239.4
165.7
130.0
100.6
82.65
61.99
48.00
36.91
28.60
20.10
13.20
7.38
4.06
1.65
231.5
160.9
126.4
97.83
80.74
60.40
46.96
36.10
28.20
19.79
13.03
7.28
4.02
1.70
224.6
156.1
123.4
95.28
79.31
58.73
45.88
35.80
27.80
19.47
12.90
7.20
3.97
1.75
218.4
151.2
120.2
92.74
77.32
57.38
44.70
35.06
27.00
19.23
12.70
7.11
3.91
1.80
209.2
144.6
117.5
90.23
75.18
55.95
43.40
34.28
26.50
19.00
12.50
7.01
3.88
SP12-42
1.60
264.0
185.0
144.0
117.6
93.10
73.30
57.70
43.00
34.22
25.50
16.80
8.94
4.78
1.65
258.0
178.0
139.0
113.3
90.80
70.80
55.20
42.50
33.60
24.90
16.40
8.75
4.74
1.70
251.0
172.0
135.0
109.1
87.20
67.30
53.90
41.00
32.83
24.40
16.00
8.56
4.67
1.75
243.0
168.0
130.6
104.9
83.80
65.00
51.40
40.50
32.15
23.90
15.70
8.37
4.54
1.80
234.3
160.0
126.0
100.7
80.00
62.30
49.30
39.00
31.59
23.40
15.40
8.15
4.41
SP12-50
1.60
290.0
206.8
159.5
139.0
111.90
81.50
65.02
48.72
37.75
27.50
18.50
10.00
5.45
1.65
275.2
198.9
156.3
135.9
109.20
78.95
62.94
47.63
36.96
26.88
18.20
9.77
5.33
1.70
266.5
192.5
153.4
132.3
105.90
77.08
61.26
46.44
35.97
26.28
17.59
9.55
5.23
1.75
256.1
186.1
149.6
129.2
102.80
74.60
59.19
45.00
34.58
25.40
16.90
9.34
5.08
1.80
245.0
177.4
145.7
125.5
97.83
71.94
57.41
43.50
33.40
24.50
16.50
9.00
4.90
SP12-65
1.60
395.2
267.3
208.9
166.5
130.00
103.00
81.50
59.00
46.50
32.89
21.41
12.40
6.86
1.65
368.7
257.0
202.4
160.6
127.00
100.00
79.00
58.30
45.74
32.49
21.20
12.23
6.76
1.70
342.0
246.6
196.0
154.8
121.40
97.70
76.50
57.00
45.02
32.20
21.00
12.06
6.63
1.75
313.0
233.4
187.0
148.8
117.00
94.00
73.50
55.30
44.17
31.80
20.90
11.89
6.60
1.80
283.0
220.0
177.0
140.6
111.00
89.80
70.80
53.00
43.50
31.50
20.70
11.76
6.53
Electrical Characteristics
11

Table 2-2 SP Battery Constant Power Discharge Data Sheet (W/cell, 25℃)
Constant Power Discharge Data Sheet (25℃)-------Watt (W)
Battery Type
End Voltage
(V/cell)
Discharge Time
5 min
10 min
15 min
20 min
30 min
45 min
1 h
1.5 h
2 h
3 h
5 h
10 h
20 h
SP12-80
1.60
440.0
320.0
248.0
203.3
150.60
114.20
91.68
69.36
55.50
40.20
26.48
14.98
7.94
1.65
428.0
315.0
246.0
199.9
148.80
112.20
90.76
68.69
55.07
39.99
26.34
14.79
7.89
1.70
408.0
307.0
242.0
196.3
147.30
110.80
89.59
68.30
54.65
39.84
26.25
14.67
7.86
1.75
376.0
289.0
234.0
193.1
145.10
109.10
88.42
67.69
53.99
39.62
26.13
14.52
7.83
1.80
336.7
269.0
224.0
187.3
141.20
106.90
86.66
66.90
53.23
39.30
25.98
14.35
7.76
SP12-100
1.60
565.0
422.0
329.0
272.4
204.00
151.00
119.00
88.00
69.70
50.50
33.30
18.80
10.38
1.65
540.0
410.0
323.0
266.9
201.00
147.60
117.70
87.06
69.13
50.13
33.07
18.55
10.32
1.70
509.0
394.0
315.0
261.5
197.00
144.50
116.00
86.13
68.44
49.69
32.87
18.36
10.27
1.75
467.0
372.0
304.0
253.6
192.00
141.50
113.50
85.12
67.68
49.28
32.62
18.16
10.20
1.80
429.0
346.9
290.0
244.0
186.00
139.00
111.00
83.50
66.50
48.50
32.30
17.95
10.00
SP12-120
1.60
615.0
470.0
370.0
301.8
237.00
177.00
142.00
105.00
82.79
60.49
40.31
22.87
12.54
1.65
610.0
465.0
365.0
296.7
232.40
174.90
139.30
104.00
81.86
59.82
39.79
22.65
12.34
1.70
590.4
455.0
357.0
290.5
227.30
171.50
136.50
103.00
80.93
59.20
39.48
22.49
12.23
1.75
540.0
425.0
342.0
282.6
221.70
168.10
134.20
101.40
80.15
58.63
39.02
22.33
12.06
1.80
460.0
387.0
320.0
269.1
215.00
163.00
131.00
99.00
78.70
57.50
38.50
22.07
11.87
SP12-150
1.60
760.0
560.0
450.5
333.9
275.40
202.00
166.40
132.90
104.50
75.90
49.45
28.29
15.30
1.65
742.0
546.6
439.1
325.3
267.90
197.10
163.70
130.50
103.00
75.14
49.00
28.19
15.27
1.70
705.0
528.6
424.1
315.3
261.40
192.60
161.00
129.00
101.70
74.44
48.56
28.07
15.22
1.75
655.0
504.0
407.9
303.7
252.30
188.70
157.30
126.60
100.00
73.71
48.12
27.95
15.15
1.80
589.0
472.3
387.9
290.7
244.10
183.30
152.50
123.30
98.50
72.60
47.50
27.65
15.02
SP12-200
1.60
928.6
740.0
580.0
458.0
355.00
273.00
223.00
171.00
136.00
100.20
66.20
37.00
19.90
1.65
892.9
710.0
565.0
451.0
349.00
267.00
220.00
169.00
135.00
99.50
65.80
36.80
19.87
1.70
854.5
677.0
548.0
437.0
341.00
262.00
216.00
168.00
134.00
98.70
65.30
36.40
19.82
1.75
791.1
640.0
521.0
420.0
329.00
256.00
212.00
167.00
133.00
98.00
64.70
36.00
19.76
1.80
714.3
595.0
491.0
399.0
312.00
248.00
206.00
164.00
131.00
96.00
64.00
35.50
19.60
SP12-245
1.60
1106
853.0
690.0
560.0
450.00
350.00
273.00
207.00
162.00
121.00
80.40
42.90
23.30
1.65
1079
833.0
671.0
548.0
440.00
343.00
268.00
205.00
161.00
120.00
79.50
42.83
23.28
1.70
1035
805.0
653.0
534.0
427.00
334.00
263.00
202.00
159.00
119.00
78.70
42.72
23.26
1.75
984.1
775.0
631.0
516.0
412.00
321.00
255.00
199.00
157.00
117.00
77.60
42.60
23.23
1.80
882.3
730.0
605.0
495.0
397.00
309.00
245.00
195.00
155.00
115.00
76.30
42.40
23.15
Electrical Characteristics
12

Chapter III: Operation and Maintenance
Security Instruction
Please read these instructions carefully in order to make correct, safe, and effective operation.
This manual provides you with very important installation and operation guidelines, which will
guarantee your equipment an optimal performance and longer service life.
For your safety, please do not open battery by yourself, only professionals shall be allowed to
open and maintain the battery ;
Due to battery be potential harmful to the environment and health, battery shall be replaced
by manufacturer’s service center. If there is need to replace and maintain, please contact
after-sale service center ;
Used battery is recyclable, and improper disposal of battery may be great harmful to the
environment and health. So used battery shall be proper disposed following relative
regulations and law or shall be returned to our company for disposal ;
Please choose the batteries of the same model for replacement, and batteries produced by
different manufacturers shall be strictly forbidden for connecting in one system.

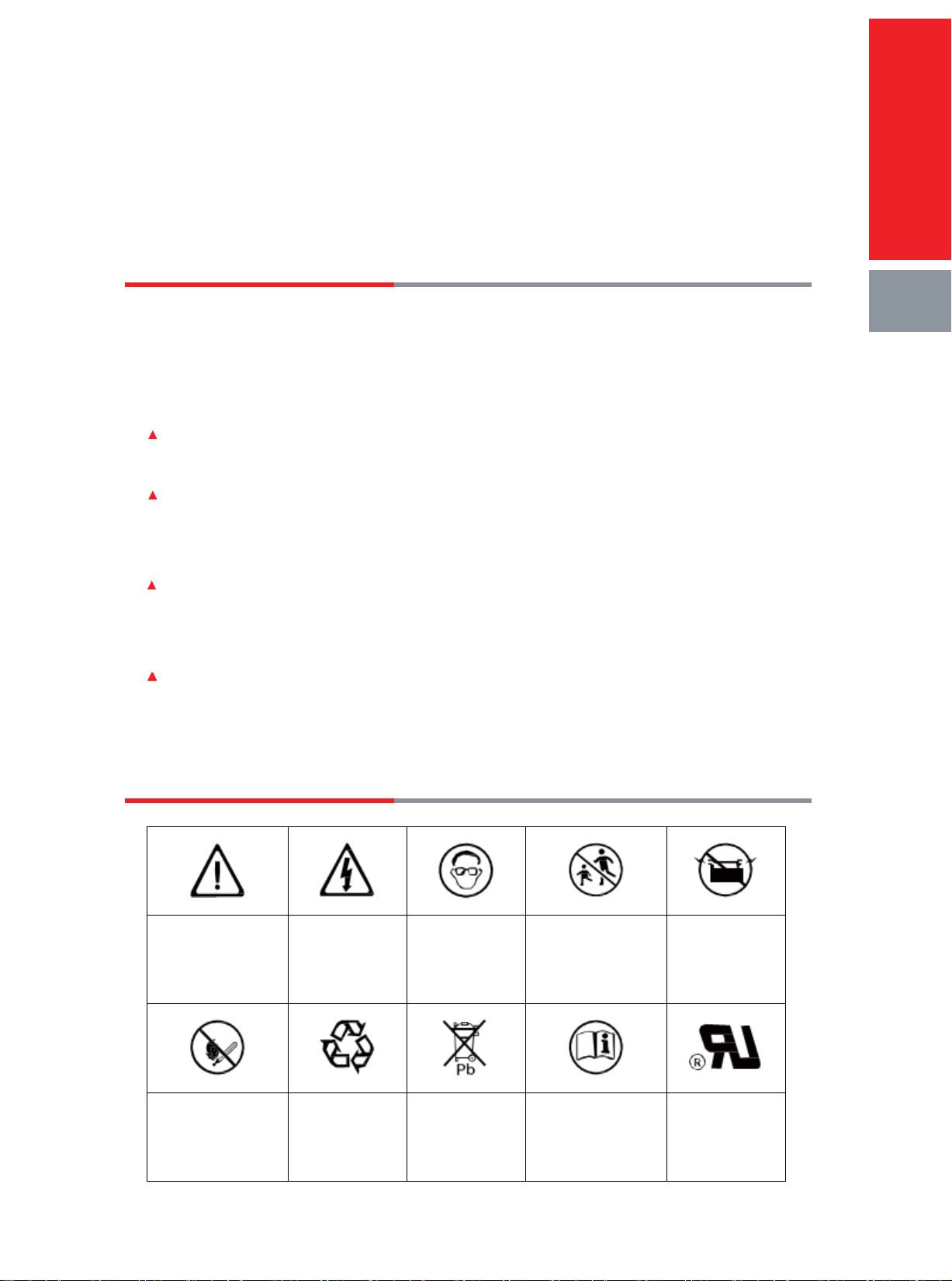

Notices
Warning
Electricity shock
Protecting eyes
With adults custody
No short circuit
No flame and spark
Recycled
Proper disposal
Read instructions
ULcertificate
Security Instruction
13

Operation Parameters
Ambient temperature is -15℃~45℃and the optimal operation temperature is 25℃±5℃.
Ambient humidity less than RH 92%
Altitude less than 4500m, if operation altitude more than 4500m, please make special reminder
when confirm order.
Factors Influencing Capacity
Quantity of electricity battery discharge under certain condition is called battery capacity, symbol is
C, normal unit is Ampere Hour, and in short is Ah.
Battery capacity contains rated capacity and actual capacity, for rated capacity please refer to
Table1-1. Actual capacity is real quantity of electricity battery discharge under certain condition, it
is equal to discharge current multiply discharge time.
High temperature will speed up battery grid corrosion and water loss, thus greatly shorten the
battery life, when the temperature is over 25℃, the service life of the battery will be shortened by
half as the temperature increasing by 10℃. The optimal operation temperature is 25℃±5℃,
charge voltage should be adjusted according to ambient temperature.
Figure 3-1 temperature effect on battery capacity curve
Operation and maintenance
14

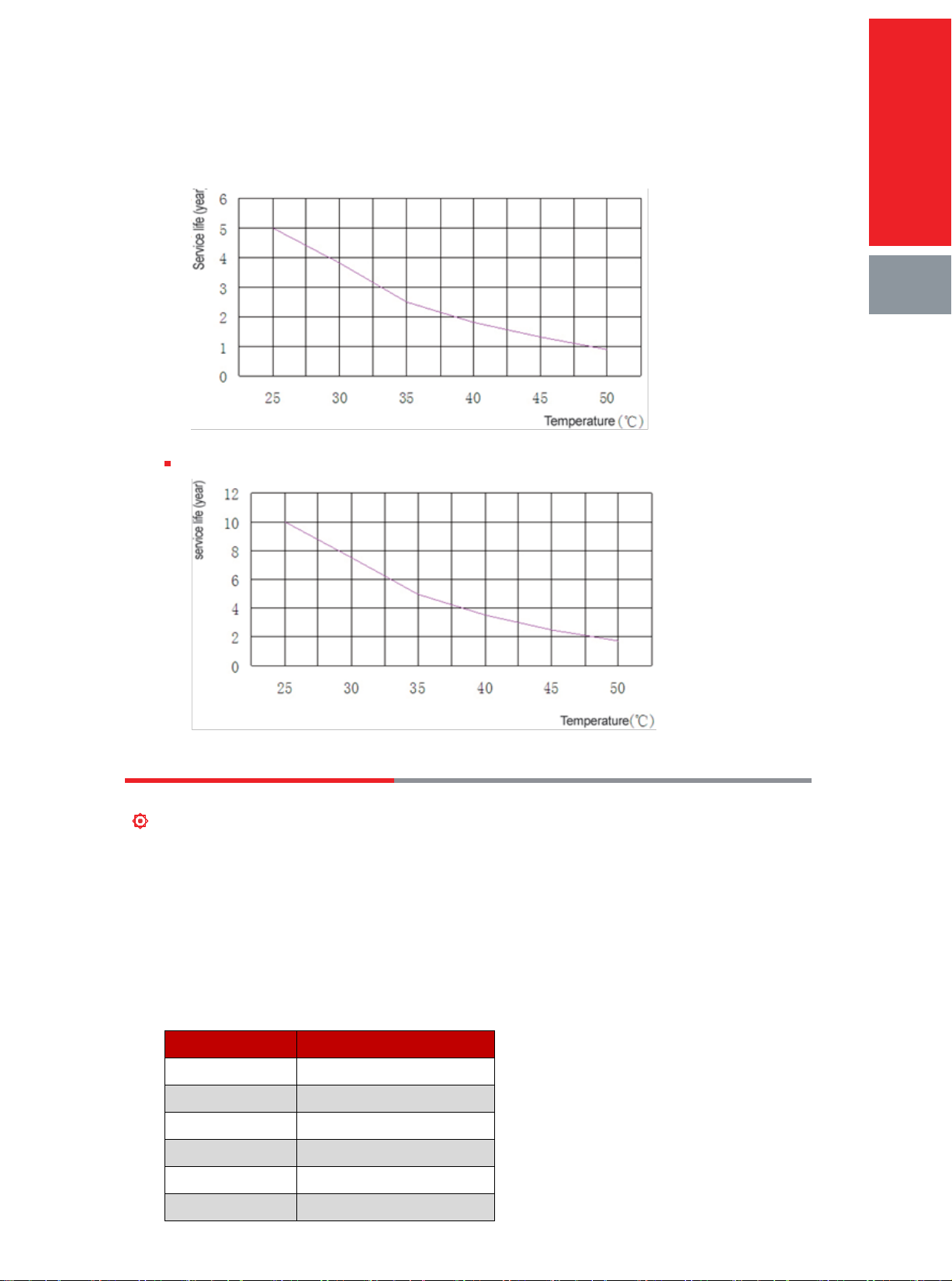

Figure 3-2 service life and temperature curve --- SSP series
Figure 3-3 Service life and temperature curve --- SP series
Charge
Floating charge
Charge method: 2.27V/cell with limited current of 0.3 C20 (A).
Charge voltage should be adjusted according to ambient temperature, temperature
compensation coefficient is -3mV/cell/℃.
Floating charge voltage at different ambient temperature, as below table
Temperature(℃)
Floating charge voltage (V/cell)
0
2.33~2.36
10
2.30~2.33
20
2.27~2.30
25
2.25~2.28
30
2.24~2.27
35
2.22~2.25
Operation and maintenance
15

Cycle application
Charge method: 2.45V/cell with limited current of 0.25 C20 (A).
Charge voltage should be adjusted according to ambient temperature, temperature
compensation coefficient is -4mV/cell/℃.
Setting charge capacity as 105-110% of discharge capacity, when the constant charge current
keep as same value for 3hrs, charge end.
Fast charge
Increasing the charge voltage to 2.40V per cell can reduce recharge time and it is possible,
depending on the depth of discharge, to half the recharge time. Under these conditions,
however, the charge must be monitored and must be terminated when the charge current
remains reasonably steady for 3 hours after the voltage limit has been reached. At the
beginning of charge the current must be limited to 0.3C20 (A)
Ripple current
The ripple content of the charging current affects the life of the battery. It is recommended to
limit the continuous Ripple current to 0.05C20 (in amperes) as recommended value (never
exceed 0.1C20). Transient and other ripple type Voltage excursions can be accommodated
provided that, with the battery disconnected, the system peak to peak voltage including
regulation limits falls within 2.5% of the recommended float voltage of the battery.
Battery Calculations
Floating applications
A battery application is characterized by:
A voltage which must be held within certain limits;
A power level which must be delivered;
A set capacity to maintain the load in terms of time.
By the use of these three parameters, calculations can be affected as follows:
A situation requires: a maximum voltage of 490 volts a minimum voltage of 378 volts;
The ambient temperature is 25℃;
The float voltage is to be 2.27V per cell.
Operation and maintenance
16

Preliminary calculation:
The maximum number of cells: 490V/2.27V=216 cells;
The minimum voltage per cell at the end of discharge: 378/216=1.75V.
Case1: discharge with a surge at the end of discharge
The surge power is to be 50kW for 10 minutes, followed by 10kW for 2 hours.
Discharge current:
During the surge:50000W/378V=132 amps, and then:10000W/378V=26 amps
Determining the cell required for the current required:
Current flow during surge: (132Ax10min)/60min=22Ah
Current flow for 4 hour:26Ax2h-52Ah
Total capacity drawn:22Ah+52Ah=74Ah
Equivalent discharge time at 26 amps to supply 74Ah:74/26=2.8hours
From the table of performance characteristics, expressed in terms of the discharge current in
amps for 1.75V end voltage, the cell to give a current of 26 amps for 2.8 hours is the SP12-100
Conclusion:
In this example, it is the total number of Ah required which determine the battery to be used, i.e.
216 cells/36 batteries of type SP12-100.
Case2: discharge with a surge at the end of discharge (here again, it is the surge which
dictates the battery to be used).
The continuous power is to be 10kW for one hour, followed by a surge of 50kW for 20 minutes.
Discharge current:
During the surge: 50000W/378V=132 amps
Before the surge: 10000W/378V=26 amps
Capacity drawn in 1 hour: 26Ax1h=26Ah
Capacity drawn during surge (20 min)(132 ampsx20min)/60min=43.5Ah
Total capacity drawn: 69.5Ah
Equivalent discharge time at 360 amps to supply 26Ah (69.5/132)x60min-32min
From the table of performance characteristics, expressed in terms of the discharge current in
amps for 1.75V end voltage, the cell to give a current of 132 amps for 32 minutes is the
SP12-150. The battery to be used will consist of 216 cells/36 batteries of type SP12-150.
Operation and maintenance
17

Accidental deep discharge
This may involve discharge of the battery into indicator lamps, a lower load on the battery than
that Initially planned, a failure of the charging system, a discharged battery not recharged
immediately, etc…
On a fully discharge battery:
All of the sulphuric acid has been consumed, and the electrolyte is now nearly water.
Sulphation of the electrolyte is now nearly water. Sulphation of the plates is at a maximum,
thus increasing greatly the internal resistance of the battery. The aqueous solution in which the
battery now finds itself can give rise to the development of lead dendrites on the separator
during recharging, and this may cause the cell to short-circuit internally.
Important note:
This type of deep discharge will still result in the premature deterioration of the battery, and a
significant Effect on its life expectancy.
Effect of temperature on capacity
Temperature affects capacity of batteries. The following formula gives the correction factors
according to temperature, where the reference temperature is 25 ℃
In formula:
T---Discharge temperature
CT---Capacity at temperature of T
k---Temperature coefficient;
k=0.006/℃at C10 discharge;
k=0.008/℃at C3discharge;
k=0.01/℃at C1discharge.
Operating
Warning
The batteries are already charged when delivered, and are fitted with a protective cap on
each terminal. They should be unpacked with care.
Avoid short-circuiting terminals of opposite polarity, because these units are capable of
discharging at a very high current especially if the lid or the container is damaged.
Operation and maintenance
18
