Saeco Aulika SUP040R User manual

Service Manual
Revision 00 July 2012
Service
Coffee Machine Sup 040R
Aulika
Contents Page
1. Introduction
1.1. Required documentation 1
1.2. Necessary tools and equipment 1
1.3. Materials 1
1.4. Safety cautions 1
1.5 Aulika range 2
1.6. Machine external hardware 3
1.7. Machine internal hardware 4
2. Technical data
2.1. Technical data 1
2.2. Machine behaviour and parameters 2
3. User guide
3.1. Machine warnings 1
3.2. Operator guide 2
3.3. Operation, cleaning and maintenance 7
4. Operating logic
4.1. Hydraulic Circuit 1
4.2. Emulsier valve assembly 2
4.3. Cappuccinatore assembly 2
4.4. Discharge valve 3
4.5. Coffee cycle 4
4.6. Single Microswitch 5
4.7 Temperature sensor 5
Contents Page
4.8. Water level detection (water tank) 6
4.9. Descaling request 6
4.10. Water softener 7
5. Fault nding
5.1. Test mode 1
5.2. Diagnostic mode 6
5.3 Error messages
6. Standard checks
6.1. Repairs schedule 1
6.2. Service schedule 1
6.3. Final check 2
7. Disassembly
7.1. Aesthetics 1
7.2. Coffee grinder 1
7.3. Burrs 2
7.4. Coffee grinder motor 3
7.5. Coil, microswitch and doser door 3
7.6. Doser hopper 3
7.7. Coffee boiler and steam boiler 4
7.8. Boiler pin 4
7.9. Coffee pump and steam pump 4
7.10. Turbine 5
All parts included in this document are property of Saeco International Group
All rights reserved. The company waives all liability for any damages arising out of any errors or omissions in this document and the information contained herein, and no part of
this document can be copied, used or noted down without a written authorisation or a specic contractual clause.
2012-July-08

Contents Page
7.11. Gearbox 5
7.12. Discharge valve 6
7.13. Solenoid valves assembly 6
7.14. Steam tube assembly 7
7.15. Dispenser assembly 7
7.16. Power Card 7
7.17. Display, keypads and CPU board 8
7.18. Assembly and disassembly of Oetiker clamps 8
7.19 Connection to the water supply system 9
8. Notes
9. Hydraulic diagram
10 Electric diagram
Rev. 00 / July 2012 AULIKA

Rev. 00 / July 2012 AULIKA

AULIKA 01 INTRODUCTION
Rev. 00 / July 2012 Page / 04
1.1. Required documentation
For repairs, the following documents are necessary:
• Usermanualforthespecicmodel
• Technicaldocumentsforthespecicmodel(diagrams,explodeddrawings)
1.2. Necessary tools and equipment
Besides the standard equipment, the following tools are also necessary:
Qty Description Notes
1 Screwdriver TorxT8-T10-T20
1 Screwdriver Phillips head
1 Oetiker clamp pliers
1DC-A-Vdctester
1 Digital thermometer End of scale >150°C
1SSC(SaecoServiceCenter) Programmer
(forprogramminganddiagnosticmode)
1.3. Materials
Description Notes
Thermal paste Thermal resistance > 200°C
Descaler Saeco Descaler
Degreaser Customer choice
Silicone grease Food grade
1.4. Safety cautions
We strongly suggest to consult the machine's technical manual before working on it. Compliance
with all the relevant regulations for the servicing of appliances is required.
Unplug the machine before starting repairs.
Disconnectingthemainswitchaloneisinsufcienttoavoidelectricaldischarges.
The following appliance is rated Insulation class I.
after the repairs have been completed, the appliance needs to be tested for insulation and
dielectric strength.
01

AULIKA 01 INTRODUCTION
Rev. 00 / July 2012 Page / 04
1.5. Aulika range
Aulika Aulika
Mains
Display interface X X
Satin-nishedsteeldetails X X
ABS details X X
Removable Cappuccinatore X X
Stored dispensed coffee quantity X X
Stored dispensed milk quantity X X
Automatic shutdown
(after30’ofinactivity) X X
Automatic descaling cycle X X
Connection to the water supply system X
Conical steel burrs X X
02

AULIKA 01 INTRODUCTION
Rev. 00 / July 2012 Page / 04
1.6. Componenti macchina esterni
03
Cup connector
Main switch 0/I
“Clean” cappuccinatore button or menu
navigationbutton(PageDown)
ON/OFF button
Cappuccino delivery button
or menu navigation button
(PageUp) Milk coffee deli-
very button
Espresso
button
Coffee delivery button or
selectionbutton(OK)
Hot water
button
Display
Special Beverage selection button
orusedtoexitthemenu(ESC)
Grid
Water tank
Cappuccinatore(removable)
Coffee beans container
Container lid
Container lid lock
Service door lock
Hot water
dispenser tube
Drip tray
Service drawer
Dregs drawer
Dose
adjustment
Full tank
oater
Brewing unit
Coffee grinder adjustment

AULIKA 01 INTRODUCTION
Rev. 00 / July 2012 Page / 04
1.7. Machine internal hardware
04
Doser assembly
Coffee grinder
assembly
Power Card
Gearboxassembly Coffee pump
Turbine
Steam boiler
Coffee boiler
CPU board
Solenoid valves assembly
Display

Rev. 00 / July 2012 AULIKA

AULIKA 02 TECHNICAL DATA
Rev. 00 / July 2012 Page / 04
2.1. Technical data
Power supply and absorption power 240V~50Hz1500W-230V~50/60Hz1400W
Temperature control: Variableresistancesensors(NTC)
sends the values to the electronic card
Safety cautions: 2 thermostats one shot at 190°C
Coffeeheatexchangerpower:
Stainless steel
(230V~)1300W
for coffee delivery
Steamheatexchangerpower:
Stainless steel
230V~)1300W
for water/steam delivery
Gearbox: 2rotationdirections24VCpowersupply
Coffee pump UlkaTypeEP5/SGWca.13-15barreciprocatingwith
thermal120°C48W,230V,50Hz,
Steam pump UlkaHFreciprocating230V,50Hzwiththermal120°C-
22W
Excesspressurevalve:
(multiple-wayvalve)
Opensatca.19-23bar
Water connections
(onlytheversionconnectedtothe
watersupplysystem)
maximumpressure8bar
minimum pressure 1.5 bar
Waterlter: In the tank
Coffee grinder: DC motor with conical steel burrs
Absorption: Intheheatingphase-ca.5.6A
AbsorptioninStand-BY <0,3W
Measurements:lxhxdinmm 336x555x450mm
Weight: 23kg
Water tank capacity: 4 l.
Coffee container capacity 1000 gr beans
Grounds capacity 40
Heatexchangercapacity: Ca. 10 cc
Water circuit charging time: Ca.50sec.maxuponrstcharging,includingrinsing
Heating time: Ca.25sec.maxinstand-by
Delivery temperature: Ca. 75°± 5°
Grinding time: ca.4-7sec.
01

AULIKA 02 TECHNICAL DATA
Rev. 00 / July 2012 Page / 04
2.2. Machine behaviour and parameters
02
Default menu values
1. CREDIT MENU
1.1 Add Credit
1.2ClearCredit(OK/ESC)
1.3DisplayCredit=OFF
1.4CheckCredit=OFF
2. DRINK MENU
2.1. Espresso 2.6. Special drinks *
2.1.1.Pre-infusion=Low 2.6.1. Caffè lungo
2.1.2.Coffeetemperature=Normal 2.6.1.1.Pre-infusion=Low
2.1.3.Coffeequantity=35g 2.6.1.2Coffeetemperature=Normal
2.1.4.Default(OK/ESC) 2.6.1.3.Coffeequantity=130g
2.2. Coffee 2.6.1.4.Default(OK/ESC)
2.2.1.Pre-infusion=Low 2.6.2. Hot milk
2.2.2.Coffeetemperature=Normal 2.6.2.1.Milkquantity=25sec
2.2.3.Coffeequantity=70g 2.6.2.2.Default(OK/ESC)
2.2.4.Default(OK/ESC) 2.6.3. American Coffee
2.3. Cappuccino 2.6.3.1.Coffeetemperature=Normal
2.3.1.Pre-infusion=Low 2.6.3.2.Coffeequantity=235g
2.3.2.Coffeetemperature=Normal 2.6.3.3.Default(OK/ESC)
2.3.3.Coffeequantity=40g 2.7. Counters
2.3.4.Milkquantity=19.5sec 2.7.1.Espresso=0
2.3.5.Default(OK/ESC 2.7.2.Coffee=0
2.4. Milk coffee 2.7.3.Lungo=0
2.4.1.Pre-infusion=Low 2.7.4.AmericanCoffee=0
2.4.2.Coffeetemperature=Normal 2.7.5.Hotwater=0
2.4.3.Coffeequantity=70g 2.7.6.Cappuccino=0
2.4.4.Milkquantity=22sec 2.7.7.Milkcoffee=0
2.4.5.Default(OK/ESC) 2.7.8.HotMilk=0
2.5. Hot water 2.7.9.Resetcounters(OK/ESC)
2.5.1.Waterquantity=280g
2.5.2.Default(OK/ESC)
*Activating this includes steam

AULIKA 02 TECHNICAL DATA
Rev. 00 / July 2012 Page / 04
03
3. MACHINE MENU
3.1 General menu 3.3. Water menu
3.1.1.Sound=ON 3.3.1.Hardness=4
3.1.2.Ecomode=ON 3.3.2.Filterenabl.=OFF
3.1.3.Stand-bysett.=30min 3.3.3.FilterActiv.(OK/ESC)
3.1.4.Selflearning=OFF 3.3.4.Watermains=OFF
3.1.5.Setpassword 3.4 Maintenance
3.2 Display menu 3.4.1.Assemblycleaning(OK/ESC)
3.2.1.Language=Italian 3.4.2.1.StartDescaling(OK/ESC)
3.2.2.Brightness=8thgraphiclevel 3.4.2.2.Descalingwarning=OFF
3.2.3.Contrast=8thgraphiclevel 3.4.3. Cappuccinatore cleaning
3.4.3.1.StartCleaning(OK/ESC)
3.4.3.2.Cleaningwarning=ON
3.5 Factory settings (OK/ESC)
STAND-BY Description and values
Start-up time (min - max) 15minutes-180minutes
Start-up time (default) 30minutes
User-programmed start-up time Yes
Production/Service-programmed
start-up time
Yes
Boiler temperature in stand-by Boiler OFF
PRODUCTS
QUANTITY
Minim.
quantity
(Sett.)
Default
quantity
(Sett.)
Maxim.
quantity
(Sett.)
User
programming
Production/Service
programming
Espresso 90 130-170*200 Yes No
Coffee 100 200-280*600 Yes No
Caffè lungo 70 330-440*600 Yes No
American
Coffee 300 -600 Yes No
Pre-ground No
Hot water Continues for 400 pulses
* Dipende dalla lingua selezionata dall’utente

AULIKA 02 TECHNICAL DATA
Rev. 00 / July 2012 Page / 04
Descaling intervals
Hardness Water hardness Senza ltro anticalcare Con ltro anticalcare
1Soft(upto7°dH) 240litres(480,000pulses) 480litres(960,000pulses)
2Medium(7°-14dH) 120litres(240,000pulses) 240litres(480,000pulses)
3Hard(15°-21°dH) 60litres(120,000pulses) 120litres(240,000pulses)
4Veryhard
(above21°dH) 30litres(60,000pulses) 60litres(120,000pulses)
The default water hardness is 4. A litre of water corresponds to about 2,000 pulses.
WATER TANK Description
Water reserve (pulses) 200
Water reserve adjustable by Production/Service No
"Fill tank" alarm Yes
"Tank absent" alarm No
Water mains No
04
GROUNDS DRAWER Description and values
Time-out on the grounds drawer 5 sec.
Empty grounds drawer warning after After37grounds
Empty grounds drawer locking alarm after
(double coffee as the last product delivered)
40 grounds
(41grounds)
Grounds counter reset
Only in the presence of a warning or of the
alarm, provided that the drawer is removed
for at least 5 sec.
RINSE Initial rinse Final rinse
When it occurs When the machine is turned on
andtheboilertemperatureis≤
50°C
When the machine is turned off
electronically, manually by the user
orautomaticallyafter30’,provided
that at least one coffee has been
dispensed prior to the turning off.
N° of pulses 130 100
Stoppable Yes,bypressinganykey Yes,bypressinganykey
Can be disabled by the user No No
Can be disabled by Pro-
duction/Service No No
User-adjustableN°of
pulses No No
N° of pulses adjustable by
Production/Service No No
Pulses range
(Min-Max) No No

Rev. 00 / July 2012 AULIKA

AULIKA  03USERGUIDE
Rev. 00 / July 2012 Page / 07

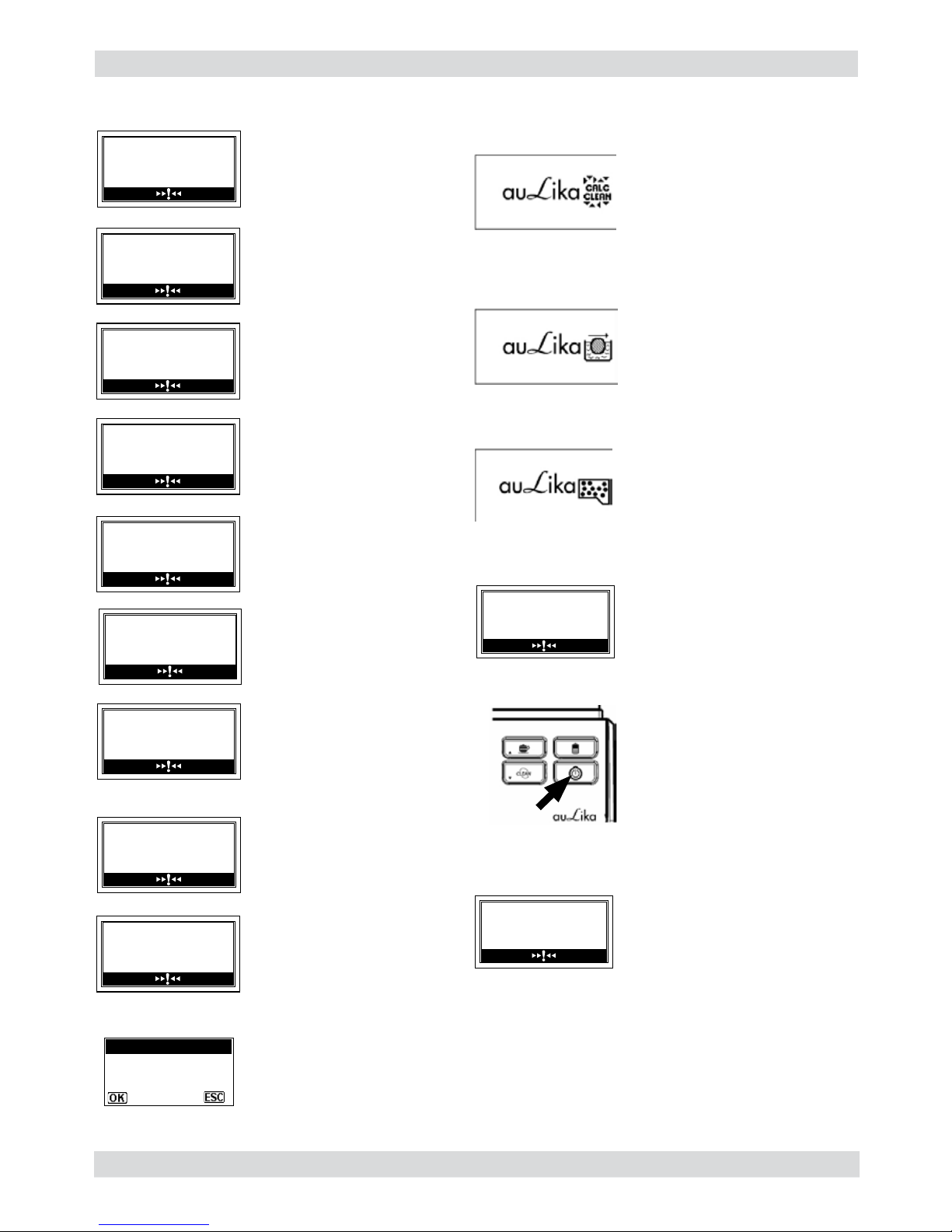

3.1. Machine warnings
Close or position correctly the
coffee beans container lid in or-
der for the machine to dispen-
se any beverage.
The selected operation requires
the delivery of milk.
Insert the previously removed
valve back in the cappuccinato-
re,asspeciedinthemanual.
Fill the coffee contained with
beans.
If this message is displayed
after starting the machine, this
means that a descaling cycle
needs to be performed.
Contact the operator.
Please remember that damage
caused by no descaling is not
covered by the warranty.
The machine requests a descaling cycle.
When this message appears, the machi-
ne can be used but its performance can
be compromised.
Please remember that damage caused
by no descaling is not covered by the
warranty.
The machine asks for the replacement
ofthe“Intenza”waterlter.
Pleasereplacethelter.
This alarm is displayed only if the “Ena-
ble Filter” function is ON.
The machine signals that in a few
cycles the grounds drawer shall need to
be emptied.
It is still possible to deliver some pro-
ducts.
An event that requires the machine
to be restarted has occurred.
Pleasenotedownthecode(Exx)
displayed at the bottom.
Turn the machine off and turn it back
onagainafter30seconds.Ifthepro-
blem persists, call the service centre.
BlinkingredledMachineinStand-By.
ItispossibletomodifytheStand-By
settings(pleasecontacttheoperator).
Remove the grounds drawer and empty
the grounds into an appropriate con-
tainer. Note: the grounds drawer must
be emptied only when the machine
requests it and with the machine on.
If the drawer is emptied while the ma-
chine is off, the machine cannot record
this operation.
Extractthetankandllitwith
fresh drinking water
Place the brewing unit in its
seat.
The selected operation requi-
res the delivery of milk.
Place the cappuccinatore on
the machine as shown in the
manual.
In order for the machine to
operate, close the service door
CHIUDERE LO
SPORTELLO
LATERALE
INSERIRE VASCA
RACCOGLIGOCCE
INSERIRE
CONTENITORE FONDI
INSERIRE
COPERCHIO CHICCI
RIEMPIRE
SERBATOIO ACQUA
INSERIRE GRUPPO
INSERIRE IL
CAPPUCCINATORE
INSERIRE LA VALVOLA
NEL CAPPUCCINATORE
AGGIUNGERE CAFFE’
Insert grounds drawer
Insert drip tray
RIAVVIARE
PER RISOLVERE
IL PROBLEMA
SVUOTARE
CONTENITORE FONDI
DECALCIFICAZIONE
NECESSARIA.
ESEGUIRE?
DECALCIFICAZIONE
01

AULIKA  03USERGUIDE
Rev. 00 / July 2012 Page / 07
CLEAR CREDIT
3.2. Operator guide
To enter the menu, turn the machine back on and press the following keys in sequence
-Cappuccino
-Stand-By
-Milkcoffee
-Clean
If the sequence is correct,
the programming menu is
accessed.
Menus must be PASSWORD-protected.
The PASSWORD is not requested if it is set to the default value (0000). The password must be changed upon rst
starting the machine, so as to prevent access by unauthorised staff.
PASSWORD SETTING
The PASSWORD shall be set by the operator, so as to prevent access by unauthorised staff, who might change the
settings of the machine and cause its malfunction.
Follow these steps to set the PASSWORD:
To selet “SET PASSWORD” press the
Clean key.
Press the “ ” key to enter.
CREDIT MENU This menu makes it possible to manage credit so as to avoid the delivery of the wrong product Credit
management does not work for hot water, hot milk and steam delivery.
To manage the performance of the machine with credit
This function makes it possible to add credit.
This function makes it possible to clear all input credit.
This function makes it possible to enable the credits check
To disable credit display.
Note: the machine shall always display the number of credits when they reach the
minimum threshold of30 credits, to allow the user to warn the operator.
To disable operation with credits check
To enable credits display
To enable operation with credits check
This function makes it possible to display the available credit in the main page.
Note: the "CHECK CREDIT" function must be enabled, otherwise the machine cannot
display the credit, independently from the choice of parameter.
CREDIT MENU
ADD CREDIT
DISPLAYCREDIT
CHECK CREDITS
OFF
OFF
ON
ON
Access the programming menu
of the machine
1To select "MACHINE MENU" press the
Clean key
2
Press the " " key to enter.
3Press the “ ” key to enter the
"GENERAL MENU"
4
5
Press the “ Clean ” key or the “ ” key to enter the
desired number.
7
Repeatprocedures(7)and(8)to
set all the chosen numbers.
9
Pressthe“”keytoconrmtheshownnumber
andproceedtothenextsetting.
8
Now it is possible to set the desired PASSWORD
6
02

AULIKA  03USERGUIDE
Rev. 00 / July 2012 Page / 07
03
BEVERAGES MENU This menu makes it possible to manage and customise the settings for each beverage
To manage the delivery of beverages
N° of caffè lungos delivered since the latest RESETTING
N° of espressos delivered since the latest RESETTING
N° of hot milks delivered since the latest RESETTING
N° of coffees delivered since the latest RESETTING
N° of milk coffees delivered since the latest RESETTING
N° of American coffees delivered since the latest RESETTING
To manage the delivery counters of individual beverages
N° of cappuccinos delivered since the latest RESETTING
N° of hot waters delivered since the latest RESETTING
To reset all beverage counters
BEVERAGESMENU
CAFFE’LUNGO
ESPRESSO
COUNTERS
HOT MILK
COFFEE
AMERICAN COFFEE
CAPPUCCINO
MILK COFFEE
HOT WATER
RESET COUNTERS
To manage the delivery parameter of coffee
To manage the delivery parameter of cappuccino
To manage the delivery parameter of hot water
To manage the delivery parameter of caffè lungo
To manage the delivery parameter of milk coffee
To access the management of special beverages
To manage the delivery parameter of hot milk
To manage the delivery parameter of American coffee
To enable/disable the steam function of the machine.
Todisablethesteamfunction(itisnotpresentinthelistof"Special"products)
Toenablethesteamfunction(itispresentinthelistof"Special"products)
To manage the delivery parameter of espresso
ESPRESSO
COFFEE
CAPPUCCINO
HOT WATER
CAFFE’LUNGO
MILK COFFEE
SPECIALBEVERAGES
HOT MILK
AMERICAN COFFEE
STEAM
OFF
ON

AULIKA  03USERGUIDE
Rev. 00 / July 2012 Page / 07
04
BEVERAGE PARAMETERS
This paragraph describes the various parameters that can be changes.
Note: not all parameters are present for all programmable items.
Pre-infusion:coffeeiswetbeforeinfusion,soastohighlightthefullaromaofcoffee,withexcellent
results.OFF:pre-infusiondoesnotoccur.
LOW: enabled HIGH: longer, to enhance the taste of coffee.
This section can be used to program the quantity of milk delivered every time the beverage is selected.
Thebarmakesitpossibletone-tunethequantityofmilktobeused (unit of measure in seconds)
These settings are valid only to program the delivery of beverages containing milk.
This section can be ised to program the coffee brewing temperature.
LOW: low temperature
NORMAL: standard temperature
HIGH: high temperature
This section can be used to program the quantity of water delivered every time the relevant key is
pressed.Thebarmakesitpossibletone-tunethequantityofwatertobeused(unit of measure in
turbine pulses).
These settings are valid only to program the delivery of Hot water.
This section can be used to program the quantity of coffee delivered every time the beverage is
selected.Thebarmakesitpossibletone-tunethequantityofcoffeetobeused(unit of measure in
turbine pulses)
For every beverage, it is possible to go back to the default settings, also according to the language
selected.
Once this function is selected, the customised settings for that beverage are deleted.
PRE-INFUSION
MILKQUANTITY
COFFEE TEMPERATURE
WATERQUANTITY
COFFEE LENGTH
DEFAULT

AULIKA  03USERGUIDE
Rev. 00 / July 2012 Page / 07
DISPLAY MENU
This function makes it possible to set the language for the menu and the brightness of the display
This setting is fundamental for the correct adjustment of the machine parameters according to the
Country of the user.
The currently selected language is displayed. It is possible to change language using the
appropriate keys.
To set the correct brightness of the display according to the environmental lighting.
To set the correct contrast of the display according to the environmental lighting.
DISPLAYMENU
BRIGHTNESS
CONTRAST
LANGUAGE
ITALIAN
MACHINE MENU Makes it possible to customise the machine functions settings
To change the operating settings of the machine
This function makes it possible to enable/disable the audible warnings
Thisfunctionmakesitpossibletosettheintervalafterwhichthemachineshallgotostand-byafter
the latest beverage dispensed. The default interval is 30 minutes.
Aftertheexpirationofthesetinterval,themachinegoesonstand-by.Pressanykeytowakethe
machine.
After a diagnostic cycle and a heating cycle the machine is again ready for use.
To enable the audible warnings
In this way, when the machine is turned on all the boilers are also turned on, to allow immediate
preparation of all beverages. This entails a higher energy consumption, as the machine is always
ready to use.
Inthiswaytheself-learningfunctionisdisabled
In this way, when the machine is turned on only the coffee boiler is turned on. The machine uses
less energy, but requires more time to deliver products containing milk.
Inthiswaytheself-learningfunctionisenabled;keepakeypressedfor3secondstostartthe
automaticself-learningcycleforthelengthofthebeverageinthecup
To disable the audible warnings
This function manages the activation of the machine boilers, to save energy. This function's default
setting is "ON".
Toenabletheself-learningfunctionwithreferencetothelengthofthedispensedbeverages
To set the access PASSWORD for machine programming.
Note: if the PASSWORD is (0000), it shall not be requested during the access procedure.
If you forget the PASSWORD, you need to start a recovery procedure through the
customer service.
GENERAL MENU
SOUND
ECOMODE
SELF-LEARNING
SET PASSWORD
STAND-BYSETTING
OFF
ON
OFF
OFF
ON
ON
15 MINUTES
30MINUTES
60MINUTES
180MINUTES
05

AULIKA  03USERGUIDE
Rev. 00 / July 2012 Page / 07
This function makes it possible to reset the default parameters.
Note: this section describes how to reset the default values for the custom settings of the
machine menu.
FACT. SETTINGS
FACTORY SETTINGS
WATER MENU
This menu can be used to set the parameters for the correct management of water used to brew
coffee.
To change the water hardness setting of the machine. Thanks to the "Hardness" function, it is possible
to adapt the machine to the level of hardness of the water used, so that the machine can signal the
need for a descaling cycle at the correct time.
To activate the function that allows the machine to be connected to the water mains.
(only for specic models).
Toactivatethelterafteritsinstallationorreplacement
Toenable/disablethesignalforthereplacementofthewaterlter.Whenthisfunctionisactive,the
machinewarnstheuserwhenthewaterlterneedstobereplaced.
OFF: Signal disabled
ON: Signal enabled (thisvalueissetautomaticallywhenthelterisactivated).
Particular attention must be paid to this function, as malfunctions can occur in case
the wrong values are input The "ON" option can be enabled only if the "Mains Water " kit is installed, and
only if it is correctly connected; in all other cases, the option causes a malfunction. When the "ON" option
is selected, the "FILTER ENABLING" and "FILTER ACTIVATION" functions shall be hidden and it will not be
possible to select them.
WATER MENU
FILTERACTIV.
HARDNESS
WATERSUPPLY
SYSTEM(MAINS)
FILTER ENABL.
In this way, the machine shall operate using only its installed tank.
In this way, the machine shall operate using water from the main water supply system
Functions available only
if the "WATER MAINS"
function is set on OFF.
OFF
ON
MAINTENANCE
This function makes it possible to perform the Brewing Unit washing cycle
This function is used to set all the functions for the correct management of the machine maintenance
This function makes it possible to perform the descaling cycle
This function makes it possible to perform the cleaning cycle of the cappuccinatore used to prepare
milk beverages.
Note: this cleaning is important for the correct maintenance and operation of the
cappuccinatore and/or thermos.
MAINTENANCE
DESCALING
ASSEMBLYCLEANING
CAPPUCCINATORE
CLEANING
This function makes it possible to start the descaling cycle as show in the relevant paragraph
In this way the signalling function is disabled
This function makes it possible to activate the display signals when the machine requires a
descaling cycle
Inthiswaythesignallingfunctionisenabled;amessageshallbedisplayedwhenthemachine
requires a descaling cycle
START
OFF
SIGNAL
ON
06

AULIKA  03USERGUIDE
Rev. 00 / July 2012 Page / 07
CELANING AND TECHNICAL ASSISTANCE
A Empty the grounds drawer If the signal is on
B Empty the drip tray Ifneeded(oater)
C Clean the water tank Once a week
D Clean the coffee beans container. If needed
E Clean the chassis If needed
F
Clean the brewing unit Everytimethebeansarerelledoronceaweek.
Lubricate the brewing unit After 500 deliveries
Brewing unit seat cleaning Once a week
H Descaling If the signal is on
I Cleaning of the cappuccinatore with a detergent Before its return
Descaling intervals
Hardness Water hardness Without water softener With water softener
1Soft(upto7°dH) 240litres(480,000pulses) 480litres(960,000pulses)
2Medium(7°-14dH) 120litres(240,000pulses) 240litres(480,000pulses)
3Hard(15°-21°dH) 60litres(120,000pulses) 120litres(240,000pulses)
4Veryhard
(above21°dH) 30litres(60,000pulses) 60litres(120,000pulses)
The default water hardness is 4. A litre of water corresponds to about 2,000 pulses.
3.3. Operation, cleaning and maintenance
Operation
1 Fill the water tank
2Fill the coffee container with
beans.
3Turn the machine on
4Press the key to start the
machine
5 Select the desired language Save it
6Heating The heating phase starts, please wait until it is completed.
7 Rinse The machine performs a rinsing cycle on the internal circuits.
8Machine ready The machine is ready to deliver its products.
07
