Safe Spacer IK141 User manual

Wearable social distance monitor

TABLE OF CONTENTS
1 SAFETY INSTRUCTIONS 3
1.1 Repair and modifications 4
1.2 Battery safety and disposal 4
2 OVERVIEW 5
3 INSTALLATION 6
3.1 Lanyard 7
3.2 Wristband 8
3.3 Belt loop 9
4 ON/OFF/RESET BUTTON 10
5 BATTERY LEVEL AND CHARGING 11
5.1 Battery level alerts 11
5.2 Charging 11
6 SOCIAL DISTANCE WARNING 13
7 CONTACT DATA LOG 14
8 CARE INFORMATION 15
8.1 Cleaning the wristband or belt loop 15
8.2 Cleaning the device casing 15
8.3 Allergy information 15
9 SPECS 16
Safe Spacer 16
REGULATORY 17
2

1 SAFETY INSTRUCTIONS
Before using this product, carefully read this user manual. Failure to follow these safety instructions could result in fire, electric shock, injury,
or damage to Safe Spacer or other property. Do not dispose of this manual. Ensure that this information is retained and used appropriately by
the product user.
• Users must fully understand and strictly observe the instructions. Use the product only for the purposes specified in this document.
Comply with all local and national rules and regulations associated with this product.
• Users of Safe Spacer must be familiar with the relevant safety concepts of the industrial environment they are operating in, as well as
applicable standards and other regulations. Always obey site-specific signs and instructions.
RF EXPOSURE AND INTERFERENCE
Safe Spacer uses radio signals to connect to wireless networks and other devices. It is designed, tested, and manufactured to comply with
regulations governing radio frequency emissions. Even so, radio-signal emitting devices can negatively affect the operation of other electronic
equipment, causing them to malfunction.
POSSIBLE MEDICAL DEVICE INTERFERENCE
Safe Spacer contains components that emit electromagnetic fields. This may interfere with medical devices, such as pacemakers and
defibrillators. Consult your physician and medical device manufacturer for information specific to your medical device and whether you need
to maintain a safe distance of separation between your medical device and Safe Spacer.
If you suspect Safe Spacer is interfering with your medical device, stop using it immediately and consult your physician.
SAFE SPACER IS NOT A MEDICAL DEVICE
Safe Spacer is not a medical device and should not be used as a substitute for professional medical judgement. It is not designed or intended
for use in the diagnosis of disease or other conditions, or in the cure, mitigation, treatment, or prevention of any condition or disease.
NOT FOR USE IN A POTENTIALLY EXPLOSIVE ENVIRONMENT
Charging or using Safe Spacer in any area with a potentially explosive atmosphere, such as areas where the air contains high levels of
flammable chemicals, vapors, or particles (such as grain, dust, or metal powders), may be hazardous.
Exposing Safe Spacer to environments having high concentrations of industrial chemicals may damage or impair Safe Spacer functionality.
3

1.1 REPAIR AND MODIFICATIONS
• Only trained and competent personnel are permitted to inspect, repair and service Safe Spacer.
• Use only original parts and accessories for using and maintaining this product. Otherwise, the correct functioning of the product could be
impaired.
CAUTION: Modifications to any component of Safe Spacer are not permitted, as they can endanger your safety or damage the
device. Disassembling Safe Spacer may cause damage, result in loss of water resistance, and may cause injury to the user.
1.2 BATTERY SAFETY AND DISPOSAL
WARNING: Safe Spacer contains a non-user replaceable lithium-ion battery. It should be serviced only by IK Multimedia.
Don’t incinerate or damage the battery. This could cause overheating and injury.
EUROPEAN UNION—DISPOSAL INFORMATION
The symbol above means that according to local laws and regulations your product and/or its battery shall be
disposed of separately from household waste. When this product reaches its end of life, take it to a collection
point designated by local authorities. The separate collection and recycling of your product and/or its battery at
the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects
human health and the environment.
4

2 OVERVIEW

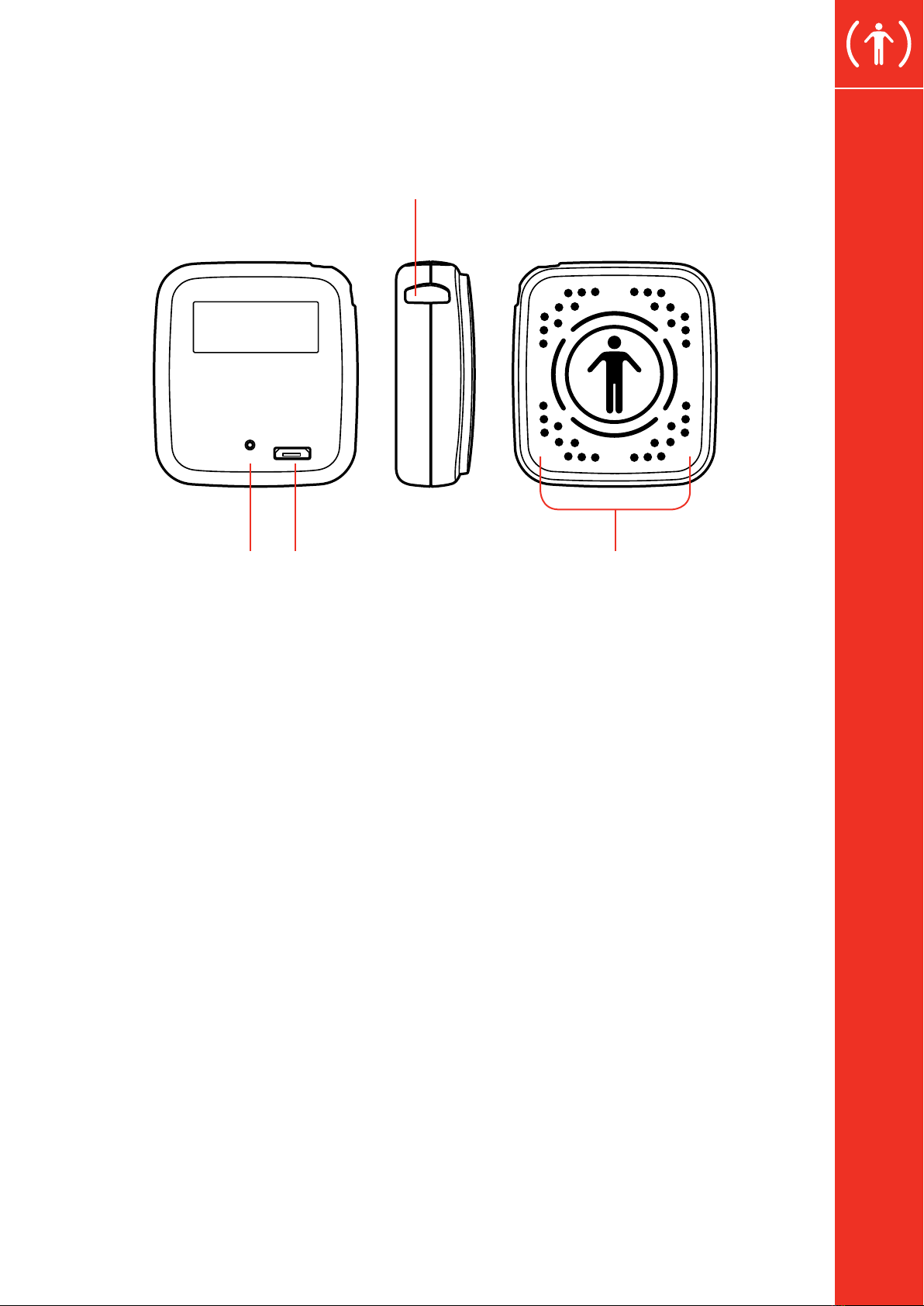

LANYARD HOLE
ON/OFF - RESET
BUTTON
MICRO USB
PORT
LED LIGHTS
5

3 INSTALLATION
Safe Spacer can be worn using a LANYARD, WRISTBAND, or BELT LOOP.
NOTE: Before starting to use Safe Spacer, make sure it is fully charged
(see: 5 Battery level and charging).
6

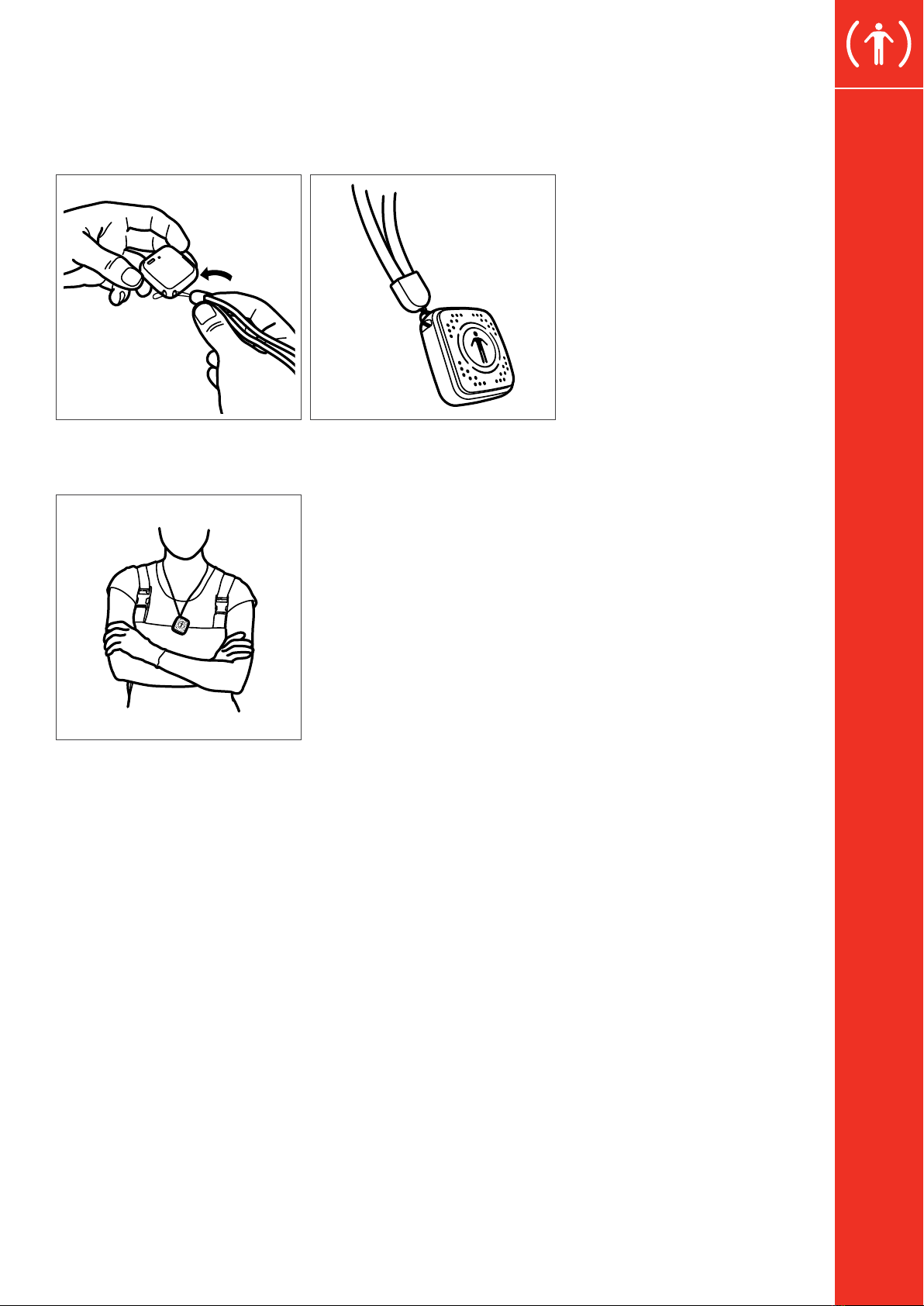

3.1 LANYARD
• Use the lanyard to wear Safe Spacer as a necklace.
• Insert the loop of the lanyard into one of the holes and push the
loop in until it comes out of the other hole.
• Thread the lanyard cable
through the loop, then pull
the lanyard cable to secure it
in place.
7

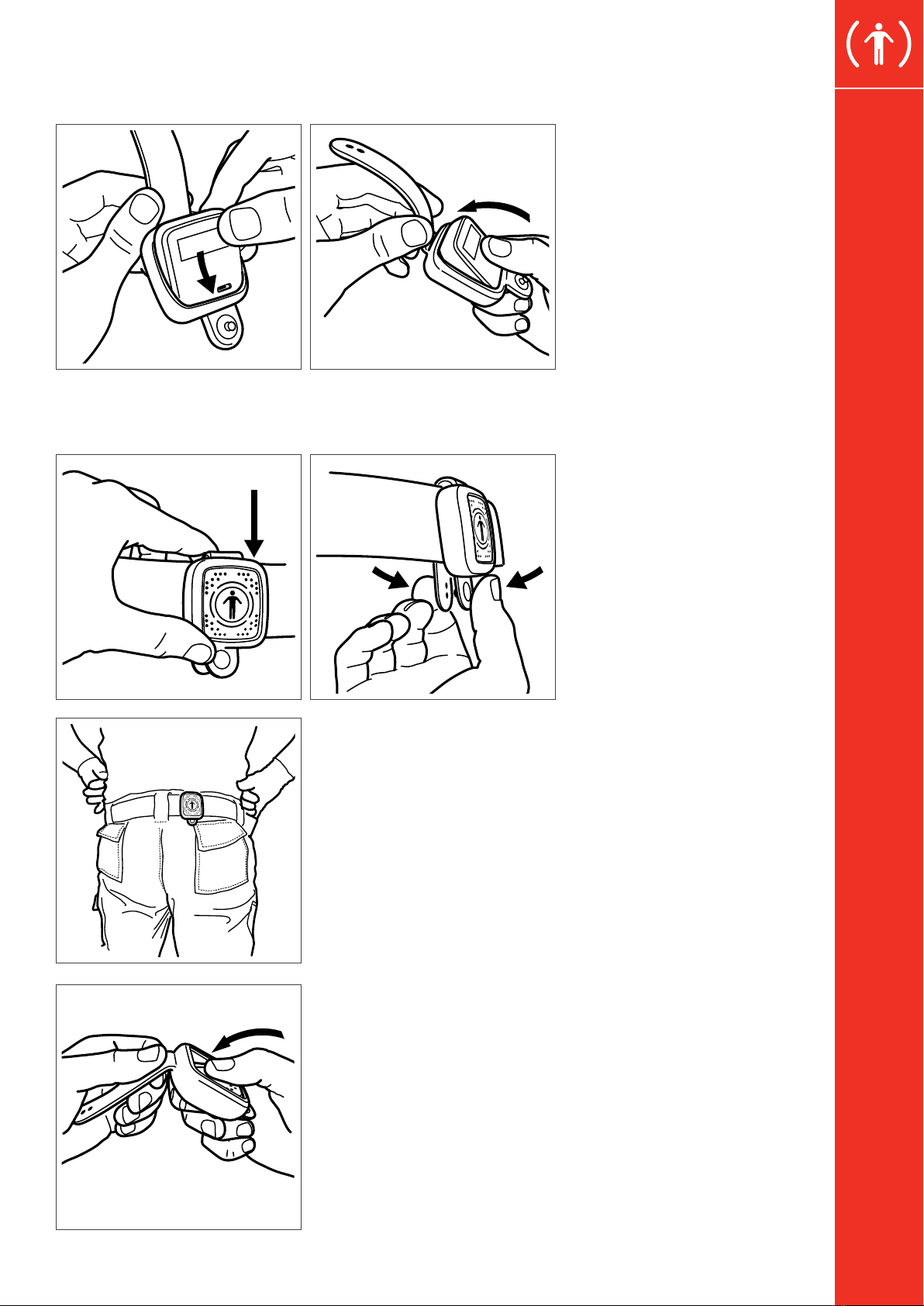

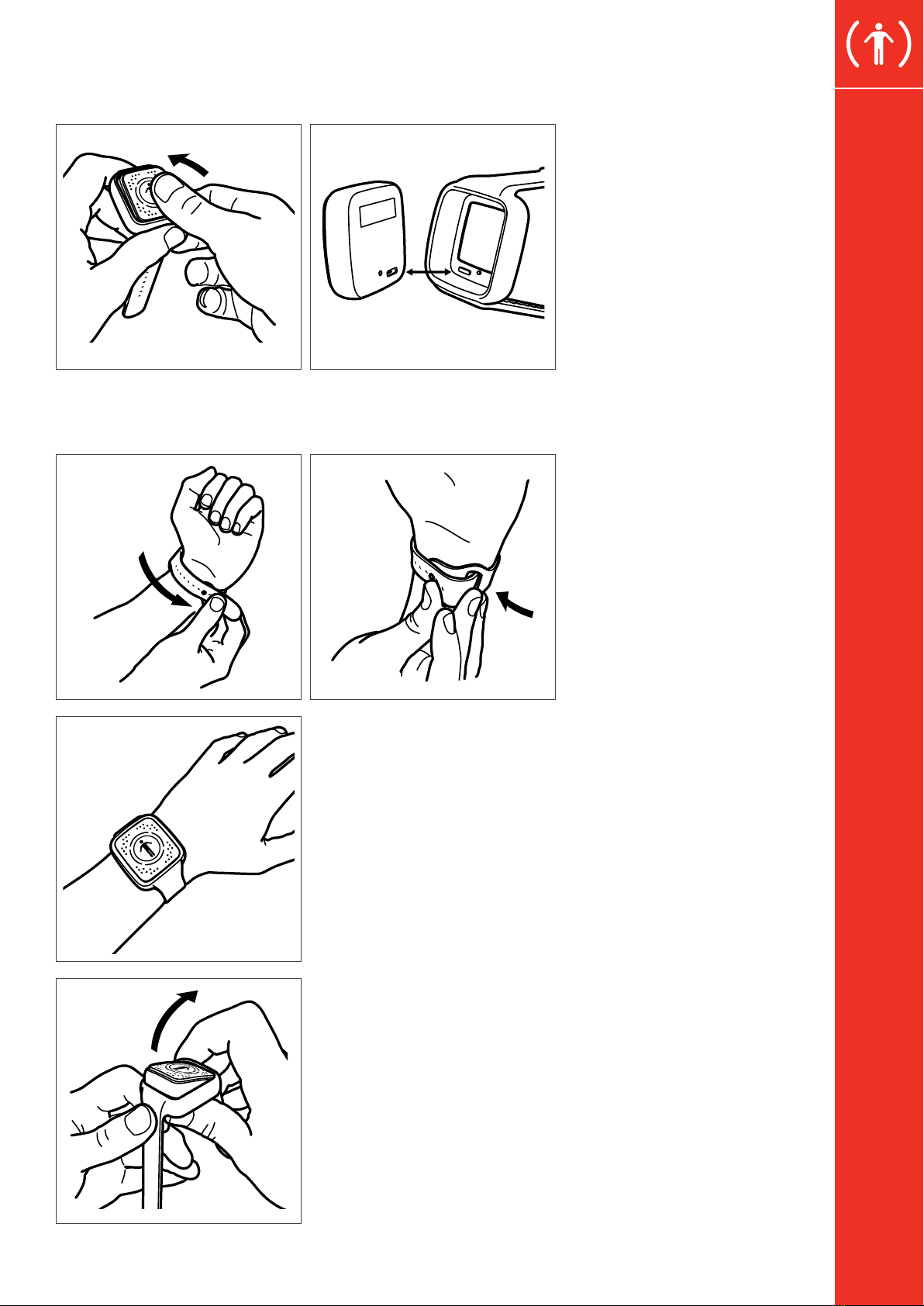

3.2 WRISTBAND
• Put the Safe Spacer into the wristband with the logo facing
outwards.
• Put the wristband around
either wrist and push the
clasp firmly through the hole
most comfortable to wear.
Put the loose end of the top
strap through the loop until
both straps lie flat.
• It is possible to remove
the Safe Spacer from the
wristband in order to access
either the push-button or the
micro-USB port.
8

3.3 BELT LOOP
• Put the Safe Spacer into the belt loop with the logo facing
outwards.
• Put the belt loop around
the belt and push the clasp
firmly through the hole.
• It is possible to remove the
Safe Spacer from the belt
loop.
9

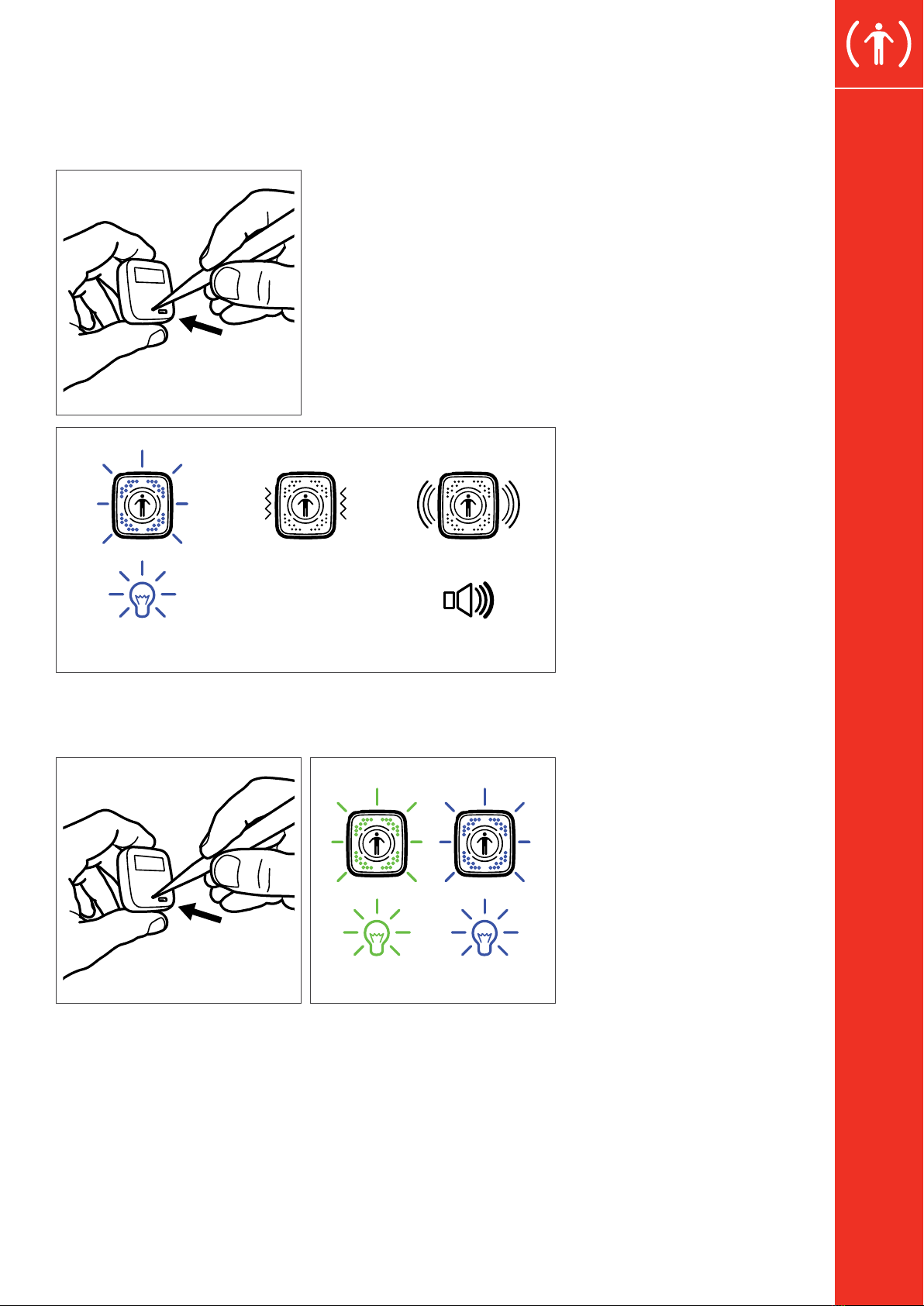

4 ON/OFF/RESET BUTTON
• Turn the Safe Spacer OFF by
pushing the button on the
back of the unit.
BLUE
• The lights on the unit will flash blue once and emit a single
vibration accompanied by a tone when the unit has turned off.
ON
GREEN BLUE
• Turn the Safe Spacer ON by pushing the button on the back of
the unit. The unit will turn on and the lights will blink green/blue
alternatively for 10 seconds.
• To trigger a reset, push and hold the button on the back of the
unit for more than 5 seconds.
OFF
10

5 BATTERY LEVEL AND CHARGING
5.1 BATTERY LEVEL ALERTS
RED

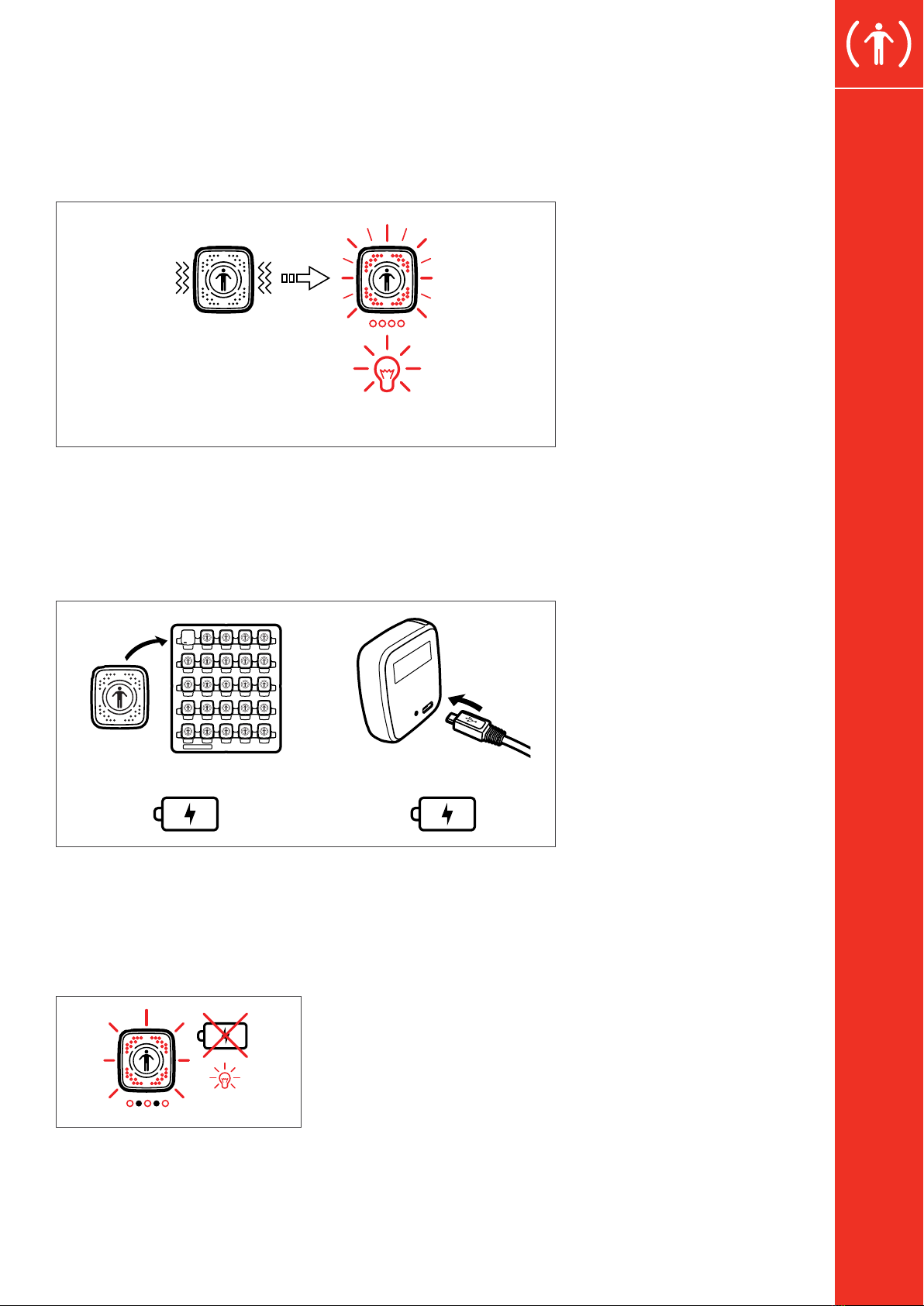

• When the battery level is below 5%, the unit will vibrate with two
short pulses and the LED lights will flash red 4 times, every 30
seconds. Charge the device as soon as possible.
5.2 CHARGING
• It is possible to use the dedicated S-Charger bay or any
micro-USB power supply capable of 5VDC and 1A.
• While the Safe Spacer is charging, the lights on the unit will show
you the battery level status:
Charging error - if the
connected unit is not
charging, the LED will rapidly
flash red;
RED
11

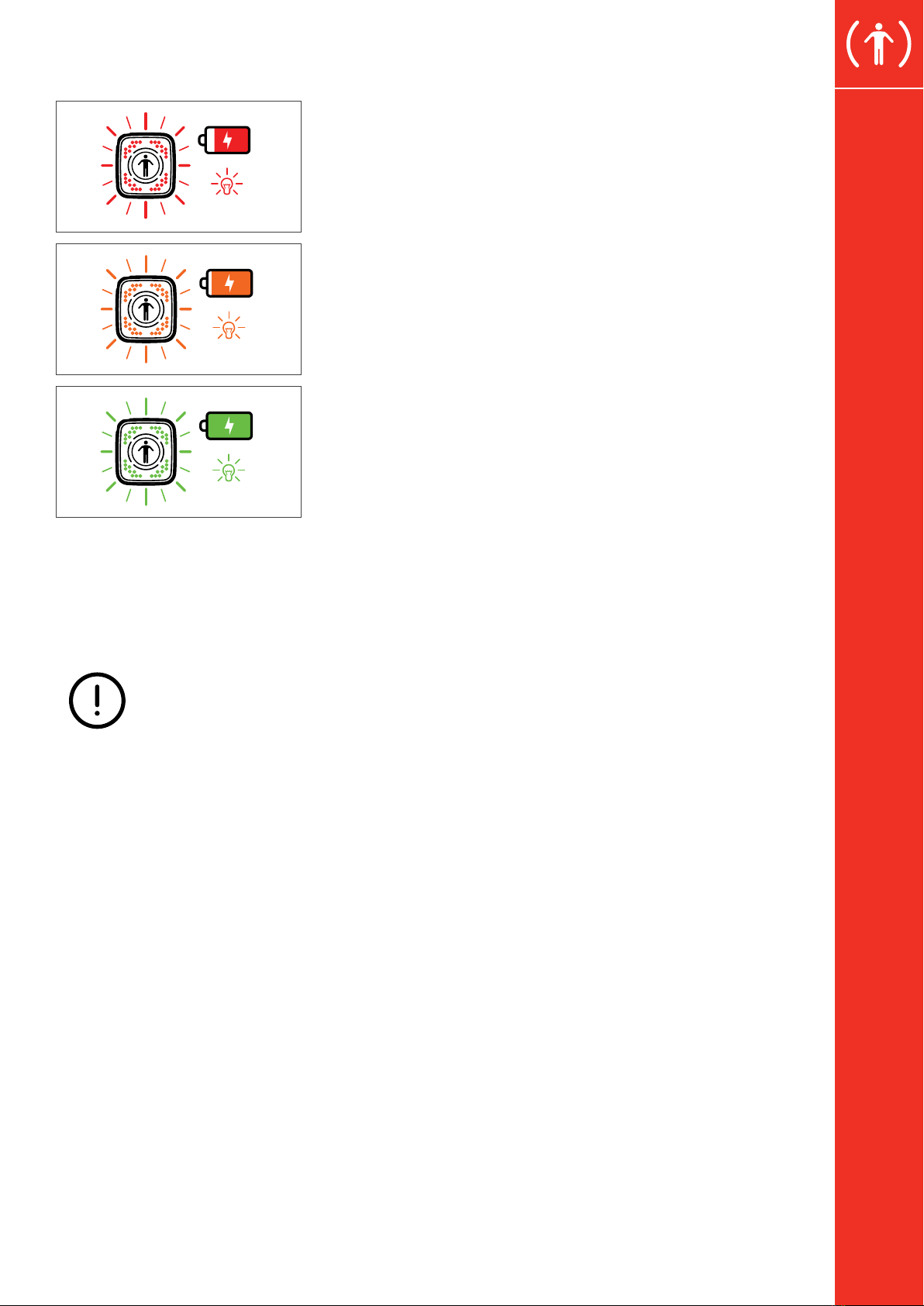

when the battery level is
below 90% the LED will glow
a steady red;
when the battery level is
above 90% the LED will turn
orange;
when the battery level
reaches 100% - full charged -
the LED will turn green;
• By removing the Safe Spacer from the micro-USB power
supply, the unit will turn on and the lights will blink green/blue
alternatively for 10 seconds.
CAUTION: Keep Safe Spacer and the power adapter in a dry, well-ventilated area when
charging. Don’t use a charging cable or power adapter that is damaged or modified. Failure
to do so may cause fire, electric shock, injury, or damage to Safe Spacer or other property.
Don’t wear Safe Spacer on your body or under clothing when charging the device.
RED
ORANGE
GREEN
12

6 SOCIAL DISTANCE WARNING
Social distancing between workers is ensured by alerting them if
they come too close to each other.
The social distancing warning thresholds can be configurated with
dedicated software.
Default threshold values:
2m / 6.56ft
1.2m / 3.94ft
RED

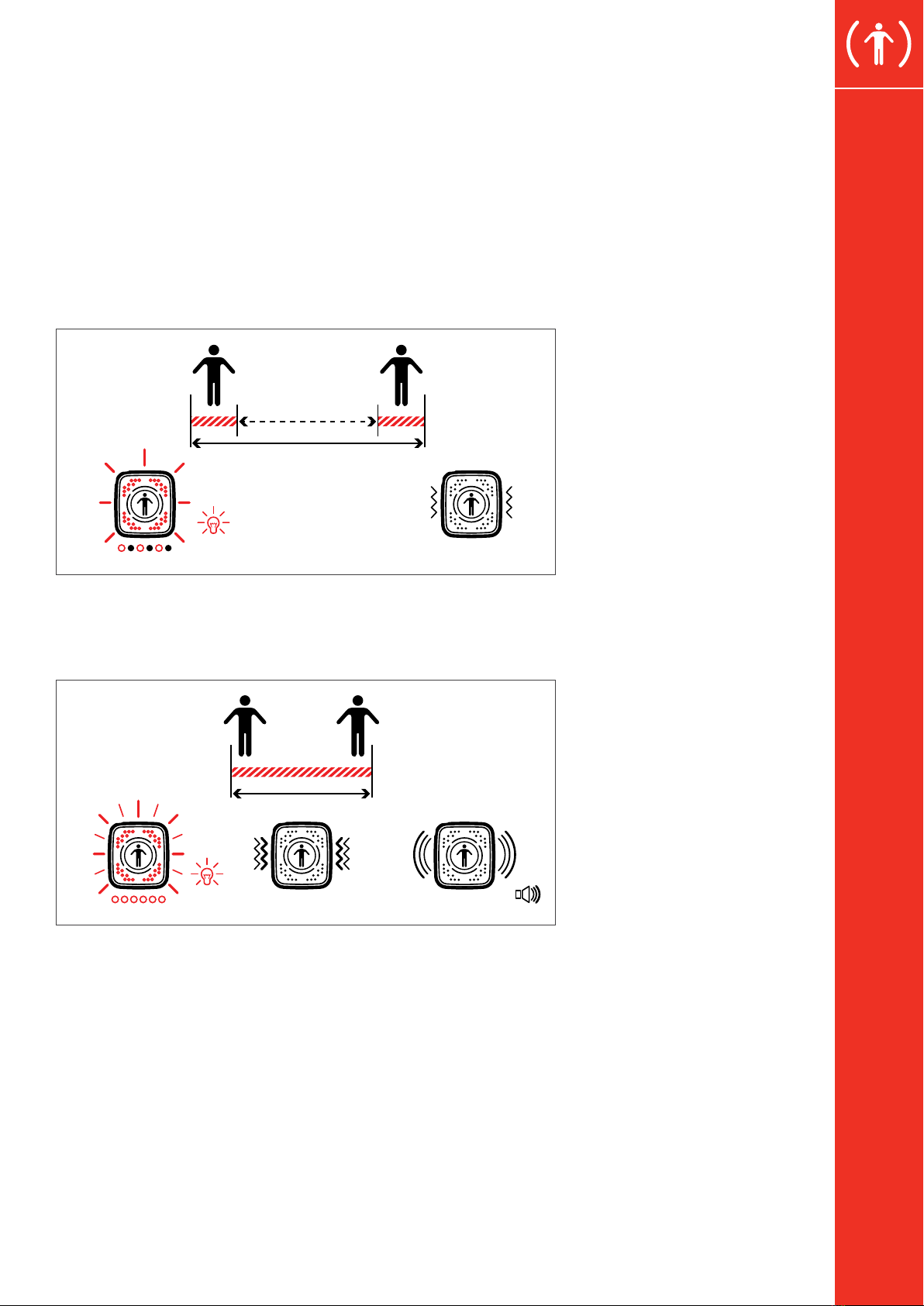

• ALERT 1: When the distance between two or more units is
between 1.2m / 3.94ft and 2m / 6.56ft, the lights on the unit will
flash red and the unit will vibrate every 2 seconds.
1.2m / 3.94ft
RED
• ALERT 2: When the distance between two or more units falls
below 1.2m / 3.94ft, the lights will flash red and the unit will
vibrate every second, accompanied by an intermittent sound alert
(dust proof version only).
13

7 CONTACT DATA LOG
It is possible to enable/disable the contact data log with dedicated
software or command line interface.

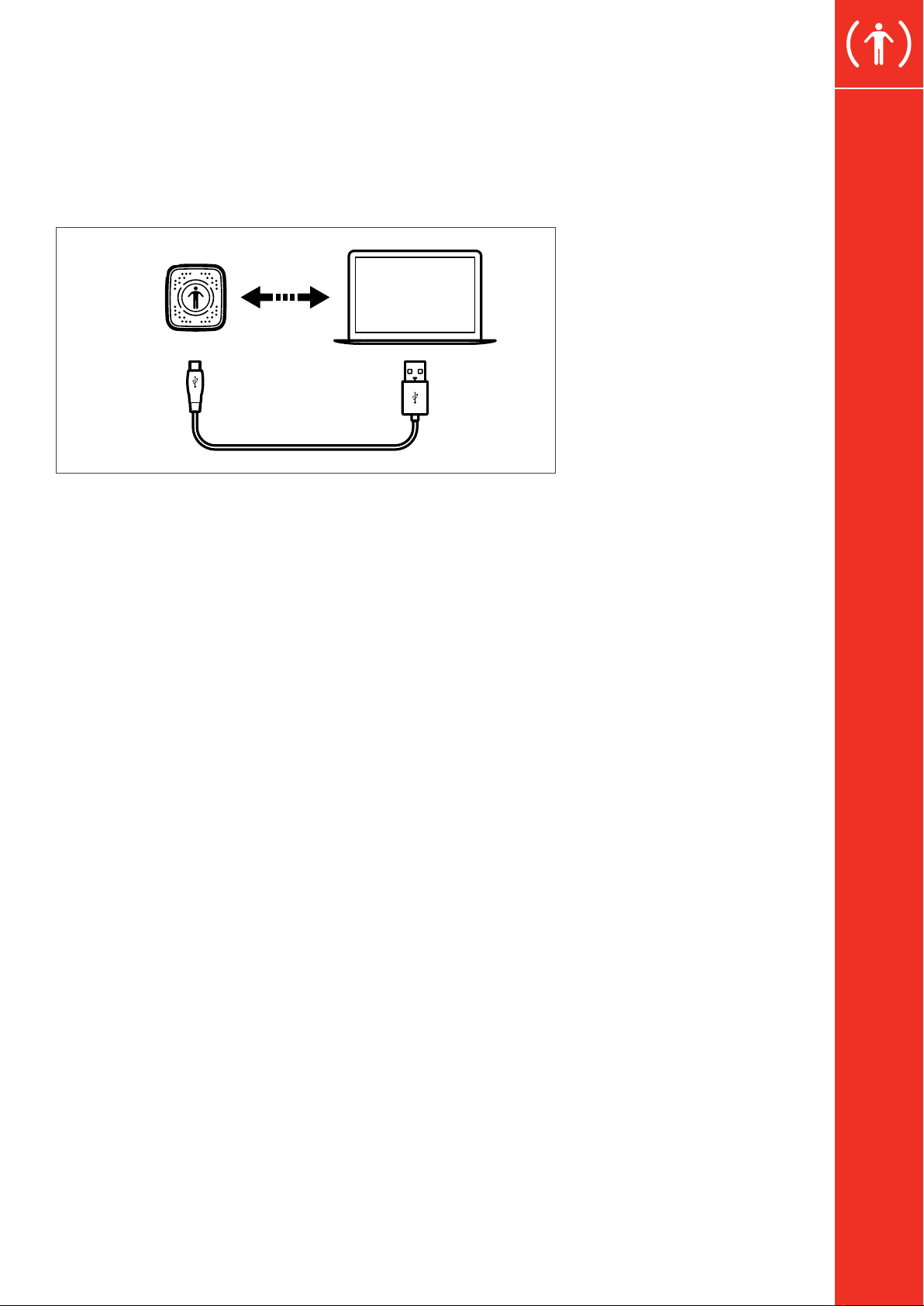

• By default, the contact data log is disabled: to turn it ON, connect
the unit to a computer.
14

8 CARE INFORMATION
8.1 CLEANING THE WRISTBAND OR BELT LOOP
• Clean the wristband regularly. The wristband is made of
thermoplastic elastomer, and can be cleaned with a mild soap
solution and warm water.
• Do not use abrasive cleaners or silicone-oil based products on
the wristband, as it can deteriorate the material.
• The strap can be sanitized by wiping it with isopropyl alcohol.
Remove the Safe Spacer casing from the wristband before doing
so.
• After cleaning, dry the wristband with a clean, lint-free cloth and
let it air dry before using it again.
8.2 CLEANING THE DEVICE CASING
• Clean the casing of Safe Spacer with a damp cloth or a mild
soap solution. Don’t use abrasive cleaners.
• The casing of Safe Spacer can be sanitized by wiping it with
isopropyl alcohol. Do not boil or autoclave the casing of Safe
Spacer, as this may cause permanent damage to the device.
• After cleaning, dry the casing of Safe Spacer with a clean, lint-
free cloth and let it air dry before using it again.
NOTICE: As the effectiveness of certain cleaning products and disinfectants against COVID-19 are not
yet fully known by health authorities, IK Multimedia recommends checking the latest guidelines, which
can be found on www.ecdc.europa.eu.
8.3 ALLERGY INFORMATION
• Safe Spacer is designed to the highest safety standards and
manufactured from high-purity materials.
• As with all things worn close to the body, moisture and bacteria
can cause irritation when wearing a wet or dirty wristband for
extended periods of time. If you have known skin sensitivities,
please take special care when wearing Safe Spacer. Clean the
band and wrist regularly, especially after intense sweating or
working in very dirty environments. Be aware that products
such as lotions, perfume, soap or insect repellants are known to
get trapped under items as jewelry and wristbands and cause
irritation.
• Do not use aggressive products to clean the wristband.
Keeping Safe Spacer and the band clean and dry will reduce the
possibility of skin irritation.
• Take off the safety wearable when not using it, to allow your skin
to breathe. If you experience redness, swelling, itchiness, or other
irritation on your skin around Safe Spacer, remove the device and
consult your physician.
15

16
9 SPECS
Safe Spacer
Wireless technology UWB - Channel 5
Bluetooth®
Sensors Acceleration, Gyro
Indicators Multicolor LED, sound buzzer, vibration feedback
Battery Lithium Polymer battery, 3.7V, 200mAh
Battery duration Up to 20 hours of continuous operation
Re-charge time Approx. 3 hours (using optional S-Charger docking station)
Power supply 5V, 1A max. through micro USB connector
Dust resistant IP52 rated (IK141-112)
Water resistant option IP67 rated (IK141-107)
Operation -20°C to 55°C, 0 % to 98 % relative humidity
Storage -20°C to 55°C, 0 % to 98 % relative humidity
Certification FCC, IC, CE, CE-RED
Data Matrix Unique Data Matrix for each unit
Indentification label 25x10 mm free space for identification label
Casing material PA polyamide
Casing dimensions and weight 47 mm x 42 mm x 16 mm, 25 g
Power Supply Unit (PSU) available separately
Power rating 5V 130 mA max (with USB connection)
RF Power
Bluetooth: -8.5 dBm (max measured power)
UWB: -41.3 dBm/Mhz (e.i.r.p. power spectral density) / 0dBm / 50MHz (peak e.i.r.p. power)
Operational RF Bands
Bluetooth: 2402MHz-2480MHz (Bandwidth=80MHz)
UWB: Nominal frequency 6489.6MHz (Bw=499.2MHz)

REGULATORY
USER’S MANUAL REVISION NOTE:
v1.1.0 (2020/09/14)
Contains FCC ID: 2AQ33-DWM1001
Contains IC: 23794-DWM1001
FCC statement
This device complies with Part 15.107 and 15.109 Class B of the FCC Rules CFR47:
October 2010.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
P/N: IK141-107 (contains P/N:IK141-100)
P/N: IK141-112 (contains P/N:IK141-108)
Model Nr.: IK141
Safe Spacer
17
