Safe Spacer S-Bridge User manual
Wearable social distance monitor
S-Bridge
1 SAFETY INSTRUCTIONS
Before using this product, carefully read this user manual. Failure to follow these safety instructions could result in fire, electric shock, injury,
or damage to Safe Spacer or other property. Do not dispose of this manual. Ensure that this information is retained and used appropriately by
the product user.
• Users must fully understand and strictly observe the instructions. Use the product only for the purposes specified in this document.
Comply with all local and national rules and regulations associated with this product.
• Users must be familiar with the relevant safety concepts of the industrial environment they are operating in, as well as applicable
standards and other regulations. Always obey site-specific signs and instructions.
RF EXPOSURE AND INTERFERENCE
S-Bridge uses radio signals to connect other devices. It is designed, tested, and manufactured to comply with regulations governing radio
frequency emissions. Even so, radio-signal emitting devices can negatively affect the operation of other electronic equipment, causing them to
malfunction.
POSSIBLE MEDICAL DEVICE INTERFERENCE
S-Bridge contains components that emit electromagnetic fields. This may interfere with medical devices, such as pacemakers and
defibrillators. Consult your physician and medical device manufacturer for information specific to your medical device and whether you need
to maintain a safe distance of separation between your medical device and S-Bridge.
If you suspect S-Bridge is interfering with your medical device, stop using it immediately and consult your physician.
NOT FOR USE IN A POTENTIALLY EXPLOSIVE ENVIRONMENT
Using S-Bridge in any area with a potentially explosive atmosphere, such as areas where the air contains high levels of flammable chemicals,
vapors, or particles (such as grain, dust, or metal powders), may be hazardous.
Exposing S-Bridge to environments having high concentrations of industrial chemicals may damage or impair S-Bridge functionality.
1.1 REPAIR AND MODIFICATIONS
• Only trained and competent personnel are permitted to inspect, repair and service S-Bridge.
• Use only original parts and accessories for using and maintaining this product. Otherwise, the correct functioning of the product could be
impaired.
CAUTION: Modifications to any component of S-Bridge are not permitted, as they can endanger your safety or damage the
device. Disassembling S-Bridge may cause damage, result in loss of water resistance, and may cause injury to the user.
EUROPEAN UNION—DISPOSAL INFORMATION
The symbol above means that according to local laws and regulations your product and/or its battery shall be
disposed of separately from household waste. When this product reaches its end of life, take it to a collection
point designated by local authorities. The separate collection and recycling of your product and/or its battery at
the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects
human health and the environment.
3
2 OVERVIEW
SCREW HOLE
MICRO-USB PORT
TO IK141-101
MICRO-USB
PORT
MICRO-USB PORT
TO HOST
LED LIGHTS
4

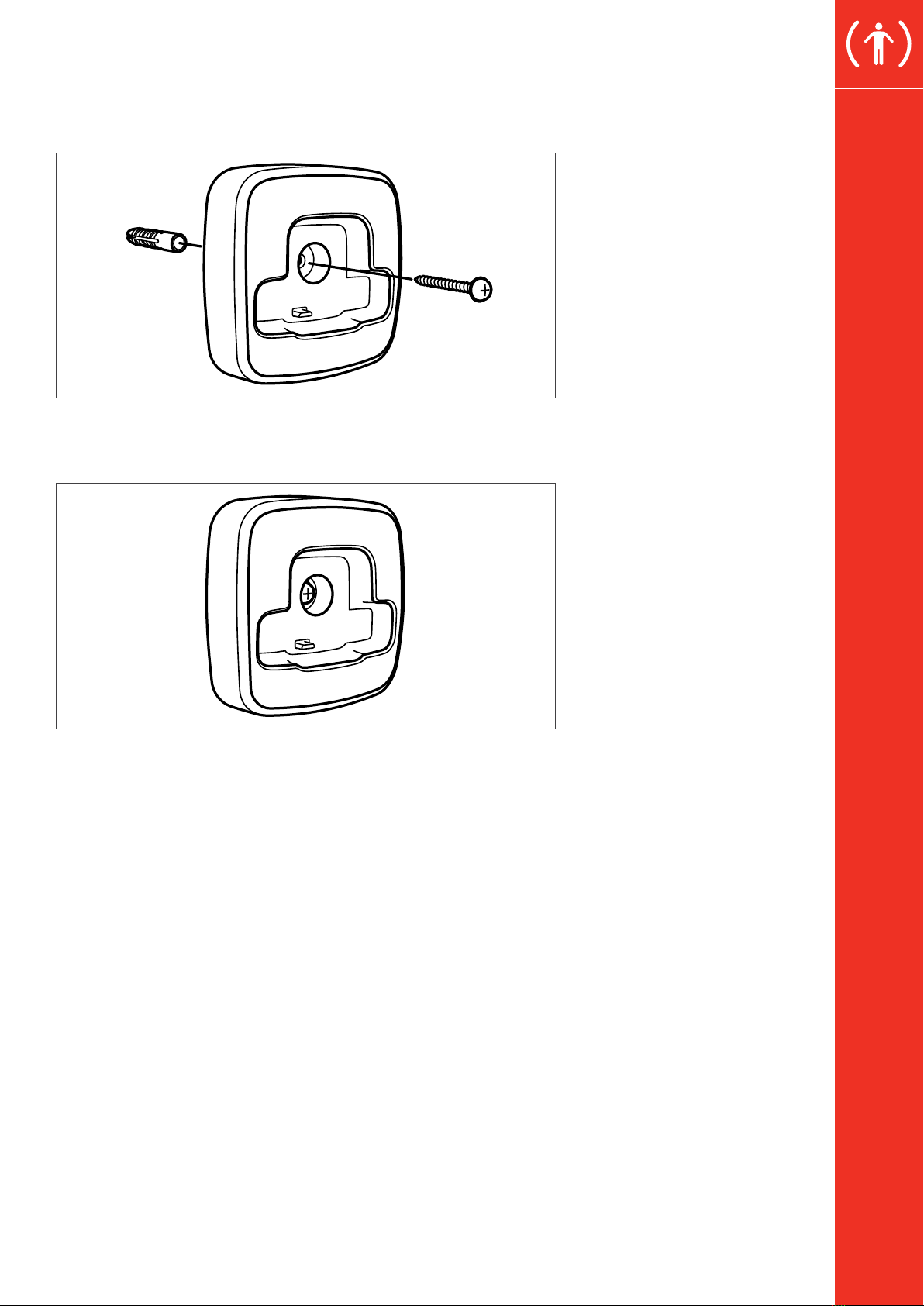

3 WALL MOUNTING
• Mount the holder to the wall using the included screw and wall
anchor.
• Tighten the screw to fasten the holder to the wall.
5
4 INSTALLATION
• Insert the device (IK141-101) into the holder, paying attention to
the position of the Micro-USB connector.
6
5 CONNECTION AND DATA TRANSFER
• Plug the Micro-USB to USB-A cable to the Micro-USB port
located in the bottom side of the holder.
• Use the other end of the cable to connect the unit to computer...
• ...or IT infrastructure.
MICRO-USB PORT
7
6 COMMUNICATION

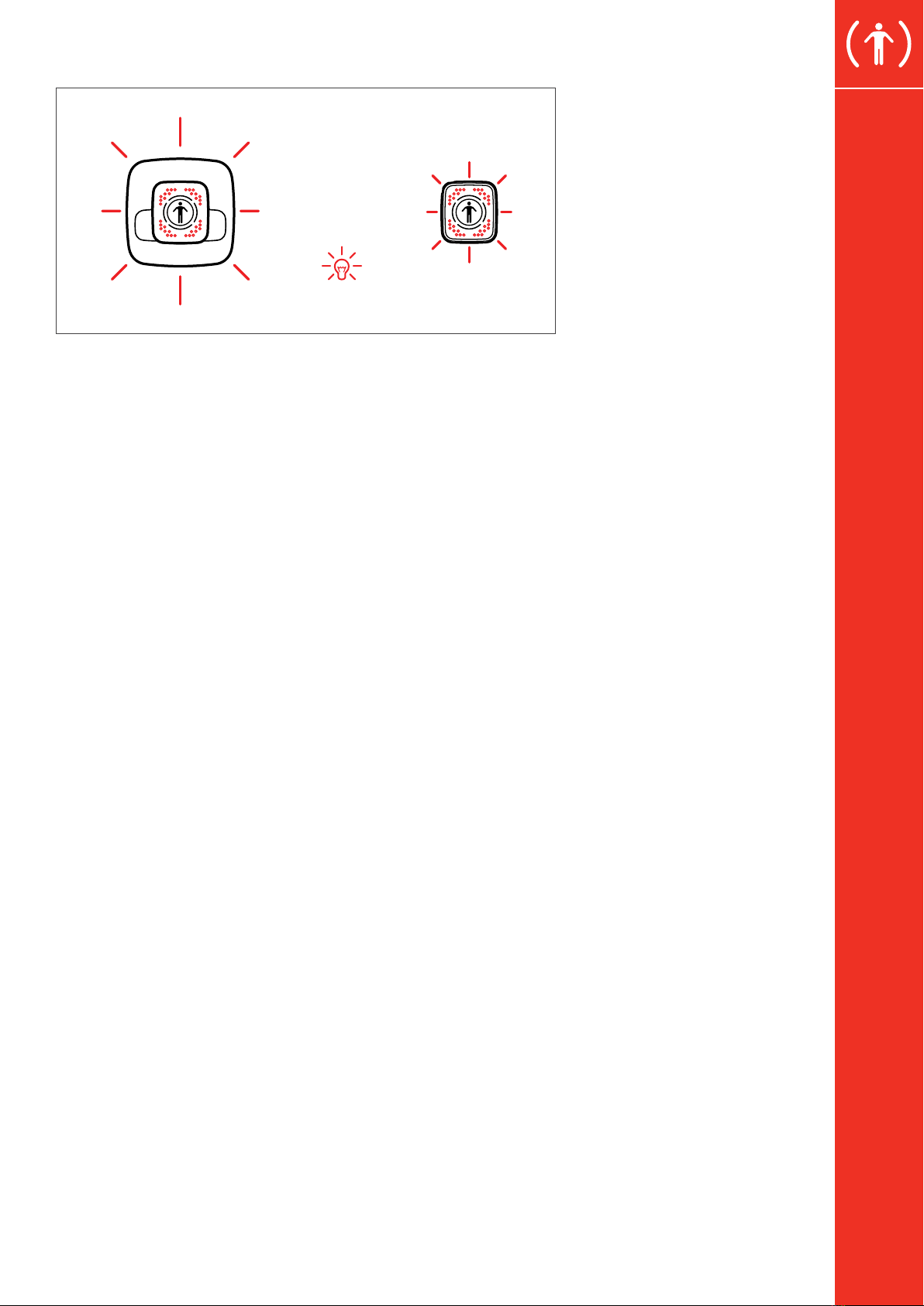

RED
BLUE
GREEN
• When the S-Bridge is connected to an host waiting for a
connection with a Safe Spacer, its LED will turn green.
RED
BLUE
GREEN
• When a Safe Spacer is connected to the S-Bridge, both the units
are light up blue.
GREEN
GREEN BLUE
• Once the connection is terminated and the data are transferred
successfully, the Safe Spacer will blink green and a single
vibration occurs. Then the Safe Spacer will restart and the lights
will blink green/blue alternatively for 10 seconds.
• Once the connection is terminated and the data are transferred
successfully, the S-Bridge will blink green.
8
RED
BLUE
GREEN
• If the connection is terminated with issues, both the Safe Spacer
and S-Bridge will blink red. If this occurs, try again until the
connection will end successfully.
9
10
7 SPECS
S-Bridge
Wireless technology UWB - Channel 5, Bluetooth®
Host connection and power through micro USB connector
Operation -20°C to 55°C, 0 % to 98 % relative humidity
Storage -20°C to 55°C, 0 % to 98 % relative humidity
Certification FCC, IC, CE, CE-RED
Casing Material PA polyamide
Wall Holder Material PP Polypropylene
USB cable Micro-USB male to USB-A male cable, 60 cm (included)
Casing dimension 47 mm x 42 mm x 16 mm
Casing weight 25 g
Wall holder dimension 90 mm x 90 mm x 26 mm
Wall holder weight 45g
Usage indoor only
REGULATORY
USER’S MANUAL REVISION NOTE: 2020/10/15
Contains FCC ID: 2AQ33-DWM1001
Contains IC: 23794-DWM1001
FCC statement
This device complies with Part 15.107 and 15.109 Class B of the FCC Rules CFR47:
October 2010.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Power rating: 5V 130mA max (with USB connection)
This equipment may only be operated indoors. Operation outdoors is in violation of
47 U.S.C. 301 and could subject the operator to serious legal penalties.
P/N: IK141-102 (contains IK141-101)
Model Nr.: IK141
S-Bridge
11
