Overview
Features 3
Installation 4
Horizontally Rotating Mounting Bracket 5
1-1/4” U-bracket 8
SV-LCD-RM1.0-4 9
SV-IR-THRM-BRKT 11
Components 14
Operating the SV-IR-THRM
Start up 15
Shutdown 15
Display Version Number 15
Check the Device ID 15
Settings
Volume 17
Temperature Display Units 17
Not Used 17
Minimum Temperature Alert 17
Maximum Detection Distance 18
Minimum Detection Distance 18
Ambient Body 18
Indicator Light Length 18
Contents

sv-ir-thrm user guide 2
ID Number 19
Restore Factory Settings 20
Thermo Detection Notes 20
Appendix A: Specications 21
Appendix B: Dimensions 21
FCC Compliance Statement 22

sv-ir-thrm user guide
3
Overview
Using a high-precision temperature measurement sensor imported from Belgium, the
mini thermo detector measures the human body surface temperature without any
contact. When an abnormal body temperature is detected, an audible voice warning
will occur. This can be used as a stand-alone product or integrate with walk-through
metal detectors, doors, intelligent access control systems, and more.
Features
 No contact temperature measurement: The detector measures forehead
or hand temperatures and is accurate up to 3 inches away.
 Voice Alarm: After passing the detector an audible voice will state “Your
temperature is normal” for a normal body temperature or
“Please check again” for an abnormal body temperature.
 False Alarm Prevention: Using advanced STM technology the possibility
of false alarms is prevented.
 Easy to use: Just plug it in and it is ready to use.

sv-ir-thrm user guide 4
Installation

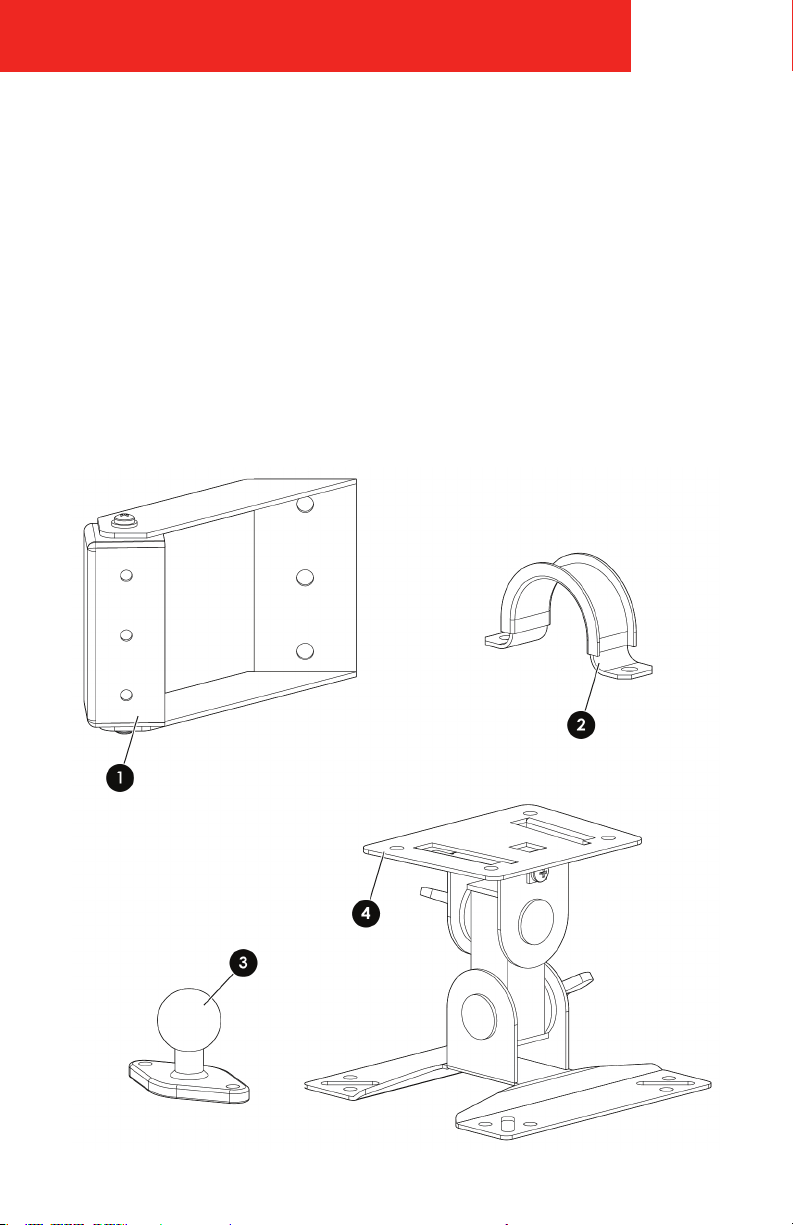

The SV-IR-THRM can be installed using any of four mounting brackets. Each bracket
lines up with a specic hole pattern on the back of the thermometer. The types of
mounting brackets are:
Horizontally rotating (included)
1-1/4” U-bracket (included)
SV-LCD-RM1.0-4 (diamond ball base shown) (optional)
NOTE: Safety Vision part number SV-IR-THRM-SCRW is required for this installation.
SV-IR-THRM-BRKT (optional)

sv-ir-thrm user guide
5
Horizontally Rotating Mounting Bracket
The horizontally rotating mounting bracket uses the holes indicated below on the
back of the thermometer shroud.
 Remove the two (2) Phillps head screws that secure the shroud to the
thermometer.

sv-ir-thrm user guide 6
 Line up the holes of the bracket to the center two holes (shown on page 3).
 Using the two Phillips head screws (removed in step 1) to secure the bracket
to the shroud.
 Using the included three self-tapping screws (and wall anchors if necessary),
secure the bracket arm to the mounting surface.

sv-ir-thrm user guide
7

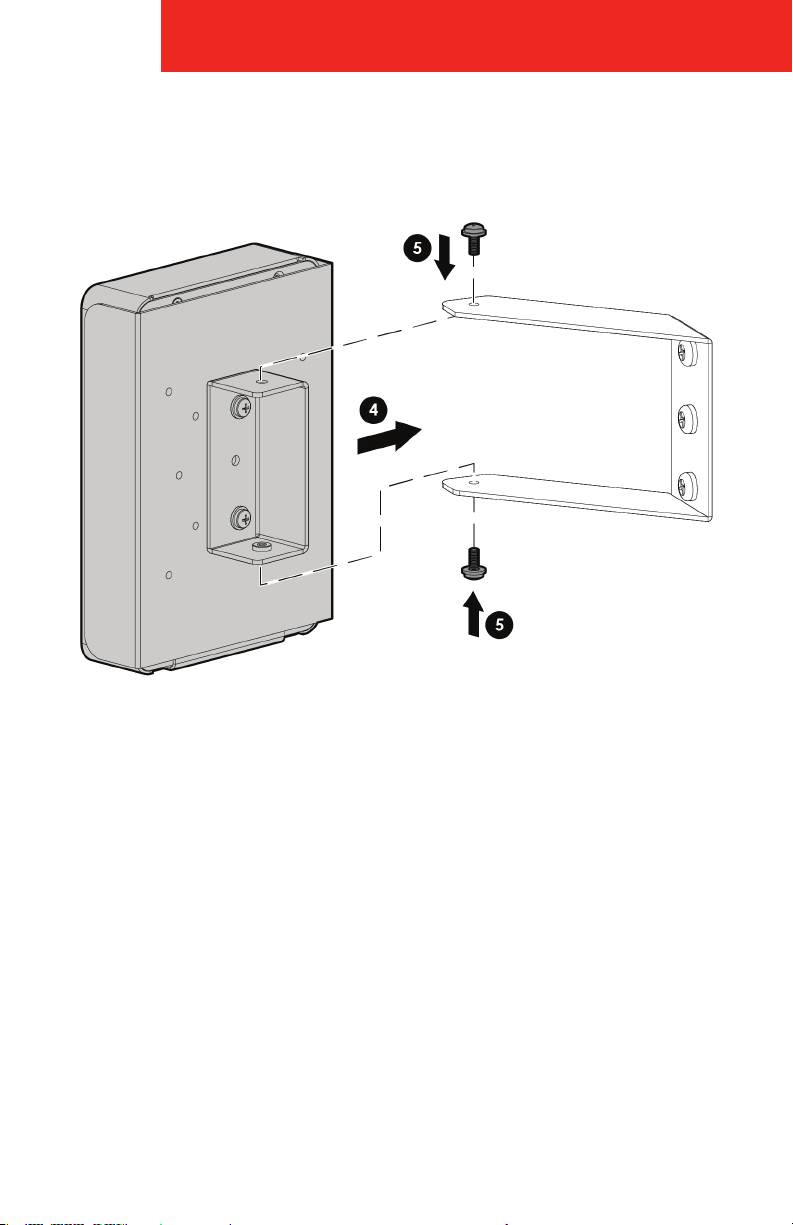

 Slide the thermometer with attached bracket into the bracket arm and secure it
in place with the included two Phillips head screws and washers.

sv-ir-thrm user guide 8
1-1/4” U-bracket

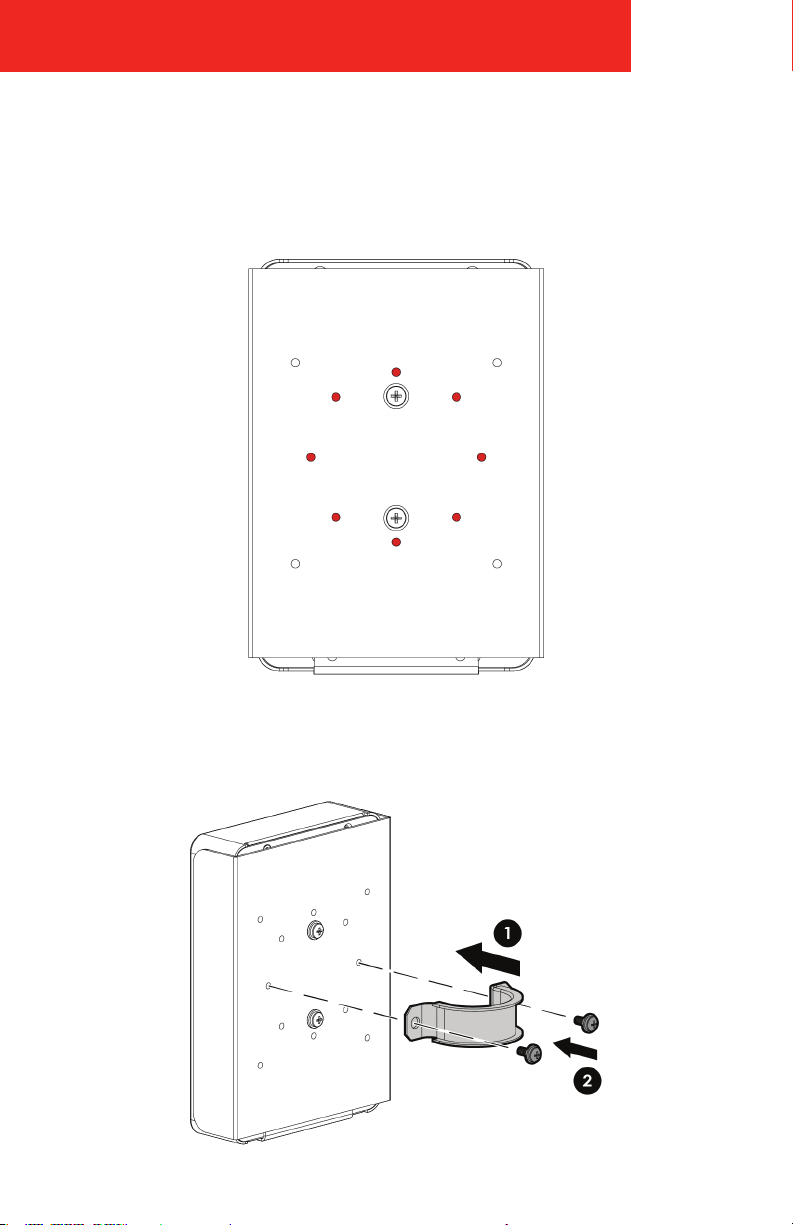

The 1-1/4” U-bracket uses any two holes shown below, on the back of the
thermometer shroud, to mount the thermometer to a rail or pole.
Using two of the included Phillips head screws, secure the U-bracket, around a railing
or pole, to the thermometer shroud.

sv-ir-thrm user guide
9
SV-LCD-RM1.0-4
NOTE: When installing the SV-LCD-RM1.0-4, it’s necessary to use the included hardware
kit SV-IR-THRM-SCRW.
The SV-LCD-RM1.0-4 mount uses the indicated holes below on the back of the
thermometer shroud.

sv-ir-thrm user guide 10
 Remove the two (2) Phillps head screws that secure the shroud to the
thermometer.
 Line up the holes of the diamond ball base to the center two holes and use the
2 Phillips head screws included in SV-IR-THRM-SCRW to securely fasten the base
to the thermometer.
 Using the four self-tapping screws (and wall anchors if necessary), secure the
bracket arm to the mounting surface.

sv-ir-thrm user guide
11
SV-IR-THRM-BRKT
The SV-IR-THRM-BRKT bracket uses the four outermost shown below, on the back of
the thermometer shroud, to mount the thermometer to a rail or pole.
 Remove the retaining screw and slide the mounting plate o.

sv-ir-thrm user guide 12
 Align the diagonal slots of the bracket to the four outermost holes on the
thermometer.
 Using the four Phillips head screws (wrapped in packing foam included in the box),
securely fasten the bracket to the thermometer.
 Using the included four self-tapping screws (and wall anchors if necessary), secure
the mounting plate to the mounting surface

sv-ir-thrm user guide
13

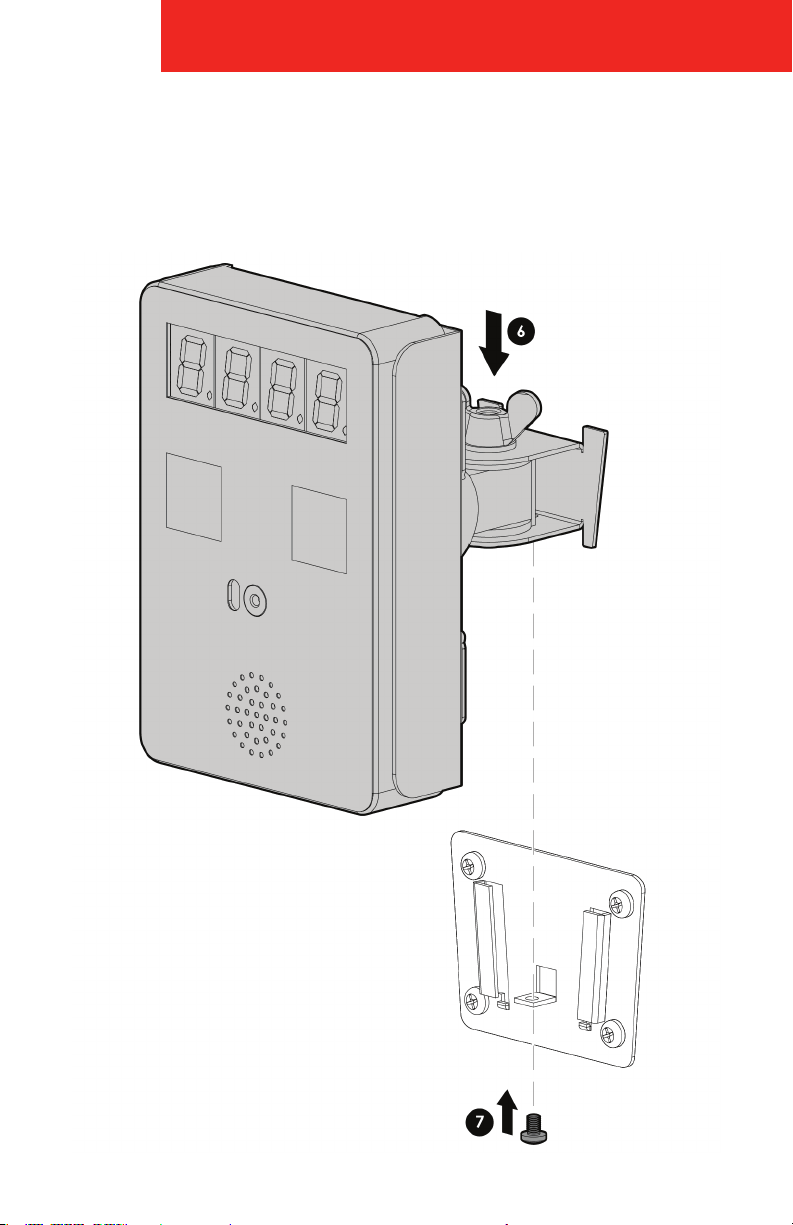

 Slide the thermometer with mounting bracket onto the mounting plate and
replace the retaining screw. Loosen the wing nut on either side of the bracket to
adjust the angle of the thermometer.

sv-ir-thrm user guide 14
Components

 Press the Enter button to conrm
selection.

 When inputting a numerical value,
press the Adjust button to change
the value of numerical input.

 When inputting a numerical value,
press the Select button to move a
space to the right.
(disabled)
 When connected to a power source
the thermometer is always on.

 LED activates when detected
temperature is within the
95° F - 100.4° F (35° C - 38° C) range.



 Verbal alarm when temperature is
normal (“normal temperature”) or
abnormal (“please check again”).


 LED activates when detected
temperature is out of the
95° F - 100.4° F (35° C - 38° C) range.


sv-ir-thrm user guide
15
Operating the SV-IR-THRM
Start up
Connect the power supply and wait for the display to show 0.
Shutdown
To shutdown the system, turn o power source or unplug power cable.
Display Version Number
Press the Select button twice and the version number will display, then press the
Select button to return to the main interface.
Check the Device ID
Press the Adjust button twice and the device ID will display, then press the Adjust
button to return to the main interface.

sv-ir-thrm user guide 16
For example, to input the number 6100:
 Press the Adjust button 2 times to input “6”.
 Next to input “1”, press the Select button to move the next space, then the
Adjust button 2 times.
 Press the Select button to move to the next space and the Adjust button 1 time
to input “0”.
 Repeat step 3 once more for the last “0” and press the Enter button.
Press the Enter button at any time to return to the main interface or continue to press
Select after each setting to continue to the next setting.
Settings
Use the following steps to access the thermometer’s settings:

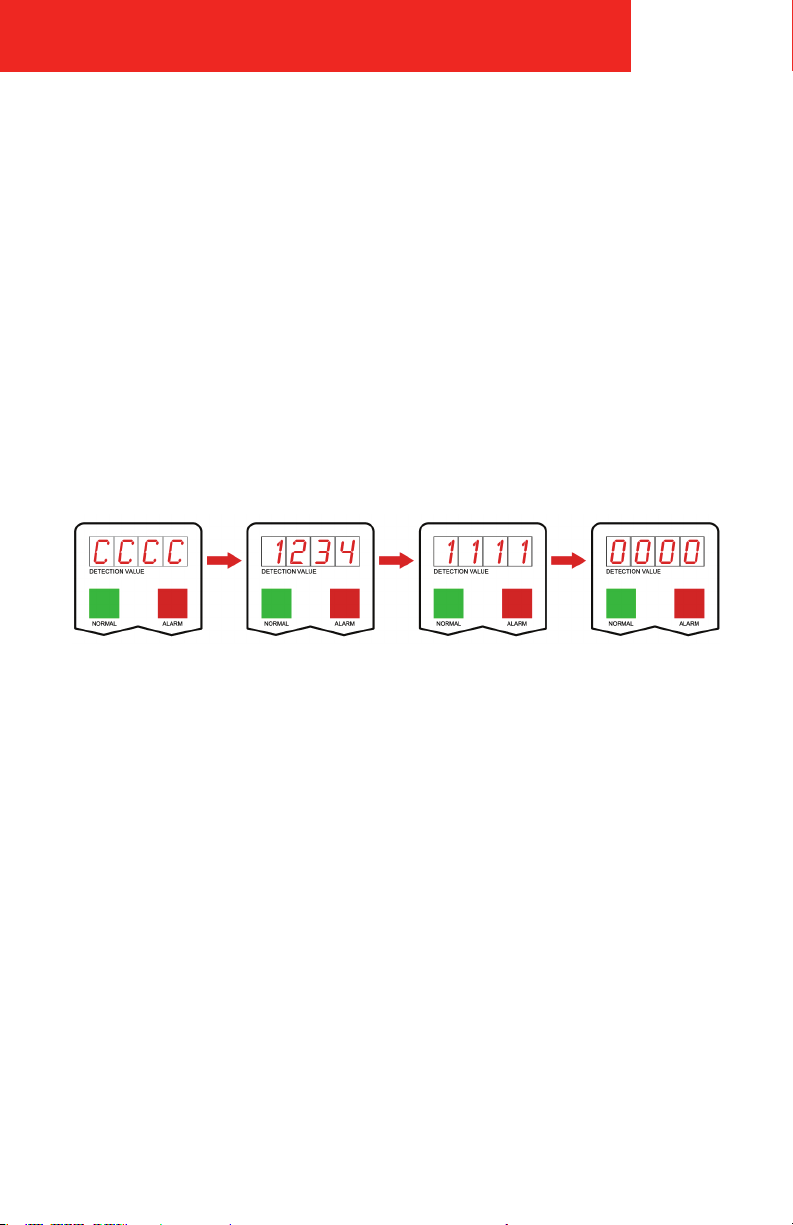

 Press the Enter button (CCCC will appear on the display)
 Press the Select button once (1234 will show on the display)
 Press the Select button once more, then use the Adjust and Select buttons
to input the password 1111.
 Input the password by alternating between the Adjust button to
change the numerical value of each space and the Select button
to move spaces.
 Press the Enter button twice (0000 then FFFF will appear on the display)

sv-ir-thrm user guide
17

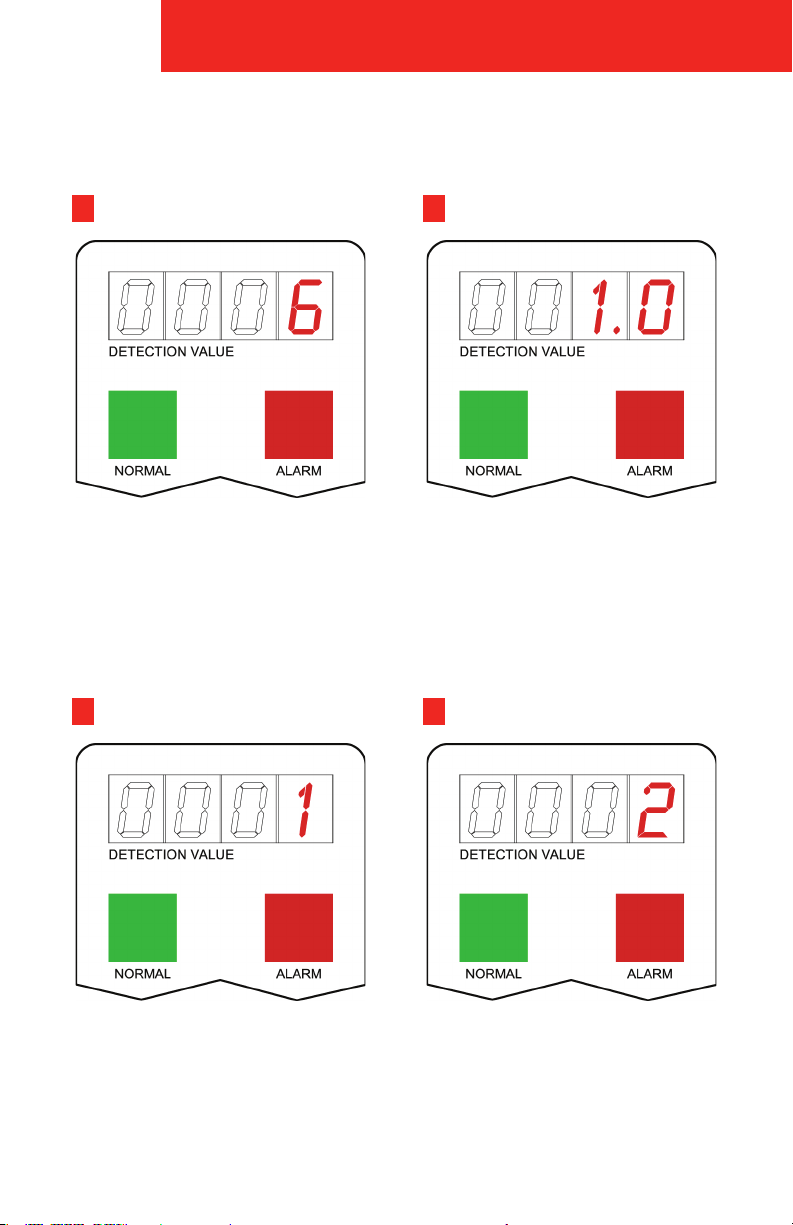

The settings are in the following order (shown with the default and range values):
Default: 6
Range: (0 - 8)
 - mute, 8- loudest.
Default: 1.0
Range: (1.0 - 7.0)
1 2
Volume Not Used
Default: 1
Range: (0 - 1)
 - Celcius, 1- Fahrenheit
Default: 2
Range: (2 - 3)
 2- alert sounds when temperatue
is below set minimum, 3- alert is muted
3 4
Temperature Display Units Minimum Temperature Alert

sv-ir-thrm user guide 18


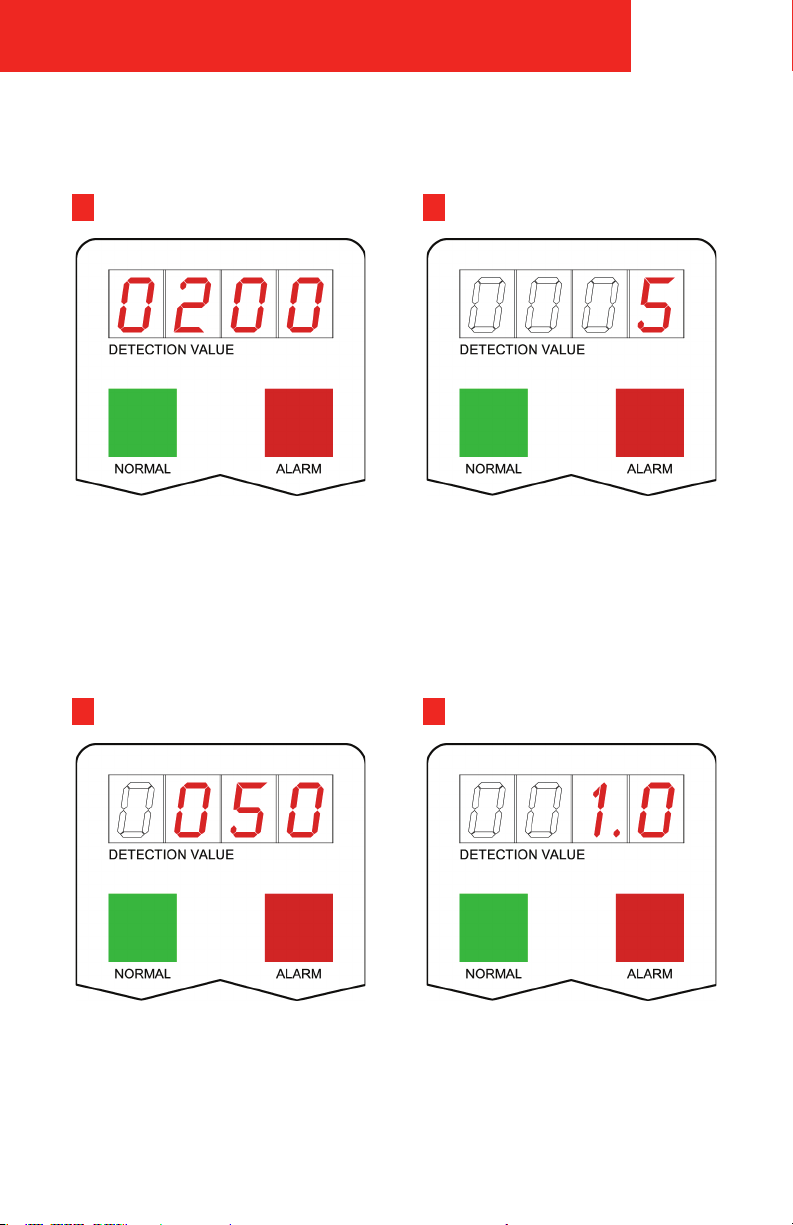

Default: 0200
Range: (0000 - 0400)
 Maximum distance for
temperature detection (in mm)
Default: 5
Range: (5 - 6)
5 6
Maximum Detection Distance Ambient Body
Default: 050
Range: (000 - 200)
 Minimum distance for
temperature detection (in mm)
Default: 1.0
Range: (1.0 - 3.0)
 Length of time, in seconds, the
indicator light lasts
7 8
Minimum Detection Distance Indicator Light Length
