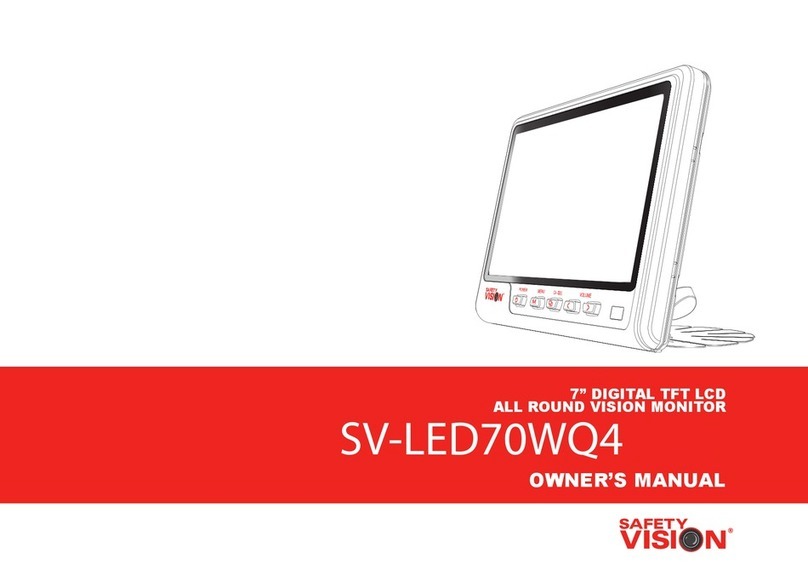

SV-LED70WQ4

OWNER’S MANUAL

7” DIGITAL TFT LCD

ALL ROUND VISION MONITOR

SPECIFICATION

ITEM SPECIFICATION

LCD Screen Size 7” Wide Diagonal

Dimensions 190(W) × 142(H) ×42.85(D)mm

Display dimensions 152.4 × 91.44mm

Power Input DC 12 to 30 Volt Free Input

Power Consumption 12 Watt Max.

Video System NTSC / PAL / SECAM Auto Detection

Sync. System Internal

Brightness 400 cd/m2

Display Resolution 800 ×480 pixel

Viewing Angle Top: 50. Bottom: 60. Left: 65. Right: 65.

Color Conguration RGB Stripe

Dimmer Automatic / Manual

Speaker Impedance 8 ohm, 0.3 Watt Max.

Operating Temp. -25°C ~ +75°C

Storage Temp. -30˚C to + 85˚C

Impact Rating 10G

Camera Connector 4-pin mini DIN

Housing Soft black / Pearl gray(ABS)

ON-Screen Display Control Functions Volume · Brightness · Color · Contrast · Tint · CAM Screen 1/2/3/4 · CAM Trigger 1/2/3/4 · Dimmer ·

Language · Direction · Reset · Distance · Tachograph · Normal/Mirror · Split · Triple · Quad.

Supplied Accessory Die-Cast Mounting Bracket / 1 pce, Screw Kit / 1set, Manual, Sun Shield / 1 pce, Power cable / 1 set

Weight ±410g

E4 10R-03 2439

SV-LED70WQ4 Owner’s Manual7” Digital TFT LCD All Round Vision Monitor

OPERATION

POWER

Press the [POWER] button to turn the monitor on or off.

Press the [MENU] button to access system menus and settings.

CAMERA SELECT

Press the [CA-SEL] button to cycle through camera display modes.

(CA1-CA2-CA3-CA4-SPLIT-PIP-TRIPLE-QUAD)

Press the [CA-SEL] button to select different options in system menus.

LEFT

Press the [<] button to adjust the monitor volume down.

Press the [<] button to change settings in system menus.

RIGHT

Press the [>] button to adjust the monitor volume up.

Use [>] button to change settings in system menus.

DIMMER

Automatic brightness control sensor.

PASSWORD

The system menus are locked to prevent unauthorized access. To

unlock the menus:

1. Press and hold the [MENU] button for 5 seconds.

『PASSWORD』

appears on the screen.

2. Quickly press [CA-SEL], then [>], then [<].

The system menus appear. The menus become locked again

when the unit is powered OFF/ON.

SYSTEM SETTING

FUNCTION

LANGUAGE

ENGLISH/SWEDISH/DANISH/NORWEGIAN/DUTCH/FINNISH

SYSTEM PAL/NTSC

DIRECTION 0°

DIMMER AUTO/OFF

RESET >

FUNCTION

LANGUAGE

Select the language system menus appear in(ENGLISH, DEUTSCH [German], ITALIAN

[Italian], FRANCAIS [French], ESPANOL [Spanish], DUTCH [Dutch], SUOMI [Finnish]).

SYSTEM

Select NTSC or PAL.

DIRECTION

Select 180° to rotate the monitor’s display (for inverted installations) or 0° to display it

normally.

DIMMER

Select AUTO to turn on AUTOMATIC BRIGHTNESS CONTROL, which adjusts the

brightness according to the environment.

RESET

Press the [>] button to reset all settings to factory defaults.

Press the [<] and [>] buttons to adjust the CONTRAST, BRIGHTNESS, COLOR, and

TINT. (0-100).


CONTRAST 50 (0-100)

BRIGHTNESS 50 (0-100)

COLOR 50 (0-100)

TINT 50 (0-100)


SV-LED70WQ4 Owner’s Manual7” Digital TFT LCD All Round Vision Monitor

NOR/MIR

CA1 NORMAL/MIRROR

CA2 NORMAL/MIRROR

CA3 NORMAL/MIRROR

CA4 NORMAL/MIRROR

Select NORMAL or MIRROR for each camera input.

▶Camera xed at normal NORMAL = normal image

MIRROR = mirror image

▶Camera xed at mirror NORMAL = mirror image

MIRROR = normal image

NORMAL/MIRROR

TRIGGER

TRIG1 CA1

TRIG2 CA2

TRIG3 CA3

TRIG4 CA4

TRIG1 TIME 3

TRIG2 TIME 3

TRIG3 TIME 3

TRIG4 TIME 3

TRIGGER

TRIGGER 1/2/3/4

Select the camera input displayed when the respective trigger is active.

(CA1, CA2, CA3, CA4, SPLIT, TRIPLE, QUAD)

Trigger priority: Trigger 1 > Trigger 2 > Trigger 3 > Trigger 4

TRIGGER TIME

Select the amount of time (0-9 seconds) after a trigger becomes inactive to continue

to display the selected camera.

Select ON to have DISTANCE MARKER for CAM1, CAM2, CAM3, CAM4.

DISTANCE MARKER is displayed as the trigger signal is activated.

Select of DISTANCE MARKER. or

DISTANCE

TRIGGER 1 ON

TRIGGER 2 OFF

TRIGGER 3 OFF

TRIGGER 4 OFF

MARKER /

DISTANCE MARKER

MARKER

SYSTEM SETTING

The Tachograph function is currently not supported.

For more information, contact Safety Vision Technical Support.

TACHOGRAPH

TACHO SW ON/OFF

TACHO QUAD

TACHO TIME 5

FREQUENCY 67HZ

TACH OGR APH

SV-LED70WQ4 Owner’s Manual7” Digital TFT LCD All Round Vision Monitor

SPLIT

SOURCE 1 CA1/CA2/CA3/CA4

SOURCE 2 CA1/CA2/CA3/CA4

AUDIO CA1/CA2/CA3

SPLIT

a. SOURCE1 Select the camera displayed in S1.

b. SOURCE2 Select the camera displayed in S2.

c. AUDIO Select the camera audio heard when this mode is selected.

a. SOURCE1 Select the camera displayed in S1.

b. SOURCE2 Select the camera displayed in S2.

c. SOURCE3 Select the camera displayed in S3.

d. AUDIO Select the camera audio heard when this mode is selected.

TRIPLE

SOURCE 1 CA1/CA2/CA3/CA4

SOURCE 2 CA1/CA2/CA3/CA4

SOURCE 3 CA1/CA2/CA3/CA4

AUDIO CA1/CA2/CA3

TRIPLE

a. SOURCE1 Select the camera displayed in S1.

b. SOURCE2 Select the camera displayed in S2.

c. SOURCE3 Select the camera displayed in S3.

d. SOURCE4 Select the camera displayed in S4.

e. AUDIO Select the camera audio heard when this mode is selected.

QUAD

SOURCE 1 CA1/CA2/CA3/CA4

SOURCE 2 CA1/CA2/CA3/CA4

SOURCE 3 CA1/CA2/CA3/CA4

SOURCE 4 CA1/CA2/CA3/CA4

AUDIO CA1/CA2/CA3

QUAD

Select

OFF

to skip the respective camera mode when pressing the

[CA-SEL]

button.

CAM MODES

CA 1 ON

CA 2 ON

CA 3 ON

CA 4 ON

SPLIT ON

PIP ON

TRIPPLE ON

QUAD ON

AV ON

CAM/MODES

SYSTEM SETTING

AUDIO INPUT

+12V DC OUTPUT,

HEATER & SHUTTER

+12V DC OUTPUT,

POWER VIDEO INPUT

GROUND

CAMERA INPUT

CONNECTION

CAM 1

Ground(Black)

Trigger 1(Green)

Trigger 2(White)

Trigger 3(Blue)

Trigger 4 or Tacho(Yellow)

Audio In(White)

Video In(Yellow)

Main power 12V/30V DC(Red)

CAM 2

CAM 3

CAM 4

MEMO
