4
Sagem Sécurité document. Reproduction and disclosure forbidden. SSE-0000053018-04
I
IN NT TR RO OD DU UC CT TI IO ON N
Congratulations for choosing the MorphoAccess™
1
Automatic Fingerprint
Recognition Terminal. MorphoAccess™ provides an innovative and
effective solution for access control applications using Fingerprint
Verification or/ and Identification.
Among a range of alternative biometric techniques, the use of finger
imaging has significant advantages: each finger constitutes an unalterable
physical signature which develops before birth and is preserved until
death. Unlike DNA, a finger image is unique to each individual - even
identical twins.
The MorphoAccess™ integrates Sagem Sécurité image processing
and feature matching algorithms (MorphoSoft™ and MorphoImaging™).
This technology is based on lessons learned during more than 20 years of
experience in the field of biometric identification and the creation of literally
millions of individual fingerprint identification records.
We believe you will find the MorphoAccess™ fast, accurate, easy to use
and suitable for physical access control.
The MorphoAccess™ offers the following advantages:









high quality optical sensor (IQS certified),









supports multiple input/output interfaces used in the physical
access control industry,









Local Area Network interface for easy interaction with other host
systems ; LAN and WLAN possibilities (Wi-Fi™ as an option),









compact size for easy installation and integration into your
available office space,









intuitive man machine interface with keyboard and display, that is
easy to use in both setup and operational modes,









open architecture, with dedicated applications implemented via
MorphoAccess™ 500 and 100 Series Software Development Kit.
To ensure the most effective use of your MorphoAccess™, we
recommend that you read this Installation Guide thoroughly.
1
The Sagem Sécurité logo and trademark are the property of Sagem Sécurité.
All other trademarks or product names are trademarks or product names of the respective title holders.
Wi-Fi™is a registered mark of the Wi-Fi™Alliance

SSE-0000053018-04 Sagem Sécurité document. Reproduction and disclosure forbidden.
5
S
SC CO OP PE E O OF F T TH HE E D DO OC CU UM ME EN NT T
This guide relates to the use of MorphoAccess
TM
500 Series terminals.
MorphoAccess
TM
500 Series is a generic appellation which gathers
MorphoAccess
TM
terminals belonging to MA 500+ series, OMA 500 series
and MA 500 series. Corresponding list of products is depicted in the table
below.
Contactless Smartcard
Reader
Biometrics
Mifare
TM
DESFire
TM
False
Finger
Detection Outdoor
MA 500+ √
MA 520+ D √√√
MA 500+
Series
MA 521+ D √√√√
OMA 520 D √√√√
OMA 521 D √√√√√
OMA 520 √√√
OMA 500
Series
OMA 521 √√√√
MA 500 √
MA 520 √√
MA 500
Series
MA 521 √√√

6
Sagem Sécurité document. Reproduction and disclosure forbidden. SSE-0000053018-04
S
SA AF FE ET TY Y I IN NS ST TR RU UC CT TI IO ON NS S
The installation of this product should be made by a qualified service
technician and should conform to all local codes.
It is strongly recommended that a class II power supply at 12V ±5% and
1.5A. min is used in accordance with Safety Electrical Low Voltage (SELV)
parameters. The 12V power supply cable length should not exceed 5
meters.
This product may be installed with a power supply conforming to
EN60950, in accordance with the NEC Class 2 requirements; or supplied
by a listed EN60950 external Power Unit marked Class 2, Limited Power
source, or LPS and rated 12VDC, 1.5A minimum.
In case of “Power Over Ethernet” use, the POE hub or switch features has
to be conformed with IEEE 802.3-af standard. An insulation greater than
2000V is provided between terminal and Ethernet network.
In case of building to building connection it is recommended to connect 0V
to ground. This ground (ground security reference) cable must be
connected with the terminal block board fixation screw marked with the
universal ground symbol (see p16).
E
Eu ur ro op pe e i in nf fo or rm ma at ti io on n: :
Sagem Sécurité hereby declares that the MorphoAccess™ has been
tested and found compliant with the following listed standards as required
by the EMC Directive 89/336/EEC: EN55022 (1994) / EN55024 (1998),
EN300-330 (1999) and by the low voltage Directive 73/23/EEC amended
by 93/68/EEC: EN60950 (2000).
These terminals are Class A devices. In a residential environment,
these devices may cause interference. In this case, the user is
encouraged to try to correct the interference with appropriated measures
such as:









reorient or relocate the receiving antenna,









increase the separation between the equipment and receiver,









connect the equipment into an outlet on a circuit different from that
to which the receiver is connected,









consult the dealer or an experienced radio/TV technician for help.

SSE-0000053018-04 Sagem Sécurité document. Reproduction and disclosure forbidden.
7
U
US SA A i in nf fo or rm ma at ti io on n
Responsible Party: Sagem Sécurité, Le Ponant de Paris, 27, rue Leblanc
– F 75512 PARIS CEDEX 15 – FRANCE
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
This device complies with part 15 Class A of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found compliant with the
limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a commercial
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference, which leads the user to correct the interference at
his own expense.
C
Ca an na ad di ia an n i in nf fo or rm ma at ti io on n
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de Classe A est conforme à la norme NMB-003 du
Canada.

8
Sagem Sécurité document. Reproduction and disclosure forbidden. SSE-0000053018-04
G
GE EN NE ER RA AL L D DE ES SC CR RI IP PT TI IO ON N
M
MA A 5 50 00 0 / / M MA A 5 50 00 0+ + S Se er ri ie es s
MorphoAccess™ supplies:









1 Cover assembly with Chassis and 2 Secured screws for fixation,









1 Secured screwdriver Torx 20,









1 Chassis fixation kit (4 fixations and screws, 1 anti theft block).
Display
128 x 64 dots
Function keys
Keyboard
Card reader
(depending on
MA version)
Sensor
Cable entry
Mounting keyholes
Anti-
theft
entry
Metal chassis

SSE-0000053018-04 Sagem Sécurité document. Reproduction and disclosure forbidden.
9
O
OM MA A 5 50 00 0 S Se er ri ie es s
Outdoor MorphoAccess™ supplies:









1 Cover assembly with chassis and protective visor,









1 Secured screwdriver Torx 10,









1 Chassis fixation kit (4 fixations and screws).
Display
128 x 64 dots
Function keys
Keyboard
Card reader
Sensor
4 Mounting slots
Protective visor

10
Sagem Sécurité document. Reproduction and disclosure forbidden. SSE-0000053018-04
M
MA A 5 50 00 0 / / M MA A 5 50 00 0+ + S SE ER RI IE ES S I IN NS ST TA AL LL LA AT TI IO ON N P PR RO OC CE ED DU UR RE E
S
St ta ag ge e 1 1: : D Dr ri il ll li in ng g t th he e m mo ou un nt ti in ng g h ho ol le es s
Mounting and cable entry hole location (rear view)
a) Using the dimensional drawing in Appendix 3, drill 2 holes for the
mounting keyholes screws so that the cable entry is in a suitable
position for cabling.
b) Drill the hole for the third screw in the center of the slot so that it is
possible to correct the position later, if necessary.
c) The mounting screws must be 5 mm diameter maximum.

SSE-0000053018-04 Sagem Sécurité document. Reproduction and disclosure forbidden.
11
S
St ta ag ge e 2 2: : M Mo ou un nt ti in ng g t th he e m me et ta al l c ch ha as ss si is s a as ss se em mb bl ly y
a) Disconnect the ribbon cable between the motherboard and the terminal
block board so that the assembly shown above can be detached from
the rest of MorphoAccess™.
b) Pass the connecting cables through the cable entry.
c) Position the chassis assembly against the wall using the two screws in
the mounting keyholes.
d) Hold the chassis in place with a screw through the mounting slot.
e) Adjust the position, and fix in place by tightening all three screws.
f) Adjust the anti theft block into the hole designed for it, and fix in place
the last and fourth screw.
Check that nothing is interfering with the anti theft switch (opto
component) and the anti theft block.
g) Connect cables to terminal blocks with adequate torque conformed to
screw dimensions (see the detailed instructions in the following
sections)
Be sure during manipulation that the power supply from the electrical
source is off.
Terminal block
Anti theft switch
Cable entry
Chassis bold receivers

12
Sagem Sécurité document. Reproduction and disclosure forbidden. SSE-0000053018-04
S
St ta ag ge e 3 3: : C Co on nn ne ec ct ti in ng g t th he e c ch ha as ss si is s a as ss se em mb bl ly y t to o t th he e c co ov ve er r a as ss se em mb bl ly y
Ribbon cable connector location
Position of the ribbon cable as the case is closed
Tamper switch
Motherboard/terminal block board
ribbon cable connector
Cover
Chassis assembly
The ribbon cable must be
folded as shown so that the
case closes easily without
damaging the cable
Cover assembly
Chassis assembly

SSE-0000053018-04 Sagem Sécurité document. Reproduction and disclosure forbidden.
13
S
St ta ag ge e 4 4: : C Cl lo os si in ng g M Mo or rp ph ho oA Ac cc ce es ss s™ ™
When the ribbon cable has been
connected between the two
assemblies (see stage 3), the cover
assembly is fitted to the chassis
assembly.
1. The lip on the cover slides behind
the chassis, to fit over the catch shown
on the diagram above.
2. The cover is fitted onto the chassis
by rotating it.
Fit the two M4x16 assembly screws.
Use screwdriver TORX 20
Assembled
MorphoAcces
Lip
Catch for the cover assembly lip

14
Sagem Sécurité document. Reproduction and disclosure forbidden. SSE-0000053018-04
O
OM MA A 5 50 00 0 S SE ER RI IE ES S I IN NS ST TA AL LL LA AT TI IO ON N P PR RO OC CE ED DU UR RE E
S
St ta ag ge e 1 1: : D Dr ri il ll li in ng g t th he e m mo ou un nt ti in ng g h ho ol le es s

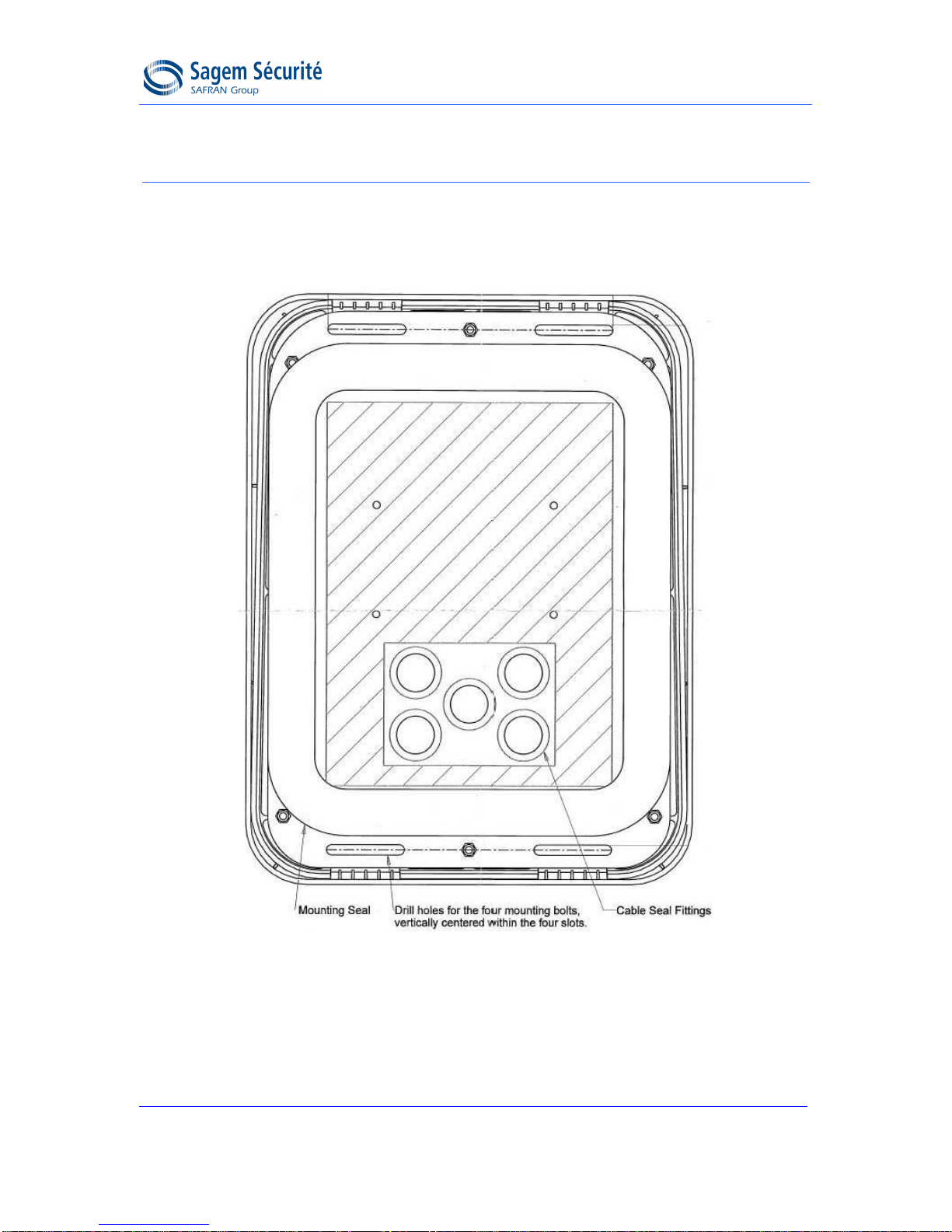

Mounting hole location (rear view)
a) Using the dimensional drawing in Appendix 3, drill holes for the four
mounting bolts, vertically centered within the four slots.
b) The mounting bolts must be 5 mm diameter maximum.

SSE-0000053018-04 Sagem Sécurité document. Reproduction and disclosure forbidden.
15
S
St ta ag ge e 2 2: : F Fi ix xi in ng g
a) Remove protective visor (4 small caps at each corner) before fixing the
assembly.
Remove the 4 small caps at each corner of the protective visor, with a
small screw driver.
Remove the 4 screws, with T10 screw driver supplied.
b) Adjust the assembly in front of the 4 holes.
c) Fix the 4 mounting bolts (2 in upper zone , 2 in lower zone).
S
St ta ag ge e 3 3: : C Ca ab bl li in ng g
a) Connect necessary cables to user wires (see the detailed instructions
in the following sections).
S
St ta ag ge e 4 4: : C Cl lo os si in ng g
a) Mount protective visor with 4 screws and T10 screw driver.
b) Put the 4 small caps.

16
Sagem Sécurité document. Reproduction and disclosure forbidden. SSE-0000053018-04
E
EL LE EC CT TR RI IC CA AL L I IN NT TE ER RF FA AC CE E
M
MA A 5 50 00 0 / / M MA A 5 50 00 0+ + S Se er ri ie es s: : N Ne ew w T Te er rm mi in na al l b bl lo oc ck k b bo oa ar rd d w wi ir ri in ng g
Be sure during terminal installation and connections that Electric
Static Discharge (ESD) is prevented by connecting installation man to
ground security.
Power supply source
External +12V DC
or
Power Over Ethernet
Anti theft opto Wiegand IN
Dataclock IN
Ethernet
Terminal block
or
RJ45
Wiegand OUT
Dataclock OUT
COM
RS422 / RS485
RelayTamper switch
Anti theft switch
Ground security
ref
erence

SSE-0000053018-04 Sagem Sécurité document. Reproduction and disclosure forbidden.
17
M
MA A 5 50 00 0 S Se er ri ie es s: : O Ol ld d T Te er rm mi in na al l b bl lo oc ck k b bo oa ar rd d w wi ir ri in ng g
Anti theft opto Wiegand IN
Dataclock IN
COM
RS422 / RS485
Relay Tamper switch
Anti theft switch
Wiegand OUT
Dataclock OUT
Ground
security
reference
Ethernet
Terminal block
or
RJ45
Power supply source
External +12V DC
or
Power Over Ethernet

18
Sagem Sécurité document. Reproduction and disclosure forbidden. SSE-0000053018-04
O
OM MA A 5 50 00 0 S Se er ri ie es s r re ea ar r v vi ie ew w a an nd d c ca ab bl le es s
Wiring (cables colors and cables positions) is not exactly the same as
previous OMA 200/300 Series.
In order to comply with EMC directives (See p 6), all cables coming from
Access Control system must be shielded.
Both shield wires (cable, AC system cable ) must be tied together.
Shield wire from cable is the wire without insulation.
Ethernet RJ45
Power Supply
source
Tamper switch
Relay
Wiegand
DataClock
COM RS422/ 485

SSE-0000053018-04 Sagem Sécurité document. Reproduction and disclosure forbidden.
19
If troubleshooting, please check that internal connections are similar to the
following image:
(I/O Board version 2)

20
Sagem Sécurité document. Reproduction and disclosure forbidden. SSE-0000053018-04
U
US SB B F Fl la as sh h d dr ri iv ve e i in ns st ta al ll la at ti io on n
Any USB Flash drive (FAT16, capacity < 1GB) may be installed into the
terminal for configuration, log file collect or software update.
USB Flash drive installation has to be done when power is on.
USB Flash drive has to be plugged on the upward USB connector, as on the
following image:
