Sagem INTERNET PHONEF@X 2390@ User manual

User’s manual
,17(51(73+21()#;70
####
7(/(&20
COUV 23260054-1A(T).book Page 1 Jeudi, 29. juin 2000 2:36 14

Handset
Control panel
Front cover
Paper tray
DECT kit module
OR
,QWHUQHW3KRQHI#[##
2YHUYLHZ
Rear cover
PC connector
DECT kit module
Telephone line connector
Handset connector
Front cover
Control panel
Rear cover
Handset
OR
PC connector
Access door to paper and
Document feeder
,QWHUQHW3KRQHI#[## ,QWHUQHW3KRQHI#[##
connector
connector
document feeders
,QWHUQHW3KRQHID[##
COUV 23260054-1A(T).book Page 2 Jeudi, 29. juin 2000 2:36 14

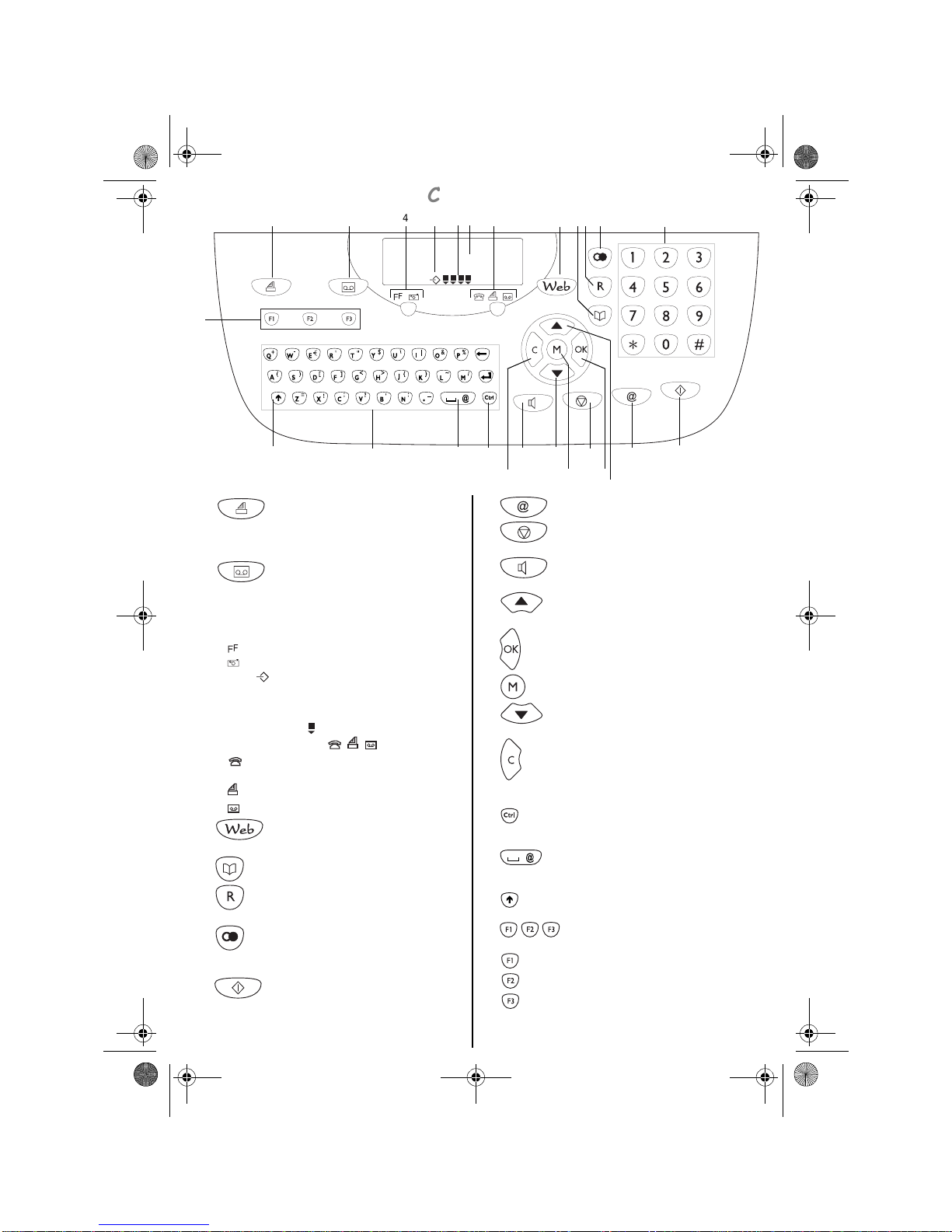

1 : key to print documents received in the memory
2 : key to play back messages received on the
answering machine
• blinking: presence of messages not played back
• steady: presence of played back messages
3 LCD screen made of 2 lines of 16 characters and 10 icons
4 Choice of fax transmission resolution
• (Fine): fine icon on
• (Photo): photo icon on
5Lineicon :
• on: fax communication in progress
• blinking: establishment of fax communication or phone
communication in progress
6 Memory status (0 to 4 )
7 Choice of reception mode (  ):
• icon (TEL): telephone in service
Blinking icon: mute ring
• icon (FAX): automatic fax reception
icon (TAD): TAD in service
8 (WEB TO PRINT) key: access to Web services
directory
9 (DIRECTORY) key: access to directory
10 key: insertion of a dialling break (/), or flash feature
(PABX)
11 (REDIAL) key:automatic call-back of one of the last
10 called numbers
12 Numeric keypad
13 (START) key: fax transmission, or local copy
14 (INTERNET) key: transmission via the Internet
15 (STOP) key: stop of the operation in progress, or
activation of the secret mode
16 (LOUDSPEAKER) key: hands-free mode or
speaker mode
17 key: move up in menus or to the left in an entry
field - Volume up
18 key: confirmation of the displayed selection
19 (MENU) key: access to the various functions
20 key: move down in menus or to the right in an
entry field - Volume down
21 key: return to previous displayed message or clearing of
the last character entered in an entry field
22 Alphabetic keypad
23 key: used in conjunction with any letter on the keypad to
access the symbols shown above the alphabetic
characters
24 key: used alone to insert a space. Used in
conjunction with the Ctrl key to enter the @
character in an Internet address
25 (shift) key:used in conjunction with any letter on the
keypad to enter a capital letter
26 keys: preprogrammed keys to access the
following functions:
: list of callers (Service Class)
: night mode
: access to the print menu
@
@
4
&RQWUROSDQHO
712
25 22 24 23 16 15 14 13
1110
9
17
21 18
20
19
1 2 5 3
68
26
A
COUV 23260054-1A(T).book Page 3 Jeudi, 29. juin 2000 2:36 14

Contents
, 1752'8&7,21  
8QSDFNLQJ
&RQQHFWLRQV  
/RDGLQJWKHSDSHU  
&KRRVLQJWKHRSHUDWLQJPRGH 
7KHPHQXV 
7 (/(3+21,1*  
&DOOLQJ  
$QVZHULQJDFDOO 
)XQFWLRQVDYDLODEOHGXULQJDFDOO 
' ,5(&725< 0 (18  
&UHDWLQJDUHFRUG 
0DNLQJDFDOOIURPWKHGLUHFWRU\ 
(GLWLQJDUHFRUG  
'HOHWLQJDUHFRUG 
3ULQWLQJWKHGLUHFWRU\ 
6DYLQJORDGLQJWKHGLUHFWRU\
6 (77,1*6  0(18   
'DWH7LPH  
1XPEHU1DPH 
5LQJLQJPHORG\DQGNH\EHHSV 
1HWZRUN  
1LJKWPRGH 
1XPEHURIULQJVIRUWKHDXWRPRGH 
&RUGOHVVSKRQH  
3URWHFWLRQRI\RXUPDFKLQH 
) $; 0 (18  
,QVHUWLQJWKHGRFXPHQWLQWRWKHIHHGHU 
6HQGLQJDID[ 
5HFHLYLQJDID[ 
'XULQJWUDQVPLVVLRQ 
$GYDQFHGIXQFWLRQV 
2SHUDWLRQZLWKDFHOOSKRQH
7$'0 (18   
*UHHWLQJPHVVDJHV 
6ZLWFKLQJRQ
0HVVDJHV
5HPRWHDFFHVV
$GYDQFHGIXQFWLRQV
3 5,17,1*  /2&$/  &23< 0 (18  
3ULQWLQJ 
/RFDOFRS\ 
5LEERQJDXJHGLVSOD\
3ULQWLQJWKH:HEVLWHGLUHFWRU\ 
&217(176
LIASSE 23260055-4 A (P).book Page 1 Jeudi, 29. juin 2000 1:59 13

Contents
' 2&80(17  &21752/ 0 (18  
([HFXWLQJDSHQGLQJFRPPDQG
0RGLI\LQJRUFRQVXOWLQJWKHTXHXH
'HOHWLQJDFRPPDQGIURPWKHTXHXH
3ULQWDGRFXPHQWZDLWLQJIRUWUDQVPLVVLRQ
3ULQWLQJRXWWKHOLVWRISHQGLQJRSHUDWLRQV 
$ '9$1&('  )81&7,216 0 (18 
0DLOER[0%;  
7HFKQLFDOSDUDPHWHUV  
5HPRWHFRQWUROIURPDQH[WHQVLRQVHW  
6 (59,&(6 0 (18   
:HEWRSULQWVHUYLFH 
)#[WR)D[VHUYLFHGHSHQGLQJRQPRGHO 
, 17(51(7 0 (18  
,QWHUQHWVXEVFULSWLRQ 
7UDQVPLVVLRQ5HFHSWLRQRQWKHLQWHUQHW 
6HWWLQJV 
2 37,216  
'LVSOD\
8VLQJWKH5NH\ 
&RQQHFWLRQWRD3&  
$ 33(1',;  
5HSODFHPHQWRIFRQVXPDEOHV
7URXEOHVKRRWLQJ 
&RGHVRIWKHWUDQVPLVVLRQUHSRUW 
7HFKQLFDOVSHFLILFDWLRQV 
This equipment has been approved in accordance with Council Decision 98/482/EC for
pan-European single terminal connection to the public switched telephone network (PSTN).
This equipment is in accordance to the following standarts: I-CTR 37, CTR 38, ETSI
EG 201 121.
In the event of problems, you should contact your equipment supplier in the first instance.
LIASSE 23260055-4 A (P).book Page 2 Jeudi, 29. juin 2000 1:59 13

Quick reference guide, menu guide
48,&.5()(5(1&(*8,'(0(18 *8,'(
' ,5(&725< 0 (18 
6
(77,1*6  0(18 
3UHVV )XQFWLRQFDOOHG )XQFWLRQGHVFULSWLRQ 6HHSDJH
M 11 OK ADD Add a record into the directory 9
M 12 OK MODIFY Modify a record in the directory 10
M 13 OK CANCEL Delete a record from the directory 11
M 14 OK PRINT Print the directory 11
M 16 OK SAVE/LOAD Save/load the directory on a chip card
M 161 OK SAVE Save the directory on a chip card 11
M 162 OK LOAD Load the directory from a chip card 11
3UHVV )XQFWLRQFDOOHG )XQFWLRQGHVFULSWLRQ 6HHSDJH
M 21 OK DATE/TIME Enter the date and time 13
M 22 OK NUMBER/NAME Enter your number and name 13
M 23 OK MELODIES/BEEPS Choose the ring melody and key beeps 13
M 231 OK MELODY Choose the ring melody
M 232 OK BEEPS Choose the key beeps
M 233 OK ALARM Switch alarm On/Off
M 24 OK NETWORK Set network parameters 14
M 241 OK NETWORK TYPE Select network type
M 242 OK PREFIX Activate the prefix
M 25 OK NIGHT MODE Control the night mode 14
M 26 OK NB OF RINGS Set the number of rings 15
M 27 OK CORDLESS Cordless phone (depending on model) 15
M 271 OK HANDSET REGIS Register handset (depending on model)
M 272 OK HANDSET ERASE De-register handset (depending on model)
M 273 OK HANDSET CODE Radio encryption code (depending on model)
M 28 OK SECURITY Protected access 15
M 281 OK MEM ACCESS Lock fax and voice messages
M 282 OK REMOTE CODE Remote access code
A
LIASSE 23260055-4 A (P).book Page 3 Jeudi, 29. juin 2000 1:59 13

Quick reference guide, menu guide
) $; 0 (18 
7$'0
(18 
3
5,17,1*  /2&$/  &23< 0 (18 
'
2&80(17  &21752/ 0 (18 
3UHVV  )XQFWLRQFDOOHG )XQFWLRQGHVFULSWLRQ 6HHSDJH
M 31 OK FCT TRANSM Delayed transmission and broadcasting 18
M 32 OK POLLING ACTV Perform an active polling 21
M 33 OK POLLING PASS Perform a passive polling 21
M 34 OK SEND REPORT Print choice of transmission reports 19
M 35 OK TX FROM MEM Transmission from the memory or document
feeder 19
M 36 OK RX TO MEM Reception of documents into the memory or on
paper 20
M 39 OK GSM TRANSM Transmission from a GSM device 22
3UHVV  )XQFWLRQFDOOHG )XQFWLRQGHVFULSWLRQ 6HHSDJH
M 41 OK OGM RECORD Record the outgoing greeting message 23
M 42 OK OGM PLAYING Play back the outgoing greeting message 23
M 43 OK MEMO Record a message (memo) 24
M 44 OK DELETE MSG Delete the voice messages 25
M 45 OK TYPE Select the type of TAD 24
M 46 OK FILTERING Select the call filtering feature 26
M 47 OK PRIVIL ACCES Select the privileged access mode 26
M 48 OK PRIVIL CODE Select the privileged access code 26
3UHVV  )XQFWLRQFDOOHG )XQFWLRQGHVFULSWLRQ 6HHSDJH
M 51 OK GUIDE Print the menus 29
M 52 OK LOGS Print the Tx and Rx logs 29
M 53 OK DIRECTORY Print the directory 29
M 54 OK SETTINGS Print the setting list 29
M 55 OK SEND REPORT Print the last communication report 29
M 56 OK LOCAL COPY Choose the number of copies 29
M 57 OK RIBBON GAUGE Display the ribbon gauge status 30
M 58 OK INTERNET SERVICE Print the Web site directory 30
3UHVV  )XQFWLRQFDOOHG )XQFWLRQGHVFULSWLRQ 6HHSDJH
M 61 OK PERFORM Perform a pending command 31
M 62 OK MODIFY Modify a pending command 31
M 63 OK CANCEL Cancel a pending command 31
M 64 OK PRINTING DOC Print a pending document 31
M 65 OK PRINT LIST Print the command list 32 A
LIASSE 23260055-4 A (P).book Page 4 Jeudi, 29. juin 2000 1:59 13

Quick reference guide, menu guide
$ '9$1&('  )81&7,216 0 (18 
6
(59,&(6 0 (18 
,
17(51(7 0 (18 
3UHVV  )XQFWLRQFDOOHG )XQFWLRQGHVFULSWLRQ 6HHSDJH
M 71 OK MAILBOX Mailbox functions
M 711 OK CREATE Create a mailbox 33
M 712 OK CANCEL Cancel mailboxes 33
M 713 OK TX MAILBOX Transmission to a mailbox 34
M 714 OK MBX POLLING Poll a mailbox 34
M 79 OK TECHNICAL Modification of the technical parameters 35
3UHVV  )XQFWLRQFDOOHG )XQFWLRQGHVFULSWLRQ 6HHSDJH
M 81 OK WEB TO PRINT Print Web pages
M 811 OK MY LOG Select Web sites for my log 37
M 812 OK UPDATE Automatic update of the WEB directory 37
M 813 OK ADD Add a record into the directory 38
M 814 OK MODIFY Modify a name in the WEB directory 39
M 815 OK CANCEL Delete a name from the WEB directory 39
M 816 OK PRINT Print the WEB directory 37
M 82 OK F@X™ TO FAX Transmission to a fax machine via the Internet +
Translation of the attachments 39
M 83 OK CARD CODE Register the Services card 39
3UHVV  )XQFWLRQFDOOHG )XQFWLRQGHVFULSWLRQ 6HHSDJH
M 91 OK PROVIDER Choose the access provider 42
M 92 OK IMMED ACCESS Immediate connection to the Internet access
provider 43
M 93 OK SEND E-MAIL Send a message from the keypad 44
M 94 OK SEND V-MAIL Send a voice mail 44
M 95 OK SETTINGS
M 951 OK CONNECTION Choose the type of connection 45
M 952 OK TRANSMISSION Print the Internet parameters 46
M 953 OK SERVERS Internet server addresses 46
M 954 OK PRINT Choose the type of transmission 45
M 96 OK MAIL SWITCH Sort the received mails: choose the type of
reception 46
M 98 OK REROUTING Reroute fax and voice messages 47
M 981 OK ON Switch on the rerouting function
M 982 OK OFF Switch off the rerouting function
M 983 OK SETTINGS Set rerouting parameters
M 99 OK SUBSCRIPTION
M 991 OK REGISTERING Send subscription form 42
M 992 OK NEW ADDR Enter the new e-mail address 42
A
LIASSE 23260055-4 A (P).book Page 5 Jeudi, 29. juin 2000 1:59 13

Quick reference guide, menu guide
LIASSE 23260055-4 A (P).book Page 6 Jeudi, 29. juin 2000 1:59 13

NOTE POUR
L’IMPRIMEUR :
Insérer ici
les consignes de
sécurité
Réf : 23226033-4
(voir spécification
technique du LU :
23260056-2)
LIASSE 23260055-4 A (P).book Page 7 Jeudi, 29. juin 2000 1:59 13

1
Introduction
1
2
3
4
5
7
Services 8
@
Internet 9
Options
Appendices
Telephoning
Directory
Settings
Fax
TAD
Printing
Advanced
functions
Introduction
6
Doc control
,1752'8&7,21
The devices in the Internet Phonef@x™ range are both versatile and powerful communication tools. You
can use them to phone and fax documents, but also to send faxes that addresses will receive as e-mail, or
else to print out pages from an Internet site the address of whom you know . Moreover, even if you do
not have a personal computer, anyone can send you e-mail which you will receive and print out directly
on your fax machine.
,QWHUQHW3KRQHI#[IHDWXUHV
Because you can use this new generation of fax machines to send your faxes via the Internet, you will
benefit from reduced rates since you will be charged only for a local call for all the calls you make (please
refer to the section entitled INTERNET (MENU 9) on page 41).
The installation of your machine and the operation of all of its functions and features require a telephone
socket and a mains socket near the machine. Internet connections require Internet access (or
subscription).
8 13$&.,1*
Check for the following items when unpacking your machine:
• Main unit,
• Power cord,
• Telephone handset,
• Telephone line cord,
• Paper,
• Paper holder(*),
• DECT kit (cordless phone, charger and base station)(**).
An ink ribbon and its gauge card are pre-installed in the machine. You will have to replace them when
they are worn (please refer to § Replacement of consumables on page 51).
Cordless handset
("Cordless Telephone kit"
necessary) Printer ("PC Interface kit" necessary)
Fax transmission and
reception on the Internet
Fax transmission
and reception TAD
Fax reception through message service
fax converted into an e-mail
Printed fax message transmission
(e-mail converted into a fax)
W
e
b
p
a
g
e
s
P
r
i
n
t
i
n
g
(*) Models with a fixed paper tray (100 sheets).
(**) Depending on model.
LIASSE 23260055-4 A (P).book Page 1 Jeudi, 29. juin 2000 1:59 13

2
Introduction

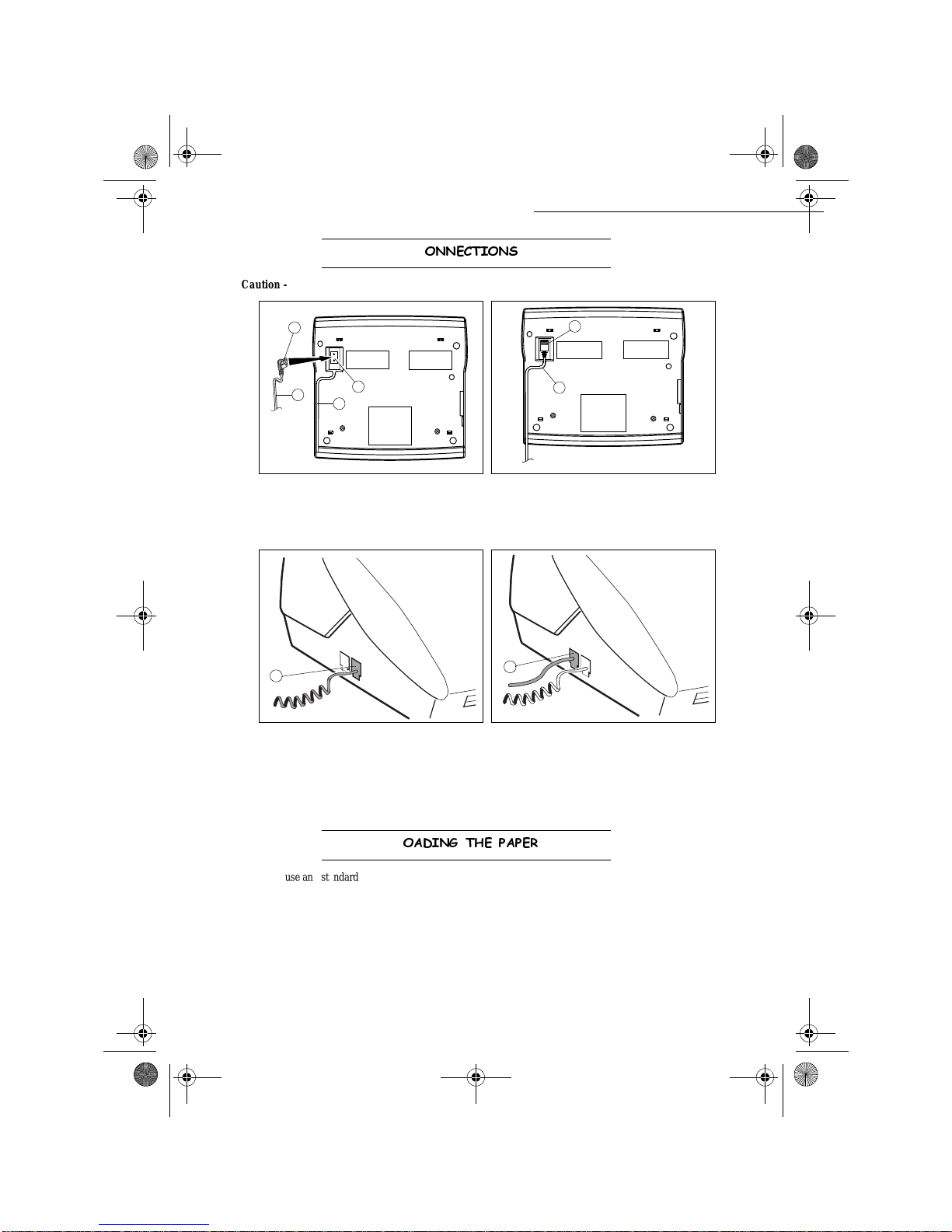

& 211(&7,216
Caution - Please refer to the Safety Instructions at the beginning of this User’s manual.
+Connect the power plug to the wall mains socket.
/ 2$',1*  7+(  3$3(5
You may use any standard plain paper (A4 format photocopying paper, approx. 80 g/m²). However, for optimal
print quality results, we suggest you use the type of paper recommended by the manufacturer (please refer to the
last page of this User's manual).
❑To avoid malfunctions and get optimal print quality, you should observe the following basic instructions:
• use perfectly new paper without folds or rolled edges,
• do not reload the paper tray while printing is in progress,
• always remove all the pages left in the tray before reloading paper.
+Turn your machine upside down.
+Insert the plug (1) of the power cord into the connector (2) of the main unit.
+Run the power cord (3) into the groove (4).
+Replace your machine the right way round.
+Connect the telephone handset cord to the
appropriate connector (5) on the main unit.
+Connect the telephone line cord plug to the
appropriate connector (6) on the main unit, and
connect the other end to the wall telephone
socket.
2
4
3
11
3
56
A
LIASSE 23260055-4 A (P).book Page 2 Jeudi, 29. juin 2000 1:59 13

3
Introduction
1
2
3
4
5
7
Services 8
@
Internet 9
Options
Appendices
Telephoning
Directory
Settings
Fax
TAD
Printing
Advanced
functions
Introduction
6
Doc control
0 2'(/6  :,7+  $  ),;('  3$3(5  75$< 
0
2'(/6  :,7+  $  5(029($%/(  3$3(5  75$< 
+Snap the paper holder (1) in the two slots (2)
provided at the top of the sheet feeder.
+Open the feeder cover (3)
+Prepare a stack of plain paper (100 sheets
maximum)
+Place the paper stack into the feeder (4).
+Close the feeder cover (3).
+To open the cover (1), use notch (2) on the
side.
+Lift the paper support bracket (3).
+Prepare a stack of paper (30 sheets max.).
+Insert it between the paper guides (4 and 5).
+Press the clip (6) to insert the paper in the fax
machine’s paper store.
+Adjust the left paper guide (4) to the width of
the paper.
Caution - Lift the support bracket to facilitate
printout stacking.
3
21
2
4
3
1
2
3
5
6
7
4
LIASSE 23260055-4 A (P).book Page 3 Jeudi, 29. juin 2000 1:59 13

4
Introduction
& +226,1*  7+(  23(5$7,1*  02'(
Your Internet Phonef@x™ machine has three distinct operating modes, which are described below:
• automatic mode with TAD: your machine answers all calls and records incoming messages,
• automatic mode without TAD: your machine sorts incoming calls before presenting them to you,
• manual mode: your fax machine never answers any calls automatically.
❑In each of these three modes, you may pick up the handset at any time:
•when receiving a fax call, you can switch your fax machine to the fax reception mode by pressing the
key,
•when receiving a voice call, talk with the caller as you would on the phone.
+Press the  key once or repeatedly depending on the required reception mode: the icons
corresponding to each mode are blanked (function off) or displayed (function on), as shown in the
following three sections.
$ 8720$7,&  02'(  :,7+  7$'
Your unit works like a telephone answering device combined with a fax machine. Select that mode when you
go out or if you do not want to lose any fax or voice calls.
When your machine rings, it answers after a couple of rings and plays the greeting message you have recorded
on your TAD:
•if the call is a fax call, it automatically switches to the fax reception mode,
•if the call is a voice call, the caller will be able to leave a message on your TAD.
❑You can set the number of rings before your machine automatically answers
(please refer to § Number of rings for the auto mode on page 15).
$ 8720$7,&  02'(  :,7+287  7$'
Your machine automatically sorts the calls before presenting them to you. Select that mode if you receive many
faxes and you do not want to be disturbed by their reception.
When it receives a call, your machine automatically answers without ringing(*), then it emits a waiting signal, and:
•if the call is a fax call, it switches to the fax reception mode,
•if the call is a voice call, it rings (warning ring) for 30 seconds(**) and the caller can hear a ringing tone.
you can then pick up and talk. Otherwise, the caller will be able to leave a message on your TAD, which
will answer after 30 seconds and play the greeting message.
0 $18$/  02'(
Your machine mainly works like a telephone set: select that mode if you usually do not receive any faxes.
In that mode, your machine never answers automatically (except after 10 rings if remote interrogation is enabled.
In that case, it will play the greeting message).
(*) All other telephone sets in your installation, if any, will ring normally.
(**) All other telephone sets in your installation, if any, will not ring.
LIASSE 23260055-4 A (P).book Page 4 Jeudi, 29. juin 2000 1:59 13

5
Introduction
1
2
3
4
5
7
Services 8
@
Internet 9
Options
Appendices
Telephoning
Directory
Settings
Fax
TAD
Printing
Advanced
functions
Introduction
6
Doc control
7 +(  0(186
$ &&(66,1*  7+(  0(186
As described in the next sections, your machine features many functions accessible through the menus,
which allow you to set and modify them: recording a directory of numbers, memorising received or sent
faxes, setting the number of rings, etc.
As can be seen in the menu guide, all functions are numbered in a main menu (e.g.1. Directory), from
which you can access the various settings for the selected function (e.g. 1.1 Add, 1.2 Modify or 1.3 Delete
a directory record).
0DLQPHQXDFFHVVWRIXQFWLRQV
+Press the Mkey.
6XEPHQXVDFFHVVWRIXQFWLRQVHWWLQJV
+Press the key to select the previous menu line.
+Press the key to select the next menu line.
+Press the OK key to confirm and go on to the next menu.
+Press the C(ECM) key to return to the previous menu.
+Press the (START) key to confirm and exit from the main menu.
+Press the (STOP) key to exit from the current menu.
0RYLQJLQVLGHDGDWDHQWU\ILHOG
+Press the Ckey to delete the last character.
+Hold the Ckey down to delete all the characters entered.
+Press the key to move the cursor to the left within a data entry field
+Press the key to move the cursor to the right within a data entry field
+Press the key to insert a space.
+Press the OK key to confirm entry and go on to the next menu item.
+Press the (START) key to confirm entry and exit from the current menu.
+Press the key to cancel entry and return to the initial value.
LIASSE 23260055-4 A (P).book Page 5 Jeudi, 29. juin 2000 1:59 13

6
Introduction
3 5,17,1*  7+(  0(18  *8,'(
To print the menus and thus get an overview of menus, proceed as follows:
+Insert paper.
+Press the M, 5, 1and OK keys or the F3 and OK keys.
The menus are classified in their order of function number (please refer to the section entitled QUICK
REFERENCE GUIDE, MENU GUIDE). The functions are classified in their order of appearance in this
manual. Tabs are provided for quick access to the required information.
LIASSE 23260055-4 A (P).book Page 6 Jeudi, 29. juin 2000 1:59 13

7
Introduction
1
2
3
5
Services 8
Options
Appendices
Telephoning
Directory
Settings
Fax
Printing
Telephoning
6
Doc control
4
7
@
Internet 9
TAD
Advanced
functions
7(/(3+21,1*
Although it features advanced functions, your Internet PhoneF@x™ machine is also a telephone set
providing a whole range of user-friendly functions.
& $//,1*
& $//,1*  86,1*  7+(  +$1'6(7
You can also dial the number before picking up the handset. In that case, you can correct any dialling
error by means of the Ckey.
❑You can use the and keys to adjust the volume.
& $//,1*  86,1*  7+(  .(<
/RXGVSHDNHUOLVWHQLQJ
+Dial your party's number. This is displayed on the screen.
+Pick up the handset, the machine dials automatically.
+When your party answers, press the key to activate loudspeaker listening.
+You can use the and keys to adjust the volume.
+Press the key again to de-activate loudspeaker listening.
+DQGVIUHHPRGHRQKRRNOLVWHQLQJ
+Dial your party's number.
+Press the key: the machine dials automatically.
+You can use the and keys to adjust the volume..
❑At any time, you can pick up the handset and continue the call (in which case the speaker and
microphone are automatically disabled).
& $//,1*  86,1*  7+(  ',5(&725<
Your machine can store phone numbers in a directory. To know the applicable procedure, please refer to
the section entitled DIRECTORY (MENU 1) on page 9.
5 (',$//,1*  21(  2)  7+(  /$67  7(1  180%(56  &$//('
+Press the (REDIAL) key.
+Select the required number using the and keys .
+To call the number displayed press the key or pick up your handset.
❑At any time, you can delete the REDIAL number by pressing the C, (REDIAL) and OK
keys.
$ 16:(5,1*  $  &$//
When someone calls you, your phone rings and the LINE icon blinks. Pick up your handset (or press
the ) key) and speak. To end the call, hang up the handset (or press the key).
LIASSE 23260055-4 A (P).book Page 7 Jeudi, 29. juin 2000 1:59 13

8
Telephoning
) 81&7,216  $9$,/$%/(  '85,1*  $  &$//
. 12:,1*  7+(  '85$7,21  2)  7+(  &$//
Ten seconds after dialling, a counter displays the approximate duration of the call.
$ &7,9$7,1*  /28'63($.(5  /,67(1,1*
During the call, press the key. This will activate the loudspeaker, enabling another person to listen to
the conversation.
6 :,7&+,1*  )520  /28'63($.(5  /,67(1,1*  72  +$1'6  )5((  02'(
+Hold down the key.
+Hang up the handset.
+Release the key. Conversation then goes on in the hands-free mode.
$ &7,9$7,1*  7+(  6(&5(7  02'(
During a call, if you want your party not to hear you for a while, press the key. Press that key again to resume
your conversation.
5 (&25',1*  $  &$//
During a handset call, you can record the conversation.
+Press the Mand keys: recording starts.
+To stop recording, press .
5 (5287,1*  $  &$//
To reroute a call to another set (connected to the same telephone line):
+Press the Mand keys.
+Hang up the handset.
+Go to the other set, pick up and continue the call.
❑You should hang up the handset within 4 seconds. You have about 25 ìseconds to pick up the other hand-
set.
6 :,7&+  72  )$;  5(&(37,21  02'(
If you pick up a secondary handset or take the line from a cordless phone and you cannot hear anyone speaking,
you can switch your machine remotely to fax reception mode by typing # then 7(please refer to the section
entitled FAX (MENU 3) on page 17).
LIASSE 23260055-4 A (P).book Page 8 Jeudi, 29. juin 2000 1:59 13

9
Introduction
1
2
3
5
Services 8
Options
Appendices
Telephoning
Directory
Settings
Fax
Printing
Directory (Menu 1)
6
Doc control
4
7
@
Internet 9
TAD
Advanced
functions
',5(&725<0(18 
The directory is a file in which you can store phone and fax numbers, especially those of the parties you
call most frequently. So, instead of dialling a phone or fax number or entering an e-mail address each time
you want to communicate with one of your parties, you have only to select their names from the directory.
Using the data you have stored, your Internet Phonef@x™ machine will dial automatically for you.
❑The records stored in the directory are classified in alphabetical order.
& 5($7,1*  $  5(&25'
To fill in the directory, enter each party's phone number and name in a record. To create a new record and
add it to the directory:
+ PRESS THE M, 1, 1, OK KEYS
❑You can cancel the process at any time by pressing .
< 285  3$57<  6  1$0(
+Enter your party's name.
+Press the OK key to confirm.
❑You can move in the data entry field using the or key, delete the last character entered by
briefly pressing the Ckey, delete all the characters entered by holding down the Ckey.
3 +21(  $1'  )$;  180%(56
+Then, enter your party's phone and/or fax number.
+Press the OK key to confirm.
❑If your fax machine is in the premises of a company, it may be connected to a private automatic
branch exchange (PABX). Some of these telephone exchanges require the insertion of a dialling
prefix (e.g. 0). All numbers should be stored in the directory without that prefix. You can pro-
gram the prefix automatically for all numbers (please refer to § Prefix on page 14). Some tele-
phone exchanges also require the insertion of a post-dial delay. If such is the case, press the Rkey
in order to insert the post-dial delay (the character / is inserted in the number displayed).
, 17(51(7  $''5(66
+Then, enter your party's e-mail address, if any, and press OK to confirm.
or
+press the OK key if your party does not have an e-mail address.
❑To enter the character @, press the and keys at the same time.
To enter the dot, press the key.
9 2,&(  0(02
The voice memo is a mini message that you record and associate to the party stored in the record. You
will hear the voice memo each time you call them or they call you. For instance, if you select "Robert
Smith" and record "It's Robert" as a voice memo, you will hear "It's Robert" each time he calls you and
each time you call him. The voice memo thus informs you on your party's identity before you answer the
call.
+Enable or disable this function using the or key:
•WITHOUT MEMO: no memo is associated to the record. Press OK to confirm.
LIASSE 23260055-4 A (P).book Page 9 Jeudi, 29. juin 2000 1:59 13

10
Directory (Menu 1)
•VOX MEMO: enables you to record a memo associated to the party: press OK to confirm, pick up the
handset, record your memo and hang up.
Caution - The voice memo is always enabled for outgoing calls (only in the case of hands-free calls). To enable
the voice memo feature for incoming calls, you should first subscribe to the Display Caller service.
0 $.,1*  $  &$//  )520  7+(  ',5(&725<
Once you have stored all your parties' numbers and names in the directory, you can select one of them (to phone
or send a fax or an e-mail) using either their name or abbreviated number as explained below.
6 (/(&7,21  %<  1$0(
+Type in the first letters of your party's name or press the key: names are classified in alphabetical
order.
+If several names begin with the same letters, you can refine the search by entering extra letters or using the
and keys.
Then you can:
• pick up the handset or press to call them,
or
• place a document in the document feeder and press to fax the document,
or • place a document in the document feeder and press @to send them an e-mail.
6 (/(&7,21  %<  $%%5(9,$7('  180%(5
Your fax machine has automatically associated a 2-digit abbreviated number to each newly createdrecord: 00 for
the 1st record, 04 for the 5th record, and so on.
+Press the , key to dial your party's abbreviated number.
Then you can:
• pick up the handset or press to call them,
or
• place a document in the document feeder and press to fax the document,
or • place a document in the document feeder and press @to send them an e-mail.
❑If you do not remember which abbreviated number corresponds to such or such record, you can print out
the directory for a copy of all the information it contains (please refer to § Printing the directory on
page 11).
( ',7,1*  $  5(&25'
+ PRESS M, 1, 2, OK
+To select a record:
• type in the first letters of the required name
or
• use the and keys to select the required name.
+Press the OK key.
LIASSE 23260055-4 A (P).book Page 10 Jeudi, 29. juin 2000 1:59 13
