You have just bought a D680C and we thank you for your purchase.
This product follows a strategy of continuous development. We reserve the
right to make changes without notice, modifications and improvements to
the products described in this user manual.
To operate the device safely and easily, please read the entire manual
carefully, in particular the paragraph “Recommendations and safety
instructions”, page 2.
Follow all safety instructions in order to ensure proper operation of your
device. The manufacturer accepts no liability if these instructions are not
followed.
The declaration of compliance may be looked up on the
www.sagemcom.com website section «Support», or can be obtained from
the following address:
Sagemcom USA LLC
14651 North Dallas Parkway
Suite 900 Dallas, TX 75254
MU 25XXXXXX-A_D680C_US.book Page 1 Lundi, 28. mai 2012 10:55 10

2
Recommendations and
safety instructions
For safety reasons, never put the handset in the base station
without the battery inserted or without the lid on the battery
compartment as this could cause an electric shock.
To avoid damaging your handset/base, only use certified
rechargeable batteries NiMH 1.2 V 750 mAh, never use non
rechargeable batteries. Insert the batteries in the
handset/base battery compartment respecting polarity, do not
dispose of batteries in fire, they may explode, if the handset
will not be used for an extended period of time, unplug the
battery and remove it from the handset to prevent possible
leakage, keep batteries out of the reach of children
Only use the power unit supplied and connect it to the
electricity mains in accordance with the installation
instructions in this user manual and the details on the sticker
regarding voltage, electrical current and frequency. As a
precaution if there is a risk of danger, the power plug can be
pulled out to disconnect the 120V power supply. Therefore the
sockets should be near the device and easily accessible.
Do not install your DECT telephone D680C in a humid
environment, such as a bathroom, washroom, kitchen etc, and
not within 5 feet of a source of water or outside. Never touch
the electrical connection with wet hands. Do not allow liquids
to enter into the device. Switch off the device and disconnect
it from the power supply if liquids or foreign substances end
up inside the device. This device is designed for use in
temperatures of between 41 ºF and 104ºF. Do not expose the
product to extreme temperatures such as areas near a hot
radiator, stove or in a hot car.
MU 25XXXXXX-A_D680C_US.book Page 2 Lundi, 28. mai 2012 10:55 10

3
In zones where there is a risk of frequent thunder storms, we
recommend that you protect your telephone line using an
electric power surge protection device.
Avoid using the telephone during an electrical storm, there
may be a remote risk of electric shock from lightning.
Do not attempt to remove screws or open the appliance. It
does not contain any user-replaceable parts. Do not make any
repairs to the device yourself. Improper maintenance can
result in injuries or damage to the device. Do not remove the
type label from your device; this would void the warranty.
Your DECT telephone has a range of approx. 164 feet indoors
and up to 984 feet outdoors. The range can be affected by the
proximity of metal objects, such as a television and electrical
devices.
Areas without reception may appear due to elements in the
building. This can cause brief interruptions in the
conversation, caused by faulty transmission.
Certain medical equipment and highly-sensitive machines or
security systems may be affected by the transmission power
of the telephone. In these cases we recommend adhering to
the safety information.
The used battery must be disposed of in line with the recycling
regulations.
Check with local codes for possible special disposal
instructions.
Do not use the telephone to report a gas leak in the vicinity of
the leak.
The base is for indoor use only, do not place or install in an
outdoor location.
Unplug this product from the wall outlet before cleaning, don't
use liquid cleaners or aerosol cleaners.
MU 25XXXXXX-A_D680C_US.book Page 3 Lundi, 28. mai 2012 10:55 10

4
D680C
FCC Caution
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's -authority to operate the
equipment.
FCC ID: VW3D680C
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1this device may not cause harmful interference, and
2this device must accept any interference received,
including interference that may cause undesired operation.
Privacy of communications may not be ensured when using this phone.
Important note:
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
•Privacy of communications may not be ensured when using this
telephone!
MU 25XXXXXX-A_D680C_US.book Page 4 Lundi, 28. mai 2012 10:55 10

5
D680C
•This product complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
•To comply with FCC RF exposure requirements, the base unit must be
installed and operated 20 cm (8 inches) or more between the product and
all person's body (excluding extremities of hands, wrist and feet).
•This product may not be collocated or operated in conjunction with any
other antenna or transmitter
•The handset may be carried and operated with only the specific provided
belt-clip. Other non-tested belt-clips or similar body-worn accessories
may not comply and must be avoided
Customer Information
1This equipment complies with Part 68 of the FCC rules and the
requirements adopted by the ACTA. On the bottom of this equipment is
a label that contains, among other information, a product identifier in the
format US:AAAEQ##TXXXX. If requested, this number must be provided
to the telephone company.
2An applicable certification jacks Universal Service Order Codes (USOC)
for the equipment is provided (i.e., RJ11C) in the packaging with each
piece of approved terminal equipment.
3A plug and jack used to connect this equipment to the premises wiring
and telephone network must comply with the applicable FCC Part 68
rules and requirements adopted by the ACTA. A compliant telephone
cord and modular plug is provided with this product. It is designed to be
connected to a compatible modular jack that is also compliant. See
installation instructions for details.
4The REN is used to determine the number of devices that may be
connected to a telephone line. Excessive RENs on a telephone line may
result in the devices not ringing in response to an incoming call. In most
but not all areas, the sum of RENs should not exceed five (5.0). To be
certain of the number of devices that may be connected to a line, as
determined by the total RENs, contact the local telephone company.
[For products approved after July 23, 2001, the REN for this product is
part of the product identifier that has the format US:AAAEQ##TXXXX.
MU 25XXXXXX-A_D680C_US.book Page 5 Lundi, 28. mai 2012 10:55 10

6
D680C
The digits represented by ## are the REN without a decimal point (e.g.,
03 is a REN of 0.3). For earlier products, the REN is separately shown on
the label.]
5If this equipment [US: NS3W400BD680C] causes harm to the telephone
network, the telephone company will notify you in advance that
temporary discontinuance of service may be required. But if advance
notice isn't practical, the telephone company will notify the customer as
soon as possible. Also, you will be advised of your right to file a complaint
with the FCC if you believe it is necessary.
6The telephone company may make changes in its facilities, equipment,
operations or procedures that could affect the operation of the
equipment. If this happens the telephone company will provide advance
notice in order for you to make necessary modifications to maintain
uninterrupted service.
7Should you experience trouble with this equipment, please contact [US:
1 866 242 3550], for repair or warranty information, Service can be
facilitated through our office at:
Sagemcom USA LLC
14651 North Dallas Parkway
Suite 900 Dallas, TX 75254
If the equipment is causing harm to the telephone network, the telephone
company may request that you disconnect the equipment until the
problem is resolved.
8Please follow instructions for repairing if any (e.g. battery replacement
section); otherwise do not alternate or repair any parts of device except
specified.
9Connection to party line service is subject to state tariffs. Contact the
state public utility commission, public service commission or corporation
commission for information.
10 If your home has specially wired alarm equipment connected to the
telephone line, ensure the installation of this [equipment ID] does not
disable your alarm equipment. If you have questions about what will
disable alarm equipment, consult your telephone company or a qualified
installer.
11 If the telephone company requests information on what equipment is
connected to their lines, inform them of:
a) The ringer equivalence number [REN0.0]
MU 25XXXXXX-A_D680C_US.book Page 6 Lundi, 28. mai 2012 10:55 10

7
D680C
b) The USOC jack required [RJ11C]
c) Facility Interface Codes ("FIC") [XXX]
d) Service Order Codes ("SOC") [XXX]
e) The FCC Registration Number [US: NS3W400BD680C]
If this product is equipped with a corded or cordless handset, it is
hearing aid compatible.
FCC ID: VW3D680C
US: NS3W400BD680C
REN: 0.0B
MU 25XXXXXX-A_D680C_US.book Page 7 Lundi, 28. mai 2012 10:55 10

8
D680C
Contents
Discover...........................................................11
Your phone ......................................................................... 11
Unpacking.................................................................................................................... 11

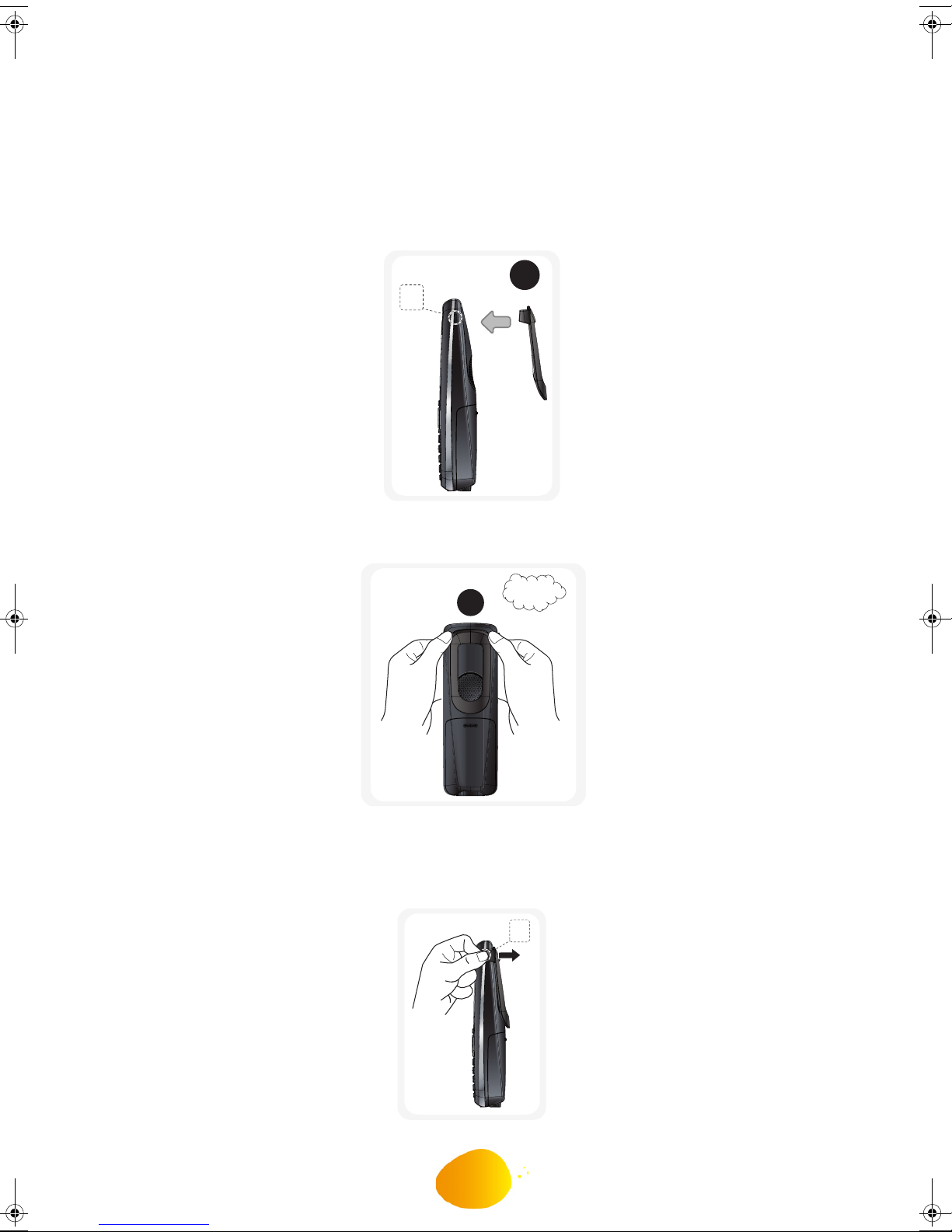

Installing the belt clip................................................................................................ 12
The handset................................................................................................................. 13
The base....................................................................................................................... 14
Connecting the base................................................................................................. 15
Browser......................................................................................................................... 16
Menu browsing ........................................................................................................... 16
The screen ................................................................................................................... 19
Charging............................................................................. 20
Handset set-up.................................................................... 21
Replacing the batteries ....................................................... 23
Menu tree structure ................................................................................................... 24
Call... ...............................................................26
Managing calls .................................................................... 26
Making a call ............................................................................................................... 26
Ending a call................................................................................................................ 27
Receiving a call .......................................................................................................... 28
Choose your line ........................................................................................................ 28
Managing several calls........................................................ 29
Receiving a second call........................................................................................... 29
Switching from one call to the other..................................................................... 29
Ending one of the calls in progress...................................................................... 30
Talking with two contacts at the same time (3-way conference) ................. 30
Making a second call ................................................................................................ 31
Transferring calls ....................................................................................................... 32
MU 25XXXXXX-A_D680C_US.book Page 8 Lundi, 28. mai 2012 10:55 10
