SAIER Concept PDG 2906 User manual

Operating instructions
–Original operating instructions –
Powder dosing unit
Concept PDG 2906
2022/04

Publishing details
SAIER Dosiertechnik GmbH
Gewerbestrasse 71
79194 Gundelfingen
Germany
Phone [phone]
Fax [phone]
Email [email protected]
Disclaimer
Diagrams and texts have been compiled with the greatest possible care. Nevertheless, errors
and technical changes cannot be ruled out. The information is provided without guarantee.
Details in these operating instructions are subject to change without prior notice due to ongoing
product development.
© 2021 SAIER Dosiertechnik GmbH
All rights, including photomechanical reproduction and storage in electronic media, reserved by
SAIER Dosiertechnik GmbH.

Contents
1INTENDED USE....................................................................................................6
2DISCLAIMER ........................................................................................................6
3EC DECLARATION OF CONFORMITY...................................................................7
4ABOUT THESE INSTRUCTIONS...........................................................................8
SAFETY INFORMATION ......................................................................................8
1.1.1 Types of hazard ..............................................................................................................................9
INFORMATION NOTES .......................................................................................9
5ITEMS SUPPLIED...............................................................................................10
6TRANSPORTATION AND STORAGE...................................................................10
7TECHNICAL SPECIFICATIONS............................................................................11
8DESCRIPTION ....................................................................................................13
THE SYSTEM..................................................................................................13
COMPONENTS ...............................................................................................14
CONTROL ELEMENTS.......................................................................................15
9INSTALLATION...................................................................................................17
INSTALLATION LOCATION .................................................................................17
1.1.2 Injection points ............................................................................................................................ 17
INSTALLATION ...............................................................................................18
1.1.3 Open the device........................................................................................................................... 18
1.1.4 Mount the connection box........................................................................................................ 19
FIT TUBE KIT..................................................................................................19
1.1.5 Seal the tube kit .......................................................................................................................... 19
1.1.6 Fit tube kit..................................................................................................................................... 20
TUBE CONNECTION.........................................................................................21
ELECTRICAL INSTALLATION...............................................................................21

1.1.7 Connection box............................................................................................................................ 22
1.1.8 5-core cable connection............................................................................................................ 23
1.1.9 Connection of solenoid valve and sensors........................................................................... 23
1.1.10 CTLOG 2013 connection........................................................................................................ 24
1.1.11 Connection of conductivity sensor and signalling device............................................. 25
INSTALLING AN ADDITIONAL PUMP (CONCEPT 2105 DOSING PUMP).......................26
1.1.12 Mounting an additional pump.............................................................................................. 26
1.1.13 Set jumpers............................................................................................................................... 26
1.1.14 Additional pump electrical connection .............................................................................. 27
10 MENU..............................................................................................................29
DISPLAY .......................................................................................................29
1.1.15 Symbols ..................................................................................................................................... 29
1.1.16 Arrows........................................................................................................................................ 30
BUTTON FUNCTIONS.......................................................................................30
NAVIGATE AND CHANGE VALUES .......................................................................30
FACTORY SETTINGS ........................................................................................31
CALCULATE CORRECTION FACTOR ......................................................................31
“SETTINGS” MENU.........................................................................................32
“DETERGENT DOSING” MENU...........................................................................33
“RINSE-AID DOSING” MENU ............................................................................33
“CONFIGURATION” MENU................................................................................34
CONFIGURATION OF CONCEPT 2105 ADDITIONAL PUMP ....................................35
11 STARTUP.........................................................................................................36
1.1.17 Calculate correction factor.................................................................................................... 36
12 FAULTS............................................................................................................37
GENERAL FAULTS ...........................................................................................37
13 MAINTENANCE...............................................................................................38
REPLACE TUBE KIT..........................................................................................39

14 REPLACEMENT PARTS AND SUPPORT .........................................................41
15 DISMANTLING AND DISPOSAL ......................................................................41
PROPER DISPOSAL .........................................................................................41
16 APPENDIX.......................................................................................................42
NAMEPLATE..................................................................................................42

Intended use
2022/04
Operating instructions Concept PDG 2906 peristaltic dosing pump
6 / 44
1Intended use
The Concept PDG 2906 powder dosing unit is used for continuous and time-controlled dosing
of detergent in granulate, powder or block form.
The Concept PDG 2906 powder dosing unit may only be used within the specified performance
limits and under the permissible ambient conditions.
2Disclaimer
Any other or additional use shall be considered improper use.
The manufacturer will not be held liable for resulting damage. Modifications to the peristaltic
dosing pump are prohibited.
The peristaltic dosing pump may only be used in a technically faultless and operationally safe
condition. Any improper use will result in extinguishment of the manufacturer’s warranty and
general liability.
Only a qualified specialist may open the device. The peristaltic dosing pump must be installed by
a trained specialist who is responsible for compliance with applicable standards and
regulations.
Faultless functioning and operational safety as well as the greatest possible freedom from
interference can only be ensured if only device components tested and approved by SAIER
Dosiertechnik GmbH are used.
Only accessories that have been tested together with this device and approved by SAIER
Dosiertechnik GmbH may be used. If third-party accessories are used, SAIER Dosiertechnik
does not guarantee that the device will operate or function safely or reliably.
There is no warranty for damage caused by using third-party accessories.
The guarantee period is 24 months from delivery.

EC Declaration of Conformity
2022/04
Operating instructions Concept PDG 2906 peristaltic dosing pump
7 / 44
3EC Declaration of Conformity
The company
HERBERT SAIER GMBH
Gewerbestrasse 71
79194 Gundelfingen
Germany
hereby declares that the product listed below conforms to the following EU Directives,
harmonised standards and national standards.
Product
Powder dosing unit
Model
Concept PDG 2906 21016
Serial number
See nameplate on device
EU Directives
Low Voltage Directive 2014/35/EU
Electromagnetic Compatibility (EMC) Directive
2014/30/EU
Restriction of Hazardous Substances in Electrical and
Electronic Equipment (RoHS) Directive 2011/65/EU
Harmonised standards
EN 60335-1:2020-08
EN 60335-2-41:2012-06
EN 61000-6-3:2011-09
EN 61000-6-2:2006-03
Herbert Saier GmbH
5 March 2021
Michael Saier
(Managing Director)

About these instructions
2022/04
Operating instructions Concept PDG 2906 peristaltic dosing pump
8 / 44
4About these instructions
Important information
Read these operating instructions before using the unit.
Please observe and comply with the following points:
•All instructions relating to the safety of the operator and protection of the surroundings
must be followed.
•These operating instructions are considered an integral part of the device. They must be
kept to hand and made available to relevant persons as required.
•These operating instructions must be precisely followed in order to use the device as
intended and in the correct manner.
•All supplied technical information, care and maintenance instructions must be observed.
Safety information
Safety information is labelled according to the severity of the danger:
DANGER!
Indicates an immediate hazard with a high level of risk which may result
in death or serious injury.
WARNING!
Indicates a hazard with a moderate level of risk which may result in
death or serious injury.
CAUTION!
Indicates a hazard with a low level of risk which may result in minor or
moderate injury or damage to property.

About these instructions
2022/04
Operating instructions Concept PDG 2906 peristaltic dosing pump
9 / 44
1.1.1 Types of hazard
The following types of hazard may arise during installation, operation, repair or disposal of the
device:
Danger of death, electricity
Before opening the device housing, disconnect the power supply to the
device and make sure it cannot be switched back on.
Crush hazard
Before operating the pump, ensure that all provided covers are properly
fitted.
Danger of suffocation, lethal gases and vapours
Mixing certain liquids can produce deadly gases and vapours.
Chemical burn hazard
Wear eye protection.
Danger from chemicals
Wear protective gloves.
Danger from chemicals
Wear protective clothing.
Information notes
Information notes contain important instructions for the installation and proper operation of
the device. They should always be observed.
Important information
This information note indicates that material damage or financial loss
may occur if the information is ignored.
Information
This symbol indicates a helpful tip.

Items supplied
2022/04
Operating instructions Concept PDG 2906 peristaltic dosing pump
10 / 44
5Items supplied
Check contents
Check delivery package contents against the delivery note immediately upon
receipt of goods. Later complaints cannot be considered.
Quantity
Components
1
Concept PDG 2906 peristaltic dosing pump with 5-core cable
1
Tube kit
2
Sealing plug for the tube kit
2
Connecting plug for the tube kit
4
6 mm wall plug (screw anchor)
4
Screws
4
Cover caps for the screws
2
PG cable glands
1
Operating instructions
6Transportation and storage
•Transport and store the device in its original packaging.
•Protect the packaged device from moisture and chemicals.
•Ambient temperature range: -10 ... +45 °C.
•Humidity: maximum 95% relative humidity, non-condensing.
•No direct sunlight.

Technical specifications
2022/04
Operating instructions Concept PDG 2906 peristaltic dosing pump
11 / 44
7Technical specifications
Performance data
Flow rate rinse-aid
pump:
20 ... 500 ml/h
(with PS 138-1.6x1.6 Ri4 / 2.5 bar max.)
80 ... 2000 ml/h
(with PS 138-3.2x1.6 Ri4G / 2 bar max.)
Configuration
Device:
Buttons on device
Windows laptop
(SSC software)
Conductivity
measurement:
Inductive conductivity sensor ILFS 02
Reset dosing time
monitoring:
Increase in conductivity
Setpoint value
reached
Rinse-aid dosing
Constant
Variable
Dosing control:
Runtime
Runtime and pauses
Conductivity control two-point
Conductivity control proportional
Control programs:
1 predosing program
1 basic program
7 weekly programs / timer programs
1 special program
Electrical data
Operating voltage:
230 V ±10%
Frequency:
50 /60 Hz
Input power:
20 VA
Protection class:
IP 65
Fuse:
0.2 A fuse for device
2 A medium time-lag fuse for solenoid valve
Data storage
Consumption data –daily product consumption of rinse-aid pump
and solenoid valve activation time
Container empty events / container change
Error events: Dosing error / sensor failure etc.

Technical specifications
2022/04
Operating instructions Concept PDG 2906 peristaltic dosing pump
12 / 44
Mechanical data
Dimensions:
93.5 x 150 x 130 mm
Weight:
Approx. 1.2 kg
Tube connections (rinse-aid pump):
4x1 mm (4 mm internal diameter)
Ambient conditions
Ambient temperature range:
+10 ... +50 °C
Environmental stress:
Conforms to
DIN EN 60068-2-38

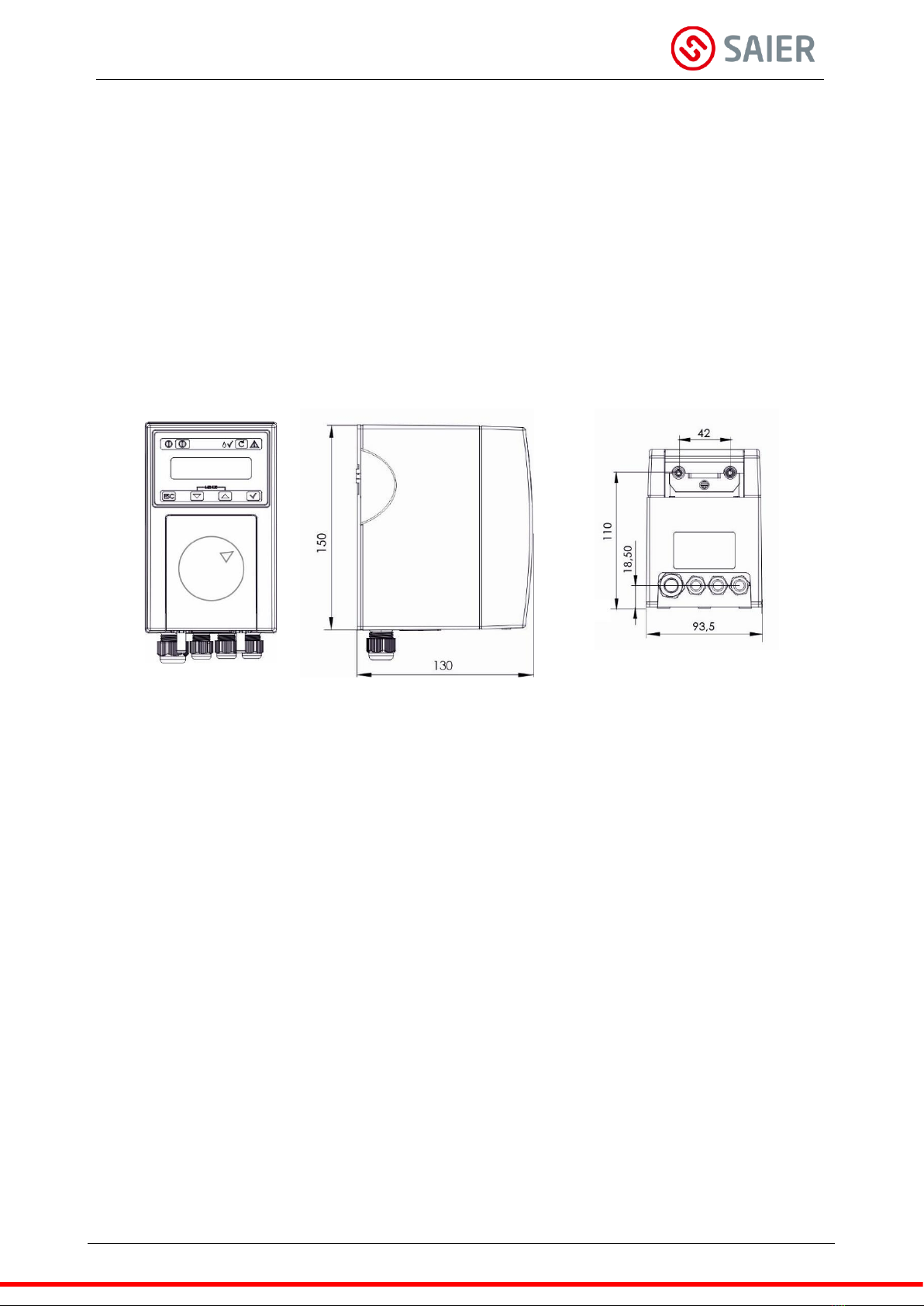

Dimensions

Description
2022/04
Operating instructions Concept PDG 2906 peristaltic dosing pump
13 / 44
8Description
The Concept PDG 2906 powder dosing unit is used for continuous and time-controlled dosing
of detergent in powder, granulate or block form.
The system
Fig. 1: Powder dosing system
Item
Component
Function
1
Powder dosing solenoid valve
Opens and closes the supply of fresh water for
the powder dosing
2
Powder cartridge
Container for the detergent in powder form
3
Cartridge sensor
Signals when no cartridge is fitted
4
Powder funnel sensor
Switches when the level of detergent liquid in the
collection funnel is too high. The powder dosing
solenoid valve closes
5
Dosing pump with control unit
Concept PDG 2906
•Controls the powder dosing
•Controls the rinse-aid dosing
•Pumps rinse-aid for the rinsing process
into the piping system
6
Rinse-aid container
Container for the rinse-aid
7
Conductivity sensor (ILFS 02)
Measures the conductivity in the wash tank

Description
2022/04
Operating instructions Concept PDG 2906 peristaltic dosing pump
14 / 44

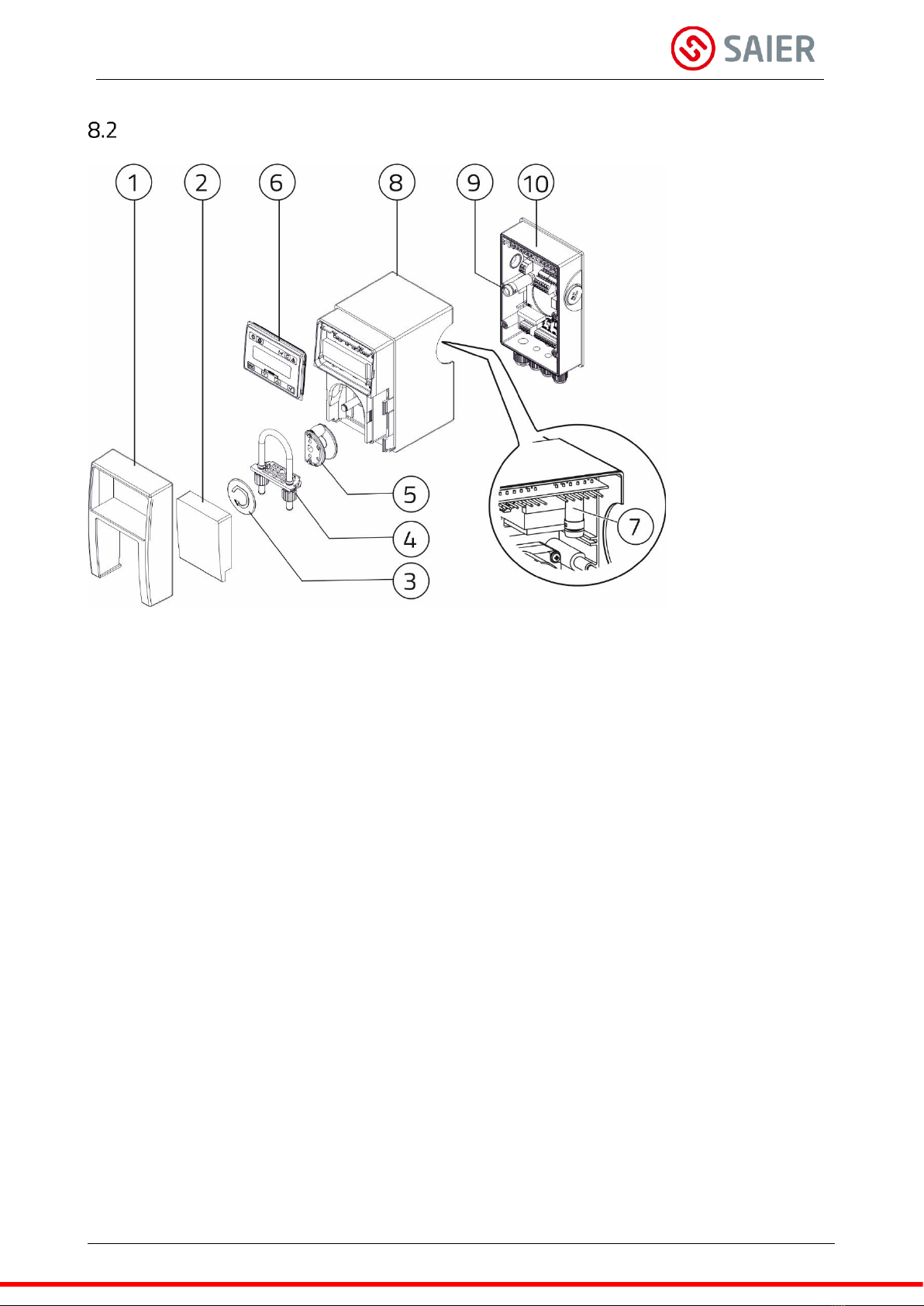

Components
Figure 2: Components
1
Cover
2
Pump housing cover
3
Rotor cover
4
Tube kit
5
Rotor
6
Front screen
7
0.2 A slow-blow fuse for device
8
Pump housing
9
2 A medium time-lag fuse for solenoid valve
10
Connection box

Description
2022/04
Operating instructions Concept PDG 2906 peristaltic dosing pump
15 / 44
Control elements
Fig. 3: Control panel
Item
Description
Function
1
Operation indicator
Lights up green when operating voltage is
present at the device
2
“On/off” button
Switch device on/off
3
“✓”indicator
☼Flashes when pump is running
4
button
- Pump is running at maximum speed
- Error reset
- Acknowledge alarm
5
Fault indicator
☼LED lights up or flashes red if an error
occurs
6
LCD display
Displays menu text
7
ESC button
- Cancel input
- Back to last entry
8
button
Decrease value
9
button
Increase value
10
✓button
- Confirm input
- Continue to next menu item
Button combination
Function
ESC button and button
Pump runs for the specified filling time at
maximum speed

Description
2022/04
Operating instructions Concept PDG 2906 peristaltic dosing pump
16 / 44
LED signals
LED
Signal
Meaning
Green
Lights up
continuously
Dosing not active
Setpoint value reached
Conductivity control is switched on1
Green
Flashing at normal
speed
Dosing active
Setpoint value not reached
Increase in conductivity is detected1
Pump is running2
Green
Flashing rapidly
Dosing active, setpoint value not reached, no increase in
conductivity is detected (possible cause: container empty)1
Green
Not lit
Conductivity control is switched off1
Red
Not lit
No fault
Red
Lights up
continuously
Tube rupture detected
Red
Flashing at normal
speed
Suction lance empty signal
Red
Flashing rapidly
Maximum dosing time exceeded
(container empty or other fault)1
Red
Flashing slowly
Conductivity sensor ILFS not detected1
1) Only for operating modes with conductivity control
2) For all operating modes

Installation
2022/04
Operating instructions Concept PDG 2906 peristaltic dosing pump
17 / 44
9Installation
Installation location
•The product should be installed in a protected place.
•An installation location should be chosen that is not exposed to humidity, water,
vapours, alkalis, acids or excessive ambient temperatures.
•The assembly area must be level and free of deformation.
•The mounting surface should be free of vibrations and shocks.
•Consider the installation situation when installing the pump.
•The pump housing must be mounted vertically.
1.1.2 Injection points

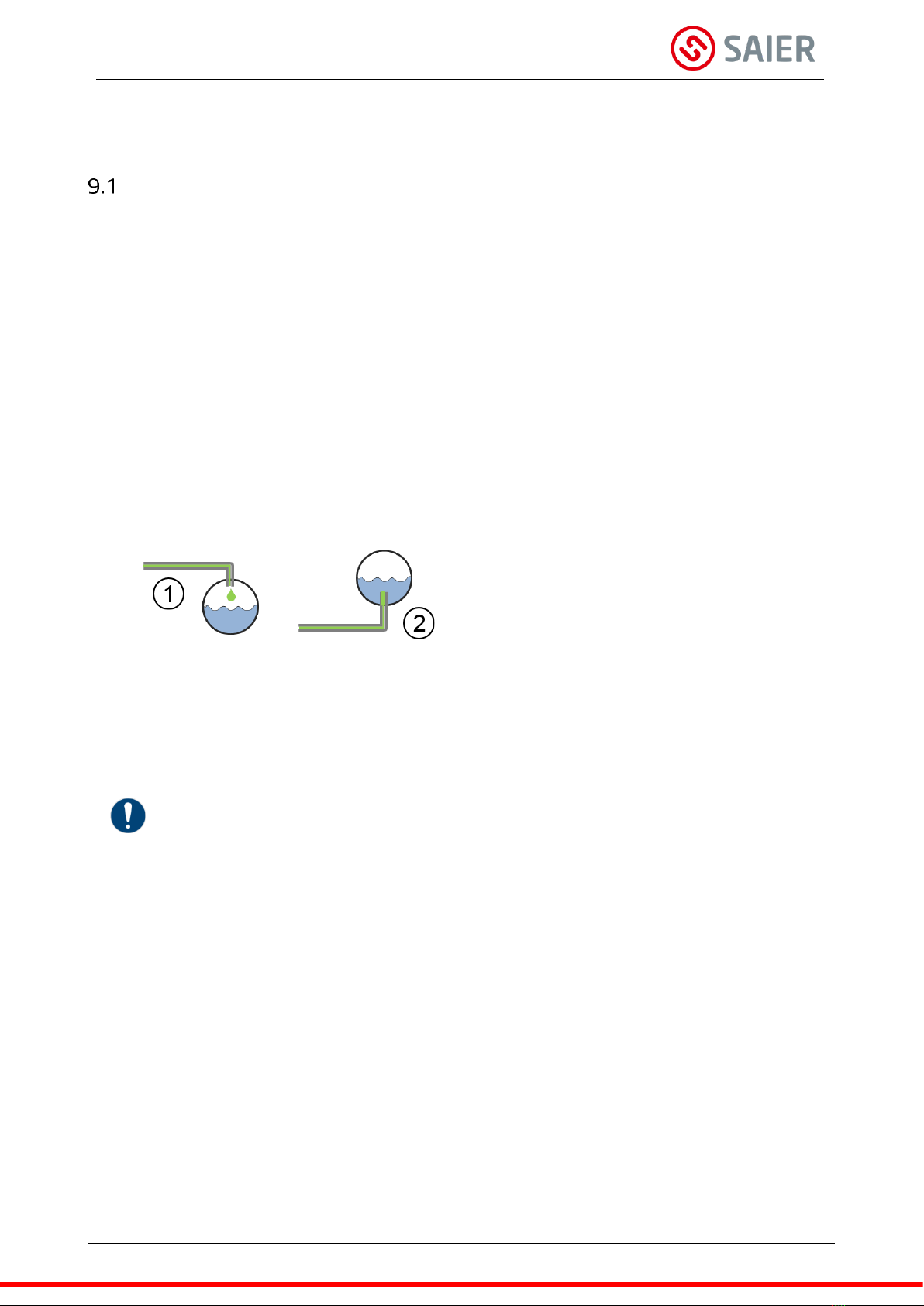

At “injection points”, the dosed medium is introduced into a pipe containing liquid.
Fig. 4: Position of injection points
Most injection points are fitted in the top of the pipe (1).
If the medium has to be introduced bubble-free, the injection point is installed on the underside
of the pipe (2).
Important information
If injection points are used, it is important to ensure that only small pressure
losses occur at the injection points.

Installation
2022/04
Operating instructions Concept PDG 2906 peristaltic dosing pump
18 / 44
Installation
1.1.3 Open the device
Gently insert a screwdriver into the two
openings in the cover.
Lift the cover.
Remove the shroud cover.
Undo the four screws in the pump
housing (1).
Separate the pump housing from the
connection box (2).
The device is ready for installation.

Installation
2022/04
Operating instructions Concept PDG 2906 peristaltic dosing pump
19 / 44
1.1.4 Mount the connection box
Use the four screws (1) to mount the
connection box.
Cover the ends of the screws with the 4
screw covers (2).
The connection box is mounted.
Fit tube kit
1.1.5 Seal the tube kit
Tube rupture monitoring!
The device has a tube rupture monitoring feature. For the tube rupture monitoring
feature to function correctly, the tube holder must be sealed.
Press the sealing plug (1) into the opening in the tube
holder.
Fig. 5: Seal the tube kit

Installation
2022/04
Operating instructions Concept PDG 2906 peristaltic dosing pump
20 / 44
1.1.6 Fit tube kit
Remove the pump housing cover (1).
Remove the rotor cover (2).
Rotate the rotor into angled “D” position.
Place the tube in position to the left of the rotor.
Slide the tube holder into the guide on the left ().
Use long-nose pliers or a rotor key to rotate the rotor
clockwise.
While turning the rotor, press the pump tube into the
guide.
Slide the tube holder fully into both guides.
Check that the tube holder sits flush.
Rotate the rotor several times to align the pump
tube.
Refit the rotor cover (2).
Refit the pump housing cover (1).
The tube kit is fitted.
