TECHNICAL MANUAL
SAILOR SC4000 IRIDIUM

Please note
Any responsibility or liability for loss or damage in connection with
the use of this product and the accompanying documentation is
disclaimed. The information in this manual is furnished for informa-
tional use only, is subject to change without notice, may contain
errors or inaccuracies, and represents no commitment whatsoever.
This agreement is governed by the laws of Denmark.
Doc. no.: M4150GB0 Issue: H/0514
Introduction
Your Iridium equipment is a modular system that consists of a
transceiver unit, control handset unit, antenna unit and an optional
analogue PSTN telephone/PABX.
You can make and receive voice calls on the control handset and the
analogue PSTN telephone. You can connect up to four handsets
and one analogue PSTN telephone or PBX switchboard to the
system.
The system provides intercom for internal calls between any control
handsets and between the analogue telephone and a control
handset.
Via the data port on the transceiver, the unit can be used as a data
modem for dial-up data calls, Internet access, SMS and E-mail
messaging.

1
Installation
IRIDIUM
0514
Contents
1 Technical Specifications ................................................................................................................................... 2
2 Installation .......................................................................................................................................................... 4
2.1 Version Overview ................................................................................................................................................. 4
2.2 Configuration of Single-Channel Unit .................................................................................................................. 4
2.3 Cable Overview .................................................................................................................................................... 5
2.3.1 Scanbus Termination ........................................................................................................................................... 6
2.4 Where to Place the Satellite Transceiver Box ..................................................................................................... 7

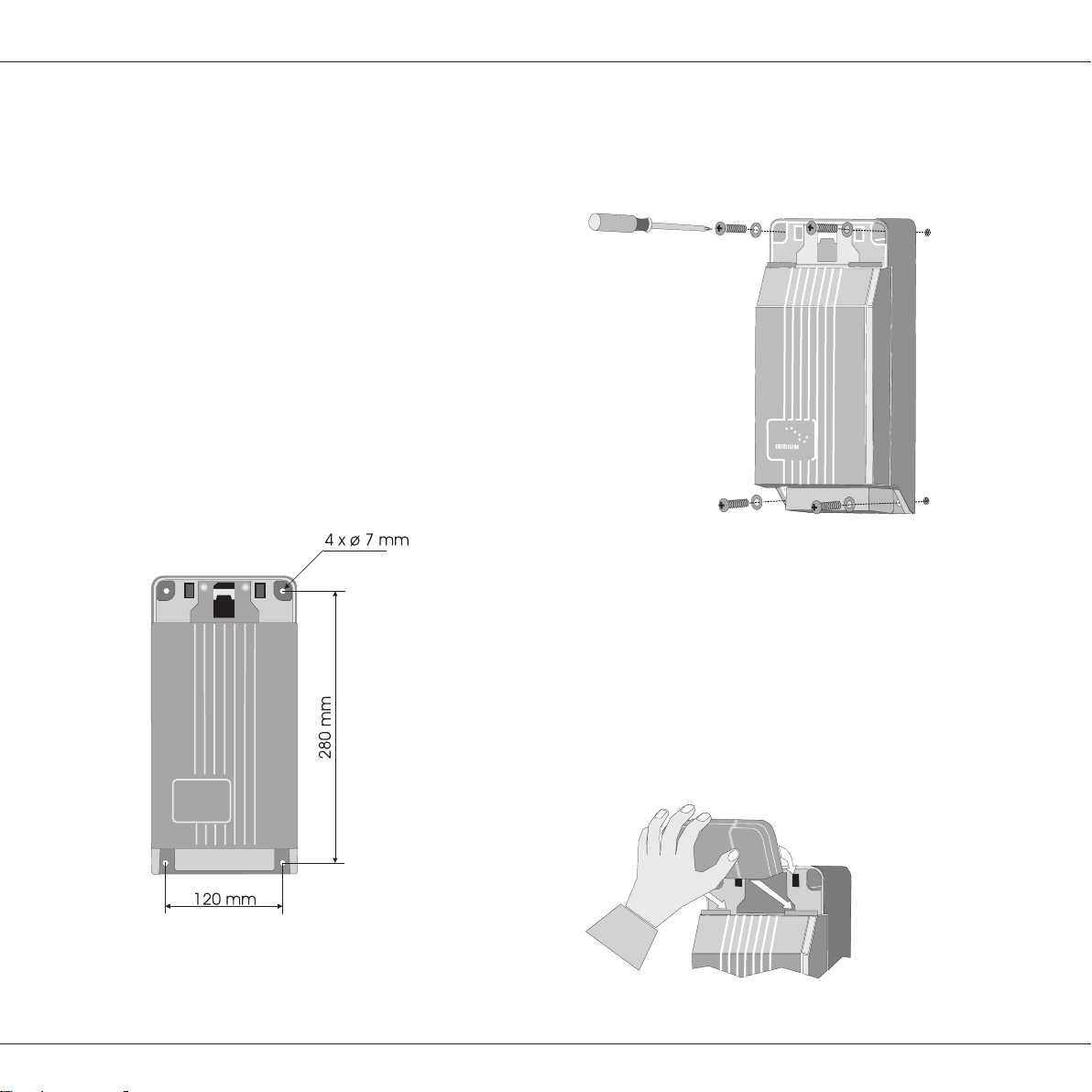

2.5 How to Mount the Satellite Transceiver Box........................................................................................................ 7
2.6 How to Put on the Finishing Cover ...................................................................................................................... 8
2.7 How to Insert the SIM Card.................................................................................................................................. 9
2.8 Optional SIM card Reader.................................................................................................................................... 9
2.9 How to Remove the Finishing Cover ................................................................................................................... 10

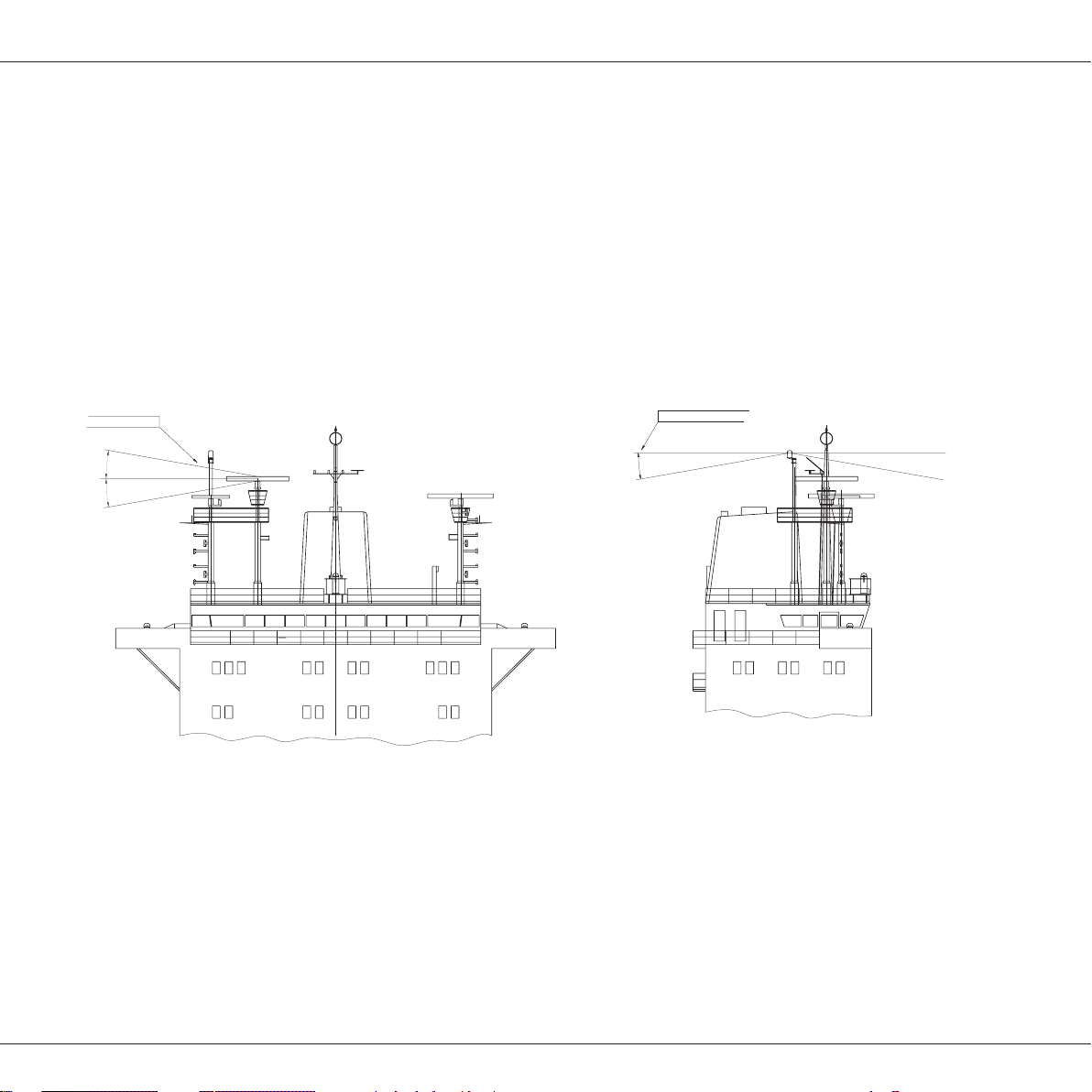

2.10 Installation of the Antenna ................................................................................................................................... 11
2.11 Analogue telephone ............................................................................................................................................. 13
2.12 Data Interface....................................................................................................................................................... 14
2.13 External Ringer Interface ..................................................................................................................................... 14
2.14 Reset Button......................................................................................................................................................... 14
Appendix A..................................................................................................................................................................... 17
Spare Parts List.................................................................................................................................................... 17

2
Installation IRIDIUM
0514
1 Technical Specifications
Space Segment
Satellites 66 (Plus 6 in-Orbit backup satellites)
Orbital planes 6
Orbit height 780 kilometres
Inclination of the orbital planes 86.4 degrees
Orbital period 100 minutes, 28 seconds
Spot beams 48 per satellite
Radio module
Frequency Range 1616 MHz to 1626.5 MHz (L-Band)
Duplexing Method TDD (Time Domain Duplex)
Oscillator Stability ± 1.5 ppm
Input/Output Impedance 50 Ω
Multiplexing Method TDMA/FDMA
Average Power during a transmit slot (max) 7W
Average Power during a frame (typical) 0.6W
Receiver Sensitivity at 50 Ohm (typical) -118.5 dBm
Receiver Spurious Rejection at offsets > 1 MHz (typical) 60 dB
Voice/Data Rate 2.4 kbit/s QPSK
Antenna Helical, omni-directional 210°
(3 dB beam width)
Fibreglass radome ø 96 mm
Link Margin 16 dB
Antenna Tracking Capability
Turn Omni-directional antenna
Roll/pitch Up to ± 20 from horizontal position
Yaw Elevation > 8°
Interface
Handset 600 Ω/ 4 wire RS485
Telephone/PABX 270 Ω+750 Ω// 150nF / 2 wire
Data RS232 with handshake
Position information NMEA 0183

3
Installation
IRIDIUM
Power supply
DC 10 – 32V DC
AC (Optional) 110-230V AC (External adaptor)
Consumption 25 W during communication
8 W Stand by
Environmental Conditions
Transceiver
Operating temperature -10° C to +55° C
Storage temperature -30° C to +70° C
Antenna
Temperature EME -35° C to + 55° C
Rel. humidity Up to 95% at 40° C
Icing (survival only) Up to 25 mm of ice
Precipitation Up to 100 mm/hour
Wind (velocity) Up to 100 knots
Vibration IME: 2 – 50 Hz @ 1 g
EME: 4 – 33 Hz @ 1 g
Weight
Transceiver : 2.7 kg
Antenne: 220 g
Handset & cradle : 570 g
0514

4
Installation IRIDIUM
0514
2 Installation

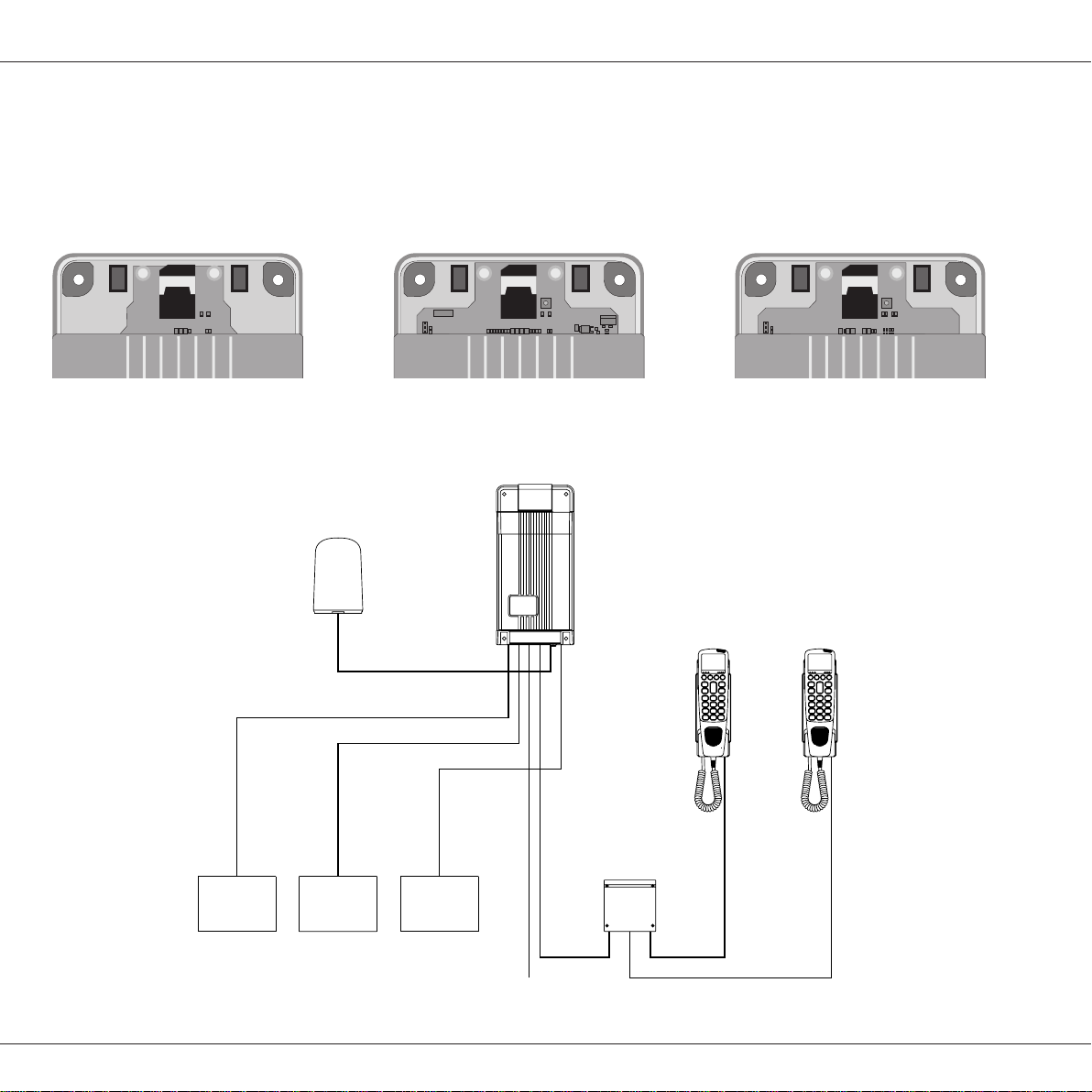

2.1 Version Overview
This manual covers the Transceiver Unit versions Mk2, Mk3 and Mk4.
The version can easily be determined by looking at the area around the SIM card reader.
2.2 Configuration of Single-Channel Unit
L1
35423E
10 - 32V DC
PABX
Phone
DTE
2
3
4 1
Antenna Unit
Max. cable loss 3dB
Iridium
L1 + L2 < 100 metres
L2
Box
Connection
5
1
Handset
Control
Handset
Transceiver
Unit
Control
6
GPS
Mk2 Mk3 Mk4

5
Installation
IRIDIUM
2.3 Cable Overview
Cable 1
Scanbus
Cable: 9*0.22 mm2shielded
shield connected to ground
Cable connector type: 9 pole sub-d male
Transceiver Description Handset Colour
1NC1
2 data+ 2 white Twisted
3 data- 3 brown pairs
4AF+4greenTwisted
5 AF- 5 yellow pairs
6 GND 6 grey Twisted
7 +24V DC 7 pink pairs
8 RX_AF+ 8 blue Twisted
9 RX_AF- 9 red pairs
shield GND shield
2
3
4
5
6
7
8
9
1
10
36088
0514
Cable 2
Phone
Cable connector type: RJ 11
Transceiver Description
1NC
2 phone1+
3 phone1-
4NC
Cable 3
Data
Cable: 9*0.22 mm2shielded
shield connected to ground
Cable connector type: 9 pole sub-d male
Transceiver Description
1DCD
2 received data
3 transmitted data
4 data terminal ready
5serialGND
6 data set ready
7 request to send
8cleartosend
9RI
shield GND
Cable 4
Power supply
Pin no. Description Colour
1 10-32V DC red
20VDC black
3NC white
4 GND green
Front view
4
3
1
2
36662A

6

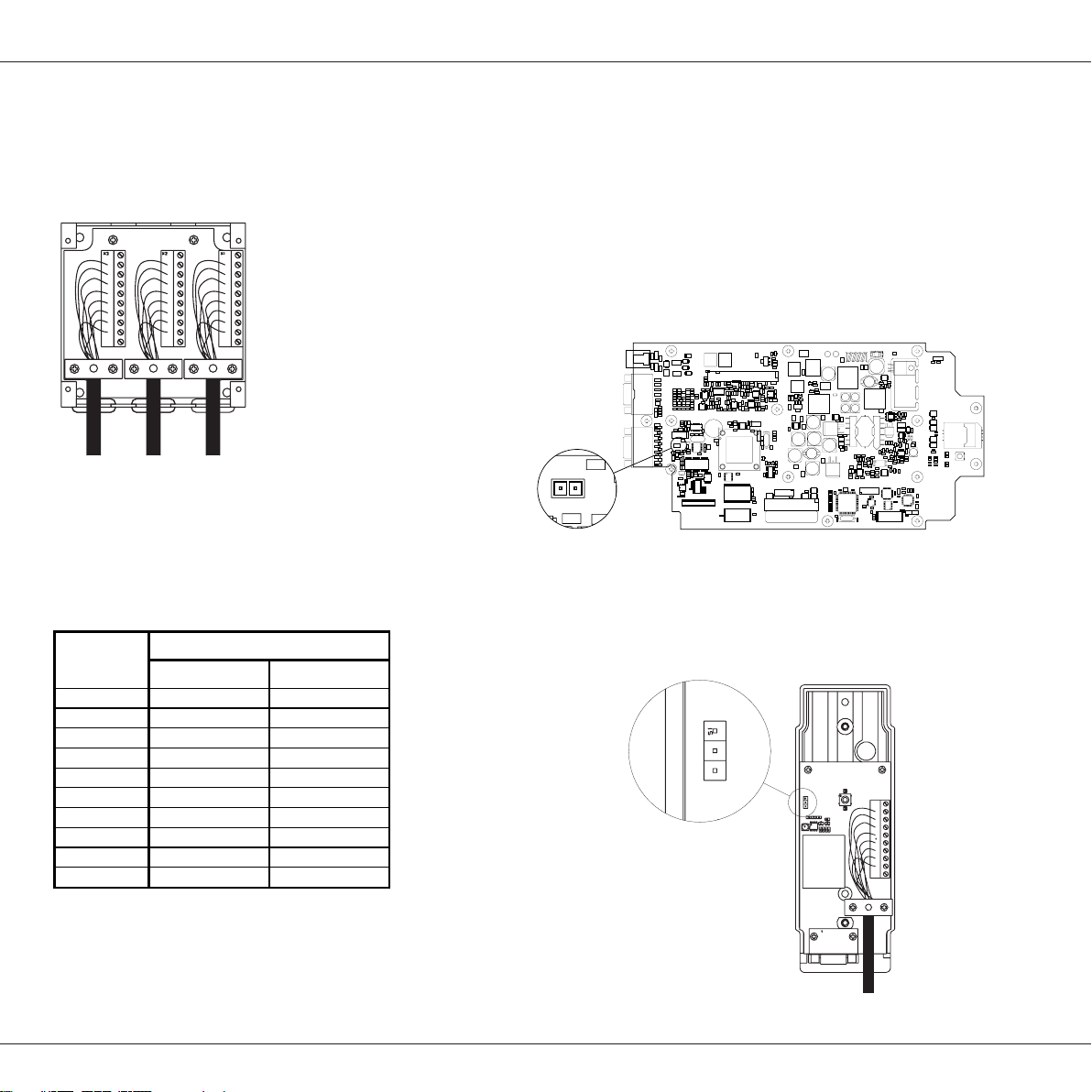

Installation IRIDIUM
Cable 5
Description of connections to T-connection H4196
(optional accessory)
The wire terminal blocks are connected in parallel.
36090
Cable 6
GPS input
Cable: 9*0.22 mm2shielded
shield connected to ground
Cable connector type: 9 pole sub-d male
Mk2 & Mk3 MK4
1 NC* External Ringer
2 PC Rx (RS232) PC Rx (RS232)
3 PC Tx (RS232) PC Tx (RS232)
4 NC* NC*
5 GND (RS232) GND (RS232)
6 NC* NC*
7 NMEA+ NMEA+
8 NMEA- NMEA-
9 NC* NC*
shield GND GND
Transceiver Description
*DoonlyconnectastandardRS232terminalcable.Ifonly
NMEA needed, then do not connect to other pins than 7
and 8.
0514

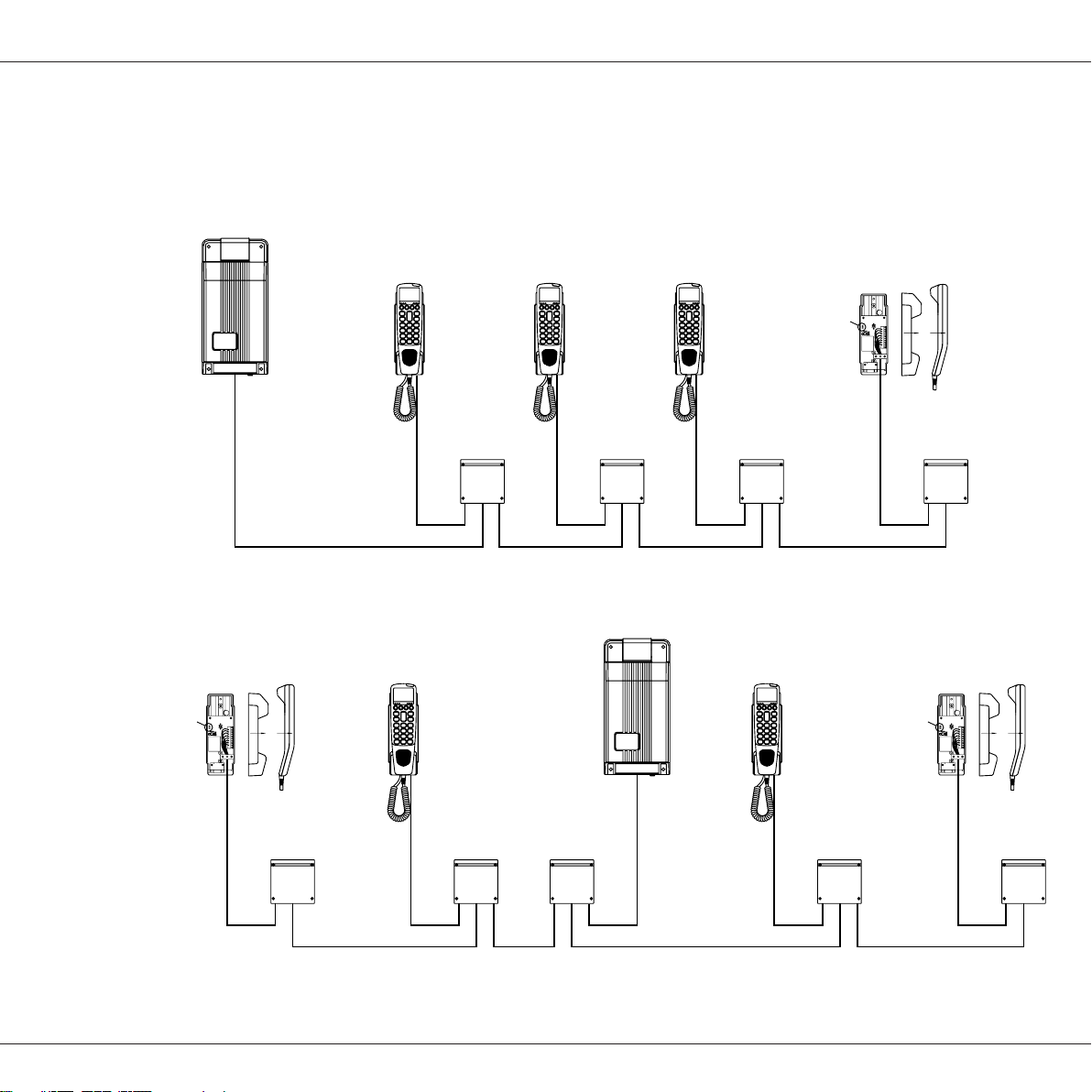

2.3.1 Scanbus Termination
The scanbus connecting the transceiver and the control
units, has to be terminated. Only the first and last unit on
the bus shall have the termination in ON position.
The termination in the transceiver unit is done by setting
the jumper S3, located near the scanbus terminal on the
PCB (see figure below). As default, the jumper S3 is set
ON.
C208
R154
R193
R208
V38
C142
C4
R189
C128 R165
R107
R124
