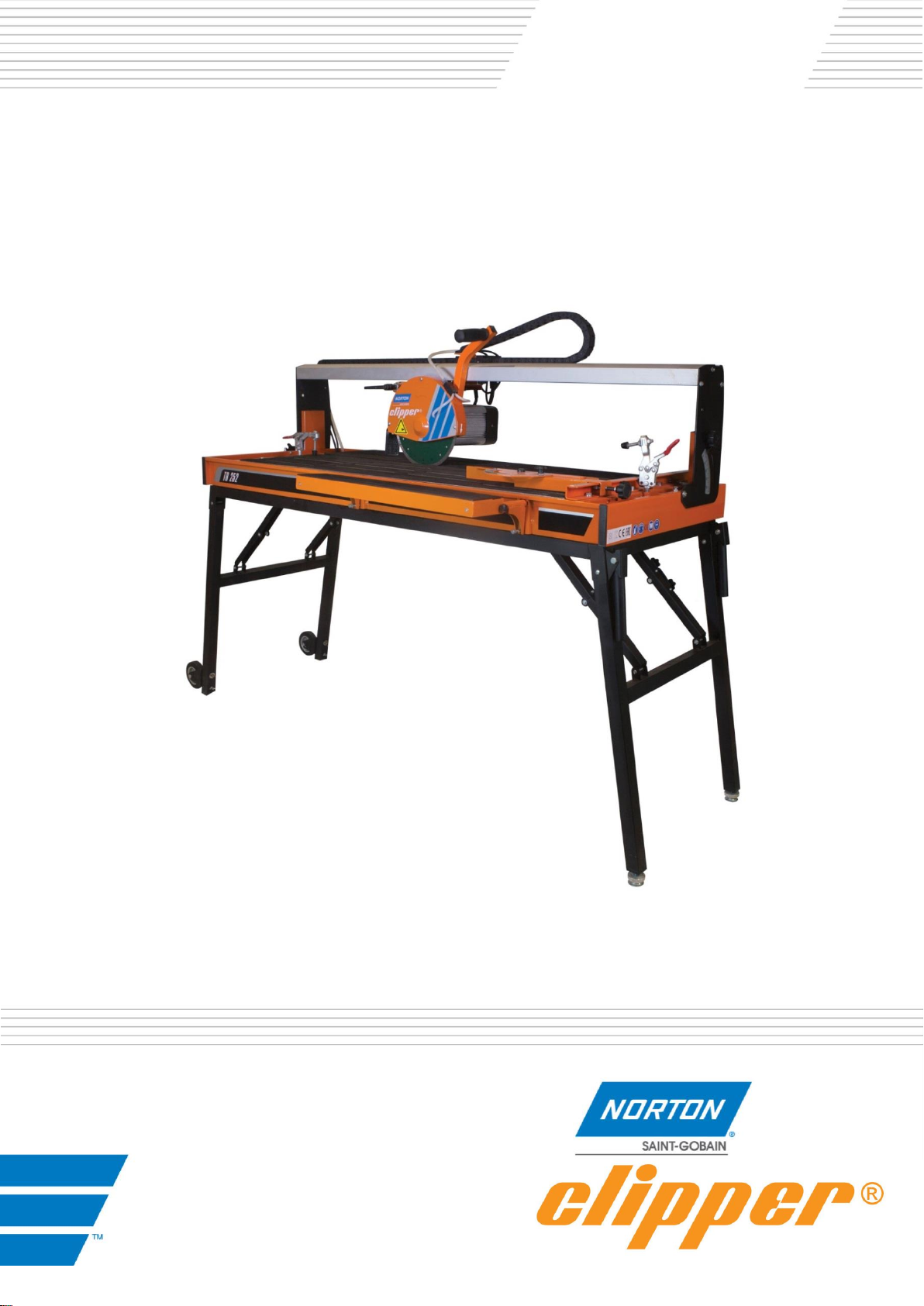

SAINT-GOBAIN NORTON clipper TR 252 User manual

TR 252
OPERATING INSTRUCTIONS
Translation of the original instructions

VERS. 2017.06.14 TR 252_MAN_EN
2

VERS. 2017.06.14 TR 252_MAN_EN
3
The undersigned manufacturer:
SAINT - GOBAIN ABRASIVES S.A.
190, BD J.F. KENNEDY
L- 4930 BASCHARAGE
Declares that this product:
Tile Saw (code): TR 252 –230V (70184694289)
Is in conformity with the following Directives:
"MACHINES" 2006/42/CE
"LOW VOLTAGE" 2014/35/UE
"ÉLECTROMAGNÉTIC COMPATIBILITY" 2014/30/UE
"NOISE" 2000/14/CE
and European standard:
EN 12418 –Masonry and stone cutting-off machines –Safety
Valid for machines as of serial number:
1701xxxxxxx
Storage site for the technical documents :
Saint-Gobain Abrasives 190, Bd. J. F. Kennedy 4930 BASCHARAGE, LUXEMBOURG
This declaration of conformity loses its validity when the product is converted or modified
without agreement.
Bascharage, Luxembourg, 04.01.2017
Olivier Plenert, executive officer.
Declaration of conformity

VERS. 2017.06.14 TR 252_MAN_EN
4

VERS. 2017.06.14 TR 252_MAN_EN
5
TR 252 : OPERATING INSTRUCTIONS
TABLE OF CONTENTS
1BASIC SAFETY INSTRUCTIONS 6
1.1 Symbols 6
1.2 Machine plate 6
1.3 Safety instructions for particular operating phases 7
2MACHINE DESCRIPTION 8
2.1 Short description 8
2.2 Purpose of use 8
2.3 Layout 8
2.4 Technical Data 10
2.5 Statement regarding the vibration emission 11
2.6 Statement regarding noise emission 12
3ASSEMBLY AND COMMISSIONING 13
3.1 Assembly of the legs 13
3.2 Assembly of the handles 13
3.3 Cutting head Erreur ! Signet non défini.
3.4 Assembly of the cooling system 14
3.5 Transport wheels 15
3.6 Longitudinal guide assembly 15
3.7 Side extension assembly 16
3.8 Installation of the handle for the cut in angle 16
3.9 Installation of the material holding system 17
3.10 Tool assembly 17
3.11 Electrical connections 18
3.12 Water cooling system 18
3.13 Starting the machine 18
4TRANSPORT AND STORING 19
4.1 Securing for transport 19
4.2 Storing of the machine 19
5OPERATING THE MACHINE 20
5.1 Site of work 20
5.2 Cutting 20
Important for cutting 20
5.3 Cutting with an angle 20
6MAINTENANCE AND SERVICING 21
7FAULTS: CAUSES AND CURES 22
7.1 Fault-finding procedures 22
7.2 Trouble-shooting guide 22
7.3 Circuit diagram 23
7.4 Customer service 23

VERS. 2017.06.14 TR 252_MAN_EN
6
1 BASIC SAFETY INSTRUCTIONS
The TR 252 is exclusively designed for the cutting of tiles with NORTON diamond disks mainly on
construction sites.
Uses other than the manufacturer's instructions shall be considered as contravening the regulations.
The manufacturer shall not be held responsible for any resulting damage. Any risk shall be borne
entirely by the user. Observing the operating instructions and compliance with inspection and
servicing requirements shall also be considered as included under use in accordance with the
regulations.

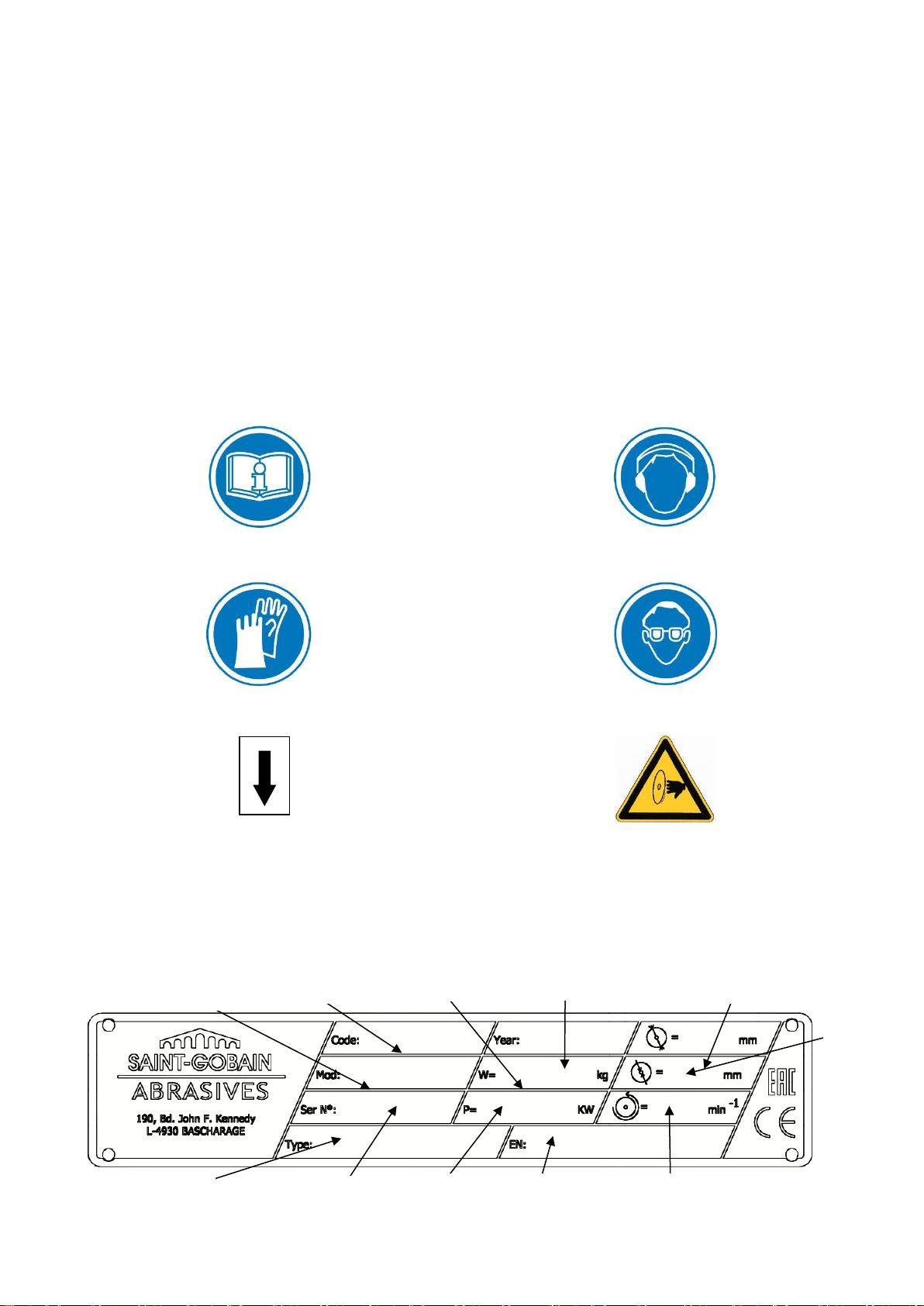

1.1 Symbols
Important warnings and pieces of advice are indicated on the machine using symbols. The following
symbols are used on the machine:
Read operator's instructions
Ear protection must be worn
Hand protection must be worn
Eye protection shall be worn
Rotation direction of the blade
Danger: risk of cut
1.2 Machine plate
Important data can be found on the following plate located on the machine:
Machine Model
Machine Code
Weight
Year of production
Maximum blade diameter
Machine type
Serial number
Power
Safety standard
Blade speed
Bore
diameter

VERS. 2017.06.14 TR 252_MAN_EN
7
1.3 Safety instructions for particular operating phases
Before commencing work
Before commencing work, make yourself familiar with the working environment at the place of
use. The working environment includes: obstacles in the area of work and manoeuvre, the
firmness of the floor, necessary protection at the site relating to public thoroughfares and the
availability of help in the event of accidents.
Site the machine on an even, firm and stable base!
Check for correct mounting of the blade regularly.
Immediately remove damaged or badly worn blades, as they endanger the operator whilst
rotating.
The material to be cut must be held securely in place on the table to allow no unexpected
movement during cutting operation.
Always cut with the blade guard in position.
Only fit NORTON diamond blades with continuous rim to the machine! The use of other tools
can damage the machine!
Read the blades’ specifications carefully to choose the correct tool for your application.
Attention is drawn to the use of BS2092 safety goggles in conformity with specified Processes
No.8 of the Protection of Eyes Regulation 1974, Regulation 2(2) Part 1. Also use the other
safety equipment as mentioned in the symbols.
Electrical powered machine
Always turn off the TR 252 and separate it from the main source of electricity before any work on
the machine is done.
Make all electrical connections securely to eliminate contact of live wires with spray water or
dampness
When TR 252 is used with water, it is IMPERATIVE that you earth the machine properly. Let a
qualified electrician check in case of doubt.
The red button on the switch, also uses as an emergency stop, pess it to turn the machine off in
case of danger.
In the event of the TR 252 breaking down or stopping for no apparent reason, switch off the
main electricity supply. Only a qualified electrician is allowed to investigate the trouble and
remedy the fault.

VERS. 2017.06.14 TR 252_MAN_EN
8
2 MACHINE DESCRIPTION
Any modification, which could lead to a change in the original characteristics of the machine, may
be done only by Saint-Gobain Abrasives who shall confirm that the machine is still in conformity with
the safety regulations.
2.1 Short description
The TR 252 Saw is designed for durability and high performance for onsite wet cutting operations of
a wide range of tiles.
As with all other NORTON CLIPPER products, the operator will immediately appreciate the attention
given to detail and quality of materials used in construction. The machine and its component parts
are assembled to high standards assuring long life and minimum maintenance.
2.2 Purpose of use
The machine is designed for wet cutting of a large range of building and refractory materials, or tiles.
It is not designed for cutting wood, metals or other materials.
2.3 Layout
1
5
3
2
4

VERS. 2017.06.14 TR 252_MAN_EN
9
Frame (1)
The frame is made of aluminium and steel to ensure robustness and durability. The folding stand
with 4 legs ensures stability while cutting. The head is pendular for passing cuts.
Cutting head (2)
Aluminium console guided with precision. This console supports the electric motor, the guides and
the blade guard. The head can be tilted to cut with an angle from 0 to 45º.
Blade guard (3)
The blade guard assembly with a 250mm-diameter blade capacity is completely closed, but the
outside cover can be disassembled to access the blade. It offers maximum operator protection and
increased visibility of the work piece. The tightening of the fixing flange is done by a hexagonal head
screw (left-hand thread).
Water cooling (4)
The coolant system comprises:
A submersible mechanical water pump.
Plastic suction pipe delivering the water from the water pan to the cutting head.
A removable large capacity plastic water pan located under the cutting table to reduce water
loss.
Two nozzle of watering located on the casing of the disc for a good distribution of water on the
disc.
Electric Motor (5)
One phase 1,5 kW motor. The switch with the red and green buttons is used to start and turn off the
engine. The red button is also an emergency stop.

VERS. 2017.06.14 TR 252_MAN_EN
10
2.4 Technical Data
TR 252
Item number
701846 94289
Electric motor
1.5 kW
Supply voltage
230 V
Rating protection
230V, 50 Hz, IP54
Blade diameter
250 mm
Bore
25.4 mm
Rotation speed of the blade
2950 min−1
Maximum clearance between table and blade
guard at 0°
80 mm
Maximum clearance between table and blade
guard at 45°
60 mm
Cutting length
1200
Flange diameter
70
Sound pressure level
71 dB (A) (according to ISO EN 11201)
Sound energy level
79 dB (A) (according to ISO EN 3744)
Table dimensions (LxW)
1200X585 mm
Machine dimensions (LxWxH)
1600x585x1350 mm
Weight :
Complete machine
Ready-to-use machine (with water)
88 kg
94 kg

VERS. 2017.06.14 TR 252_MAN_EN
11
2.5 Statement regarding the vibration emission
Declared value of vibration emission following EN 12096.
Machine
Model / code
Measured value of vibration
emission at m/s2
Uncertainty K
m/s2
Tool used
Model / code
70184694289
<2.5
0.5
Clipper Super Gres XT
The vibration value is lower and does not exceed 2.5 m /s².
Values determined using the procedure described in the standard EN 12418.
The measurements are made with new machines. Actual values may vary with site conditions, in
terms of:
Materials worked
Wear Machine
Lack of maintenance
Inappropriate tool for application
Tool in poor condition
Unskilled operator
Etc…
The exposure time to vibration is based on the performance of work (related to the adequacy
Machine / Tool / worked material / operator)
When evaluating risks due to hand-arm vibration, you need to take into account effective usage at
rated power of machine during a full day of work; quite often you will realise that effective utilisation
time represents around 50% of overall duration of work. You have to consider, of course, breaks,
water feeding, preparation of work, time to move the machine, disk mounting…

VERS. 2017.06.14 TR 252_MAN_EN
12
2.6 Statement regarding noise emission
Declared value of noise emission following EN ISO 11201 and NF EN ISO 3744.
Machine
Model / code
Sound
Pressure level
LPeq
EN ISO 11201
Uncertainty K
(Sound
Pressure level
LPeq
EN ISO 11201)
Sound power
level
LWeq
NF EN ISO 3744
Uncertainty K
(Sound power level
LWeq
NF EN ISO 3744)
70184694289
79 dB(A)
2.5 dB(A)
71 dB(A)
4 dB(A)
Values determined using the procedure described in the standard EN 12418.
The measurements are made with new machines. Actual values may vary with site conditions, in
terms of:
Wear Machine
Lack of maintenance
Inappropriate tool for application
Tool in poor condition
Unskilled operator
Etc…
Measured values relate to an operator in normal use, as described in the manual position.

VERS. 2017.06.14 TR 252_MAN_EN
13
3 ASSEMBLY AND COMMISSIONING
The TR 252 is delivered fully equipped. It is ready for operation after assembly of the diamond blade
and after connection to the appropriate power supply.

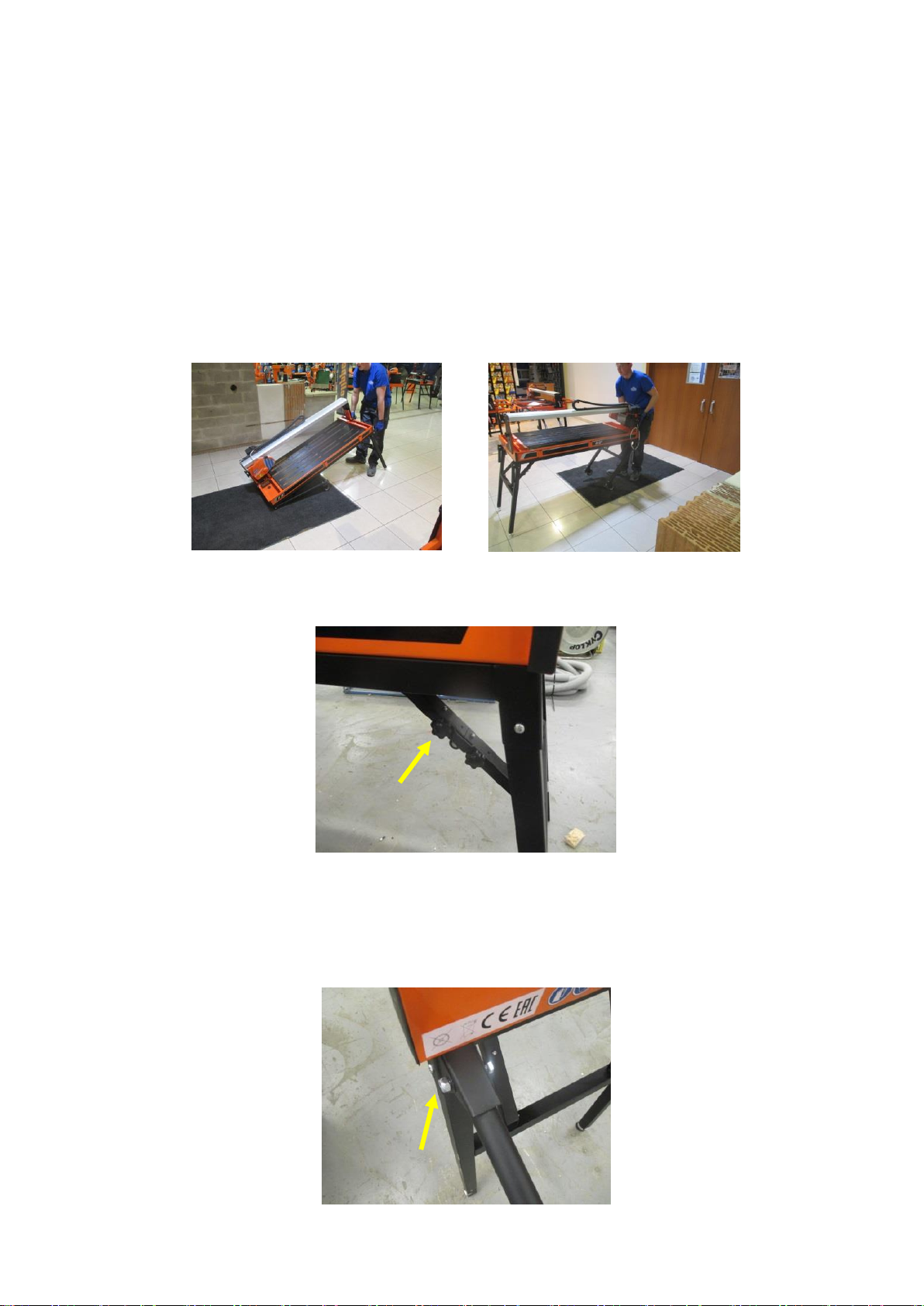

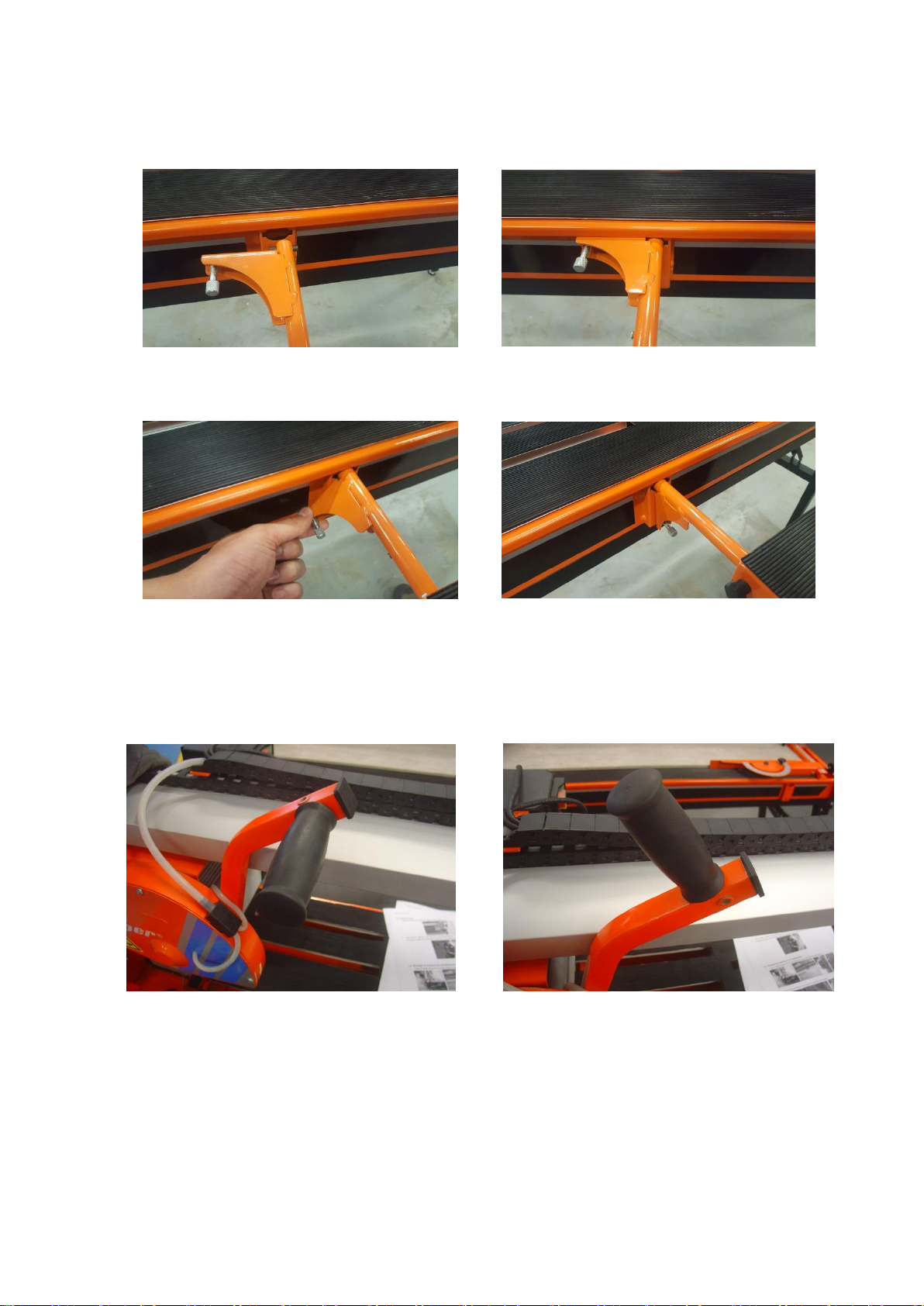

3.1 Assembly of the legs
Lift up one side of the saw and unfold the legs without wheels. Lift up the other side of the saw
and unfold the legs with the wheels.
Encase the arm of blocking in the pin and tighten the button knurled to prevent that the feet are
not folded up.
3.2 Assembly of the handles
In order to seize the machine more easily, fix the two handles on the side of the machine using
the screws and nuts.

VERS. 2017.06.14 TR 252_MAN_EN
14

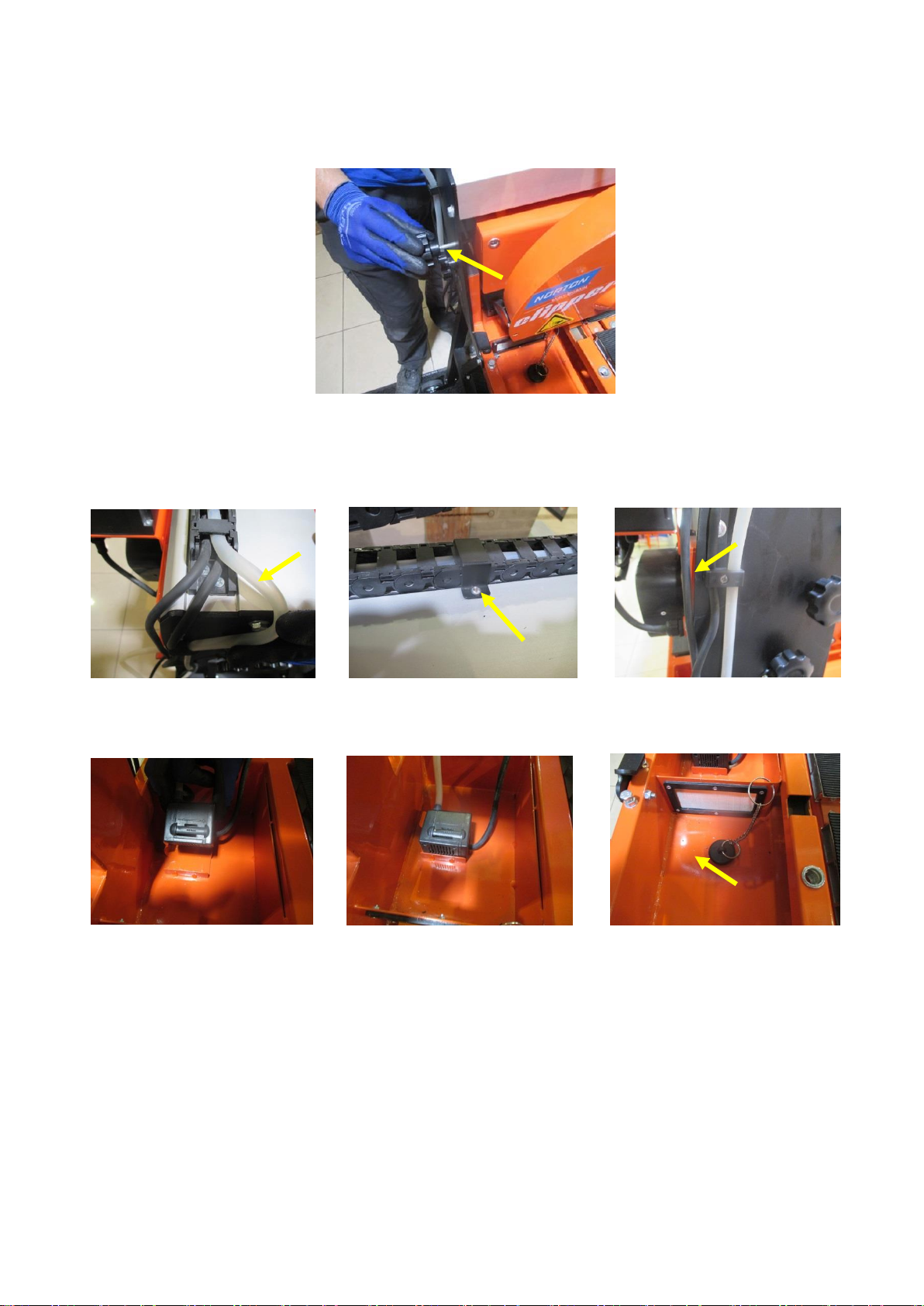

To be able to use your machine, you must release the head of cut. For that unscrew the knurled
button which maintains the head on the right amount during transport.
3.3 Assembly of the cooling system
Fix the cable containing the water pipe along the rail of the head of cut.
Mount the pump in the vat to water and the drain plug

VERS. 2017.06.14 TR 252_MAN_EN
15

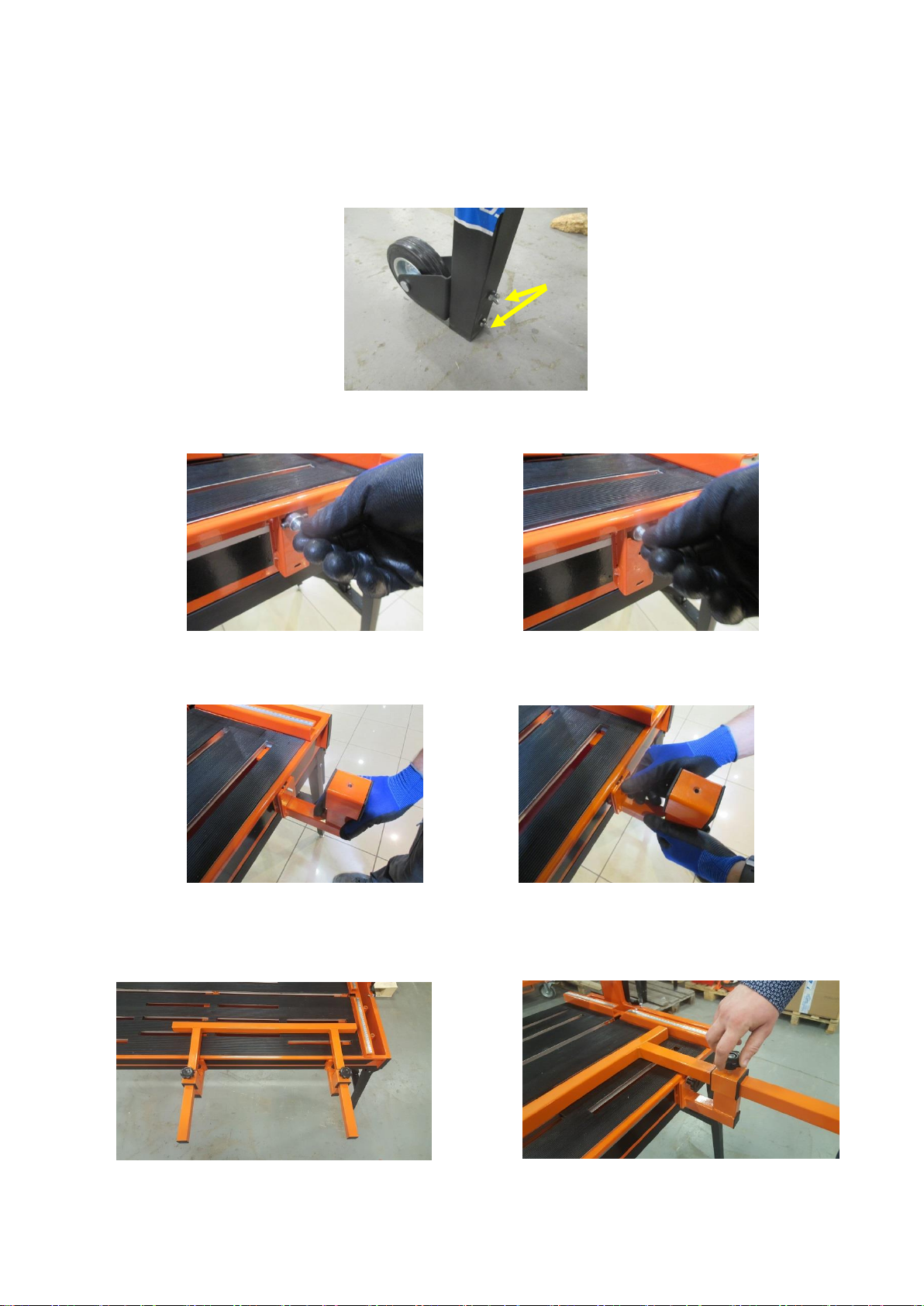

3.4 Transport wheels
To be able to move your machine easily, assemble the wheels to the bottom of the feet located
on the side opposite of the handles, using the screws butterflies.
3.5 Longitudinal guide assembly
Insert 2 threaded and pined shafts Rotate both shafts by 90°
Insert both guide supports and lock them with knobs
Insert the guide in both supports then lock the knobs

VERS. 2017.06.14 TR 252_MAN_EN
16
3.6 Side extension assembly
Insert both pined shafts
Rotate both shafts by 90° to lock side extension

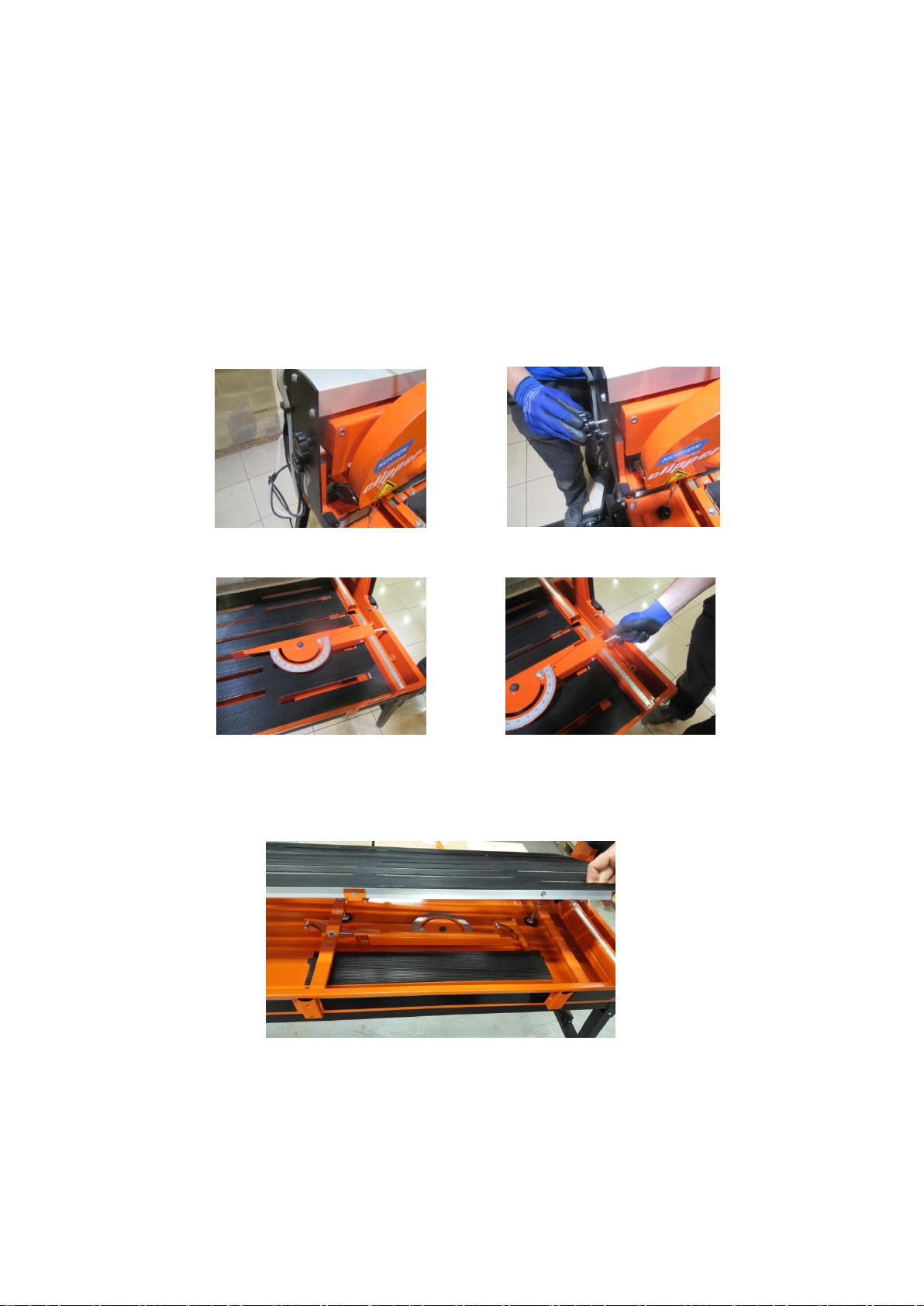

3.7 Installation of the handle for the cut in angle

VERS. 2017.06.14 TR 252_MAN_EN
17
3.8 Installation of the material holding system
In order to ensure an optimal material holding during the cut, use the grasshoppers envisaged
for this purpose.
3.9 Tool assembly
Only NORTON blades with a diameter of 250 mm can be used with the TR 252.
All tools used must be selected with regard to their maximum permitted cutting speed for the
machine’s maximum permitted rotation speed. Before mounting a new blade into the machine,
switch off the machine and isolate it from the main source of electricity.
To assemble a new blade, follow these steps:
Loosen the three screws holding the outer cover of the blade guard using the crosshead
screwdriver supplied with TR 252, and remove it.
Loosen the hexagonal nut (left threaded) on the blade shaft using the 18 mm wrench supplied
with TR 252, which holds the removable outer flange.
Remove the outer flange.
Clean the flanges and blade shaft and inspect for wear.
Mount the blade on the shaft ensuring that direction of rotation is correct (check with the arrow
on the blade guard). Wrong direction of rotation blunts the blade quickly. WARNING: The blade
bore must correspond exactly to the blade shaft. Cracked or damaged bore is dangerous for the
operator and for the machine.
Put outer blade flange back in place.
Tighten hexagonal nut using 18 mm wrench.
Put the outer cover of the blade guard back in place and tighten the three holding screws with
the crosshead screwdriver.

VERS. 2017.06.14 TR 252_MAN_EN
18
3.10 Electrical connections
Check that:
The voltage/phase supply corresponds to the information indicated on the motor plate.
Available power supply must have ground connection in conformity with safety regulations.
The connecting cables should have at least a 2.5mm2-section per phase.
3.11 Water cooling system
Fill the TR 252 with clean water up to 1cm under the top edge of the water tray. The pump will
switch on together with motor.
Ensure that water is delivered adequately to the blade, as insufficient water supply may result in
premature failure of the diamond blade.
The water pump must never run without water. Always make sure that there is enough water in
the pan and refill if necessary.
In case of frost, empty the water cooling system from its water.
3.12 Starting the machine
Connect your machine to the electric source. To start the machine, press the green button on the
switch. To stop the machine, press the red button. This one is also an emergency stop key.

VERS. 2017.06.14 TR 252_MAN_EN
19
4 TRANSPORT AND STORING
Please follow the following instructions to transport and store the TR252 in a safe way.
4.1 Securing for transport
Before transporting the machine, always remove the blade and empty the water pan. Secure the
cutting head on the rail by using the knob. Store the longitudinal cutting guide and the side
extension in the pan. Fold the legs.
WARNING: this machine is not suited to be lifted with a crane.
Lock cutting head
Tighten angular cutting guide
Store the longitudinal cutting guide and the side extension:
oDismount the table
oStore the elements in the pan, then put the table back in place
4.2 Storing of the machine
If the machine is not going to be used for a long period, please take the following measures:
Completely clean the machine
Empty the water system
Take the water pump out of the water tray, and clean it thoroughly.
The storage site must be clean, dry and at a constant temperature.

VERS. 2017.06.14 TR 252_MAN_EN
20
5 OPERATING THE MACHINE
You will find in this chapter of the advices to use the machine in a safe way.
5.1 Site of work
5.1.1 Siting the machine
Remove from the site anything, which might hinder the working procedure!
Make sure the site is sufficiently well lit!
Observe manufacturer's conditions for connecting to power supplies!
Place electric cables in such a way that damage is excluded!
Make sure you have a continual adequate view of the working area so you can intervene in the
working process at any time!
Keep other staff out of the area, so you can work securely.
5.1.2 Space required for operation and maintenance
Leave 2 m in front of the machine and 1.5 m around it for usage and maintenance of the TR 252.
5.2 Cutting
To use the TR 252 correctly, you must face it with one hand on the cutting head, and the other on
the material to be cut to maintain it against the material stops. Always keep your hands away from
the moving blade.
The long longitudinal cutting guide, the side extension, and fastening brackets, can help you to
achieve high accuracy cuts, even with large materials.
Important advices for cutting
Only materials with max. dimensions of 1200x800x20mm and max. weight of 60kg can be cut
with the TR 252.
Before commencing work make sure tools are firmly seated!
Select the right tools as recommended by the manufacturer depending on the material to be
worked, the working procedure (wet cut) to be carried out and the required efficiency.
Make sure the water pan contains enough water.
Use only set with diamonds discs NORTON CLIPPER. The use of other tools can involve the
damage of the machine.
Do not force on the engine. This machine is not designed for a continuous use.
5.3 Cutting with an angle
You can cut from 0º to 45º by tilting the head rail. For this purpose:
Loosen the two knobs maintaining the head rail to tilt the head to the desired angle.
Retighten the two knobs.
According to the angle of cut wished, the position of the handle of the head of cut can be
modified to improve comfort of the user at the time of the cut.
