Salamander Pumps CT Series User manual

Pump installation and warranty
guide for the CT range of pumps
CT FORCE 15 PT, 15 TU, 15 IPT, 15 ITU
20 PT, 20 TU, 20 IPT, 20 ITU
20 PS, 20 SU, 20 IPS, 20 ISU
30 PT, 30 TU, 30 IPT, 30 ITU
30 PS, 30 SU, 30 IPS, 30 ISU
CT Xtra 50, 50+, 54
55, 55+, 59
64H, 64HU, 69H, 69HU
75, 75+, 79, 84H, 84HU
85, 85+, 89, 94H, 94HU
CT Bathroom 60B, 60BU, 80B, 80BU, 90BU
Quality | Technology | Service | Value
Models shown:
CT FORCE 15PT
CT 50 Xtra
CT 60BU Bathroom
ISSUE D NOV 2014
x140812_SP_p6_nm_x140812_SP_p6_nm 28/10/2014 11:29 Page 1

Flat washer (outlet)
4 off vibration dampening feet
Filter washer (inlet)
Outlet
Inlet
Pump installation and warranty guide
for the CT range of pumps
Important - read this first!
Correct installation is the guarantee of safety and a trouble free system. It is therefore
important to read these instructions thoroughly and ensure you comply with them.
Incorrect fitting will invalidate the warranty.
If your installation is complicated or you have any questions please CONSULT THE
PUMPWISE TECHNICAL HELPLINE IMMEDIATELY on 0191 516 2002 (01844-3212 ROI).
DO NOT REMOVE YOUR PUMP FROM THE SYSTEM WITHOUT FIRST RINGING PUMPWISE
ON 0191 516 2002 (01844-3212 ROI).
We encourage installers to consult Salamander’s PumpWise helpline, where our engineers can
give you first-rate advice regarding installation. Consulting the helpline will entitle your customer
to an additional two years warranty FREE (UK only) for CT FORCE pumps and an additional
1 year warranty FREE (UK only) for CT Xtra & CT Bathroom pumps – all you have to do is to
implement our engineer’s recommendations for your installation situation and ask your customer
to register.
Separate from this installation manual is a pre-paid warranty card with 3 years warranty for
CT FORCE and 2 years warranty for CT Xtra & CT Bathroom (2 years as standard on both ranges
in ROI). Don’t forget that if you have called our helpline you should also complete the comments
section of the card to say how you rate the service you received.
Please leave this instruction booklet with
the customer for reference to maintenance
and safety information.
Thank you for choosing Salamander Pumps.
x140812_SP_p2_rr_x140812_SP_p2_rr 16/10/2014 13:00 Page 2

1
Contents
CT FORCE range of pumps
CT Xtra range of pumps
Product description 4
Installation instructions 4
Step 1: Pump location 6
Step 2: Connecting the pump 10
Step 3: Electrical installation 11
PumpWise Guidelines 12
General specifications 17
Technical specifications 19
Trouble shooting 22
Salamander PumpWise 23
Warranty 24
x140812_SP_p2_rr_x140812_SP_p2_rr 16/10/2014 13:00 Page 1

2
Pre-installation Checklist
Our pre-installation guidelines are detailed on the following pages, but some of the key
“do’s and don’ts” are highlighted below:
Do’s
!Locate the pump next to the hot water cylinder within 5m. For pumps with
15mm couplers, 2m MAX of 15mm pipework on inlet connections may be used.
!Allow 100mm on all sides for ventilation
!Ensure pump is protected from frost
!If servicing two or more bathrooms, cold water supply to the cylinder
must be in 28mm pipework
!Ensure adequate cold water storage (227 litres (50 gal) per bathroom,
364 litres (80 gal) for one bathroom and one en-suite)
!Cold water supplies to the pump must be taken from the opposite side of
the cold water storage cistern to the cold water mains inlet
!Multiple cold water storage cisterns must be linked in accordance with current
plumbing regulations and the bottom of the cisterns must be at the same level
!Hot water supply to the pump must be via a Salamander approved method.
!AV couplers must only be finger tight plus one quarter turn
!The maximum static head should be 10m (equivalent to 1.0bar pressure)
!We recommend the pump is activated for at least 5 minutes every 4 weeks
to ensure pump does not seize.
!Ensure that installation complies with IET wiring regulations.
!All AV hoses should be fitted straight with no twists or bends.
!Ensure suitable means of isolation for maintenance
!Bathroom Zones: Salamander products covered in these notes cannot be installed
in Zone 0 or Zone 1. They can however be installed in areas that are accessible with
a tool. (see Step 1 Pump Location for further information (Fig 5))
x140812_SP_p2_rr_x140812_SP_p2_rr 16/10/2014 13:00 Page 2

3
Pre-installation Checklist (continued)
Don’ts
!Never fit the pump to the cold water mains
!Never fit the pump to shared incoming mains supplies to a block of flats
!Never use a shared water supply
!Never put a non-return valve (NRV), restrictive ballofix or an air vent on supply
pipe work to the pump
!The hot water supply must not exceed temperature stated in the installation guide
!Never use mechanical tools to tighten plastic coupler nuts as this may cause damage
and invalidate your warranty
!Never use jointing compounds, Boss White, Hemp or steel wool
!Solder fluxes must not come into contact with the pump or AV couplers
!Never pump directly to or from any pump such as secondary return pump
!Never fit pump to a Fortic, Primatic cylinder or Andrews type water heater.
!If considering fitting pump to a Horizontal (torpedo) water cylinder then please
contact PumpWise on 0191 516 2002
x140812_SP_p2_rr_x140812_SP_p2_rr 16/10/2014 13:00 Page 3

4
Please follow these installation instructions carefully. Failure to install your pump in
accordance with these instructions will invalidate your warranty. Any queries should
be directed to PumpWise on 0191 516 2002 (01844-3212 ROI).
Do not use Salamander pumps for applications other than those stated within the
pump description, or connect the pump directly to the cold mains.
To do so invalidates the warranty.
Salamander pumps should be installed by a competent person and supervision in their use
should be given to children or anyone with impaired physical or mental capabilities
Please note that:
• CT FORCE 15 PT, 15 IPT, 20 PT, 20 PS, 20 IPS, 30 PT, 30 PS & 30 IPS, and CT Xtra 50, 50+,
54, 55, 55+, 59, 75, 75+, 79, 85, 85+, & 89 are shower specific pumps.
• CT FORCE 20 IPT & 30 IPT, CT Bathroom 60B, 80B, and CT Xtra 64H, 69H, 84H, & 94H are
whole house pumps
• CT FORCE 15 TU, 15 ITU, 20 TU, 20 ITU, 20 SU, 20 ISU, 30 TU, 30 ITU, 30 SU & 30 ISU,
CT Bathroom, 60BU, 80BU & 90BU, and CT Xtra 64 HU, 69HU, 84HU, & 94HU are
universal pumps.
• Inlets and outlets must be vertical and plumbed appropriately.
It is essential to ensure that: The cold stored water capacity is adequate for the entire
household requirements (eg minimum 136 litres (30 gal) for shower only, 227 litres (50 gal)
per bathroom, or 364 litres (80 gal) for one bathroom plus an en-suite shower room).
There is a maximum static head of 10 metres (100kPa/1.0Bar).
Cold supplies to the cylinder and the pump are taken from the opposite side of the cold
water storage cistern to the cold mains inlet. The bottom of the cold water storage cistern must
also be checked and cleared of debris (Figure 1).
In systems with more than two bathrooms,
the cold water supply to the cylinder must
be in 28mm pipework.
Multiple cold water storage cisterns must
be linked in accordance with the current
plumbing regulations with the bottom
of the cisterns level.
Never put a non-return valve, restricted
ballofix or an air vent on the supply pipework
to the pump
Outlet
to cylinder Inlet
Bottom of cold cistern
must be cleared of debris
Outlet to pump

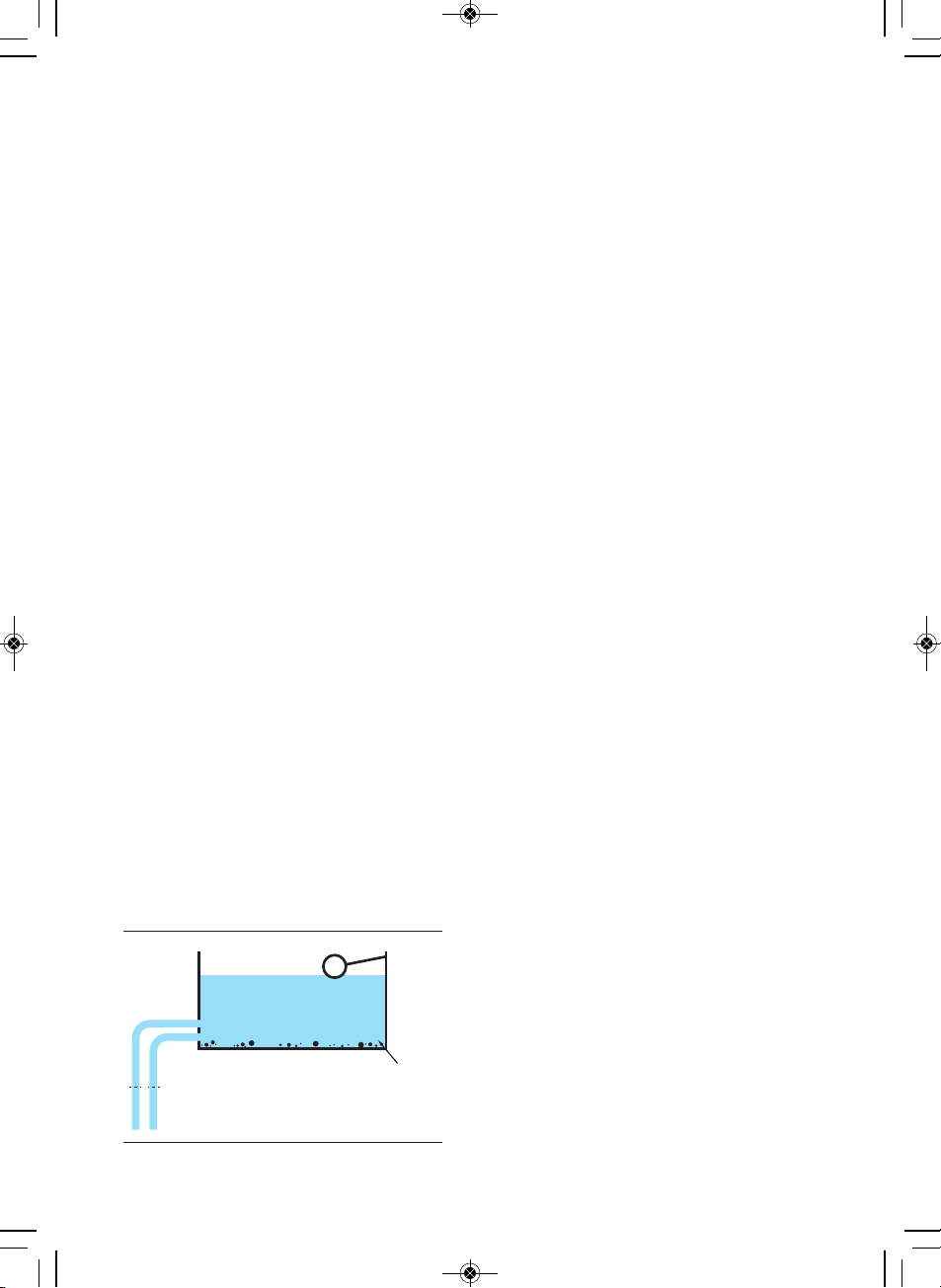

Figure 1: Tank inlet and outlet position
Product Description
Salamander pumps are suitable for pressure boosting vented stored water systems but please
note that inlet pressures to the pump and water temperatures must not exceed values stated
in the technical specifications.
Installation instructions
x140812_SP_p3_nm_x140812_SP_p3_nm 20/10/2014 11:37 Page 4

5

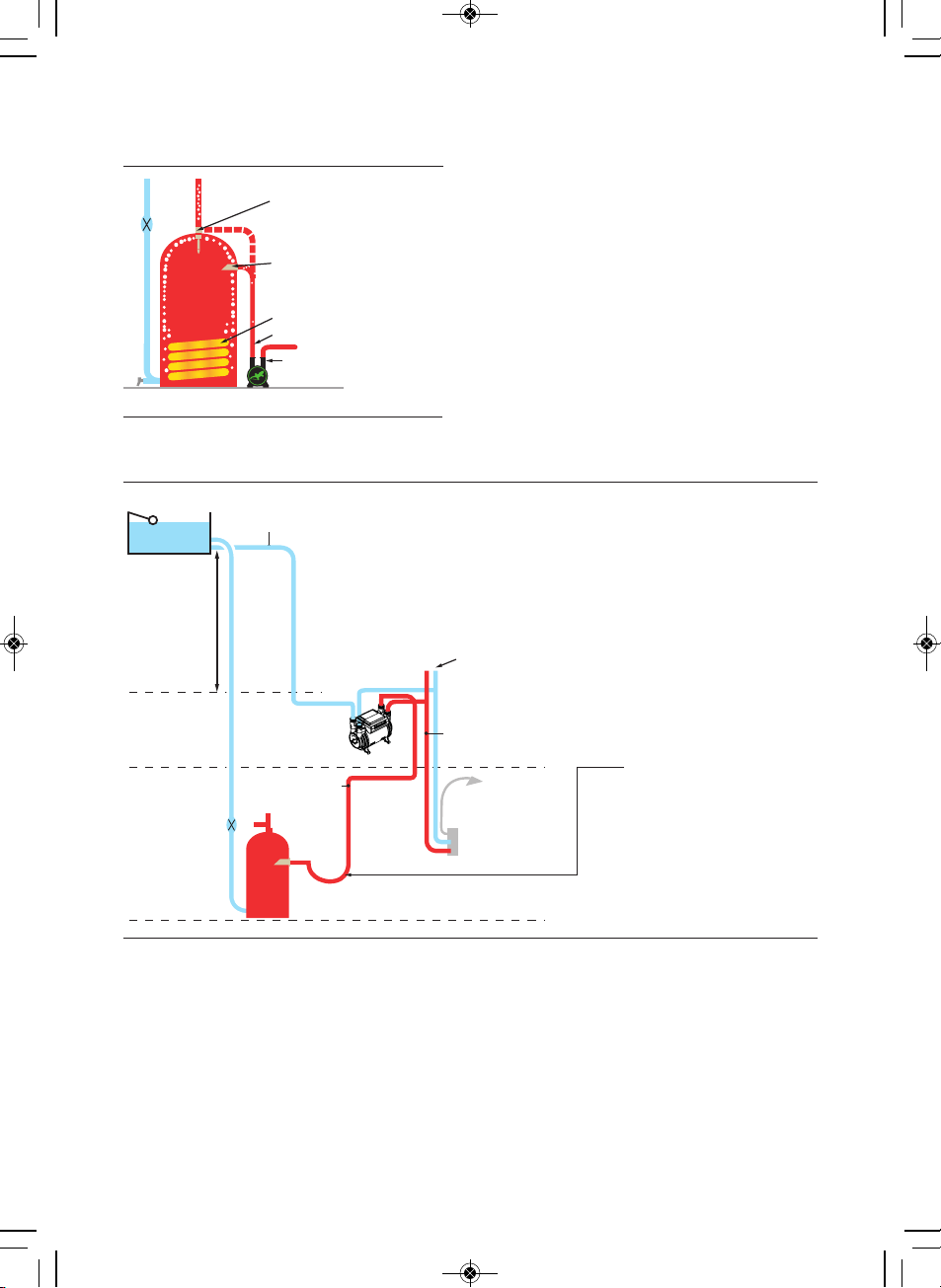

The stored hot water temperature must not
exceed 60ºC.
Ensure that the hot supply to the pump is via
a Salamander approved method. (Figure 3)
Jointing compounds (boss white, hemp and steel
wool) must not be used. Solder fluxes must not
come into contact with the pump.
The anti-vibration hoses must not be twisted
or bent.
Higher rated fuses must not be used.
A Salamander S flange or one
of the 22mm approved top entry
flanges (see page 14)
22mm No Stop Essex flange with
76mm dip pipe and birds beak cut
end to limit air being drawn into
the pump
Indirect coil
Pump inlet
Outlet
OR ALTERNATIVELY
Pump at the base of cylinder
MAX
60°C
Cold water storage
Inlet
Min 600mm
Air vents,
both hot
and cold
Outlet
Vent and
other services
No Stop Essex Flange
MUST be used with
an anti-gravity loop at
least 200mm in depth
MAX
60°C
MAX
60°C
Inlet
Outlet
Figure 3: Hot water supply method
Figure 4: Anti-gravity loop
x140812_SP_p2_rr_x140812_SP_p2_rr 16/10/2014 13:00 Page 5

6
Step 1: Pump location
1. Site the pump in a location where it will not freeze or be exposed to frost during cold weather.
2. Ensure adequate airflow to cool the motor. Separate the pump from other appliances that
generate heat. Install the pump in a clear space allowing 100mm at each side, end and top.
3. Care must be taken not to endanger pre-existing electrics when siting your Salamander pump
4. Ensure the pump is as close to the hot water cylinder as possible & no more than 5m in
measured pipework away.
5. Mount the pump upright (shaft horizontal, not screwed down).
6. An anti-gravity loop (Figure 4) off a NO STOP ESSEX flange MUST be fitted to all systems
where the pump is mounted above the hot outlet from the cylinder.
7. Bathroom Zones: Salamander products covered in these notes cannot be installed
in Zone 0 or Zone 1. They can however be installed in areas that are accessible with
a tool. (See figure 5)
The pump should be installed in accordance with BS7671:2008, it should also be noted
that BS7671:2008 is a guide.
In BS7671:2008 rooms containing baths or showers should be broken down into zones.
These zones are summarised as:
ZONE 0 – This is the bath or shower tray
ZONE 1 – Is considered to be the area where the individual is bathing or showering
or the area where shower water is likely to be directly sprayed.
ZONE 2 – Is the area beyond Zone 1, extending by a further 600mm.
Please refer to BS7671:2008 for further guidance.
8. Check the marker arrows on the pump to ensure correct direction of water flow.
Either end of the pump is suitable for hot or cold water.
9. Check the static inlet pressure does not exceed 10m max (1.0bar/100kPa) of water
above the pump.
Figure 5: Bathroom Zones
Outside
Zones Outside
Zones
Zone 0
Zone 1
Zone 2
Outside Zone
Space under bath is Zone 1
if accessible without tool
Window recess Zone 2
2
22
2
2
1
1
0.6m 0.6m
2
Outside
Zones Outside
Zones
Outside Zones
22
2
2
21
0
Zone 0
Zone 1
Zone 2
Outside Zone
Space under bath is Zone 1
if accessible without tool
Window recess Zone 2
0.6m
0.6m
x140812_SP_p2_rr_x140812_SP_p2_rr 16/10/2014 13:00 Page 6

7

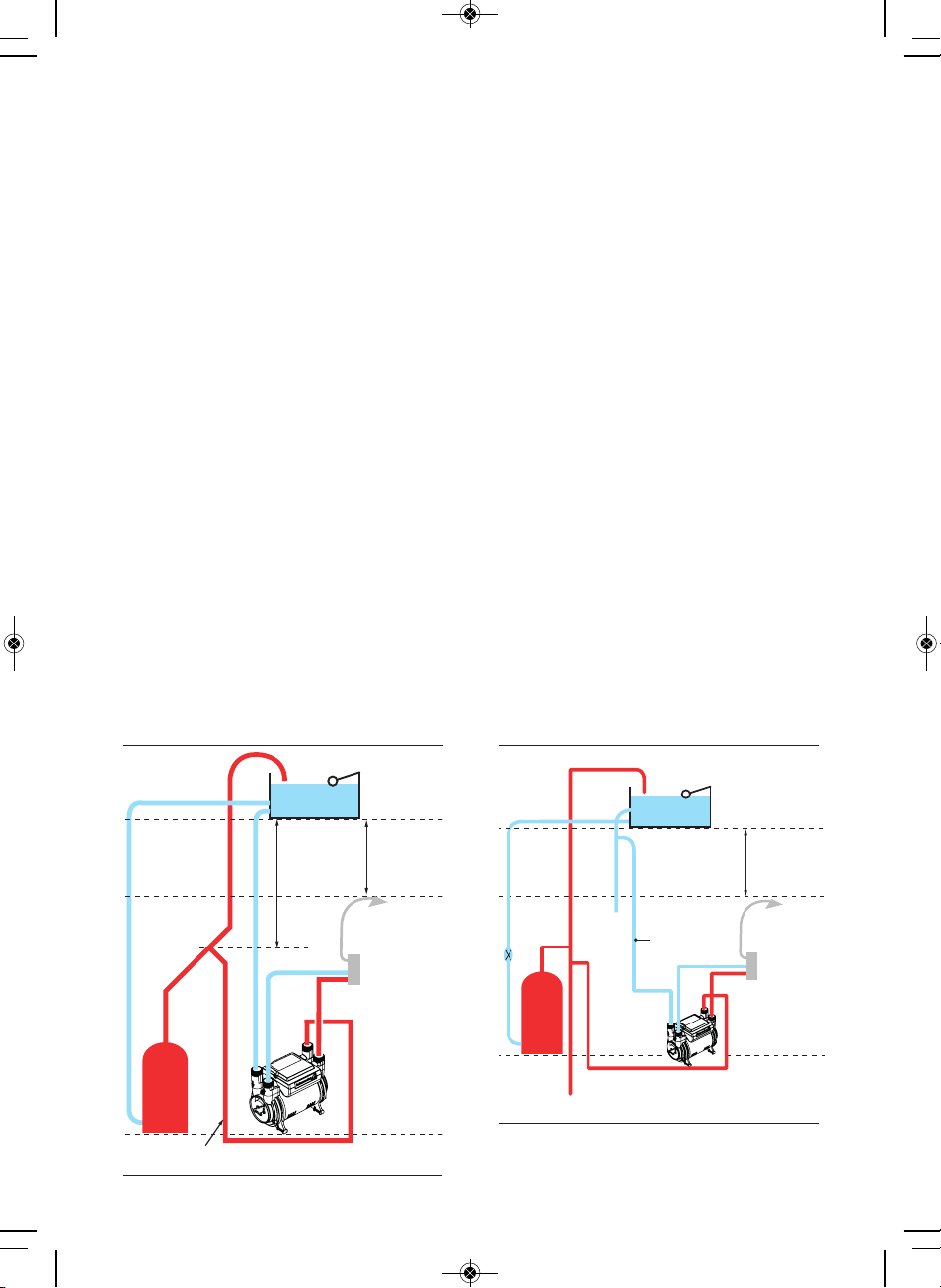

10. The hot supply pipework to the pump should be a maximum length of 5 metres in 22mm
pipe (hot and cold supplies should be no more than 2 metres in 15mm pipe).

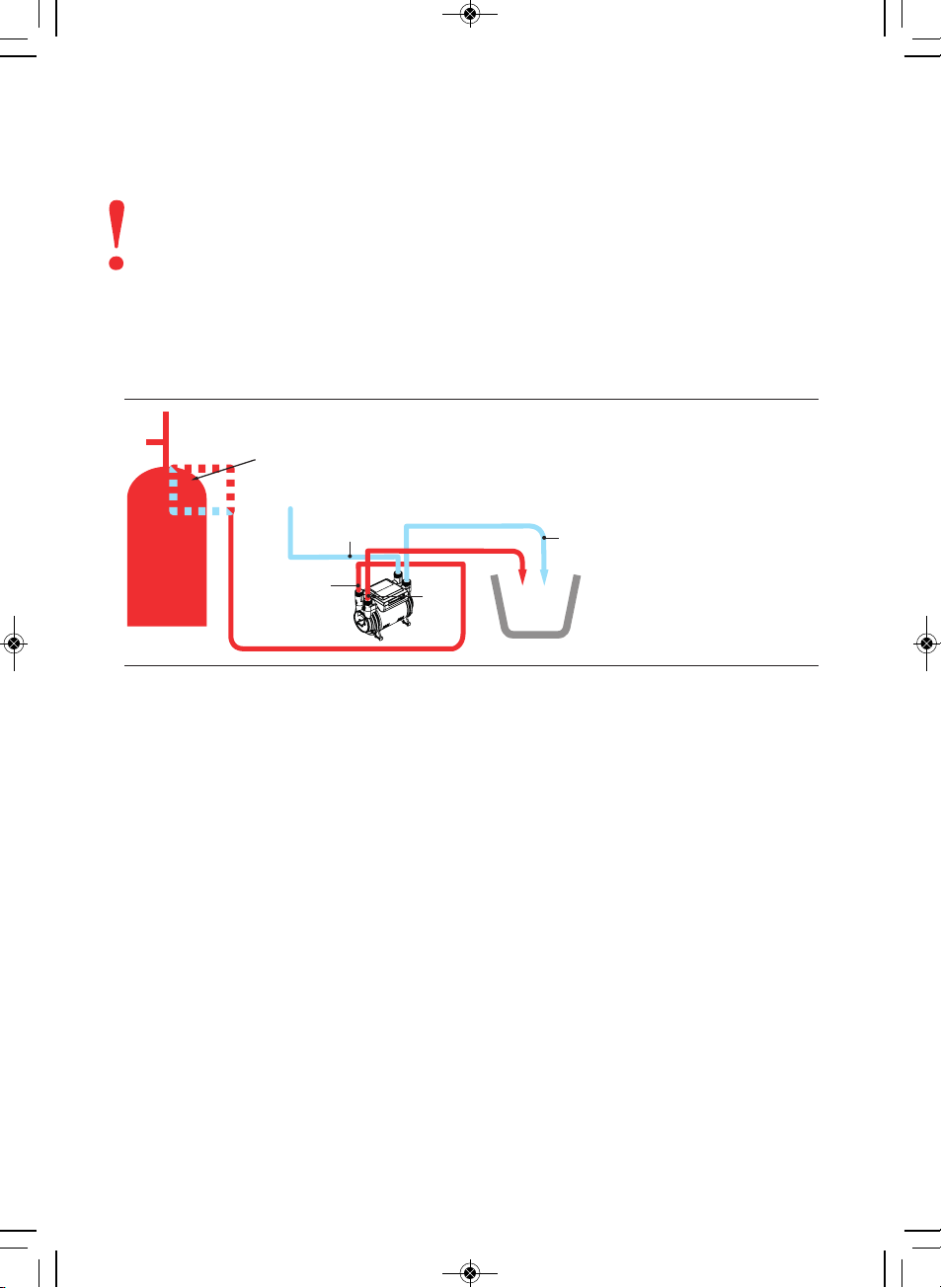

11. Exclusive hot and cold supplies to the pump with the hot from a Salamander approved
method. Exceptions, only when pump is at the base of the cylinder or within 5m, are:
• hot supply–from the vent angled at 45º, vertically down the hot connection at the vent,
at least 1.5 metres below the base of the cold water storage cistern (Figure 6).
• alternatively, the hot and cold supplies to the pump can be teed off other 22/28mm
supplies (Figure 7) provided that:
• the tee off to the pump is first call on the downward leg after the vent connection.
• the cold supply to the pump is not shared with the cold feed to the cylinder.
12. The best hot connection from the cylinder (figure 3) is either with:
a ¾inch no stop Essex flange, or a Salamander S flange or other approved top entry flange
is fitted.
13. If pump is fitted above cylinder, a No Stop Essex flange must be used.
14. Check that water storage capacity recovery meets required flow rates, particularly at peak
demand (i.e. appliances in simultaneous use).
15. All up and over pipework must be vented at the highest point on the outlet of the pump.
16. Ensure that pipe runs minimise airlocks.
17. In positive head systems, allow for increased resistance of long pipe runs with multiple
bends. The natural flow from the shower head or other outlets must be at least
2litres/minute at all times. Any supply where the natural flow is less than 2litres/minute
is classed as a negative head situation.
Outlet
Inlet
Outlet
Maximum 5 metres from vent to pump
(only 2 metres in 15mm pipe)
Cold
water
storage
2 litres/min
natural flow
Minimum
1.5 metres
MAX
60°C
Figure 6. Exclusive hot and cold supply
Cold water storage
Inlet
Outlet
Inlet
Outlet
Usable capacity
Minimum 50 gallons
per bathroom
600mm or
less possible
negative head
Positive head
Other
supplies
Vent
Other services
MAX
60°C
MAX
60°C
1st tee off
downward leg
Figure 7. Tee off other supplies
x140812_SP_p2_rr_x140812_SP_p2_rr 16/10/2014 13:00 Page 7

8
Negative head systems exist where no natural flow of water goes to the outlet because either
the outlet or the pipework to the outlet are above the height of the base of the cold water
cistern. Most instances of negative head systems occur in loft conversions or where the cold
water cistern sits on the joists in the loft. If the distance between the bottom of the cold water
cistern and the highest point in the system after the pump is 2 feet (610mm) or less, it is also
possible that a universal pump will be required. Salamander’s universal range of pumps activate
the pump automatically even where no natural flow exists.
UK CT pumps suitable for negative head operation are:
CT FORCE 15 TU, 20 TU, 20 SU, 30 TU and 30 SU, and CT Bathroom 60BU, 80BU & 90BU.
Irish CT pumps suitable for negative head operation are:
CT FORCE 15 ITU, 20 ITU, 20 ISU, 30 ITU and 30 ISU, and CT Xtra 64HU, 69HU, 84HU & 94HU.
Outlet
Outlet
Vent and
other services
Usable
capacity
Fit an
equilibrium
ball valve
Inlet
MAX
60°C
The hot connection
must be by an
approved top or
side entry flange
(Figure 3)
Negative
Head
If any pipe work to an outlet
is taken to within 610mm
of tank, the installation will need
to be fitted with a universal pump
Inlet
610mm
(2 feet)
Negative head systems
Figure 8. Negative head system
x140812_SP_p2_rr_x140812_SP_p2_rr 16/10/2014 13:00 Page 8

9
Commissioning
Before you finish
Fit pump inlet filters and vibration dampening feet.
It is CRITICAL to discharge water through the pump into a container using natural
flow before connecting the pump to outlet pipework in order to ensure the air has
been discharged from inlet pipework and pump chambers. This will not happen if
the outlet pipework is connected to the pump. The best method is:-
• Connect discharge pipework, not outlet pipes.
•Check that all the AV coupler isolating valves are open.
• Fill system. Check for leaks.
•DO NOT RUN PUMP DRY – to do so will cause irreparable damage to your pump and
will invalidate your warranty.
• Open shower mixer valve/system outlets to maximum hot and cold to check the natural flow
(unpumped) MUST be at least 1 litre in 30 seconds per side and 2 litres in 30 seconds mixed.
• Open hot water outlets fully for 5 to 6 seconds and then turn outlets off. Then open cold
water outlets fully for 5 to 6 seconds and turn outlets off. If flow is poor and inconsistent
repeat above steps until flow is steady.
• Repeat 2-3 times

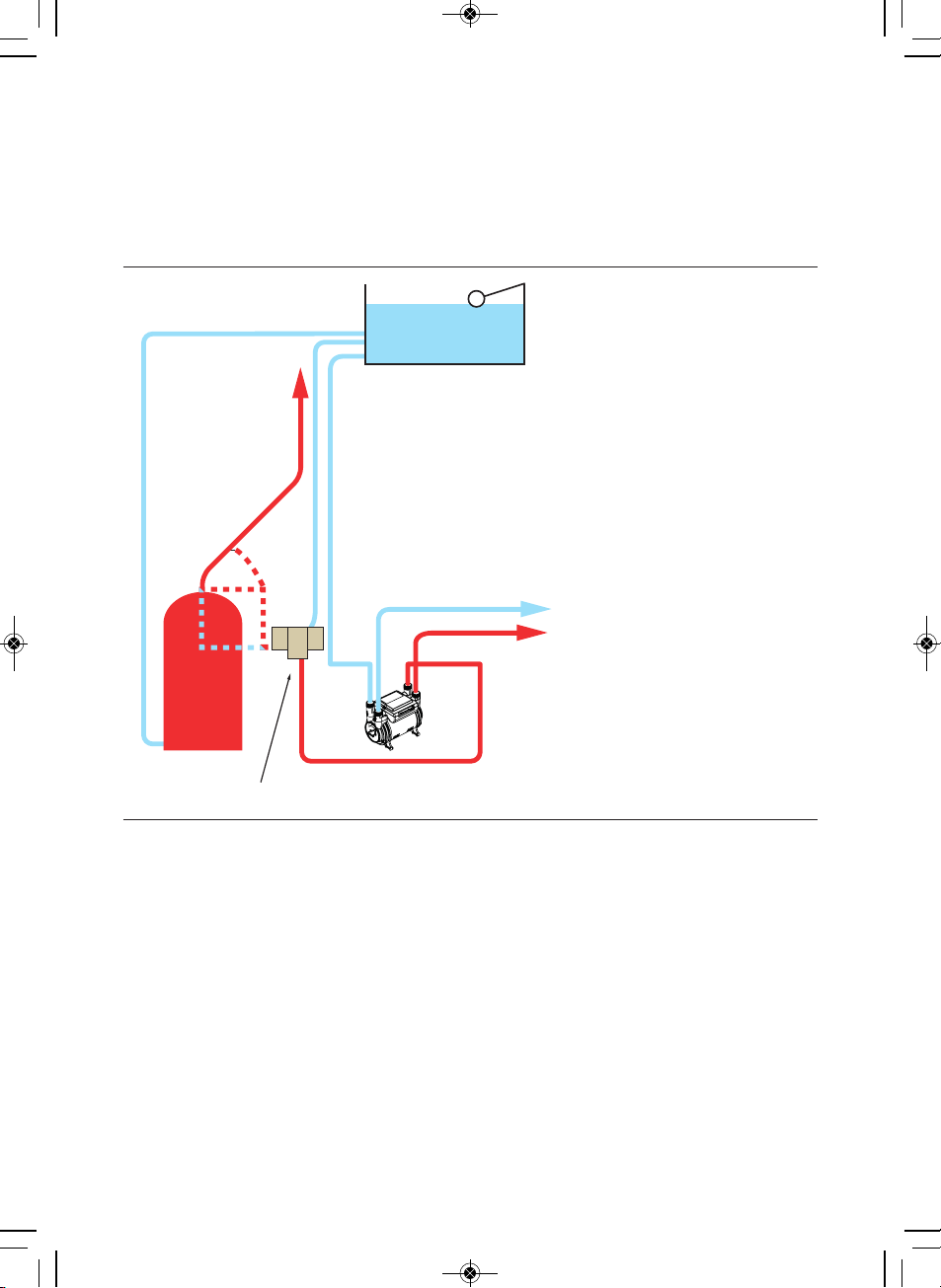

The hot connection must be via an
approved side or top entry flange
MAX
60°C
Outlet
Outlet
Inlet
Inlet
x140812_SP_p2_rr_x140812_SP_p2_rr 16/10/2014 13:00 Page 9

10
Step 2: Connecting the pump
Use only Salamander supplied AV couplers to connect the pump.
All associated pipework MUST be thoroughly flushed before making final connections
to the pump. Fill the pump with water before connecting to the discharge pipework.
The in-line strainers must be fitted to the hot and cold inlet supplies to the pump.
A Hose to pipework
The anti-vibration coupler nuts need
only be finger tight plus one quarter turn.
Mechanical tools must not be used to
tighten plastic coupler nuts as this may
cause damage which will invalidate the
warranty.
B Hose to pump
Do not twist or bend anti-vibration hoses
as this will invalidate the warranty.
Ensure that there are suitable means
of isolation for maintenance
Filter washers MUST be fitted to the inlets of the pump to validate your warranty.
Flat washers must be fitted to the outlets. Flat and filter washers are supplied with
the pump.
Isolating valve
shown in ‘On’
position
Isolating valve
shown in ‘Off’
position
Flat washer
Fit to outlet
Filter
washers
Flat
washer
Filter washer
Fit to inlet
x140812_SP_p2_rr_x140812_SP_p2_rr 16/10/2014 13:00 Page 10

11
Step 3: Electrical installation
Your pump must be connected to the electrical supply using the main cable with the attached
plug. This plug must be connected to an accessible socket that has been installed in compliance
with IET Wiring Regulations.
The Plug must be accessible at all times.
If the supply cord is damaged, it must be replaced by the manufacturer, it’s service agent,
or similarly qualified person in order to avoid a hazard.
All pipe work must be cross-bonded in accordance with the IET Regulations.
The pump is supplied with a fuse fitted. Higher rate fuses MUST NOT be used.
If installed by a Part P qualified installer, the pump may be fitted via a fused mains spur without
invalidating the warranty. See Technical Specifications for fuse ratings for each model of pump.
Ensure that the pump is fully operational before hard wiring pump in this instance, this should
be done during commissioning.
x140812_SP_p2_rr_x140812_SP_p2_rr 16/10/2014 13:00 Page 11

12
Helpful guidelines
Cold water supplies and storage Recovery of cold storage
Ensure that there is sufficient water recovery to cover the water usage by the appliance
Aeration of pump and cylinder from a cold water storage cistern
This occurs when the incoming cold mains ball valve is positioned above the cold feeds
to the cylinder and to the pump – aerated water is drawn into the pump as illustrated.
Chronic aeration of the pump occurs when
this problem is combined with inadequate
storage capacity and/or when the volume
of water is drawn by the pump and other
services exceeds the refill rate and creates
a vortex which draws air and possibly debris
into the pump.
Water starvation protection
In systems where it is absolutely not possible to increase the usable cold water storage capacity
to meet the increased demand of a pumped system; a water starvation protection unit (WSP)
may be considered (See fig 11).
The WSP is a Salamander level switch which must be positioned 102mm higher than the highest
outlet from the cold water storage cistern. When the water level drops too far the WSP will
switch off the pump until the cold water storage level is recovered.
Cold storage usable capacity
The usable capacity of cold storage is easily calculated as the capacity of water in the cold cistern
above the cold feeds to the cylinder, the pump and other outlets – see formula.
Formula for calculation on rectangular cistern:
Water above inlet (15”) x width (23”)
x length (36”) = 12,420 cu inches
Volume cu inches (12,420) x 0.01639
= 203.56 litres
Volume litres (203.56) x 0.22 = 44.78 gallons
Outlets
to pump
Vortex
Reposition
cold mains
ball valve here
The bottom
of the cold
tank must
be checked
& cleared
of debris
Width
Length
Depth
of water
Useable capacity
Figure 9: Aeration
Figure 10: Water capacity calculations
x140812_SP_p2_rr_x140812_SP_p2_rr 16/10/2014 13:00 Page 12

13
Anti-gravity loops
An anti-gravity loop (AGL) must always
be fitted to systems where the pump is
positioned above the dome of the cylinder
(see fig 12). The AGL which limits aeration
of the hot supply to the pump is formed by
bending the pipework downwards for
250mm, as it exits the No Stop Essex flange,
before rising again to the pump.
(See figure 14).
Combi boilers and water heaters
As these appliances are invariably supplied
directly from the cold mains – they are not
suitable for this range of pumps, unless
pumping from a cold water storage cistern
via a universal pump.
Horizontal cylinders
As horizontal (Torpedo) cylinders are problematic for boosted systems consult PumpWise
on 0191 516 2002 for guidance and correct use of an approved top entry flange.
S flange
Complete with compression pump outlet and the open vent connections. Also supplied with
an adaptor to connect to 1” male and female top entry cylinders. (See fig 13).
Cold water storage
Inlet
Min 600mm
Air vents,
both hot
and cold
Outlet
Outlet
Vent and
other services
No Stop Essex Flange
MUST be used with
an anti-gravity loop at
least 200mm in depth
MAX
60°C
MAX
60°C
Inlet
To vent
S flange
To pump
HOT WATER
CYLINDER

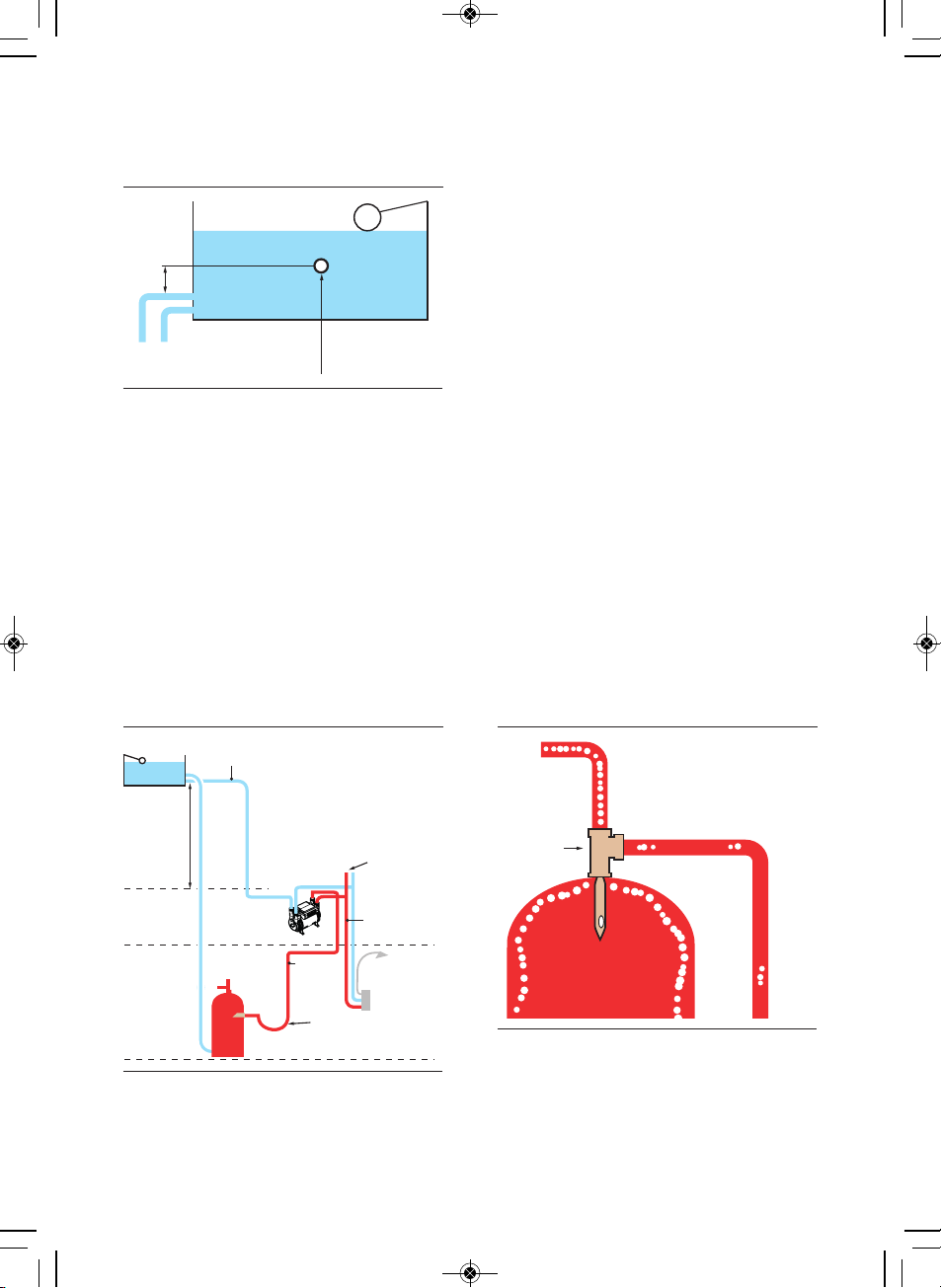

Figure 12: Anti-gravity loop (AGL) Figure 13: S flange
102mm
Outlets Water starvation
protection unit
Figure 11: Water starvation protection
unit (WSP)
x140812_SP_p2_rr_x140812_SP_p2_rr 16/10/2014 13:00 Page 13

14
Approved flanges (cylinders)
The 22mm No Stop Essex and the other
approved top entry flanges with extension
pipes into the cylinder represent the best
known means of ensuring minimal aeration
of the hot supply water to the pump.
Please contact PumpWise on 0191 516 2002
for additional approved flanges.

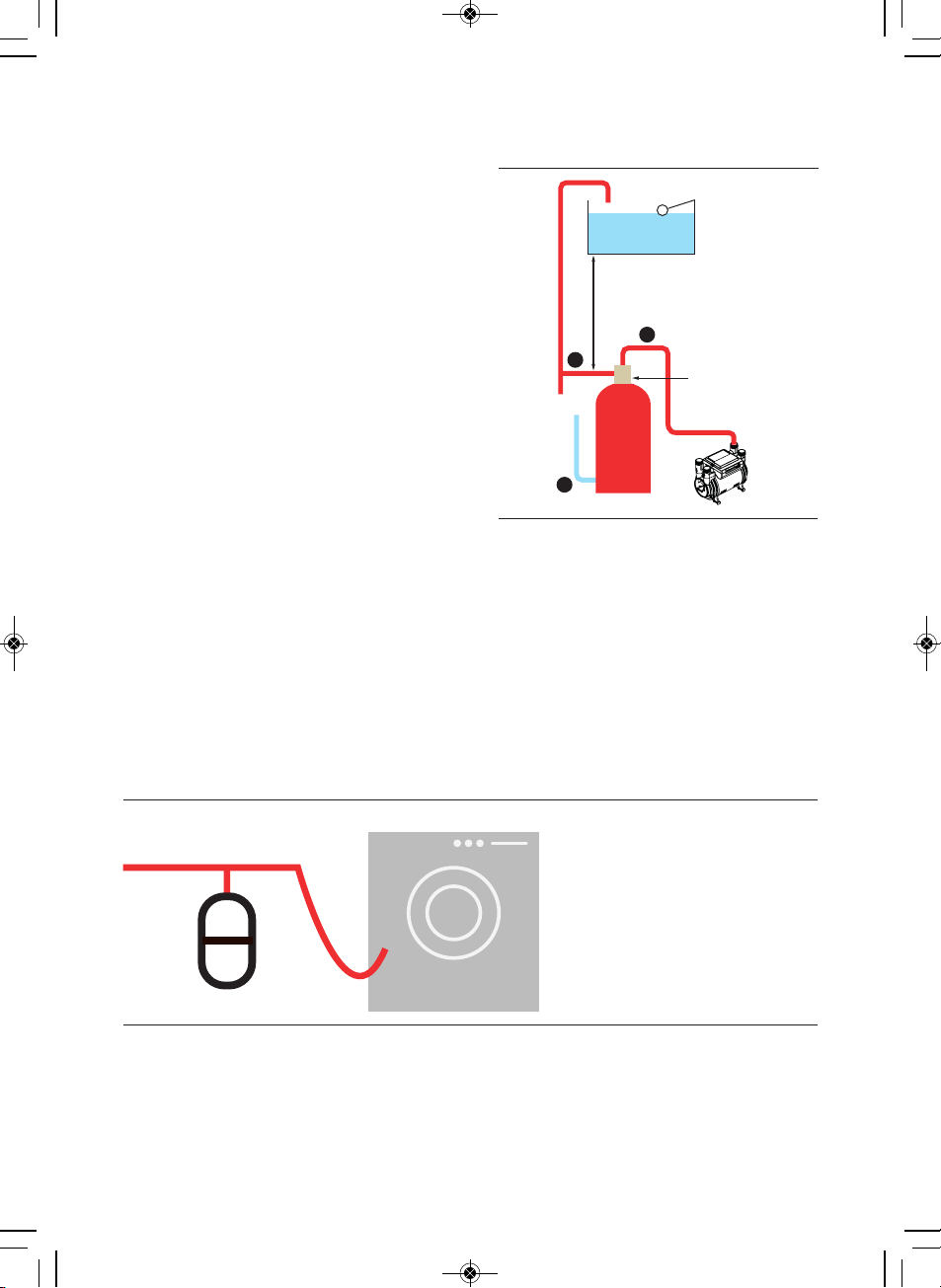

Warix flange (fig 14)
A) The vent connection MUST
be from side in Warix flange.
B) The supply connection to the
pump MUST BE FROM THE TOP
of the Warix flange.
C) In systems where there are one
bathroom and an en-suite shower,
or two or more bathrooms, the cold
feed to the cylinder MUST be in
28mm pipework.
MAX
60˚C
A
B
C
Usable capacity
minimum 50 gallons
per bathroom
Never less than
1.2m for any
top entry flange
Warix flange
Unpumped
outlets
Water hammer protection
Water hammer most commonly occurs in systems where there are long pipe runs supplying
solenoid activated appliances e.g. washing machines or outlets with quick acting/turn
taps/valve(s). The harmful effect of water hammer shock waves can be cushioned by fitting
a pressure vessel unit, into the supply pipework as close as possible to the outlet from which
the shock waves are originating.
Washing machine
Pressure vessel
Figure 14: Approved flanges
Figure 15: Water hammer protection
x140812_SP_p2_rr_x140812_SP_p2_rr 16/10/2014 13:00 Page 14

15
Pump hunting protection
In negative head systems all the discharge pipework after the pump is pressurized.
In such systems there exists the possibility the pump will hunt ON-OFF-ON etc at intervals.
This will happen:
• if all outlets are not fully closed
• if there is a leak at a connection
• if boosted toilets are not fitted with equilibrium ball valves
• or as residual hot water contracts in long pipe runs.
Stored hot water volume
In calculating the volume of the stored hot water requirement it is important to consider:
• number of bathrooms, with particular attention to the size of the bath
• number of persons in household
Stored hot water temperature
Extract from BS5546:1990 (Current)
“The mean temperature of the stored water should not normally exceed 60ºC and in a
combined central heating and domestic hot water system it is recommended that the stored
water temperature is controlled independently from that on the primary circuit”.
Extract from BS6700:1997
“Under normal conditions the temperature of stored hot water should never exceed 65ºC.
A stored hot water temperature of 60ºC is considered sufficient to meet all normal requirements
and will minimise scale deposits in hard water areas”.
Effective control of stored hot water is simply achieved by use of a cylinder thermostat or direct
acting thermostatic valve (e.g. tapstat).
Maximum water temperature for CT Xtra, CT Bathroom & CT FORCE pumps is 60ºC.
In systems where the stored hot water temperature cannot be controlled e.g. Aga solid fuel
appliance or very crudely by the boiler thermostat, a Salamander approved HWS TMV must
be used.
x140812_SP_p2_rr_x140812_SP_p2_rr 16/10/2014 13:00 Page 15

16
HWS TMV blending valve controller
A Salamander approved HWS Blending valve controller will protect booster pumps in systems
where the temperature of the stored hot water is uncontrolled – see below.
Usable capacity
minimum 50 galls
per bathroom
Vent
and other
services
Salamander approved HWS TMV Blending
valve controller is factory set at 55 - 60°C
MAX
60°C
Figure 16: HWS blending valve controller to pump
x140812_SP_p2_rr_x140812_SP_p2_rr 16/10/2014 13:00 Page 16

17
General specifications – CT FORCE
Applications
All Salamander pumps are designed to boost low pressure hot and cold supplies from cistern-fed
services. When supplies from a water heater or a combination boiler are to be boosted contact
the Salamander PumpWise helpline on 0191 516 2002 for guidance.
Voltage
230 volts, 50 Hz.
Motor type
Capacitor start and run induction type motor with stainless steel shaft and in-built resetting
thermal protection (complies with BS5000 part 11).
Maximum head
All Salamander CT FORCE pumps – 10 metres (100kPa/1.0Bar).
Anti-vibration couplers
Do not bend
CT FORCE Pumps are supplied with AV couplers complete with Push Fit connections and built-in
isolating valves. See Technical specifications for details.
Mechanical seals
Rotary mechanical face seals are used. Scale deposits in water supplies can cause the mechanical
seal to stick if left for long periods without use. The pump must be run at least five minutes
every four weeks to ‘exercise’ all working parts.
Connections
¾” BSP male.
Initiation
Fully automatic, flow operated, requiring 1ltr in 30 sec per side or 2ltr in 30 sec mixed.
Only applies to positive head pumps.
Temperature
Maximum fluid temperature 60ºC.
Pump noise
Salamander has engineered this product range to be as quiet as possible, however no pump
is completely silent. Correct installation (anti-vibration couplers straight, rubber feet fitted) will
minimise noise, vibration and transmission noise.
Standards and approvals
Splash proof rating IPX2; complies with the requirements of
current British and European safety standards for household and
similar electrical appliances; meets with Compliance with European
Community Directives (CE). Due to continuous improvement
and updating specifications may be altered without prior notice.
The CT FORCE range is also fully WRAS approved.
x140812_SP_p6_nm_x140812_SP_p6_nm 28/10/2014 11:29 Page 17

18
General specifications – CT Xtra & CT Bathroom
Applications
All Salamander pumps are designed to boost low pressure hot and cold supplies from cistern-fed
services. When supplies from a water heater or a combination boiler are to be boosted contact
the Salamander PumpWise helpline on 0191 516 2002 for guidance.
Voltage
230 volts, 50 Hz.
Motor type
Capacitor start and run induction type motor with stainless steel shaft and in-built resetting
thermal protection (complies with BS5000 part 11).
Maximum head
All CT Xtra and CT Bathroom pumps are rated for a maximum static head of 10 metres. (100 kPa
/ 1.0 bar)
Anti-vibration couplers
Do not bend
Please refer to the Technical Specifications table for information on which AV Couplers
are supplied with each pump.
Mechanical seals
Rotary mechanical face seals are used. Scale deposits in water supplies can cause the mechanical
seal to stick if left for long periods without use. The pump must be run for at least five minutes
every four weeks to ‘exercise’ all working parts.
Connections
¾” BSP male.
Initiation
Only applies to positive head pumps. Fully automatic, flow operated, requiring 1 litre in 30 sec
per side or 2 litres in 30 sec mixed.
Temperature
Maximum fluid temperature 60ºC.
Pump noise
Salamander has engineered this product range to be as quiet as possible, however no pump
is completely silent. Correct installation (anti-vibration couplers straight, rubber feet fitted) will
minimise noise, vibration and transmission noise.
Standards and approvals
Splash proof rating IPX2; complies with the requirements of
current British and European safety standards for household and
similar electrical appliances; meets with Compliance with European
Community Directives (CE). Due to continuous improvement and
updating specifications may be altered without prior notice.
The CT Xtra and CT Bathroom ranges of pumps are also fully WRAS approved.
x140812_SP_p6_nm_x140812_SP_p6_nm 28/10/2014 11:29 Page 18
