Important – read this rst!
Correct installation is the guarantee of safety and a trouble free
system. It is therefore important to read these instructions thoroughly
and ensure you comply with them. Incorrect tting can invalidate the
warranty.
Pages 10 to 11 of this manual provide clarification of some of
the more unusual installation requirements. If your installation
is complicated or you have any questions please CONSULTTHE
PUMPWISE HELPLINE IMMEDIATELY.
We encourage installers to consult the PumpWise helpline, where
our engineers can give you first-rate advice regarding installation.
Consulting the helpline at the time of installation could entitle your
customer an additional year’s warranty FREE (UK only) – all you have
to do is call us, implement our engineers recommendation for your
installation situation, then ask your customer to register.
When the job is finished – tear off the final page of this instruction
manual and hand it to the householder. This page explains the
warranty provisions and provides a pre-paid warranty card.
Don’t forget that if you have called our helpline you should also
complete the comments section of the card to say how you rate the
service you received.
Please leave this installation guide with the customer for reference to
maintenance and safety information.
Thank you for choosing
Salamander Pumps
!

1
Contents
Pre-installation checklist 2
Typical installations
Right positive pumps 6
Right universal pumps
System operation and L.E.D. indication 7
Typical installations
Right universal pumps 9
Commissioning 11
Helpful PumpWise guidelines 12
Cold water supplies and storage
Helpful PumpWise guidelines 14
Water starvation protection, pipework
arrangements and stored hot water
General specications 18
Trouble shooting 21
PumpWise and warranty 23
To the installer 24

2
Pre-installation
Installation
PumpWise guidelines
General specification
Trouble shooting
PumpWise and warranty
Pre-installation checklist
Our pre-installation guidelines are detailed on the following pages, but some of the key
“do’s and don’ts” are highlighted below:
Do’s
Locate the pump next to the hot water
cylinder OR no further than 4m away in
22mm pipe work
Allow 100mm on all sides for ventilation
Ensure pump is protected from frost
If servicing two or more bathrooms, cold
water supply to the cylinder must be in
28mm pipe work
Ensure adequate cold water storage
(50 gallons/bathroom, 80 gallons for
one bathroom and one en-suite)
Cold water supplies to the pump must
be taken from the opposite side of the
cold water storage tank to the cold
water mains inlet
Multiple cold water storage tanks must
be linked in 28mm pipe work and the
bottom of the tanks must be at the
same level
Hot water supply to the pump must be
via a Salamander approved flange
AV couplers must only be finger tight
plus one quarter turn
The maximum static head should be
10m (equivalent to 100kPa/1.0 bar
pressure) – only exception is the
RP50TU which is 5m (equivalent to
50kPa/0.5 bar pressure)
We recommend the pump is activated
for at least 5 minutes every 4 weeks
Don’ts
Never fit the pump to the cold
water mains
Never fit the pump to communal risers
Never use a shared water supply
Never put a non-return valve (NRV),
inverted loop, restrictive balofix or an
air vent on supply pipe work to the pump
The hot water supply to the pump must
not exceed 60ºC
Never twist the anti-vibration (AV)
couplers or bend more than 35º
Never use mechanical tools to tighten
coupler nuts as this may cause damage
and will invalidate your warranty
Never use jointing compounds,
Boss White, Hemp or steel wool
Solder fluxes must not come into
contact with the pump or AV couplers
Never install in a bathroom unless in
an enclosed space and access is only
possible with an appropriate tool
Never pump directly to or from another
pump
Never connect to a secondary return
tapping on a hot water cylinder
BEFORE INSTALLATION OF YOUR NEGATIVE HEAD
PUMP:
Please fit the pressure vessel if packaged seperate
to the pump. Use the ½ “ at rubber washer in the
½ “ brass connecon on the top of the pump juncon
box. Screw the pressure vessel into the connecon hand
ght.

3
Pre-installation
Installation
PumpWise guidelines
General specification
Trouble shooting
PumpWise and warranty
1. Location of the pump
The best possible location for the pump is
at or near the base of the cylinder at least
600mm below the bottom of the cold water
storage tank. Where it is not physically
possible to locate the pump next to the
cylinder, the pipe run from the hot water
cylinder to the pump must not exceed 4m in
22mm pipe work.
1.1 Cooling and ventilation
The pump should be placed in a position
where there is an adequate air flow to cool
the motor and separated from any other
appliances that generate heat. It should be
installed in a clear space allowing 100mm
additional space at each side, the ends and
top of the pump.
1.2 Frost protection
Loft mounted pumps must be protected
from frost damage.
2. Hot and cold supplies
to the pump
Never fit the pump directly to the cold
water mains.
Never fit to communal risers (e.g. block
of flats) or secondary circuits that are
pumped.
The pump must be fed by exclusive hot
and cold water supplies (i.e. not shared
with other services) and in 22mm pipe
work (Note: for the RP50PT and RP50PS
a maximum of 2m of 15mm inlet pipework
direct from the cylinder to the pump).
The hot supply pipe work should be a
maximum of 4m from the cylinder in 22mm
pipe work.
All up and over pipe work must be vented at
Please follow these installation instructions carefully. Failure to install your pump in
accordance with these instructions will invalidate your warranty.
the highest point on the outlet of the pump
and a non-return valve (NRV) may require
fitting to the hot outlet only (Note: this is
only for the RP50TU and RP55SU).
2.1 For pumps positioned above the
hot outlet, hot water cylinder or in
a loft
An anti-gravity loop (AGL) off a No stop
Essex Flange must be used when it is sited
above the dome of the hot water cylinder
as it prevents air tracking up into the pump
chamber and back siphoning of the water
again, creating air in the pump chamber.
Never put a non-return valve, inverted loop,
restrictive balofix or an air vent on the
supply pipe work to a pump.
Where the pump is servicing two or more
bathrooms, the cold water supply to the
cylinder must be in 28mm pipe work.
2.2 Cold water storage
Ensure that the cold water storage capacity
is adequate for all of the household
requirements (minimum 50 gallons/227
Litres per bathroom, 80 gallons/385 Litres
for one bathroom and one en-suite shower
room).
Ensure the cold water supplies to the
cylinder and the pump are taken from the
opposite side of the cold water storage
tank from the cold mains inlet.
Outlet to
cylinder
Inlet
Bottom of cold
tank must be
cleared of debris
Outlet to pump
Fig 1
Fig 2

4
Pre-installation
Installation
PumpWise guidelines
General specification
Trouble shooting
PumpWise and warranty

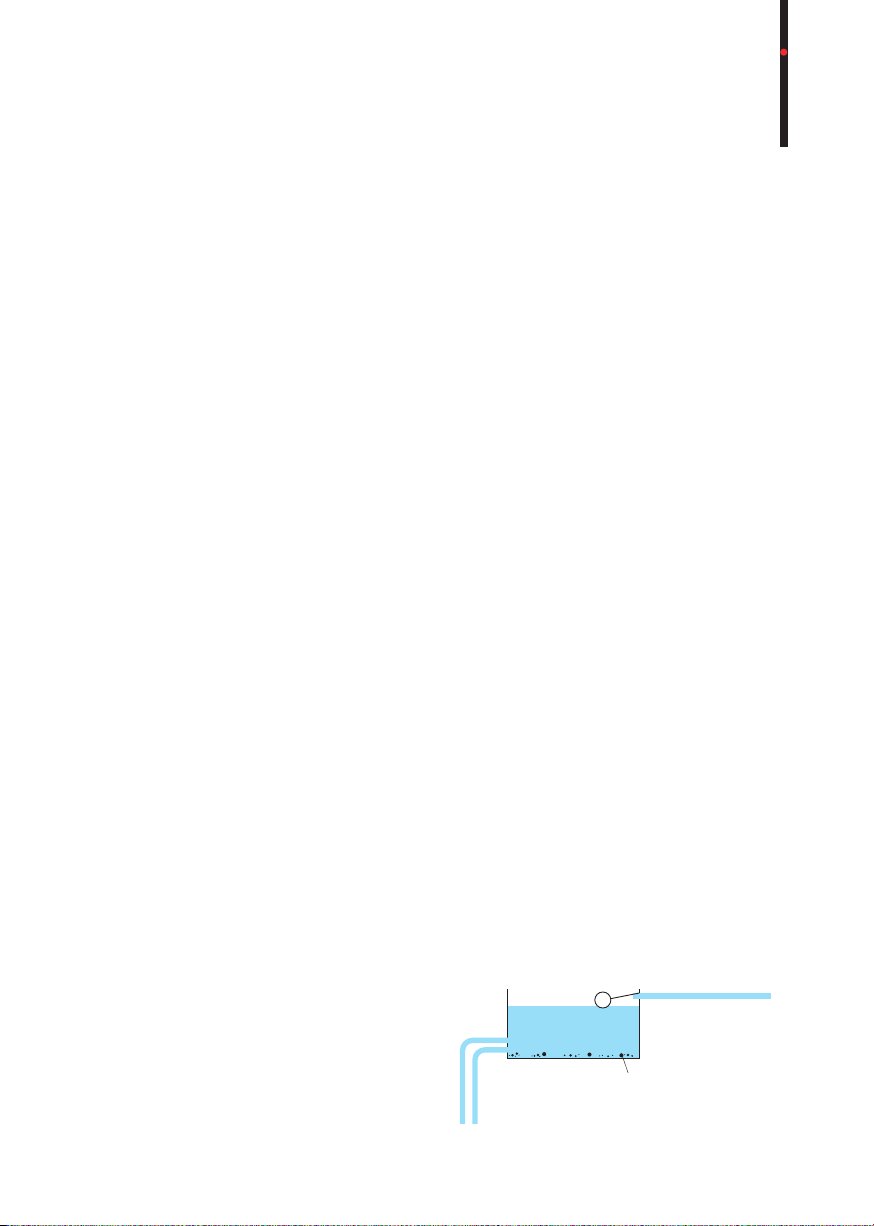

Figure 1: Tank inlet and outlet position
Multiple cold water storage tanks MUST be
linked in 28mm pipe work with the bottoms
of the tanks at the same level.
To Pump
To Cylinder
Outlet to
cylinder
Inlet
Bottom ofco ld
ta nk must be
cleared ofdebris
Outlet to pum p
Fig 1
OLD STYLE DO NOT USED
Fig 2
Figure 2: Linked cold water tanks
2.3 Hot water requirements
The stored hot water temperature must
not exceed 60ºC (see page 17, Stored hot
water temperature).
The hot water supply to the pump must be
via a Salamander approved method:
The best hot connection from the cylinder
is either
• A 3⁄4” NO STOP ESSEX FLANGE. See
Figure 3 or
• Alternatively a Salamander S flange or
other approved top entry flanges. See
page 15/16.
• Never fit to top entry flange if the pump
is fitted above the cylinder.
Pump at the base of cylinder
Outlets
OR ALTERNATIVELY
22mm No Stop Essex
flange with 76mm dip
pipe and birds beak cut
end to limit air being
drawn into the pump
Indirect coil
Pump inlet
Fig 3a
Pump inlet
A Salamander S flange or
one of the 22mm approved
top entry flanges listed
on page 15-16
MAX
60˚C
Figure 3: Hot water supply method
3. Anti-vibration couplers
(Hoses)
The anti-vibration (AV) couplers are
designed to limit the transfer of pump
vibration to the associated pipe work. All
Salamander AV couplers are ¾” BSP x
22mm push fit with built-in isolating valves.
Note: the RP50PT and RP50PS are supplied
with 15mm couplers with isolating valves
35°
Isolating valve
shown in
‘ON’ position
Isolating valve
shown in
‘OFF’ position
35°
Do not bend hoses
more than 35°
Do not twist or
kink the hose
on the inlets and outlets.
Figure 4: Isolating valves
Figure 5: Couplers
Ideally the AV couplers should be straight,

5
Pre-installation
Installation
PumpWise guidelines
General specification
Trouble shooting
PumpWise and warranty
The plumbing installation must comply
with “The Water Supply (Water Fittings)
Regulations 1999” and “BS EN 806-
4:2010” buildings regulations.
5 Electrical requirements
The pump must be connected to the
electrical supply using the mains cable
with the attached plug. This plug must be
connected to an accessible socket that has
been installed in compliance with BS 7671
(I.E.T. Wiring Regulations). The plug must be
accessible at all times.
The pump must not be installed in a
bathroom unless it is installed in an
enclosed space accessible only with the use
of a tool.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified person in order
but they must NOT be twisted or bent more
than 35º (this invalidates the warranty).
See Figure 5 above.
Each single pump is supplied with two
couplers; one angled and one straight.
The angled coupler should be attached to
the pump inlet (on the side) and the straight
coupler should be attached to the pump
outlet (on the top).
Each twin pump is supplied with four
couplers; two angled and two straight.
For all pumps, the inlets are on the side of
the pump and the outlets are on the top of
the pump.
The AV couplers MUST only be tightened
to finger tight plus one quarter turn.
Mechanical tools must NOT be used to
tighten coupler nuts as this may cause
damage which will invalidate your warranty.
4 General plumbing
The installation must comply with the
relevant requirements or local by-laws.
The pump MUST be mounted upright (shaft
horizontal, not screwed down).
Jointing compounds, Boss White, hemp
or steel wool MUST NOT be used. Solder
fluxes must not come into contact with the
pump or AV couplers.
The maximum static head should be 10m
(equivalent to 100kPa/1.0 bar pressure)
with the exception of the RP50TU where
the maximum static head should be 5m
(equivalent to 50kPa/0.5bar pressure)
Pump Fuse
RP55PS, RP80PS and RP120PS 3 amp
RP50PT 3 amp
RP75PT and RP100PT 5 amp
RP55SU, RP80SU, RP120SU and
RP50TU 3 amp
RP75TU and RP100TU 5 amp
We recommend that the pump is run
for at least 5 minutes every 4 weeks in
order to exercise all working parts.

6
Pre-installation
Installation
PumpWise guidelines
General specification
Trouble shooting
PumpWise and warranty
Typical installations – Right positive head pumps
The selection of the Right positive head pump
for a system will be determined by the resist-
ance of, quantity of and pressure required by,
the outlets.
In these systems:
• Toilets MUST be tted with an equilibrium
ball valve.
MAX
60°C
Outlets
Inlet
Min
600mm
Usable capacity
minimum 50 gallons
per bathroom
Vent and other
services
Non-return valve
hot outlet only
Air vents, both
hot and cold
No Stop Essex Flange
MUST be used with an
anti gravity loop at least
200mm in depth
CH
MAX
60˚C
No Stop Essex Flange
MUST be used with an
anti-gravity loop at
least 200mm in depth
Min 600mm
Vent and
other services
Inlet
Inlet
Outlet
Outlet
Air vents,
both hot
and cold
Cold water storage
HC
Fig 4 Right shower pumps (RSP)
OLD STYLE DO NOT USED
Fit an
equilibrium
ball valve
600mm or
less possible
negative head
Positive head
Usable capacity
minimum 50 gallons
per bathroom
The hot
connection
must be via
an approved
side or top
entry flange
(see page 16)
Vent and
other
services
Cold water storage
HC
Outlet
Inlet
Outlet
Washing
machine
Fig 6 Right whole house pumps (RSP)
OLD STYLE DO NOT USED
Vent
and other
services
Usable capacity
minimum 50 gallons
per bathroom
Positive
head
Outlets
Inlet
Washing
machine
MAX
65°C
CH
The hot
connection
must be via
an approved
side or top
entry flange
see col. 3 page 10
Fit an
equilibrium
ball valve
2 feet or less
possible negative head
MAX
60˚C
Inlet
The hot
connection
must be via
an approved
side or top
entry flange
see col. 3 page 10
Vent and other
services
Usable capacity
minimum 50 gallons
per bathroom
Positive head
Outlets
Inlet
MAX
65°C
CH
2 feet or less
possible negative head
600mm or
less possible
negative head
Positive head
Usable capacity
minimum 50 gallons
per bathroom
The hot
connection
must be via
an approved
side or top
entry flange
(see page 16)
Vent and
other
services
Cold water storage
MAX
60˚C
HC
Outlet
Inlet
Outlet
Inlet
Fig 5 Right pump feeding one shower
OLD STYLE DO NOT USED
In positive head systems, allow for
increased resistance of long pipe runs
with multiple bends. The natural flow from
the outlets MUST be at least 2 litres/min
mixed on hot and cold.
Figure 6: Right pump tted in loft above
cylinder outlet
Figure 8: Whole house system
Either side of these pumps can be used for
hot or cold water.

7
Pre-installation
Installation
PumpWise guidelines
General specification
Trouble shooting
PumpWise and warranty
!
Right Universal Pumps - system operation and
L.E.D. indication
Right Universal pumps are designed to protect
customers by responding to unexpected and
unforeseen conditions. Right Universal pumps
will only be switched OFF if the unexpected or
unforeseen conditions are serious.
Right Universal pumps capable of:
• Supply water temperature sensing
• Dry run protection
• Sensing chronic aeration or water starvation
• L.E.D indication of unforeseen system malfunction.
IMPORTANT NOTE
The HOT and COLD pump ends are
identified by RED (hot) and BLUE (cold) tie
System malfunction is indicated by three
L.E.D’s located on the top of the pump
junction box. see Figure 9.
NON RETURN VALVES MUST NOT be fitted
in the discharge pipework between the
pump outlets and the system outlets
unless specified by Salamander Pumps.
Figure 9: L.E.D. indicator
R
Salamander
Hunting Protection
Only after two hours of
persistent ON OFF ON OFF
hunting due to a dripping
(tap or shower) outlet.
Dry Run Production
Only occurs in instances of
chronic aeration or water
starvation after two ON
OFF ON OFF operation and
60 second recovery period.
(Not available on RP50TU)
Excessive Temperature
Due to the hot water
temperature exceeding
acceptable limits. The
pump will automatically
reset to operate when the
water temperature resets
to normal

8
Pre-installation
Installation
PumpWise guidelines
General specification
Trouble shooting
PumpWise and warranty
Right universal pumps
A right universal twin pump to a bathroom
in a loft-conversion.
Figure 10: Negative head
Right pumps (positive head)
Right universal twin pumps to a whole house
system. In these systems TOILETS must be
fitted with equilibrium ball valve(s).
Figure 11: Positive head
Negative head systems
Negative head systems exist where no
natural flow of water goes to the outlet
because either the outlet or the pipework
to the outlet are above the height of
the base of the cold water cistern. Most
instances of negative head systems occur
in loft conversions or where the cold water
cistern sits on the joists in the loft. If the
distance between the bottom of the cold
water cistern and the highest point of the
system after the pump is 2 feet (610mm)
or less, it is also possible that a universal
pump will be required. Salamander’s
universal range of pumps activates the
pump automatically even where no natural
flow exists.
Negative head is also needed for electric
showers, dishwashers, washing machines or
where pumped hot water meets mains cold.
Fit an
equilibrium
ball valve
The hot
connection
must be via
an approved
side or top
entry flange
(see page 16)
Vent and
other
services
Cold water storage
Negative head
Outlet
Inlet
Outlet
Fit an
equilibrium
ball valve
HC
MAX
60˚C
Fit an
equilibrium
ball valve
600mm or
less possible
negative head
Positive head
Usable capacity
minimum 50 gallons
per bathroom
The hot
connection
must be via
an approved
side or top
entry flange
(see page 16)
Vent and
other
services
Cold water storage
MAX
60˚C
Outlet
Inlet
Outlet
Inlet
Washing
machine
HC

9
Pre-installation
Installation
PumpWise guidelines
General specification
Trouble shooting
PumpWise and warranty
Right universal pumps to shower
columns or steam shower cabinets
These systems will be Negative Head where
the pipework runs above the tank.
Figure 12: Right universal pump to a shower
column
Typical installations – Right Universal Pumps
Vent and other
services
No Stop Essex Flange
MUST be used with an
anti gravity loop at least
250mm in depth
Usable capacity
minimum 50 gallons
per bathroom
Outlets
Inlet CH
Air vents, both
hot and cold
Min
600mm
MAX
60°C
Fig 9 ESP CPV pumps to shower or steam
OLD STYLE DO NOT USED
Vent and
other
services
Inlet
No Stop Essex Flange
MUST be used with an
anti-gravity loop at least
250mm in depth
Cold water storage
HC
Air vents,
both hot
and cold
MAX
60˚C
600mm or
less possible
negative head
Outlet
Outlet
Usable capacity
minimum 50 gallons
per bathroom
Single-ended Right Universal pump
The following systems are best
accommodated by using a single-ended
Right Universal pump which is complete with
a pressure vessel and electronic system
protection.
Right universal pump to boost tank fed
supplies to instantaneous electric showers
and water heaters.
Figure 13: Instantaneous electric showers and
water heaters
Tank fed, pressurised cylinder or
combination boiler system with single-
ended Right Universal pump to boost the
hot supply water pressure and cold water
mains supplies ‘cold’ to shower, bath, basin
and toilet.
600mm or
less possible
negative head
Usable capacity
minimum 50 gallons
per bathroom
C
Fig 10 ESP CPV single
OLD STYLE DO NOT USED
Right pump universal to a shower cabinet.
Shower columns and steam shower cabinets
in larger whole house systems or systems
with multiple bathrooms will be best served
by two single-ended Right Universal pumps.

10
Pre-installation
Installation
PumpWise guidelines
General specification
Trouble shooting
PumpWise and warranty
Figure 14: Pressurised cylinder or
Combination boiler system
Min
600mm
Incoming cold water mains
Combi
boiler
Usable capacity
minimum 50 gallons
per bathroom
Double acting
non-return valves
must be fitted
to cold inlets of any
shower valve or
mixer tap
OLD STYLE DO NOT USED
Combi
boiler
Cold water storage
Incoming cold water mains
600mm or less possible
negative head
Fit an
equilibrium
ball valve
C
Fig 11 Tank fed
Usable capacity
minimum 50 gallons
per bathroom
Double acting
non-return valves
must be fitted
to cold inlets of
any shower valve
or mixer tap
Tank fed (hot) with cold water mains
systems MUST use Right Universal pumps
Never use a single-ended Right Universal
pump after the shower valve or before an
open outlet.
Figure 15: Tank fed (hot) with mains cold
MAX
65°C
MAX
65°C Double action
non return valves
Incoming cold water mains
Double action
non return valves
Incoming cold
water mains
Cold water storage
Fig 13 Tank fed hot
OLD STYLE DO NOT USED
H
MAX
60˚C
Usable capacity
minimum 50 gallons
per bathroom

11
Pre-installation
Installation
PumpWise guidelines
General specification
Trouble shooting
PumpWise and warranty
Commissioning
Before you nish
• Flush inlet pipework and carefully fill
pump with water by discharging water
from the outlet flexible coupler into a
container.
• Fit pump inlet filters.
It is CRITICAL to discharge water through
the pump into a container using natural
flow before connecting the pump to outlet
pipework in order to ensure the air has
been discharged from inlet pipework and
pump chambers. This will not happen if the
outlet pipework is connected to the pump.
The best method is:-

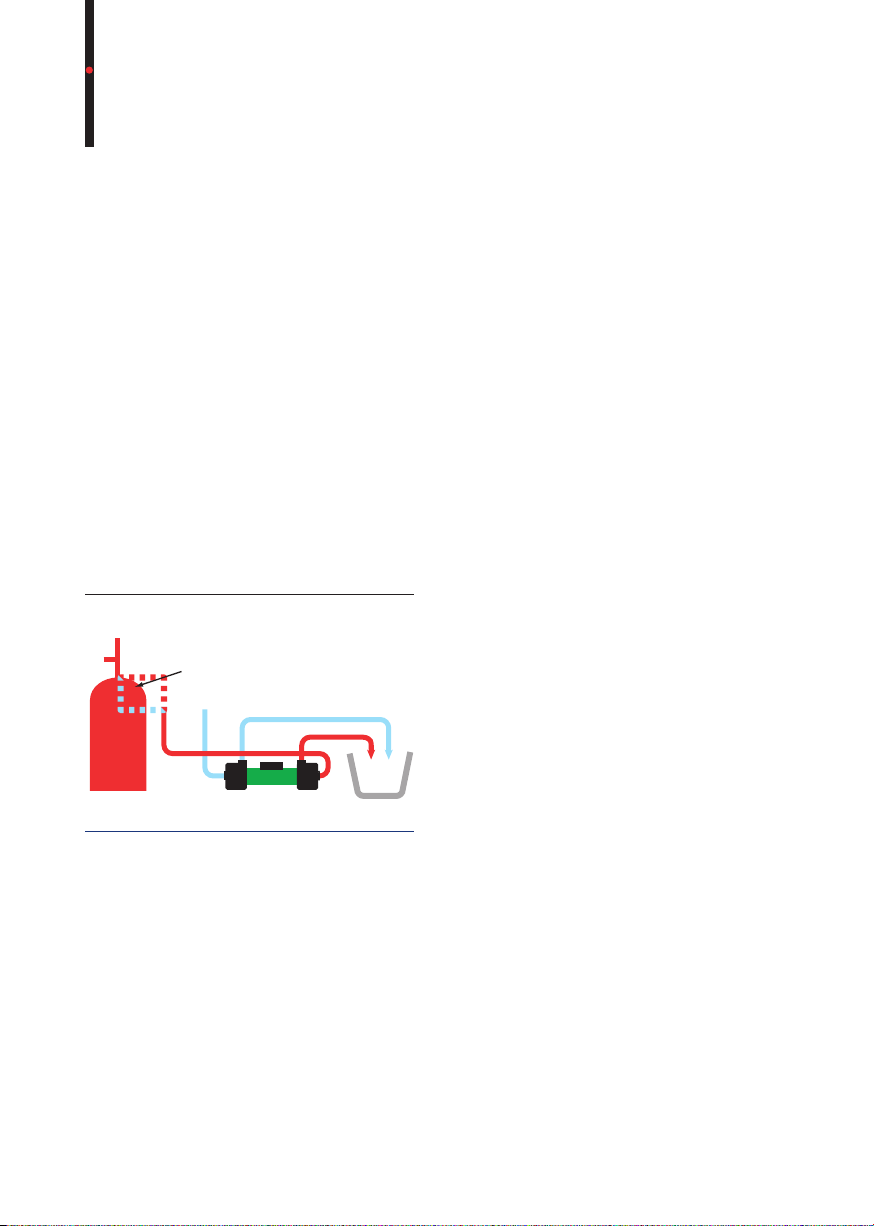

Figure 19
• DO NOT RUN PUMP DRY – to do so will
cause irreparable damage to your pump
and will invalidate your warranty.
• Open shower mixer valve/system
outlets to maximum hot and cold to
check the natural flow (unpumped) flow
of at least 1 litre per minute – positive
head systems.
• Open hot water outlets fully for
5 to 6 seconds and then turn outlets off.
Then open cold water outlets fully for
5 to 6 seconds and turn outlets off. If
flow is poor and inconsistent repeat
above steps until flow is steady.
• Repeat 2-3 times.
MAX
65°C
CH
The hot connection
must be via an approved
side or top entry flange
except for CT 50/75 and NP 50
OLD STYLE DO NOT USED
Fig 16 Critical
MAX
60˚C
HC
The hot connection
must be via an approved
side or top entry flange
!
!
• Connect discharge pipework.
• Check that all the pump isolating valves
are open.
• Fill system. Check for leaks.

12
Pre-installation
Installation
PumpWise guidelines
General specification
Trouble shooting
PumpWise and warranty
Helpful guidelines
Cold water supplies and storage
Recovery of cold storage

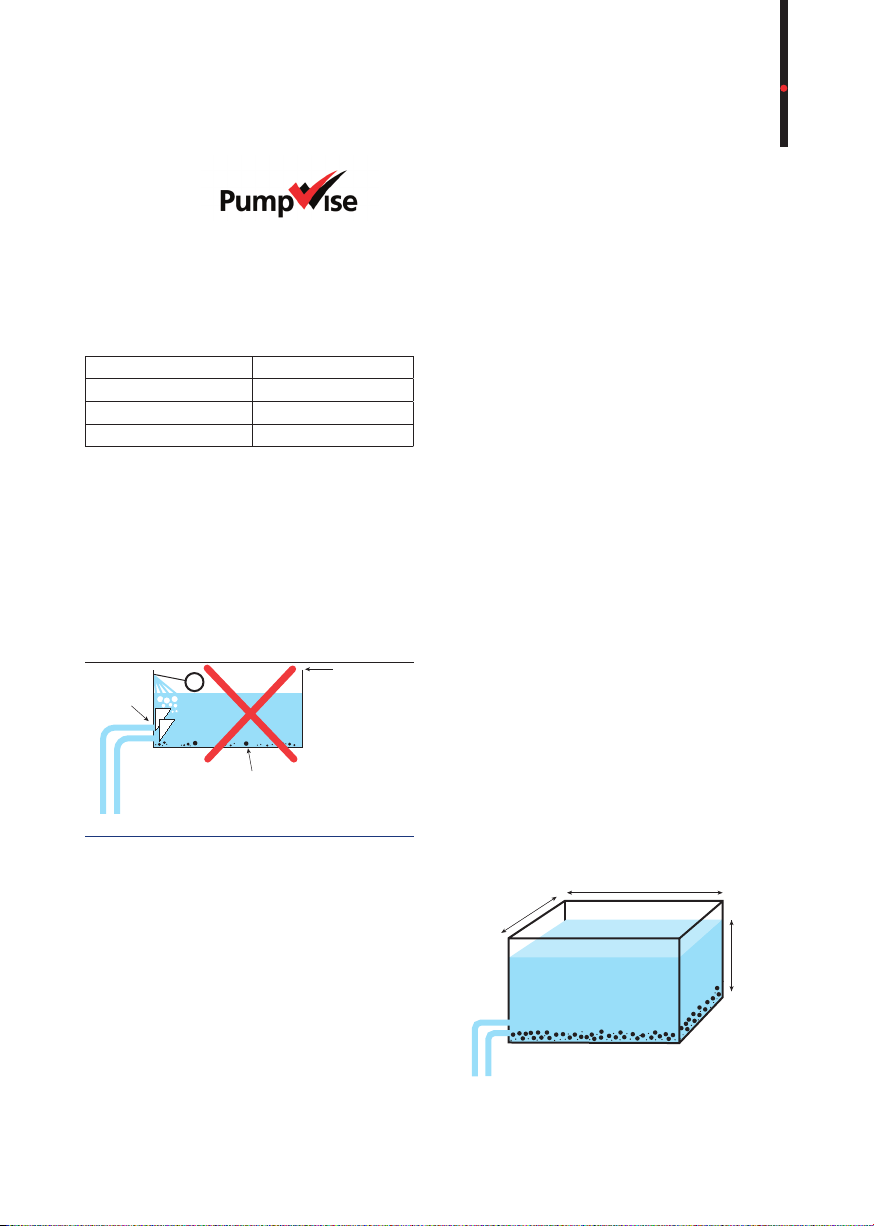

The typical recovery rate of a 1⁄2 inch high
pressure part II BS1212 ball valve is:
100 kPa (15PSI/1.0 bar) 0.97 galls/min 4.41
200 kPa (30PSI/2.0 bar) 1.34 galls/min 6.11
270 kPa (40PSI/2.7 bar) 1.58 galls/min 7.18
400 kPa (60PSI/4.0 bar) 1.94 galls/min 8.82
Aeration of pump and cylinder from a
cold water storage tank
This occurs when the incoming cold mains
ball valve is positioned above the cold
feeds to the cylinder and to the pump –
aerated water is drawn into the pump as
illustrated.
Figure 20: Aeration
Reposition
cold mains
ball valve
here
Vortex
Outlets
The bottom of
the cold tank
MUST BE
checked and
cleaned of debris
Fig 17 Aeration of pump
OLD STYLE DO NOT USED
Vortex
Reposition
cold mains
ball valve
here
Outlets to
pump
The bottom of the cold
tank MUST be checked
and cleaned of debris
Chronic aeration of the pump occurs when
this problem is combined with inadequate
storage capacity and/or when the volume of
water drawn by the pump and other services
exceeds the refill rate and creates a vortex
which draws air and possibly debris into the
pump.
Cold storage usable capacity
The usable capacity of cold storage is
easily calculated as the capacity of water
in the cold tank above the cold feeds to the
cylinder, the pump and other outlets –
see formula.
Formula for calculation on rectangular
tank:
Depth (15”) x width (23”) x length (36”)
= 12,420 cu inches
Volume cu inches (12,420) x 0.01639
= 203.56 litres
Volume litres (203.56) x 0.22
= 44.78 gallons.
Formula for calculation on circular tank:
Depth (15”) x radius (17”) x radius (17”)
x 3.142 (Pi)
= 13,621 cu inches
Volume cu inches (13,621) x 0.01639
= 223 litres
Volume litres (223) x 0.22
= 49 gallons.
Length
Width
Usable capacity
Depth
of
water
Outlets
The bottom of the cold
tank MUST BE checked
and cleaned of debris
Length
Width
Usable capacity
Depth
of
water
Outlets
The bottom of the cold
tank MUST be checked
and cleaned of debris
Fig 18 Cold storage
OLD STYLE DO NOT USED

13
Pre-installation
Installation
PumpWise guidelines
General specification
Trouble shooting
PumpWise and warranty
Figure 21
Pre-plumbed direct or indirect
combination units
These are purpose-made units typically for
use in multiple flat developments, usually in
towns and cities where it is advantageous
and desirable to provide the occupants with
completely independent hot and cold
water services.
In these systems the ideal pump is an
RP50/75 TU. For alternative types of
combination units see Elson, Figure 23 and
Fortic (type), see Figure 24.
Cold mains
ball valve
Immersion heater
and an indirect
connection to a
boiler
Lid
H
C
Cold
water
storage
MAX
65°C
OLD STYLE DO NOT USED
Fig 19 Pre plumped
MAX
60˚C
Cold mains
ball valve
Cold
water
storage
Immersion heater
and an indirect
connection to a
boiler
Lid
HC
Figure 22: Pre-plumbed direct or indirect
combination units
Elson (type) tanks
In these systems it is important to ensure
the hot and cold water storage capacity is
adequate for the type of pump to be used.
The refill ball valve on the small cold tank
which refills the hot tank is correctly set to
prevent aeration of the hot supply water to
the pump.
Figure 23: Elson (type) tanks
Fortic (type) tanks and
pre-assembled units
Typically used in very small flats and
houses. Not usually with sufficient water
capacity of cold water for pumped systems.
Figure 24: Fortic (type) tanks and
pre-assembled units
Small cold water
storage tank
Hot outlet
OLD STYLE DO NOT USED
Fig 21 Fortic tanks
Cold
tank
Hot
tank
Refill ball valves
Immersion
heaters
CH

14
Pre-installation
Installation
PumpWise guidelines
General specification
Trouble shooting
PumpWise and warranty
Helpful guidelines
Water starvation protection, pipework arrangements and stored hot
water

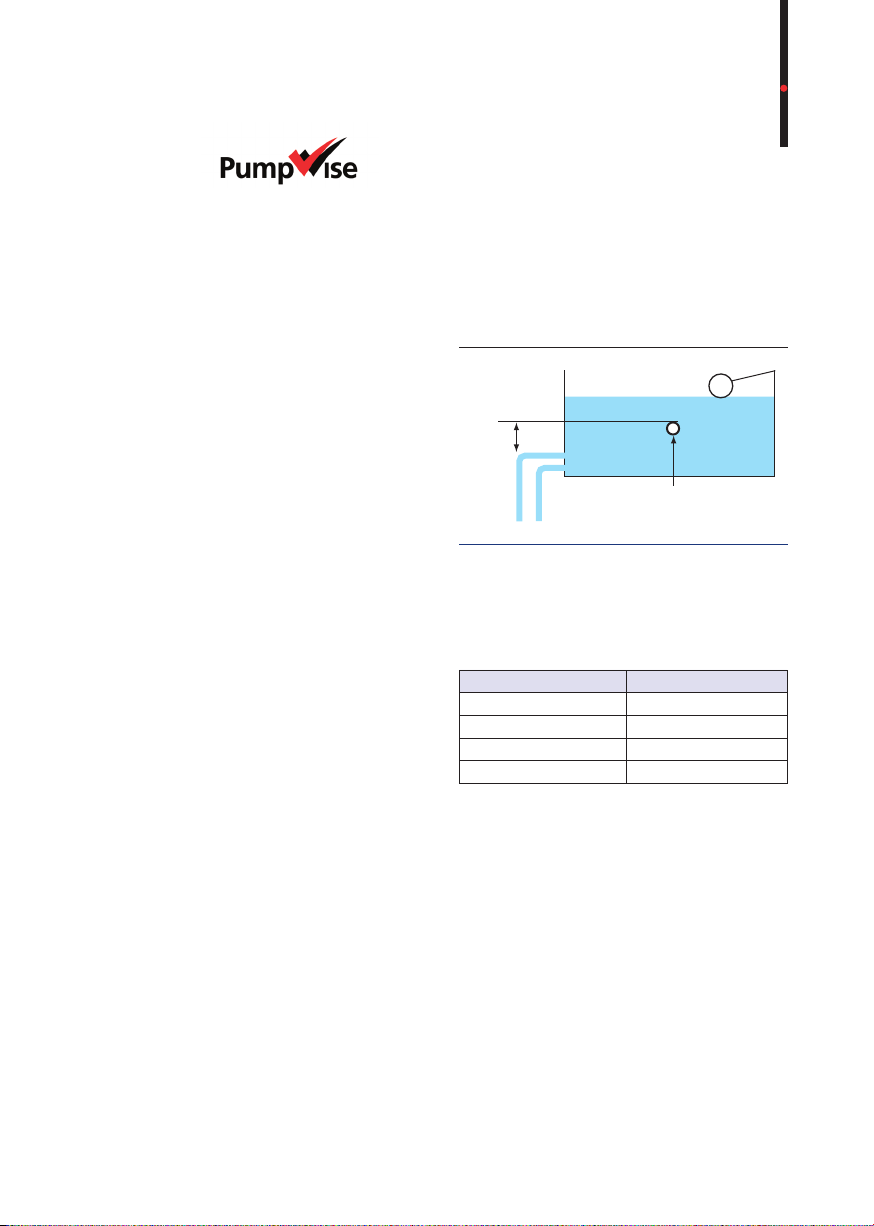

Water starvation protection
In systems where it is absolutely not
possible to increase the usable cold water
storage capacity to meet the increased
demand of a pumped system; a water
starvation protection unit (WSP) may be
considered.
The WSP is a Salamander level switch which
must be positioned 102mm higher than the
highest outlet from the cold water storage
tank. When the water level drops too far the
WSP will switch off the pump until the cold
water storage level is recovered.
102mm
Outlets
Water starvation
protection unit (WSP)
4 inches
Outlets
WSP
OLD STYLE DO NOT USED
Fig 22 Water starvation
Figure 25: Water starvation protection unit
(WSP)
Shower head size vs bar pressure
The size of a shower head dictates the bar
pressure of the pump required to deliver
the expected performance of the shower.
Shower head diameter Bar pressure
Up to 5cm 1.5 bar (150 kPa)
5-10cm 2.0 bar (200 kPa)
10-12.5cm 2.5 bar (250 kPa)
More than 12.5cm 3.0 bar (300 kPa)
Anti-gravity loops
An anti-gravity loop (AGL) must always
be fitted to systems where the pump is
positioned above the hot outlet from the
cylinder. The AGL which limits aeration
of the hot supply to the pump is formed
by bending the pipework downwards for
250mm, as it exits the Essex Flange, before
rising again to the pump. See Figure 26
overleaf.
Please be advised due to lack of cold water
storage with Elson and Fortic (type) tanks,
our pumps may not be suitable.
It is advisable to contact our Technical
Support team before installing the pump
on 0191 516 2002, otherwise it may
affect your warranty.

15
Pre-installation
Installation
PumpWise guidelines
General specification
Trouble shooting
PumpWise and warranty
Figure 26: Anti-gravity loop (AGL)
MAX
60°C
Outlets
Inlet
Min
600mm
Usable capacity
minimum 50 gallons
per bathroom
Vent and other
services
Non-return valve
hot outlet only
except ESP pumps
Air vents, both
hot and cold
No Stop Essex Flange
MUST be used with an
anti gravity loop at least
250mm in depth
CH
Fig 23 Anti gravity loops
OLD STYLE DO NOT USED
Vent and
other
services
Inlet
No Stop Essex Flange
MUST be used with an
anti-gravity loop at least
250mm in depth
Cold water storage
HC
Air vents,
both hot
and cold
MAX
60˚C
600mm or
less possible
negative head
Outlet
Outlet
Non-return
valve hot
outlet only
except ESP
pumps
Combi boilers and water heaters
As these appliances are invariably supplied
directly from the cold mains – they are not
normally suitable for booster pumps. The
exceptions are featured in Figure 14 on
page 10.
Figure 27: Combi boilers
Combi
boiler
Incoming
water main
CH
Fig 24 Combi boilers
OLD STYLE DO NOT USED
Incoming
water main
WRONG
Combi
boiler
C H
Horizontal cylinders
As horizontal (torpedo) cylinders are
problematic for boosted systems consult
PumpWise for guidance and correct use of
an approved top entry flange.
Use any of the
approved top
entry flanges
Usable capacity
minimum 50 galls
per bathroom
C
MAX
65°C H
Fig 25 Horizontal cylinders
OLD STYLE DO NOT USED
Use any of the
approved top
entry flanges
Usable capacity
minimum 50 galls
per bathroom
MAX
60˚C CH
Approved anges (cylinders)
The 22mm No Stop Essex and the other
approved top entry flanges with extension
pipes into the cylinder represent the best
known means of ensuring minimal aeration
of the hot supply water to the pump. The No
Stop Essex flange is in all circumstances
the best option.
S ange
Complete with compression ‘pump’ and
‘open vent’ connections. Also supplied
with an adaptor to connect to 1’’ ‘male’ and
‘female’ top entry cylinders.
Figure 29: S ange
Figure 28: Horizontal cylinders
Fig 29 S Flange
HOT WATER
CYLINDER To pump
To vent
S flange
York ange
These may be used in systems where the
hot water requirement is less than 20
Litres per minute.

16
Pre-installation
Installation
PumpWise guidelines
General specification
Trouble shooting
PumpWise and warranty

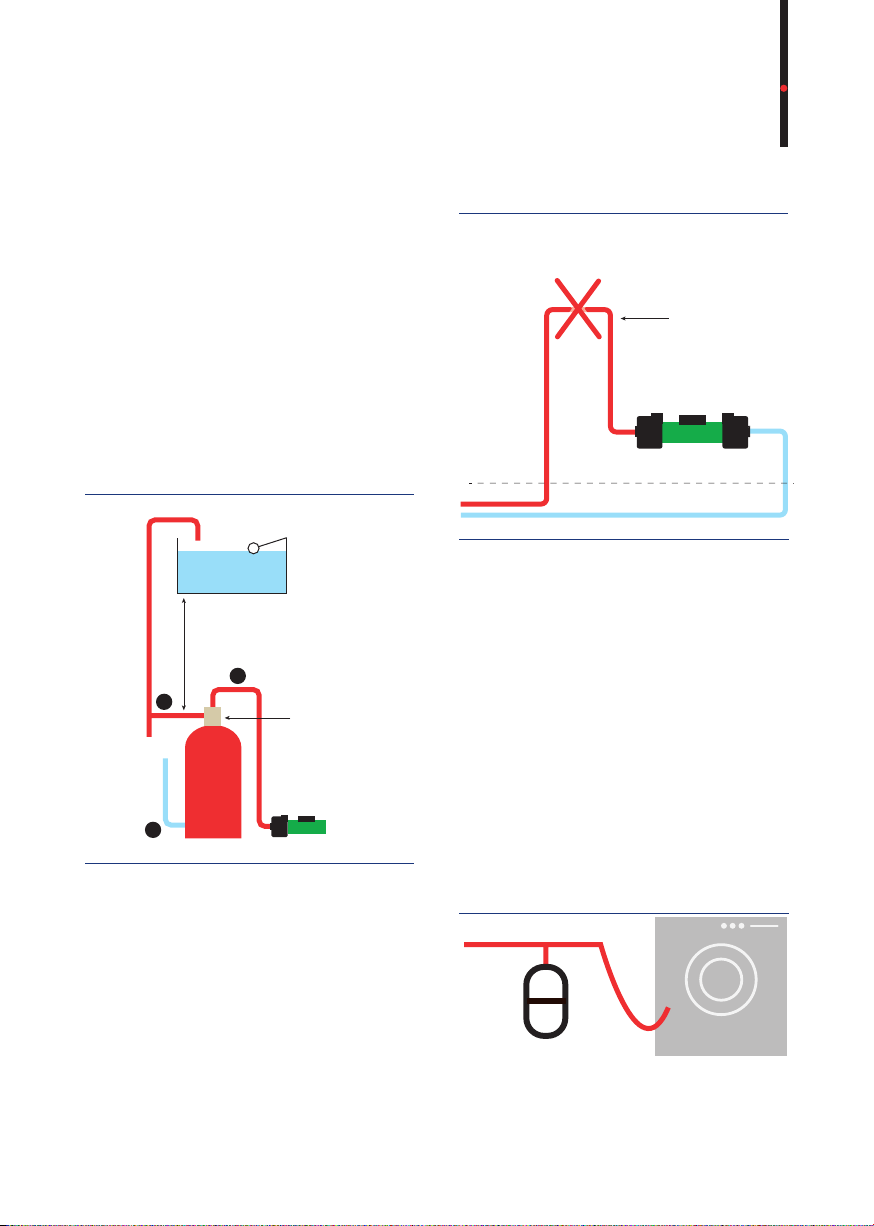

Warix ange
A The Vent connection MUST be from side
in Warix Flange.
B The supply connection to the pump
MUST BE FROM THE TOP of the Warix
Flange via a 22mm compression elbow
and thereby avoid inverted loops.
C In systems where there are one
bathroom and an en-suite shower.
Or two or more bathrooms the cold
feed to the cylinder MUST be in
28mm pipework.
Figure 30: Approved anges
H
MAX
60º
Never less than
1.2m for any
top entry flange
Warix flange
C
B
A
Unpumped
outlets
Usable capacity
minimum 50 gallons
per bathroom
Fig 26 Warix flange
OLD STYLE DO NOT USED
MAX
60˚C
H
Never less than
1.2m for any
top entry flange
Warix flange
Unpumped
outlets
Usable capacity
minimum 50 gallons
per bathroom
A
B
C
Inverted loops
An inverted loop in the supply pipe-work
to the pump, particularly on the hot side as
illustrated; is likely to:
• interfere with the initiation and smooth
operation of the pump.
• restrict the supply water to the pump
and risk internal mechanical damage.
C
H
Inverted loop
Fig 27 Inverted loops
OLD STYLE DO NOT USED
Inverted loop
WRONG
CH
Figure 31: Inverted loops
OLD STYLE DO NOT USED
Fig 28 Water hammer
Washing machine
Pressure vessel
Primatic cylinders and Andrews type
water heaters are not suitable for pumped
systems.
Water hammer protection
Water hammer most commonly occurs in
systems where there are long pipe runs
supplying solenoid activated appliances
e.g. washing machines or outlets with quick
acting/turn taps/ valve(s). The harmful
effect of water hammer shock waves can
be cushioned by fitting a pressure vessel
unit, into the supply pipework as close as
possible to the outlet from which the shock
waves are originating.
Figure 32: Water hammer protection

17
Pre-installation
Installation
PumpWise guidelines
General specification
Trouble shooting
PumpWise and warranty
Pump hunting protection
In negative head systems all the discharge
pipework after the pump is pressurised. In
such systems there exists the possibility
the pump will hunt ON-OFF-ON etc at
intervals.
This will happen:
• if all outlets are not fully closed
• if there is a leak at a connection
• if boosted toilets are not fitted with
equilibrium ball valves
• or as residual hot water contracts in
long pipe runs.
The irritating effects of hunting are
cushioned by the pressure vessel which is
an inbuilt feature of Right Universal pumps.
Stored hot water volume
In calculating the volume of the stored
hot water requirement it is important to
consider:
• number of bathrooms, with particular
attention to the size of the bath
• number of persons in household
• time spent in shower e.g.10mins in a
5 gall/minute shower will use up 50
galls/227 Litres of the cold water
storage capacity approx 60% of which
(30 gallons/136 Litres) will be hot water
from the cylinder.
Stored hot water temperature
Extract from BS5546:1990 (Current)
“The mean temperature of the stored water
should not normally exceed 60°C and in a
combined central heating and domestic
Vent
and other
services
HWS Blending valve controller
is factory set at 55 – 60ºC
Not for RSP/RHP
or ESP
Can be off the vent
if this distance is
at least 1.5 metres
Usable capacity
minimum 50 galls
per bathroom
Surrey or
No Stop
Essex Flange
CH
Fig 29 HWS Blending
OLD STYLE DO NOT USED
MAX
60˚C
Vent
and other
services
HWS Blending valve controller
is factory set at 55 – 60ºC
Not for RSP/RHP
or ESP
Can be off the vent
if this distance is
at least 1.5 metres
Usable capacity
minimum 50 galls
per bathroom
Surrey or
No Stop
Essex Flange
HC
hot water system it is recommended that
the stored water temperature is controlled
independently from that on the primary
circuit”.
Extract from BS6700:1997
“Under normal conditions the
temperature of stored hot water should
never exceed 65°C. A stored hot water
temperature of 60°C is considered
sufficient to meet all normal requirements
and will minimise scale deposits in hard
water areas”.
Effective control of stored hot water
is simply achieved by use of a cylinder
thermostat and zone valve or direct acting
thermostatic valve (e.g. tapstat).
In systems where the stored hot water
temperature is not controlled eg Aga solid
fuel appliance or very crudely by the boiler
thermostat, use a HWS Blending valve
controller.
HWS Blending valve controller
The HWS Blending valve controller is
designed to protect booster pumps in
