Salamander Pumps Right Pump Series User manual

Pump installation and warranty
guide for the Right Pump range
ISSUE 21 Oct 2021
This document should be given to the end user and retained for future reference.
Should you need to contact Salamander Pumps you will need the below information.

2
Pump installation and warranty guide for the Right
Pump Range
Important - read this first!
Correct installation is the guarantee of safety and a trouble free system. It is therefore important
to read these instructions thoroughly and ensure you comply with them. Incorrect fitting can
invalidate the warranty.
If you have any questions or if your installation is complicated please CONSULTTHE PUMPWISE
HELPLINE IMMEDIATELY ON 0191 516 2002
We encourage installers to consult the PumpWise helpline, where our representatives can give
you first-rate advice regarding installation.
The back cover explains the methods to register your pump for the 3 year warranty.
Please leave this installation guide with the customer for reference to maintenance, safety
information and details of warranty cover.
Thank you for choosing Salamander Pumps
Safety in Operation
These appliances are not intended for use by persons (including children) with reduced physical,
sensory, or mental capabilities, or lack of experience or knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety.
Children should be supervised to ensure that they do not play with the appliance .
Scan QR to find out more about avoiding
some common installation pitfalls

3
Contents
Pre-Installation Checklist 4
General Installation 5
Typical installations Right Pump Positive 8
System Operation 9
Right Pump Universal (pressure vessel installation)
Typical Installations Right Pump Universal 10
Commissioning 12
Helpful PumpWise Guidelines 13
Cold Water Supplies and Storage
Hot Water Blending Valve 14
Helpful PumpWise Guidelines 15
Water starvation protection, pipework arrangements and stored hot water
General Specifications 19
Trouble shooting 22
PumpWise and Warranty 24
To the Installer 25

4
Pre-Installation Checklist
Our pre-installation guidelines are detailed on the following pages, but some of the key “do’s and
don’t s” are highlighted below:
Do’s
• Locate the pump next to the hot water
cylinder or within 5 metres of measured
pipe - 2m MAX of 15mm pipe on inlet
connections
• Ensure 100mm on all sides for ventilation
• Ensure pump is protected from frost
• If servicing two or more bathrooms, cold
water supply to the cylinder should be
ideally in 28mm pipework
• Ensure adequate usable cold water
storage - 227 Litres (50 Gal.) per
bathroom and 136 Litres (30 Gal.) per
en-suite or shower
• Cold water supplies to the pump must be
taken from the opposite side of
the cold water storage cistern to the cold
water mains inlet
• Multiple cold water storage cisterns must
be linked to current regulations with their
bases level
• Hot water supply to the pump must be
via a Salamander approved anti-aeration
flange
• Always use an Essex Flange where there
is less than 1m between the top of the hot
water cylinder and base of the cold water
cistern
• AV couplers must only be finger tight plus
one quarter turn
• The maximum static head should be 10m
(equivalent to 100kPa/1.0 bar pressure)
- only exception are the RP50TU and the
RP55SU which is in 5m (equivalent to
50kPa/0.5 bar pressure)
• We recommend the pump is activated
for at least 5 minutes every 4 weeks to
exercise all moving parts
Don’ts
• Never fit the pump to the cold water
mains
• Never fit the pump to communal risers or
cold water storage cisterns
• Never use a shared water supply or
shared cold water cistern
• Never put a non-return valve (NRV),
inverted loop, restrictive ballofix or an air
vent on supply pipe work to the pump
• The hot water supply must not exceed
65°C
• Never twist the anti-vibration (AV)
couplers or bend more than 35°
• Never use mechanical tools to tighten
plastic coupler nuts as this may cause
damage and invalidate your warranty
• Never use jointing compounds, Boss
White, Hemp or steel wool
• Solder fluxes must not come into contact
with the pump or AV couplers
• Never install in a bathroom unless in
an enclosed space and access is only
possible with an appropriate tool
• Never pump directly to or from any pump
such as a secondary return pump or
boosted shower
• Never connect to a secondary return
tapping on a hot water cyclinder without
the use of dip tube into the cylinder
• Never fit to a Primatic cylinder, Andrews
type water heater, Elson Tank or Fortic
type cylinder
• It is not recommended to pump hot water
against cold mains water with a positive
head pump

5
1. Location of the pump
The best location for the pump is at the base of
the cylinder. Where it is not physically possible
to locate the pump next to the cylinder, the
pipe run from the hot water cylinder to the
pump must not exceed 5m, ideally in 22mm
with no more than 2m of 15mm pipe to supply
the pump.
1.1 Cooling and ventilation
The pump should be placed in a position where
there is an adequate air flow to cool the motor
and separated from any other appliances that
generate heat. It should be installed in a clear
space allowing 100mm additional space at
each side, the ends and top of the pump.
1.2 Frost protection
Loft mounted pumps must be protected from
frost damage.
2. Hot and cold supplies to
the pump
Never fit the pump directly to the cold water
mains.
Never fit to communal risers (e.g. block of
flats) or secondary circuits that are pumped.
The pump must be fed by exclusive hot and
cold water supplies (i.e. not shared with other
services).
The hot supply pipework to the pump should be
a maximum length of 5 metres in 22mm pipe
(where unavoidable, hot and cold supplies may
have maximum 2 metres of 15mm pipe).
All up and over pipe work must be vented at
the highest point on the outlet of the pump and
a non-return valve (NRV) may require fitting
to the hot outlet only (Note: this is only for the
RP50TU and RP55SU).

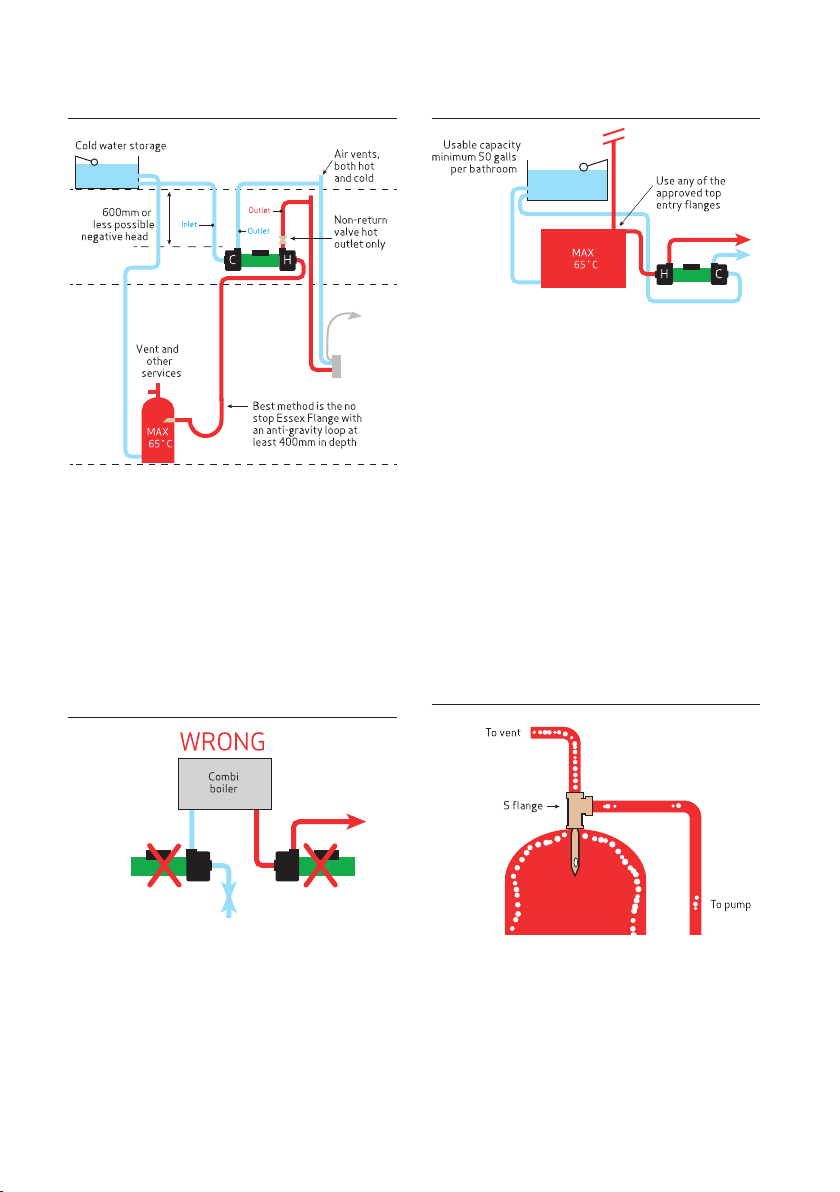

2.1 For pumps positioned
above the hot outlet, hot
water cylinder or in a loft
Where the pump is located above the hot
water cylinder, it must be a minimum of
600mm below the cold water cistern.The best
connection is a No-Stop Essex Flange in 22mm
with an Anti-Gravity Loop (AGL) of 400mm
(Figure 7), Alternatively, a top entry flange
may be used. If aearation causes an issue, it
may become a requirement to use an Essex
Flange.
2.2 Cold water storage
Ensure that the cold water storage capacity
is adequate for all of the household
requirements (minimum 50 gallons/227 Litres
per bathroom, 80 gallons/385 Litres for one
bathroom and one en-suite shower room).
Ensure the cold water supplies to the cylinder
and the pump are taken from the opposite side
of the cold water storage tank from the cold
mains inlet.

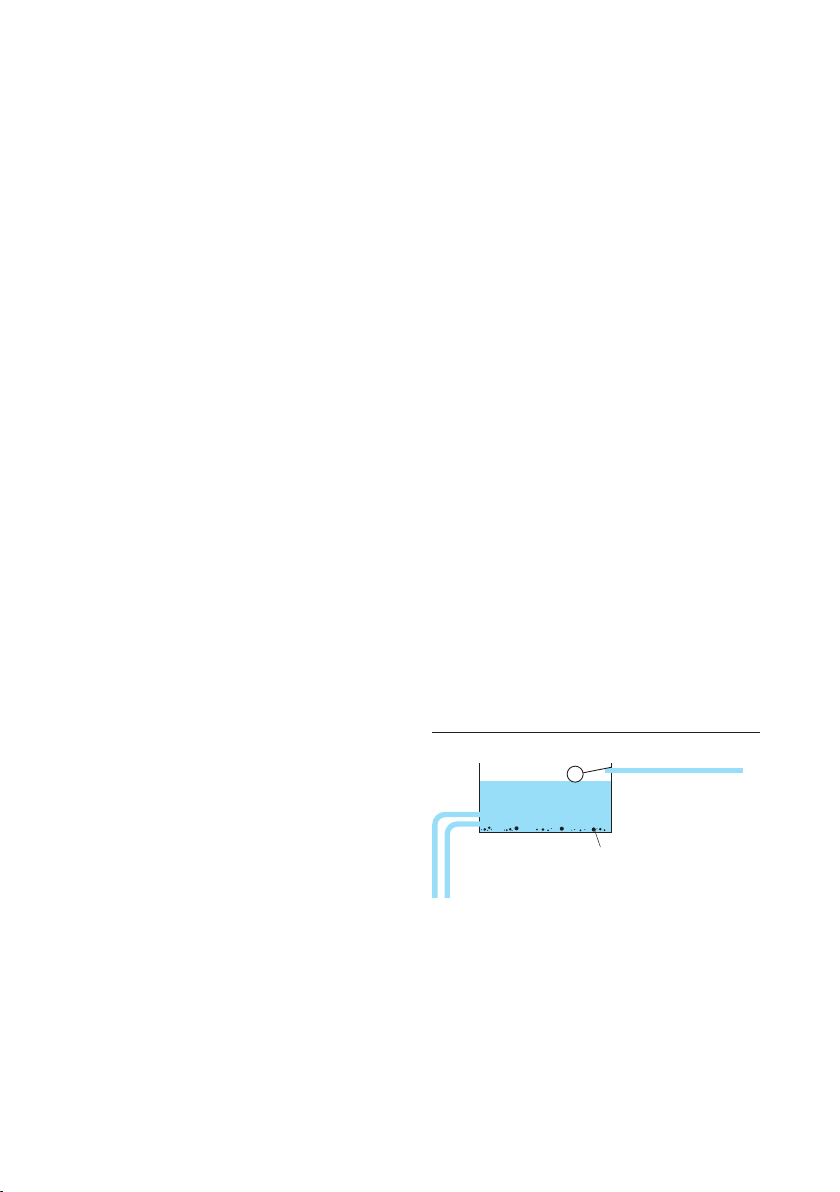

Figure 1: Tank inlet and outlet position
Please follow these installation instructions carefully. Failure to install your pump in
accordance with these instructions will invalidate your warranty.
Outlet to
cylinder
Inlet
Bottom of cold
tank must be
cleared of debris
Outlet to pump

6
Multiple cold water storage (CWS) tanks must
be linked top and bottom in 28mm pipework
and fitted with float operated valves in all
tanks. Always link to comply with the Water
Supply (Water Fittings) Regulations 1999.
Figure 2: Linked cold water tanks
2.3 Hot water requirements
The stored hot water temperature must not
exceed 65ºC (see page 18, Stored hot water
temperature).
The hot water supply to the pump must be via a
Salamander approved method:
The best hot connection from the cylinder is
either
• A 3⁄4” No-Stop Essex Flange. See Figure 3 or
• A Salamander S flange or other approved top
entry flanges. See page 16/17.

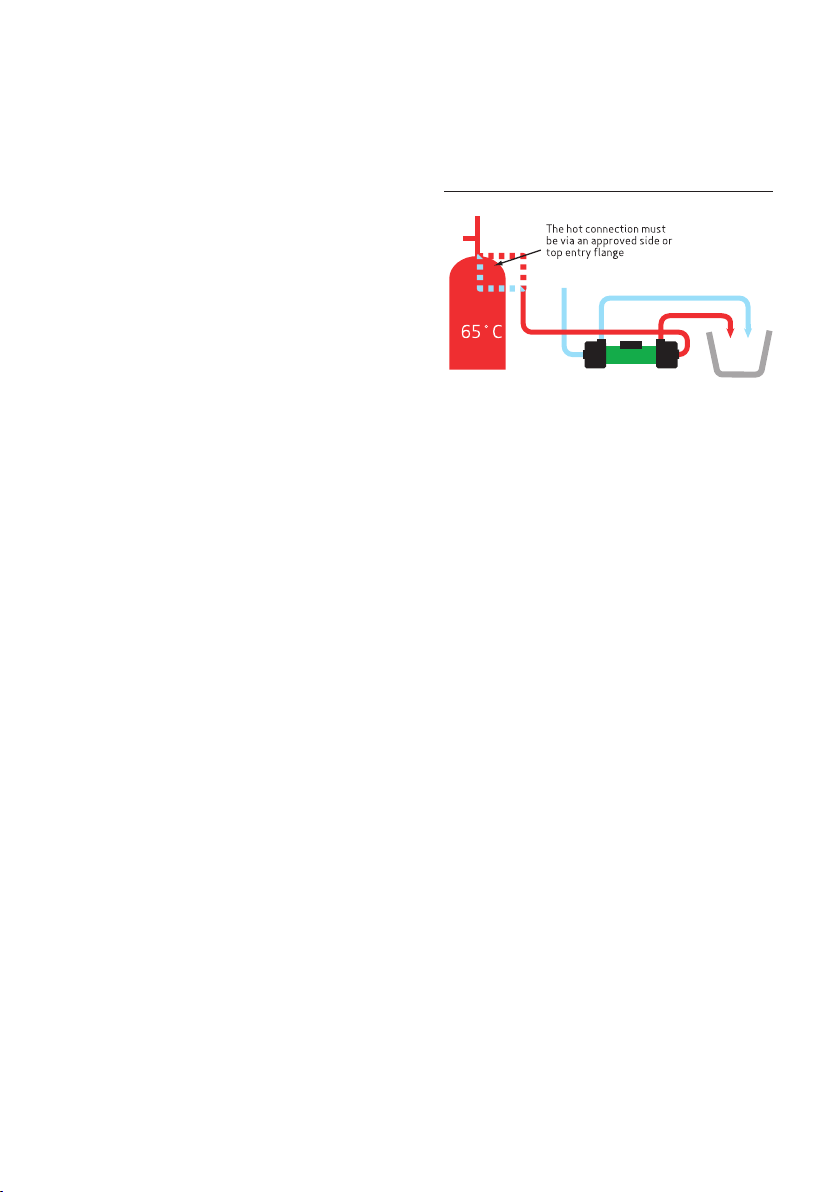

Figure 3: Hot water supply method
3. Anti-vibration couplers
(Hoses)
The anti-vibration (AV) couplers are designed
to limit the transfer of pump vibration to the
associated pipe work. All Salamander AV
couplers are ¾” BSP x 22mm push fit with
built-in isolating valves. Note: the RP50PTis
supplied with 15mm couplers with isolating
valves on the inlets and outlets.
Figure 4: Isolating valves
Figure 5: Couplers
Ideally the AV couplers should be straight, but
they must NOT be twisted or bent more than
35º (this invalidates the warranty). See Figure
5 above.
Pump at the base of cylinder
Outlets
OR ALTERNATIVELY
22mm No Stop Essex
pipe and birds beak cut
end to limit air being
drawn into the pump
Indirect coil
Pump inlet
Pump inlet
one of the 22mm approved
MAX
evlavgnitalosI
ninwohs
‘ON’ position
Isolating valve
shown in
‘OFF’ position
35°
Do not bend hoses
more than 35˚
Do not twist or
kink the hose
on pages 16/17

7
Single pumps are designed to boost hot or cold
water - supplied with x1 angled, inlet hose and
x1 straight, outlet hose
Twin pumps are designed to boost hot and cold
water - supplied with x2 angled, inlet hoses and
x2 straight, outlet hoses
Straight hoses must be used on the outlets.
Hoses should not be over tightened or be
tightened with mechanical tools.
4 General plumbing
The installation must comply with the relevant
requirements and local by-laws.
The pump MUST be mounted upright (shaft
horizontal, not screwed down).
Jointing compounds, Boss White, hemp or steel
wool MUST NOT be used. Solder fluxes must
not come into contact with the pump or AV
couplers.
The maximum static head should be 10m
(equivalent to 100kPa/1.0 bar pressure)
with the exception of the RP50TU & RP55U
where the maximum static head should be 5m
(equivalent to 50kPa/0.5bar pressure)
The plumbing installation must comply with
“The Water Supply (Water Fittings)
Regulations 1999” and “BS EN 806-4:2010”
buildings regulations.
5 Electrical requirements
The pump must be connected to the electrical
supply using the mains cable with the attached
plug. This plug must be connected to an
accessible socket that has been installed in
compliance with BS 7671
(I.E.T. Wiring Regulations). The plug must be
accessible at all times.
The pump must not be installed in a bathroom
unless it is installed in an enclosed space
accessible only with the use of a tool.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified person in order to
avoid a hazard.
Higher rated fuses must NOT be used. Fuses
should be as per the table below:
Pump Fuse
RP50PT 3 amp
RP75PT and RP100PT 5 amp
RP55SU, RP80SU,
RP120SU and RP50TU
3 amp
RP75TU and RP100TU 5 amp
Scan QR to learn more

8
Typical Installation
Right Pump
Positive Range
The selection of the Right pump positive for a
system will be determined by the resistance
of, quantity of and pressure required by, the
outlets.
To activate a positive head pump :
1 litre per 30 seconds (2 L/min) of water
should be able to flow through each side of the
pump naturally and out of the tap or shower.
This will lift the flow switches and turn the
pump on.
Where this flow cannot be achieved, a negative
head pump is required.
600mm or
less possible
negative head
Usable capacity
minimum 50 gallons
per bathroom
Vent and
other
services
Cold water storage
HC
Outlet
Inlet
Outlet
Inlet
65
MAX
Min 600mm
Vent and
other services
Inlet
Inlet
Outlet
Outlet
Air vents,
both hot
and cold
Cold water storag e
HC
Best method isthe no
stop Essex Flange with
an anti-gravity loop at
least 400mm in depth
Figure 7: Typical Right Pump Installation -
pump located above the cylinder
Figure 6: Typical Right Pump Installation -
pump located at base of the cylinder
Scan QR to learn more

9
Right Pump
Universal - System
Operation
Negative head systems
Negative head systems exist where the natural
flow of water that goes to the outlet (tap,
shower etc.) is less than 2 L/min on either
hot, cold or both. This can happen when the
outlet, or the pipework to the outlet, is close
to or above the height of the base of the cold
water cistern. Most instances of negative head
systems occur in loft conversions or where
the cold water cistern sits on the joists in the
loft. If the distance between the bottom of the
cold water cistern and the highest point of the
system after the pump is 2 feet (610mm) or
less, it is also possible that a universal pump
will be required. Salamander’s universal range
of pumps activates the pump automatically
even where no natural flow exists.
Negative head is also needed for electric
showers, dishwashers, washing machines or
where pumped hot water meets mains cold.
Non-Return Valves
Non-return valves MUST NOT be fitted in the
discharge pipework between the pump outlets
and the system outlets unless specified by
Salamander Pumps
Pressure Vessel
BEFORE INSTALLATION OF YOUR NEGATIVE
HEAD PUMP - Fit the pressure vessel, if
packaged separate to the pump. Use the 1/2”
flat rubber washer in the 1/2” brass connection
on the top of the pump junction box. Screw the
pressure vessel into the connection hand tight.
Right pump universal
A Right universal twin for a bathroom in a loft
conversion.
Figure 8: Negative head
Please note
Right universal twin pumps to a whole house
system. In these systems TOILETS must be
fitted with equilibrium ball valve(s).
Fit an
equilibrium
ball valve
The hot
connection
must be via
an approved
side or top
Cold water storage
Outlet
Inlet
Outlet
HC
MAX

10
Typical Installations
Right Pump
Universal
Right pump universal to
shower columns or steam
shower cabinets
Figure 9: Right pump universal to a shower
column
Right pump universal to a shower cabinet.
Shower columns and steam shower cabinets in
larger whole house systems or systems with
multiple bathrooms will be best served by two
single-ended Right pump universal.
Single-ended Right pump
universal
The following systems are best accommodated
by using a single-ended Right pump universal
which is complete with a pressure vessel.
Right pump universal to boost tank fed
supplies to instantaneous electric showers and
water heaters.
Figure 10: Instantaneous electric showers and
water heaters
Vent and
other
services
Inlet
Best method is the no
stop Essex Flange with
an anti-gravity loop at
least 400mm in depth
Cold water storag e
HC
Air vents,
both hot
and cold
MAX
600mm or
less possible
negative head
Outlet
Outlet
Usable capacity
minimum 50 gallons
per bathroo m
600mm or
less possible
negative head
Usable capacity
minimum 50 gallons
per bathroom
C

11

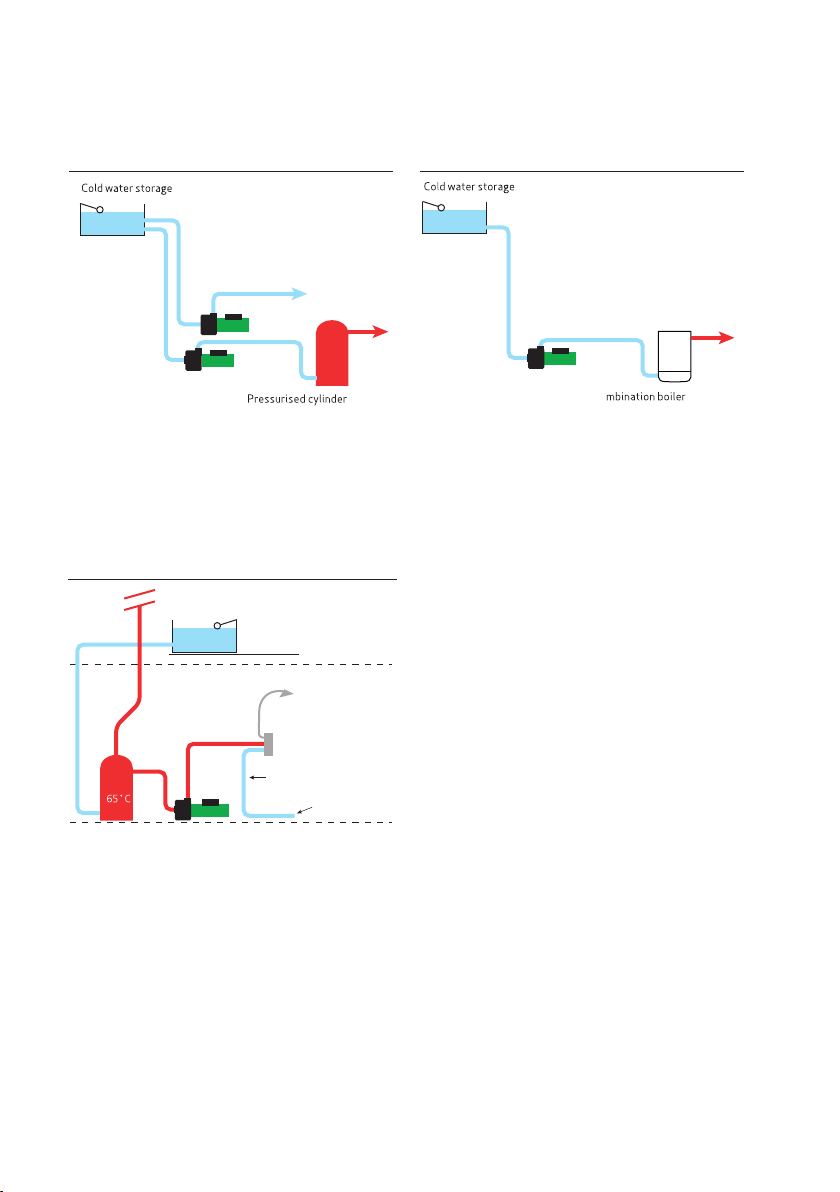

Figure 11: Pressurised cylinder or
Combination boiler system
Tank fed (hot) with cold water mains systems
MUST use Right pump universal.
Never use a single-ended Right Universal
pump after the shower valve or before an open
outlet.
Figure 12: Tank fed (hot) with mains cold
Please note, mains fed systems require
the use of a break tank, however, for a
more suitable alternative, please see the
Salamander MainsBoosting range.
Figure 13: Typical combi boiler system
C
C
Double action
non return valves
Incoming cold
water main s
Cold water storag e
H
MAX
Usable capacity
minimum 50 gallons
per bathroom
C
Co

12
Commissioning
Before you finish
FOR RIGHT PUMP UNIVERSALS, ENSURE
THAT THE PRESSURE VESSEL IS FITTED TO
THE BRASS CONNECTION ONTHE TOP OF
THE PUMP WITH THE ½” RUBBER WASHER
AND IS HAND TIGHT.
• Flush inlet pipework and carefully fill
pump with water by discharging water
from the outlet flexible coupler into a
container.
• Fit pump inlet filters.
It is CRITICAL to discharge water through
the pump into a container using natural flow
before connecting the pump to outlet pipework
in order to ensure the air has been discharged
from inlet pipework and pump chambers.
This will not happen if the outlet pipework is
connected to the pump. The best method is:-
• Connect discharge pipework.
• Check that all the pump isolating valves
are open.
• Fill system. Check for leaks.
• DO NOT RUN PUMP DRY – to do so will
cause irreparable damage to your pump
and will invalidate your warranty.
• Open shower mixer valve/system outlets
to maximum hot and cold to check the
natural flow (unpumped) flow of at least
2 litre per minute, individually on hot or
cold– positive head systems.
• Open hot water outlets fully for 5 to 6
seconds and then turn outlets off. Then
open cold water outlets fully for 5 to 6
seconds and turn outlets off. If flow is
poor and inconsistent repeat above steps
until flow is steady.
• Repeat 2-3 times.
MAX
HC
Figure 14

13
Helpful
Guidelines -
Cold Water Supplies and
Storage
Aeration of pump and
cylinder from a cold water
storage tank
This occurs when the incoming cold mains ball
valve is positioned above the cold feeds to the
cylinder and to the pump – aerated water is
drawn into the pump as illustrated.

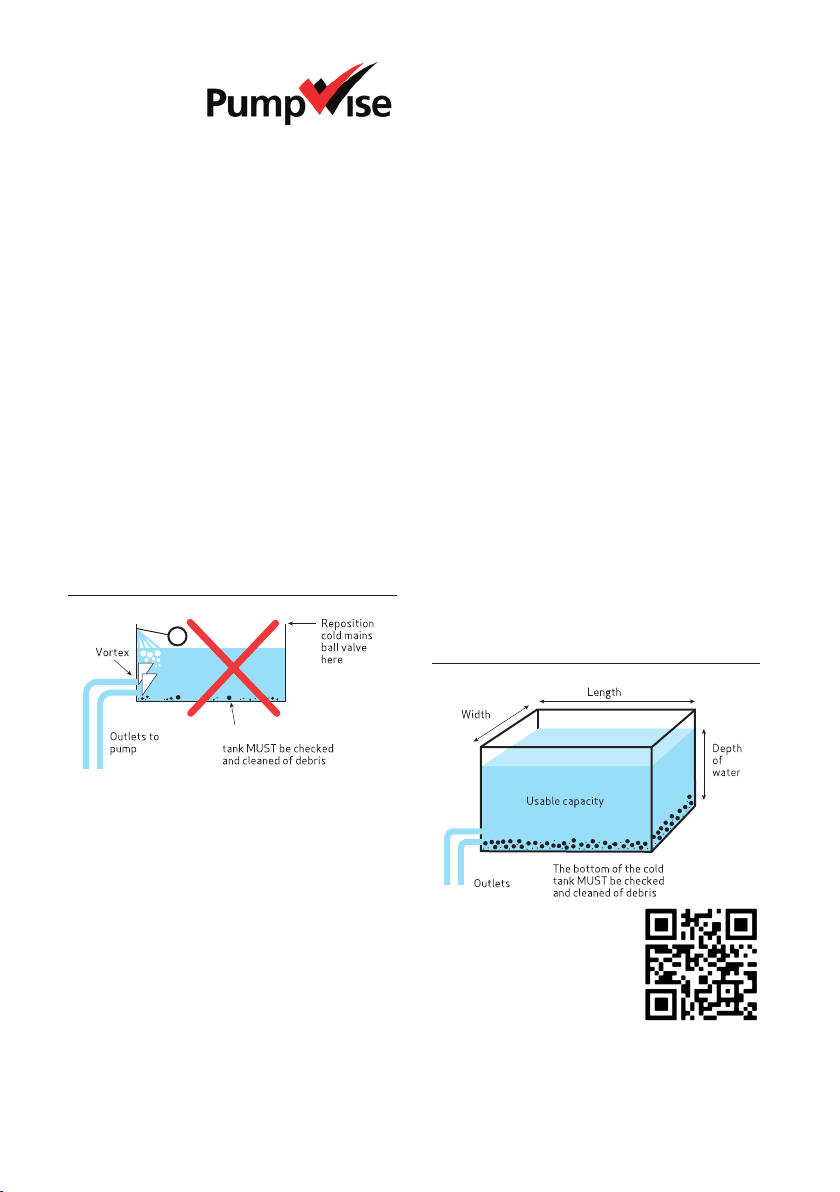

Figure 15: Aeration
Chronic aeration of the pump occurs when this
problem is combined with inadequate storage
capacity and/or when the volume of water
drawn by the pump and other services exceeds
the refill rate and creates a vortex which draws
air and possibly debris into the pump.
Cold storage usable capacity
The usable capacity of cold storage is easily
calculated as the capacity of water in the cold
tank above the cold feeds to the cylinder, the
pump and other outlets – see formula.
Formula for calculation on
rectangular tank:
Depth (15”) x width (23”) x length (36”)
= 12,420 cu inches
Volume cu inches (12,420) x 0.01639
= 203.56 litres
Volume litres (203.56) x 0.22
= 44.78 gallons.
Formula for calculation on
circular tank:
Depth (15”) x radius (17”) x radius (17”)
x 3.142 (Pi)
= 13,621 cu inches
Volume cu inches (13,621) x 0.01639
= 223 litres
Volume litres (223) x 0.22
= 49 gallons.
Figure 16
The bottom of the cold
Scan QR to learn more

14
Usable capacity
minimum 50 galls
per bathroom
Vent
and other
services
Salamander approved HWS TMV Blending
valve controller is factory set at 55 - 60°C
MAX
65°C
HWSTMV blending valve controller
A Salamander approved HWS Blending valve controller will protect booster pumps
in systems where the temperature of the stored hot water is uncontrolled or crudely
controlled via boiler thermostat only – see below.
Figure 17: HWS blending valve controller to pump

15
Helpful
Guidelines -
Water Starvation Protection,
Pipework Arrangements and
Stored Hot Water
Water starvation protection
In systems where it is absolutely not possible
to increase the usable cold water storage
capacity to meet the increased demand of a
pumped system; a water starvation protection
unit (WSP) may be considered.
The WSP is a Salamander level switch which
must be positioned 102mm higher than the
highest outlet from the cold water storage
tank. When the water level drops too far the
WSP will switch off the pump until the cold
water storage level is recovered.
Figure 18: Water starvation protection unit
(WSP)
Shower head size and
Pressure
The size of a shower head dictates the bar
pressure of the pump required to deliver the
expected performance of the shower.
Shower head diameter Bar pressure
Up to 75mm 1.5 bar (150 kPA)
75 -125mm 2.0 bar (200 kPA)
125 -150+mm 3.0 bar (250 kPA)

16
Figure 19: Anti-gravity loop (AGL)
Combi boilers and water
heaters
As these appliances are invariably supplied
directly from the cold mains – they are not
normally suitable for booster pumps. The
exceptions are featured on Page 11. However,
more suitable alternatives may be found in the
Salamander MainsBooster Range.
Figure 20: Combi boilers
Horizontal cylinders
As horizontal (torpedo) cylinders are
problematic for boosted systems consult
PumpWise for guidance and correct use of an
approved top entry flange.
Figure 21: Horizontal cylinders
Approved flanges (cylinders)
The 22mm No Stop Essex and the other
approved top entry flanges with extension
pipes into the cylinder represent the best
known means of ensuring minimal aeration of
the hot supply water to the pump. The No Stop
Essex flange is in all circumstances the best
option.
S flange
Complete with compression ‘pump’ and ‘open
vent’ connections. Also supplied with an
adaptor to connect to 1’’ ‘male’ and ‘female’ top
entry cylinders.
Figure 22: S flange
York flange
These may be used in systems where the hot
water requirement is less than 20 Litres per
minute.
Incoming
water main
C H
HOT WATER
CYLINDER

17

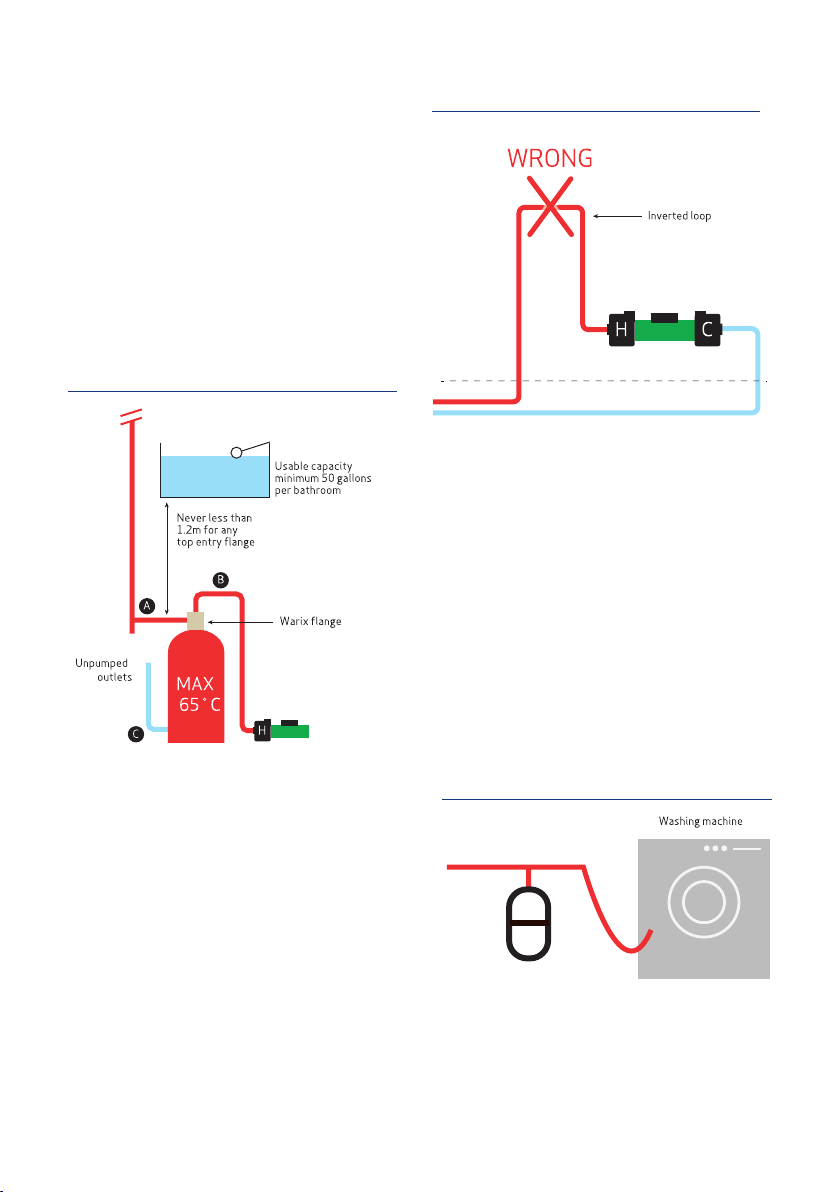

Warix flange see Figure 23
A. The Vent connection MUST be from side in
Warix Flange.
B. The supply connection to the pump MUST
BE FROM THETOP of the Warix Flange via a
22mm compression elbow and thereby avoid
inverted loops.
C. In systems where there are one bathroom
and an en-suite shower. Or two or more
bathrooms the cold feed to the cylinder should
ideally be in 28mm pipework.
Figure 23: Warix Flange
Inverted loops
An inverted loop in the supply pipe-work
to the pump, particularly on the hot side as
illustrated; is likely to:
• Interfere with the initiation and smooth
operation of the pump.
• Restrict the supply water to the pump and
risk internal mechanical damage
Figure 24: Inverted loops
Water hammer protection
Water hammer most commonly occurs in
systems where there are long pipe runs
supplying solenoid activated appliances
e.g. washing machines or outlets with quick
acting/turn taps/ valve(s).The harmful
effect of water hammer shock waves can be
cushioned by fitting a pressure vessel unit,
into the supply pipework as close as possible
to the outlet from which the shock waves are
originating.
Figure 25: Water hammer protection
Pressure vessel

18
Pump hunting protection
In negative head systems all the discharge
pipework after the pump is pressurised. In
such systems there exists the possibility the
pump will hunt ON-OFF-ON etc. at intervals.
This will happen:
• If all outlets are not fully closed
• If there is a leak at a connection
• If boosted toilets are not fitted with
equilibrium ball valves
• Or as residual hot water contracts in long
pipe runs.
The irritating effects of hunting are cushioned
by the pressure vessel which is an inbuilt
feature of the Right pump universal range.
Stored hot water volume
In calculating the volume of the stored hot
water requirement it is important to consider:
• Number of bathrooms, with particular
attention to the size of the bath
• Number of persons in household
• Time spent in shower e.g. 10mins in
a 5 gall/minute shower will use up 50
galls/227 Litres of the cold water storage
capacity approx 60% of which (30
gallons/136 Litres) will be hot water from
the cylinder.
Stored hot water
temperature
Extract from BS5546:2010 (Current)
“The mean temperature of the stored water
should not normally exceed 60°C and in a
combined central heating and domestic
hot water system it is recommended that
the stored water temperature is controlled
independently from that on the primary
circuit”.
Effective control of stored hot water is simply
achieved by use of a cylinder thermostat and
zone valve or direct acting thermostatic valve
(e.g. tapstat).
In systems where the stored hot water
temperature is not controlled eg Aga solid
fuel appliance or very crudely by the boiler
thermostat, use a HWS Blending valve
controller.
HWS Blending valve
controller
The HWS Blending valve controller is designed
to protect booster pumps in systems where
the temperature of the stored hot water is
uncontrolled. (Figure 17, P14)

19
General
Specifications
Applications
All Salamander pumps are designed to boost
low pressure hot and cold supplies from tank-
fed services.
Voltage
220-240 volts 50 Hz.
Motor type
Capacitor start and run induction type motor
with stainless steel shaft and in-built resetting
thermal protection (complies with BS5000
part 11).
Pump materials
All moulded components are manufactured
from Acetal Copolymer.
Maximum head
RP 50 TU and RP 55 SU 5 metres
All other pumps 10 metres
Pumps fitted with RCM3 maximum 3 metres
static head.
Pump noise
With the technological advances achieved in
the Right pump range, Salamander has taken
another step forward in the quest to supply all
our customers with even quieter centrifugal
pumps. Despite this no pump is completely
silent.
Correct installation will minimise vibration and
transmission noise.
WRAS Approval
Salamander Pumps’ Right Pump range is fully
WRAS approved.
Mechanical seals
Scale deposits in water supplies can cause the
mechanical seal to stick if left for long periods
without use. We recommend the Right pump
positive is ran at least five minutes every four
weeks to ‘exercise’ all working parts.
Connections
3⁄4” BSP male.
Initiation
Fully automatic, flow switch operated,
requiring 1 litre in 30 sec per side or
2 litre in 30 sec mixed, except the Right pump
universal range when required to operate in
negative head mode.
Temperature
Maximum fluid temperature 65ºC.
Minimum fluid temperature 5ºC.
Standards and approvals
Splash proof rating IPX3.
Complies with the requirements of
current UK Regulations (UKCA) and
European Comunity Directives (CE) safety
standards for household and similar
electrical appliances.
The company operates a policy of continuous
development and reserves the right to change
any of the specifications of its products
without prior notice. All information data and
illustrations given in this leaflet may be subject
to variation.

20
Pump Model RP50PT RP75PT RP100PT
General Guarantee 3 Years
Features Pump Type Centrifugal
Mechanical Seal PTFE/EDPM Rubber/Aluminium Oxide
Inlet Isolator(s)
✔✔✔
Flexible Hoses 4 4 4
Performance Pressure @ 16lpm (8lpm for
singles) 1.2 Bar 1.9 Bar 2.65 Bar
Pressure @ 8lpm (4lpm for
singles) 1.35 Bar 2.1 Bar 2.85 Bar
Pressure @ Closed head 1.5 Bar 2.2 Bar 3.0 Bar
Maximum Water
Temperature 65°C
Connections Pump Connections 3/4” BSP
Flexible hoses Connections (UK Model)
Isolating valves on all hoses
¾” Female x 15mm
Push-Fit ¾” Female x 22mm Push-Fit
Motor Type A.C Induction Motor
Duty Rating Continuously Rated
Elecrical Power supply 230 V
Current (full load) 1.40 Amps 2.70 Amps 4.60 Amps
Power consumption 325 Watts 630 Watts 1045 Watts
Fuse rating 3 Amps 5 Amps
Power cable (pre-wired) 1.5 metres
Physical Enclosed Protection (IP
Rating) IPX3
Length 270mm 331mm 415mm
Width 148mm
Height (Excluding hoses) 161mm 170mm
Weight (Excluding hoses) 4.82kg 6.03kg 9.06kg
