Salus RX10RF User manual

INSTALLER / USER MANUAL
Wireless Receiver Unit
Models: RX10RF
www.salus-controls.com
SALUS Controls plc
SALUS House
Dodworth Business Park South,
Whinby Road,
Dodworth, Barnsley S75 3SP, UK.
SALES: T: +44 0 1226 323961
E: [email protected]
TECHNICAL: T: +44 0 1226 323961
E: [email protected]
For PDF Installation guide please go to
www.salus-controls.com
Maintaining a policy of continuous product development SALUS
Controls plc reserve the right to change specication, design and
materials of products listed in this brochure without prior notice.
SALUS Controls is a member of the Computime Group
00086/2 Issue Date: June 2014
SALUS Controls warrants that this product will be free from any defect in materials or workmanship,
and shall perform in accordance with its specication, for a period of ve years from the date of
installation. SALUS Controls sole liability for breach of this warranty will be (at its option) to repair
or replace the defective product.
Customer Name: ..........................................................................................................
Customer Address: .......................................................................................................
................................................................ Post Code: ...................................................
Tel No: .................................................... Email: ..........................................................
Engineers Company: ....................................................................................................
Tel No: .................................................... Email: ..........................................................
Instalation Date: ..........................................................................................................
Engineers Name: .........................................................................................................
Engineers Signature: ...................................................................................................
WARRANTY
COM NO
LN
Live supply
230VAC50Hz
}
Boiler Out
Live
Boiler In
COM NO
LN
Live supply
230VAC50Hz
Live supply
230VAC50Hz
*Remove the link (if applicable)
LLNESL
}
L
L
N
E
SL

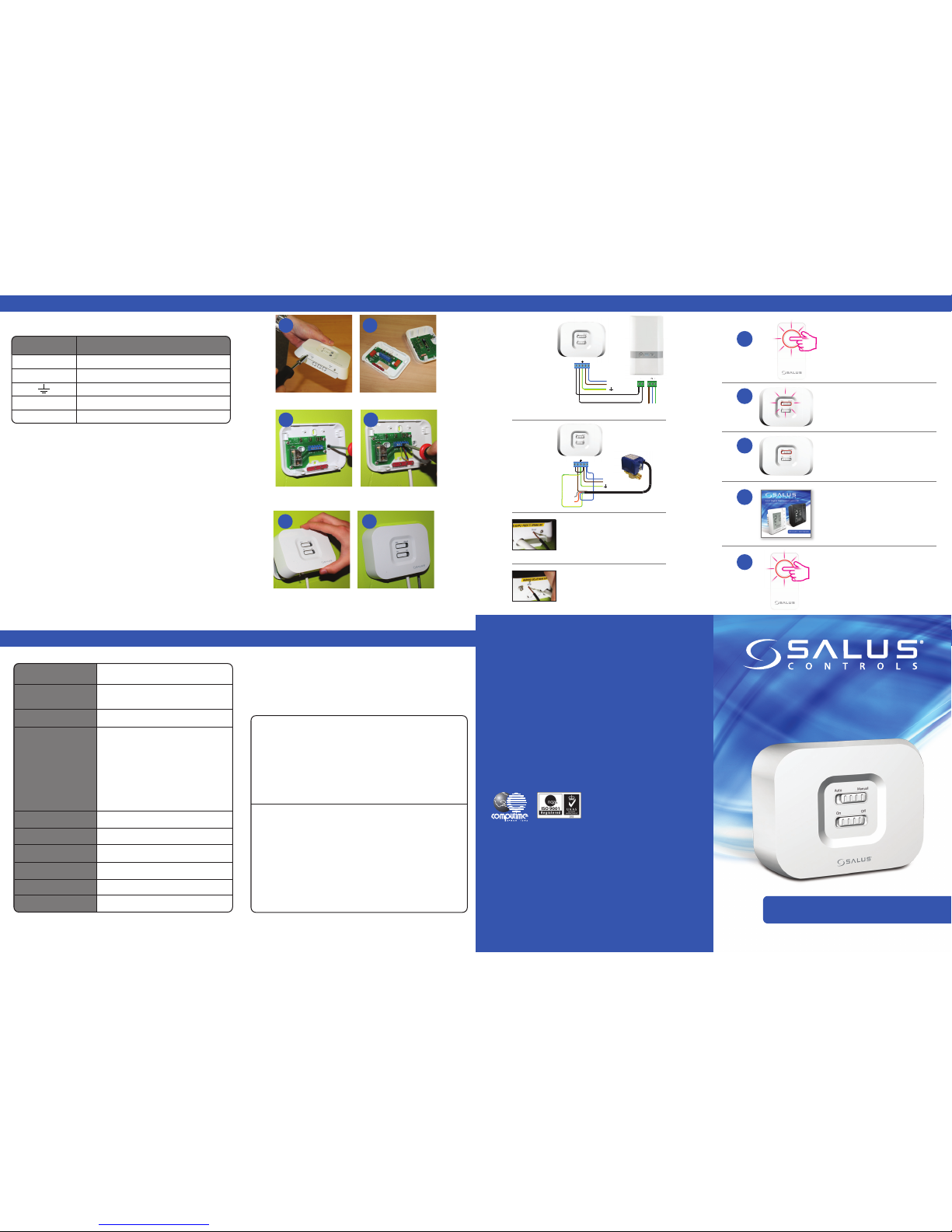

TECHNICAL DETAIL
INSTALLATION
Model RX10RF
Type Wired system receiver designed for
230VAC heating applications
Control ON-OFF control
Environment Ratings
Operating Temperature 0 ºC to +50 ºC
Storage Temperature -20 ºC to +60 ºC
Operating Humidity 5-95 %RH
Switch Voltage 0-230VAC 16AMP
Power Source 230Vac 50Hz
User Interface Slide switch, Bi Colour LED, RED/GREEN
Operating Temperature 0 to 50 ºC
Storage Temperature -20ºC to 60ºC
Frequency 2.4 GHz
Approval CE
Terminal Function
COM Common Contact (volt free input)
NO Normally Open Contact (volt free output)
Earth Parking
LIncoming Mains - Live
NIncoming Mains - Neutral
Wire up the receiver using
one of the schematics*.
Clip the front of the unit back on by aligning the
ttings and pushing into place.
Securely screw the front of the receiver in place.
4
5
1
2
3
4
5
6
Loosen the screws at the bottom of the receiver unit. Unclip the front of the unit.
Fit the back of the receiver unit to the wall
using the ttings supplied.
1 2
3
Ensure Coordinator is powered
up and ready for pairing.
Power up the receiver.
The red light will ash.
When the receiver has successfully
joined the Zigbee network, the red
LED will go steady.
Please refer toVS10/VS20RF
manual for system pairing.
Once your system setup is complete,
remember to take the coordinator
out of pairing mode.
Reset Button
If for any reason the system receiver
stops operating, press reset and check
system operation.
*Congured
as RX2
*Congured
as RX1
Replacing the System Receiver
If for any reason the system receiver
needs to be removed/replaced, press the
delete from network.
Electrical Connection Schematics Power Up
The RX10RF Receiver should be mounted in a suitable location that is both accessible
for the connection of mains and control wiring, and allows good reception of the RF
signal. The Receiver needs a 230V AC mains supply to operate, and this should be
fused appropriately (16A max.).
The Receiver should be mounted in a location where it will not come into contact with
water, moisture or condensation.There are few electrical connections required to the
RX10RF, and these connections should be made to the terminal block inside the
Receiver. No Earth connection is required for the correct and safe operation of the
RX10RF, but a parking terminal is provided to connect an Earth wire if one is present.

BOX CONTENTS, COMPLIANCE & SAFETY INFORMATION
SYSTEM OVERVIEW  IT600 SYSTEM CONFIGURED AS RX1 SYSTEM OVERVIEW  IT600 SYSTEM CONFIGURED AS RX2
SYSTEM OVERVIEW
INSTALLER / USER MANUAL
Wireless Receiver Unit
Models: RX10RF
1 x Installer / User manual
Boiler Receiver x 1
2 x Screws
& 2 x Wall Plugs
For PDF Installation guide please go to www.salus-controls.com
230V AC
Warning
Always isolate the AC Mains supply before installing or working on any components that
require 230VAC 50Hz supply.
Sources of danger
The RX10RF must be disconnected from mains supply before removing the cover.
Emergency
Switch o the voltage to the individual thermostat wring centre or complete system.
Warning
This product must be tted by a competent person, and installation must comply with
the guidance, standards and regulations applicable to the city, country or state where
the product is installed. Failure to comply with the requirements of the relevant guidance,
standards and regulations could lead to injury, death or prosecution.
INTRODUCTION
Thank you for purchasing the SALUS RX10RF system receiver. This unit is designed to work with
iT600 range of Zigbee network products.
The RX10RF can be congured as remote boiler switch or a simple single channel output to
control, a thermal actuator or zone valve. Please note the two conguratons above can be used
together in the one system.
These instructions are applicable to the SALUS model stated on the front cover of this manual only.
Product Compliance
This product is CE compliant and meets the
following EC Directives Electro-Magnetic Compatibility directive 2004/108/EC
Low voltage Directive 2006/95/EC.
The unit can be switched internally switched to be used on two channels, RX1
(boiler receiver) or RX2 (single room receiver). Ensure the unit is not powered
during setting of the RX1/RX2 slide switch.
The unit is supplied with the switch in the RX1 position (Boiler
Receiver). In this mode, the unit can be wired to the boiler to
switch it on or o using the wireless signals it receives other
SALUS products on the SALUS Zigbee network
With the unit switched to RX2, the unit will act as a single room receiver. Switching
of the unit will be controlled by a paired SALUS VS10/20RFThermostat. Depending
on its intended use, the unit can be used to switch a motorised valve, thermal
actuator or pump.
As well as being used in this way, the RX2 can be used in
conjunction with another unit set up as an RX1 (Boiler
receiver).When there is a call for heat from the thermostat
paired to the RX2 both of the wireless receivers will operate
turning on both the boiler and the motorised valve / pump.
NB: Only 1 RX1 and 1 RX2 can be used as part of a network.
*System Receiver congured
to boiler receiver. RX1
RX10RF congured
as Boiler Receiver RX1.
**System Receiver congured
to one room receiver RX2.
Max 3 TRV per thermostat
RX1
UNDERFLOORHEATING MANIFOLD
System Receiver congured to boiler receiver RX1.
Refer to reverse side for wiring.
System receiver congured as stand alone receiver
RX2. Refer to reverse side for wiring.
RX1 & RX2 RECEIVER CONFIGURATION
The receiver can be congured as a Boiler Receiver (RX1) where
it will react to signals from a large number of components such
as SALUS wireless wiring centres, wireless thermostats used
with SALUS wireless radiator valves as well as another receiver
congured as a Stand Alone receiver (RX2).
RX10RFX Congured
as Stand Alone
receiver RX2.
1
2
3
4
User InterfaceiT600 System
AUTO – System receiver output will
switch on and o in relation to the
command from the iT600 transmitter.
The bottom slide switch in active
RED led only in AUTO means that there
is no output from the receiver.
RED and Green LED only in AUTO
means that there is an output from the
receiver. The device that the receiver is
connected to will be switched on.
Manual- system receiver output is
controlled by the bottom slide switch.
Either permenetly ON or OFF. The LED
status in manual is the same as AUTO.
VS10/20RF
RX10RF*
CO10RF
RX10RF**
VS10/20RF
KL10RF
