BTRP230V(50) THERMOSTAT - FULL USER MANUAL

TABLE OF CONTENTS
1. Introduction...............................................................................................................................................................4
1.1 Product Compliance ......................................................................................................................................................................4
1.2 Safety Informations.......................................................................................................................................................................4
1.3 Product Overview..........................................................................................................................................................................5
2. Montage ....................................................................................................................................................................6
2.1 Package content............................................................................................................................................................................6
2.2 Proper thermostat location ...........................................................................................................................................................6
2.3 Connection description..................................................................................................................................................................7
I A - 4 wire installation with KL08NSB wiring centre.............................................................................................................8
I B - 4 wire installation with KL06 wiring centre.................................................................................................................10
II - 3 wire installation with KL08NSB wiring centre ............................................................................................................12
III A - work with RM-16A relay module - volt-free heating source control..........................................................................14
III B - work with RM-16A relay module - connection to a solid fuel boiler controller..........................................................14
III C - work with RM-16A relay module - connecting an electrical device with a higher power ..........................................15
3. Before you start (rst power up) ................................................................................................................................16

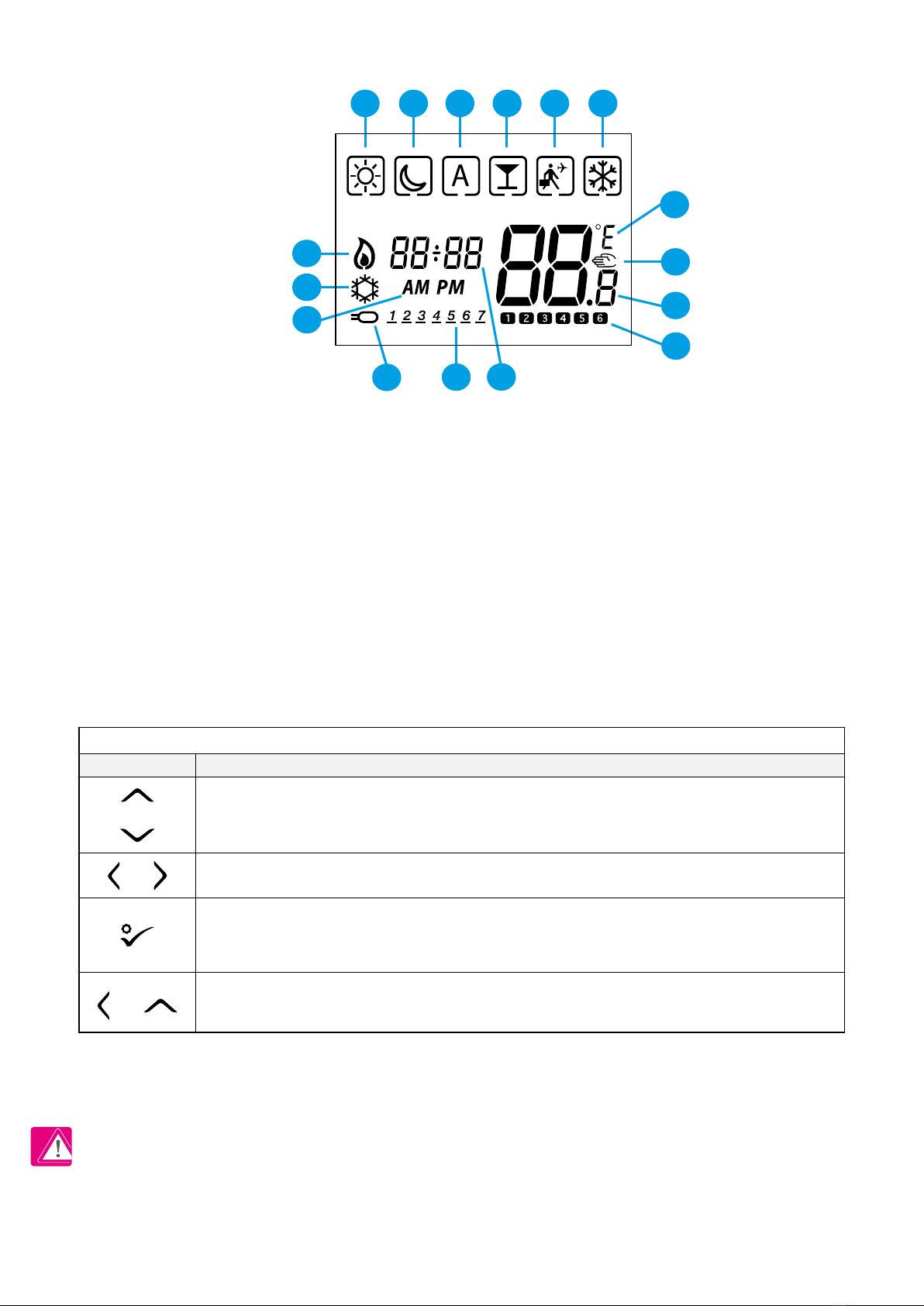

3.1 LCD icon description ....................................................................................................................................................................16
3.2 Button description.......................................................................................................................................................................16
3.3 First power up sequence..............................................................................................................................................................17
4. Work modes..............................................................................................................................................................18
5. User settings (basic settings) .....................................................................................................................................19
5.1 Schedule mode - programming schedule....................................................................................................................................19
5.2Time/Date ...................................................................................................................................................................................22
5.3 Thermostat calibration ................................................................................................................................................................23
5.4 Heat/cool mode change..............................................................................................................................................................24
6. Installer parameters .................................................................................................................................................25
7. Factory Reset............................................................................................................................................................27
8. Cleaning and Maintenance ........................................................................................................................................28
9. Technical Informations..............................................................................................................................................28
10. Warranty................................................................................................................................................................29

4
This product complies with the essential requirements and other relevant provisions of Directives 2014/53/EU and 2011/65/EU. The full text of the EU
Declaration of Conformity is available at the following internet address: www.saluslegal.com.
• Before starting installation work and before using the product, read the entire manual.
•The information contained in the instructions is essential for proper functioning.
•To avoid accidents resulting in personal injury and material damage, please follow all safety precautions, specied in this manual.
• The device should not be used by people with limited mental, sensory or mental abilities, without experience, of insucient knowledge as well as
children.
• Do not use an unassembled device (eg without a cover).
•The device may only be opened by a qualied person.
• Keep electrical devices out of the reach of children and ensure that they do not play with it. Children should not be left unattended. If necessary,
disconnect the control system for the entire room.
• Do not leave the packaging, cabinet, or any loose parts of the device unattended, as they pose a risk to children.
WARNING!
• Installation must be carried out by a qualied person with appropriate electrical qualications in accordance with standards and regulations in force in
the given country and in the EU.
• Never try to connect the device other than as described in the manual.
• Before assembly, repair or maintenance as well as during any connection works it is absolutely necessary disconnect the mains supply and make sure
that the terminals and electric wires are not live.
•The device may not be exposed to extreme temperatures, strong vibrations or subjected to mechanical shock.
• The device should not be used in unfavorable environmental conditions or in rooms where there is a concentration of ammable gases, fumes or dust.
WARNING!
•There may be additional protection requirements for the entire installation that the installer is responsible for maintaining.
1. Introduction
1.1 Product Compliance
1.2 Safety Informations
Care for the natural environment is of paramount importance to us.The awareness that we manufacture electronic devices obliges us
to dispose of used electronic components and devices safely.Therefore the company has received a registration number issued by the
ChiefInspectorfor EnvironmentalProtection.The crossed out symbolthe trashcan onthe product meansthat the product must notbe
disposed of with ordinary waste containers. Sorting waste for recycling helps to protect the environment. It is the user’s responsibility
to surrender used equipment to a designated collection point for recycling waste from electrical and electronic equipment.

5
The BTRP230V(50) from SALUS Controls is a stylish and accurate 5/2 or 24h programmable electronic thermostat with a large, easy to read Liquid Crystal
Display (LCD). It is ush-mounted (in a 55 mm frame) temperature controller dedicated for surface heating / cooling, characterized by high thermal
inertia. It is connected to the wired wiring centre KL08NSB. Thermostat has the function of creating your own schedules. It can control group (SLAVE)
thermostats - via wiring centre it sends them an NSB (nighttime temperature reduction) signal and switches them to economic temperature. The time
schedule is common to all thermostats (according to weekly (MASTER) thermostat), but temperatures are set individually on each thermostat.
The programmable room thermostat BTRP230V(50) is both a programmer and a room thermostat. A programmer allows you to set‘ON’and‘OFF’time
periodsto suit yourownlifestyle.A room thermostatworksbysensing the airtemperature,switching on theheatingwhen theair temperature fallsbelow
the thermostat setting and switching it o once this set temperature has been reached.
So, a programmable room thermostat lets you choose what times you want the heating to be on, and what temperature it should reach while it is on.
It will allow you to select dierent temperatures in your home at dierent times of the day (and days of the week) to meet your particular needs.
Turning a programmable room thermostat to a higher setting will not make the room heat up any faster. How quickly the room heats up depends on the
design of the heating system, for example, the size of boiler. Neither does the setting aect how quickly the room cools down.Turning a programmable
room thermostat to a lower setting will result in the room being controlled at a lower temperature, and saves energy.
The way to set and use your programmable room thermostat is to nd the lowest temperature settings that you are comfortable with at the dierent
times you have chosen, and then leave it alone to do its job.The best way to do this is to set low temperatures rst, say 18°C, and then turn them up by one
degree each day until you are comfortable with the temperatures.You won’t have to adjust the thermostat further. Any adjustments above these settings
will waste energy and cost you more money.
PRODUCT ADVANTAGES:
• absolutely silent operation (TRIAC)
• has a PWM control algorithm
• protection against too high or too low temperature using an additional FS300 oor sensor
• protection of thermostatic valves against stagnation (VP)
• an input for the additional temperature sensor
• has frost protection mode
• mounting in a φ 60 mm wall box
1.3 Product Overview

6
2. Montage
2.1 Package content
1) BTRP230V(50) thermostat
2) Short instruction
3) Mounting screws
2.2 Proper thermostat location
Please note:
Wall mounting
Mounting: to mount thermostat you can use accesories included with the set (mounting screws). Remove back housing to mount it to the wall box. After
attachement put together front and back housing.
The ideal position to thermostat mounting is about 1,5m under oor level far from heating or cooling sources.
Thermostat can’t be exposed to sunlight or any extreme conditions like for example draft.
Because of re and explosion risk there is not allowed to use thermostat in atmosphere of explosive gases and ammable liquids (eg coal dust). In case
if any of listed dangers occur you have to use additional protection measures – anti-dust and explosive gases (tight cover) or prevent their formation.
Furthermore, thermostat can’t be used in condensation of water vapor conditions and be exposed to water action.
12
3
56
1 2 34
Make sure that wires are not connected to 230V. Then connect the
thermostat. Please refer to 2.3 chapter - Connection Description.
Mount the thermostat like in the pictures above
(use designed holes for screws).
Install the decorative frame and then slide the front of the thermostat
onto its back.The thermostat is ready to work.You can set the desired
temperature with the buttons.

7
L, N - power supply 230V
- NSB - Night temperature reduction
(230V output)
-SL - 230V AC output signal
CO - Switching jumper between heating and
cooling (input 230V AC)
S1, N - additional temperature sensor
eg. FS300
2.3 Connection description
Wejście NSB
w regulatorze SLAVE
BTRP 230 KL08 NSB
L
S1
N
N
CO
L
SL
N
BTRP 230
Wyjście NSB
L
N
S1
N
CO
L
AC 230V
N
T30NC
/
NSB input in
SLAVE thermostat
NSB output
Legend:
Thermal actuator
Temperature sensor
Symbols explanation:
T

8

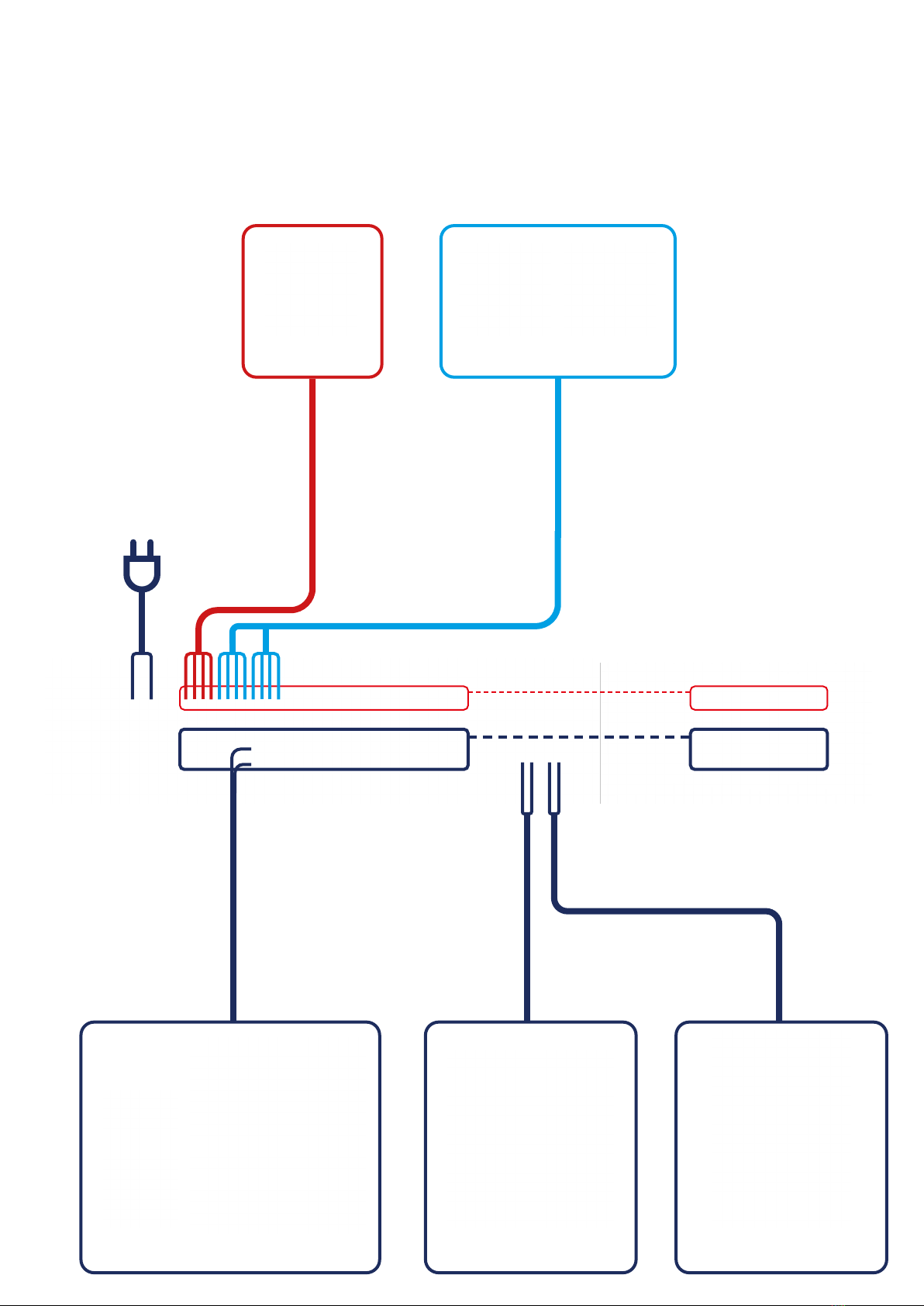

THB23030 PUMP (optional)T30NC230 BOILER
4 wires x 0.75 mm
4 wires x 0.75 mm
Power Supply
230V AC
Actuators wires
2 x 0.75 mm Pump control wires 2 x 1 mm Boiler control wires 2 x 1 mm
KL08NSB KL04NSB (optional)
SLAVEMASTER
BTRP230(50) BTR230(20)BTR230(20)

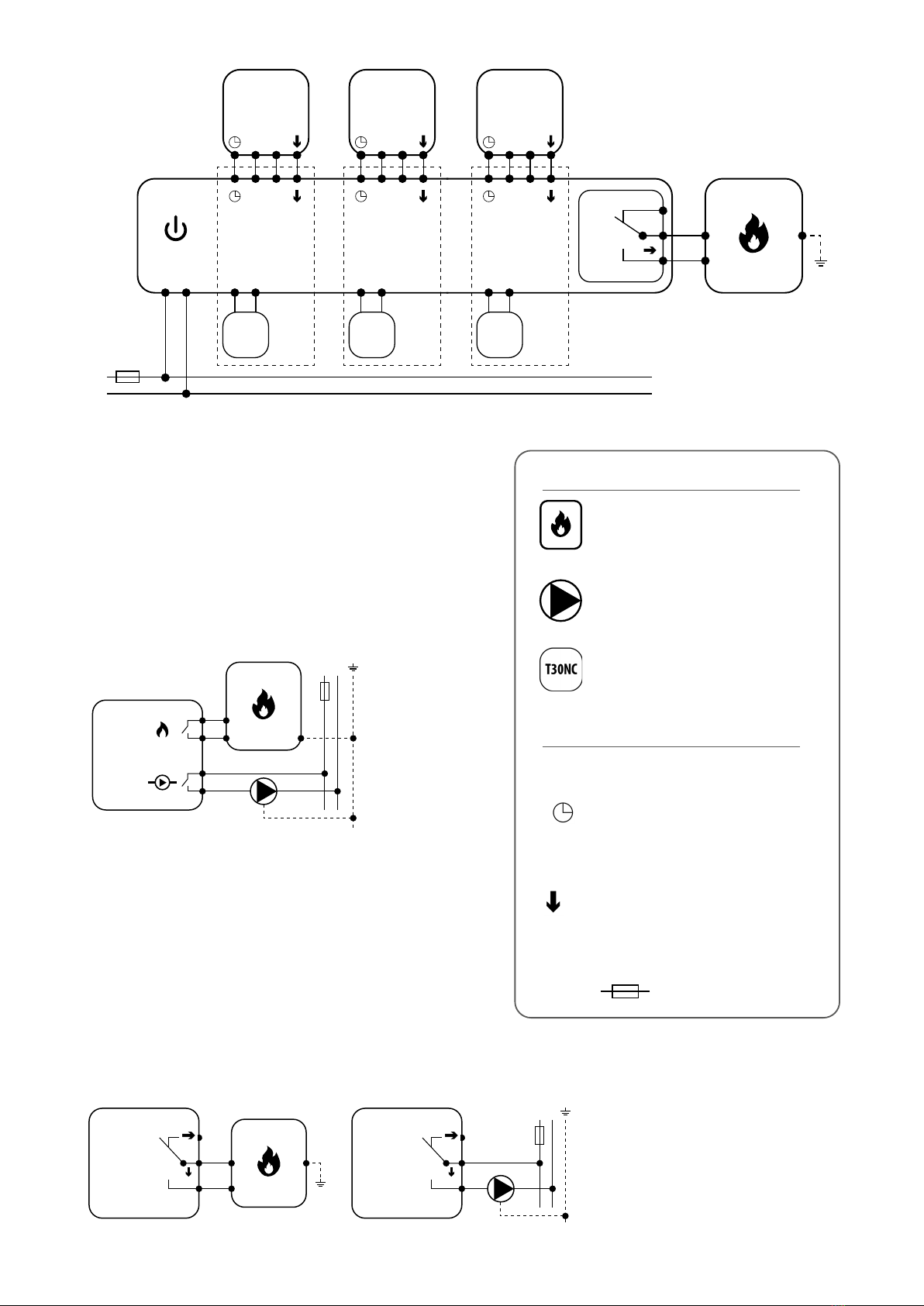

I A - 4 wire installation with KL08NSB wiring centre
When BTRP230V(50) thermostat works as a MASTER (group controller) it means it takes control of SLAVE thermostats e.g. BTR230V(20). MASTER
thermostat controls SLAVE thermostat only when SLAVE thermostat is in AUTO mode. Comfort (SUN) and economy (MOON) setpoint temperatures are set
individually on each thermostat but switching between those temperature is based on time schedule taken from BTRP230(50) thermostat which works
like a group controller. Functions such as: setpoint temperature change, holiday mode, party mode or frost protection mode are not managed by MASTER
thermostat.

9
SLAVEMASTER
L
AC 230V
L
N
N
1 - 8 Strefy 1 - 8 Strefy 1 - 8 Strefy
KL08NSB
Pump BoilerPower
L N
SL
T30NC
L N
SL
T30NC
L N
SL
T30NC
lu ub
VS30 RT200 RT520
L L L
L
or or
L
1 2 BOILER CONNECTION*
1-8 Zones1-8 Zones1-8 Zones
3 4
N N N
N N
N
L
max 6
per zone max 6 per zone max 6 per zone
BTRP230V(50) BTR230V(20) BTR230V(20)
L, N - power supply 230V
- NSB - Night temperature reduction
(230V output - in MASTER thermostat)
(230V input - in SLAVE thermostat)
-SL - 230V AC actuator control signal
- fuse
Legend:
Symbols explanation:
Thermal actuator
Pump
Boiler - Boiler connection* - Boiler’s
contacts for ON/OFF thermostat
(according to the boiler’s instructions)

10
I B - 4 wire installation with KL06 wiring centre
THB23030T30NC230
Power Supply
230V AC
Actuators wires
2 x 0.75 mm Pump control wires 2 x 1 mm Boiler control wires 2 x 1 mm
KL06 PL07 PL06
PUMP (optional) BOILER
4 wires x 0.75 mm
4 wires x 0.75 mm
SLAVEMASTER
BTRP230(50) BTR230(20)BTR230(20)
