Salus VS35W User manual

VS35W/VS35B THERMOSTAT - FULL USER MANUAL

TABLE OF CONTENTS
1. Introduction...............................................................................................................................................................4
1.1 Product Compliance ......................................................................................................................................................................4
1.2 Safety Informations.......................................................................................................................................................................4
1.3 Product Overview..........................................................................................................................................................................5
2. Montage ....................................................................................................................................................................6
2.1 Package content............................................................................................................................................................................6
2.2 Proper thermostat location ...........................................................................................................................................................6
2.3Wall mounting ..............................................................................................................................................................................6
2.4 Connection description..................................................................................................................................................................7
I A - 4 wire installation with KL08NSB wiring centre.............................................................................................................8
I B - 4 wire installation with KL06 wiring centre.................................................................................................................10
II - 3 wire installation with KL08NSB wiring centre ............................................................................................................12
III A - work with RM-16A relay module - heating source control ........................................................................................14
III B - work with RM-16A relay module - connection to a solid fuel boiler controller..........................................................14
III C - work with RM-16A relay module - connecting an electrical device with a higher power ..........................................15
3. Before you start (rst power up) ................................................................................................................................16

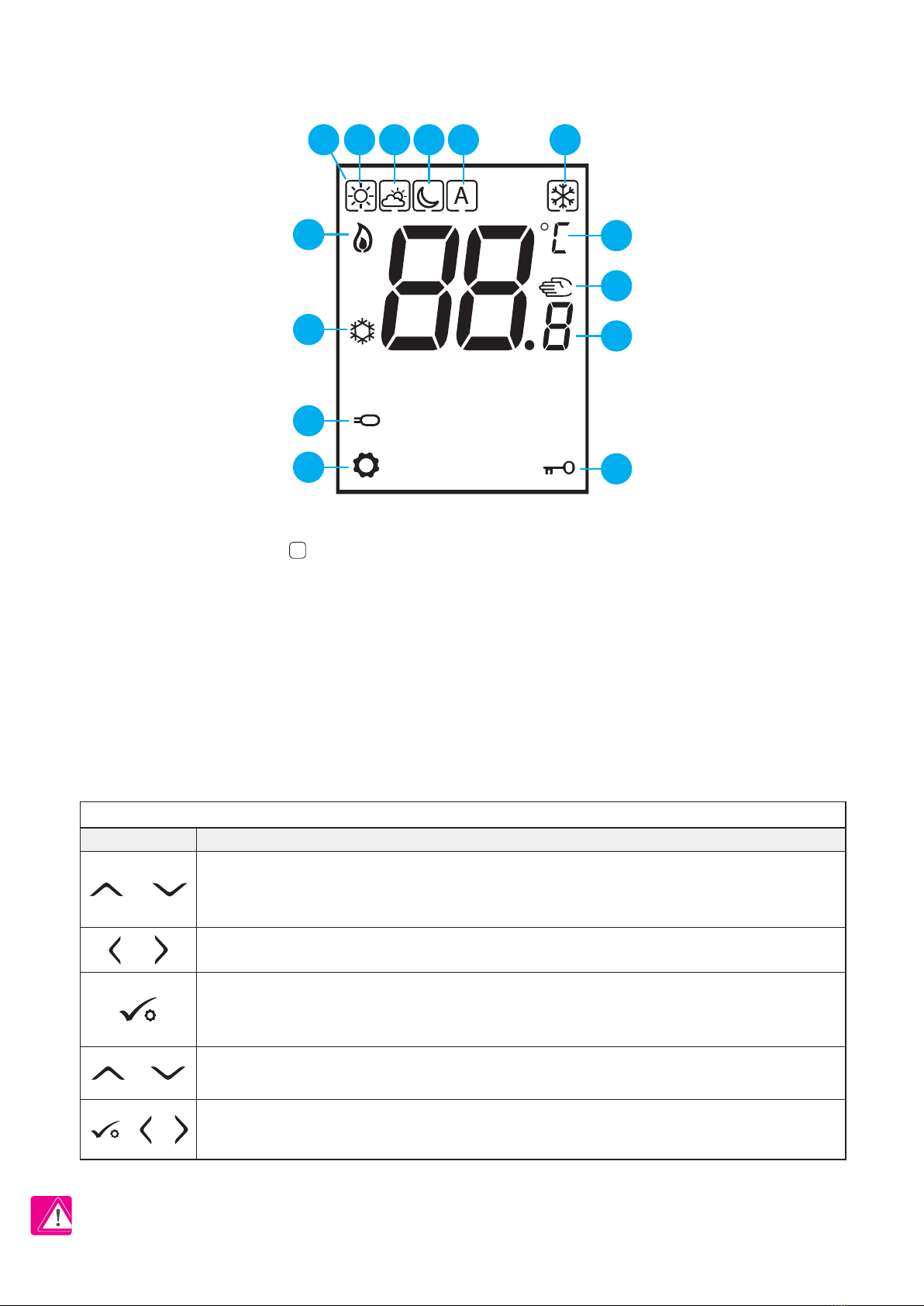

3.1 LCD icon description ....................................................................................................................................................................16
3.2 Button description.......................................................................................................................................................................16
3.3 First power up sequence..............................................................................................................................................................17
4. Work modes..............................................................................................................................................................18
5. User settings (basic settings) .....................................................................................................................................19

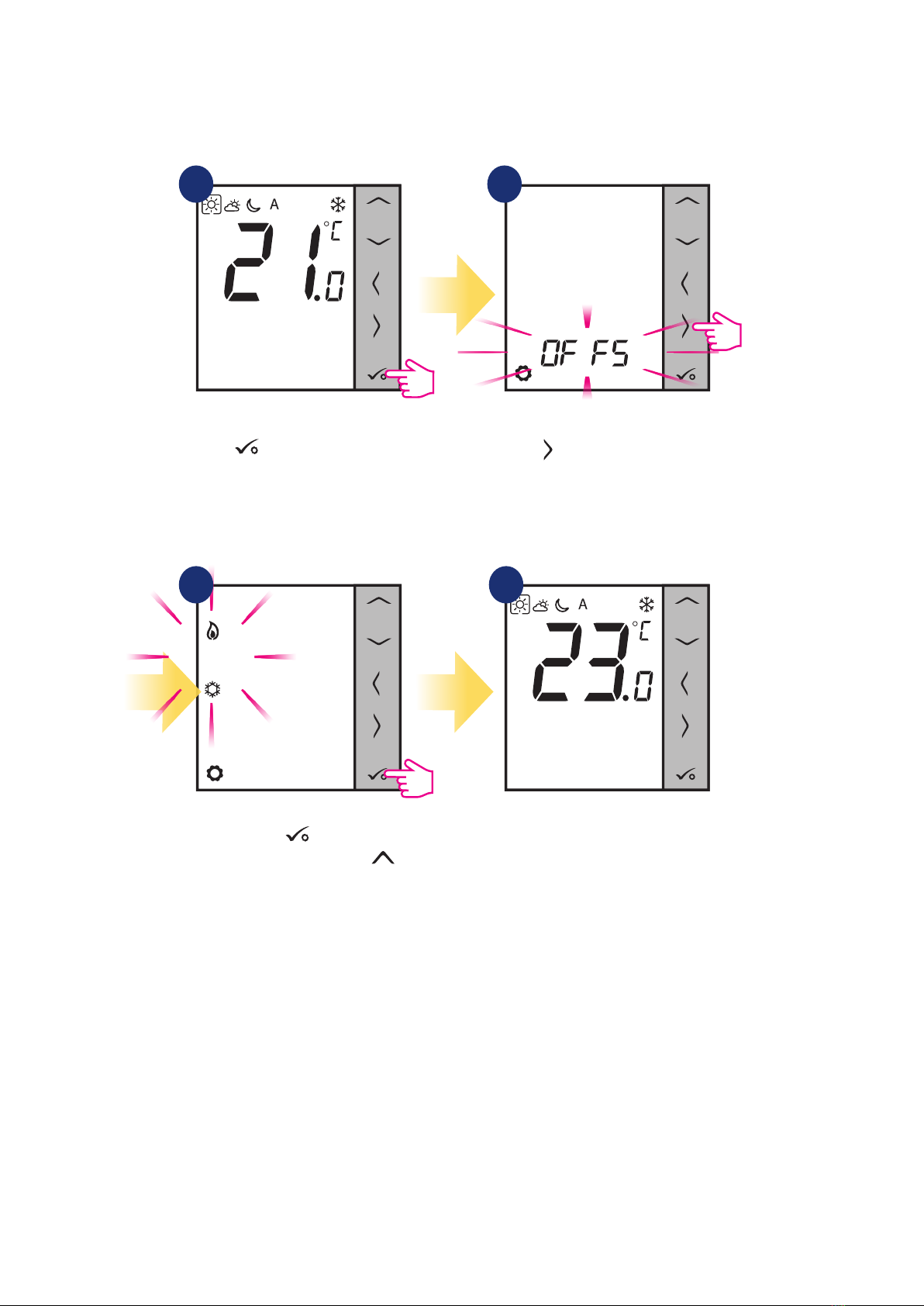

5.1 Thermostat calibration ................................................................................................................................................................19
5.2 Heat/cool mode change..............................................................................................................................................................20
6. Installer parameters .................................................................................................................................................21
7. Factory Reset............................................................................................................................................................23
8. Error codes ...............................................................................................................................................................24
9. Cleaning and Maintenance ........................................................................................................................................25
10. Technical Informations............................................................................................................................................25
11. Warranty................................................................................................................................................................26

4
This product complies with the essential requirements and other relevant provisions of Directives 2014/53/EU and 2011/65/EU. The full text of the EU
Declaration of Conformity is available at the following internet address: www.saluslegal.com.
• Before starting installation work and before using the product, read the entire manual.
•The information contained in the instructions is essential for proper functioning.
•To avoid accidents resulting in personal injury and material damage, please follow all safety precautions, specied in this manual.
• The device should not be used by people with limited mental, sensory or mental abilities, without experience, of insucient knowledge as well as
children.
• Do not use an unassembled device (eg without a cover).
•The device may only be opened by a qualied person.
• Keep electrical devices out of the reach of children and ensure that they do not play with it. Children should not be left unattended. If necessary,
disconnect the control system for the entire room.
• Do not leave the packaging, cabinet, or any loose parts of the device unattended, as they pose a risk to children.
WARNING!
• Installation must be carried out by a qualied person with appropriate electrical qualications in accordance with standards and regulations in force in
the given country and in the EU.
• Never try to connect the device other than as described in the manual.
• Before assembly, repair or maintenance as well as during any connection works it is absolutely necessary disconnect the mains supply and make sure
that the terminals and electric wires are not live.
•The device may not be exposed to extreme temperatures, strong vibrations or subjected to mechanical shock.
• The device should not be used in unfavorable environmental conditions or in rooms where there is a concentration of ammable gases, fumes or dust.
WARNING!
•There may be additional protection requirements for the entire installation that the installer is responsible for maintaining.
1. Introduction
1.1 Product Compliance
1.2 Safety Informations
Care for the natural environment is of paramount importance to us.The awareness that we manufacture electronic devices obliges us
to dispose of used electronic components and devices safely.Therefore the company has received a registration number issued by the
ChiefInspectorforEnvironmentalProtection.The crossedout symbol the trash canonthe product means thattheproductmustnot be
disposed of with ordinary waste containers. Sorting waste for recycling helps to protect the environment. It is the user’s responsibility
to surrender used equipment to a designated collection point for recycling waste from electrical and electronic equipment.

5
1.3 Product Overview
The VS35W/VS35B from SALUS Controls is a digital, wired and ush-mounted non programmable room thermostat, dedicated for surface heating
/ cooling control, characterized by high thermal inertia. It is connected to the wiring centre. The thermostat does not have the function of creating
schedules - it lowers the set temperature via wiring centre after receiving the NSB signal from the weekly thermostat.
The room thermostat works by turning the heating system on and o as needed by measuring the air temperature.When the air temperature drops below
the thermostat setting, it turns on the heating, and turns it o when the set temperature is reached.
Setting the thermostat to a higher temperature will not heat up the room faster. How quickly a room heats up depends on the designed heating system,
for example the temperature of the heating medium. Likewise, reducing the temperature even more while cooling the room will not result in faster
cooling.
By setting the thermostat to a lower setpoint, the room will be controlled at a lower temperature and will save energy.
The best way to nd the temperature that is right for you is to set the room thermostat to a low temperature value - let’s say 18⁰C - and then increase it
one degree each day until you are comfortable.
Room thermostats need free airow to sense the temperature and therefore must not be obstructed by curtains or obstructed by furniture. Nearby
electrical heating devices, televisions, wall or table lamps, replaces or heaters may prevent the correct temperature measurement and thus the correct
operation of the thermostat.
PRODUCT ADVANTAGES:
• has a PWM control algorithm
• protection against too high or too low temperature using an additional FS300 oor sensor
• valve protection function
• an input for the additional oor sensor
• working with actuators of both types - NC and NO
• mounting in a φ 60 mm wall box

6
2. Montage
2.1 Package content
1)VS35W/VS35B thermostat
2) Short instruction
3) Mounting screws
2.2 Proper thermostat location
Please note:
The ideal position to thermostat mounting is about 1,5m under oor level far from heating or cooling sources. Thermostat can’t be
exposed to sunlight or any extreme conditions like for example draft.
Because of re and explosion risk there is not allowed to use thermostat in atmosphere of explosive gases and ammable liquids (eg coal dust). In case
if any of listed dangers occur you have to use additional protection measures – anti-dust and explosive gases (tight cover) or prevent their formation.
Furthermore, thermostat can’t be used in condensation of water vapor conditions and be exposed to water action.
12
3
2.3 Wall mounting
Mounting: to mount thermostat you can use accesories included with the set (mounting screws). Remove back cover to mount the plate to the wall.
After this just attach thermostat to the plate right into designed holes in the plate. The VS35 thermostat has been designed for ush mounting in a
standard electrical box with a diameter of 60 mm.
Open the housing with a
screwdriver - as shown in
the pictures above.
Mount the plate to the
wall using mounting
screws, in the correct
direction.
After all, attach the thermostat
to the plate. Use the plastic
hinges and make sure that wires
are in the correct place with the
thermostat.
1 2 3

7
L, N - power supply 230V
- NSB - Night temperature reduction
(230V output)
-SL - 230V AC input signal
S1, S2 - additional temperature sensor
eg. FS300
2.4 Connection description
KL08 NSB
L
S1
S2
N
L
SL
NSB
SL
SL
N
VS35B
VS35W
VS35B
VS35W
L
S1
S2
N
L
AC 230V
N
Wejście NSB
MAX 3 A
NSB input
Legend:
Thermal actuator
Symbols explanation:

8
THB23030 PUMP (optional)T30NC230 BOILER
4 wires x 0.75 mm
4 wires x 0.75 mm
Power Supply
230V AC
Actuators wires
2 x 0.75mm Pump control wires 2 x 1mm Boiler control wires 2 x 1mm
KL08NSB KL04NSB (optional)
SLAVEMASTER
e.g.VS30W/VS30B VS35W/VS35B VS35W/VS35B

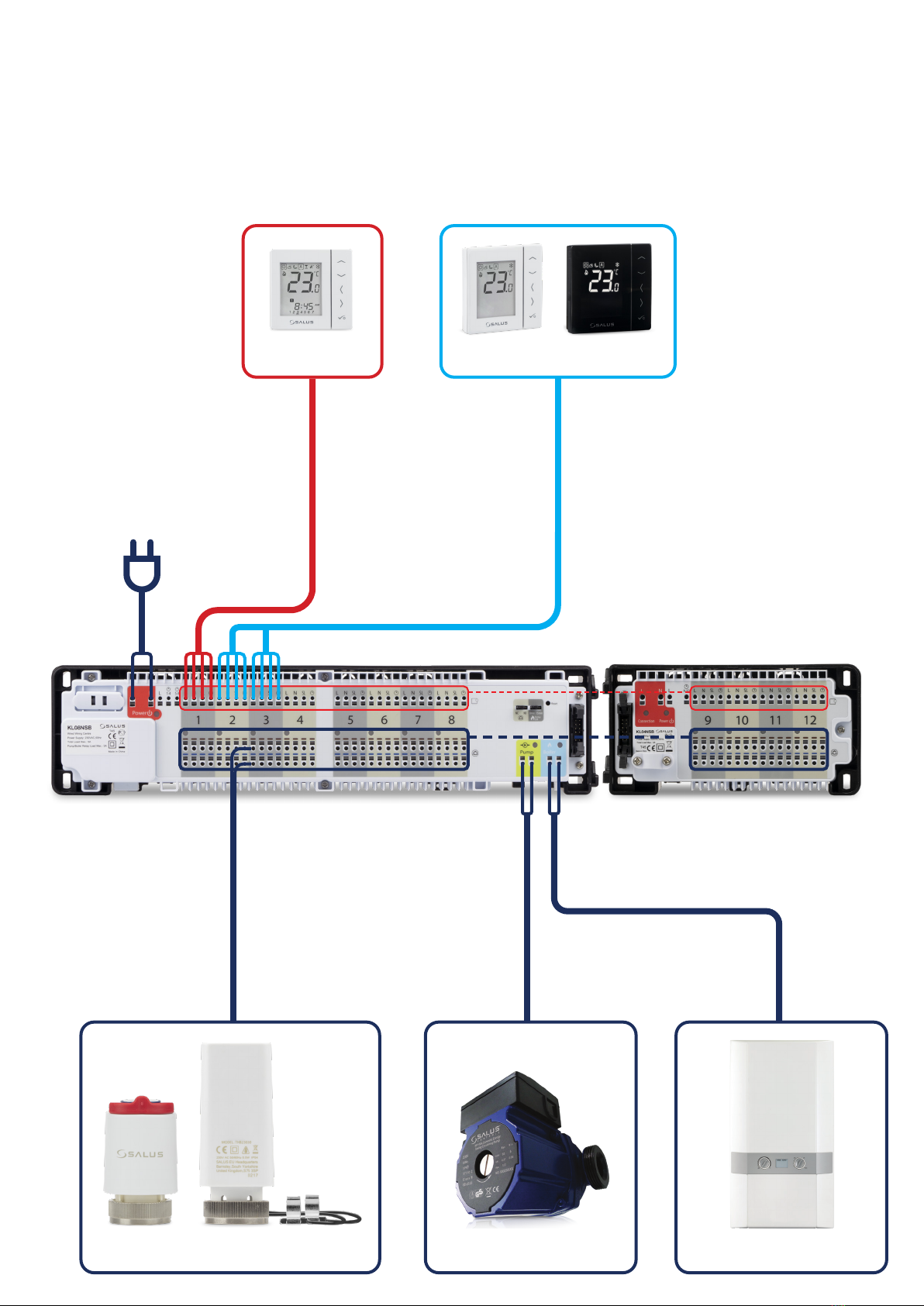

I A - 4 wire installation with KL08NSB wiring centre
VS35W/VS35B works mainly as a SLAVE thermostat (group thermostat) which means that it can be controlled by a MASTER thermostat e.g. VS30W/
VS30B. MASTER thermostat controls SLAVE thermostat only when SLAVE thermostat is in AUTO mode. Comfort (SUN) and economy (MOON) setpoint
temperatures are set individually on each thermostat but switching between those temperature is based on time schedule taken from VS30W/VS30B
thermostat which works like a group controller. Functions such as: setpoint temperature change or frost protection mode are not managed by MASTER
thermostat.

9
SLAVEMASTER
L, N - power supply 230V
- NSB - Night temperature reduction
(230V output - in MASTER thermostat)
(230V input - in SLAVE thermostat)
-SL - 230V AC actuator control signal
- fuse
Legend:
Symbols explanation:
Thermal actuator
Pump
Boiler - Boiler connection* - Boiler’s
contacts for ON/OFF thermostat
(according to the boiler’s instructions)
L
AC 230V
L
N
N
1 - 8 Strefy 1 - 8 Strefy 1 - 8 Strefy
KL08NSB
Pump BoilerPower
L N
SL
T30NC
L N
SL
T30NC
L N
SL
T30NC
lu ub
VS30 RT200 RT520
L L L
L
or or
L
1 2 BOILER CONNECTION*
1-8 Zones1-8 Zones1-8 Zones
3 4
N N N
N N
N
L
max 6
per zone max 6 per zone max 6 per zone
e.g.
VS30W/VS30B VS35W/VS35B VS35W/VS35B

10

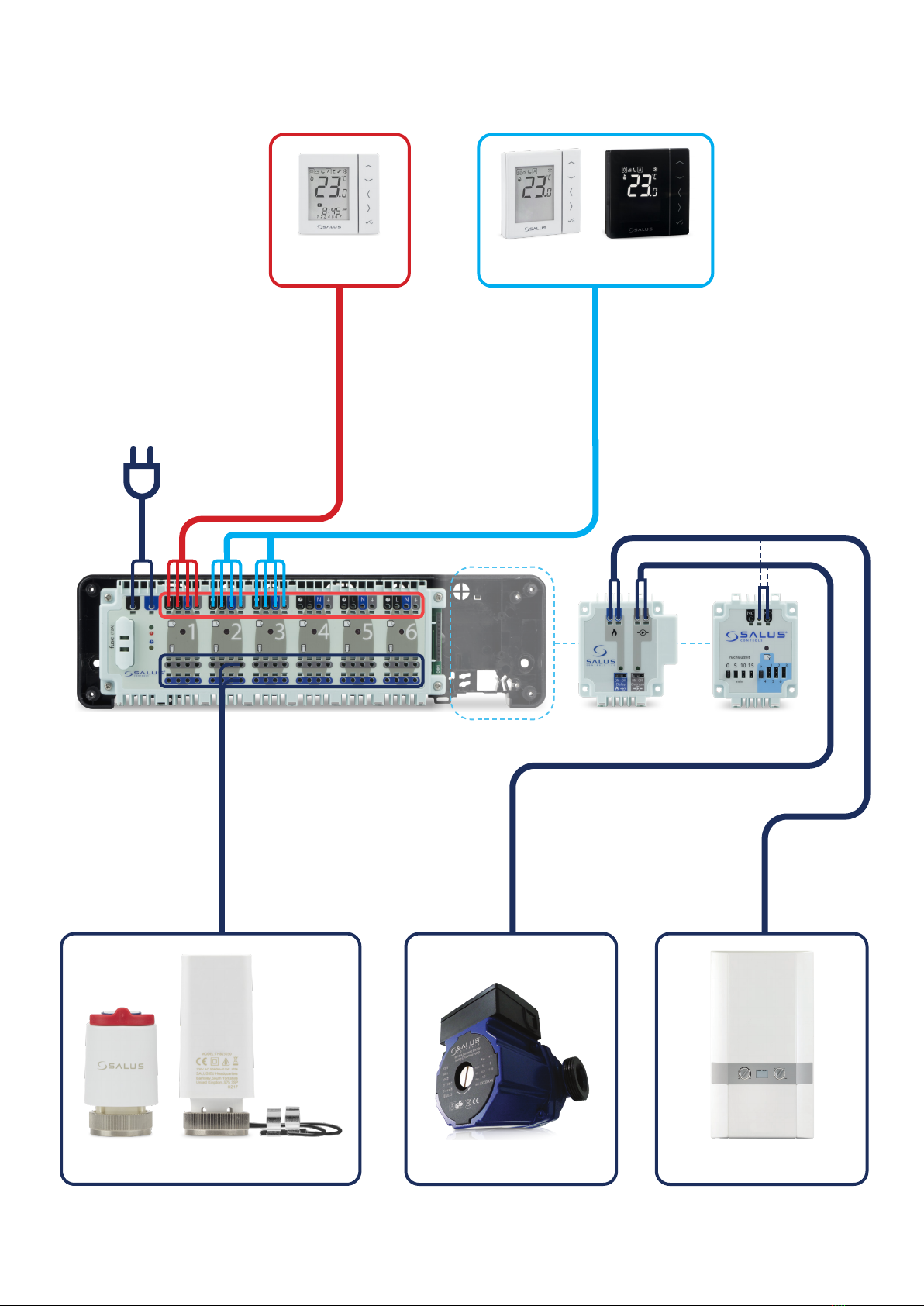

I B - 4 wire installation with KL06 wiring centre
THB23030T30NC230
Power Supply
230V AC
Actuators wires
2 x 0.75mm Pump control wires 2 x 1mm Boiler control wires 2 x 1mm
KL06 PL07 PL06
PUMP (optional) BOILER
4 wires x 0.75 mm
4 wires x 0.75 mm
SLAVEMASTER
e.g.VS30W/VS30B VS35W/VS35B VS35W/VS35B

11
L, N - power supply 230V
- NSB - night temperature reduction
(230V output - in MASTER thermostat)
(230V input - in SLAVE thermostat)
-SL - 230V AC actuator control signal
NC, NO - voltage-free output
- fuse
Legend:
Symbols explanation:
Thermal actuator

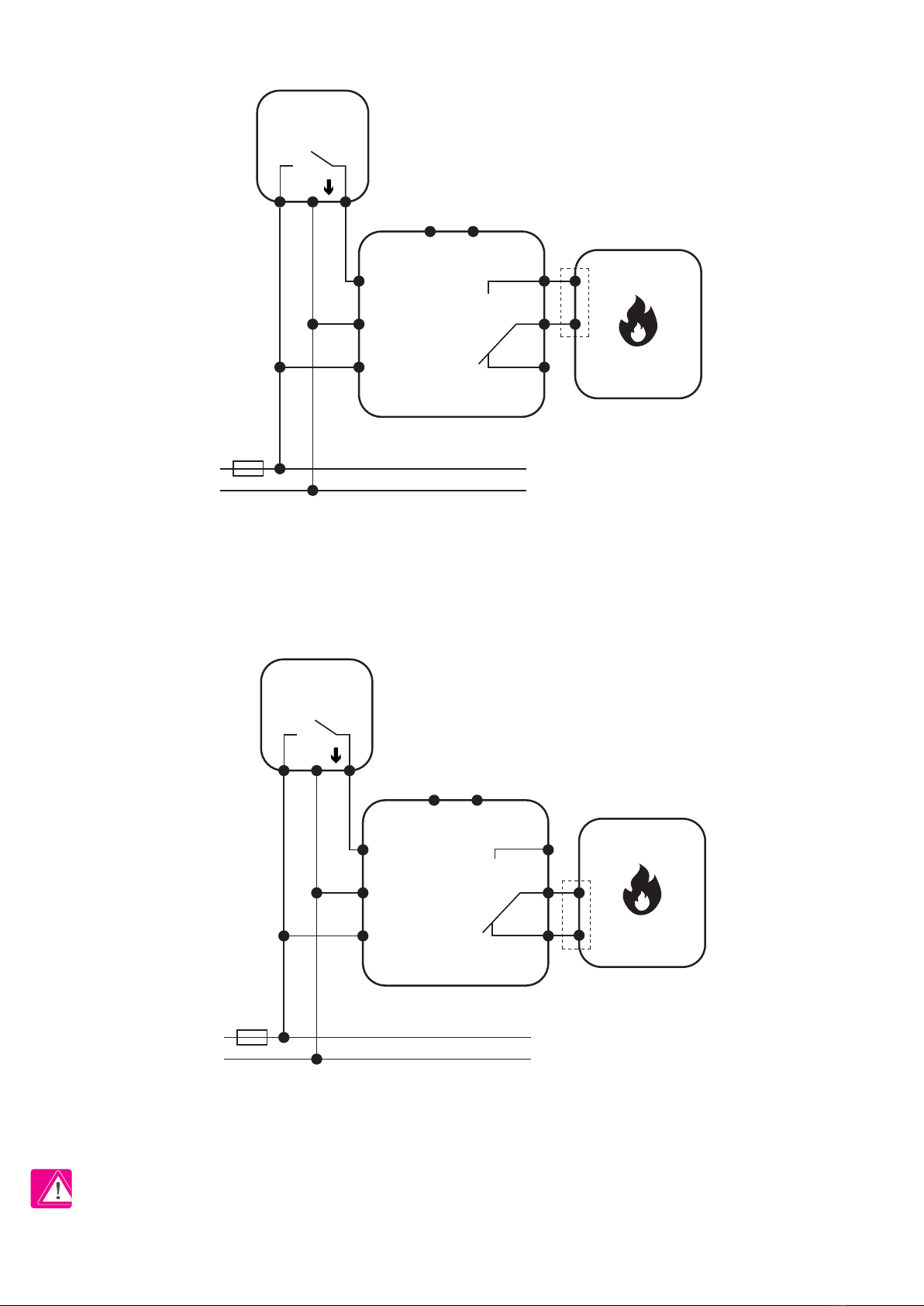

Pump logic module (for KL06) connection diagram
Pump and boiler logic module (for KL06) connection diagram
Pump
Boiler - Boiler connection* - Boiler’s
contacts for ON/OFF thermostat
(according to the boiler’s instructions)
PL07
PODŁĄCZENIE KOTŁA*
L
1
2
3
4
AC 230V lub 24V
N
MAX
5 (2) A
BOILER CONNECTION*
NC
NO
PL06
PODŁĄCZENIE KOTŁA*
NC
NO
PL06
L N
MAX
5 (2) A
AC 230V lub 24V
BOILER CONNECTION*
SLAVEMASTER
L
AC 230V
L
N
N
1 - 6 Strefy
KL06-M
Power
L N
L N
T30NC max 6
na strefę
RT10 // RT20
Np. Np.
L N
1 - 6 Strefy
PL06
L N
L N
T30NC max 6
na strefę
RT520
COM NO
lub
NC
NO
PODŁĄCZENIE KOTŁA*
L
AC 230V
L
N
N
1 - 6 Strefy
KL06-M
Power
L N
L N
T30NC max 6
na strefę
RT10 // RT20
Np. Np.
L N
1 - 6 Strefy PL06
L N
L N
T30NC max 6
na strefę
RT520
COM NO
lub
NC
NO
L N
MAX
5 (2) A
AC 230V lub 24V
L
AC 230V
L
N
N
1 - 6 Strefy
KL06-M
Power
L N
L N
T30NC max 6
na strefę
RT10 // RT20
Np.
Np.
L N
1 - 6 Strefy PL06
L N
L N
T30NC max 6
na strefę
RT520
COM NO
lub
NC
NO
PODŁĄCZENIE KOTŁA*
L
AC 230V
L
N
N
1 - 6 Strefy
KL06-M
Power
L N
L N
T30NC max 6
na strefę
RT10 // RT20
Np. Np.
L N
1 - 6 Strefy PL06
L N
L N
T30NC max 6
na strefę
RT520
COM NO
lub
NC
NO
L N
MAX
5 (2) A
AC 230V lub 24V
or or
BOILER CONNECTION*
1-8 Zones1-8 Zones1-8 Zones
max 6
per zone max 6 per zone max 6
per zone
L L LN N N
e.g.
VS30W/VS30B
e.g.
VS35W/VS35B
VS35W/VS35B

12

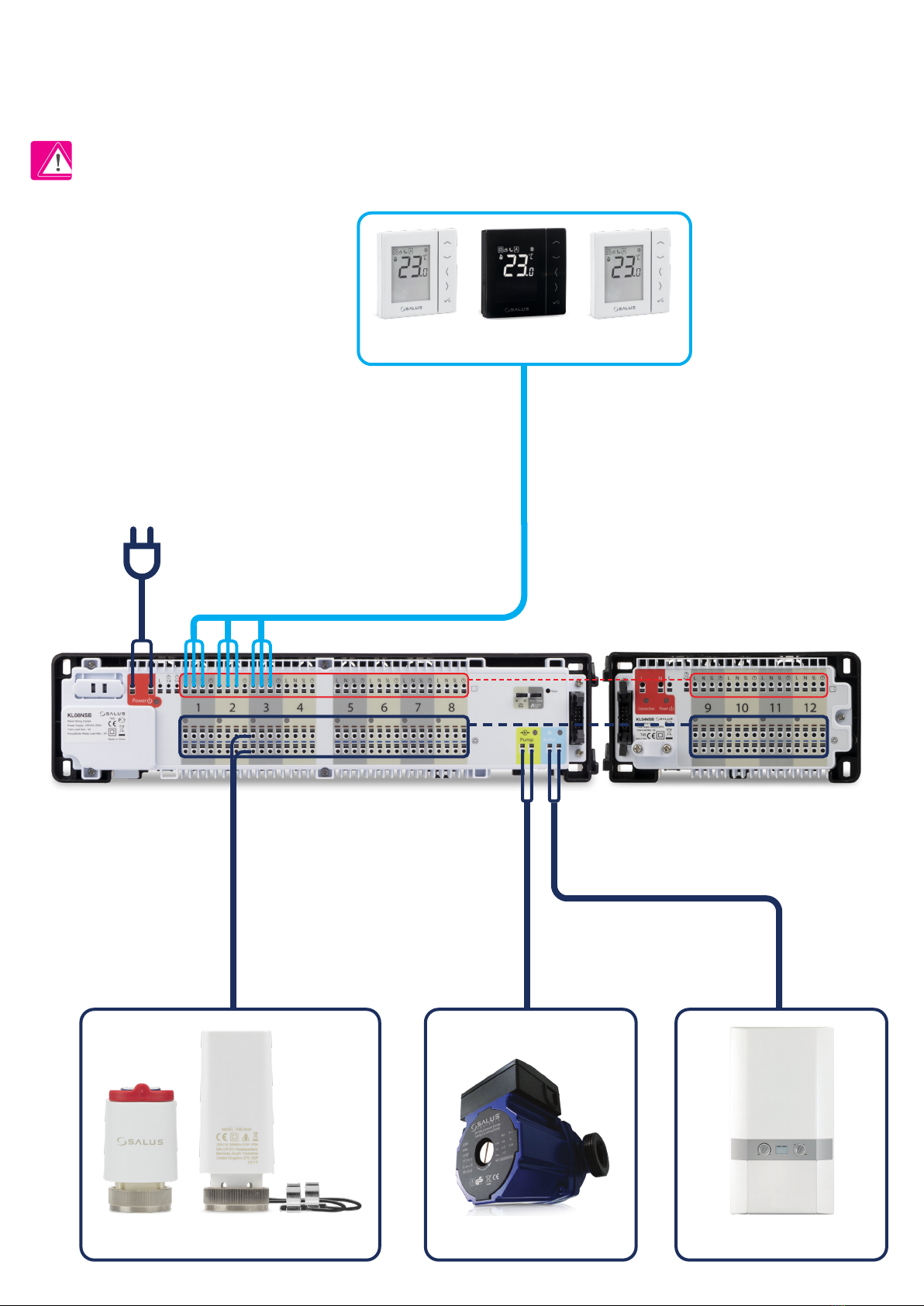

II - 3 wire installation with KL08NSB wiring centre
3 wire installation with KL08NSB wiring center. Description of the operation rule:
-VS35W/VS35B thermostat’s functionality is limited because of 3 wire installation. NSB function is disabled and VS35W/VS35B thermostat doesn’t work
as a SLAVE group thermostat - no eect from potential MASTER thermostat, which means that it can be just a simple pump, boiler or actuator controller).
PLEASE NOTE!
The same operating rules apply to wiring center KL06.
THB23030 PUMP (optional)T30NC230 BOILER
3 wires x 0.75 mm
Power Supply
230V AC
Actuators wires
2 x 0.75mm Pump control wires 2 x 1mm Boiler control wires 2 x 1mm
KL08NSB KL04NSB (optional)
VS35W/VS35B VS35W/VS35BVS35W/VS35B

13
L, N - power supply 230V
- NSB - Night temperature reduction
(230V output)**
-SL - 230V AC actuator control signal
- fuse
** - not used in 3 wire installation
Legend:
Symbols explanation:
Thermal actuator
Pump
Boiler - Boiler connection* - Boiler’s
contacts for ON/OFF thermostat
(according to the boiler’s instructions)
L
AC 230V
L
N
N
1 - 8 Strefy 1 - 8 Strefy 1 - 8 Strefy
KL08NSB
Pump BoilerPower
L N
SL
T30NC
L N
SL
T30NC
L N
SL
T30NC
lu ub
VS30 RT200 RT520
L L L
L
or or
L
1 2 BOILER CONNECTION*
1-8 Zones1-8 Zones1-8 Zones
3 4
N N N
N N
N
L
max 6
per zone max 6 per zone max 6 per zone
VS35W/VS35B VS35W/VS35B VS35W/VS35B

14
III A - work with RM-16A relay module - heating source control
RM-16A
L
AC 230V
N
L
AC 230V
N
L
AC 230V
N
L
AC 230V
N
NO
NO
COM
COM
(wejście)
(wejście)
(wejście)
(wejście)
NOCOM
NOCOM
NC
SL
L N SL
N
L
PODŁĄCZENIE KOTŁA*
VS30
Np.
RT520
Np.
RM-16A
MAX
16 (5) A
RM-16A
NO
NO
COM
COM
NC
SL
L N SL
N
L
VS30
Np.
NOCOM
091FL
Np.
NO
COM
NC
SL
N
L
PODŁĄCZENIE KOTŁA*
STAŁOPALNEGO
T30NC T30NC
RM-16A
NO
NO
COM
COM
NC
SL
N
L
L N
1 - 8 Strefy
KL08NSB
Power
L N
L N SL
MAX
16 (5) A
Connection of a 230V AC voltage thermostat to a boiler
(or other device) with an ON - OFF contact.
VS35W/VS35B
BOILER CONNECTION*
(input)
III B - work with RM-16A relay module - connection to a solid fuel boiler controller
PLEASE NOTE! Activate the thermostat in the solid fuel boiler controller.
RM-16A
L
AC 230V
N
L
AC 230V
N
NO
NO
COM
COM
(wejście)
NC
SL
L N SL
N
L
PODŁĄCZENIE KOTŁA*
VS30
Np.
VS30
Np.
091FL
Np.
Podłączenie regulatora napięciowego 230V AC do sterownika kotła stałopalnego
wyposażonego w styk ON - OFF.
VS35W/VS35B
(input)
BOILER CONNECTION*
Connection of a 230V AC voltage thermostat to a solid fuel
boiler controller with an ON - OFF contact.

15
RM-16A
L
AC 230V
N
L
AC 230V
N
L
AC 230V
N
L
AC 230V
N
NO
NO
COM
COM
(wejście)
(wejście)
(wejście)
(wejście)
NOCOM
NOCOM
NC
SL
L N SL
N
L
PODŁĄCZENIE KOTŁA*
VS30
Np.
RT520
Np.
RM-16A
MAX
16 (5) A
RM-16A
NO
NO
COM
COM
NC
SL
L N SL
N
L
VS30
Np.
NOCOM
091FL
Np.
NO
COM
NC
SL
N
L
PODŁĄCZENIE KOTŁA*
STAŁOPALNEGO
T30NC T30NC
RM-16A
NO
NO
COM
COM
NC
SL
N
L
L N
1 - 8 Strefy
KL08NSB
Power
L N
L N SL
MAX
16 (5) A
(input)
VS35W/VS35B
III C - work with RM-16A relay module - connecting an electrical device with a higher power than the thermostat relay allows
PLEASE NOTE!The maximum current consumption of an electrical device shouldn’t exceed 16A.
L, N - power supply 230V
-SL - 230V AC actuator control signal
NO, COM, NC - voltage-free output
- fuse
Legend:
Symbols explanation:
Pump
Valve actuator
Heating mat

16
3. Before you start (rst power up)
3.2 Button description
3.1 LCD icon description
PLEASE NOTE!The LCD screen can be activated by using any button.
2 3 4 5 6
7
8
9
10
11
12
13
14
1
1. - Current active mode
2. Comfort mode
3. Standard mode
4. Economic mode
5. Automatic mode
6. Frost protection mode
7. Temperature unit
8. Manual mode / temp. override
9. Current / set temperature
10. Key lock
11. Settings
12. Additional temperature sensor
13. Cooling
14. Heating
OR
1. Increase or decrease setpoint temperature.
2. Increase or decrease Day, Clock,Timer, Party and Holiday.
3. Select installer parameter value.
1. Mode selection.
2. Moving between parameters.
1. OK key: Short press to conrm selection.
2. Long press to save and exit.
3.When Main Screen – long press to enter the user settings.
+
Hold down these buttons to lock or unlock the keyboard.
+ +
Hold down these buttons to enter installer parameter settings.
Button Function
Button Description
OR

17
...then thermostat will display the
software version.
3.3 First power up sequence
...display will show all icons...
After all, the main screen will be
displayed.
To power on the thermostat you
have to connect it to the 230V
power supply then...
2
1
34
3

18
4. Work modes
VS35W/VS35B oers a few work modes. Frame on a given icon indicates which mode is currently active. In manual mode , or only one
temperature level is maintained. VS35W/VS35B follows MASTER thermostat when AUTO mode is active („A” icon) - please refer to 2.5 connection
description chapter. Detailed description of work modes is located below:

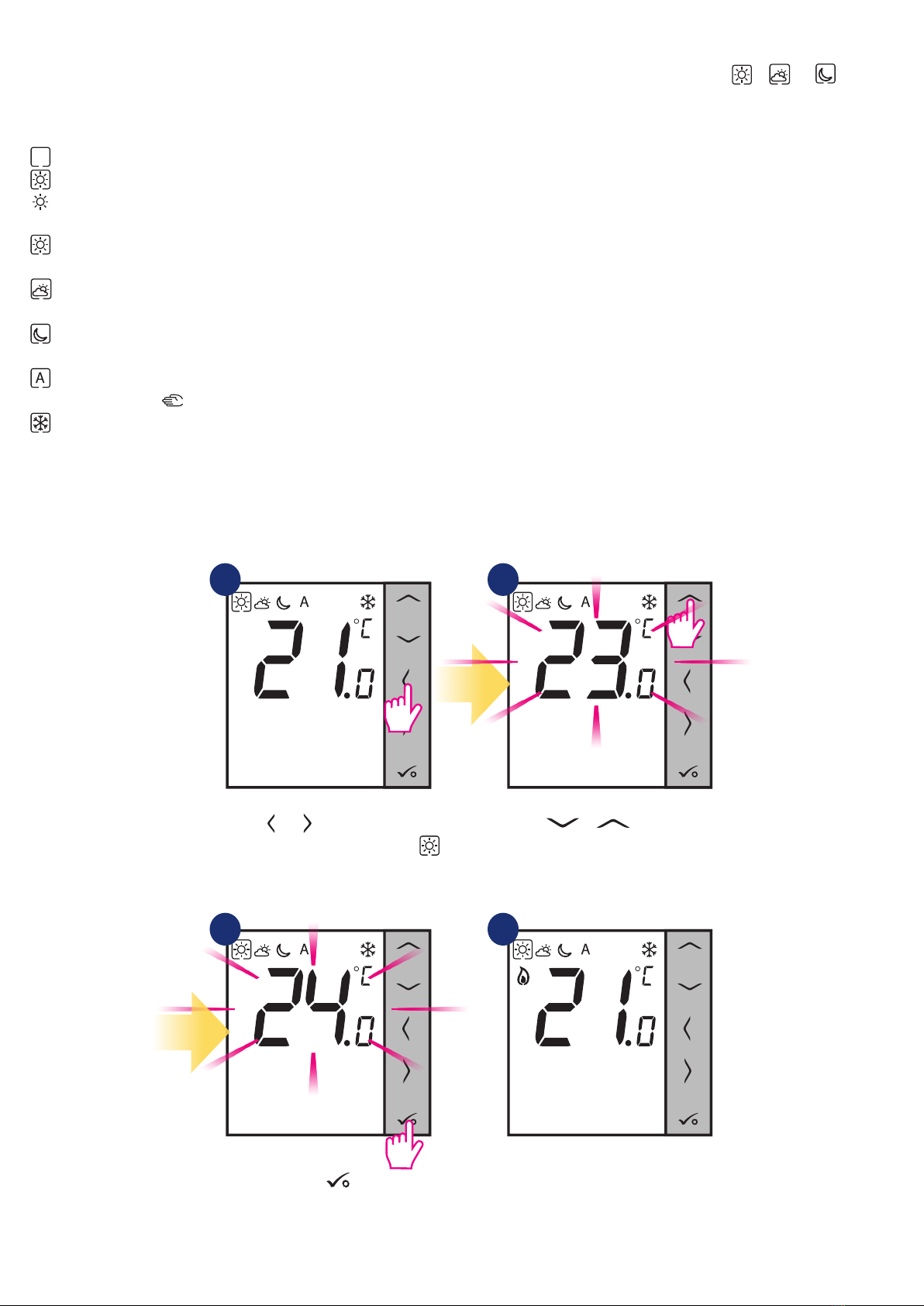

Example - comfort temperature mode setpoint editing:
- Comfort temperature mode - pre-dened setpoint temperature. Usually set when we are indoors. The highest maintained temperature in
heating mode or the lowest if thermostat works in the cooling system. Acting alone works as a manual mode. Temperature range: from 5°C to 35°C.
- Standard temperature mode - pre-dened setpoint temperature. Usually set during the day when we are around the house. Acting alone works
as a manual mode.
- Economic temperature mode - pre-dened setpoint temperature. Usually set at night or when we are out of the house. Acting alone works as a
manual mode.Temperature range: from 5°C to 35°C.
- Automatic mode temperature (schedule) - follows MASTER thermostat. It adopts it’s mode. You can override the auto mode by changing the
temperature setpoint. - the hand icon will appear.
- Frost protection mode - usually used during extended periods of absence or during the holidays (only available in heating mode). Temperature
range: from 5°C to 17°C.
- Frame - means that the work mode is active (the icon of the work mode must be in the center of the frame). For example:
- means that comfort temperature mode is active
- means that comfort temperature mode is inactive
Use or buttons to switch
between work modes. Choose
in this case.
1 2
43
Use or buttons set
temperature setpoint.
Conrm by button. Thermostat will go back to the main
screen after saving the settings.
3

19
5. User settings (basic settings)
5.1 Thermostat calibration
Thermostat calibration is a function which allows user to recalibrate internal thermostat’s temperature sensor by a given number of degrees (in the range
from -3,0 °C to 3,0 °C in 0,5 °C steps). To calibrate thermostat’s temperature sensor please follow steps below:
3 sec.
12
5
4
Set temperature calibration value
using and buttons.
To increase/decrease value use
and buttons.
3
6
Hold button for 3 seconds to
enter the menu.
Conrm by button.
Conrm by button. Thermostat will go back to the main
screen after saving the settings.
3

20
4
Thermostat will go back to the main
screen after saving the settings.
3
5.2 Heat/cool mode change
Use button to go to Heating/
Cooling choice screen.
3 sec.
Hold button for 3 seconds to
enter the menu.
Enter menu by button, choose
Heating/Cooling mode using
button and conrm selection by
„OK”button.
The heating / cooling mode for the thermostat can be changed manually.
3
1 2
