Samcon ToughCam IP1355 User manual

ToughCam® IP1355
User manual

Doc.-ID: 140521-PT03BA-TG-ToughCam IP1355_en_rev.01, page 2 of 28
Content
1Document overview .................................................................................................4
2Technical Data..........................................................................................................5
2.1 Electrical parameters...........................................................................................5
2.2 System cable SKDxx:..........................................................................................5
2.3 Sensor.................................................................................................................5
2.4 Processor............................................................................................................5
2.5 Lens ....................................................................................................................6
2.6 Streaming............................................................................................................6
2.7 Parameterization.................................................................................................7
2.8 Network...............................................................................................................7
2.9 Other technical data............................................................................................8
3Illustration of the model key....................................................................................9
4Commissioning ......................................................................................................10
4.1 Step 1: Installation.............................................................................................10
4.2 Step 2: Electrical connection.............................................................................10
4.2.1 Potential equalization...............................................................................................................10
4.2.2 Power supply & protection.......................................................................................................11
4.2.3 Tests prior to switching on voltage ..........................................................................................14
4.3 Testing of the status LED..................................................................................14
4.4 Step 3: Adjusting the picture .............................................................................15
4.4.1 Work preparation .....................................................................................................................16
4.4.2 Opening the housing................................................................................................................16
4.4.3 Adjusting the focus ..................................................................................................................18
4.4.4 Extracting/inserting an SD storage card..................................................................................19
4.4.5 Closing of the housing .............................................................................................................20
5Network access and visualization ........................................................................21
5.1 Browser support................................................................................................21
5.2 Assigning the IP address...................................................................................22
5.3 Password / identification....................................................................................23
6Maintenance / Servicing / Alterations...................................................................24
7Repairs and Maintenance......................................................................................24
8Disposal / Recycling ..............................................................................................24
9 Drawings.................................................................................................................25
10 Notes .......................................................................................................................26

Doc.-ID: 140521-PT03BA-TG-ToughCam IP1355_en_rev.01, page 3 of 28
Table of Figures
Figure 1.1 Document overview..........................................................................................4
Figure 4.1 Potential equalization T03-VA2 ......................................................................10
Figure 4.2 ToughCam IP1355 –T03-VA2-B-XXX-K-N....................................................11
Figure 4.3 ToughCam IP1355 –T03-VA2-B-XXX-P-N....................................................11

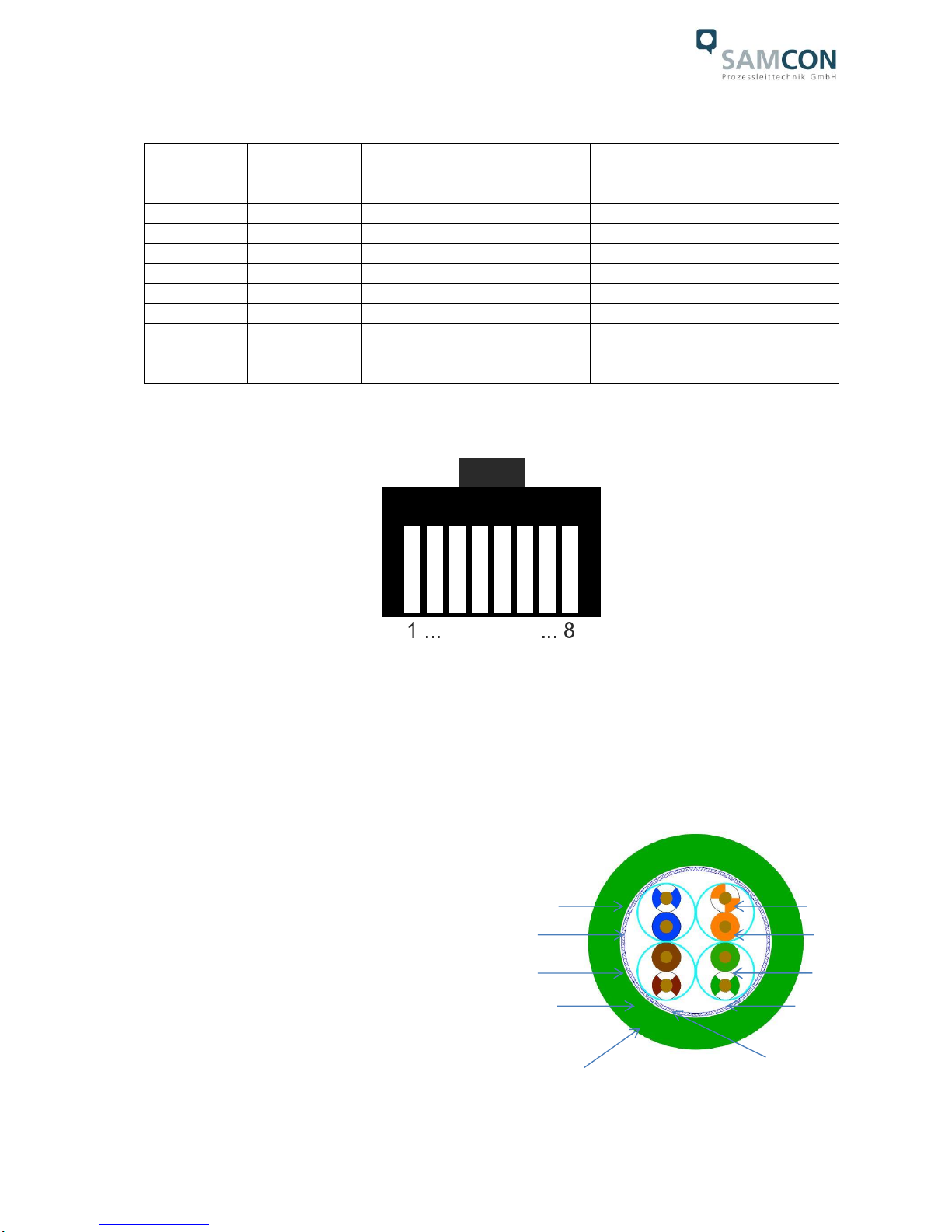

Figure 4.4 ToughCam IP1355 –RJ45 pin assignment....................................................13
Figure 4.5 ToughCam IP1355 –SKDxx Pin assignment.................................................13

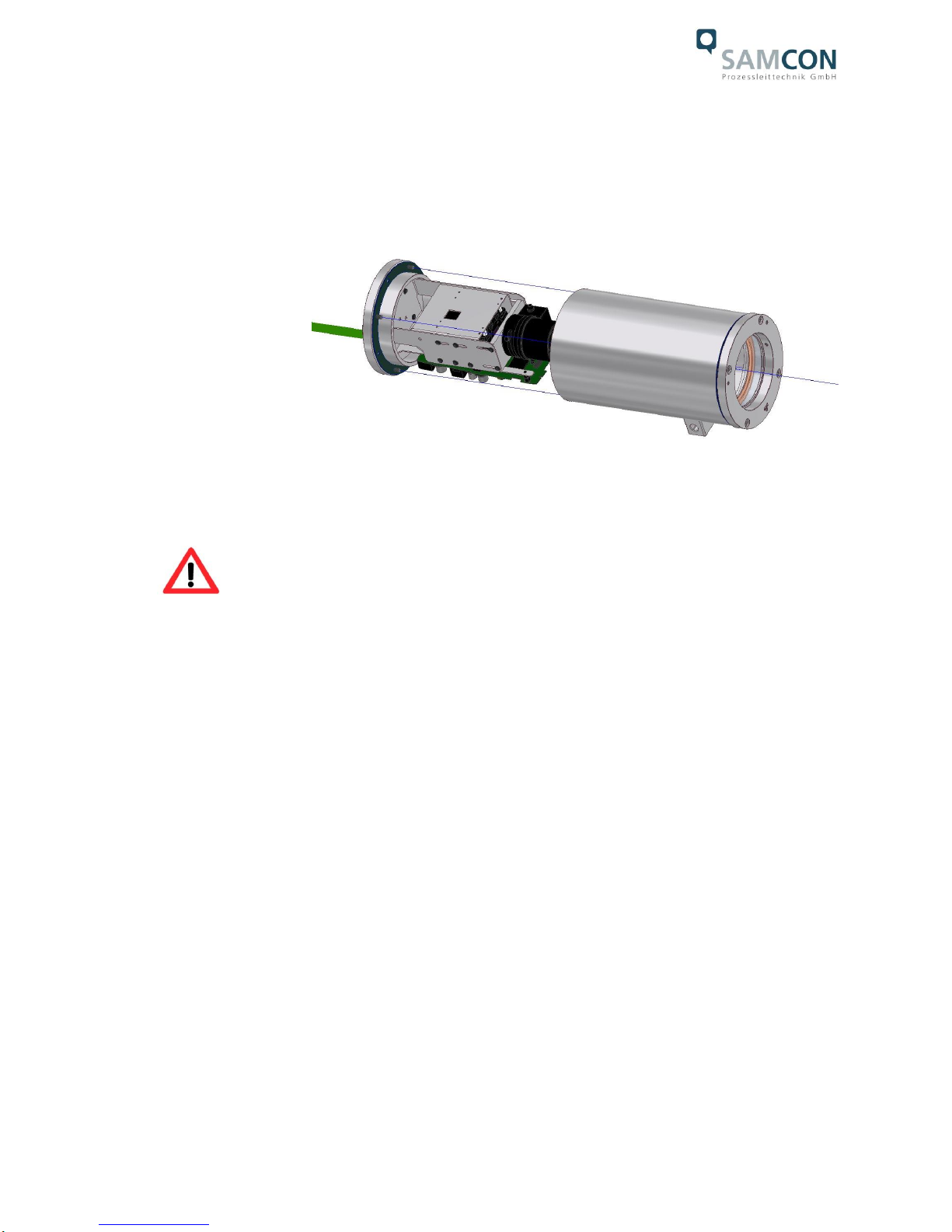

Figure 4.6 Opening of the VA2 housing (1) .....................................................................16
Figure 4.7 Opening of the VA2 housing (2) .....................................................................17

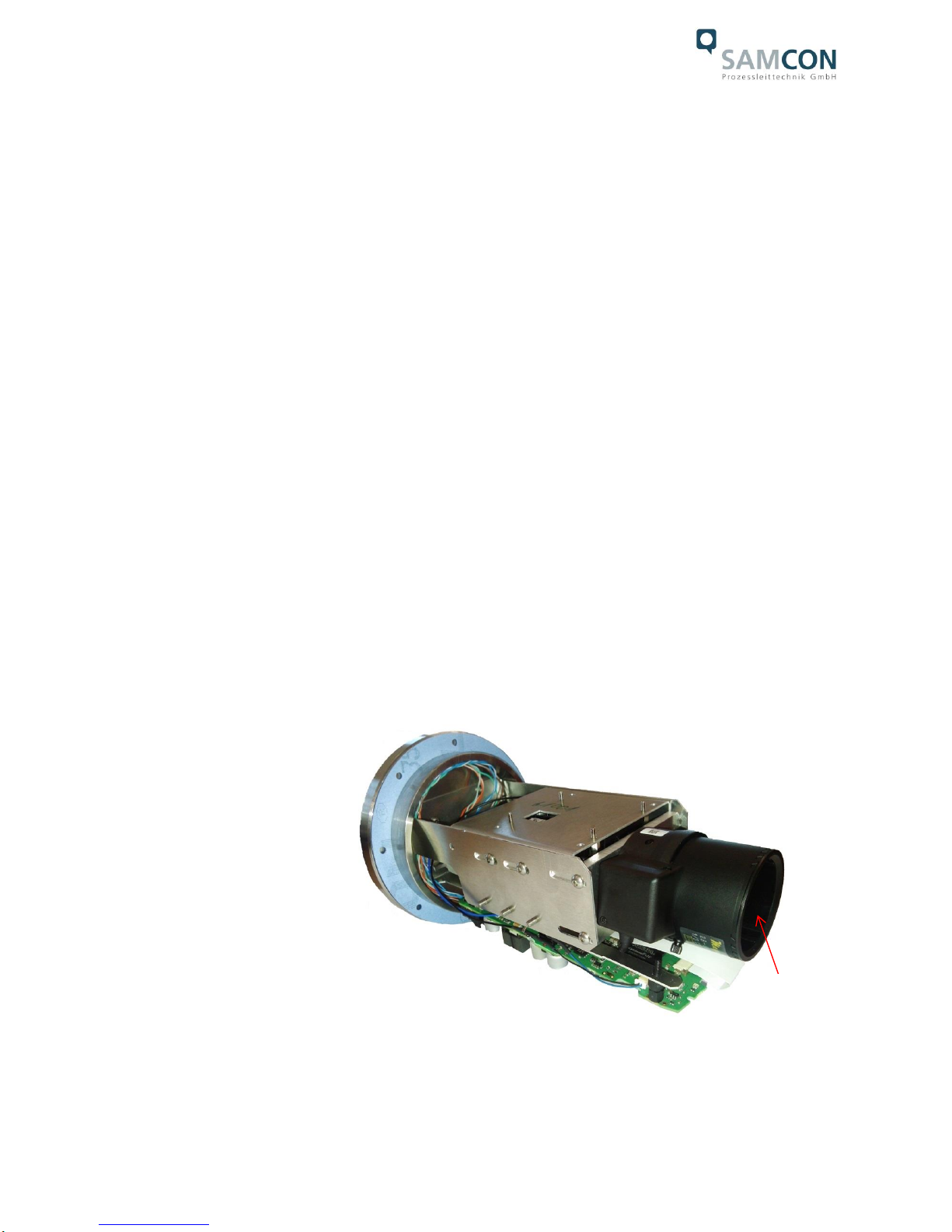

Figure 4.8 Mounting adapter with lens.............................................................................18

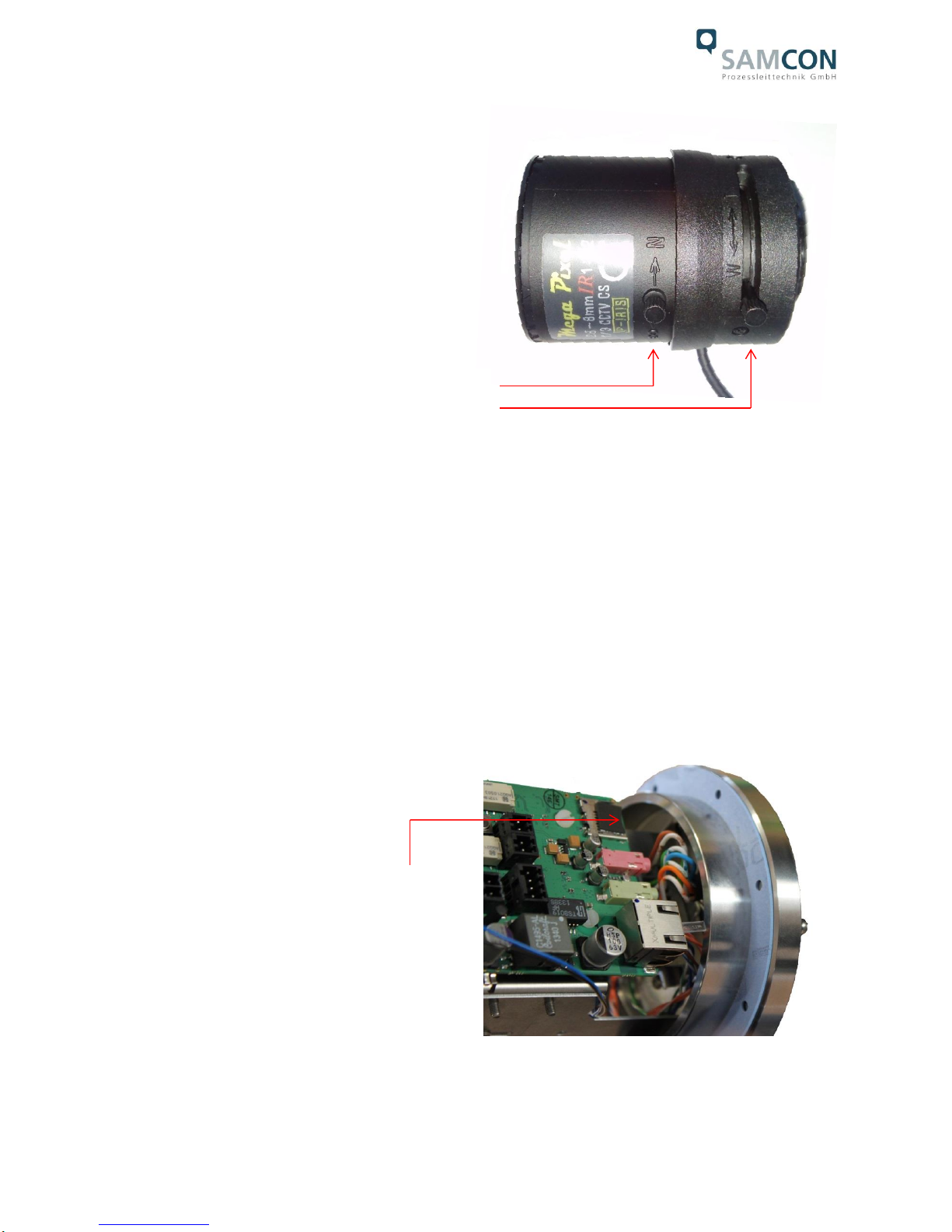

Figure 4.9 Mechanical adjustments at the lens................................................................19
Figure 4.10 MicroSD card slot.........................................................................................19
Figure 5.1 Axis IP Utility ..................................................................................................22
Revision history
Product: ToughCam® IP1355
Title: User manual ToughCam®IP1355
Doc. -Id. 140521-PT03BA-TG-ToughCam IP1355_en_rev.01
Author: Thiemo Gruber
Date: May 21, 2014
Rev.- Index
Date
Name
Comments
00
May 21, 2014
T. Gruber
Compilation of the document
01
Aug 27, 2014
T. Gruber
Revision

Doc.-ID: 140521-PT03BA-TG-ToughCam IP1355_en_rev.01, page 4 of 28
1 Document overview
Figure 1.1 Document overview
The present document is marked in red.
ToughCam Series:
ToughCam miniZoom:
- User Manual
- Datasheet
ToughCam niteZoom:
- User Manual
- Datasheet
ToughCam vario:
- User Manual
- Datasheet
ToughCam IP:
- User Manual
- Datasheet
ToughCam IP1354:
- User Manual
- Datasheet
ToughCam IP1355:
- User Manual
- Datasheet
ToughCam IP1357:
- User Manual
- Datasheet

Doc.-ID: 140521-PT03BA-TG-ToughCam IP1355_en_rev.01, page 5 of 28
2 Technical Data
2.1 Electrical parameters
Power supply: PoE, IEEE 802.3af class 3 (max.12.95 W)
or High-PoE (max. 25.5 W) at a cable length of
up to 100 m
Reference power: 48 V DC (44...54 V DC)
Maximum power input: 9.6 W
Maximum input current: 210 mA
2.2 System cable SKDxx:
Outer diameter: 8.7 ± 0.3 mm
Bending radius: 100 mm
Data connection: 4 x 2 x AWG22/1 CAT.6a
Characteristics: Halogen free, flame retardant, UV resistant,
chemical resistance, shielded
(see www.samcon.eu; data sheet SKD01)
Interface: P version: RJ-45 10BASE-T/100BASE-TX PoE
K version: Single Conductor, twisted-pair
10BASE-T/ 100BASE-TX PoE
2.3 Sensor
Type: 1/2.8‘‘ RGB CMOS, progressive scan
Effective sensor resolution: 1080p HDTV (1920x1080px / 16:9)
Light sensitivity: Color: 0.2 Lux, F1.2
BW: 0.04 lux, F1.2
2.4 Processor
Type: ARTPEC-4
Storage: 256 MB RAM, 128 MB Flash

Doc.-ID: 140521-PT03BA-TG-ToughCam IP1355_en_rev.01, page 6 of 28
2.5 Lens
Type: P-Iris, varifocus 2.8 –8 mm, F1.2
IR corrected, CS mount
Angle of view: 67°- 39° horizontally, 38° - 22° vertically (16:9)
Focus range: 0.3 m to infinite
Shutter time: 1/28000 s to 2 s @50Hz net frequency
1/33500 s to 2 s @60Hz net frequency
(Additional lenses for adapting the camera picture to reflect individual and/or environmental requirements
as well as compatibility check upon request!)
2.6 Streaming
Video compression: H.264 (MPEG-4 Part 10/AVC), H.264-Profile
Baseline and Main, Motion JPEG
Frame rate: 25 fps (net freq. 50 Hz) /H.264, Motion JPEG
30 fps (net freq. 60 Hz) /H.264, Motion JPEG
Functions: Several, individually configurable streams in
H.264 and Motion JPEG, controllable frame
rate and bandwidth, VBR/ CBR H.264, up to 8
individual clipping viewing areas, event data
streaming, edge storage
(Network Attached Storage or File-Sever)

Doc.-ID: 140521-PT03BA-TG-ToughCam IP1355_en_rev.01, page 7 of 28
2.7 Parameterization
Picture settings: Compression, color, brightness, sharpness,
contrast, white balance, exposure control,
exposure zones, backlight balance, fine
adjustment at low light, WDR –wide dynamic
range, picture rotation: 0°, 90°, 180°, 270°,
corridor format, picture mirroring, text and
picture overlay, private zone masking
Intelligent video: Video motion recognition, active manipulation
alarm
Event trigger: Intelligent video, time table and edge storage
Event actions: Data upload: FTP, HTTP, network clearance
and e-mail notification: E-mail, HTTP and TCP,
pre and post alarm, video buffer, recording on
edge storage, PTZ pre-settings, guard tour,
day/night switching, status LED activation
Integrated installation: Focus assistant, fine adjustment of the flange
focal distance, pixel counter
Edge Storage: MicroSD/ microSDHC/ microSDXC internal
Card slot for storage card up to 64 GB,
video recording at network clearance (NAS,
FTP, etc.)
2.8 Network
Security: Password protection, IP address filter, HTTPS
access encryption, IEEE 802.1X network ac-
cess control, digest authentication, user access
protocol
Supported protocols: IPv4/v6, http, HTTPS, QoS Layer 3 DiffServ,
FTP, CIFS/SMB, SMTP, Bonjour, UPnP,
SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP,
RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP,
DHCP, ARP, SOCKS

Doc.-ID: 140521-PT03BA-TG-ToughCam IP1355_en_rev.01, page 8 of 28
2.9 Other technical data
Permissible ambient temperature: -10° C to +50° C
Protection level EN 60529/IEC 529: IP 67
Housing material: V2A Stainless steel 1.4301 (standard) or
V4A Stainless steel 1.4401 (customized)
V4A Stainless steel 1.4404 (customized)
Glass material: Borosilicate glass
Weight: 5500 g (stainless steel housing T03-VA2.K1)
5900 g (stainless steel housing T03-VA2.K2)
Dimensions (L x H x Dmax): 210 mm x 138.5 mm x 113 mm (K1 flange)
226 mm x 138.5 mm x 113 mm (K2 flange)
(stainless steel housing T03-VA2 without cable
gland, hood, accessory lens etc.)

Doc.-ID: 140521-PT03BA-TG-ToughCam IP1355_en_rev.01, page 9 of 28
3 Illustration of the model key
The following model options are currently available for the ToughCam IP1355:
Product name
Model options
ATEX
Type
Housing
option(1)
Explosion-
group(2)
Meter
SKD01(3)
Cable
termin.. (4)
Temp.
range5)
ToughCam IP1355*
T03-
VA2-
0-
005-
K-
N
T03-
VA2-
0-
005-
P-
N
T03-
VA2-
0-
005-
K-
N
T03-
VA2-
0-
005-
P-
N
*all model options are available in stainless steel and aluminum housing with K1 or K2 supply flange (q.v. chapter 9 –technical draw-
ings)
(1) VA2 = Execution in stainless steel (EN10020 WNr.: 1.4301/1.4305/1.4401/1.4404)
(2) 0 = Execution without explosion protection
(3) Length of the connection line in meter (001 - 100)
(5 meter is the standard length)
(4) K = Terminal block connection (standard)
The cable insulation is stripped to the twisted-pair strand (ca. 5 cm), including the shield.
The individual strands are stripped at the end (ca. 0.5 cm). The fixed Cu inner conductor is
blank to allow connecting the camera to the terminal block
P = Plug connection
The cable is equipped with an RJ-45 network plug (heavy duty), AWG 26-22.
Type: Weidmueller IE-PS-RJ45-FH-BK, pin assignment according to T568B
(5) N = Normal temperature (-10°C to +50°C)

Doc.-ID: 140521-PT03BA-TG-ToughCam IP1355_en_rev.01, page 10 of 28
4 Commissioning
4.1 Step 1: Installation
Install the ToughCam ®IP1355 at the desired location.
4.2 Step 2: Electrical connection
Attention!
The electrical connection of the equipment must be executed by quali-
fied personnel only!
Attention!
It is mandatory that the housing of the ToughCam®Series has to be
grounded via a PE-connection!
The ToughCam®IP1355 is delivered with an electrical connection cable type SKDxx
(System Kabel Digital). The maximum cable length is 100 m and can be determined indi-
vidually to reflect the particular customer specifications.
The ToughCam ® IP1355 is manufactured with a pigtail reflecting the desired cable
length. Depending on the model option, the ending of the camera’s cable connection is
either stripped to the blank Cu conductors or furnished with a plug.
4.2.1 Potential equalization
Figure 4.1 Potential equalization T03-VA2
