Samlex Europe IDC-30 UNI User manual

IDC-30 UNI –210623 UK
IDC-30 UNI
Switch Mode Converter DC-DC
Galvanic Isolated
30 Watts
Extra wide input range
Owners Manual

IDC-30 UNI –210623 UK
Features
IDC-30 UNI
Galvanically isolated input
and output
Very low power
consumption
Simple installation
Short-circuit resistant
Adjustable output voltage
Extra wide input range
Purpose
The IDC-30 UNI, hereinafter IDC, is a galvanically isolated converter with a universal (wide) input and
output voltage.

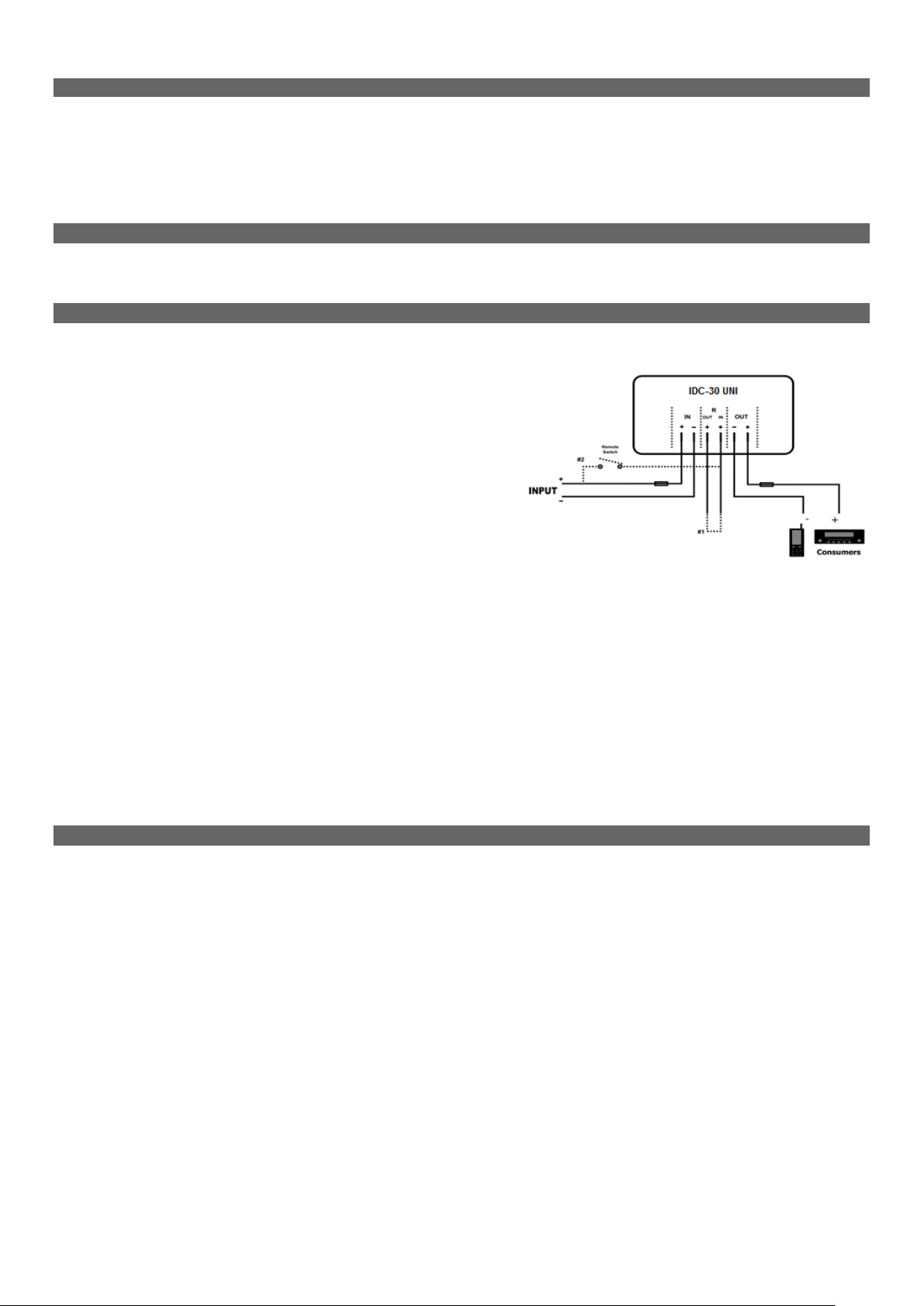

Installation Wiring diagram
Follow the following steps and the connection diagram when connecting the IDC.
1.
Connect the power supply/battery to the
IN+ and IN- of the IDC.
2 (option #1).
Connect R-out with R-in.
3 (option #2).
Connect R-in with Input+ using a switch.
4.
Connect the positive (+) terminal of the
power supply/battery to the IN+ of the
IDC.
5.
Connect the negative (-) terminal of the
power supply/battery to the IN- of the
IDC.
Warnings:
The product must only be connected by skilled fitters/mechanics who are aware of the regulations
for working with high battery voltages.
Using inferior connection material and/or wiring that is too thin may damage the product.
A short circuit between the positive and negative terminals of the battery may severely damage
your system.
Always use fuses of the correct value.
Operation
There are two ways to switch on the IDC.
Option 1. Connect Rin to Rout (using the enclosed jumper cable).
Option 2. Connect Rin to Uin+ using a switch.
Output voltage
The output voltage can be set by using a potentiometer on the back of the IDC. It is set to 12.5 V as
standard. It can be tightened by inserting a screwdriver through the left ventilation slot of the rear cover. If
a voltmeter is connected to the output, the voltage can be set as required.

IDC-30 UNI –210623 UK
Technical details
Input
Output
Supply voltage
7.5 V –32.0 V DC
Output (can be set)
12.5 V –28.0 V
Remote input voltage
5.0 V –32.0 V
DC
Remote input current (max.)
±0.3 mA
Voltage
Current
General
In
Out
Out
Connections
6x 6.3 mm Faston
24.0 V
12.5 V
3.0 A
Cable advice
2.5 mm2
12.0 V
12.5 V
2.2 A
h x w x d
50 x 87x 86 mm
7.5 V
12.5 V
1.5 A
Weight
242 g
24.0 V
24.0 V
2.0 A
Operational temperature
-10 °C … +40 °C
12.0 V
24.0 V
1.0 A
Standby current
±13 mA
7.5 V
24.0 V
0.8 A
