sammi SmartStation 10 User manual

Industrial PC
SmartStation (10/12/15)
User's Manual
May, 2010 (V1.1)

Disclaimer
SmarTerminal and SmartStation are registered trademarks of
Sammi Information Systems Co., Ltd. All other brand names, product names,
or trademarks belong to their respective holders.
Head Quarters
Sammi Information Systems Co., Ltd.
505-14, Gasan–dong, Geumchoen-Gu, Seoul, Korea
Tel. [phone] / Fax. [phone]
Email. [e-mail]
Web. www.sammicomputer.co.kr
US Office
SmartTerminal Computers, Inc.
5300 Orange Avenue, Suite 212 Cypress, CA 90630
Tel. [phone] / Fax. [phone]
Email. [email protected]
Web. www.smarterminal.com

Contents
Introduction ...................................................................................................... 5
Chapter 1 Getting started ................................................................................ 5
Optional accessories ................................................................................. 5
1.2 Appearance........................................................................................... 6
1.2.1 Front view .................................................................................... 6
1.2.2 Rear view...................................................................................... 6
1.2.3 Top view ....................................................................................... 7
1.2.4 Bottom view................................................................................. 7
1.2.5 Right view .................................................................................... 8
1.3 Interface ................................................................................................ 9
1.4 Connections and mountings..............................................................11
1.5 Power settings.................................................................................... 12
1.6 Turning on SmartStation.................................................................... 12
1.7 Turning off SmartStation.................................................................... 12
1.8 Features of SmartStation................................................................... 16
Chapter 2 Handling SmartStation ................................................................. 17
2.1 How to mount SmartStation on docking stations?.......................... 17
2.2 How to connect DVI monitor to SmartStation?................................ 17
2.3 How to connect external mouse / keyboard / CD ROM drive?........ 21
2.4 Can I connect external speakers and microphone?........................ 21
Chapter 3 Settings and operations............................................................... 22
3.1 How to install touch program?.......................................................... 22
3.2 How to do touch screen settings?.................................................... 24
3.3 How to install touch program?.......................................................... 27
3.4 How to do touch screen settings?.................................................... 30
3.5 How to install and work with wireless network? ............................. 32
3.6 Wireless Network Configuration Utility ............................................ 35
3.6.1 Profile ......................................................................................... 37
3.6.2 Link Status................................................................................. 39
3.6.3 Site Survey................................................................................. 40
3.6.4 Configure the Profile................................................................. 42
3.6.5 Authentication and Security..................................................... 45
3.6.6 802.1x Setting-CA Server.......................................................... 51

3.6.8 Advanced ................................................................................... 53
3.6.9 QoS............................................................................................. 56
Chapter 4 Troubleshooting for System........................................................ 71
4.1 What to do if system hangs?............................................................. 71
4.2 Why mouse and keyboard although connected to SmartStation do
not work?.................................................................................................. 71
4.3 Where can I find serial number, model number and license
information? ............................................................................................. 71
4.4 How to change hard Disk drive?....................................................... 71
Chapter 5 Accessories and Peripheral devices........................................... 71
5.1 Monitor................................................................................................ 71
5.2 Keyboard............................................................................................. 71
5.3 Mouse.................................................................................................. 71
5.4 S Serial port ........................................................................................ 71
5.5 Cradle.................................................................................................. 72
SmartStation 10/12/15 Specification Highlights .......................................... 73
Appendix A ..................................................................................................... 74
Appendix B ..................................................................................................... 78

Introduction
This User's Manual allows user to get to know more about the features of SmartStation.
Please read it once carefully before proceeding for special maintenance of SmartStation.
This is specially designed for the dealers of SmartStation. It has a brief overview of all the
features as well as many screen shots and detail explanation for ease of SmartStation usage.
All though the drivers and application programs are already installed in the factory, the
installation procedure is explained in case of emergency situations. But it is always
recommended that the installation has to be done by skilled technicians.
Chapter 1 Getting started
Make sure you have everything.
 SmartStation main unit
 Operation Guide
 3 to 8 pin power cable
 HDD holder bracket with screws
Optional accessories
 Flexible RAM Mounting System
 A C /DC Adapter
 Power cord
 Rugged keyboard and mounts
 External power supply (DC 9 ~ 18V 60W) / (DC 20 ~ 60V 100W)

1.2 Appearance
1.2.1 Front view
Power lamp
LOGO
Shutdown and
Brightness control button
Touch and TFT LCD
1.2.2 Rear view
VESA Mounting hole (M5)
Size 100x100

1.2.3 Top view
Wireless LAN external antenna port(RP-SMA Connector)
Plastic antenna cover

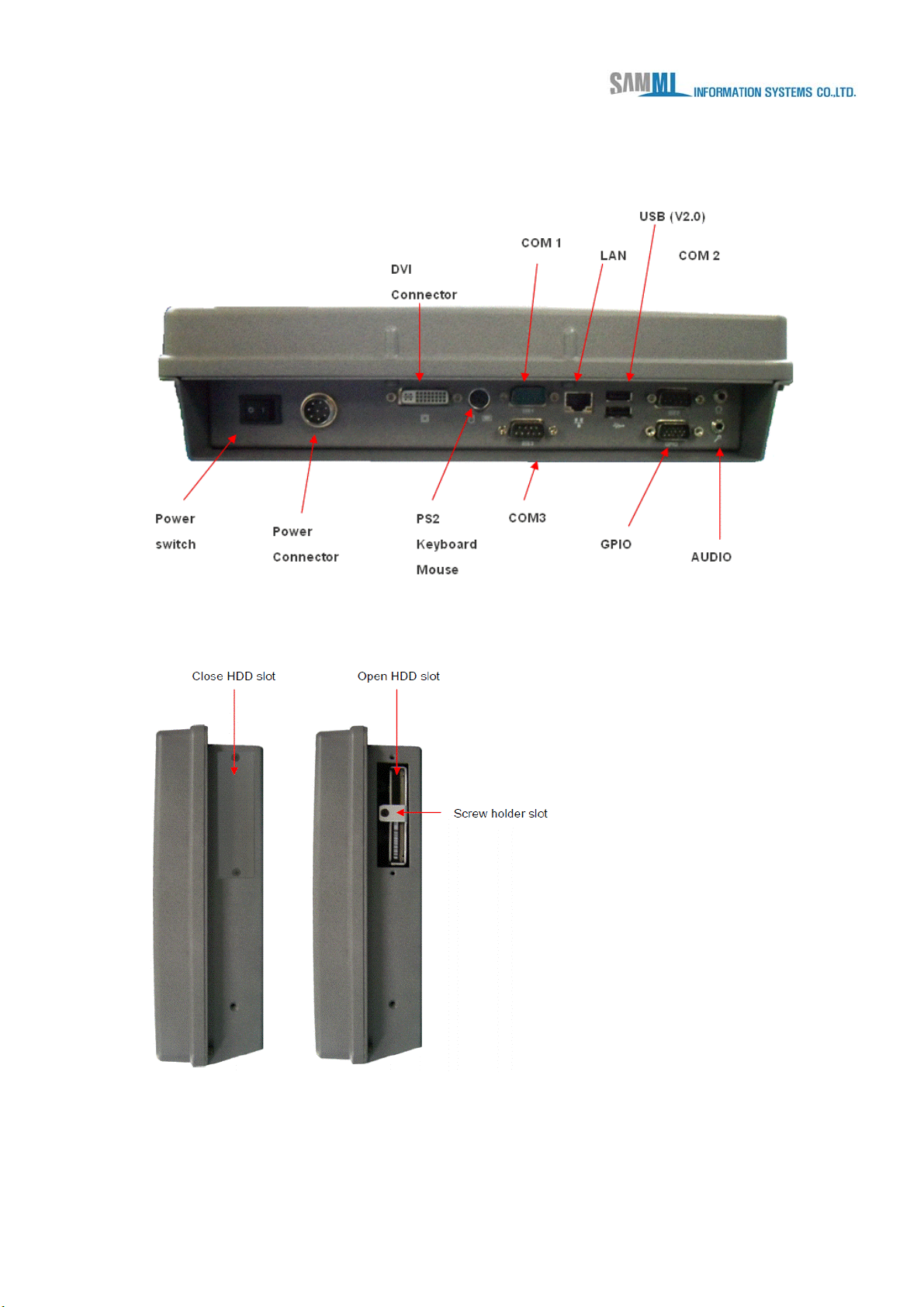

1.2.4 Bottom view
For 10 version

For 12, 15 version
1.2.5 Right view

1.3 Interface

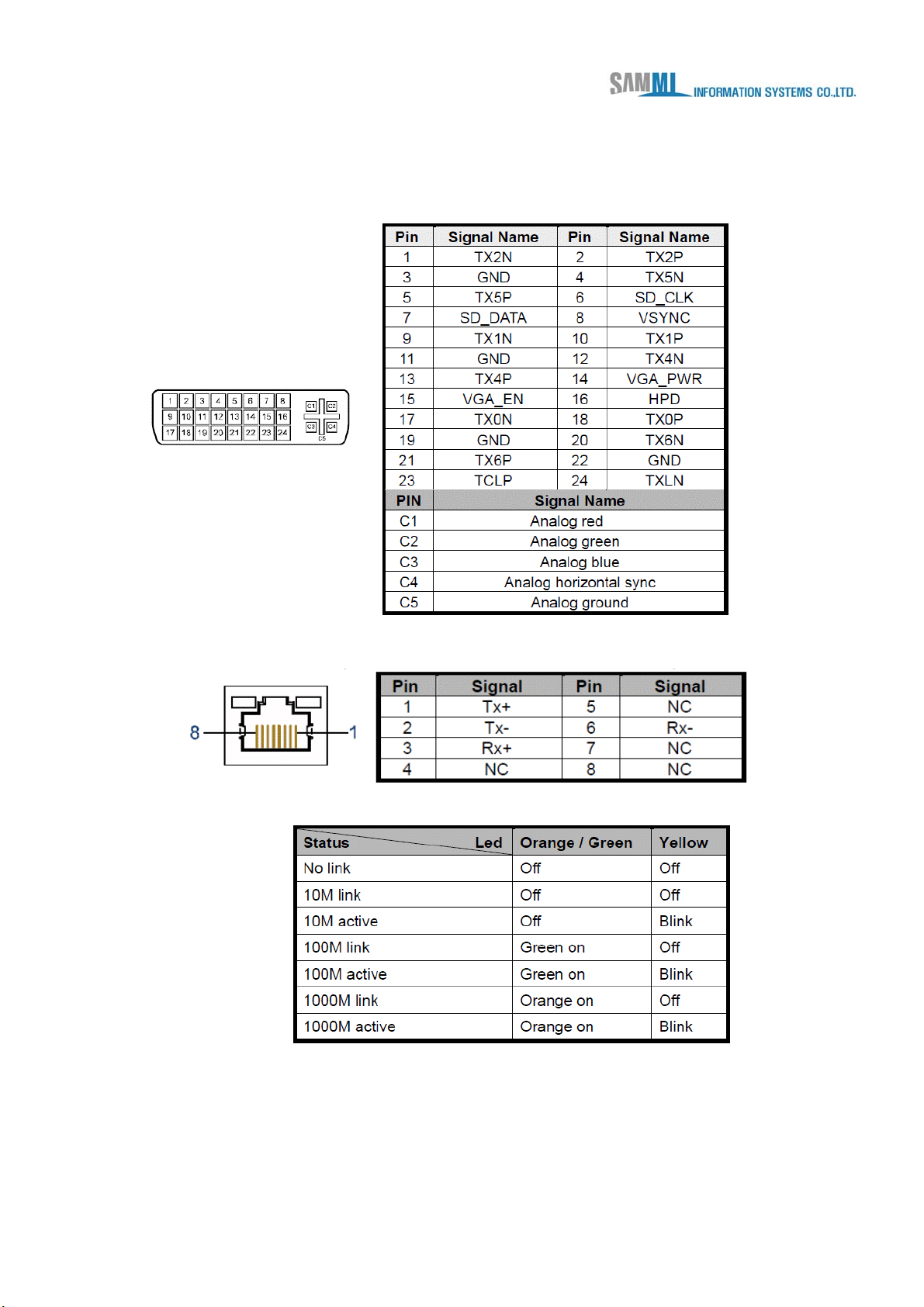

DVI Connector
LAN RJ45 Connector
LED Status

USB 2.0 ( Type A Connector)
Com1 RS232/422/485(DB/9 male connector)
Com2,3 RS232(DB9 male connector)

KB/MS(PS/2 Mini DIN Connector)
GPIO (General Perpose Input Output Port : DB-15 Male connector)
Pin Signal Pin Signal Pin Signal
1 Digital Input 0 6 N/A 11 Digital Output 3
2 Digital Output 0 7 Digital Input 2 12 N/A
3 N/A 8 Digital Output 2 13 GND
4 Digital Input 1 9 N/A 14 VCC
5 Digital Output 1 10 Digital Intput 3 15 N/A
Power Connector (8P male Circlur connector)
Pin Signal
1 N/A
2 12V
3 N/A
4 12V
5 N/A
6 GND
7 GND
8 N/A
1.4 Connections and mountings
SmartStation can be used indoor as well as outdoor applications.
There are optional accessories available for mounting SmartStation e.g.

Flexible RAM mounting System.
1.5 Power settings
SmartStation can be operated in both modes AC and DC
For using SmartStation in AC mode (Optional)
There is AC/DC adapter (100-240 V 50-60 Hz -- 12 volts DC Output 60 W) provided to connect
SmartStation to AC power supply through power connector as shown in 1.2.4 Bottom view.
For using SmartStation in DC mode (Optional)
There are DC power supplies available to supply power to SmartStation.
There are two models available
DC 9 ~ 60 V (60 W)
For using SmartStation with uninterrupted power supply
SmartStation is provided with internal backup battery (uninterrupted power supply) which is
Lithium ion battery of 12V 4000 mAH, with backing time of 20 min.
It gets charged when SmartStation is on. The full charged voltage is 12V.
It is advisable to save all your data when it is working on backup battery time to time.
Once SmartStation starts working on UPS and UPS voltage is less than 11V, it is noticeable by
Red LED.
1.6 Turning on SmartStation
After connecting power cable to Smartstation, switch on the power switch given on 1.2.4 Bottom
view to turn on SmartStation and press soft shutdown switch given on 1.2.1 Front view
The operating system will start getting loaded, wait till it finishes
1.7 Turning off SmartStation
In case of Windows XP
Start > Turn off computer following dialog will pop-up
Select the button as per the required operation

Setting Power key to turn off SmartStation
Start > settings > Control panel > power options > Advanced > set power button to Shutdown
For Windows XP -- possible For Windows 2000 – not possible

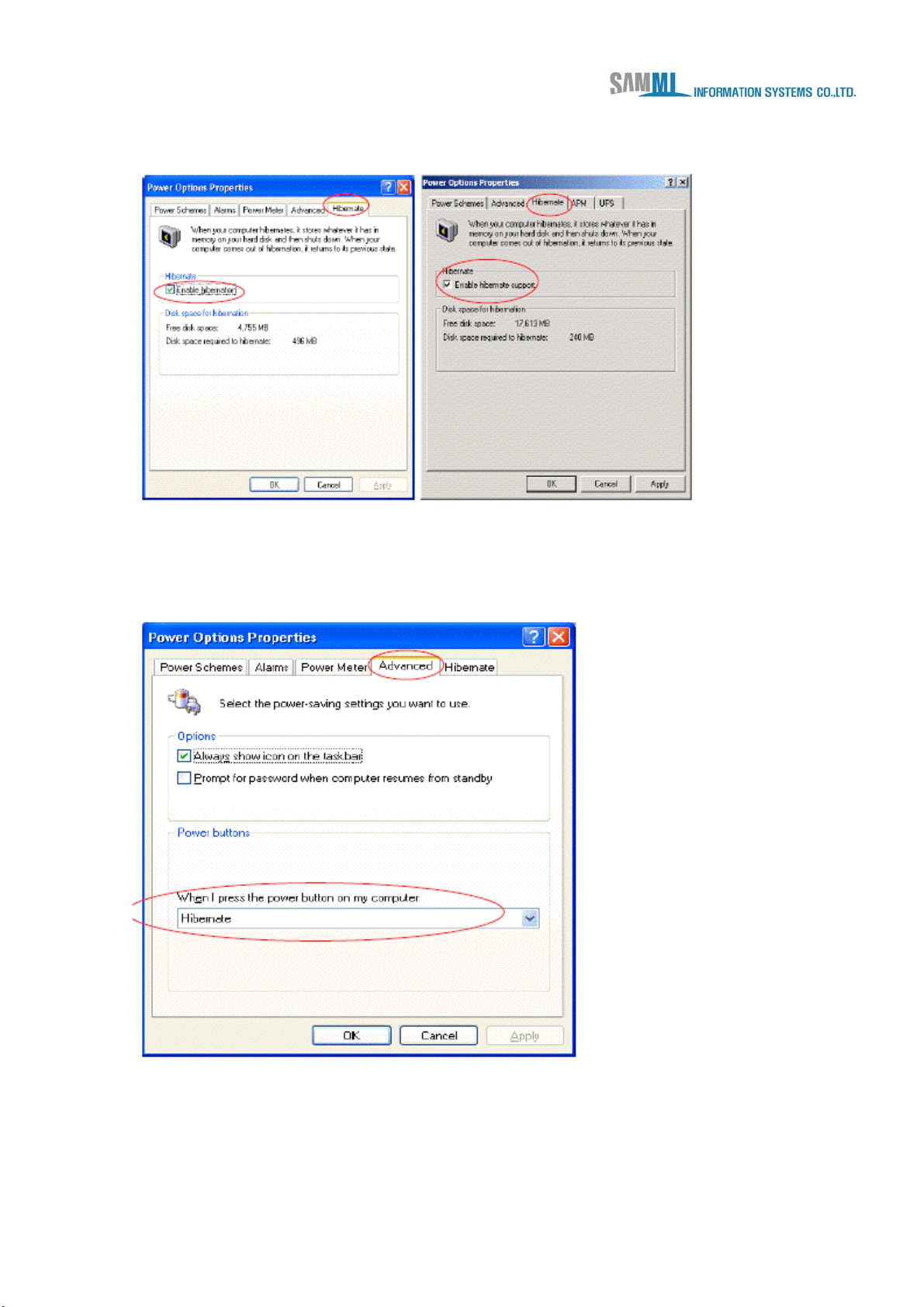

In order to set a key for hibernation
Start > settings > Control Panel > Power options properties > Advanced > set power key to
Hibernate

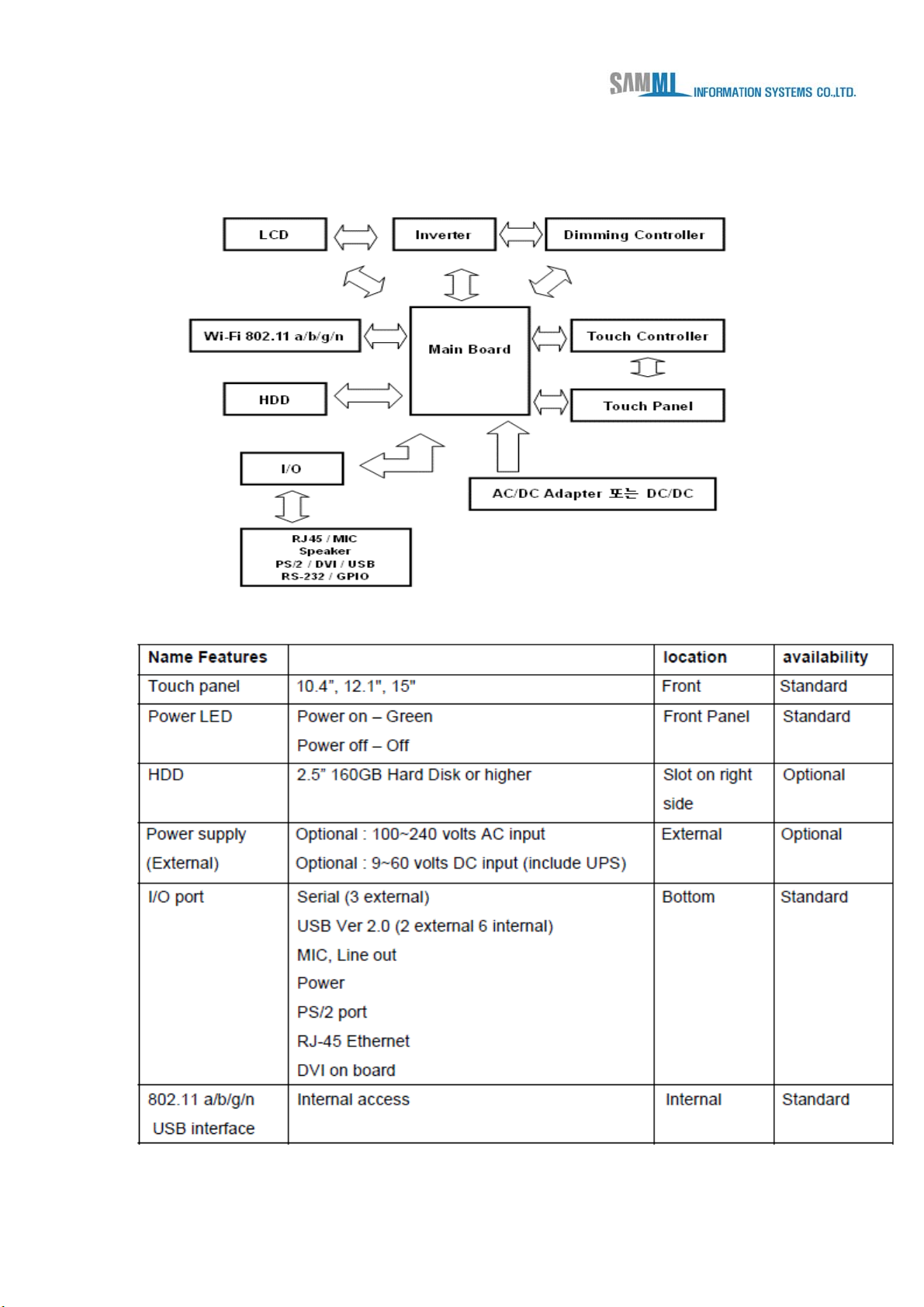

1.8 Features of SmartStation

Chapter 2 Handling SmartStation
This chapter helps user to connect various peripheral devices e.g. Monitor, mouse etc. for ease
of operations.

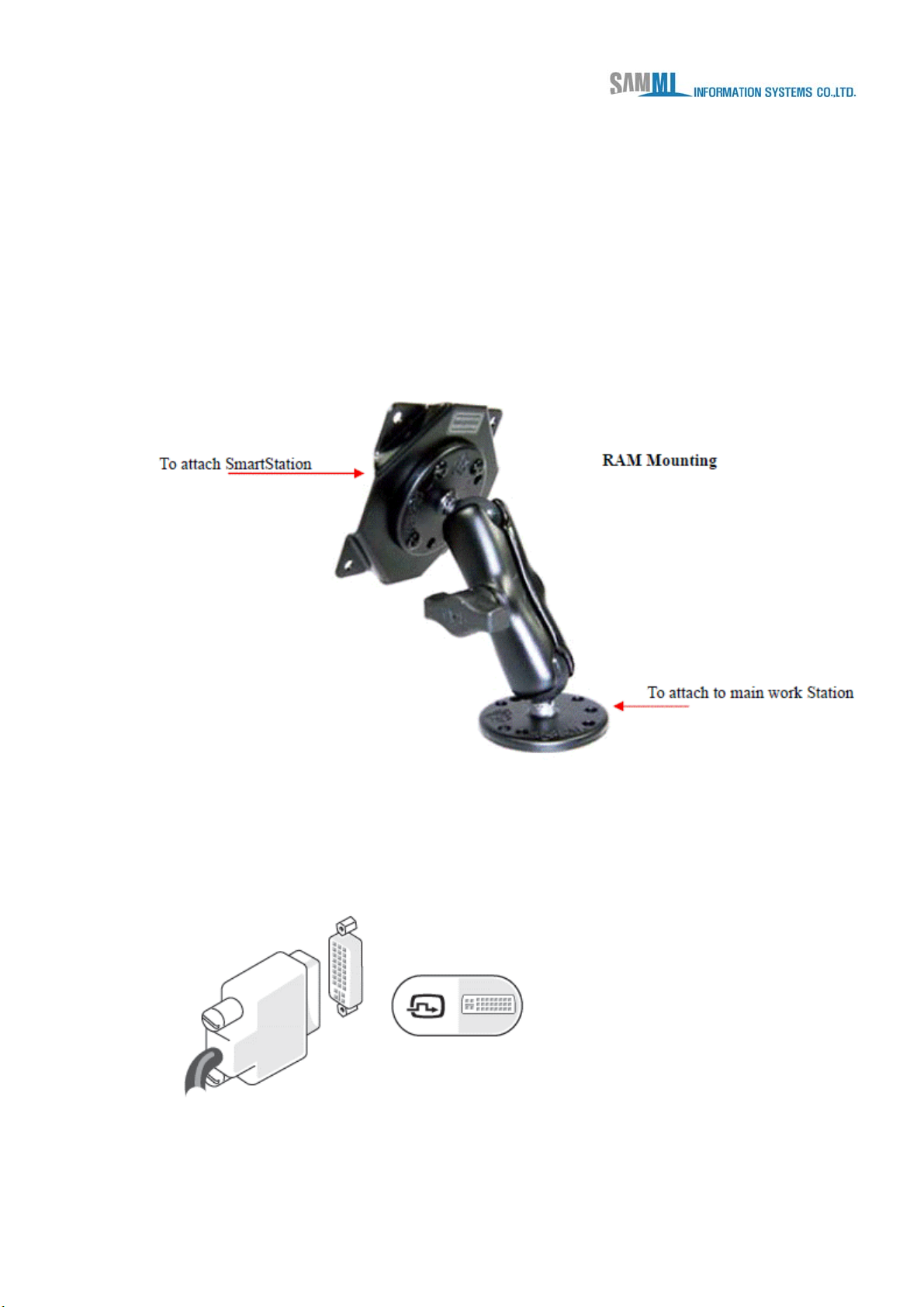

2.1 How to mount SmartStation on docking stations?
The 4 screw holder slots are provided on the rear side of the SmartStation for attaching it to
Flexible RAM Mounting System. There are many types of RAM mountings available.
Following figure shows one of them.
2.2 How to connect DVI monitor to SmartStation?
There is a DVI port provided at the bottom of the SmartStation, wherein DVI monitor can be
connected using DVI cord.

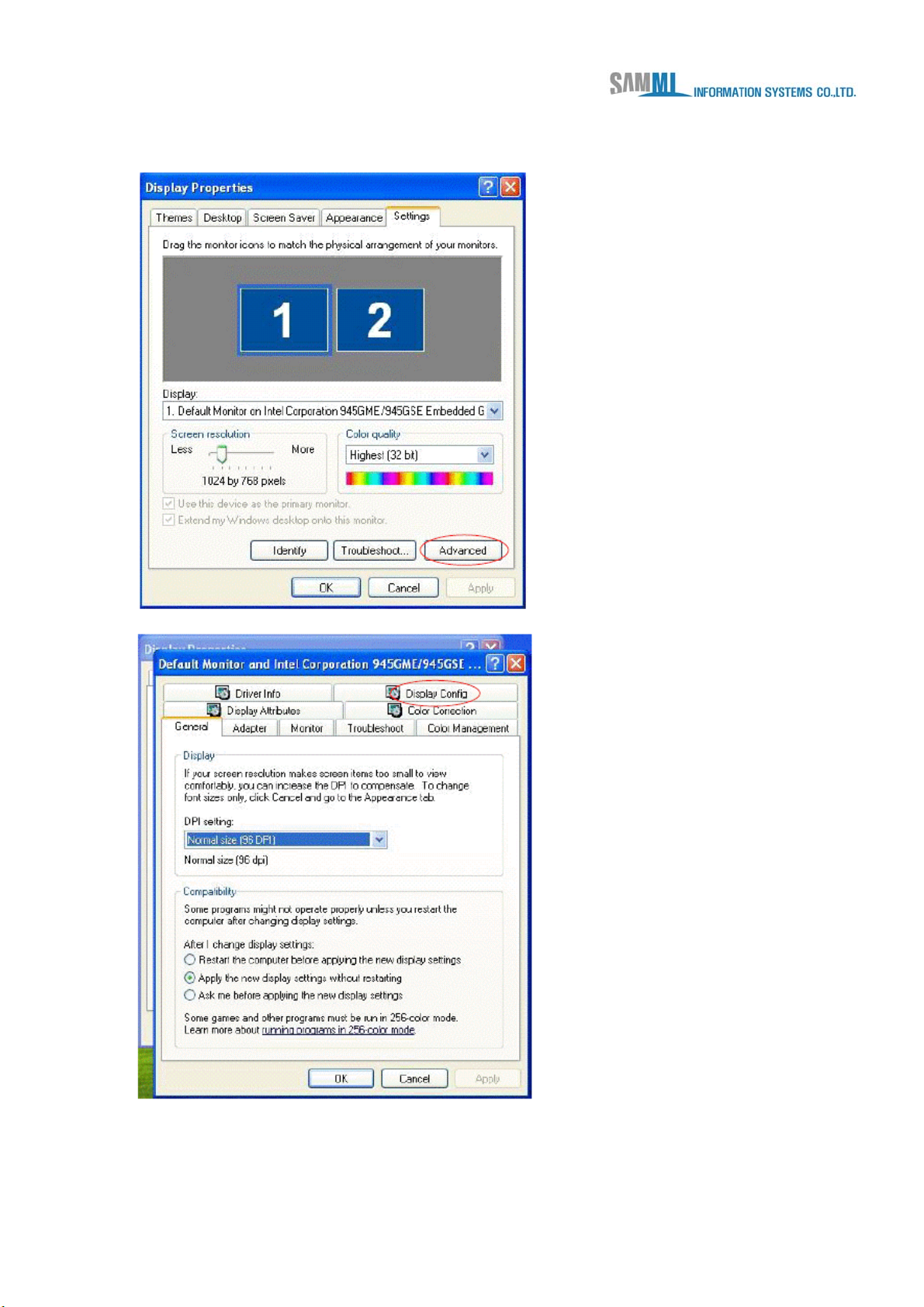

The necessary settings are as follows

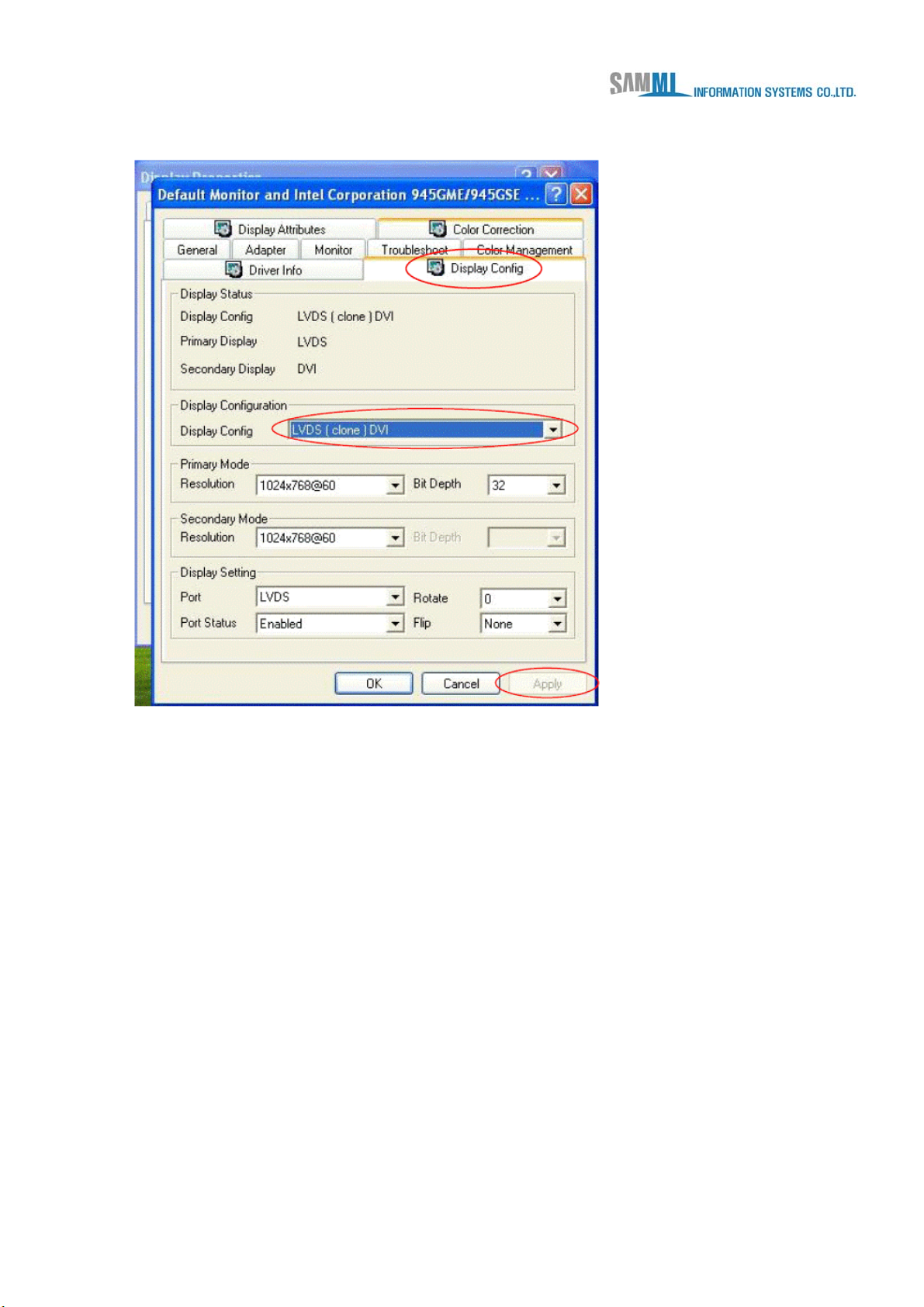

Start > Settings > Control panel > Display > Settings > Advanced > Display Config > LVDS

(clone) DVI> Apply
