Samsung AQ12SGGE User manual

SERVICE Manual
ROOM AIR CONDITIONER
INDOOR UNIT
AQ12SGGE
SH12ZSG
AQ09S8GE
SH09ZS8
AQ07S8GE
SH07ZS8
OUTDOOR UNIT
UQ12SGGE
SH12ZSGX
UQ09S8GE
SH09ZS8X
UQ07S8GE
SH07ZS8X
CONTENTSAIR CONDITIONER
1. Product Specifications
2. Operating Instructions
3. Disassembly and Reassembly
4. Exploded Views and Parts List
5. Block Diagrams
6. PCB Diagrams
7. Wiring Diagrams
8. Schematic Diagrams
DB98_08122A(3)SM_co 2/11/03 3:17 PM Page 3

1-1Samsung Electronics
1. Product Specifications
1-1 Table
Perfor-
mance
Power
Size
Model
Item
Type Cooling kW
Heating kW
Dehumiditying I/h
Air volume Cooling m3/min
Heating
Noise Cooling dB
Heating
Energy efficiency ratio Cooling
Heating W/W
Power V-Hz
Power Consumption Cooling W
Heating
Operating Current Cooling A
Heating
Power factor Cooling %
Heating
Starting current A
Length m
Power cord Number of core wire
Capacity A
Outer Width x Height mm
Dimension x Depth inch
Weight kg
Refrigerant pipe Liquid mm x L(MT)
GAS mm x L(MT)
Drain hose D x L(mm)
Type
Compressor Motor Type
Rated output
Type
Blower Motor Type
Rated output W
Heat exchanger
Refrigerant control unit
Freezer oil capacity cc
Refrigerant to change(R-22) g
Protection device
Cooling test Condition
Maximum operation Condition
SH12ZSG
AQ12SGGE SH09ZS8 AQ09S8GE SH07ZS8 AQ07S8GE
Indoor unit Outdoor unit Indoor unit Outdoor unit Indoor unit Outdoor unit
Wall-mounting
3.5
3.8
1.9
7.9 24
8.6 24
40 50
40 50
2.97
3.25
1-220 / 240-50
1180
1170
5.3
5.1
96.8
99.7
32.0
-
-
250V-10 / 16A
890x285x179 695x530x280
35.0x11.2x7.0 27.4x20.9x11.0
8.5 33.0
ø6.35 x 5
ø12.7 x 5
ø18 x 2000
Rotary
--
--
Cross-flow Propeller
steel steel
15 25
2ROW 12STEP 1ROW 20STEP
CAPILLARY TUBE
600
820
RAC 12074-9622
Wall-mounting
2.7
2.9
1.4
6.4 19
7.0 19
38 48
38 48
2.81
3.22
1-220 / 240-50
960
900
4.4
4.0
94.9
97.8
21.0
-
-
250V-10 / 16A
795x258x179 660x475x242
31.3x10.2x7.0 26.0x18.7x9.5
7.5 26.3
ø6.35 x 5
ø9.52 x 5
ø18 x 2000
Rotary
--
--
Cross-flow Propeller
steel steel
11 20
2ROW 10STEP 1ROW 18STEP
CAPILLARY TUBE
360
660
RAC 12054-9622
Wall-mounting
2.2
2.3
0.9
5.8 19
6.2 19
36 47
36 47
2.86
3.29
1-220 / 240-50
770
700
3.3
3.1
99.9
98.2
18.0
-
-
250V-10 / 16A
795x258x179 660x475x242
31.3x10.2x7.0 26.0x18.7x9.5
7.5 25.6
ø6.35 x 5
ø9.52 x 5
ø18 x 2000
Rotary
--
--
Cross-flow Propeller
steel steel
11 20
2ROW 10STEP 1ROW 18STEP
CAPILLARY TUBE
360
620
RAC 12144-9622
INDOOR UNIT : DB27˚C WB19˚C OUTDOOR UNIT : DB35˚C WB24˚C
INDOOR UNIT : DB32˚C WB23˚C OUTDOOR UNIT : DB43˚C WB26˚C
DB98_08122A(3)SM_1 2/11/03 4:21 PM Page 2-1

Samsung Electronics1-2

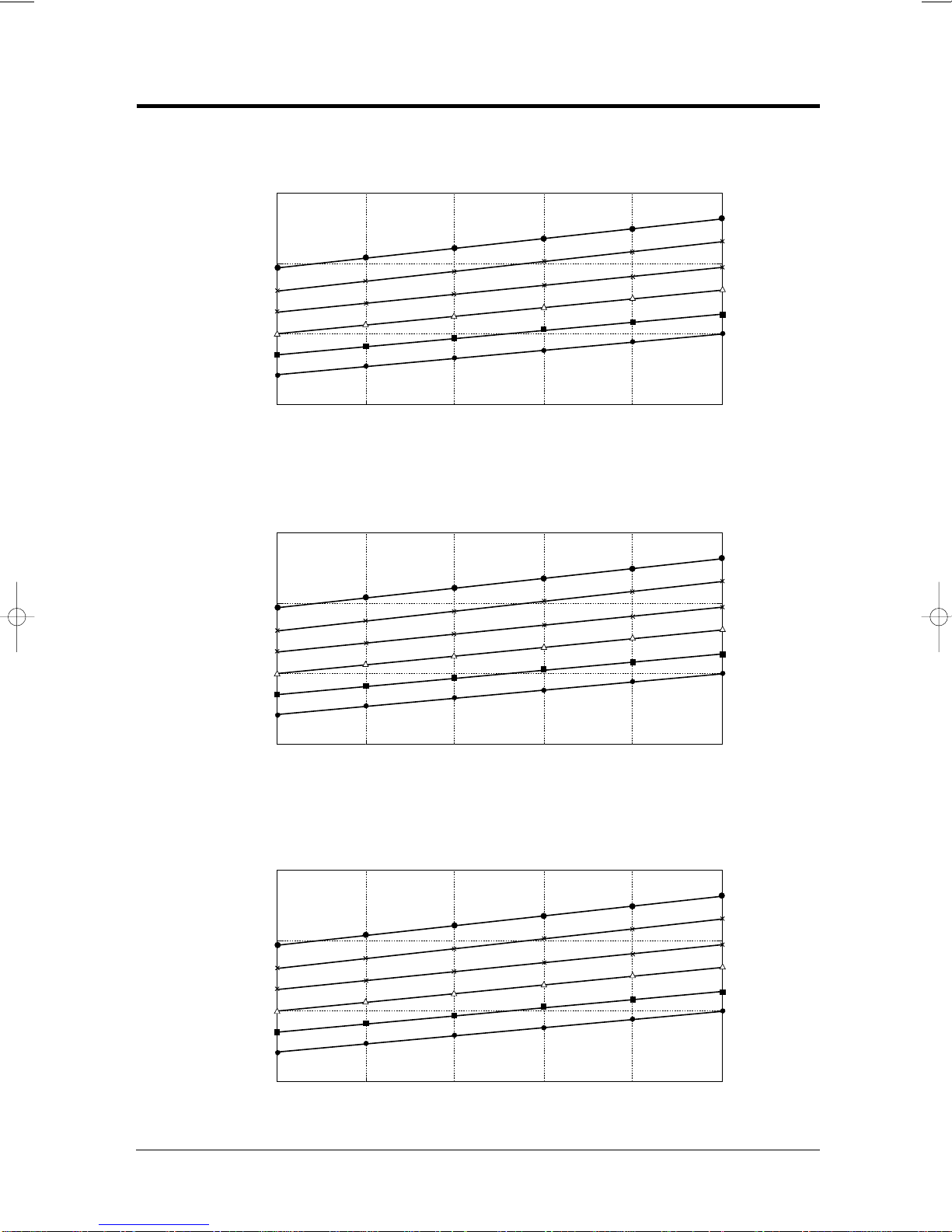

1-2 Pressure Graph
20 25 30 35 40 45
32.4/24.0
30.6/22.5
28.8/21.0
27.0/19.0
24.0/17.0
21.5/15.0
6.5
5.5
4.5
3.5
■12K BTU
20 25 30 35 40 45
32.4/24.0
30.6/22.5
28.8/21.0
27.0/19.0
24.0/17.0
21.5/15.0
6.5
5.5
4.5
3.5
■9K BTU
20 25 30 35 40 45
32.4/24.0
30.6/22.5
28.8/21.0
27.0/19.0
24.0/17.0
21.5/15.0
7
6
5
4
■7K BTU
DB98_08122A(3)SM_1 2/11/03 4:21 PM Page 2-2

2-1Samsung Electronics
2. Operating Instructions

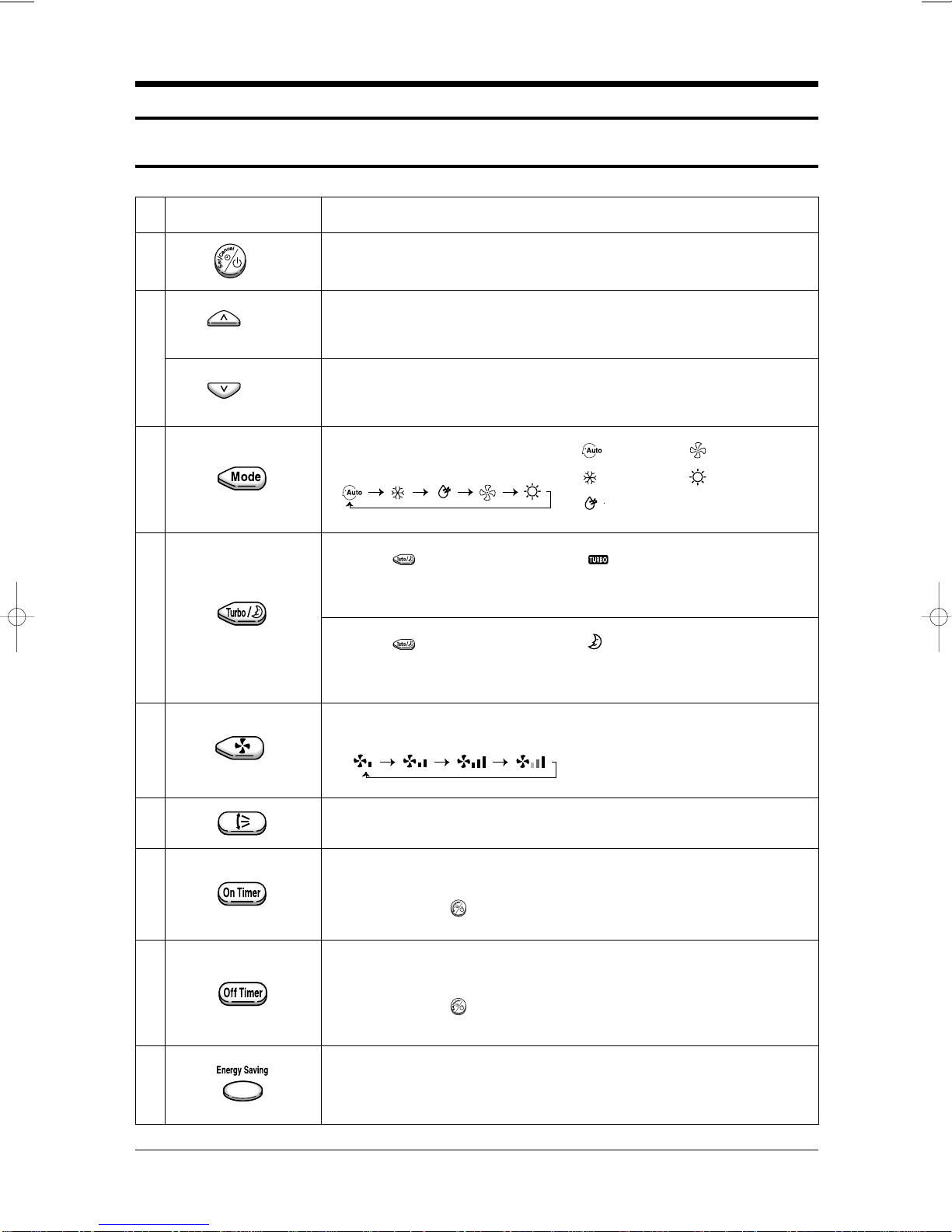

2-1 The Feature of Key in remote control
If you wish to save energy when using your air conditioner, select the Energy saving
mode with the Energy saving button.
Each time you press this button,
FAN SPEED is changed in the following order.
Press the button one or more times until appears. The sleep timer can be
used when you are cooling or heating your room to switch the air conditioner off
automatically after a period of six hours.
Temp. down button. To decrease the temperature by the pressing
the temperature button.
FUNCTION OF KEY
(DOWN)
Power On/Off button to start and stop air conditioner or timer set up.
Press the button one or more times until appears. The air conditioner
cools or heats the room as quickly as possible. After 30minutes,
the air conditioner is reset automatically to the previous mode.
NAMED OF KEY
(UP)
NO
1
2
3
4
5
6
7
8
9
Adjust air flow vertically.
Each time you press this button
Mode is changed in the following order : Auto Mode : Fan Only
: Cool Mode : Heat Mode
: Dry Mode
Temp. up button. To increase the temperature by the pressing
the temperature button.
The ON Timer enables you to switch on the air conditioner automatically
after a given period of time that is from 30 minutes to 24 hours.
To cancel, press the (Set/Cancel) button.
The Off Timer enables you to switch off the air conditioner automatically
after a given period of time that is from 30 minutes to 24 hours.
To cancel, press the (Set/Cancel) button.
DB98_08122A(3)SM_1 2/11/03 4:22 PM Page 2-3

Operating Instructions
Samsung Electronics2-2
1. AUTO MODE : In this mode, operation
mode(COOL, HEAT) is selected automati-
cally by the room temperature of initial
operation.
∆T= -1°C, -2°C, 0°C+1°C+2°C
∆T is controlled by setting temperature
up/down key of remote control
2. COOL MODE : The unit operates accord-
ing to the difference between the setting
and room temperature. (18°C~30°C)
3. HEAT MODE : The unit operates accord-
ing to the difference between the setting
and room temperature.(16°C~30°C)
*Prevention against cold wind : In order to
prevent the cool air from flowing out at
the heat mode, the indoor fan does not
operate or operates very slowly in the
following cases. At this time, the indoor
heat exchanger will be preheating.
- For 3~5 minutes after the initial
operation
- For deicing operation
- The operation of an indoor fan in
accordance with the temperature of an
indoor heat exchanger
*High temperature release function : It is a
function to detect an outdoor overload by
the sensor of an indoor heat exchanger
and to turn the outdoor fan or the
compressor ON/OFF for safety.
*Deice : Deicing operation is controlled
by indoor unit's heat exchanger tempera-
ture and accumulating time of compres-
sor's operation.
Deice ends by sensing of the processing
time by deice condition.
4. DRY MODE : Has 3 states, each deter-
mined by room temperature.
The unit operates in DRY mode.
*Compressor ON/OFF Time is controlled
compulsorily(can not set up the fan
speed, always breeze).
*Protective function : Low temperature
release. (Prevention against freeze)
5. TURBO MODE : This mode is available in
AUTO, COOL, HEAT, DRY, FAN MODE.
When this button is pressed at first, the
air conditioner is operated “powerful”
state for 30 minutes regardless of the set
temperature, room temperature.
When this button is pressed again, or
when the operating time is 30 minutes,
turbo operation mode is canceled and
returned to the previous mode.
*But, if you press the TURBO button in
DRY or FAN mode that is changed with
AUTO mode automatically.
6. SLEEP MODE : Sleep mode is available
only in COOL or HEAT mode.
The operation will stop after 6 hours.
*In COOL mode : The setting temperature
is automatically raised by 1°C each 1hour
When the temperature has been raised by
total of 2°C, that temperature is main-
tained.
*In HEAT mode : The setting temperature
is automatically dropped by 1°C each
1hour.
When the temperature has been dropped
by total of 2°C, that temperature is main-
tained.
Room Temp
Tr≥21°C+∆T
21°C +∆T>Tr
Operation Type
Cool Operation (Set Temp:24˚C+∆T)
Heat Operation (Set Temp:22˚C+∆T)
2-1-1 Name & Function of Key in remote control
The temperature of
indoor heat exchanger
below 28˚C
28˚C~below 34˚C
34˚C~below 40˚C
above 40˚C
Indoor fan speed
off
LL Speed
L Speed
Setting Speed
DB98_08122A(3)SM_1 2/11/03 4:22 PM Page 2-4

Operating Instructions
2-3Samsung Electronics
7. FAN SPEED : Manual (3 step), Auto (4
step)
Fan speed automatically varies depending
on both the difference between setting and
the room temperature.
8. COMPULSORY OPERATION :
For operating the air conditioner without
the remote control.
*The air conditioner starts up in the most
suitable mode for the room temperature:
9. SWING : BLADE-H is rotated vertically by
the stepping motor.
*Swing Set : Press the button under the
remote control is displayed on LCD the
and the blades move up and down. If
the one more time press the button,
blades location is stop.
10. SETTING THE ON/OFF TIMER. :
*ON TIMER : The On Timer enables you
to switch on the air conditioner automati-
cally after a given period of time. You can
set the period of time from 30 minutes to
24 hours.
*OFF TIMER : The Off Timer enables you
to switch off the air conditioner automati-
cally after a given period of time. You can
set the period of time from 30 minutes to
24 hours.
11. SELF DIAGNOSIS
12. BUZZER SOUND : Whenever the
ON/OFF button is pressed or whenever
change occurs to the condition which is set
up or select, the compulsory operation
mode, buzzer is sounded "beep".
Indoor unit room temperature sensor
error(open or short)
Description
LAMP of DISPLAY Monitor
TURBO OPERATION TIMER ENERGY
SAVING
: Lamp flickering
: Lamp off
Indoor unit heat exchanger temperature
sensor error(open or short)
Indoor fan motor malfunction
EEPROM error
Option error(option wasn’t set up or
option data error)
Room Temperature
Less than 21ûC
21ûC or above
Operating Mode
Heat
Cool
Temperature Setting
22ûC approx.
24ûC approx.
DB98_08122A(3)SM_1 2/11/03 4:22 PM Page 2-5

MEMO
Samsung Electronics2-4
DB98_08122A(3)SM_1 2/11/03 4:22 PM Page 2-6

3-1Samsung Electronics
3. Disassembly and Reassembly
3-1 Indoor Unit
Stop operation of the air conditioner and remove the power cord before repairing the unit.
No Parts Procedure Remark

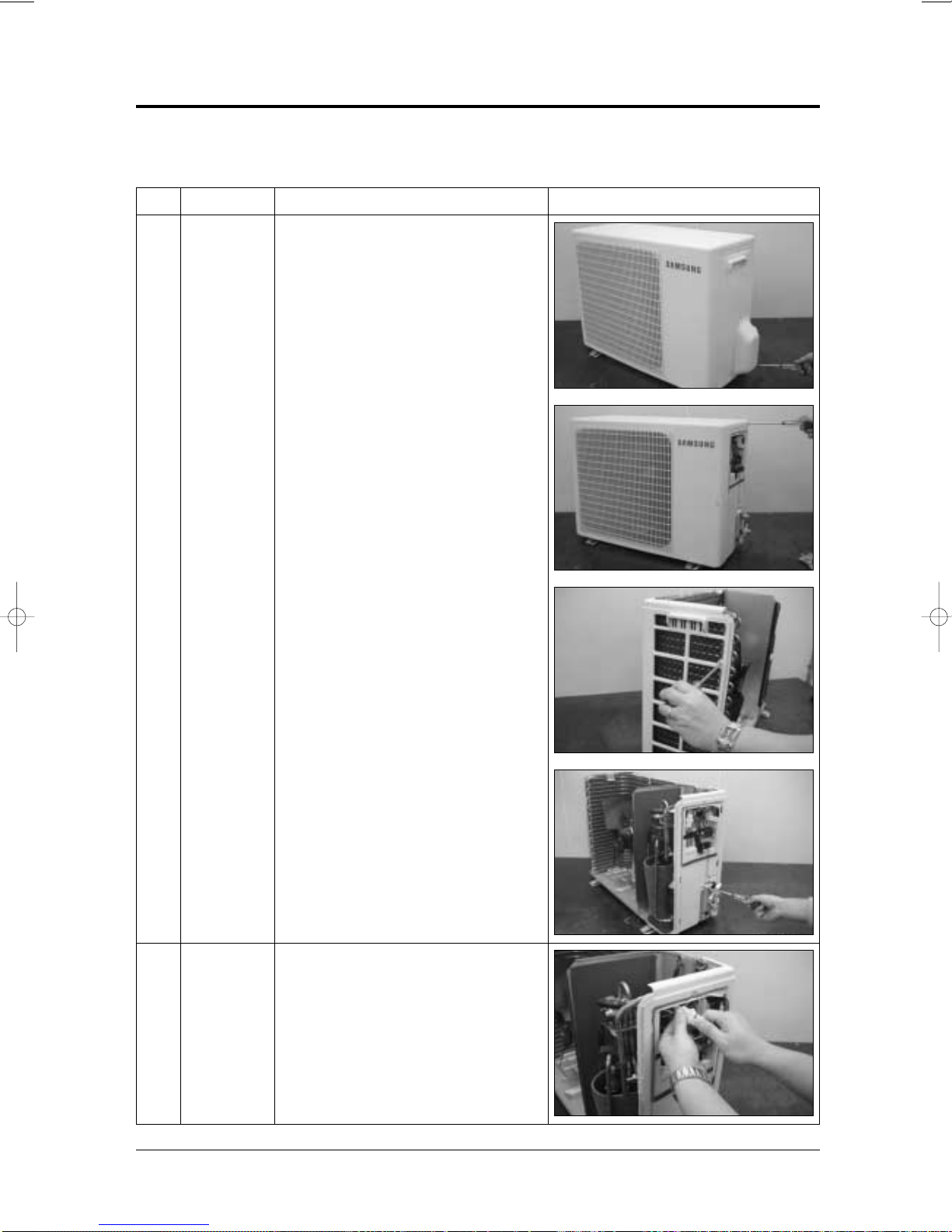

1 Front Grille 1) Stop the air conditioner operation and block
the main power.
2) Separate tape of front panel upper.
3) Slide the lower front grille down, then
disassemble it by pulling it forwards.
4) Open the upper front grille by pulling right
and left sides of the grille.
5) Take the left and right filter out.
6) Loosen one of the right screw and separate
the terminal cover.
7) Separate the thermistor from the front grille.
8) Loosen five fixing screws of front grille.
9) Pull the lower left and right of discharge
softly for the outside cover to be pulled out.
10) In order to disassemble the panel grille,
press, in order, the left, center, and right of
the upper side of the panel grille with the
palm of the hand to remove the hook.
And then disassemble the panel grille.
DB98_08122A(3)SM_1 2/11/03 4:22 PM Page 2-7

Disassembly and Reassembly
Samsung Electronics3-2
No Parts Procedure Remark
2
3
4
Electrical Parts
(Main PCB)
Ass’y Tray Drain.
Heat Exchanger
1) Do “1”, above.
2) Take all the connector of PCB upper side out.
(Inclusion Power cord)
3) Separate the outdoor unit connection wire
from the terminal block.
4) If pulling the Main PCB up. it will be taken
out.
1) Do “1”, “2”, above.
Separate the drain hose from the extension
drain hose.
2) Pull tray drain out from the back body.
1) Do “1” and “2”, “3”, above.
2) Loosen two fixing earth screws of right side.
3) Separate the connection pipe.
4) Separate the holder pipe at the rearside.
5) Loosen the three fixing screws of right and
left side.
6) Lifting the heat exchanger up a little to push
the up side for separation from the indoor
unit.
DB98_08122A(3)SM_1 2/11/03 4:22 PM Page 2-8

Disassembly and Reassembly
3-3Samsung Electronics
No Parts Procedure Remark
5 Fan Motor and
Cross Fan 1) Do “1”, “2”, ”3”, “4”, above.
2) Loosen the fixing two screws and separate
the motor holder.
3) Loosen the fixing screw of fan motor.
(By use of M3 wrench)
4) Separate the fan motor from the fan.
5) Separate the fan from the left holder bearing.
DB98_08122A(3)SM_1 2/11/03 4:22 PM Page 2-9

Samsung Electronics3-4
3-2 Outdoor Unit
• SH12ZSGX
•UQ12SGGE
No Parts Procedure Remark
1
2
Common
Work
Fan and
Motor
1) Loosen 2 fixing screws and separate the
cover valve.
2) Separate the connection wire from the
terminal block.
3) Loosen 4 fixing srews and separate the cabi
front.
4) Loosen 2 fixing screws and separate the cabi
side LF.
5) Loosen 2 fixing screws of the cabi side RH.
1) Do “1”, above.
2) Separate the connection wire of the motor
fan.
DB98_08122A(3)SM_1 2/11/03 4:22 PM Page 2-10

Disassembly and Reassembly
3-5Samsung Electronics
No Parts Procedure Remark
3
4
Heat
Exchanger
Compressor
3) Remove the nut flange. (Turn to the right to
remove, as it is a left hand screw)
4) Separate the fan.
5) Loosen 4 fixing screws to separate
the motor.
6) Loosen 4 fixing screws and separate the
motor bracket from the base.
1) Do "1","2", above.
2) Loosen 2 fixing screws of left and right side.
3) Disassemble the inlet and outlet pipe by
welding.
4) Separate the heat exchanger.
1) Do "1","2","3", above.
2) Open the terminal cover of compressor and
unscrew the connection terminal.
3) Disassemble the inlet and outlet pipe of
compressor by welding.
4) Loosen 3 fixing bolts of the lower part.
5) Separate the compressor.
DB98_08122A(3)SM_1 2/11/03 4:22 PM Page 2-11

Disassembly and Reassembly
Samsung Electronics3-6
• SH07ZS8X / SH09ZS8X
• UQ07S8GE / UQ09S8GE
No Parts Procedure Remark
1 Common Work 1) Loosen the fixing two screws and separate
the cover terminal.
2) Loosen the fixing two screws and seperate
the cover control.
3) Separate the connection wire from the
terminal block.
4) Loosen six fixing screws and separate the
cabi front.
5) Loosen the one fixing screw of assy E-part.
6) Loosen 12 fixing screws and separate the
cabi side.
DB98_08122A(3)SM_1 2/11/03 4:22 PM Page 2-12

Disassembly and Reassembly
3-7Samsung Electronics
No Parts Procedure Remark
2
3
4
Fan and Motor
Heat Exchanger
Compressor
1) Do “1”, above.
2) Remove the nut flange (Turn to the right to
remove, as it is a left hand screw)
3) Separate the fan.
4) Loosen four fixing screws to separate the
motor.
5) Loosen two fixing screws and seperate the
motor bracket from the base.
1) Do “1”,“2”, above.
2) Loosen two fixing screws of left and right
side.
3) Disassemble the inlet and outlet pipe by
welding.
4) Separate the heat exchanger.
1) Do “1”, “2”, “3”, above.
2) Open the terminal cover of compressor and
unscrew the connection terminal.
3) Disassemble the inlet and outlet pipe of
compressor by welding.
4) Loosen the three bolts of the lower part.
5) Separate the compressor.
DB98_08122A(3)SM_1 2/11/03 4:22 PM Page 2-13

Samsung Electronics4-1
4. Exploded Views and Parts List
4-1 Indoor Unit
4
13
17-6
15
12
14
17-2
17-1
17-5
17-3
17-4
1-2
2
1-5
18
5
1
1-4
1-3
19
20
11
16
17
1-1
3
7
6
9
8
10
You can search for the updated part code
number through the ITSELF.
URL : http://itself.sec.samsung.co.kr
DB98_08122A(3)SM_1 2/11/03 4:22 PM Page 2-14

4-2Samsung Electronics
Exploded Views and Parts List
Q’TY
SH12ZSG
AQ12SGGE SH09ZS8 AQ09S8GE SH07ZS8 AQ07S8GE
■
Indoor Unit Parts List
No. Code No. Specification RemarkDescription
1
1-1
1-2
1-3
1-4
1-5
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17-1
17-2
17-3
17-4
17-5
17-6
18
19
20
DB92-00345A
DB92-00357A
DB92-00346A
DB92-00356A
DB64-00646A
DB63-00585A
DB63-00590A
DB63-00586A
DB63-00591A
DB92-00456A
DB92-00457A
DB92-00347A
DB92-00355A
DB96-02092A
DB96-02145A
DB95-00367C
DB63-00581A
DB63-00588A
DB63-00667A
DB63-00716A
DB94-00040R
DB94-00040F
DB60-20011A
DB31-00152B
DB31-00152A
DB93-01453A
DB93-01523A
DB94-00261A
DB94-00269A
DB61-01099A
DB61-01120A
DB93-01364B
DB63-00580A
DB90-00992A
DB61-01121A
DB70-00276A
DB70-00288A
DB94-00259A
DB94-00265A
DB94-00062E
DB61-01103A
DB61-01125A
DB61-01104A
DB61-01126A
DB63-00634A
DB63-00635A
DB95-20138A
DB63-00587A
DB63-00592A
DB67-60030A
DB73-00128A
DB94-40007A
ASSY
ASSY
ASSY
ASSY
PC
PP
PP
PP
PP
ASSY
ASSY
ASSY
ASSY
ASSY
ASSY
ASSY
HIPS
HIPS
PP
PP
ASSY
ASSY
-
-
-
ASSY
ASSY
ASSY
ASSY
PP
PP
ASSY
HIPS
ASSY
HIPS
SGCC-M
SGCC-M
ASSY
ASSY
ASSY
HIPS
HIPS
PP
PP
-
-
ASSY
HIPS
HIPS
-
-
-
Option
1
-
1
-
1
1
-
1
-
1
-
1
-
1
-
1
1
-
1
-
1
-
1
1
-
1
-
1
-
1
-
1
1
1
-
1
-
1
-
1
1
-
1
-
1
-
1
1
-
1
1
1
-
1
-
1
1
-
1
-
1
-
1
-
1
-
1
1
-
1
-
1
-
1
1
-
1
-
1
-
1
-
1
1
1
-
1
-
1
-
1
1
-
1
-
1
-
1
1
-
1
1
1
1
-
1
-
1
1
-
1
-
1
-
1
-
1
-
1
1
-
1
-
1
-
1
1
-
1
-
1
-
1
-
1
1
1
-
1
-
1
-
1
1
-
1
-
1
-
1
1
-
1
1
1
1
ASSY PANEL FRONT TOTAL
ASSY PANEL FRONT TOTAL
ASSY PANEL FRONT SUB
ASSY PANEL FRONT SUB
WINDOW DISPLAY
FILTER-AIR LF
FILTER-AIR LF
FILTER-AIR RH
FILTER-AIR RH
ASSY GRILLE UP
ASSY GRILLE UP
ASSY GRILLE LOW SUB
ASSY GRILLE LOW SUB
ASSY EVAPORATOR
ASSY EVAPORATOR
ASSY FILTER BIO
COVER TERMINAL
COVER TERMINAL
COVER DRAIN
COVER DRAIN
ASSY CROSS FAN
ASSY CROSS FAN
BOLT SPECIAL
MOTOR-FAN IN
MOTOR-FAN IN
ASSY CONTROL IN
ASSY CONTROL IN
ASSY BACK BODY SUB
ASSY BACK BODY SUB
HOLDER-MOTOR
HOLDER-MOTOR
ASSY REMOCON
COVER-IONIZER
ASSY HOLDER-PIPE
HOLDER-PIPE
HANGER PLATE
HANGER PLATE
ASSY TRAY DRAIN
ASSY TRAY DRAIN
ASSY HOSE DRAIN
BLADE-H
BLADE-H
BLADE-V
BLADE-V
GUARD-SAFETY WIRE
GUARD-SAFETY WIRE
ASSY STEPPING MOTOR
TRAY DRAIN
TRAY DRAIN
SPRING SENSOR
BEARING MOLD
BEARING
DB98_08122A(3)SM_1 2/11/03 4:22 PM Page 2-15

Samsung Electronics4-3

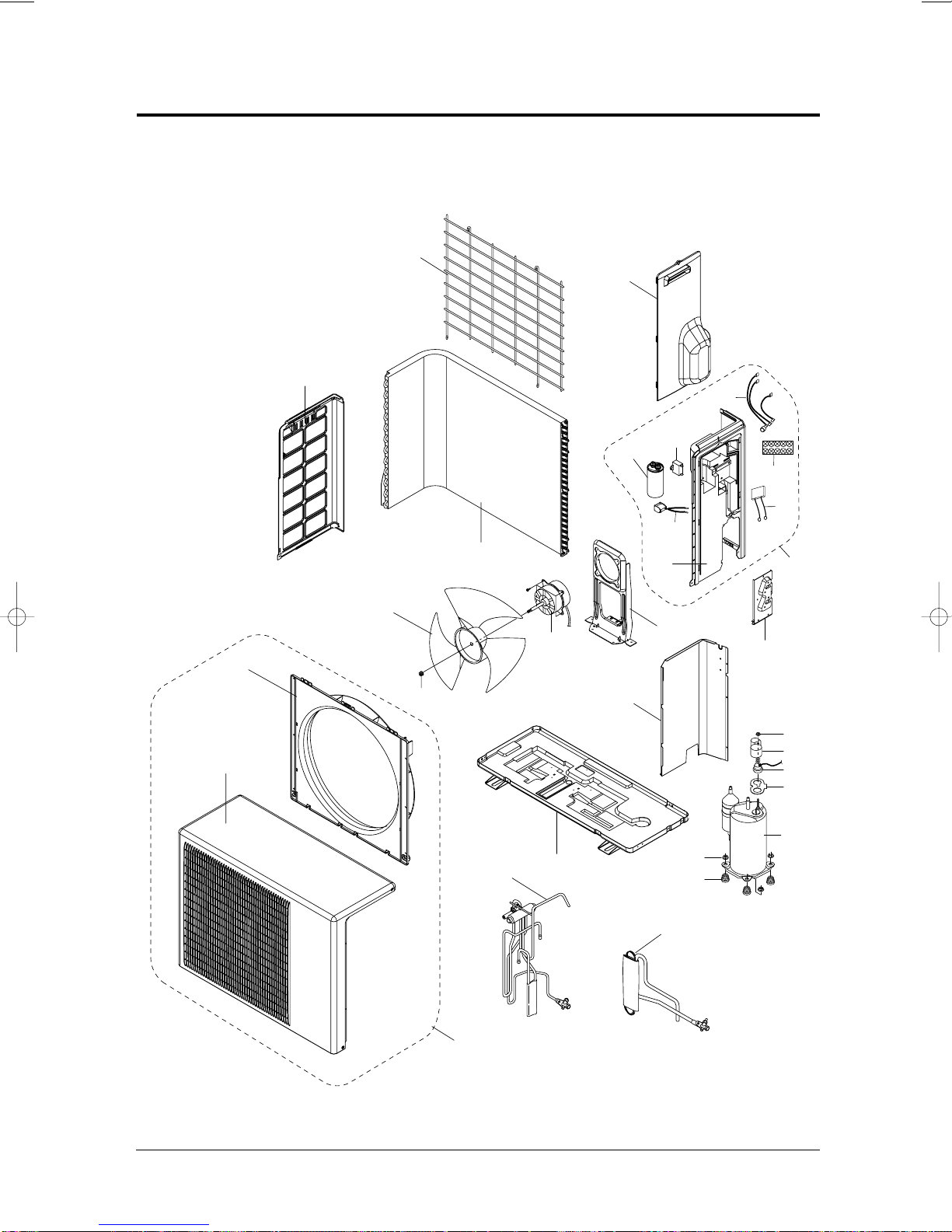

4-2 Outdoor Unit
4-2
9-6
9-4
9-5
9-8
14
8
17
16
9-7
15
13
10
5
11
12
6
9-1 9
9-3
4
4-1
9-2
20
19
7
21
3
2
1
18
■SH12ZSGX
■UQ12SGGE
DB98_08122A(3)SM_1 2/11/03 4:22 PM Page 2-16

4-4Samsung Electronics
Exploded Views and Parts List
Q’TY
SH12ZSGX
UQ12SGGE
■
Outdoor Unit Parts List
No. Code No. SpecificationDescription
1
2
3
4
4-1
4-2
5
6
7
8
9
9-1
9-2
9-3
9-4
9-5
9-6
9-7
9-8
10
11
12
13
14
15
16
17
18
19
20
21
DB60-30020A
DB67-50063A
DB31-10058C
DB90-00904A
DB64-00648A
DB61-01113A
DB90-01056A
DB61-01322A
DB94-00278A
DB73-10004B
DB90-00914A
DB64-00650A
2501-001236
2301-001375
DB33-00028A
DB65-40049E
DB93-01547A
DB35-00015H
DB95-90026G
DB90-01001A
DB96-02414A
DB96-02413A
48D129JU1EL
DB60-30028A
DB63-20002A
DB63-10165D
DB60-30018A
DB96-02104A
DB71-00085A
DB90-00947A
DB94-00303A
NUT FLANGE
FAN PROPELLER
MOTOR FAN OUT
ASSY CABI FRONT
CABI FRONT
BELL MOUTH
ASSY BASE OUT
ASSY BRACKET VALVE
ASSY BRACKET MOTOR
ASSY GROMMET ISOLATOR
ASSY CABISIDE RH
CABISIDE RH
CAPACITOR-COMP
CAPACITOR-MOTOR
ASSY SOLENOID COIL
TERMINAL BLOCK
ASSY LEAD WIRE
OLP
ASSY-SPARK KILLER
ASSY CABINET SIDE LF
ASSY 4WAY VALVE
ASSY CHECK VALVE
COMPRESSOR
NUT WASHER
GASKET
COVER TERMINAL
NUT FLANGE
ASSY CONDENSER
BAR STEEL
ASSY COVER VALVE
ASSY PARTITION
2C, M6, SM20C, NTR
AS+G/F 20%, ø405
220/240V, 50/60Hz
ASSY
PP
PP
ASSY
GA
ASSY, SGCC-M
NR
ASSY
PP
30µF / 450VAC
1.5µF / 450VAC
ASSY
4P
ASSY
RAC12074-9622
ASSY
ASSY
ASSY, SHF-4-23U
ASSY, ø9.52
220~240V / 50Hz
HEX2CM8ZPC
SILICON
PBT
M5, SM20C
ASSY
-
ASSY
ASSY, SGCC-M
1
1
1
1
1
1
1
1
1
3
1
1
1
1
1
1
1
1
1
1
1
1
1
3
1
1
1
1
1
1
1
DB98_08122A(3)SM_1 2/11/03 4:22 PM Page 2-17

Exploded Views and Parts List
Samsung Electronics4-5
14-2
14-1
23
24
22
11
2
1
7
14
8
12
15 16
5
3
6
21 20
19
18
17
4
10
9
9-1
13-2
13-6
13
13-1
13-3
13-5
13-4
13-7
■SH09ZS8X / SH07ZS8X
■UQ09S8GE / UQ07S8GE
DB98_08122A(3)SM_1 2/11/03 4:22 PM Page 2-18

Exploded Views and Parts List
4-6Samsung Electronics
Q’TY
SH09ZS8X SH07ZS8X
UQ09S8GE UQ07S8GE
■
Outdoor Unit Parts List
No. Code No. Description
1
2
3
4
5
6
7
8
9
9-1
10
11
12
13
13-1
13-2
13-3
13-4
13-5
13-6
13-7
14
14-1
14-2
15
16
17
18
19
20
21
22
23
24
DB90-00262A
DB94-00271A
DB73-10004B
44B102JX1EL
44B080JX1EL
DB60-30028A
DB72-00453A
DB61-00793A
DB96-02142A
DB96-02472A
DB99-00277A
DB33-00002B
DB96-02470A
DB96-02470B
DB90-00110A
DB90-00109C
DB93-00666C
DB93-00666D
2501-001238
2501-001236
DB93-00481D
DB61-01102A
DB65-40049E
2301-001375
DB61-01196A
DB95-90026G
DB90-00108F
DB63-00099A
DB64-00086A
DB90-00152A
DB94-00021A
DB67-60020A
DB35-00015B
DB35-00020A
DB63-20002A
DB63-10165D
DB60-30018A
DB31-00034A
DB67-00036A
DB60-30020A
ASSY BASE OUT
ASSY PARTITION; 7K,9K
GROMMET ISOLATOR(SILICON)
ROTARY COMP
ROTARY COMP
NUT WASHER
CLOTH COMP SOUND
BRAKET VALVE
ASSY CONDENSER
ASSY CONDENSER
ASSY 4WAY VALVE
ASSY SOLENOID COIL
ASSY TUBE CAPLLARY
ASSY TUBE CAPLLARY
ASSY BRACKET MOTOR
ASSY CABI SIDE
ASSY CONTROL OUT(9K 2 Stage OLP)
ASSY CONTROL OUT(7K 2 Stage OLP)
C OIL;40µF, 450VAC
C OIL;30µF, 450VAC
ASSY-LEAD WIRE 2 Stage OLP
HOLDER CAPACITOR
TERMINAL BLOCK;4P
C FILM;1.5µF, 450VAC
CASE CONTROL OUT
ASSY-SPARK KILLER
ASSY CABI FRONT
GUARD FAN WIRE
CABINET FRONT
ASSY COVER CONTROL
ASSY COVER VALVE
SPRING OLP
PROTECTOR O/L; RAC12054-9622, 2 Stage OLP
PROTECTOR O/L; RAC12144-9622, 2 Stage OLP
GASKET;EPDM
COVER TERMINAL
NUT FLANGE
MOTOR FAN OUT
FAN PROPELLER
NUT FLANGE
1
1
3
1
-
3
1
1
1
-
1
1
1
-
1
1
1
-
1
-
1
1
1
1
1
1
1
1
1
1
1
1
1
-
1
1
1
1
1
1
1
1
3
-
1
3
1
1
-
1
1
1
-
1
1
1
-
1
-
1
1
1
1
1
1
1
1
1
1
1
1
1
-
1
1
1
1
1
1
1
DB98_08122A(3)SM_1 2/11/03 4:22 PM Page 2-19
