Samsung DMS2 User manual

DMS2(Data Management Server2)
MIM-D00A
Air Conditioner
installation manual
DB98-32138A(3)
E
imagine the possibilities
Thank you for purchasing this Samsung product.
MIM-D00A_DMS2_IM_E 32138-3.indd 57 2010-09-03 오후 2:12:02

E-2
Safety Precautions
Read carefully this installation manual before
installation and check if the DMS2 is installed correctly
after installation.
 Do not attempt to install or repair this DMS2 by yourself.
This DMS2 contains no user-serviceable parts.
Always consult authorized service personnel for repairs.
When moving, consult authorized service personnel for
disconnection and installation of the DMS2.
Ensure that the wall is strong enough to support the
weight of the DMS2.
Must install the DMS2 with rated power supply.
The DMS2 must be installed according to
the national electrical rules by an installation specialist.
If you wish to uninstall the DMS2, consult an authorized
installation center.
WARNING
CAUTION  Do not use inflammable gases near the DMS2.
Do not install the DMS2 in a location where
it will come into contact with combustible gases,
machine oil, sulphide gas, etc.
Avoid locations where acid/alkali solution or special
spray is used.
Choose a location that is dry and sunny, but not exposed
to direct sunlight. Suitable temperature is between
0°C(32°F) and 39°C(102.2°F).
 Do not spill water into the DMS2.
Do not apply tensile strength to the cable to avoid cable
damage.
Do not press the buttons with a sharp object.
Do not connect the power cable to the control terminal.
If the DMS2 is installed in a hospital or other special
places, it should not affect other electronic devices.
This installation manual describes how to install the DMS2. For installation of
other optional accessories, refer to the appropriate installation manual.
MIM-D00A_DMS2_IM_E 32138-2.indd 2 2010-07-22 ｿﾀﾈﾄ 2:31:21

E-3
Contents
 SAFETY PRECAUTIONS ..................................................................... 2
 BEFORE INSTALLING THE DMS2 ................................................... 4
 ACCESSORIES ..................................................................................... 5
 VIEWING THE PARTS ........................................................................ 6
 PRODUCT DIMENSIONS ................................................................... 8
 SYSTEM ARCHITECTURE ................................................................... 9
 COMPATIBLE DEVICES ..................................................................... 10
 INSTALLING THE DMS2 ................................................................ 12
 SETTING THE COMPUTER ENVIRONMENT ...................................... 21
 SETTING THE DMS2 ...................................................................... 23
 TRACKING ......................................................................................... 35
 PIM SETTING .................................................................................. 47
 SETTING THE POWER DISTRIBUTION .............................................. 49
 APPENDIX ......................................................................................... 52
MIM-D00A_DMS2_IM_E 32138-2.indd 3 2010-07-22 ｿﾀﾈﾄ 2:31:21

E-4
Checks before installation
1
DMS2 IP
 A public IP is needed to access the DMS2 over the
internet.
(One public IP is needed for each DMS2)
 A private IP may be used if the DMS2 need not be
accessed over the internet.
 DMS2 supports DHCP.
DHCP(Dynamic Host Configuration Protocol)
An Internet protocol for automating the configuration of
computers that use TCP/IP.
DHCP is used to automatically assign IP addresses.
In other words, the IP address of the host is supported only
when the PC is on.
2
Network related equipments
DHCP(Dynamic Host Configuration Protocol)
An Internet protocol for automating the configuration of
computers that use TCP/IP.
DHCP is used to automatically assign IP addresses.
In other words, the IP address of the host is supported only
when the PC is on.
3 Installation connection wire
 The LAN cable and the communication cables from
centralized controllers/interface modules must be
installed in such a way that the wires can be connected
to the DMS2 with ease.
Note The DMS2 is a server and supports static IP and
Dynamic IP. To access the DMS2 through the internet
or with S-NET series, the DMS2 address,which is the IP
address, must be known.
A static IP service from an internet service provider
must be used if xDSL (ADSL, VDSL) is being used
for internet connection. (Static IP costs more than
dynamic IP.)
Choosing between a private IP and a public static IP
depends on whether the DMS2 needs to be controlled
from an external location.
Before Installing the DMS2
MIM-D00A_DMS2_IM_E 32138-2.indd 4 2010-07-22 ｿﾀﾈﾄ 2:31:21

E-5
Item DMS2
Quantity 1
Shape
Adapter Power cable M4x16 Screw
1 1 6
User’s manual Installation
manual Cable tie
1 1 1
Make sure you have each item. Supplied items may vary depending on your
country or service provider.
Accessories
 The DMS2 must be installed by a trained installer.
 Ensure the main power is turned off before installing
the DMS2.
 Be sure to use adapter and power cable we provide.
 The power cable and the communication cable must
be installed according to the national electrical wiring
regulations.
MIM-D00A_DMS2_IM_E 32138-2.indd 5 2010-07-22 ｿﾀﾈﾄ 2:31:22

E-6

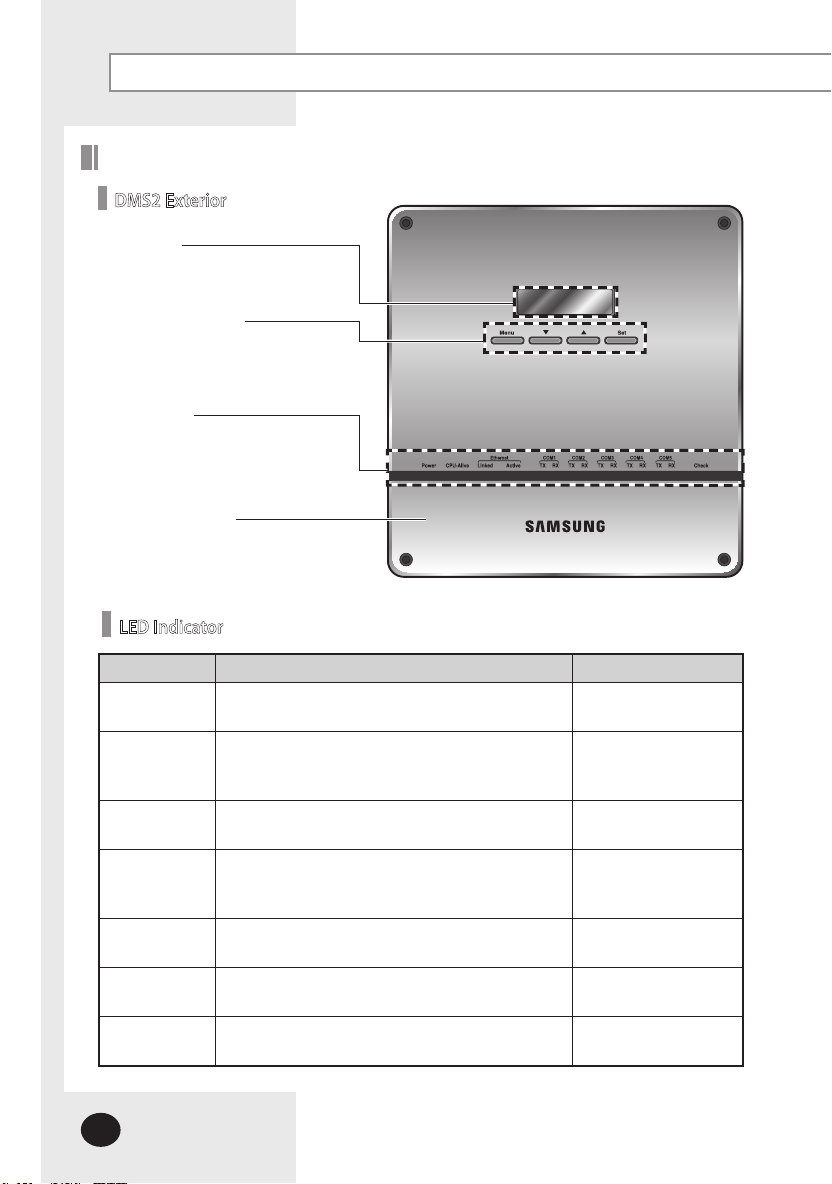

DMS2 Exterior
LCD Display
Shows current time and IP address. Various
messages will be displayed depending on
button input.
LCD operation button
There are 4 buttons(Menu, ▼(Down), ▲(Up),
Set) and you can access to menu and move,
check the menu.
LED Indicator
Check 15 LED status such as Power, CPU-Alive,
Ethernet-Linked/Active, COM1~5-TX/RX and
Check
DMS2 Bottom cover
Unfasten 2 screws on the bottom and
separate the bottom cover from DMS2.
Then check cable connection part.
Item Name Status
Power Power indicator Turns blue when the
power is supplied.
CPU Alive CPU operation indicator
Blinks in orange with
1 second intervals during
normal operation.
Ethernet–Linked Internet connection indicator Turns green during
normal connection.
Ethernet–Active Internet data transmission/reception indicator
Blinks in orange during
normal transmission/
reception.
COM1~5 – TX Channel 1~5 Centralized controller/Interface module
Data transmission Indicator
Blinks in green during
normal transmission.
COM1~5 – RX Channel 1~5 Centralized controller/Interface module
Data reception Indicator
Blinks in green during
normal reception,
Check Indoor/Outdoor unit/Communication check Indicator Turns green when notice
occurs.
LED Indicator
Viewing the Parts
Main Parts
MIM-D00A_DMS2_IM_E 32138-2.indd 6 2010-07-22 ｿﾀﾈﾄ 2:31:22

E-7
Name Description
DI Terminal1 Digital Input connection terminal, Channel1~Channel5
DI Terminal2 Digital Input connection terminal, Channel6~Channel10
DO Terminal3 Digital Output connection terminal, Channel1~Channel5
DO Terminal4 Digital Output connection terminal, Channel6~Channel10
Reset Button
Reset DMS2
Power Terminal Connect DMS2 adapter
Serial Terminal Service agent checks DMS2 error status using this terminal
SD card socket
Sub memory (for program update and set information saving) socket
RS485
Communication
Terminal
Connect for RS485 communication with devices such as centralized
controller/Interface module
-COM1 ~ COM5
Ethernet Terminal Connect LAN cable
Cable tie groove Groove for arranging cables
Cable tie groove
SD Card Socket
Serial Terminal
Power Terminal
Reset Button
DI Terminal1 DI Terminal2 DO Terminal3 DO Terminal4
Ethernet Terminal
RS485 Communication Terminal
Viewing the Parts
DMS2 Cable Connection Part
MIM-D00A_DMS2_IM_E 32138-2.indd 7 2010-07-22 ｿﾀﾈﾄ 2:31:22

E-8
240
255
64.80 (Unit : mm)
Display Board
40-pin Cable
20-pin Cable
DI contact control
option switch
Main Board
Sub Board
DMS2 Interior
Main Parts
Viewing the Parts (Continued)
Note If you need external circuit configuration, consult with the manufacturer.
Refer to page 20 for DI contact input operation.
Product Dimensions
MIM-D00A_DMS2_IM_E 32138-2.indd 8 2010-07-22 ｿﾀﾈﾄ 2:31:23

E-9
 Connecting centralized controller and DMS2 ( type)
- You can control up to 16 centralized controllers and 256 indoor units using DMS2.
 Connecting interface module and DMS2( type)
- You can control up to 80 interface modules and 256 indoor units using DMS2.
*16 interface modules can be connected to RS485 communication channel of DMS2.
- The more interface modules are connected, the longer time takes for tracking.
Display Board
40-pin Cable
20-pin Cable
DI contact control
option switch
Main Board
Sub Board
System Architecture
S-NET mini
Centralized
controller
DMS2
Internet
S-NET3
Interface module Interface module Interface module
 When connecting centralized controller and interface module to the DMS2 of same
communication channel, only one of them will communicate according to the
communication channel mode setting of [System Settings]-[Tracking]. Therefore,
do not connect the centralized controller and interface module to the same
communication channel.
 If you set the communication channel mode as interface module, virtual centralized
controller address will be assigned. Therefore please aware of that if you set the
centralized controller address as virtual centralized controller address when you
connect interface module and centralized controller at the same, it may cause trouble
for bringing device information.
Channel 0: Virtual centralized controller 11, Channel 1: Virtual centralized controller 12,
Channel 2: Virtual centralized controller 13, Channel 4: Virtual centralized controller 14,
Channel 5: Virtual centralized controller 15
MIM-D00A_DMS2_IM_E 32138-2.indd 9 2010-07-22 ｿﾀﾈﾄ 2:31:24

E-10
Compatible Devices
No Devices Model Note
1
Indoor Unit
Outdoor Unit
All System indoor/outdoor units
such as: DVM, DVM PLUS,
DVM PLUS II, DVM PLUS III,
DVM PLUS IV , mini DVM, CAC Series
-
2
Centralized
Controller
MCM-A202, MCM-A202A,
MCM-A202B -
3
SIM MIM-B12 Needed for EHP power distribution
4
PIM MIM-B16 Needed for EHP power distribution
5
Interface
module
MIM-B04A (DVM, DVM PLUS, etc.)
MIM-B13 (DVM PLUS II, etc.)
MIM-B13A (DVM PLUS II/
DVM PLUS III, DVM PLUS IV etc.)
MIM-B13B
-
6*
Watt-hour
Meter
RS485 comm. type
Connected with SIM
Needed for power distribution
( Please consult Samsung for compatible
power meters)
Pulse type
Connected with PIM
Pulse Width: 20~400(ms)
Pulse: 1~10000(Wh/Pulse)
  Products with ‘* ’ are not Samsung products and must be purchased separately.
(Only selected power meters may be used for protocol compatibility issues.)
MIM-D00A_DMS2_IM_E 32138-2.indd 10 2010-07-22 ｿﾀﾈﾄ 2:31:25

E-11
Compatible Devices
Devices Max. Note
Indoor Unit 256 Tracking error occurs if exceeded
Centralized
Controller 16 Must not exceed 16 units
Interface
module 256
16 units per 1 channel, total 80 units are connectable
when connecting i nterface module to DMS2 directly
(256 units are connectable when using centralized
controller)
SIM/PIM 8 Maximum 8 SIM/PIM units can be connected.
Watt-hour
Meter 64 Maximum 8 units can be connected to 1 SIM/PIM.
Maximum Devices Attachable
MIM-D00A_DMS2_IM_E 32138-2.indd 11 2010-07-22 ｿﾀﾈﾄ 2:31:25

E-12
Installation
plate
Installing the DMS2
1
Separate the installation plate on the rear side of DMS2.
2Fix the installation plate on the wall using 4 screws.
3
Hang the DMS2 on the groove which is on the top of the
installation plate.
MIM-D00A_DMS2_IM_E 32138-2.indd 12 2010-07-22 ｿﾀﾈﾄ 2:31:25

E-13
Assistant hole
wiring groove
Installing the DMS2
4Fix the installation plate and DMS2 using 2 screws.
 Depending on the installation environment, fix DMS2
using assistant holes.
( Screws for assistant hole are not provided by our
company.)
5
If you install DMS2 inside of the wall or wiring from the rear
side is needed, use wiring groove on the bottom of DMS2.
To prevent breakdown and damage of DMS2, and for safe
usage, it is recommended to install DMS2 on the wall.
MIM-D00A_DMS2_IM_E 32138-2.indd 13 2010-07-22 ｿﾀﾈﾄ 2:31:25

E-14
Cable tie
LAN cable
Connect
communication
cable
Adapter
Installing the DMS2 (Continued)
Connecting Centralized Controller
1
Unfasten the 2 screws on the bottom of the DMS2 front
cover. Hold the bottom 2 sides of the DMS2 and push
downwards to slide open the cover.
2Connect the adapter to the power terminal.
 Arrange the adapter as the right figure.
3
Separate 1 terminal block from 5 terminal blocks which
are attached to RS485 communication terminal.
Then, connect centralized controller communication cable
(C1, C2) to the terminal block.(C1A, C2B)
4
Connect LAN cable to the Ethernet terminal of DMS2.
Then arrange it using cable tie.
5
Fasten the bottom cover of DMS2 and fix it using
2 screws.
Maximum 16 centralized controllers can be connected
to one DMS2.
MIM-D00A_DMS2_IM_E 32138-2.indd 14 2010-07-22 ｿﾀﾈﾄ 2:31:26

E-15
Cable tie
LAN cable
Connect
communication
cable
Adapter
Installing the DMS2 (Continued)
Connecting Interface Module
1
Unfasten the 2 screws on the bottom of the DMS2 front
cover. Hold the bottom 2 sides of the DMS2 and push
downwards to slide open the cover.
2Connect the adapter to the power terminal.
 Arrange the adapter as the right figure.
3
Separate 1 terminal block from 5 terminal blocks which
are attached to RS485 communication terminal.
Then, connect interface module communication cable(R1,
R2) to the terminal block.(R1A, R2B)
4
Connect LAN cable to the Ethernet terminal of DMS2.
Then arrange it using cable tie.
5
Fasten the bottom cover of DMS2 and fix it using
2 screws.
Maximum 80 i nterface modules can be connected to one DMS2.
MIM-D00A_DMS2_IM_E 32138-2.indd 15 2010-07-22 ｿﾀﾈﾄ 2:31:27

E-16
Cable tie
LAN cable
Connect
communication
cable
Installing the DMS2 (Continued)
Adapter
Connecting SIM
1
Unfasten the 2 screws on the bottom of the DMS2 front
cover. Hold the bottom 2 sides of the DMS2 and push
downwards to slide open the cover.
2Connect the adapter to the power terminal.
 Arrange the adapter as the right figure.
3
Separate 1 terminal block from 5 terminal blocks which
are attached to RS485 communication terminal.
Then, connect SIM/PIM communication cable
(C1, C2) to the terminal block. (C1A, C2B)
4
Connect LAN cable to the Ethernet terminal of DMS2.
Then arrange it using cable tie.
5
Fasten the bottom cover of DMS2 and fix it using
2 screws.
Maximum 8 SIM/PIM units can be connected to one DMS2.
MIM-D00A_DMS2_IM_E 32138-2.indd 16 2010-07-22 ｿﾀﾈﾄ 2:31:29

E-17
Installing the DMS2 (Continued)
You can set the system settings through contact control pattern.
Setting the External Contact Control Pattern
Using the DI External Contact Control (Optional)
1
Select [System Settings] menu and click [System environment setting].
2Click [Edit] from ‘Select the contact control pattern’.
3
Select the pattern you want to check.
 Pattern 1[No external input]: No operation will be made when inputting
contact point control signal.
 Pattern 2[Level(Emergency stop)]: Commands that stop all indoor unit
operation and disable remote control when inputting contact point control
signal. In level emergency stop status, it will not be controlled even if the
command is set from upper controller.
 Pattern 3[Level(Operation／Stop)]: Level signal input timing.
It changes operation/stop status of all indoor units.
 Pattern 4[pulse (Operation／Stop，Disable／Enable)]:
Pulse signal. It changes operation/stop status of all indoor units.
4
Click [Save] after setting is completed.
24
3
1
MIM-D00A_DMS2_IM_E 32138-2.indd 17 2010-07-22 ｿﾀﾈﾄ 2:31:29

E-18
Installing the DMS2 (Continued)
5
Click [OK] when “This information will be modified. Do
you want to proceed?” message window appears.
6
“Reading data from DMS2. Please wait.” message appears
and saving is completed. Then, system environment
setting screen appears again with all items are disabled.
Note Pattern 1 is set as factory setting.
 DMS2 has total 10 DI ports. However, actually used DI ports
are Ch1 and Ch2, and the rest of the ports (Ch3~Ch10) are
for additional functions. Therefore, make sure to connect
Ch1 or Ch2 when using it.
 For DO, Ch1 and Ch2 are currently used inside of DMS2.
Ch9 and Ch10 are reserved in case of need. Therefore you
can only use Ch3~Ch8.
5
MIM-D00A_DMS2_IM_E 32138-2.indd 18 2010-07-22 ｿﾀﾈﾄ 2:31:29

E-19
Pattern Control
Pattern
1▶ No external input (Factory default setting)
When you input contact control signal in port 1, there will be no response.
Pattern 2
▶ Level input (Emergency stop)
1. If the contact control signal is changed to ON, emergency stop status and all the
indoor units are given ‘Stop’ command, and controlling using remote controller is
impossible.
2. During the emergency stop, the DMS2 will ignore any request from the upper
controllers.
3. During the emergency stop, the DMS2 will ignore previously set schedules.
4. When the contact control signal changes from ON to OFF, DVM goes into normal
operation status and returns to the remote control status before emergency stop.
5. Even if the contact control signal of port 1 changes from ON to OFF,
there will be no
change to the indoor unit.
6. When you input contact control signal in port 2, there will be no response.
Pattern 3
▶ Level input (Operation/Stop, Remote control Enable/Disable)
1. If the contact signal of port 1 changes from OFF to ON, all indoor units will be given
‘Operation‘ command.
2. If the contact signal of port 1 changes from ON to OFF,
all indoor units will be given
‘Stop‘ command.
3. If the contact signal of port 2 is OFF, you cannot control all indoor units using
remote controller.
4. If the contact signal of port 2 changes from OFF to ON, you can control all indoor
units using remote controller.
5. If the contact signal of port 2 changes from ON to OFF, you cannot control all indoor
units using remote controller.
6. Control command from the upper controller will be operated regardless of the
contact point status.
7. DVM system control using Schedule control will be operated regardless of the
contact point status.
Pattern 4
▶ Pulse input (Operation/Stop)
1. Valid pulse duration for input signal is 0.5~1.0 second.
DMS2 ignores the signal which has shorter than 0.5 second duration, longer than
1.0 second Pulse width.
2. When Pulse input signal is ON in Port 1. all indoor units will be given ‘Operation‘
command.
3. When Pulse input signal is ON in Port 2. all indoor units will be given ‘Stop‘
command.
4. DVM control command from the upper controller will be operated regardless of
Pulse input signal.
5. DVM system control using Schedule control will be operated regardless of
Pulse input signal.
Installing the DMS2 (Continued)
Control Switch Pattern
MIM-D00A_DMS2_IM_E 32138-2.indd 19 2010-07-22 ｿﾀﾈﾄ 2:31:30

E-20
Pattern 2 (May be used for connection with a fire sensor)
CH1
CH2
DMS2
CH1
CH2
DMS2
CH1
CH2
DMS2
Pattern 3 (External contact signal control)
Pattern 4 (Pulse signal control)
Emergency Stop/Resume Operation
No Connection
Operation/Stop A/C
Enable/Disable remote control
Operation
Stop

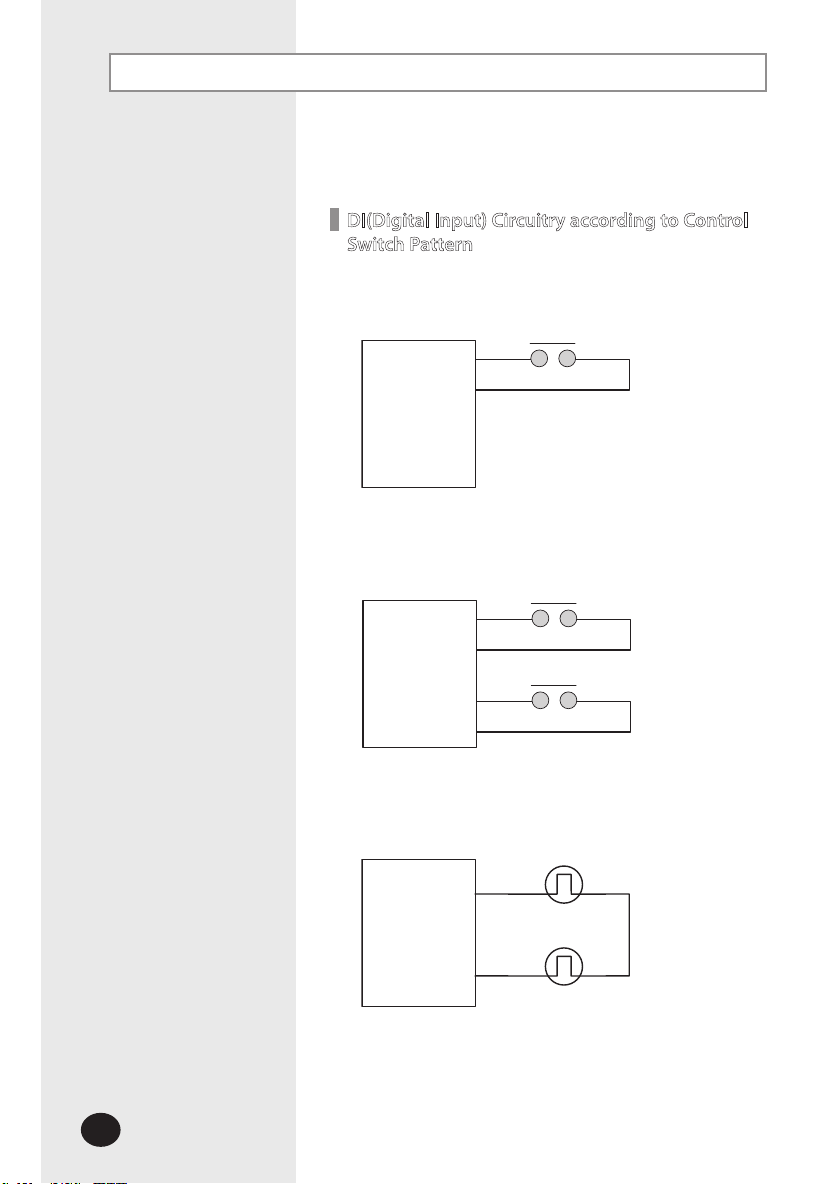

DI(Digital Input) Circuitry according to control switch pattern
A/C
A/C
Installing the DMS2 (Continued)
DI(Digital Input) Circuitry according to Control
Switch Pattern
MIM-D00A_DMS2_IM_E 32138-2.indd 20 2010-07-22 ｿﾀﾈﾄ 2:31:30
