Zone controller
MWR-ZS00
MWR-ZS10
Air Conditioner
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
This manual is made with 100% recycled paper.
G-116338 REV. 1
ZC_MWR-ZS00_IB_G116338-1_COVER_EN.indd 3 2014-05-08 오후 3:41:35

ENGLISH-2
Contents
Preapartion
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Name of the parts ....................................................................................................... 4
Basic function
Basic operation .......................................................................................................... 8
Controlling individual zone ............................................................................................. 10
Other functions ......................................................................................................... 12
Schedule
Setting the current time ................................................................................................ 14
Setting the timer ........................................................................................................ 15
Setting
Using the Smart tuning function ........................................................................................ 20
Checking the error ...................................................................................................... 21
Resetting the filter cleaning alarm ....................................................................................... 22
User mode .............................................................................................................. 22
ZC_MWR-ZS00_IB_G116338-1_EN.indd 2 2014-04-21 오후 5:25:29

ENGLISH-3
PREAPARTION
Safety Precautions
Before using the Zone controller, read the instructions in this booklet carefully.
Keep this user manual with the installation manual in a handy and safe place. If the user of this product changes, hand over
the manuals to the new user.
Never attempt to install the air conditioning system or move the Zone controller by yourself.
WARNING Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage.
SEVERE WARNING SIGNS
 Do not attempt to install or repair this product by yourself.
 This product contains no user-serviceable parts. So always consult an authorized service personnel for repairs.
 When moving, consult an authorized service personnel for disconnection and re-installation of the Zone controller.
 Ensure that the wall is strong enough to support the weight of the Zone controller.
 Install the product using the proper electric power.
 In the event of a malfunction (burning smell, etc.), immediately stop the operation, turn off the electrical breaker, and
consult an authorized service personnel.
CAUTION SIGNS
 Do not install this product in places where it will come into contact with volatile substances such as machine oil, benzene,
gasoline or naphtha.
 Do not install this product in places where it will come into contact with combustible gases such as sulfuric gas, hydrogen
gas, methane gas, etc.
 Do not spill liquid of any kind into the Zone controller.
 Do not operate this product with wet hands.
 Avoid using spray products such as insecticides near this product.
 Do not press the buttons on the Zone connector with a sharp object.
 To avoid disconnection, do not over-stretch the cables during installation.
 Do not use this product for other purposes.
 Do not clean this product with substances such as benzene or acid/alkali solvents.
PREAPARTION
ZC_MWR-ZS00_IB_G116338-1_EN.indd 3 2014-04-21 오후 5:25:29

ENGLISH-4

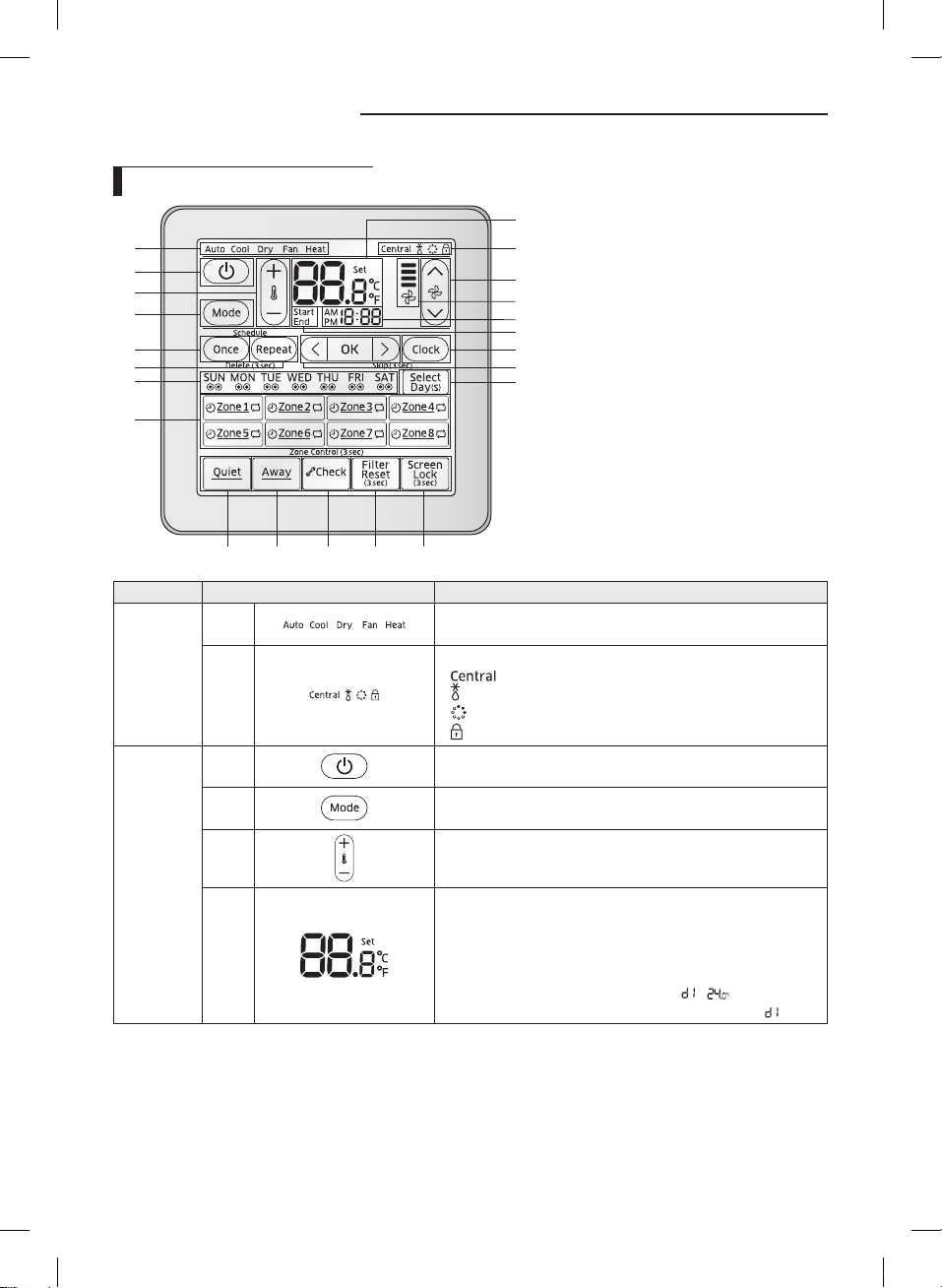

Name of the parts
Master controller (MWR-ZS00)
①②
⑥
⑦
⑧
⑨
⑩
⑭
⑬
⑯
⑱ ⑲ ⑳ ㉑ ㉒
③
⑤
④
⑪
⑫
⑮
⑰
Part Indication Name and explanation
Indicator
①Operation mode indicator
• Selected operation mode appears
②
Option (Central, Defrost, Virus doctor, Screen lock) indicator
• icon appears when indoor unit is under central control.
• icon appears when outdoor unit operates in defrost mode.
• icon appears when virus doctor function is activated.
• icon appears when the screen is locked.
Main Control
③Power button
• Tap to turn on/off the indoor unit
④Mode button
• Tap to select desired operation mode
⑤Temperature adjustment button
• Tap + and – to increase or decrease the desired temperature
⑥
Temperature indicator
• Desired temperature appears (default setting, it can be changed.)
• Tap and hold to view current room temperature
• When Demand Response signal occurs;
- Temperature and DRED level (1~3) will be displayed alternately in
1second interval in Cool/Heat mode (ex: )
- Only DRED level (1~3) will be displayed in Fan mode (ex: )
ZC_MWR-ZS00_IB_G116338-1_EN.indd 4 2014-04-21 오후 5:25:30

ENGLISH-5
PREAPARTION

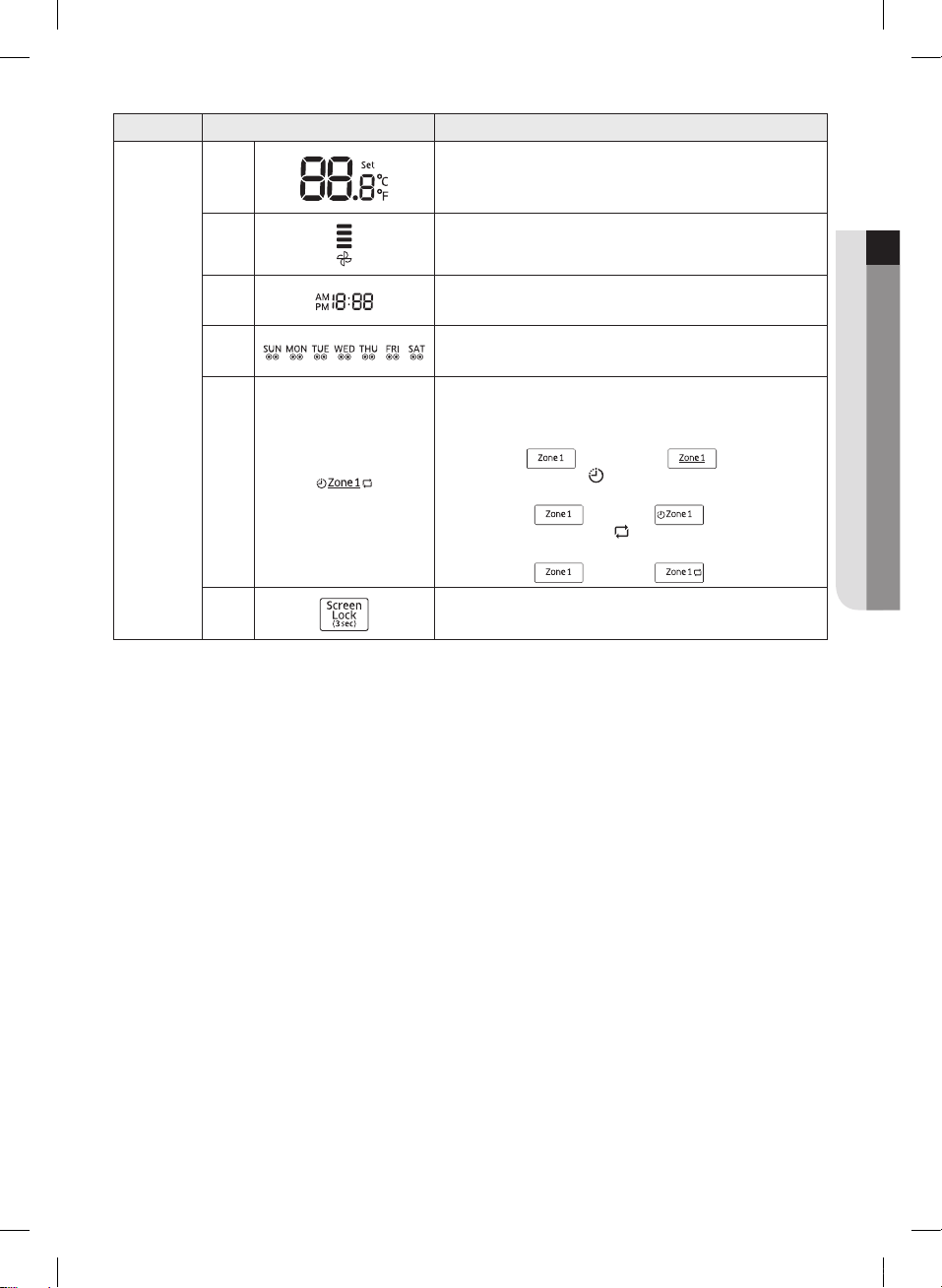

Part Indication Name and explanation
Main Control
⑦Fan speed adjustment button
• Tap up and down arrow to select desired fan speed
⑧Fan speed indicator
• Selected Fan speed (Auto/Low/Medium/High) appears here
⑨
Time indicator
• Current time appears
• Used to set the time for a schedule
⑩Timer start/end selection indicator
• Appears when selecting start/end time for a timer
Schedule &
Zone Setting
⑪Once button
• Tap to set non-repetitive timer
⑫Repeat button
• Tap to set repetitive (weekly) timer
⑬
Select/OK button
• Tap <, > button to select options for timer and clock
• Tap OK button to set the selected options
⑭Clock button
• Tap to set current time
⑮Repetitive (Weekly) timer indicator
• Shows the status of the repetitive (weekly) timer
⑯
Select Day(s) button
• Tap to select the day(s) to set up repetitive (weekly) timer
Selected: / Not selected:
⑰
Zone selection button
• Tap to open/close the damper for zone 1 through 8
• Tap and hold to control individual zone
Damp closed: / Damp opened:
• Non-repetitive timer icon
Appears when non-repetitive timer is scheduled in such zone
Not scheduled: / Scheduled:
• Repetitive (Weekly) timer icon
Appears when repetitive (weekly) timer is scheduled in such zone
Not scheduled: / Scheduled:
Options

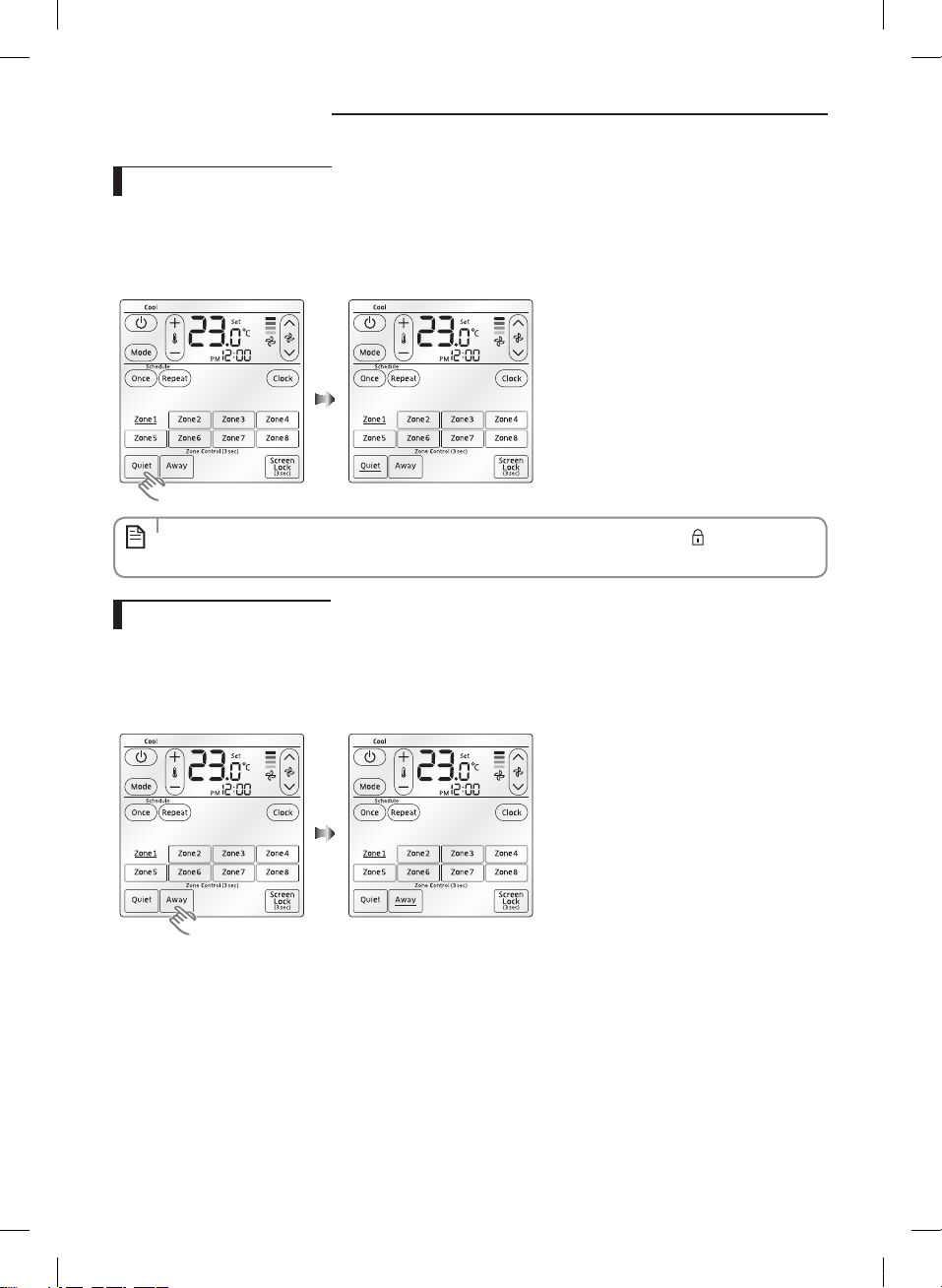

⑱Quiet button
• Tap to activate/deactivate Quiet mode
⑲
Away button
• Tap to activate/deactivate Away mode
• Only the text“away” appears in the model with away mode
⑳
Check button
• Displayed during the initial set up stage
• Normally inactive but blinks when checking is needed
㉑Filter Reset (3sec) button
• Normally inactive but blinks when time is reached for filter cleaning

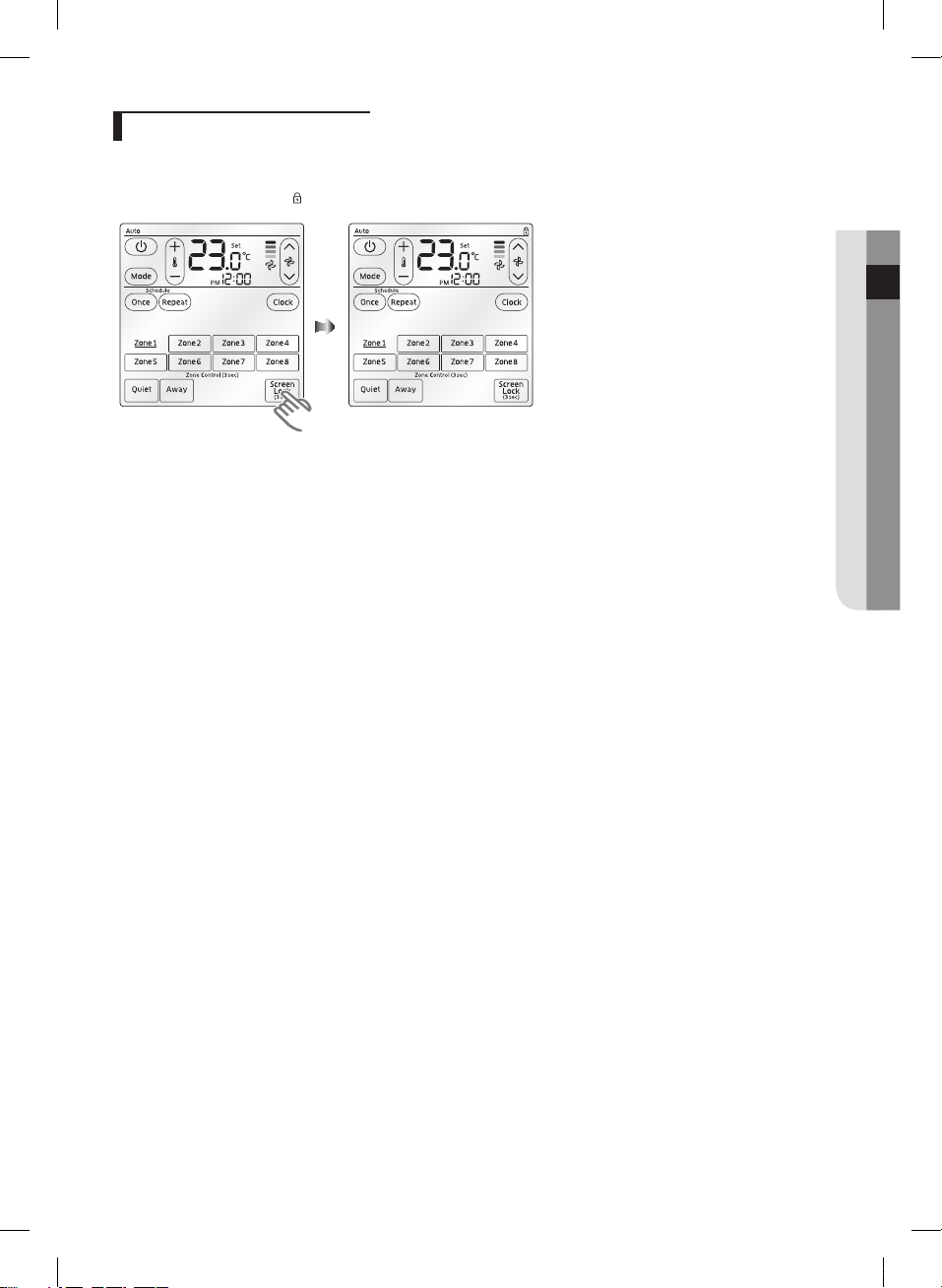

㉒Screen Lock (3sec) button
• Tap and hold for 3 seconds to lock/unlock screen
ZC_MWR-ZS00_IB_G116338-1_EN.indd 5 2014-04-21 오후 5:25:32

ENGLISH-6
Name of the parts
Slave (Individual zone) controller (MWR-ZS10)
①②
⑤
⑥
⑦
⑩
③
④
⑧
⑨
Part Indication Name and explanation
Indicator
①
Operation mode indicator
• Slave controller does not display the operation mode of the indoor
unit. Only Auto, Cool and Heat will be displayed accordingly.
• ‘Auto’ will be displayed when the desired temperature is set to a zone
to controller the damper automatically. ‘Auto’and‘Heat’or‘Cool’can
be displayed at the same time.
• Cool’will be displayed when the indoor unit is operating in Cool, Dry
or Fan mode.
• ‘Heat’will be displayed when the indoor unit is operating in Heat
mode.
• When the desired temperature is set to a zone,
‘Auto’ will appear however, it will disappear when
you open/close the damper manually by using the
Power button or by the master controller.
NOTE
②
Screen lock indicator
• Appears when the screen is locked.
• Command cannot be executed and icon will blink for 3 seconds
when;
- If you have selected the temperature that is beyond the range of
upper or lower temperature limit.
Main Control
③Power button
• Tap to turn on/off the damper
④
Temperature adjustment button
• Tap + and – to increase or decrease the desired temperature
• When the room temperature has not reached the desired
temperature, damper will remain open
ZC_MWR-ZS00_IB_G116338-1_EN.indd 6 2014-04-21 오후 5:25:32

ENGLISH-7
PREAPARTION
Part Indication Name and explanation
Main Control
⑤
Temperature indicator
• Desired temperature appears (default setting, it can be changed.)
• Tap and hold to view current room temperature
⑥Fan speed indicator
• Selected Fan speed (Auto /Low/Medium/High) from the master
⑦Time indicator
• Current time appears
⑧Repetitive (Weekly) timer indicator
• Shows the status of the repetitive (weekly) timer
⑨
Zone /Schedule indicator
• Displays current zone number
• Displays status of damper
Damp closed: / Damp opened:
• Non-repetitive timer icon
Appears when non-repetitive timer is scheduled in such zone
Not scheduled: / Scheduled:
• Repetitive (Weekly) timer icon
Appears when repetitive (weekly) timer is scheduled in such zone
Not scheduled: / Scheduled:
⑩Screen Lock (3sec) button
• Tap and hold for 3 seconds to lock/unlock screen
ZC_MWR-ZS00_IB_G116338-1_EN.indd 7 2014-04-21 오후 5:25:33

ENGLISH-8
BASIC FUNCTION

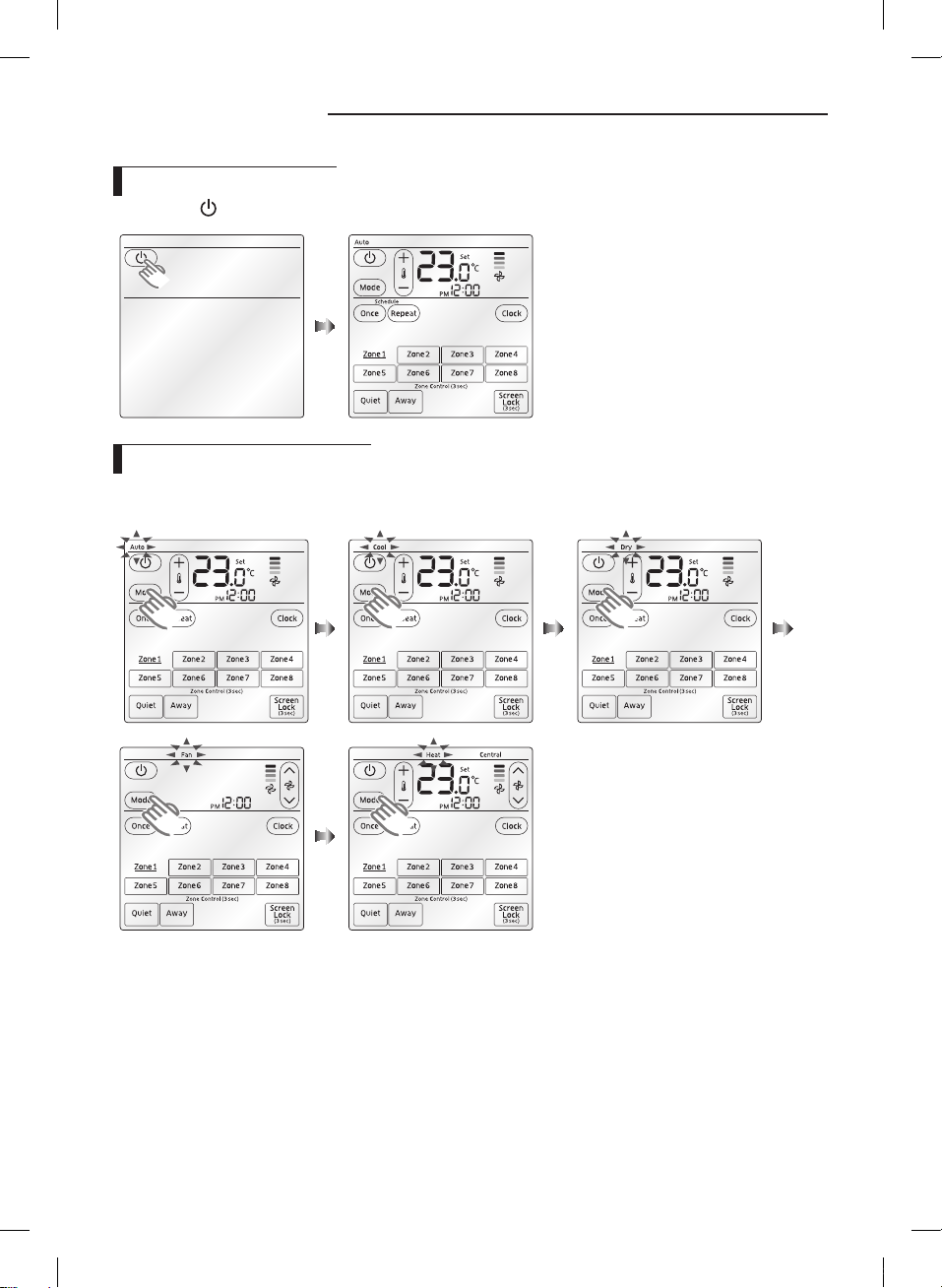

Basic operation
Turning on/off the power
Tap the Power button to turn on/off the power.
Selecting the operation mode
Press the Mode button to set the operation mode.
 Operation mode will be repeated in following order: Auto Cool Dry Fan Heat
ZC_MWR-ZS00_IB_G116338-1_EN.indd 8 2014-04-21 오후 5:25:34

ENGLISH-9
BASIC FUNCTION

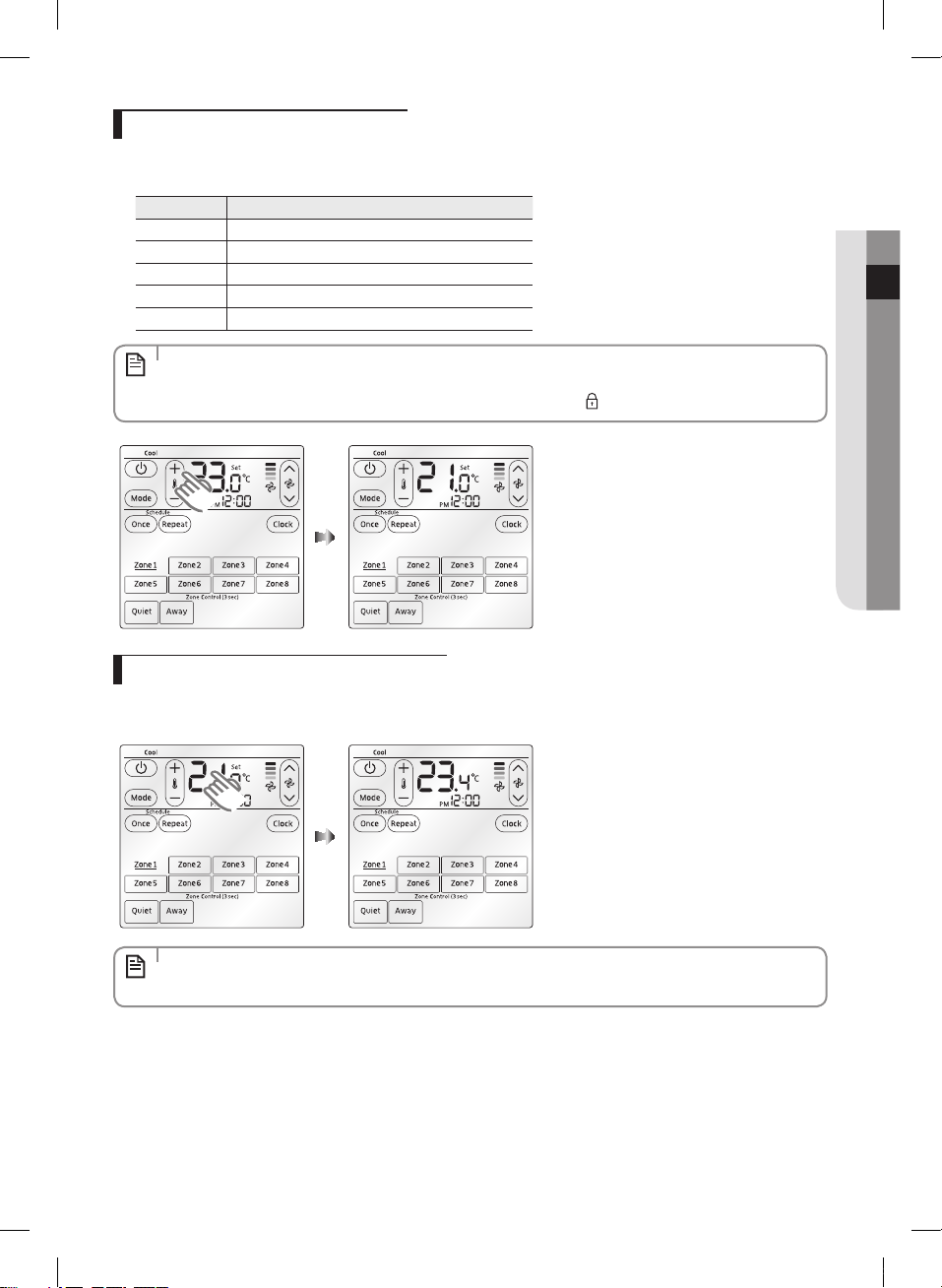

Adjusting the desired temperature
Tap the Temp +, - button to adjust the desired temperature.
 You can increase/decrease the temperature in 0.1/0.5/1.0 °C unit within following temperature range for each mode:
Mode Temperature range
Auto 18 °C ~ 30 °C
Cool 18 °C ~ 30 °C
Dry 18 °C ~ 30 °C
Fan Temperature adjustment is not possible
Heat 16 °C ~ 30 °C
• If upper/lower temperature limit was set from user mode, temperature range can be different from
information indicated above.
• If you try to set the temperature beyond upper/lower temperature limit, icon will blink for 3 seconds.
NOTE
Checking the current room temperature
Tap the temperature indicator to check current room temperature.
 Default setting for controller was set to display desired temperature.
• This function is not available in Fan mode.
NOTE
ZC_MWR-ZS00_IB_G116338-1_EN.indd 9 2014-04-21 오후 5:25:35

ENGLISH-10
Basic operation

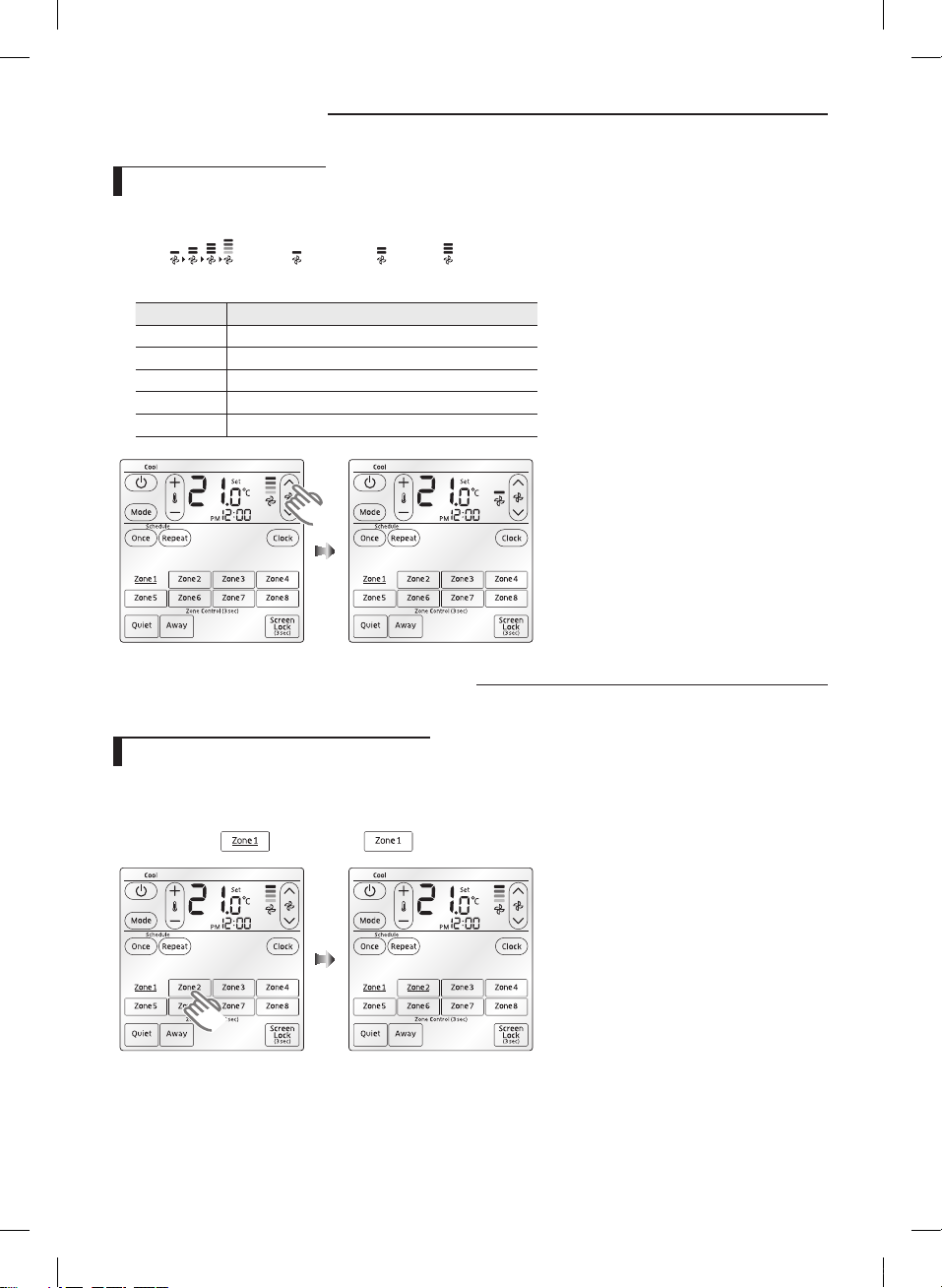

Selecting the Fan speed
Tap the Fan ∧, ∨button to set the desired fan speed.
 You can select one of the following Fan speed :
Auto ( ) Low ( )Medium ( ) High ( )
 Actual fan speed may be different for each operation mode.
Mode Supported fan speed
Auto Fan speed is set to auto and cannot be adjusted.
Cool Auto, Low, Medium, High
Dry Fan speed is set to auto and cannot be adjusted.
Fan Auto, Low, Medium, High
Heat Auto, Low, Medium, High
Controlling individual zone
Open/Close the damper for each zone
Tap the button for desired zone(s) to open/close the damper.
 You can select from Zone 1 ~ Zone 8.
 Status (Open/close) of the damper for each zone will be displayed as follows.
Damper open: / Damper close:
ZC_MWR-ZS00_IB_G116338-1_EN.indd 10 2014-04-21 오후 5:25:35

ENGLISH-11
BASIC FUNCTION
Setting the temperature to open/close the damper automatically
1. Tap and hold the desired Zone (1~8) button for 3 seconds.
 When the desired zone is selected, border line for other zones will disappear and
only selected zone will have border line.
 If the selected zone already has previous temperature setting, it will be displayed
in temperature indicator.
 If the selected zone doesn’t have previous temperature setting, it will display the
same temperature set from the master controller.
2. Tap the Temp +, - button to set the desired temperature for the selected zone.
 When the room temperature of the zone reaches the desired temperature,
damper will be closed automatically and otherwise, damper will be open.
3. Tap the OK button to end the setting.
 When the temperature setting for the selected zone is complete, temperature
indicator will display the temperature set from the master controller.
ZC_MWR-ZS00_IB_G116338-1_EN.indd 11 2014-04-21 오후 5:25:36

ENGLISH-12
Other functions
Using the Quiet function
Quiet operation reduces noise of the operation.
Tap the Quiet button while the air conditioner is on.
 Quiet function will be on and the button will be underlined.
 Tap the Quiet button again to cancel the Quiet function.
• If you select Quiet function in Fan mode or from the unit that doesn’t support the function, will blink for
3seconds.
NOTE
Using the Away function
Away operation operates indoor units for set time and turns off automatically.
Tap the Away button while the air conditioner is on.
 Away function will be on and the button will be underlined.
 Tap the Away button again to cancel the Quiet function.
ZC_MWR-ZS00_IB_G116338-1_EN.indd 12 2014-04-21 오후 5:25:36

ENGLISH-13
BASIC FUNCTION
Locking/Unlocking the screen
Tap the Screen Lock (3sec) button for 3 seconds to lock/unlock the screen.
 You may lock/unlock the screen anytime (whether unit is on or off).
 When the screen is locked, ( ) icon will appear.
ZC_MWR-ZS00_IB_G116338-1_EN.indd 13 2014-04-21 오후 5:25:36

ENGLISH-14
SCHEDULE
Setting the current time
1. Tap the Clock button to set the current time.
 <, OK, > button will appear and AM will starts to blink.
2. Set AM/PM, hour, minute in order.
 Tap <, > to select the value and tap the OK button to set next item.
• When you tap the <, > button shortly, hour and minute value will
increase or decrease by 1. However, if you tap and hold the <, > button, it
will increase or decrease by 5 and then 10.
NOTE
3. Tap the Clock button again to complete the time setting.
ZC_MWR-ZS00_IB_G116338-1_EN.indd 14 2014-04-21 오후 5:25:37

ENGLISH-15
SCHEDULE
Setting the timer
Setting the non-repetitive timer
1. Tap the Once button.
 When you tap the Once button, temperature indicator will start to blink.
2. Tap the Temp +, - button to adjust the desired temperature.
 Temperature range for desired temperature is different for each operation mode.
 Tap OK button and move on to the next step.
3. Tap the <, > button to select Start or End.
 Select ‘Start’to set the time for the air conditioner to turn on automatically.
(After setting the‘Start’time, you can choose to set or skip‘End’time setting.)
 Select ‘End’to set the time for the air conditioner to turn off automatically.
(Air conditioner should be on already to set ‘End’ time only.)
 Tap OK button and move on to the next step.
4. Set the‘Start’time for the timer.
 Tap <, > to select the value and tap the OK button to set next item.
 Set AM/PM, hour, minute in order.
 After setting the minute, tap the OK button to move on to‘End’ time setting.
• Skip this step and move on to the next step if you have selected‘End’from
step 3.
• If the current time has already passed the set time, timer will be executed
on the next day.
NOTE
ZC_MWR-ZS00_IB_G116338-1_EN.indd 15 2014-04-21 오후 5:25:37

ENGLISH-16
Setting the timer

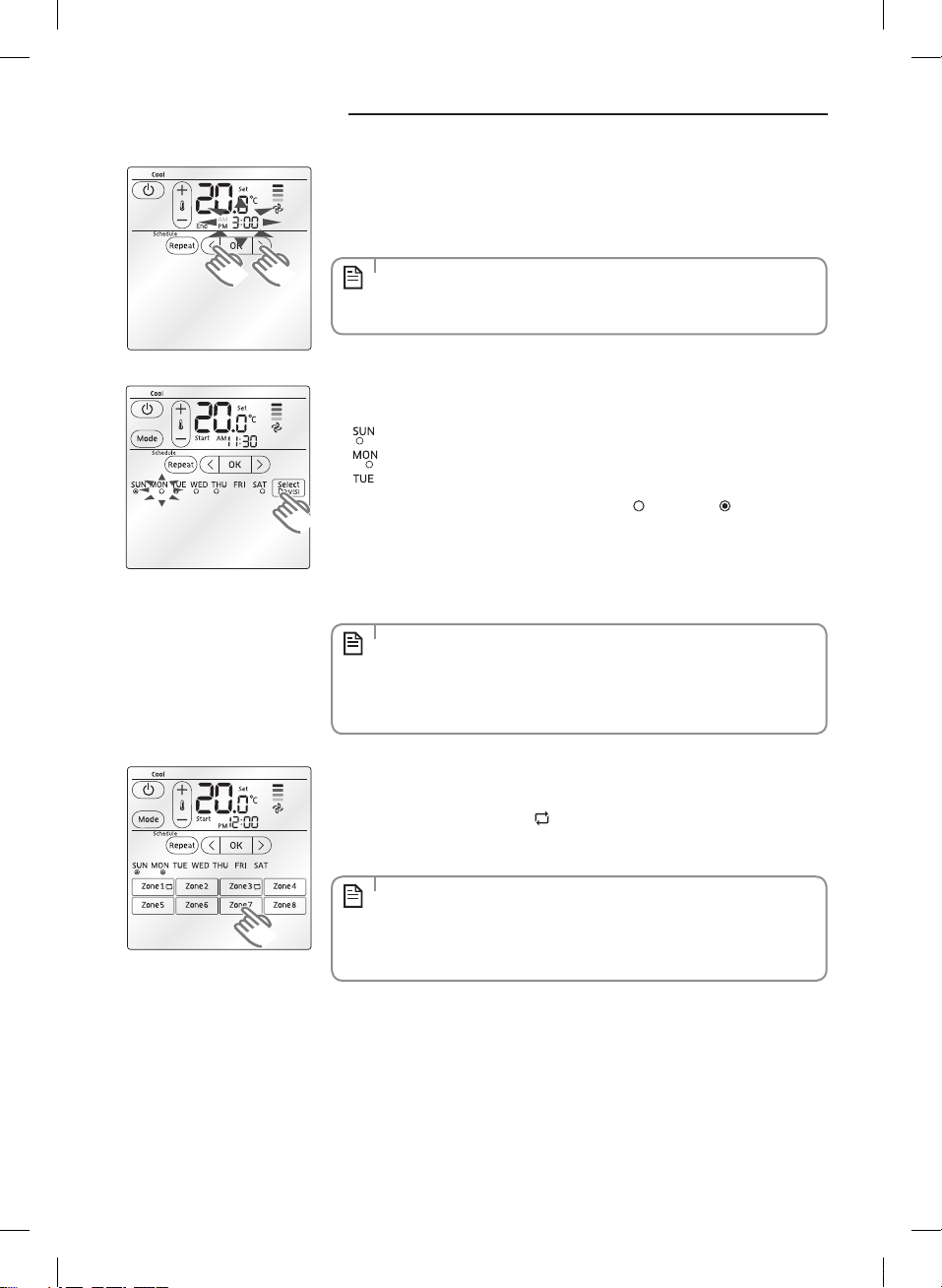

5. Set the‘End’ time for the timer.
 Tap <, > to select the value and tap the OK button to set next item.
 Set AM/PM, hour, minute in order.
 After setting the minute, tap the OK button to move on to the next step.
• If you want to turn off the air conditioner manually, tap and hold the
>button for 3 seconds and press the OK button when the hour and
minute display as --:--.
NOTE
6. Select the zone you wish to apply the timer.
 You can select as many zones as you want by tapping each Zone button.
 When timer is applied properly, icon will appear on the left side of the zone
button.
 After selecting the zone, tap the OK button to complete the timer setting.
• Previously applied timer setting (that hasn’t been executed) will be
canceled upon adding a new (non-repetitive) timer.
• You must select at least 1 zone when you set the timer.
(If you tap the OK button without selecting a zone, all the zone indicator
will blink twice and wait for the user to select a zone.)
• Select the common zone (Default: Zone 1) if you just want to turn on the
indoor unit.
NOTE
Cancelling the non-repetitive timer
Tap and hold the Once button for 3 seconds to delete existing timers.
 ‘Delete (3sec)’is displayed under the‘Once/Repeat’ button when the timer setting exists.
 icon will blink for 3 seconds and it will disappear afterwards.
 Timer is successfully deleted when icon disappears.
ZC_MWR-ZS00_IB_G116338-1_EN.indd 16 2014-04-21 오후 5:25:38

ENGLISH-17
SCHEDULE

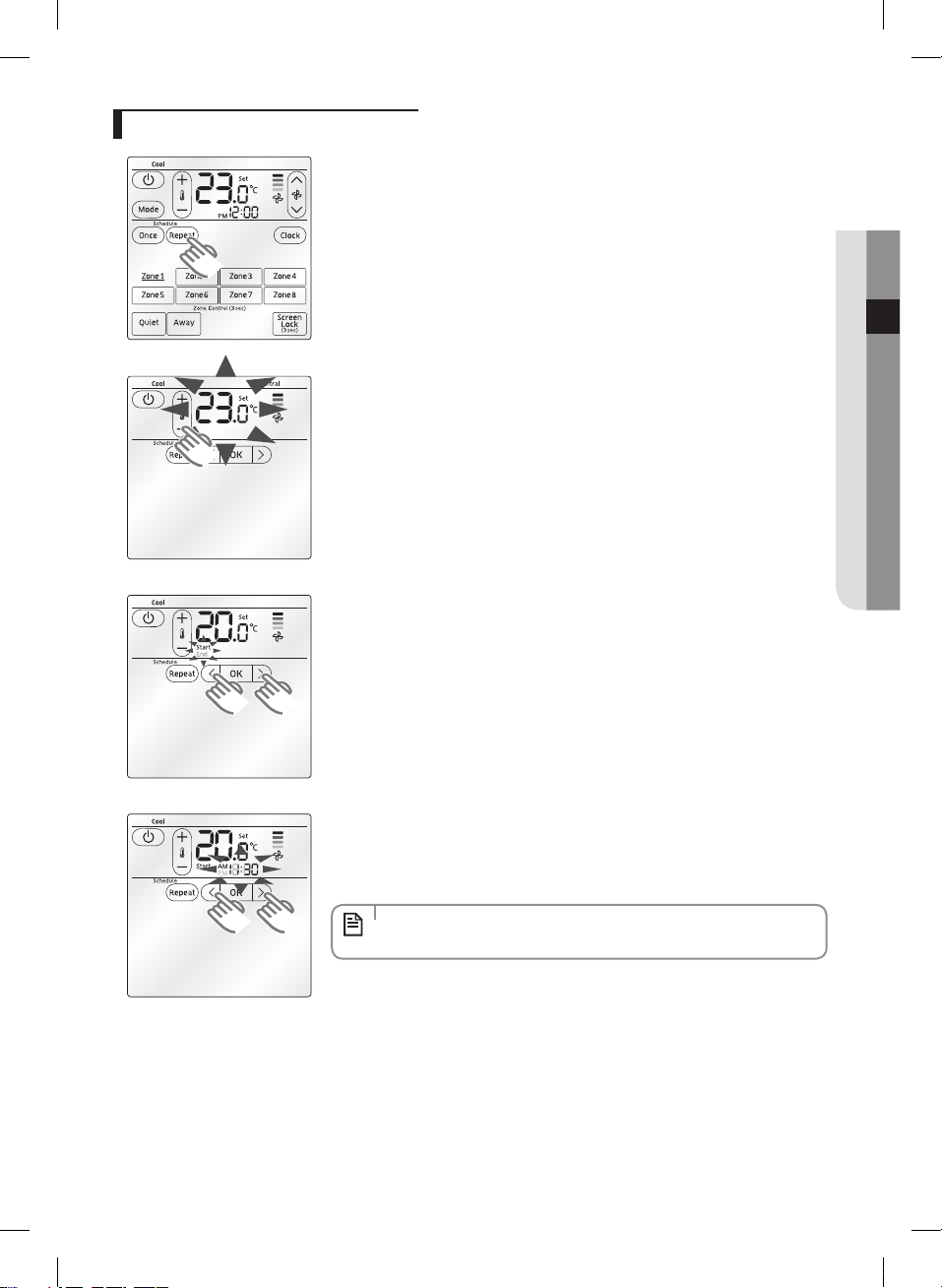

Setting the repetitive (weekly) timer
1. Tap the Repeat button.
 When you tap the Repeat button, temperature indicator will start to blink.
2. Tap the Temp +, - button to adjust the desired temperature.
 Temperature range for desired temperature is different for each operation mode.
 Tap OK button and move on to the next step.
3. Tap the <, > button to select Start or End.
 Select ‘Start’to set the time for the air conditioner to turn on automatically.
(After setting the‘Start’time, you can choose to set or skip‘End’time setting.)
 Select ‘End’to set the time for the air conditioner to turn off automatically.
(Air conditioner should be on already to set ‘End’ time only.)
 Tap OK button and move on to the next step.
4. Set the‘Start’time for the timer.
 Tap <, > to select the value and tap the OK button to set next item.
 Set AM/PM, hour, minute in order.
 After setting the minute, tap the OK button to move on to‘End’ time setting.
• Skip this step and move on to the next step if you have selected‘End’from
step 3.
NOTE
ZC_MWR-ZS00_IB_G116338-1_EN.indd 17 2014-04-21 오후 5:25:38

ENGLISH-18
Setting the timer
5. Set the‘End’ time for the timer.
 Tap <, > to select the value and tap the OK button to set next item.
 Set AM/PM, hour, minute in order.
 After setting the minute, tap the OK button to move on to the next step.
• If you want to turn off the air conditioner manually, tap and hold the
>button for 3 seconds and press the OK button when the hour and
minute display as --:--.
NOTE
6. Tap <, > button to select the day to apply the timer.
 Display may differ depending on the previously set weekly timer.
: No weekly timer has been set.
: One weekly timer has been set.
: Two weekly time has been set and cannot add another timer.
 Tap Select Day(s) button after selecting the day, will become when timer is
successfully added.
 Tap < , > button again to select another day and tap Select Day(s) button again
to add the timer.
 When finished applying the timer to desired day(s), tap the OK button to
complete the setting and move on to the next step.
• You may select as many days as you want but cannot select same day
twice.
• If you tap the OK button without selecting a day, all the active schedule
indicator will blink twice (1 time per second) and wait for the user to
select a day.
NOTE
7. Select the zone you wish to apply the timer.
 You can select as many zones as you want by tapping each Zone button.
 When timer is applied properly, icon will appear on the right side of the zone
button.
 After selecting the zone, tap the OK button to complete the timer setting.
• You must select at least 1 zone when you set the timer.
(If you tap the OK button without selecting a zone, all the zone indicator
will blink twice and wait for the user to select a zone.)
• Select the common zone (Default: Zone 1) if you just want to turn on the
indoor unit.
NOTE
ZC_MWR-ZS00_IB_G116338-1_EN.indd 18 2014-04-21 오후 5:25:39

ENGLISH-19
SCHEDULE
Cancelling the repetitive (weekly) timer
1. Tap and hold the Repeat button for 3 seconds to delete existing timers.
 ‘Delete (3sec)’is displayed under the Once/Repeat button when the timer setting
exists.
2. Tap the <, > button to select the day you want to delete the timer.
 Zones that applied the selected timer will be displayed.
 icon will blink for 3 seconds and it will disappear afterwards.
 Timer is successfully deleted when icon disappears.
 Tap Select Day(s) button after selecting the day, will become when timer is
successfully removed.
 Tap < , > button again to select another day and tap Select Day(s) button again
to remove the timer.
 When finished removing the timer on desired day(s), tap the OK button to
complete the setting.
ZC_MWR-ZS00_IB_G116338-1_EN.indd 19 2014-04-21 오후 5:25:39
