Samsung MR-AH01 User manual

ENGLISH
Wireless Remote Controller
OWNER’S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
MANUEL D’UTILISATION
ISTRUZIONI PER L’USO
MANUAL DE INSTRUÇÕES
GEBRAUCHSANWEISUNG
O¢H°IE™
àçëíêìäñàü Ñãü èéãúáéÇÄíÖãü
ESPAÑOL
FRANÇAIS
ITALIANO
PORTUGUÊS
DEUTSCH
E§§HNIKA
RUSSIAN
System Air Conditioner
Aire acondicionado sistemático
Climatiseur numérique multifonctionnel
Sistema Aria Condizionata
Sistema Ar Condicionado
Klimaanlage System
™‡Û ËÌ· ∫ÏÈÌ· ÈÛÌÔ‡
ëËÒÚÂÏÌ È ÇÓÁ‰Û¯Ì È äÓ̉ˈËÓÌÂ
E S F I P D G R A DB98-05156A(2)
MR-AH01
MR-AC01

Safety Precautions
◆Do not attempt to install or repair this wireless remote
controller by yourself.
◆This remote controller contains no user-serviceable
parts. Always consult authorized service personnel
for repairs.
◆When moving, consult authorized service personnel
for disconnection and installation of the remote
controller.
◆Ensure that the wall is strong enough to support the
weight of the remote controller and the remote
control holder.
◆In the event of a malfunction (burning smell, etc.),
immediately stop operation, turn off the electrical
breaker, and consult authorized service personnel.
WARNING
CAUTION ◆
Do not use inflammable gases near the remote
controller.
◆ Do not spill water into the wireless remote controller.
◆ Do not operate the remote controller with wet hands.
◆ Do not install the remote controller in a location
where it will come into contact with the combustible
gases, machine oil, sulphide gas, etc.
◆ Do not press buttons with a pointed thing.
◆ Do not use this wireless remote controller for other
purpose.
◆ Do not spray an insecticide or other combustible
things on the wireless remote controller.
◆ Do not clean the wireless remote controller with
benzene, solvents or other chemicals.
◆ Do not give a shock to the wireless remote controller
or disassemble it by yourself.
E-2
●
Before using the wireless remote controller, read carefully this instructions.
●
After reading the instructions, keep this owner's instructions and the
installation manual in a handy and safe place. If a user is changed, you must
hand over the manuals.
●
Never attempt to install the air conditioning system or to move the remote
control holder by yourself.

E-3
ENGLISH
Contents
◆ V IEW OF THE W IRELESS R EMOTE C ONTROLLER
◆ G ETTING S TART
◆ I NSERTING THE W IRELESS
R EMOTE C ONTROLLER
B ATTERIES
◆ S ELECTING THE A UTOMATIC O PERATING M ODE
◆ C OOLING Y OUR R OOM
◆ H EATING Y OUR R OOM
(E XCEPT COOLING ONLY MODELS )
◆ R EMOVING
E XCESS H UMIDITY
◆ A IRING Y OUR R OOM
◆ A DJUSTING THE
A IR F LOW D IRECTION
(E XCEPT DUCT TYPE )

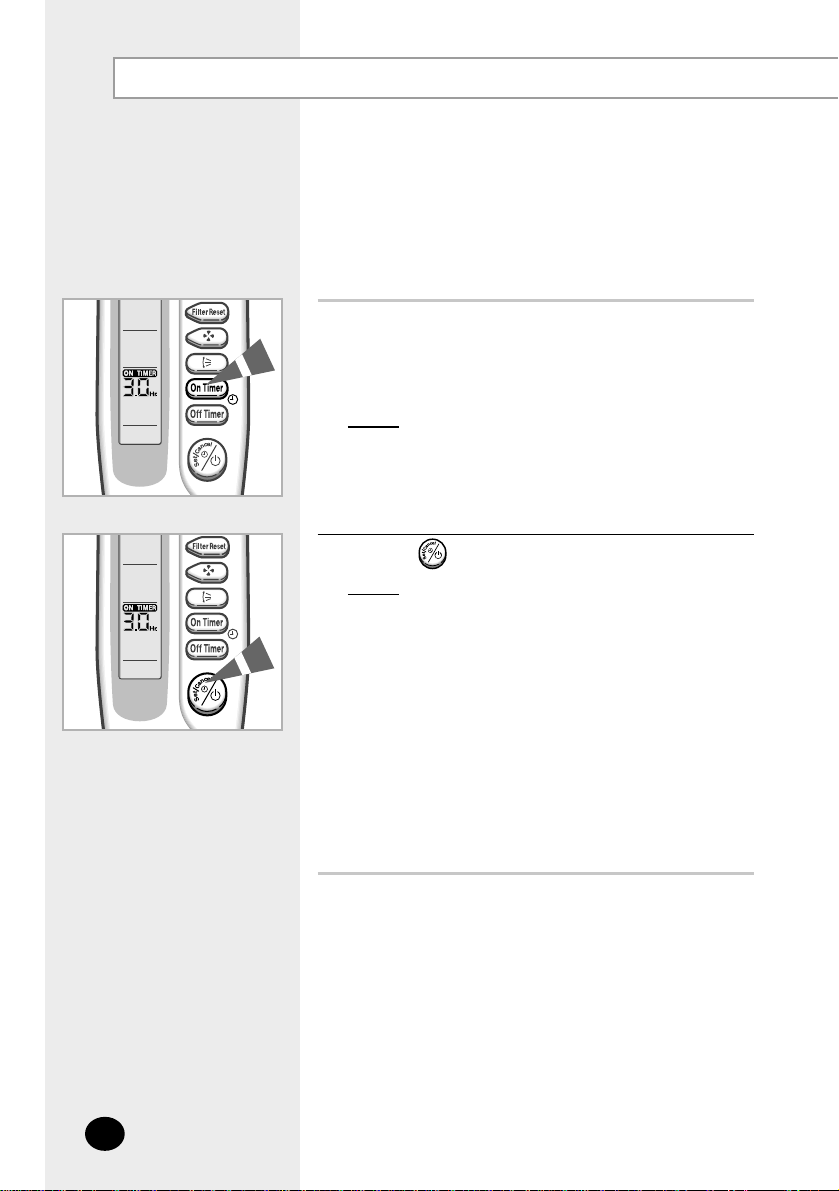

◆ S ETTING THE O N T IMER
◆ S ETTING THE O FF T IMER
4
6
7
8
10
12
14
16
17
18
20

E-4

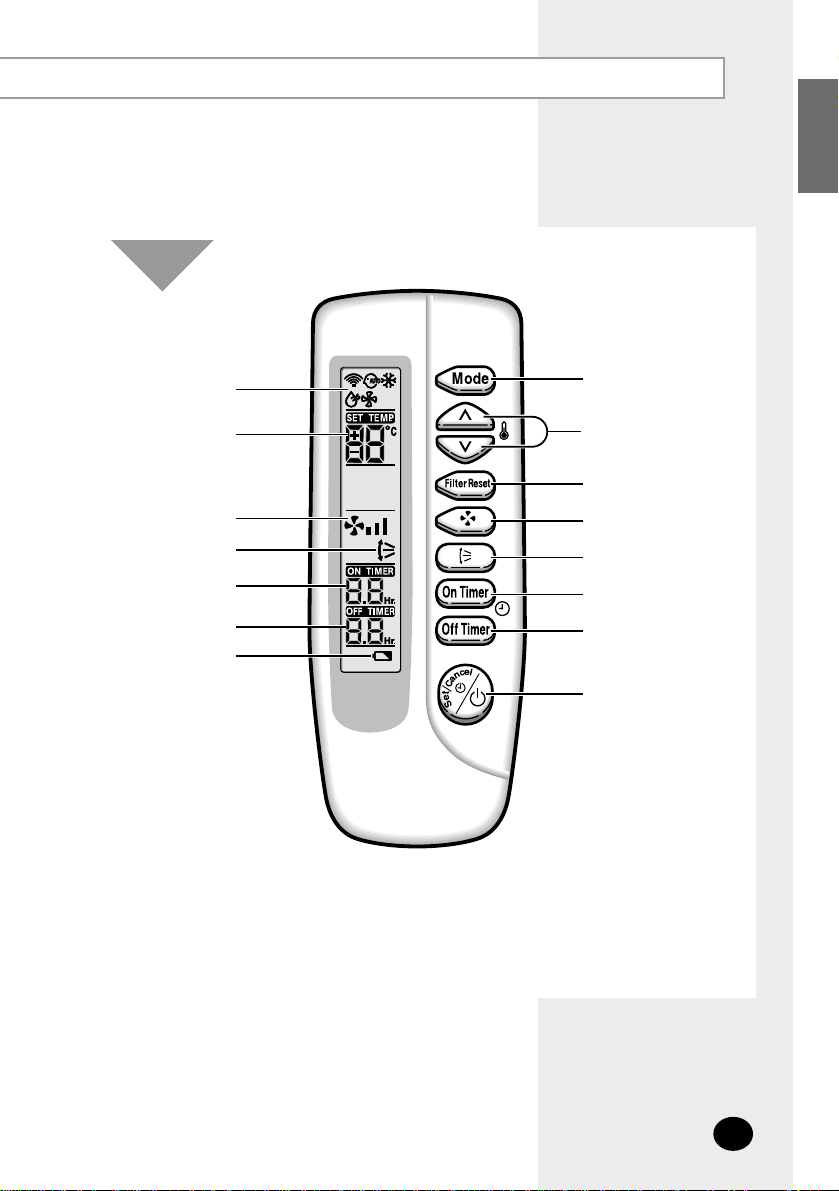

View of the Wireless Remote Controller
◆ After cleaning the air filter, press the Filter Reset button.
◆Duct type air conditioner does not have function of adjusting air flow direction.
Therefore, the function is not operated even if you press the swing button.
NN
NNoo oott ttee ee
Operating mode Mode selection button
Filter Reset button
Swing button
(Except Duct type)
On Timer button
Off Timer button
On/Off & Timer
Set/Cancel button
Fan speed adjustment
button
Temperature adjustment
buttons
Temperature setting
Fan speed
Air flow direction
On Timer setting
Off Timer setting
Battery discharge indicator
Heat Pump Models (MR-AH01)

ENGLISH
E-5
◆ After cleaning the air filter, press the Filter Reset button.
◆Duct type air conditioner does not have function of adjusting air flow direction.
Therefore, the function is not operated even if you press the swing button.
NN
NNoo oott ttee ee
Operating mode Mode selection button
Filter Reset button
Swing button
(Except Duct type)
On Timer button
Off Timer button
On/Off & Timer
Set/Cancel button
Fan speed adjustment button
Temperature adjustment buttons
Temperature setting
Fan speed
Air flow direction
On Timer setting
Off Timer setting
Battery discharge indicator
Cooling Only Models (MR-AC01)

E-6
G etting Start
You have just purchased a wireless remote controller and
it has been installed by your installation specialist.
Your Owner’s Instructions contain much valuable information
on using your wireless remote controller. Please take the time to
read them as they will help you take full advantage of the unit’s
features.
In the main part of the document, you will find a series of step-by-step
procedures for each function available.
The illustrations in the step-by-step procedures use three different
symbols:
PRESS PUSH HOLD DOWN

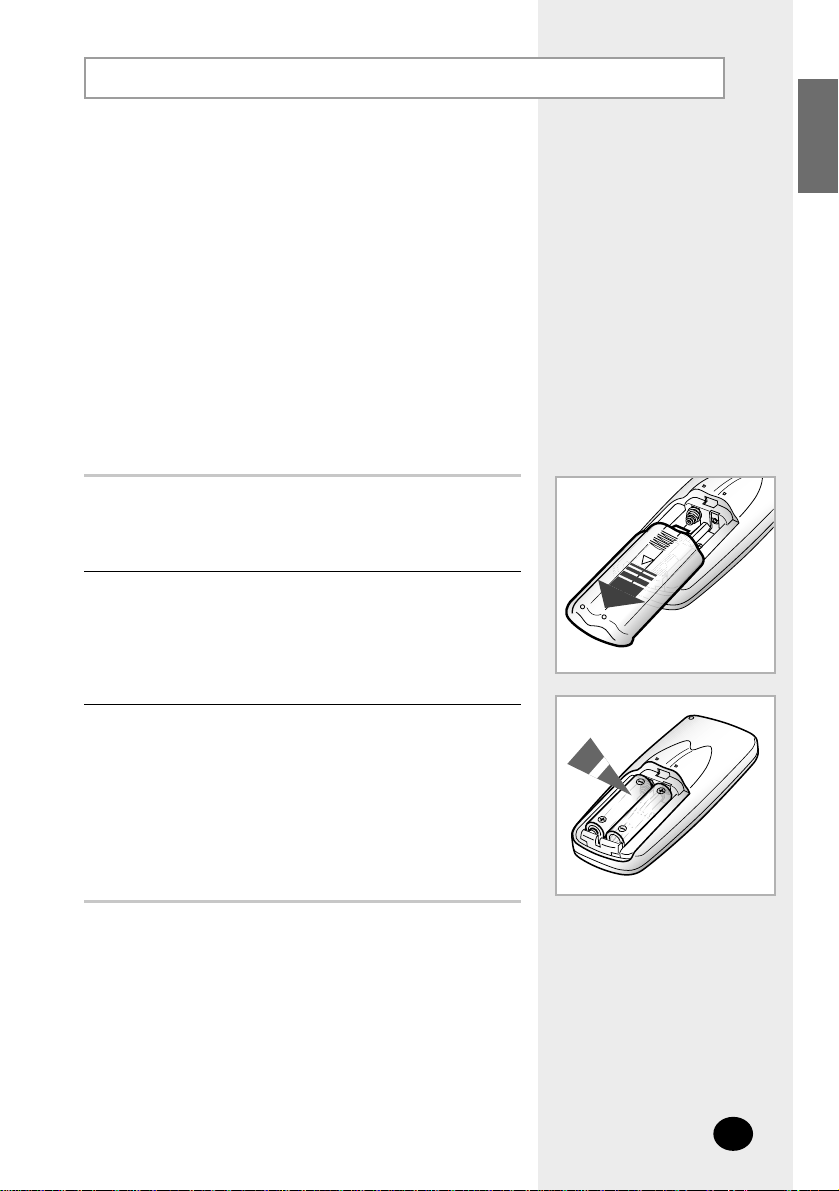

Inserting the Wireless Remote Controller Batteries
E-7
ENGLISH
Push the battery cover on the rear of the remote
controller with your thumb in the direction of the arrow
and remove it.
1
You must insert or replace the remote controller
batteries when :
◆You purchase the air conditioner
◆The remote controller does not work
correctly
Insert the two batteries, taking care to respect the
polarities :
◆+ on the battery with + on the remote controller.
◆- on the battery with - on the remote controller.
2
Close the cover by sliding it back until it clicks into place.
3
◆Use two AAA, LR03 1.5V batteries.
◆Do not use old batteries or different kinds of
batteries together.
◆Batteries may be completely discharged after 12
months, even if they have not actually been used.
NN
NNoo oott ttee ee

E-8
Selecting the Automatic Operating Mode
In the Automatic mode, the room temperature and the
fan speed are controlled automatically.

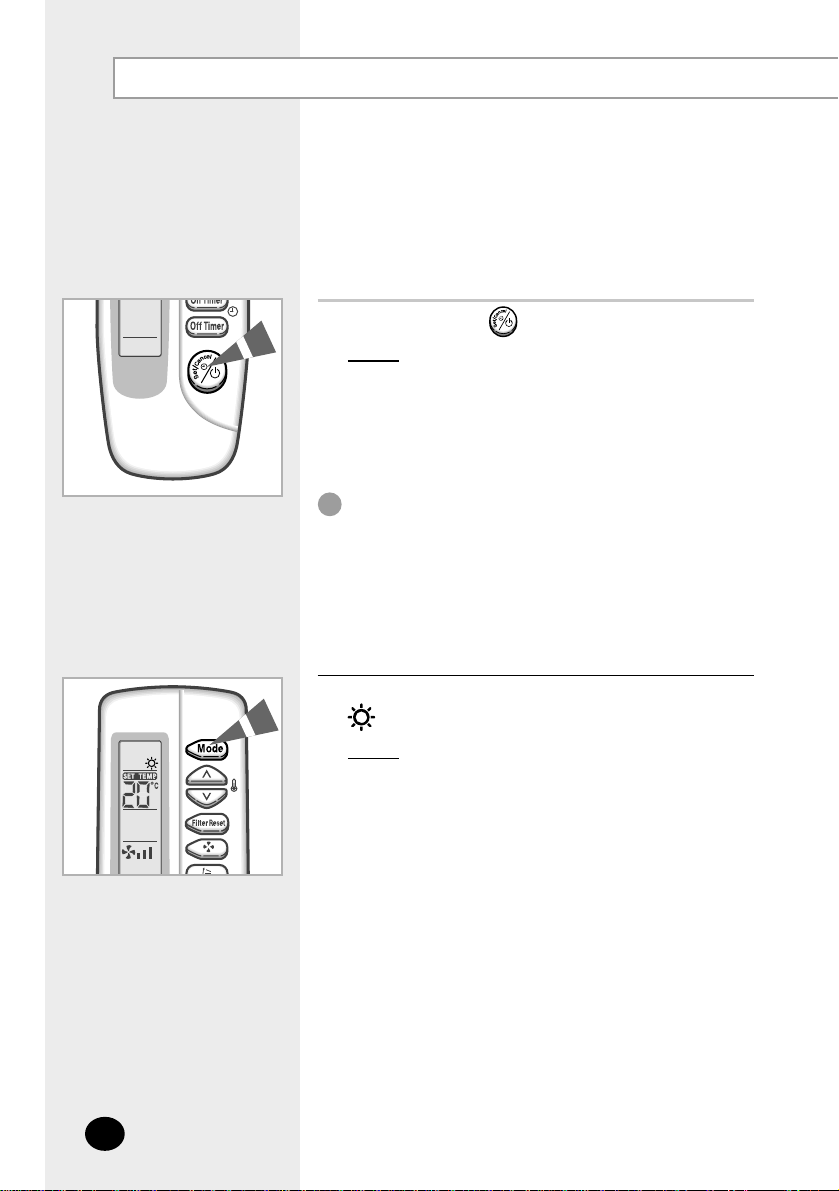

If necessary, press (ON/OFF) button.
Result: ◆The On/Off indicator on the indoor unit or
receiver & display unit comes on.
◆The air conditioner runs in the mode
selected when the unit was last used.
◆The indoor unit or receiver & display unit
beeps.
1
To select the AUTO mode, press the Mode button until
is displayed at the top of the wireless remote controller.
Result: ◆The indoor or receiver & display unit unit
beeps.
◆The air conditioner runs in AUTO mode.
2
The air conditioner is fitted with a
protection mechanism to prevent the unit
from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
◆You can change modes at any time.
NN
NNoo oott ttee ee

ENGLISH
E-9
To adjust the temperature, press the Temperature
buttons one or more times until the required temperature
is displayed. Possible temperatures are between 18°C
and 30°C inclusive.
Result: ◆Each time you press Temperature buttons:
- The temperature is adjusted by 1°C.
◆
The air conditioner start cooling, provided
that the room temperature is than the
selected temperature.
- The quantity of air is adjusted automatically.
3

E-10

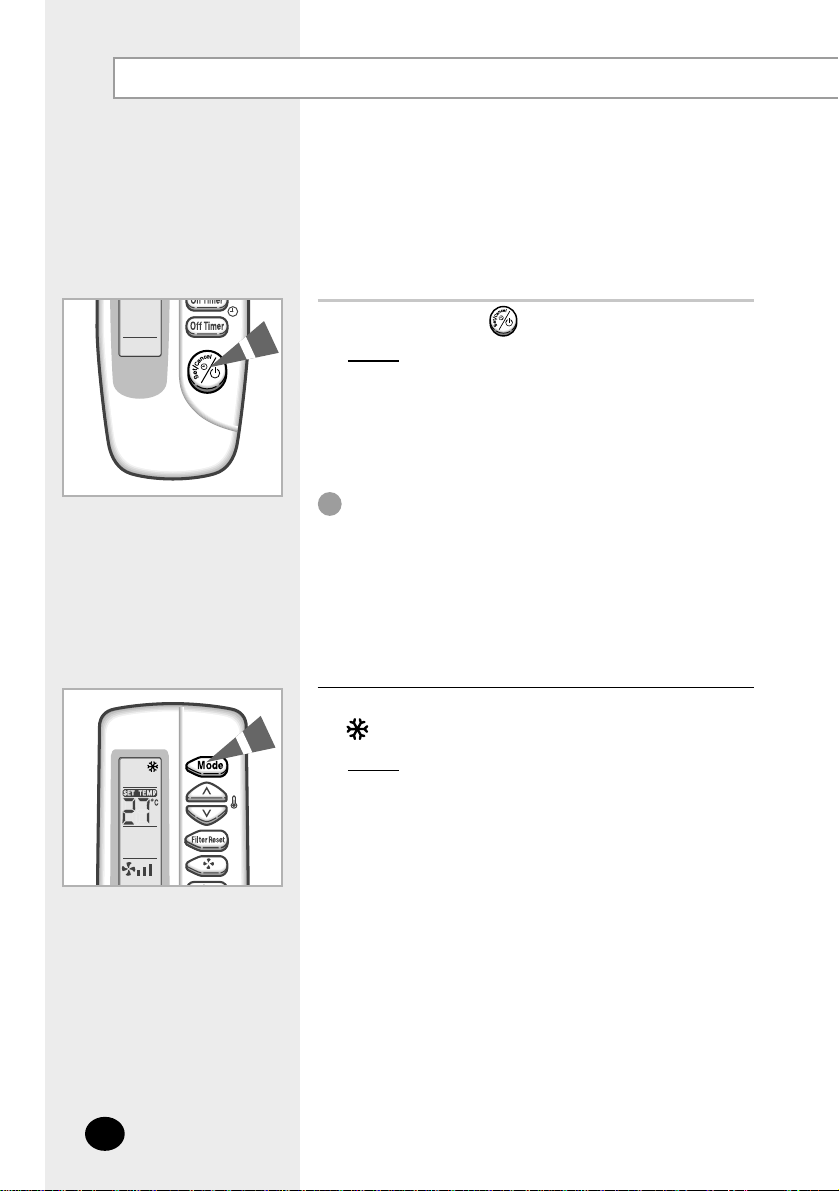

Cooling Your Room
If necessary, press (ON/OFF) button.
Result: ◆The On/Off indicator on the indoor unit or
receiver & display unit comes on.
◆The air conditioner runs in the mode
selected when the unit was last used.
◆The indoor unit or receiver & display unit
beeps.
1
You must select the COOL mode if you wish to adjust the :
◆Cooling temperature
◆Fan speed when cooling
To select the COOL mode, press the Mode button until
is displayed at the top of the wireless remote controller.
Result: ◆The indoor unit or receiver & display unit
beeps.
◆The air conditioner runs in COOL mode.
2
The air conditioner is fitted with a
protection mechanism to prevent the unit
from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
◆You can change modes at any time.
NN
NNoo oott ttee ee

ENGLISH
E-11
To adjust the temperature, press the Temperature
buttons one or more times until the required
temperature is displayed. Possible temperatures are
between 18
° C and 30 ° C inclusive.
Result: ◆Each time you press Temperature buttons:
- The temperature is adjusted by 1
° C.
- The indoor unit or receiver & display unit
beeps.
◆The air conditioner starts cooling, provided
that the room temperature is higher than
the selected temperature ; the fan will,
however, operate.
3

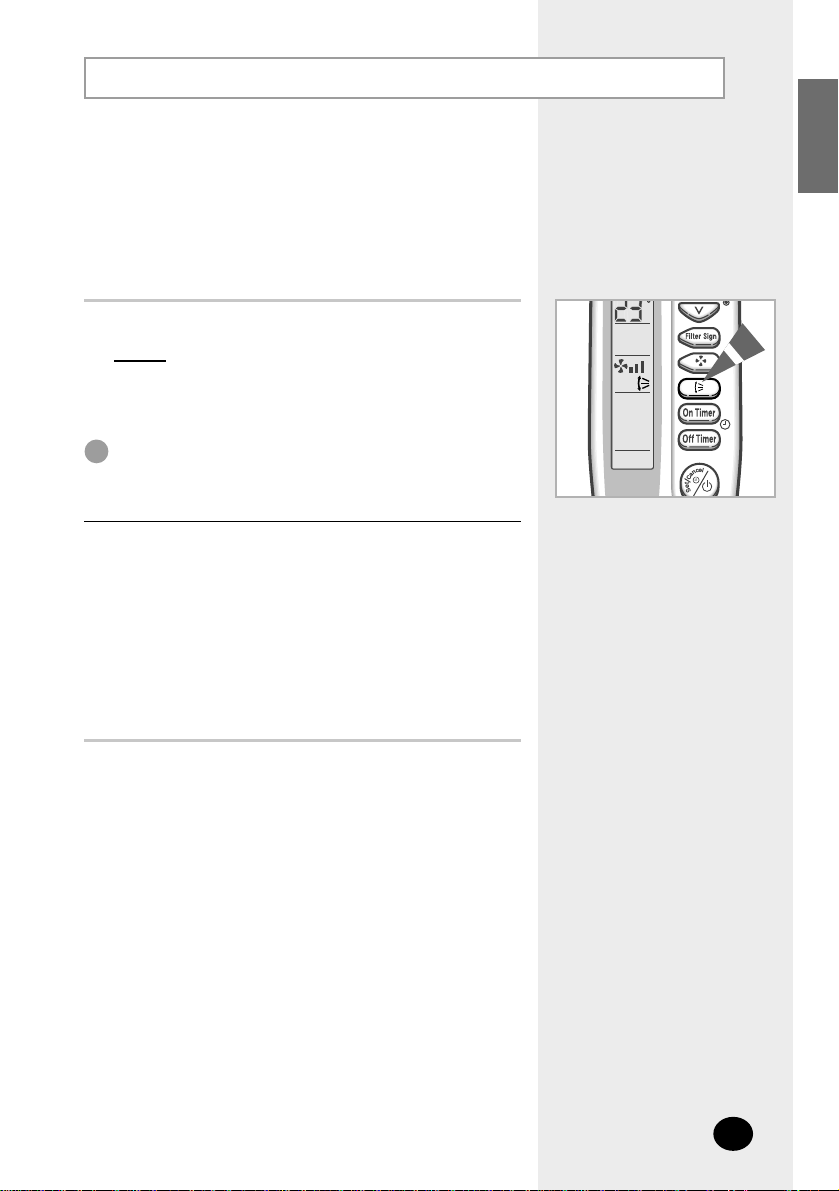

Select the fan speed by pressing the Fan button one or
more times until the intended value is displayed :
4
To control the direction of the air flow, refer to page 17.
5
Automatic(rotated : ➔➔ )
Low
Medium
High

E-12
Heating Your Room (Except cooling only models)
If necessary, press (ON/OFF) button.
Result: ◆The On/Off indicator on the indoor unit or
receiver & display unit comes on.
◆The air conditioner runs in the mode
selected when the unit was last used.
◆The indoor unit or receiver & display unit
beeps.
1
You must select the HEAT mode if you wish to adjust the :
◆Heating temperature
◆Fan speed when heating
To select the HEAT mode, press the Mode button until
is displayed at the top of the wireless remote controller.
Result: ◆The indoor unit or receiver & display unit
beeps.
◆The air conditioner runs in HEAT mode.
2
The air conditioner is fitted with a
protection mechanism to prevent the unit
from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
◆You can change modes at any time.
NN
NNoo oott ttee ee
You can select the HEAT mode only in heat pump models.

ENGLISH
E-13
To adjust the temperature, press the Temperature
buttons one or more times until the required
temperature is displayed. Possible temperatures are
between 16
° C and 30 ° C inclusive.
Result: ◆Each time you press Temperature buttons:
- The temperature is adjusted by 1
° C.
- The indoor unit or receiver & display unit
beeps.
◆The air conditioner starts heating, provided
that the room temperature is lower than the
selected temperature ; the fan will,
however, operate.
3
Select the fan speed by pressing the Fan button one or
more times until the intended value is displayed :
4
To control the direction of the air flow, refer to page 17.
5
Automatic(rotated : ➔➔ )
Low
Medium
High

E-14
If necessary, press (ON/OFF) button.
Result: ◆The On/Off indicator on the indoor unit or
receiver & display unit comes on.
◆The air conditioner runs in the mode
selected when the unit was last used.
◆The indoor unit or receiver & display unit
beeps.
1
If the atmosphere in your room is very humid or damp,
you can remove excess humidity without lowering the
room temperature too much.
To select the DRY mode, press the Mode button until
is displayed at the top of the wireless remote controller.
Result: ◆The indoor unit or receiver & display unit
beeps.
◆The air conditioner runs in DRY mode.
2
The air conditioner is fitted with a
protection mechanism to prevent the unit
from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
◆You can change modes at any time.
NN
NNoo oott ttee ee
Removing Excess Humidity

ENGLISH
E-15
To adjust the temperature, press the Temperature
buttons one or more times until the required
temperature is displayed. Possible temperatures are
between 18
° C and 30 ° C inclusive.
Result: ◆Each time you press Temperature buttons:
- The temperature is adjusted by 1
° C.
- The indoor unit or receiver & display unit
beeps.
◆The air conditioner starts removing the
excess humidity.
The quantity of air is adjusted automatically.
3
To control the direction of the air flow, refer to page 17.
4

E-16

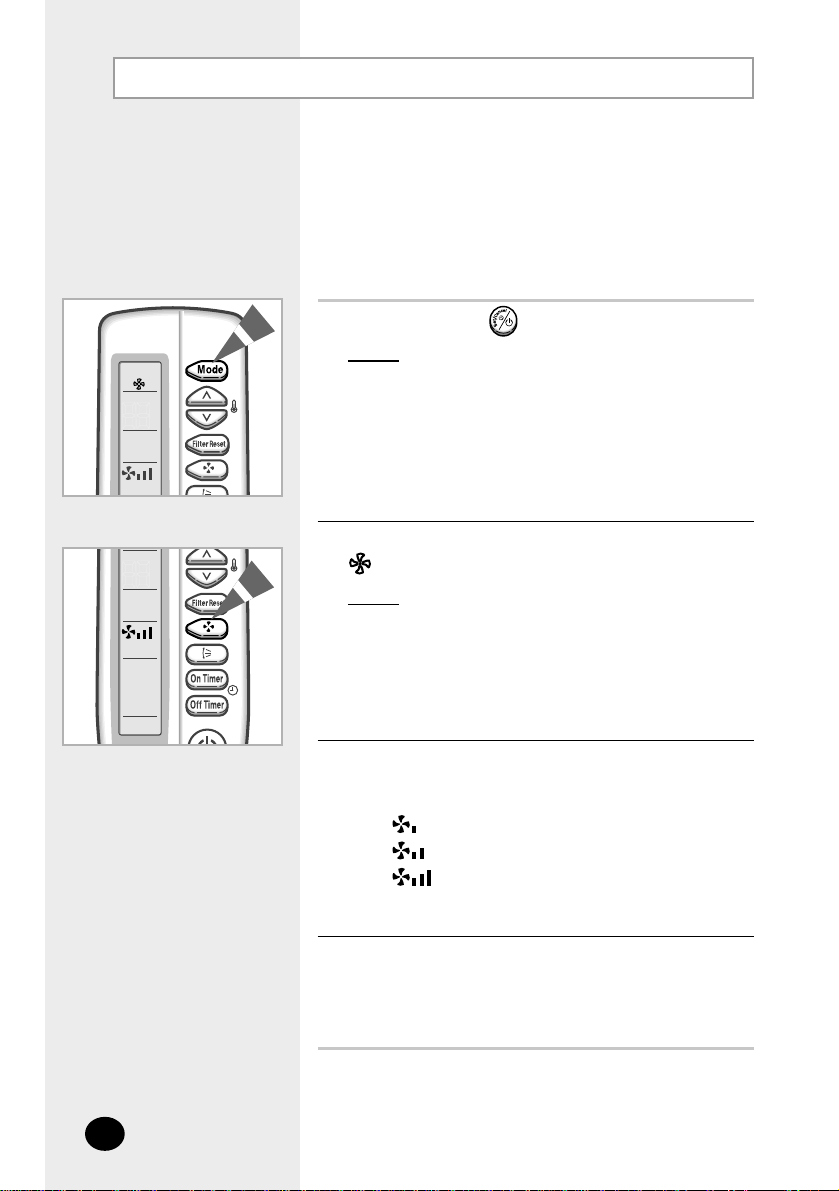

Airing Your Room
If necessary, press (ON/OFF) button.
Result: ◆The On/Off indicator on the indoor unit or
receiver & display unit comes on.
◆The air conditioner runs in the mode
selected when the unit was last used.
◆The indoor unit or receiver & display unit
beeps.
1
If the atmosphere in your room is stale, you can air it
using the FAN feature.
To select the FAN mode, press the Mode button until
is displayed at the top of the wireless remote controller.
Result: ◆The indoor unit or receiver & display unit
beeps.
Result: ◆The air conditioner runs in FAN mode.
2
Select the fan speed by pressing the Fan button one or
more times until the intended value is displayed:
3
To control the direction of the air flow, refer to page 17.
4
◆You can change modes at any time.
NN
NNoo oott ttee ee
Low
Medium
High

ENGLISH
E-17
Adjusting the Air Flow Direction (Except Duct Type)
Press the Swing button.
Result: ◆The blades are moving between up and
down.
Result: ◆The indoor unit or receiver & display unit
beeps.
1
Depending on the position of the indoor unit, you can
adjust the position of the air flow blades, thus increasing
the efficiency of the air conditioner.
To stop the blades, press the Swing button again.
To set to the required position, press the Swing button
again when the blades are in the required position.
2
When the air conditioner is first turned on,
the blades are moved.
IMPORTANT

E-18
Setting the On Timer
To set the operating time, press the On Timer button
one or more times until the required time is displayed.
Possible time is between 0.5 hour and 24 hour
inclusive.
Result: ◆Each time you press On Timer button:
- The time is adjusted by 0.5 hour to 5 hours,
by 1 hour from 6 hours to 24 hours.
1
The On Timer enables you to switch on the air conditioner
automatically after a given period of time. You can set the
period of time from 30 minutes to 24 hours.
Press the (Set/Cancel) button to complete the setting.
Result: ◆The remaining time is displayed.
◆Blinking of the timer indicator stops.
◆The selected mode and the temperature
disappear on the display after 5 seconds.
◆The air conditioner will switch on
automatically when the counter displayed
on the remote controller reaches the setting
time as disappearing the On timer setting.
2
◆You can see or change the setting mode
and/or the temperature by pressing the
Mode button or the Temperature buttons
after setting the On timer.
NN
NNoo oott ttee ee

ENGLISH
E-19
To cancel the On Timer, press the On Timer button one
or more times until the timer setting disappears.
1
Press the (Set/Cancel) button.
2
To Cancel the On Timer
◆If you want to turn on the air conditioner
before the timer reaches the setting time,
press the (ON/OFF) button.
NN
NNoo oott ttee ee

E-20
Setting the Off Timer
To set the operating time, press the Off Timer button
one or more times until the required time is displayed.
Possible time is between 0.5 hour and 24 hour
inclusive.
Result: ◆Each time you press Off Timer button:
- The time is adjusted by 0.5 hour to 5 hours,
by 1 hour from 6 hours to 24 hours.
1
The Off Timer enables you to switch off the air conditioner
automatically after a given period of time. You can set the
period of time from 30 minutes to 24 hours.
Press the (Set/Cancel) button to complete the setting.
Result: ◆The remaining time is displayed.
◆Blinking of the timer indicator stops.
◆The air conditioner will switch off
automatically when the counter displayed
on the remote controller reaches the setting
time as disappearing the Off timer setting.
2
If you would like to turn the air conditioner
on after 2 hours and to operate it for 2 hours:
1. Press the On Timer button until ‘2.0 Hr’ is
displayed.
2. Press the (Set/Cancel) button.
3. Press the Off Timer button until ‘4.0 Hr’ is
displayed.
4. Press the (Set/Cancel) button.
EE
EExx xxaa aamm mmpp ppll llee ee
◆You can see or change the setting mode
and/or the temperature by pressing the
Mode button or the Temperature buttons
after setting the Off timer.
NN
NNoo oott ttee ee
