Samsung MH026FPEA Installation guide

Indoor Unit
MH026FPEA
MH035FPEA
MH052FPEA
MH026FKEA
MH035FKEA
MH052FDEA
Outdoor Unit
MH068FXEA4
MH080FXEA4
Precautions 1
Product Specifications 2
Operation Instruction & Installation 9
Disassembly and Reassembly 48
Refrigerating Cycle Diagram 72
Feature & Operation 73
Set Up the Model Option 85
Troubleshooting 88
Exploded Views and Parts List 106
Block Diagram 130
PCB Diagram 131
Wiring Diagram 147
Schematic Diagram 152
CONTENTS
DB98_20402A(1)_CO 10/26/04 3:28 PM Page 1

1Samsung Electronics
1. Precautions
11) Cut off the power.
● Make sure to cut off the power before repair. If not, you may
be damaged by an electric shock.
12) Do not install an outdoor unit on the apartment outside
wall(or equivalent) for safety.
● Installing an outdoor unit on the apartment outside wall(or
equivalent) is prohibited for the safety purpose. Service will
not be available for the outdoor unit where our servicemen
can not access and the cost of moving the outdoor unit to
the service area will be borne by the customer.
● If requested by the customer, you shall discourage him to
install an outdoor unit on the apartment outside wall(or
equivalent).
13) Keep the drain hose outlet free.
● Otherwise, air flow will get slow, which may hinder cooling
capacity.
● Also, dew may be laden on the service valve.
14) Use of Certified Parts
● Use certified parts only. (An electric contact part, if broken
down, shall not be repaired but replaced with a new one.
Remodeling shall be prohibited. In no case, the customer
shall repair the product on his own because this is danger-
ous enough to bring about breakdown or fire.)
15) Ban on Middle Connection of Power Cord
● Do not cut the power cord in the middle to be connected to
other power cord nor use a middle socket between two
power cords. This is dangerous enough to bring about
breakdown or fire.
16) Check Insulation
● After assembly, be sure to check insulation resistance.
(Use an insulation ohmmeter to measure the insulation
resistance between the power cord and the earthing wire.
Do not supply power until it reads 30MΩ.)
17) Be sure to keep the symmetry of the product.
● Otherwise, you may hear vibration noise.
18) Caution for Children
● Keep children off the product while it is in repair.
Otherwise, they might be endangered.
19) Be sure to put the indoor or outdoor unit free of corrosive
gases such as sulfuric water, ammonium and sulfuric
gas.
● Otherwise, copper tubes or soldered parts could be
corroded causing refrigerant leak.
10) Arrangement of surroundings
● After repair finishes, clean the air conditioner and its
surroundings and inform the customer of what it is like.
DB98_20402A(1)_1 10/26/04 2:46 PM Page 1

Samsung Electronics2
2. Product Specifications
2-1 Table
Model
Item
MH026FPEA MH035FPEA MH052FPEA
INDOOR UNIT
Size
Perfor-
mance
Wall-mounted
2.60
2.90
1.4
6.4
7.4
39
39
3.04
2.40
1-220~240-50
860
1,310
3.7
5.7
98.7
99.9
795 x 258 x 179
31.3 x 10.2 x 7.0
7.5
ø6.35 x 7
ø9.52 x 7
ø18 x 2,000
Cross-fan
steel
11
2ROW 10STEP
EEV
Wall-mounted
3.50
3.80
1.9
8.2
8.6
42
42
3.08
2.50
1-220~240-50
1,140
1,630
5.0
7.1
94.8
98.7
890 x 285 x 179
35.0 x 11.2 x 7.0
8.5
ø6.35 x 7
ø9.52 x 7
ø18 x 2,000
Cross-fan
steel
15
2ROW 12STEP
EEV
Wall-mounted
5.20
5.60
2.5
13.0
13.5
48
48
3.31
2.60
1-220~240-50
1,590
2,470
6.9
10.7
94.8
96.6
1,080 x 315 x 205
42.5 x 12.4 x 8.1
13
ø6.35 x 7
ø12.7 x 7
ø18 x 2,000
Cross-fan
steel
19
2ROW 16STEP
EEV
Type
Cooling kW
Heating
Dehumidifying |/h
Air Volume Cooling m3/min
Heating
Noise Cooling dB
Heating
Energy Efficiency Ratio Cooling
Heating W/W
Power V-Hz
Power Consumption Cooling W
Heating
Operating Current Cooling A
Heating
Power Factor Cooling %
Heating
Outer Dimension W x H x D mm
inch
Weight kg
Refrigerant Pipe Liquid mm x L(m)
GAS mm x L(m)
Drain Hose D x L(mm)
Type
Blower Motor Type
Rated Output W
Heat Exchanger
Refrigerant Control Unit
Power
DB98_20402A(1)_1 10/26/04 2:46 PM Page 2

3Samsung Electronics
Table(cont.)
MH026FKEA MH035FKEA MH052FDEA
INDOOR UNIT
2.6
2.9
AC 220~240V, 50Hz
860 / 1,310
3.7 / 5.7
1,070
1,000
930
6.84
6.32
5.83
40
ø7.0 SLIT
2 x 14 x 1.5
Cross flow
28
180
970
390
15 / 18
3.5
3.8
AC 220~240V, 50Hz
1,140 / 1,630
5.0 / 7.1
1,210
1,140
1,070
8.61
8.13
7.70
42
ø7.0 SLIT
2 x 14 x 1.5
Cross flow
28
180
970
390
15 / 18
5.2
5.6
AC 220~240V, 50Hz
1,590 / 2,470
6.9
730
680
630
18
17
16
45
ø7.0 SLIT
2 x 12 x 1.5
Sirocco
97
260
1,340
600
41 / 47
Cooling
Heating
Cooling / Heating
Cooling / Heating
Heat Exchanger
Fan
Dimensions
Weight
Hi
Med
Low
Hi
Med
Low
Hi
Motor Output
H
W
D
kg
kW
W
A
r.p.m.
r.p.m.
r.p.m.
m3/min
m3/min
m3/min
dB(A)
W
mm
mm
mm
Net / Gross
Type
Row x Stages x Fin Pitch
Type
Capacity
Power Supply
Power Input
Running Current
Indoor Unit
Air Circulation
Noise Level
(Sound Pressure)
Fan Speed
(at 0mmAq)
Model
Item
DB98_20402A(1)_1 10/26/04 2:46 PM Page 3

Samsung Electronics4
Table(cont.)
Model
Item
Free Joint Multi
MH068FXEA4 MH080FXEA4
OUTDOOR UNIT
Power
Size
Fan Motor
&
Blower
Com-
pressor
Perfor-
mance
2.6 ~ 9.3
2.9 ~ 10.9
48
58
59
890 ~ 2,820
822 ~ 2,868
3.9 ~ 12.3
3.6 ~ 12.5
880 x 796 x 330
Twin Rotary
G5T360FU1EK
Propeller
ø460
2ROW 36STEP
EEV
2,900
2.6 ~ 8.7
2.9 ~ 10.6
48
58
59
885 ~ 2,486
822 ~ 2,789
3.8 ~ 10.8
3.6 ~ 12.1
880 x 796 x 330
Twin Rotary
G5T360FU1EK
Propeller
ø460
2ROW 36STEP
EEV
2,900
1-220-240V~, 50Hz
Remark : Test Condition Indoor Room Outdoor Room
Cooling Test DB27˚C / WB19˚C DB35˚C / WB24˚C
Maximum Operation DB32˚C / WB23˚C DB43˚C / WB26˚C
Type
Capacity Cooling kW
Heating BTU/h
Air Volume m3/min
Noise Cooling dB
Heating
Power ø-V-Hz
Power Consumption Cooling W
Heating
Operating Current Cooling A
Heating
Fuse Capacity A
Dimension W x H x D mm
Weight kg
Type
Model Name
Motor Type
Rated Output W
Freezer Oil Type
Capacity cc
Protection Device
Blower Type
Size
OD(mm) x L(m)
Motor Rated Output W
Capacitor uF x VAC
Heat Exchanger
Refrigerant Control Unit
Refrigerant to Charge(R410A) gr
DB98_20402A(1)_1 10/26/04 2:46 PM Page 4

5Samsung Electronics
2-2 Technical Document (Pressure Graph)
2-2-1 MH080FXEA4 / MH068FXEA4
■Cooling(7.5m–Piping)
Outdoor Indoor P_high P_low T_dis T_suc P_high P_low T_dis T_suc
21 21.2 8.7 58.4 10.9 21.2 8.2 58.7 8.2
21 27 21.9 10.1 57.5 13.9 21.7 9.4 57.1 11.4
32 22.4 11.3 56.0 16.4 22.2 10.6 55.8 14.5
21 30.3 9.4 78.5 12.8 30.2 9.0 78.5 10.2
35 27 30.9 10.6 78.7 16.8 30.7 10.0 78.0 14.2
32 31.6 12.0 76.3 19.4 31.7 11.4 76.7 17.2
21 36.1 9.8 89.8 12.8 36.2 9.4 91.5 11.4
43 27 37.0 11.1 90.5 17.7 36.8 10.6 89.1 14.2
32 37.6 12.5 88.2 20.6 37.4 11.8 86.8 16.7
170%(ex.026+026+035+052) 100%(ex.026+026+052)
DB98_20402A(1)_1 10/26/04 2:46 PM Page 5

Samsung Electronics6
O.D I.D P-high P-low P-high P-low
21 / 15 20.0 8.3 20.0 7.8
21 / 15 27 / 19 20.7 9.7 20.5 9.0
32 / 23 21.2 10.9 21.0 10.2
21 / 15 29.1 9.0 29.0 8.6
35 / 24 27 / 19 29.7 10.2 29.5 9.6
32 / 23 30.4 11.6 30.5 11.0
21 / 15 34.9 9.4 35.0 9.0
43 / 26 27 / 19 35.8 10.7 35.6 10.2
32 / 23 36.4 12.1 36.2 11.4
170%(ex.026+026+035+052) 100%(ex.026+026+052)
■Cooling(17.5m–Piping)
Product Specifications
DB98_20402A(1)_1 10/26/04 2:46 PM Page 6

7Samsung Electronics
Product Specifications

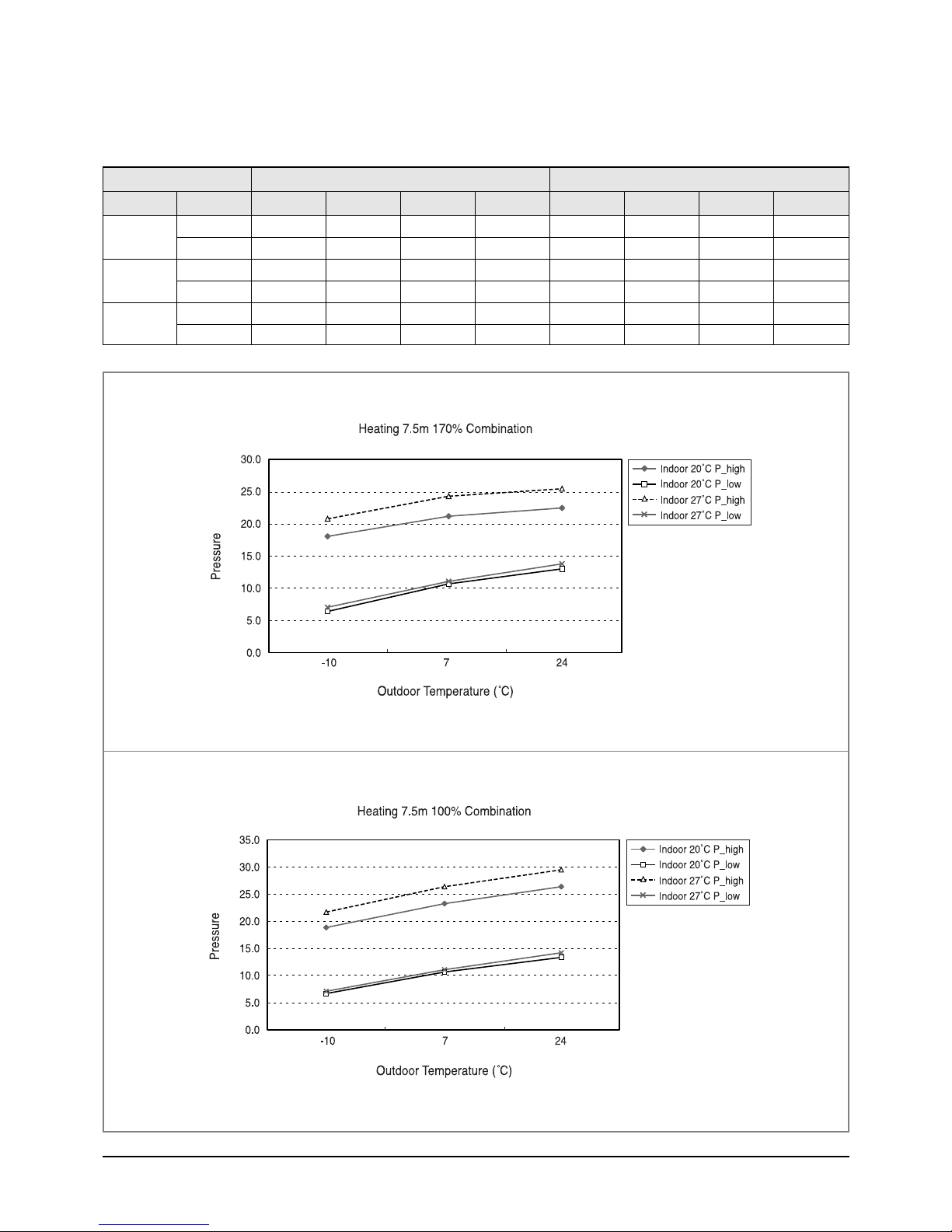

■Heating(7.5m–Piping)
Outdoor Indoor P_high P_low T_dis T_suc P_high P_low T_dis T_suc
-10 20 18.0 6.4 60.1 -18.9 18.8 6.7 59.8 -17.4
27 20.8 7.0 66.3 -17.1 21.7 7.1 67.0 -15.7
720 21.2 10.6 57.9 -1.8 23.2 10.6 64.9 -0.2
27 24.4 11.0 63.0 -0.9 26.3 11.0 69.1 0.5
24 20 22.5 12.9 60.8 16.4 26.4 13.4 71.9 17.3
27 25.5 13.8 64.3 16.8 29.5 14.2 75.9 17.7
170%(ex.026+026+035+052) 100%(ex.026+026+052)
DB98_20402A(1)_1 10/26/04 2:46 PM Page 7

Product Specifications
Samsung Electronics8
■Heating(17.5m–Piping)
Outdoor Indoor P_high P_low P_high P_low
-10 20 / 15 16.8 6.0 17.6 6.3
27 / 15 19.6 6.6 20.5 6.7
7 / 6 20 / 15 20.0 10.2 22.0 10.2
27 / 15 23.2 10.6 25.1 10.6
24 / 18 20 / 15 21.3 12.5 25.2 13.0
27 / 15 24.3 13.4 28.3 13.8
170%(ex.026+026+035+052) 100%(ex.026+026+052)
DB98_20402A(1)_1 10/26/04 2:46 PM Page 8

9Samsung Electronics
Fan speed adjustment button.
Each time you press this button, FAN SPEED is changed in the following order.
Temperature adjustment button(DOWN).
The temperature is decreased by the pressing the temperature button.
FUNCTION
On/Off button.
Press the button to stop or run the air conditioner.
BUTTONNo
1
2
3
4
5
6
7
Swing button.
It adjusts the airflow to upward and downward.
Temperature adjustment button(UP).
The temperature is increased by the pressing the temperature button.
(On/Off)
(UP)
(DOWN)
Low Medium High
Automatic(rotated : )
Sleep button.
The sleep timer can be used when you are cooling or heating your room to switch the
air conditioner off automatically after a period of 6 hours.
Turbo button.
The air conditioner cools or heats the room as quickly as possible.
After 30 minutes, the air conditioner is reset automatically to the previous mode.
Mode selection button.
Each time you press this button,
mode is changed in the following order. : Auto Mode : Fan Mode
: Cool Mode : Heat Mode
: Dry Mode
3. Operation Instruction & Installation
3-1 Operation Instruction
3-1-1 The Feature of Key in remote control
DB98_20402A(1)_1 10/26/04 2:47 PM Page 9

Samsung Electronics10

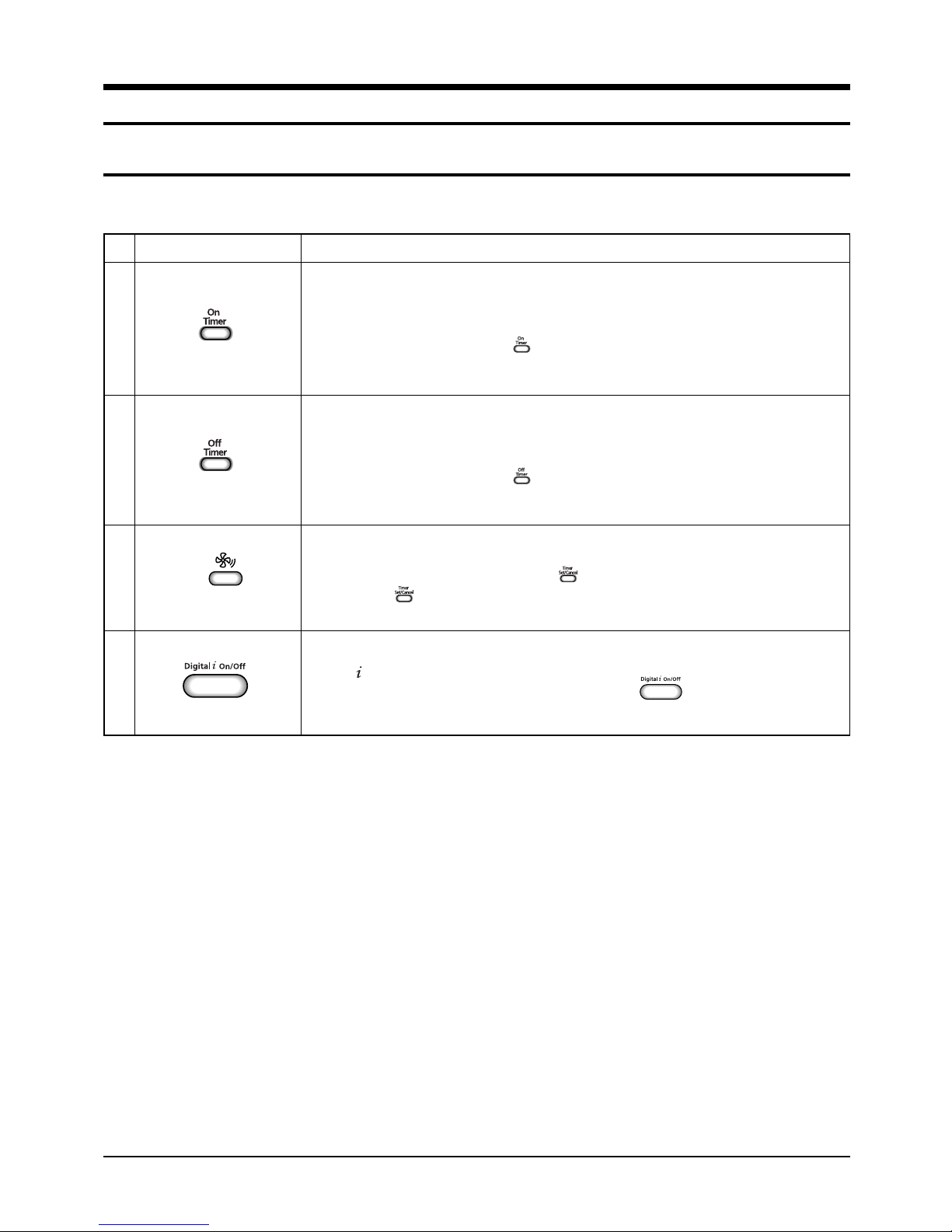

Digital On/Off button.
If you want to turn off the display during operation press the button.
Off Timer button.
The Off Timer enables you to switch off the air conditioner automatically after
a given period of time that is from 30 minutes to 24 hours.
To set the operating time, press the button one or more times until the required
time display.
FUNCTIONBUTTONNo
8
9
10
11
On Timer button.
The On Timer enables you to switch on the air conditioner automatically after
a given period of time that is from 30 minutes to 24 hours.
To set the operating time, press the button one or more times until the required
time display.
Timer Set/Cancel button.
After setting On Timer or Off Timer, press the button to set it completely.
And press the button again to cancel On Timer or Off Timer set.
The Feature of Key in remote control(cont.)
DB98_20402A(1)_1 10/26/04 2:47 PM Page 10

Operation Instruction & Installation
11Samsung Electronics
1. AUTO MODE : In this mode, operation mode(COOL,
HEAT) is selected automatically by the room temperature
of initial operation.
∆T= -1°C, -2°C, 0°C, +1°C, +2°C
∆T is controlled by setting temperature up/down key of
remote control
2. COOL MODE : The unit operates according to the
difference between the setting and room temperature.
(18°C~30°C)
3. HEAT MODE : The unit operates according to the
difference between the setting and room tempera-
ture.(16°C~30°C)
*Prevention against cold wind : In order to prevent the
cool air from flowing out at the heat mode, the indoor fan
does not operate or operates very slowly in the
following cases. At this time, the indoor heat exchanger
will be preheating.
- For 3~5 minutes after the initial operation
- For deicing operation
- The operation of an indoor fan in accordance with
the temperature of an indoor heat exchanger
*High temperature release function : It is a function to
detect an outdoor overload by the sensor of an indoor
heat exchanger and to turn the outdoor fan or the
compressor ON/OFF for safety.
*Deice : Deicing operation is controlled by indoor unit's
heat exchanger temperature and accumulating time of
compressor's operation.
Deice ends by sensing of the processing time by deice
condition.
4. DRY MODE : Has 3 states, each determined by room
temperature.
The unit operates in DRY mode.
*Compressor ON/OFF Time is controlled compulsorily
(can not set up the fan speed, always breeze).
*Protective function : Low temperature release.
(Prevention against freeze)
5. TURBO MODE : This mode is available in AUTO, COOL,
HEAT, DRY, FAN MODE.
When this button is pressed at first, the air conditioner is
operated "powerful" state for 30 minutes regardless of the
set temperature, room temperature.
When this button is pressed again, or when the operating
time is 30 minutes, turbo operation mode is canceled and
returned to the previous mode.
*But, if you press the TURBO button in DRY or FAN
mode that is changed with AUTO mode automatically.
6. SLEEP MODE : Sleep mode is available only in COOL or
HEAT mode.
The operation will stop after 6 hours.
*In COOL mode : The setting temperature is automatical-
ly raised by 1°C each 1hour When the temperature
has been raised by total of 2°C, that temperature is
maintained.
*In HEAT mode : The setting temperature is automatically
dropped by 1°C each 1hour.
When the temperature has been dropped by total of 2°C,
that temperature is maintained.
7. FAN SPEED : Manual (3 step), Auto (4 step)
Fan speed automatically varies depending on both the
difference between setting and the room temperature.
8. COMPULSORY OPERATION :
For operating the air conditioner without the remote
control.
*The air conditioner starts up in the most suitable mode
for the room temperature:
Room Temp.
Tr≥21°C+∆T
21°C +∆T>Tr
Operation Type
Cool Operation (Set Temp.:24˚C+∆T)
Heat Operation (Set Temp.:22˚C+∆T)
3-1-2 Name & Function of Key in remote control
below 28˚C
28˚C~below 34˚C
34˚C~below 40˚C
above 40˚C
The temperature of
indoor heat exchanger Indoor fan speed
off
LL Speed
L Speed
Setting Speed
Room Temperature
Less than 21˚C
21˚C or above
Operating Mode
Heat
Cool
Temperature Setting
24˚C approx.
22˚C approx.
DB98_20402A(1)_1 10/26/04 2:47 PM Page 11

Operation Instruction & Installation
Samsung Electronics12
9. SWING : BLADE-H is rotated vertically by the stepping
motor.
*Swing Set : Press the button under the remote
control is displayed on LCD the and the blades
move up and down. If the one more time press the
button, blades location is stop.
10. SETTING THE ON/OFF TIMER. :
*ON TIMER : The On Timer enables you to switch on the
air conditioner automatically after a given period of time.
You can set the period of time from 30 minutes to 24
hours.
*OFF TIMER : The Off Timer enables you to switch off
the air conditioner automatically after a given period of
time. You can set the period of time from 30 minutes to
24 hours.
11. BUZZER SOUND : Whenever the On/Off button is
pressed or whenever change occurs to the condition
which is set up or select, the compulsory operation mode,
buzzer is sounded "beep".
DB98_20402A(1)_1 10/26/04 2:47 PM Page 12

13Samsung Electronics
3-2 Outline & Dimension
3-2-1 Indoor Unit
■MH026FPEA / MH035FPEA
C
60
19
275252
100 158
60
45
275252
90 165
A
B
Air in
(Front view)
(Rear view)
(Remote control)
Air out
(Installation plate)
53
24
16
150
■ 9K ■ 12K
Type
9K
12K
A
795
890
B
258
285
C
179
179
DB98_20402A(1)_1 10/26/04 2:47 PM Page 13

Operation Instruction & Installation
Samsung Electronics14
205
60
45
275252
90 165
1,080
215
Air in
(Front view)
(Rear view)
(Remote control)
Air out
(Installation plate)
53 24
16
150
■ 18K
■MH052FPEA
DB98_20402A(1)_1 10/26/04 2:48 PM Page 14

Operation Instruction & Installation
15Samsung Electronics
1,180(1,181)
105
55
35.0
35.0
95.0
DRAIN HOSE
1,151(Ceiling opening)
15 15.0
461 390
2.5
277(Suspension position)
15.0 15.0431(Ceiling opening)
1,010.0(Suspension position)
1,180
970.0
Suspension bolt(4-M8~M10)
460(461)
20 180.0
20 153
390.0
0~300
■MH026FKEA / MH035FKEA
No.
1
2
3
4
5
6
Name
Liquid pipe connection
Gas pipe connection
Drain pipe connection
Power supply connection
Air discharge grille
Air suction grille
Remark
ø6.35
ø9.52
OD29 ID25
DB98_20402A(1)_1 10/26/04 2:48 PM Page 15

Operation Instruction & Installation
Samsung Electronics16
1,410
1,180
1,218.0
1,340.0
126.5
186.5
260
221
154
194
244
600
285
16583
400(Suspension position)
1,298
1,262(Suspension position)21
262
118
171
18 235
172
25
310 250 250
30 208
112
1,035
p220x4=880
98
46
■MH052FDEA
No.
1
2
Name
Liquid pipe connection
Gas pipe connection
Remark
ø6.35
ø12.70
DB98_20402A(1)_1 10/26/04 2:48 PM Page 16

Operation Instruction & Installation
17Samsung Electronics
3-2-2 Outdoor Unit
■MH068FXEA4 / MH080FXEA4
12
30
332
779
350
880
660
DB98_20402A(1)_1 10/26/04 2:48 PM Page 17

Samsung Electronics18
3-3 Selecting Area for Installation
Select an area for installation that is suitable to customer’s needs.
3-3-1 Indoor Unit
1. Make sure that you install the indoor unit in an area providing good ventilation.
It must not be blocked by an obstacle affecting the airflow near the air inlet and the air outlet.
2. Make sure that you install the indoor unit in an area allowing good air handling and endurance of vibration of the indoor unit.
3. Make sure that you install the indoor unit in an area where there is no source of heat or vapor nearby.
4. Make sure that you install the indoor unit in an area from which hot or cool air is spread evenly in a room.
5. Make sure that you install the indoor unit in an area away from TVs, audio units, cordless phones, fluorescent lighting fixtures and
other electrical appliances (at least 1 meter).
6. Make sure that you install the indoor unit in an area which provides easy pipe connection with the outdoor unit, and easy drainage
for condensed water.
7. Make sure that you install the indoor unit in an area which is large enough to accommodate the measurements shown in figure on
the next page.
•It is harmful to the air conditioner if it is used in the following environments: greasy areas (including areas near
machines), salty areas such as coast areas, areas where sulfuric gas is present such as hot spring areas.
Contact your dealer for advice.
DB98_20402A(1)_1 10/26/04 2:48 PM Page 18

Operation Instruction & Installation
19Samsung Electronics
3-3-2 Outdoor Unit
1. Make sure that you install the outdoor unit in area not exposed to the rain or direct sun light.(Install a separate sunblind if exposed to
direct sun light.)
2. Make sure that you install the outdoor unit in area allowing the good air moment, not amplifying noise or vibration, especially to
avoid disturbing neighbours. (Fix the unit firmly if it is mounted in a high place.)
3. Make sure that you install the outdoor unit in area providing the good ventilation and which is not dusty. It must not be blocked by
any obstacle affecting the airflow near the air inlet and the air outlet.
4. Make sure that you install the outdoor unit in area free from animals or plants.
5. Make sure that you install the outdoor unit in area not blocking the traffic.
6. Make sure that you install the outdoor unit in area easy to drain condensed water from the indoor unit.
7. Make sure that you install the outdoor unit in area which provides easy connection within the maximum allowable length of a coolant
pipe.
You can install 70m of total connecting pipe length(A+B+C+D room) to the maximum, and you do not have to charge any
additional refrigerant, under the length of 40m. If you install the excessive length of pipe 40m, add additional refrigerant as
15g per unit meter.
8. Make sure that you install the outdoor unit in an area which is large enough to accommodate the measurements shown in figure on
the next page.
3-3-3 Remote Control Unit
1. Make sure that you use the remote control unit in an area free from obstacles such as curtains etc, which may block signals from
the remote control unit.
2. Make sure that you put the remote control unit in an area not exposed to direct sunlight, and where there is no source of heat.
3. Make sure that you use the remote control unit in an area away from TVs, audio units, cordless phones, fluorescent lighting
fixtures and other electrical appliances (at least 1 meter).
Total connecting pipe length(L)
LT ≤40m
LT ≤40m
Adding refrigerant
Chargeless
(LT-40m) x 15g
DB98_20402A(1)_1 10/26/04 2:48 PM Page 19
