Samsung MWR-WW00 User manual

DVM Hydro Unit_MWR-WW00_IB_EN_03648A(1).indd 26 2013-01-09 오후 2:06:30

Wired Remote Control
MWR-WW00
Air Conditioner
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please
register your product at
www.samsung.com/register
AR
DB68-03648A(1)
EN ES FR IT NL PT PL DE HU EL RU
DVM Hydro Unit_MWR-WW00_IB_EN_03648A(1).indd 27 2013-01-09 오후 2:06:30

2
Contents
Safetyprecautions ....................................................................................................... 4
Descriptionofeachicon ................................................................................................. 6
Descriptionofeachcontrol .............................................................................................. 8
OperatingbasicmodeofHydroUnit .................................................................................... 10
HotwatermodeofHydroUnit .......................................................................................... 11
Checkingcurrenttemperature .......................................................................................... 12
Checkingsettemperature .............................................................................................. 12
Outingmode ........................................................................................................... 13
PREPARATION PART
HYDRO UNIT PART
DVM Hydro Unit_MWR-WW00_IB_EN_03648A(1).indd 2 2013-01-09 오후 2:06:18

3
ENGLISH
Settingweeklytimer .................................................................................................... 14
Settingaholidaywithweeklytimer ..................................................................................... 16
Cancelingaweeklytimer ............................................................................................... 17
Initializingaweeklytimer ............................................................................................... 17
Settingdailytimer ...................................................................................................... 18
Howtosetthedetailedsetting(Usersettingmode) ..................................................................... 20
Troubleshooting ....................................................................................................... 24
ADVANCED PART
SETTING ADDITIONAL USER FUNCTIONS
ADDITIONAL PART
DVM Hydro Unit_MWR-WW00_IB_EN_03648A(1).indd 3 2013-01-09 오후 2:06:18

4
Safety precautions
This content is intended to protect the user’s safety and prevent property damage. Please read it carefully for correct use of
the product.
WARNING Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage.
Follow directions.
Do NOT attempt.
Make sure the machine is grounded to prevent electric shock.
Unplug the power plug from the wall socket.
Do NOT disassemble.
FOR INSTALLATION WARNING
The installation of this product must be performed by a qualified technician.
fFailure to do so may result in electric shock, fire, product malfunction, explosion, or injury.
You must connect the product with rated power for installation.
fFailure to do so may result in electric shock, fire, and product malfunction.
Do not install this product near a heater, or inflammable material. Do not install this product in a humid, oily or
dusty location, in a location exposed to direct sunlight and water (rain drops). Do not install this product in a
location where gas may leak.
fFailure to do so may result in electric shock and fire.
FOR INSTALLATION CAUTION
Install the product on a hard and even surface that can support its weight.
fIf the surface cannot support its weight, the product may fall down and it may cause product damage.
Install the Hydro Unit in an indoor place where temperature is more than 0 °C.
fIn a place where temperature is less than 0 °C, water pipe circuit may freeze, which may cause heat exchanger
damage.
FOR POWER SUPPLY WARNING
Do not bend or pull the power cord excessively. Do not twist or tie up the power cord.
fFailure to do so may result in electric shock and fire.
PREPARATION PART
DVM Hydro Unit_MWR-WW00_IB_EN_03648A(1).indd 4 2013-01-09 오후 2:06:19

5
ENGLISH
FOR OPERATION WARNING
If the product generates a strange noise, a burning smell or smoke, stop the operation immediately and contact
your nearest service center.
fFailure to do so may result in electric shock and fire.
When reinstalling the product, please contact a service center.
fFailure to do so may result in product malfunction, water leakage, electric shock, or fire.
fA delivery service for the product is not provided. If you reinstall the product in another location, additional
construction expenses and an installation fee will be charged.
If an error code appears or abnormal operation occurs, stop operating the product immediately.
fIf you detect any burning smells from the product or abnormal operation, immediately turn off the product and
disconnect the power supply and then contact a service center. Continuing to use the device in this state can
cause electrical shock, fire, or damage to the product.
Do not disassemble, repair, and modify the product yourself.
fFailure to do so may result in electric shock, fire, and product malfunction or injury.
FOR OPERATION CAUTION
Do not allow water to enter the product.
fThis may result in fire or explosion.
For the water quality of Hydro Unit water pipe circuit, please observe the water quality management standard
in Installation Manual.
fIf the water quality management is poor, performance degradation, corrosion of plate type heat exchanger,
clogging of water pipe circuit may occur.
Do not operate the product with wet hands.
fThis may result in electric shock.
Do not spray volatile material such as insecticide onto the surface of the appliance.
fAs well as being harmful to humans, it may also result in electric shock, fire or product malfunction.
Do not apply a strong impact to the product and do not disassemble the product.
Do not use this product for other purposes.
Do not press the buttons with any sharp objects.
fThis may result in electric shock or part damage.
FOR CLEANING WARNING
Do not clean the product by spraying water directly onto it. Do not use benzene, thinner, alcohol or acetone to
clean the product.
fThis may result in discoloration, deformation, damage, electric shock or fire.
DVM Hydro Unit_MWR-WW00_IB_EN_03648A(1).indd 5 2013-01-09 오후 2:06:19

6
Description of each icon
Display
②
①
⑪
⑩
⑬
⑭
④ ⑤ ⑥ ⑦
③
⑧ ⑨ ⑫
LED indicator (Green: Normal / Red: Need to be checked)
On/Off button
Temperature control button
• Without opening the cover of your wired remote controller, you can turn Hydro Unit on or off or set the desired
temperature.
NOTE
DVM Hydro Unit_MWR-WW00_IB_EN_03648A(1).indd 6 2013-01-09 오후 2:06:19

7
ENGLISH
Classification Indication Function
Hydro Unit
①Hydro Unit operation (heat/cool/auto/outing/silent)
②System temperature (water Law temp./indoor temp./
outdoor temp./discharge water temp./hot water temp.)
③Temperature (current/desired)
Timer
④Timer (Daily/Weekly/Holiday)
⑤Current day or timer function
⑥Timer number
⑦Current time/summer time/ On or Off time
General function
⑧Operation status (COMP operation/back up heater/booster
heater/solar heat pump/back up boiler)
⑨
Operation status (water pump/water tank/defrost
operation/freezing control/water tank sterilization
operation)
⑩Indoor thermostat installation(connection) status/air to air
operation/no function
⑪Trial operation/check/partial lock/all lock
⑫+ Centralized control
Hot water mode(DHW) ⑬Hot water (saving/standard/power)
ECO level ⑭ECO level operation (Level 1~5)
DVM Hydro Unit_MWR-WW00_IB_EN_03648A(1).indd 7 2013-01-09 오후 2:06:19

8
Description of each control
Buttons
③
①
⑦
⑧
④
②
⑮
⑨
⑭
⑫
⑬
⑩ ⑪⑥⑤
DVM Hydro Unit_MWR-WW00_IB_EN_03648A(1).indd 8 2013-01-09 오후 2:06:20

9
ENGLISH
Classification Indication Function
Basic operation
button
①Turn Hydro Unit on or off (Cool/Heat/Auto)
②Select operation mode
③Select desired temperature (discharge water/indoor/hot water)
④Select silent mode
⑤Select outing mode
⑥Check current temperature of the system
⑦Set desired temperature of the system
⑧Select timer setting mode
⑨Select user setting mode
⑩Exit to normal mode when setting timer or detailed setting
⑪Delete a set timer
⑫Move to another section or change section value.
⑬Save settings
Hot water function button
(DHW)
⑭Turn hot water mode on or off
⑮Select hot water mode (saving/standard/power)
• When pressing a button that is not supported by your model, will be displayed.
NOTE
DVM Hydro Unit_MWR-WW00_IB_EN_03648A(1).indd 9 2013-01-09 오후 2:06:20

10
Operating basic mode of Hydro Unit
Operate basic mode by pressing the [Mode] button.
Auto
Hydro Unit will automatically adjust the temperature of discharge water with auto mode for indoor heating.
Cool
You can adjust cooling temperature as you like with cool mode to cool indoor place.
fWhen selecting the heat mode during the cool mode, the cool mode will be canceled.
Heat
Floor heating is available with heat mode by providing hot water in the spring, autumn and winter.
fFrost removal indicator ( )
- The frost removal indication will be displayed when the frost formed around the outdoor unit starts being removed
during the heat mode and then the indication will disappear when the frost removal is finished. (When frost is being
removed, hot water does not come out from Hydro unit.)
fWhen selecting cool mode during the heat mode, heat mode will be canceled.
• When setting standard cooling & heating temperature as indoor temperature, auto mode cannot be selected.
NOTE
HYDRO UNIT PART
DVM Hydro Unit_MWR-WW00_IB_EN_03648A(1).indd 10 2013-01-09 오후 2:06:20

11
ENGLISH
Start Hydro Unit operation by pressing the button.
Select the mode you want to operate by pressing the button.
Adjust desired temperature by pressing the button.
Temperature of
cooling discharge
water
You can adjust the desired temperature by 0.5°C within a range of
5°C~25°C.
Indoor cooling
temperature
You can adjust the desired temperature by 1°C within a range of
18°C~30°C.
Temperature of
heating discharge
water
You can adjust the desired temperature by 0.5°C within a range of
15°C~55°C.
Indoor heating
temperature
You can adjust the desired temperature by 1°C within a range of
16°C~30°C.
Hot water mode of Hydro Unit
You can adjust temperature of hot water tank by providing hot water.
Press the Mode button in DHW.
fSelect (saving), (standard), and (power) by pressing the Mode button
in DHW section.
• You cannot select cool mode during the hot water mode.
• To operate hot water mode, you need to set the hot water function 'Yes' in the
field specification setting mode(#3011) of wired remote controller and connect
the temperature sensor of hot water tank.(4~20mA, 0~100°C)
• When selecting heat mode and hot water mode at the same time, heat mode
and hot water mode will operate alternately.
NOTE
DVM Hydro Unit_MWR-WW00_IB_EN_03648A(1).indd 11 2013-01-09 오후 2:06:21

12
Checking current temperature
You can check current temperature.
Check the current temperature by pressing the View button.
fCurrent temperature can be checked in order of (indoor) (outdoor) 
(discharge water) (hot water)by pressing the View button.
fThe temperature which a connected indoor unit does not support will not be
displayed.
fAfter 10 seconds from current temperature display, the set desired temperature will
appear.
Checking set temperature
You can check the set temperature of current operation mode by the set temperature check function.
Check the set temperature by pressing the Set button.
fThe set temperature of basic operation mode and hot water mode can be checked
by pressing the Set button repeatedly.
fWhen either basic operation mode or hot water mode is in operation, the set
temperature of the mode in operation will be displayed.
DVM Hydro Unit_MWR-WW00_IB_EN_03648A(1).indd 12 2013-01-09 오후 2:06:22

13
ENGLISH
Outing mode
Heating can operate at low temperature while you are out with outing mode.
Select outing mode by pressing the Outing button.
fwill be displayed and outing mode will operate.
Cancel Press any button on the remote controller.
• When pressing the Outing button while Hydro Unit stops its operation,
indication will appear.
NOTE
DVM Hydro Unit_MWR-WW00_IB_EN_03648A(1).indd 13 2013-01-09 오후 2:06:23

14

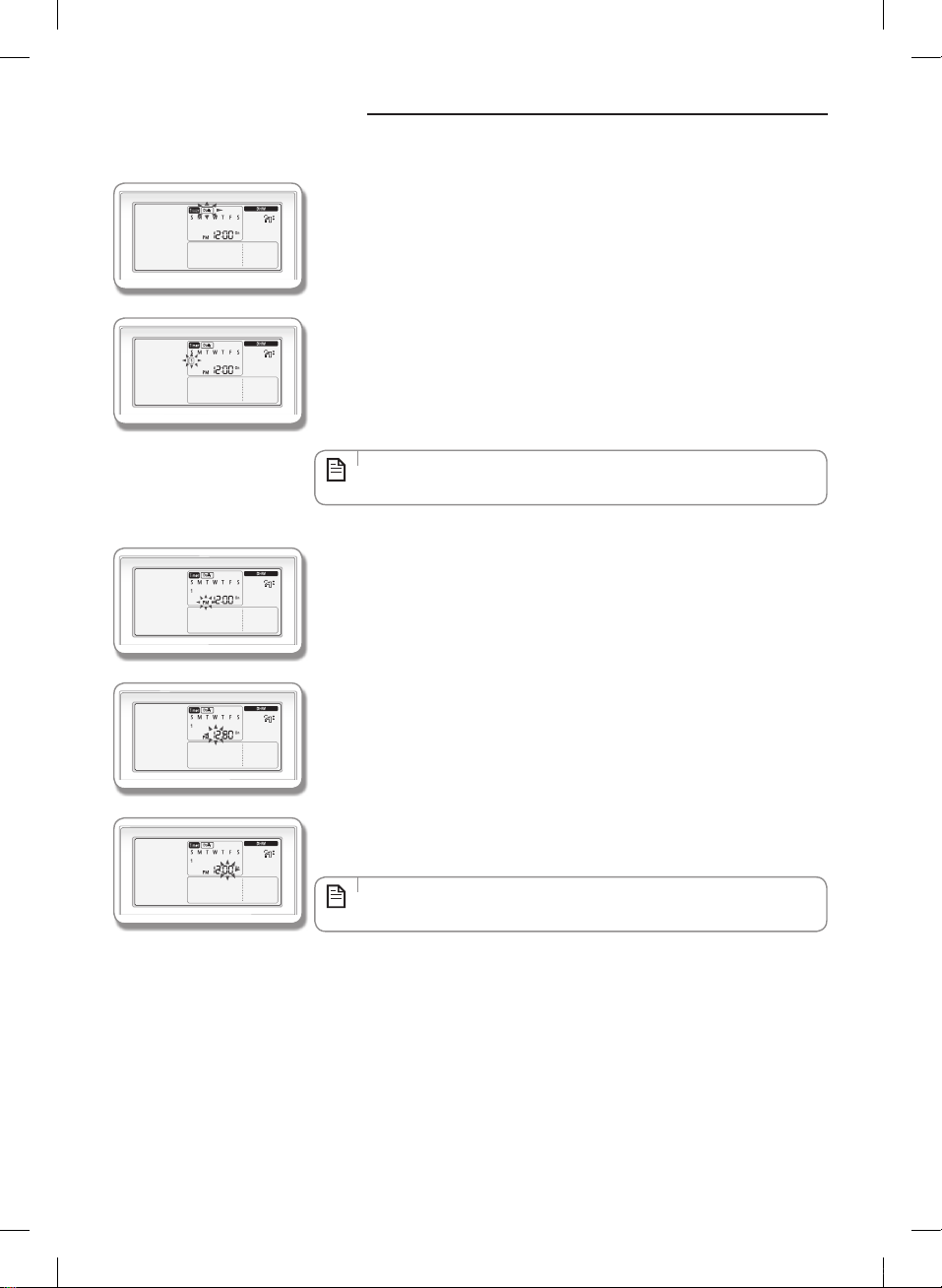

Setting weekly timer
You can operate or stop a desired mode on the day and time you reserve. (Only cool/heat mode can be set.)
1. Press the Timer button.
f(Timer) will be displayed and then select 'Weekly' among 'Daily', 'Weekly', or 'Holiday'
by pressing the [∧]/[∨] button.
2. After pressing the [＞] button, select the 'Day' you want to reserve.
fSelect the day you want to reserve (Sun~Sat) by pressing the [∧]/[∨] button.
• You can select multiple days for multiple timer function. When selecting
multiple timer function, you will go to the time setting stage for timer
function.
NOTE
3. Select 'Timer number' by pressing the [＞] button until timer number is
displayed.
(When entering, the last available number for timer setting is set.)
fThe timer already set is assigned with number in time sequence order.
fYou can select timer number(1~8) by pressing the [∧]/[∨] button.
fIf there is no timer, the edge of the box for the timer number and the timer number
will blink.
• If the timer is already set, the square box surrounding the timer number will
blink. If you want to change it, select the set timer number and change it.
NOTE
4. After pressing the [＞] button, select‘AM/PM’.
fYou can select AM or PM by pressing the [∧]/[∨] button.
5. After pressing the [＞] button, select‘Hour’.
fYou can set hour by pressing the [∧]/[∨] button.
6. After pressing the [＞] button, select‘Minute’.
fYou can select minute by pressing the [∧]/[∨] button.
• If the time setting is set as 24 hours a day, AM/PM setting will be omitted.
NOTE
ADVANCED PART
DVM Hydro Unit_MWR-WW00_IB_EN_03648A(1).indd 14 2013-01-09 오후 2:06:24

15
ENGLISH
7. After pressing the [＞] button, select ’On/Off’timer.
fYou can select On or Off by repeatedly pressing the [∧]/[∨] button.
fWhen selecting‘Off’, follow 10 or 11.
8. After pressing the [＞] button, select the operation mode.
fIt is available only for setting Hydro Unit On timer.
fYou can set operation mode by pressing the [∧]/[∨] or Mode button.
9. After pressing the [＞] button, select the desired temperature.
fIt is available only for setting Hydro Unit On timer.
fYou can adjust temperature by 0.5 °C unit by pressing the [∧]/[∨] or [+]/[-] button.
10. Complete timer function by pressing the Set button.
fThe reserved day will be displayed with‘_’and be saved in 3 seconds.
[e.g. When Monday is reserved ( )]
fWhen additional timer is needed, re-select the setting from daily timer or weekly
timer.
11. Press the ESC button to exit normal mode.
• When canceling the setting during the weekly timer setting, press the ESC
button to exit.
NOTE
DVM Hydro Unit_MWR-WW00_IB_EN_03648A(1).indd 15 2013-01-09 오후 2:06:24

16
Setting a holiday with weekly timer
You can set a holiday with the weekly timer. The set weekly timer will not function when holiday setting is applied.
1. Press the Timer button.
f(Timer) is displayed and then select 'Holiday' among 'Daily', 'Weekly', or 'Holiday' by
pressing the [∧]/[∨] button.
2. After pressing the [＞] button, select the‘day’you will set as holiday.
fYou can select the holiday (Sun~Sat) by pressing the [∧]/[∨] button.
• Multiple settings are available by selecting many days.
NOTE
3. Complete the holiday setting with the weekly timer by pressing the Set button.
4. Press the ESC button to exit normal mode.
• If you want to cancel your holiday with the weekly timer while you are setting
them, press the ESC button.
• The weekly timer indicator '_' of the dates set as holidays will disappear on
the display.
NOTE
DVM Hydro Unit_MWR-WW00_IB_EN_03648A(1).indd 16 2013-01-09 오후 2:06:25

17
ENGLISH
Canceling a weekly timer
You can cancel weekly timer function.
1. Press the Timer button.
f(Timer) is displayed and (Weekly) will blink.
2. After pressing the [＞] button, select the 'Day' you want to cancel.
fSelect a reserved day by pressing the [∧]/[∨] button.
3. After pressing the [＞] button, select a 'timer number' to cancel.
fSelect a timer number(1~8) by pressing the [∧]/[∨] button.
fThe square box around the selected number will blink.
4. Cancel the weekly timer setting by pressing the Delete button.
fThe canceled weekly timer number and the box for the number will blink.
5. Save the weekly timer cancel setting by pressing the Set button.
6. Press the ESC button to exit to general mode.
Initializing a weekly timer
You can initialize all the weekly timer set with the wired remote controller.
1. Press the Delete button for 5 seconds.
fAll the weekly timer settings will be deleted.
• You can’t restore your old settings after deleting the weekly timer by pressing
the Delete button, so be careful when you use this function.
NOTE
DVM Hydro Unit_MWR-WW00_IB_EN_03648A(1).indd 17 2013-01-09 오후 2:06:26

18
Setting daily timer
Hydro Unit can operate or stop at the time you reserve every day. (Only standard hot water mode can be set.)
1. Press the Timer button.
f(Timer) will be displayed and then select 'Daily' among 'Daily', 'Weekly', or 'Holiday'
by pressing the [∧]/[∨] button.
2. Select‘timer number’until the timer number is displayed by pressing the [＞]
button. (When entering, the last available number for timer setting is set.)
fThe timer already set is assigned with number in time sequence order.
fYou can select timer number(1~8) by pressing the [∧]/[∨] button.
fIf there is no timer, the edge of the box for the timer number and the timer number
will blink.
• If the timer is already set, then the square box surrounding the timer number
will blink. If you want to change it, then select a timer number and change it.
NOTE
3. After pressing the [＞] button, select‘AM/PM’.
fYou can select AM or PM by pressing the [∧]/[∨] button.
4. After pressing the [＞] button, select‘Hour’.
fYou can select hour by pressing the [∧]/[∨] button.
5. After pressing the [＞] button, select‘Minute’.
fYou can select minute by pressing the [∧]/[∨] button.
• If the time setting is set as 24 hours a day, AM/PM setting is omitted.
NOTE
DVM Hydro Unit_MWR-WW00_IB_EN_03648A(1).indd 18 2013-01-09 오후 2:06:27

19
ENGLISH
6. After pressing the [＞] button, select ’On/Off’timer.
fYou can select On or Off by repeatedly pressing the [∧]/[∨] button.
fWhen selecting‘Off’, follow step 8 or 9.
• You cannot use timer function for hot water mode(saving/standard/
power) when you select the use of hot water function as no use in the field
specification setting with installation of an wired remote controller or when
you use other company's water tank.
• When the use of booster heater has selection‘no use’in the field specification
setting with the installation of a wired remote controller, you cannot use timer
function for power hot water mode(DHW).
NOTE
7. After pressing the [＞] button, select hot water mode or silent mode.
fYou can set hot water mode or silent mode by pressing the [∧]/[∨] or Mode
button in DHW and Silent buttons.
• When setting hot water supply as 'No' or silent function is not supported,
selection will be limited.
NOTE
8. Complete timer function by pressing the Set button.
fWhen additional timer is needed, re-select the setting from daily timer or weekly
timer.
9. Press the ESC button to exit normal mode.
• If you want to cancel daily timer while you are setting them, press the ESC
button.
NOTE
DVM Hydro Unit_MWR-WW00_IB_EN_03648A(1).indd 19 2013-01-09 오후 2:06:27
