Samsung MH026FKEA User manual

ENGLISH
INSTALLATION MANUAL
MANUAL DE INSTALACIÓN
MANUEL D’INSTALLATION
MANUALE D’INSTALLZIONE
MANUAL DE INSTALAÇÃO
INSTALLATIONS-HANDBUCH
E°XEIPI¢IO E°KATA™TA™H™
àçëíêìäñàü èé ìëíÄçéÇäÖ
Free Joint Multi Air Conditioner (Cool and Heat)
Acondicionador de aire libre del empalme multi (Refrigeración y Calefacción)
Climatiseur Free Joint Multi (Refroidissement et Chauffage)
Aria condizionata Free Joint Multi (Raffreddamento e Riscaldamento)
Free Joint Multi ar condicionado (Refrigeração e Aquecimento)
Free Joint Multi Klimaanlage (Kühlen und Wärmen)
¶ÔÏÏ·Ïfi ∫ÏÈÌ·ÙÈÛÙÈÎfi ªË¯¿ÓËÌ· ∂χıÂÚ˘ ŒÓˆÛ˘ (æ‡Í˘ - £¤ÚÌ·ÓÛ˘)
ååÌÌÓÓ„„ÓÓÙÙÛÛÌÌÍ͈ˆËËÓÓÌ̇‡Îθ¸ÌÌ˚˚ÈÈ ÇÇÓÓÁÁ‰‰ÛÛ¯¯ÌÌ˚˚ÈÈ ääÓÓÌ̉‰ËˈˆËËÓÓÌÌÂÂ ëë‚‚ÓÓ··ÓÓ‰‰ÌÌÓÓ„„ÓÓ ëëÓÓ‰‰ËËÌÌÂÂÌÌËËflfl((ééııη‡Êʉ‰ÂÂÌÌËË ËË éé··ÓÓ„„‚‚))
ESPAÑOL
FRANÇAIS
ITALIANO
PORTUGUÊS
DEUTSCH
E S F I P D G R DB98-20239A(4)
RUSSIAN E§§HNIKA
MH026FKEA
MH035FKEA

E-2
Safety Precautions
The following safety precautions must be taken when using your air conditioner.
◆The unit should not be installed by the user. Ask the dealer or authorized
company to install the units except room air conditioners for the U.S.A and
Canada area.
◆If the unit is installed improperly, water leakage, electric shock or fire may
result.
◆The air conditioner must be installed in accordance with national wiring
regulations and safety regulations wherever applicable.
◆Mount with the lowest moving parts at least 2.5 m above the floor or grade
level. (If applicable)
◆The manufacturer does not assume responsibility for accidents or injury
caused by an incorrectly installed air conditioner. If you are unsure about
installation, contact an installation specialist.
◆When installing the built-in type air conditioner, keep all electrical cables
such as the power cable and the connection cord in pipe, ducts, cable
channels e.t.c to protect them against liquids, outside impacts and so on.
WARNING
INSTALLING THE UNIT
◆If the power cord of this air conditioner is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified persons in order to
avoid a hazard.
◆The unit must be plugged into an independent circuit if applicable or
connect the power cable to the auxiliary circuit breaker.An all pole
disconnection from the power supply must be incorporated in the fixed
wiring with a contact opening of >3mm.
◆Do not use an extension cord with this product.
◆If the unit is equipped with a power supply cord and a plug, the plug must
be accessible after installation.
◆This appliance must be installed accordance with the national wiring
regulations.
POWER SUPPLY LINE,
FUSE OR CIRCUIT
BREAKER
Risk of electric shock. • Can cause injury or death. • Disconnect all
remote electric power supplies before servicing, installing or cleaning.
• This must be done by the manufacturer or its service agent or a similar
qualified person in order to avoid a hazard.

E-3
ENGLISH
Contents
◆PREPARING THE INSTALLATION
■Deciding on Where to Install the Air Conditioner ......................................... 4
■Air Conditioner and Accessories .................................................................. 7
◆INSTALLING THE INDOOR UNIT
■Deciding on Where to Install the Indoor Unit ............................................... 8
■Indoor Unit Installation ................................................................................. 10
■Purging the Unit ........................................................................................... 11
■Connecting the Refrigerant Pipe .................................................................. 12
■Cutting/Flaring the Pipes .............................................................................. 13
■Performing Leak Test & Insulation ............................................................... 14
■Drainpipe and Drain Hose Installation ......................................................... 15
■Connecting the Connection Cord ................................................................. 17
■Wiring Wired Remote Controller (Optional) ................................................. 18
■Assigning Address to Indoor Unit ................................................................. 19
■Additional Functions ..................................................................................... 20
■Bio-pure Filter Installation(Optional) ............................................................ 21
◆COMPLETING THE INSTALLATION
■Troubleshooting ............................................................................................ 22

Deciding on Where to Install the Air Conditioner
When deciding on the location of the air conditioner with the owner, the following restrictions
must be taken into account.
General
Do NOT install the air conditioner in a location where it will come into contact with the following elements:
◆Combustible gases
◆Saline air
◆Machine oil
◆Sulphide gas
◆Special environmental conditions
If you must install the unit in such conditions, first consult your dealer.
Indoor Unit
◆There must be no obstacles near the air inlet and outlet.
◆Install the indoor unit on a surface that can support its weight.
◆Choose a position that enables the piping and cables to be easily connected to the outdoor unit and the
recommended length of 5 metres to be respected.
◆Leave enough clearance beneath the indoor unit to enable the filters to be removed without hindrance.
◆Maintain sufficient clearance around the indoor unit, as indicated in the diagram on the page opposite.
◆Make sure that the water dripping from the drain hose runs away correctly and safely.
◆You have just purchased a Free Joint Multi air conditioner and it has been installed by
your installation specialist.
◆This device must be installed according to the national electrical rules.
◆Max input power & current is measured according to IEC standard and input power &
current is measured according to ISO standard.
CC
CCAA AAUU UUTT TTII IIOO OONN NN
E-4
PREPARING THE INSTALLATION

ENGLISH
1, 220-240, 50
Indoor unit Outdoor unit Power supply
Ø, V, Hz
✴✴026/035✴✴ MH040FXEA2
MH052FXEA2 ✴✴026/035✴✴
Liquid
1/4”
Gas
3/8”
Unit Outside diameter
◗ Piping outside diameter

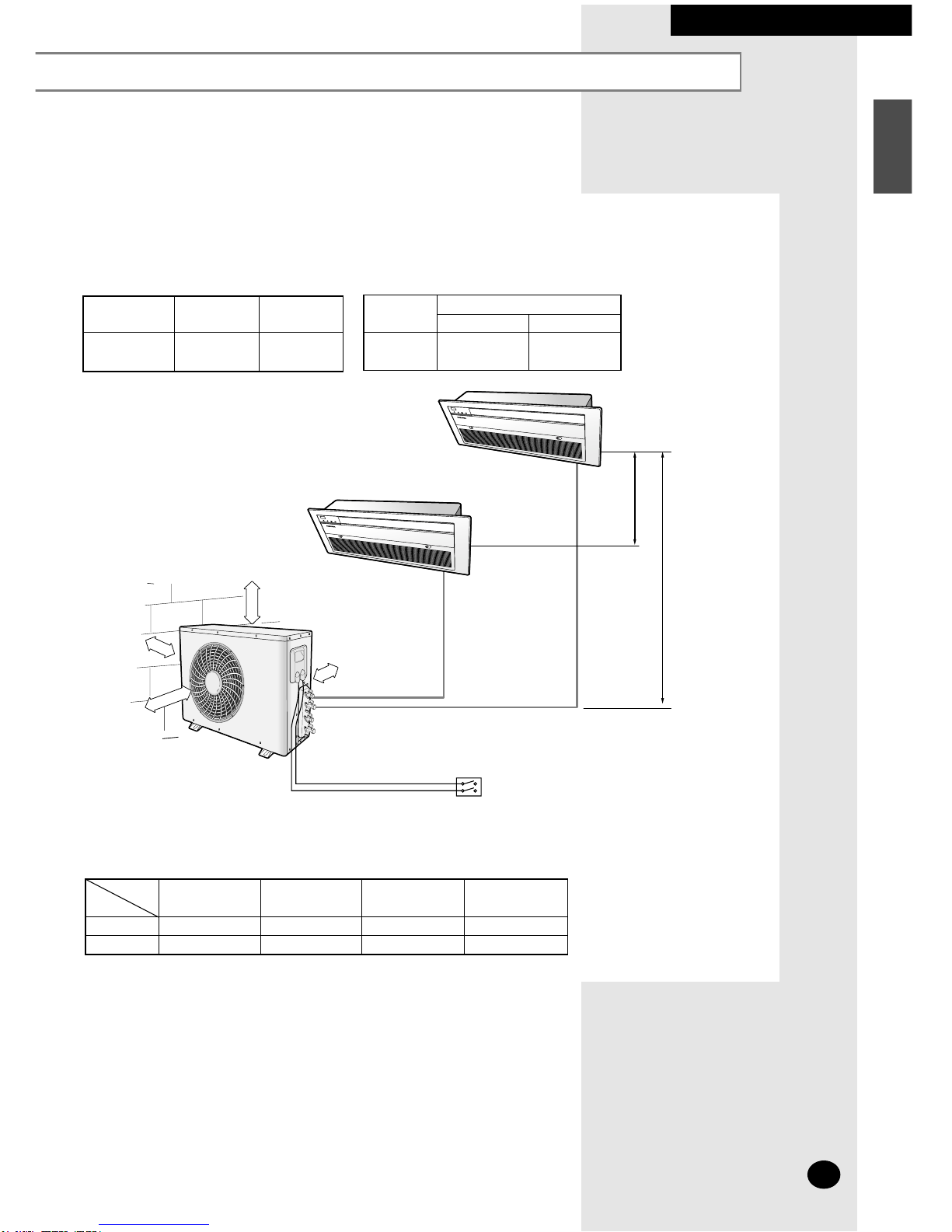

◗ Piping length and the height
Dimension
Composition
1 Room max
length
20 m
A, B
2 Room total max
length
40 m
A+B
Max height between
indoor unit & outdoor unit
15 m
(H)
Max height between
indoor units
3 m
(h)
300 mm
minimum
600 mm
minimum
600 mm
minimum
300 mm
minimum
Main power switch
(h) (H)
AB
❊ The split type, 1-way cassette, slim duct type indoor units can be installed together.
E-5
PREPARING THE INSTALLATION
◆ MH040FXEA2 / MH052FXEA2

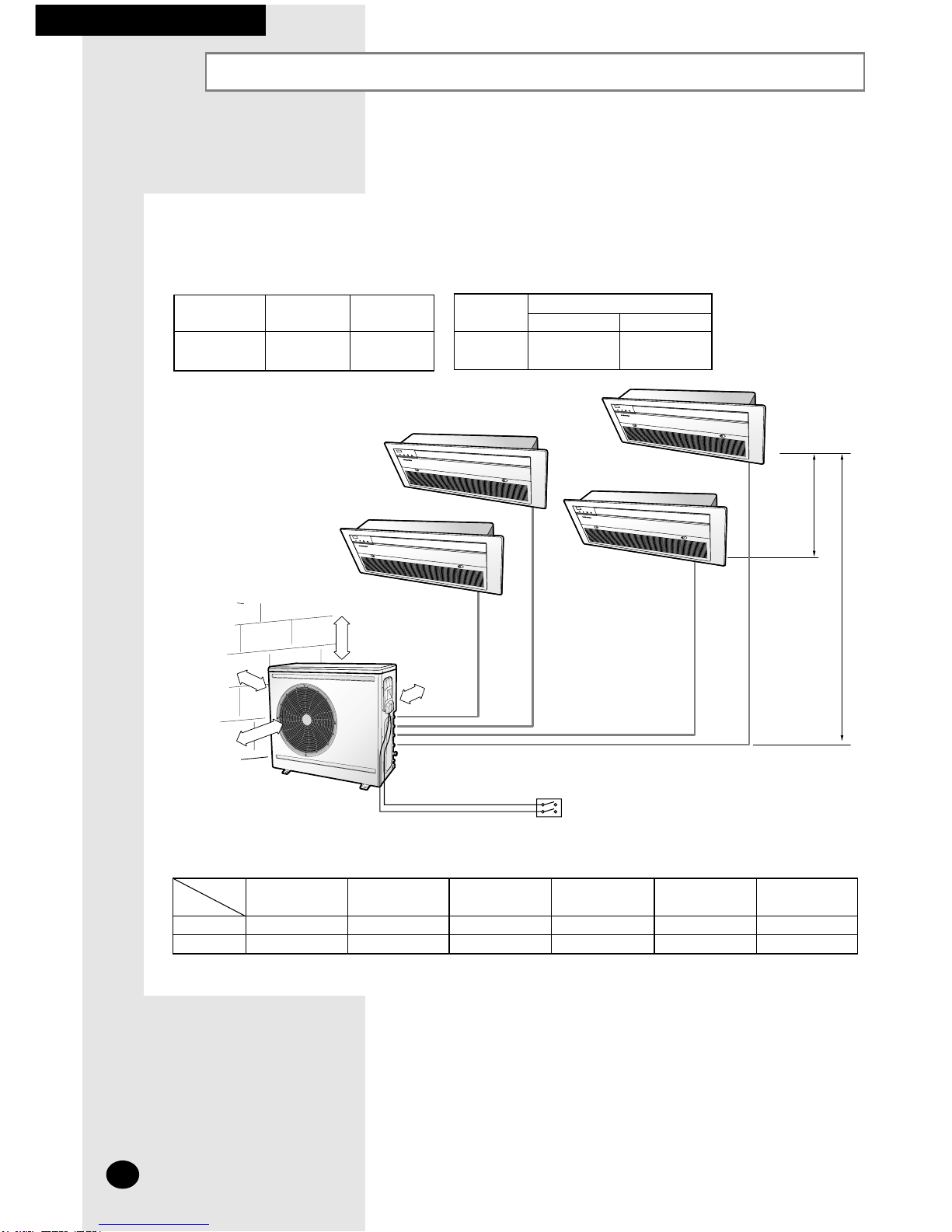

Deciding on Where to Install the Air Conditioner (Continued)
PREPARING THE INSTALLATION
E-6
1, 220-240, 50
Indoor unit Outdoor unit Power supply
Ø, V, Hz
✴✴026/035✴✴ MH068FXEA4
MH080FXEA4 ✴✴026/035✴✴
Liquid
1/4”
Gas
3/8”
Unit Outside diameter
◗ Piping outside diameter
◗ Piping length and the height
Dimension
Composition
1 Room max
length
25 m
A, B, C, D
2 Room total max
length
30 m
A+B
3 Room total max
length
45 m
A + B + C
4 Room total max
length
70 m
A + B + C + D
Max height between
indoor units
3 m
(h)
Max height between
indoor unit & outdoor unit
15 m
(H)
300 mm
minimum
600 mm
minimum
600 mm
minimum
300 mm
minimum
Main power switch
(h) (H)
AB CD
❊ The split type, 1-way cassette, duct type indoor units can be installed together.
◆ MH068FXEA4 / MH080FXEA4

PREPARING THE INSTALLATION
E-7
ENGLISH

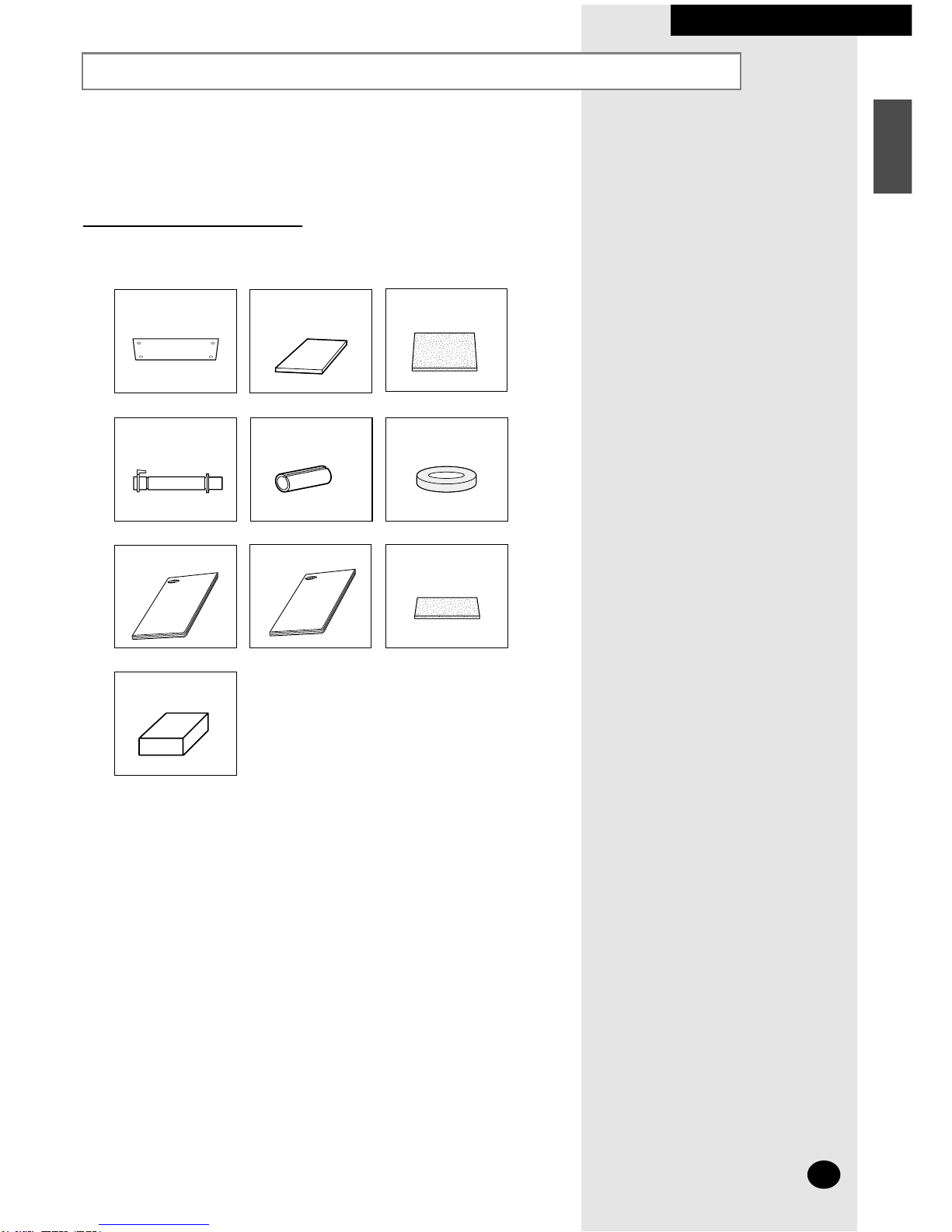

Air Conditioner and Accessories
Accessories in the Indoor Unit Case
Pattern sheet
Insulation drain
Insulation refrigerant
pipe
Rubber
Owner’s Instruction Insulation cover band
Installation Manual
Wireless remote
controller box
Insulation cover drain
Flexible hose
◆The following accessories are supplied with the indoor unit. The type and quantity
may differ depending on the specifications.

Deciding on Where to Install the Indoor Unit
Indoor Unit
◆There must be no obstacles near the air inlet and outlet.
◆Install the indoor unit on a ceiling that can support its weight.
◆Maintain sufficient clearance around the indoor unit.
◆Make sure that the water dripping from the drain hose runs away correctly
and safely.
◆The indoor unit must be installed in this way, that they are out of public
access. (Not touchable by the users)
E-8

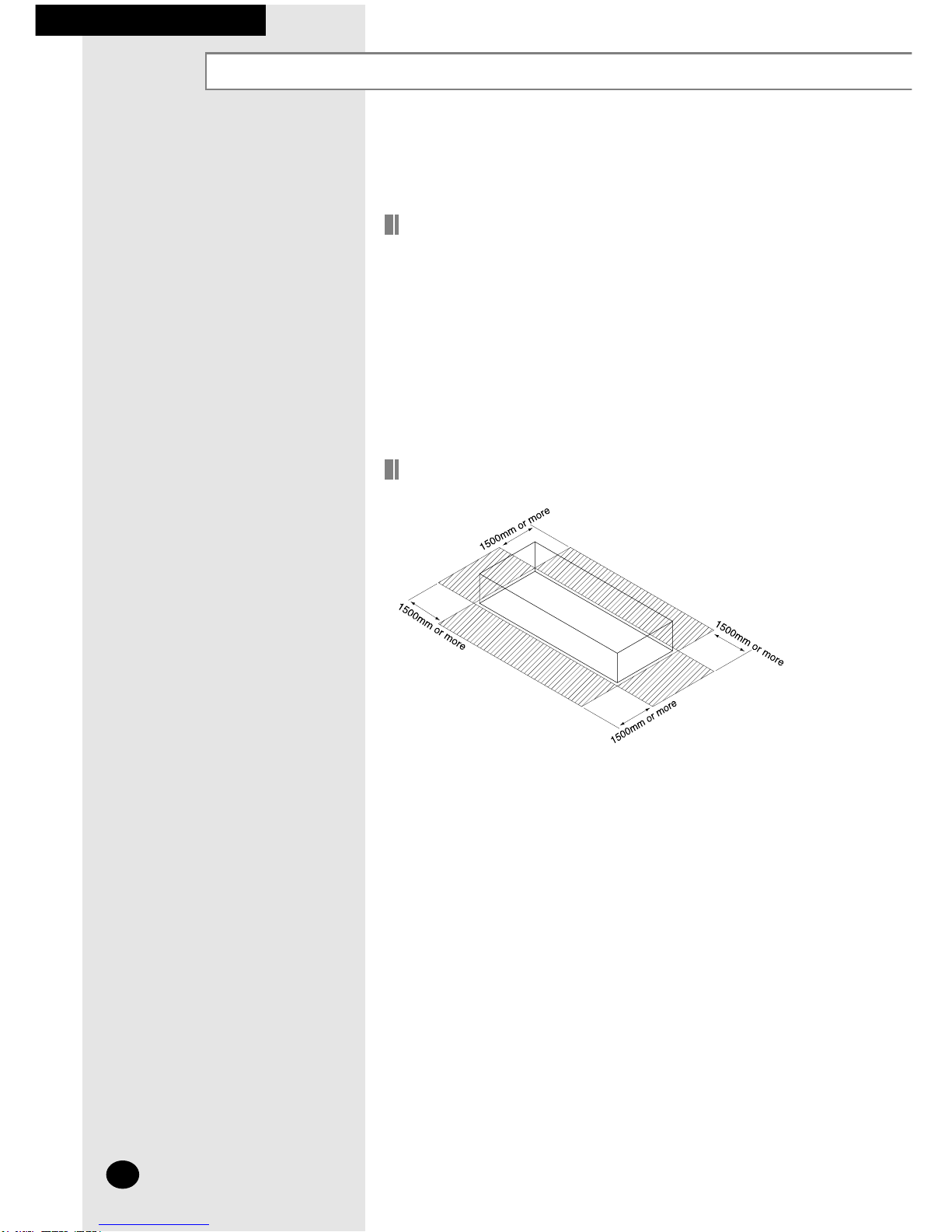

Space Requirements for Indoor Unit
INSTALLING THE INDOOR UNIT

E-9
ENGLISH
INSTALLING THE INDOOR UNIT
1
2
3
4
5
6
Liquid pipe connection
Gas pipe connection
Drain pipe connection
Power supply connection
Air discharge grille
Air suction grille
ø 6.35
ø 9.52
No. Name Remark
Drawing of the indoor unit
Unit : mm

1Place the pattern sheet on the ceiling at the spot where you want to
install the indoor unit.
2Insert bolt anchors, use existing ceiling supports or construct a suitable
support as shown in figure.
3Install the suspension bolts depending on the ceiling type.
4Screw eight nuts to the suspension bolts making space for hanging
the indoor unit.
5Check the level of the indoor unit by using a leveler or a vinyl tube filled
with water.
◆
A tilt of the indoor unit may cause malfunction of a built-in float switch and
water leaks.
6Adjust the height of the indoor unit by using the gauge of dimensions.
◆
The air inlet side should be slightly higher than the air outlet side
(approx. 5mm). The appropriate height from the ceiling surface is 25mm
for the air inlet and 20mm for the air outlet.
◆
You should adjust the gauge of dimensions and the pattern sheet to fit
the cutting dimensions of ceiling.
◆
Make sure that the indoor unit is installed at a level if the indoor unit
slants too much, there can be water leaks.
7Tighten the upper part nuts.
8Remove the gauge of dimensions after installing the indoor unit.
◆Ensure that the ceiling is strong enough to support
the weight of the indoor unit.
Before hanging the unit, test the strength of each
attached suspension bolt.
◆If the length of suspension bolt is more than 1.5m,
it is required to prevent vibration.
IMPORTANT
You must install the suspension bolts more than four
when installing the indoor unit.
IMPORTANT
◆Since the diagram is made of paper, it may shrink or stretch
slightly due to temperature or humidity. For this reason, before
drilling the holes maintain the correct dimensions between the
markings; refer to page 9.
NN
NNoo oott ttee ee
E-10
INSTALLING THE INDOOR UNIT
Indoor Unit Installation
It is recommended to install the refnet joint before installing the indoor unit.
Concrete
Suspension bolt(3/8" or M10)
Hole in anchor
Hole in plug
Insert
Ceiling support
Not supplied
Washer(supplied)
Rubber
Level
Vinyl tube
20mm 25mm
Gauge of Dimensions Ceiling
Air
inlet Air outlet
Fasten the nut

E-11
ENGLISH
INSTALLING THE INDOOR UNIT

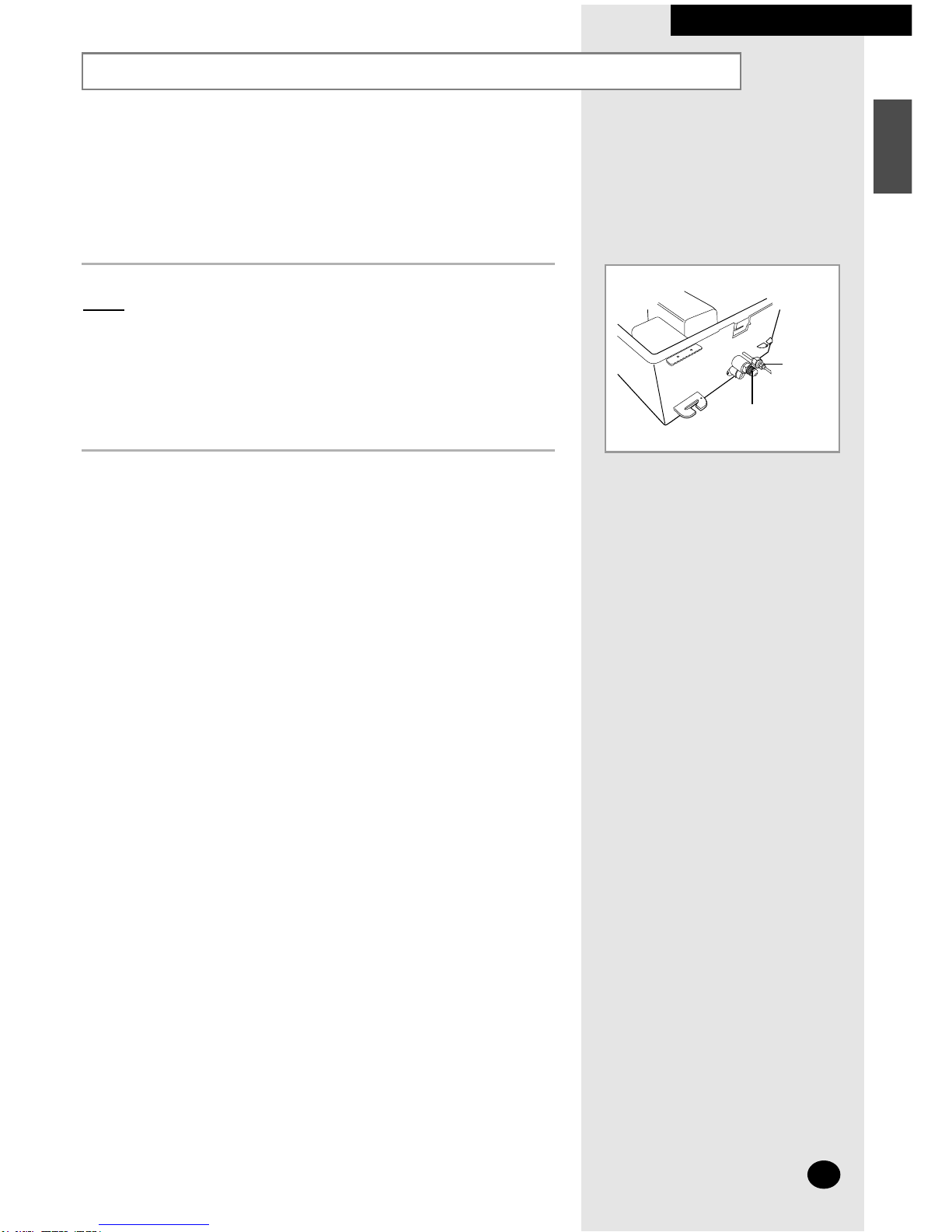

Purging the Unit
◆To prevent dirt or foreign objects from getting into the pipes
during installation, do NOT remove the pinch pipe completely
until you are ready to connect the piping.
NN
NNoo oott ttee ee
On delivery, the indoor unit is loaded with refrigerant gas.
All this gas must therefore be purged before connecting the assembly
piping. To purge the inert gas, proceed as follows.
Unscrew the pinch pipe at the end of each refrigerant pipe.
Result: All inert gas escapes from the indoor unit.
Liquid
refrigerant
port
Gas refrigerant port

There are two refrigerant pipes of differing diameters:
◆
A smaller one for the liquid refrigerant
◆
A larger one for the gas refrigerant
◆
The inside of copper pipe must be clean & has no dust.
Remove the pinch pipe on the pipes and connect the assembly pipes to
each pipe, tightening the nuts, first manually and then with a torque
wrench, a spanner applying the following torque.
1
Must use insulator which is thick enough to cover the refrigerant pipe to
protect the condensate water on the outside of pipe falling onto the floor
and the efficiency of the unit will be better.
2
Cut off any excess foam insulation.
3
Be sure that there must be no crack or wave on the bended area.
4
It would be necessary to double the insulation thickness(10mm or more)
to prevent condensation even on the insulator when if the installed area is
warm and humid.
5
◆
If the pipes must be shortened refer to page 13.
NN
NNoo oott ttee ee
Outer Diameter Torque (kgf•cm)
6.35 mm (1/4") 140~170
9.52 mm (3/8") 250~280
12.70 mm (1/2") 380~420
15.88 mm (5/8") 440~480
19.05 mm (3/4") 990~1210
22.23 mm (7/8") 990~1210
Insulation
refrigerant pipe Clamp
Refrigerant oil
Insulation
refrigerant pipe
Liquid refrigerant pipe
Gas
refrigerant
pipe
Torque wrench
Flare nut
Union
Spanner
E-12
INSTALLING THE INDOOR UNIT
Connecting the Refrigerant Pipe

E-13
ENGLISH
INSTALLING THE INDOOR UNIT
Cutting/Flaring the Pipes
Outer Diameter Torque (kgf•cm)
6.35 mm (1/4") 140~170
9.52 mm (3/8") 250~280
12.70 mm (1/2") 380~420
15.88 mm (5/8") 440~480
19.05 mm (3/4") 990~1210
22.23 mm (7/8") 990~1210
Make sure that you have the required tools available (pipe cutter, reamer,
flaring tool and pipe holder).
1
If you wish to shorten the pipes, cut it with a pipe cutter, taking care to
ensure that the cut edge remains at a 90°angle with the side of the pipe.
Refer to the illustrations below for examples of edges cut correctly and
incorrectly.
2
To prevent any gas from leaking out, remove all burrs at the cut edge of the
pipe, using a reamer.
3
Slide a flare nut on to the pipe and modify the flare.
4
Check that the flaring is correct, referring to the illustrations below for
examples of incorrect flaring.
5
Align the pipes and tighten the flare nuts first manually and then with
a torque wrench, applying the following torque.
6
Outer Diameter (D) Depth (A)
6.35 mm (1/4") 1.3mm
9.52 mm (3/8") 1.8mm
12.70 mm (1/2") 2.0mm
15.88 mm (5/8") 2.2mm
19.05 mm (3/4") 2.2mm
22.23 mm (7/8") 2.2mm
90O
Oblique Rough Burr
Inclined Damaged Surface Cracked Uneven Thickness
◆ CC
CCAA AAUU UUTT TTII IIOO OONN NN
In case of welding the pipe, you must weld with nitrogen
gas blowing.

To check for gas leaks on the indoor unit, check the connection part
of each refrigerant pipe by using a leak detector.
Once you have checked that there are no leaks in the system,
you can insulate the piping and hose.
To avoid condensation problems, place T13.0 or thicker Acrylonitrile
Butadien Rubber separately around each refrigerant pipe.
1
Wind insulating tape around the pipes.
2
Finish wrapping insulating tape around the rest of the pipes leading to the
outdoor unit.
3
◆
Always make the seam of pipes face upwards.
NN
NNoo oott ttee ee
Leak Test
Insulation
Insulation
Be sure to overlap
the insulation
Indoor Unit
CC
CCAA AAUU UUTT TTII IIOO OONN NN
Must fit tightly against
body without any gap.
No gap
NBR(T13.0 or thicker)
E-14
INSTALLING THE INDOOR UNIT
Performing Leak Test & Insulation

E-15
ENGLISH
INSTALLING THE INDOOR UNIT

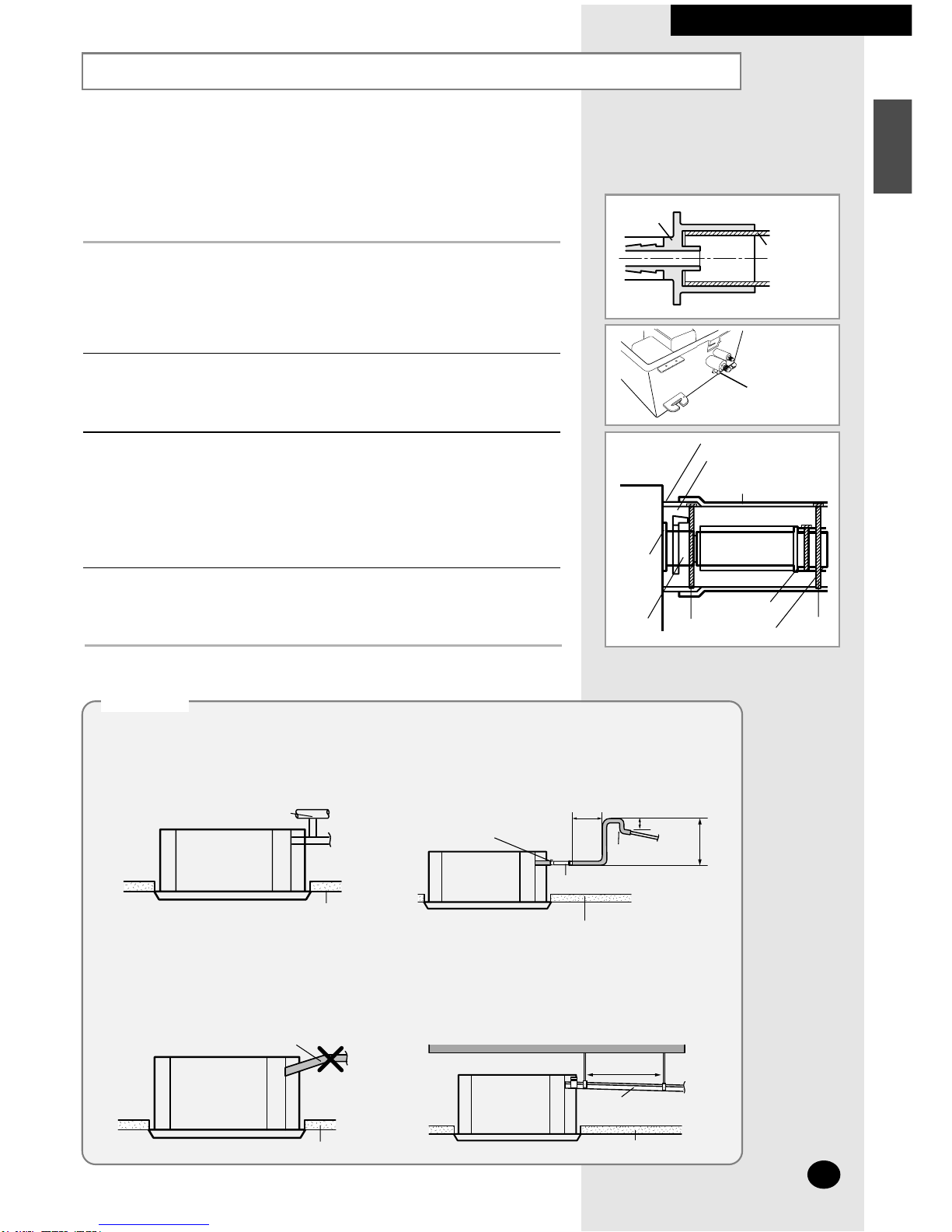

Drainpipe and Drain Hose Installation
CC
CCAA AAUU UUTT TTII IIOO OONN NN
Install air ventilation to drain condensate water
smoothly.
Check that the indoor unit is level with the ceiling by using the leveler.
Air ventilation
Ceiling
Do not give the hose and upward gradient
after the connection port.
This will cause water to flow backwards when
the unit is stopped, resulting in water leaks.
Do not apply force to the piping on the unit side when
connecting the drain hose. The hose should not be
allowed to hang loose from its connection to the unit.
Fasten the hose to a wall, frame or other support as
close to the unit as possible.
Upward gradient Support pieces
1~1.5m
1/100 or more
Ceiling Ceiling
1/100 or more
Flexible hose
Band joint
Ceiling
550mm or less
300mm or less
20mm or more
Insulation drainpipe
Band Band
Flexible
hose
Drain
hose
port
Drainpipe
Adhesives
Insulation cover band
Insulation cover drain
Band(Not supplied)
Indoor
Unit
Drainpipe
Flexible
hose
If it is necessary to increase the height of the drainpipe,
install the drainpipe straightly within 300 mm from the
flexible hose port. If it is raised higher than 550 mm,
there can be water leaks.
Drain hose port
Care must be taken when installing the drainpipe and drain hose for
the indoor unit so that condensate water is drained correctly outside.
Fix the flexible hose to the drainpipe.
◆The connection port of the flexible hose and PVC drainpipe must be
fixed with PVC adhesives.
◆Check out that the connected part doesn’t leak.
1
Connect the flexible hose to the flexible hose port.
◆Make sure that a rubber ring is installed on the drain hose port.
2
Install the drainpipe as shortly as possible.
◆Give a slightly slant to the drainpipe for proper drainage of condensate
water.
◆There must be no gap on the connected part so that the drainpipe is
not separated from the flexible hose.
3
Insulate the drainpipe, and then fix it as indicated.
4

Drainpipe and Drain Hose Installation (Continued)
◆If it is raised higher than 55cm, there can be water leaks.
NN
NNoo oott ttee ee
If it is necessary to increase the height of the drain hose somewhat,
install a lift-up drain piping.
Connect a lift-up drain pipe top to the drain hose with an adhesive for
PVC.
1
Wrap the insulation drain with a vinyl tape.
2
Connect the lift-up drain pipe to the indoor unit drain hose with an
adhesive for PVC.
3
Turn the lift-up drain piping, then adjust the height.
4
Lift-up Drain piping
You should test drainage after completing the installation.
Prepare a little water about 1.0 liter.
Open the cover water supply intake.
1
Pour water into the water supply intake.
2
Testing the Drainage
◆ CC
CCAA AAUU UUTT TTII IIOO OONN NN
When maintaining the air conditioner, remove condensate
water remained in the drain pan by using a drain port for
maintenance.
◆If a concentrated drain hose is installed, refer to the figure below.
NN
NNoo oott ttee ee
Drain clamp
Air ventilation
Concentrated drain hose
1/100 or
more slope
100mm or
more
Leveler
Air outlet
E-16
INSTALLING THE INDOOR UNIT

E-17
ENGLISH
INSTALLING THE INDOOR UNIT
Connecting the Connection Cord
Wiring Diagram
The indoor unit is powered from the outdoor unit via the connection cord.
Remove the screw on the electrical component box and remove the cover
plate.
1
Route the connection cord through the side of the indoor unit and connect
the cable to terminals; refer to the figure below.
2
Route the other end of the cable to the outdoor unit through the ceiling &
the hole on the wall.
3
Reassemble the electrical component box cover, carefully tightening the
screw.
4
Indoor Unit
Outdoor Unit
CommunicationPower

E-18
INSTALLING THE INDOOR UNIT
F1 F2 V1 V21(L)2(L)
F 1 (F 3 )F 2 (F 4 ) V 1 V 2
Indoor Unit
Terminal Block
Wired Remote
Controller (Optional)
Change DIP switch
in the indoor unit PCB
Accessory in the remote controller
➢Dashed lines(cables) are not supplied as accessories.
K1 K2 K3 K4
Indoor Unit PCB
Connect the power cable, which is connected with the outdoor unit and supplied by another source,
making sure that the power cable terminal should not be changed.
The F3 and F4 communication cable may be cross-connected, however, it is recommended that they are
connected to the corresponding F3 and F4 terminal.
K1 : ON OFF
Wiring Wired Remote Controller (Optional)
CN32 BLU
CN43 WHT

E-19
ENGLISH
INSTALLING THE INDOOR UNIT

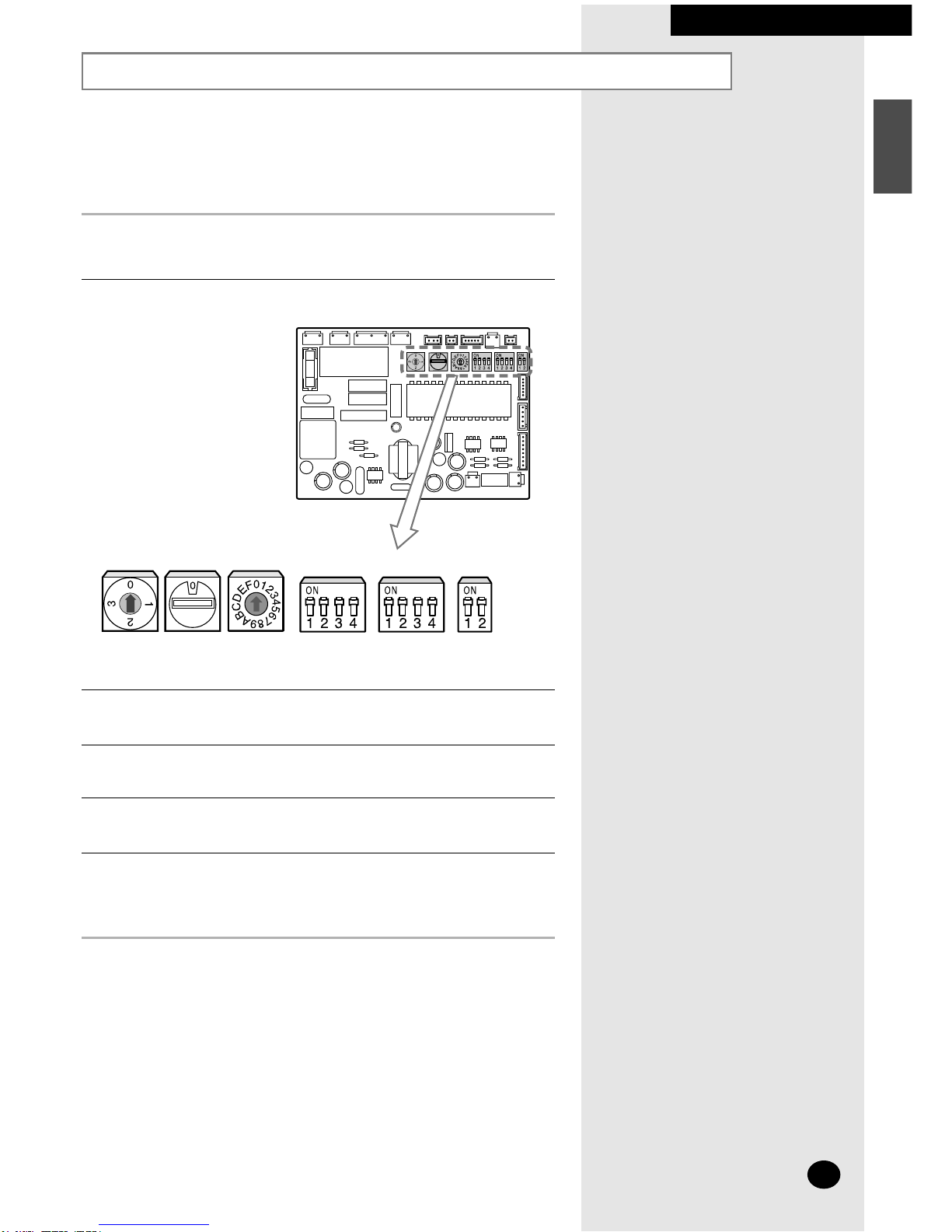

Assigning Address to Indoor Unit
Before installing the indoor unit, assign an address to the indoor unit
according to the air conditioning system plan.
1
The address of the indoor unit is assigned by adjusting MAIN(SW02).
2
The MAIN address is for communication between the indoor unit and the outdoor
unit. Therefore, you must set it to operate the air conditioner properly.
3
It is required to set the RMC address if you install the wired remote controller
and/or the centralized controller.
4
If you install optional accessories such as the wired remote controller, centralized
controller, etc. see an appropriate installation manual.
5
If an optional accessory is not installed, you do not have to set the RMC
address. However, adjust K1 and K2 switches of the SW04 DIP switch to
"ON" position in this case.
6
K1 K2 K3 K4 K5 K6 K7 K8 K9
K10
SW01 MAIN SW02 MAIN SW03 RMC
SW04 SW05 SW06

E-20
INSTALLING THE INDOOR UNIT
Compensation for lost temperature in heating operation
◆Reduces the difference between an actual room temperature and a sensed
temperature by the air conditioner when heating.
Adjusting filter cleaning cycle
◆You can adjust the cycle for filter sign indicator.
K5 K6 K7 K8
SW05
K5 K6 K7 K8
SW05
K5 2°C compensation 5°C compensation
Switch No. Switch ON Switch OFF
K6 1000 hours 2000 hours
Switch No. Switch ON Switch OFF
Additional Functions
