Samsung M207x Series User manual

BASIC
User’s Guide
BASIC
User’s Guide
This guide provides information concerning the installation, basic operation
and troubleshooting on windows.
ADVANCED
This guide provides information about the installation, advanced configuration, operation
and troubleshooting on various OS environments.
Some features may not be available depending on models or countries.
Downloaded from www.vandenborre.be

1. Introduction
This chapter provides information you need to know before using the machine.
•Keybenefits 2
• Features by models 4
• Useful to know 9
• About this user’s guide 10
• Safety information 11
• Machine overview 16
• Control panel overview 20
• Turning on the machine 24
• Installing the driver locally 25
• Reinstalling the driver 26
Downloaded from www.vandenborre.be

Key benefits
Environmentally friendly
• To save toner and paper, this machine supports Eco feature (see "Eco
printing" on page 52).
• To save paper, you can print multiple pages on one single sheet of paper
(see "Using advanced print features" on page 212).
• To save paper, you can print on both sides of the paper (double-sided
printing) (Manual) (see "Using advanced print features" on page 212).
• To save electricity, this machine automatically conserves electricity by
substantially reducing power consumption when not in use.
• We recommend using recycled paper for saving energy.
Fast high resolution printing
• You can print with a resolution of up to 1,200 x 1,200 dpi effective output.
• Fast, on-demand printing.
- M207x series
▪For single-side printing, 20 ppm (A4) or 21 ppm (Letter).
- M2074 series
▪For single-side printing, 18 ppm (A4) or 19 ppm (Letter).
Convenience
• Easy Capture Manager allows you to easily edit and print whatever you
captured using the Print Screen key on the keyboard (see "Easy Capture
Manager" on page 243).
• Samsung Easy Document Creator is an application to help users scan,
compile, and save documents in multiple formats, including .epub format.
These documents can be shared via social networking sites or fax (see"Using
Samsung Easy Document Creator" on page 249)
Downloaded from www.vandenborre.be

Key benefits
• AnyWeb Print helps you screen-capture, preview, scrap, and print the
screen of Windows Internet Explorer more easily, than when you use the
ordinary program (see "Samsung AnyWeb Print" on page 244).
• Smart Update allows you to check for the latest software and install the
latest version during the printer driver installation process. This is available
only for Windows.
• If you have Internet access, you can get help, support application, machine
drivers, manuals, and order information from the Samsung website,
www.samsung.com > find your product > Support or Downloads.
Wide range of functionality and application support
• Supports various paper sizes (see "Print media specifications" on page 104).
• Print watermark: You can customize your documents with words, such as
“Confidential” (see "Using advanced print features" on page 212).
• Print posters: The text and pictures of each page of your document are
magnified and printed across the multiple sheets of paper and can then be
taped together to form a poster (see "Using advanced print features" on
page 212).
• You can print in various operating systems (see "System requirements" on
page 107).
• Your machine is equipped with a USB interface and/or a network interface.
AirPrint
• AirPrint allows you to wirelessly print directly from iPhone, iPad and iPod
touch running iOS 4.2 or later.
Supports various wireless network setting method
• Using the WPS (Wi-Fi Protected Setup™) button
- You can easily connect to a wireless network using the WPS button on the
machine and the access point (a wireless router).
• Using the USB cable or a network cable
- You can connect and set various wireless network settings using a USB
cable or a network cable.
• Using the Wi-Fi Direct
- You can conveniently print from your mobile device using the Wi-Fi or Wi-
Fi Direct feature.
See "Introducing wireless set up methods" on page 145.
Downloaded from www.vandenborre.be

Features by models
Some features and optional goods may not be available depending on model or country.
Operating System
(●: Included, Blank: Not available)
Software
Operating System M207x series
M207xW series
M207xF series
M207xFW series
M207xFH series
M207xHW series
Windows ● ●
Mac ● ●
Linux ● ●
Software M207x series
M207xW series
M207xF series
M207xFW series
M207xFH series
M207xHW series
SPL printer driver ● ●
PCL printer driver
PS printer driver
Downloaded from www.vandenborre.be

Features by models
(●: Included, Blank: Not available)
XPS printer drivera● ●
Direct Printing Utility
Samsung Easy Printer Manager Scan to PC settings ● ●
Fax to PC settings ●
Device Settings ● ●
Samsung Easy Document Creator ● ●
Samsung Printer Status ● ●
AnyWeb Print ● ●
SyncThru™ Web Service ●
(M207xW series only)
●
(M207xFW series only)
SyncThru Admin Web Service ●
(M207xW series only)
●
(M207xFW series only)
Easy Eco Driver ● ●
Fax Samsung Network PC Fax ●
a. For XPS driver, it is only supported for Windows through the Samsung website (www.samsung.com)
Software M207x series
M207xW series
M207xF series
M207xFW series
M207xFH series
M207xHW series
Downloaded from www.vandenborre.be

Features by models
Variety feature
Features M207x series
M207xW series
M207xF series
M207xFW series
M207xFH series
M207xHW series
Hi-Speed USB 2.0 ● ●
Network Interface Ethernet 10/100 Base TX wired LAN ●
(M207xFW series /M207xHW series only)
Network Interface 802.11b/g/n wireless LANa●
(M207xW series only)
●
(M207xFW series /M207xHW series only)
NFC printing/scanning ●
(M207xW series only)
●
(M207xFW series /M207xHW series only)
Eco printing (Control panel) ● ●
Duplex (2-sided) printing (Manual)b● ●
USB memory interface
Memory module
Mass Storage Device (HDD)
Duplex Automatic Document Feeder (DADF)
Automatic Document Feeder (ADF) ●
Downloaded from www.vandenborre.be

Features by models
Fax Multi-send ●
Delay send ●
Priority send ●
Duplex send
Secure receive ●
Duplex print
Send/ Receive forward - fax ●
Send/ Receive forward - email
Send/ Receive forward - server
Scan Scanning to email
Scanning to SMB server
Scanning to FTP server
Duplex scan
Scan to PC ● ●
Scan to WSD ●
(M207xW series only)
●
(M207xFW series only)
Features M207x series
M207xW series
M207xF series
M207xFW series
M207xFH series
M207xHW series
Downloaded from www.vandenborre.be

Features by models
(●: Included, Blank: Not available)
Copy ID card copying ● ●
Reduced or enlarged copying ● ●
Collation ● ●
Poster
Clone
Book
2-up/4-up ● ●
Adjust background ● ●
Margin shift
Edge erase
Gray enhance
Duplex copy
a. Depending on your country, wireless LAN card may not be available. For some counties, only 802.11 b/g can be applied. Contact your local Samsung dealer or the retailer where you
bought your machine.
b. Windows only.
Features M207x series
M207xW series
M207xF series
M207xFW series
M207xFH series
M207xHW series
Downloaded from www.vandenborre.be

Useful to know
The machine does not print.
•Open the print queue list and remove the document from the list
(see "Canceling a print job" on page 49).
•Remove the driver and install it again (see "Installing the driver
locally" on page 25).
•Select your machine as your default machine in your Windows
(see "Setting your machine as a default machine" on page 211).
Where can I purchase accessories or supplies?
•Inquire at a Samsung distributor or your retailer.
•Visit www.samsung.com/supplies. Select your country/region to
view product service information.
The status LED flashes or remains constantly on.
•Turn the product off and on again.
•Check the meanings of LED indications in this manual and
troubleshoot accordingly (see "Understanding the status LED"
on page 93).
A paper jam has occurred.
•Open and close the scan unit (see "Front view" on page 16).
•Check the instructions on removing jammed paper in this manual
and troubleshoot accordingly (see "Clearing paper jams" on
page 89).
Printouts are blurry.
•The toner level might be low or uneven. Shake the toner
cartridge (see "Redistributing toner" on page 69).
•Try a different print resolution setting (see "Opening printing
preferences" on page 50).
•Replace the toner cartridge (see "Toner cartridge" on page 71).
Where can I download the machine’s driver?
•You can get help, support application, machine drivers, manuals,
and order information from the Samsung website,
www.samsung.com > find your product > Support or
Downloads.
Downloaded from www.vandenborre.be

11
1. Introduction
About this user’s guide
This user's guide provides information for your basic understanding of the
machine as well as detailed steps to explain machine usage.
• Read the safety information before using the machine.
• If you have a problem using the machine, refer to the troubleshooting
chapter.
• Terms used in this user’s guide are explained in the glossary chapter.
• All illustrations in this user’s guide may differ from your machine depending
on its options or model you purchased.
• The screenshots in this administrator’s guide may differ from your machine
depending on the machine’s firmware/driver version.
• The procedures in this user’s guide are mainly based on Windows 7.
1
Conventions
Some terms in this guide are used interchangeably, as below:
• Document is synonymous with original.
• Paper is synonymous with media, or print media.
• Machine refers to printer or MFP.
2
General icons
Icon Text Description
Caution Gives users information to protect the machine from
possible mechanical damage or malfunction.
Note Provides additional information or detailed
specification of the machine function and feature.
Downloaded from www.vandenborre.be

12
1. Introduction

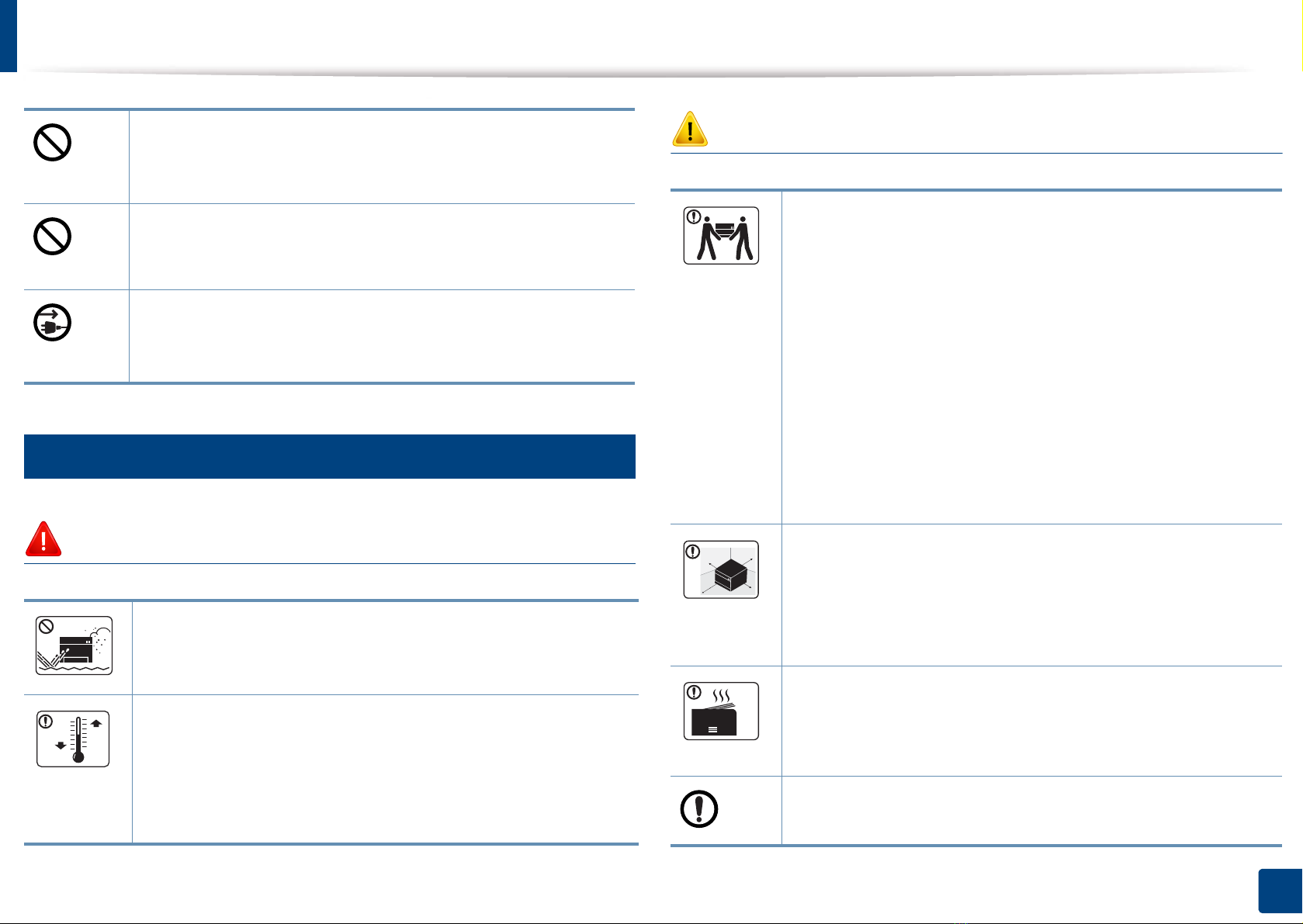

Safety information
These warnings and precautions are included to prevent injury to you and
others, and to prevent any potential damage to your machine. Be sure to read
and understand all of these instructions before using the machine. After reading
this section, keep it in a safe place for future reference.
3
Important safety symbols
Explanation of all icons and signs used in this chapter
4
Operating environment
Warning
Warning Hazards or unsafe practices that may result in severe
personal injury or death.
Caution Hazards or unsafe practices that may result in minor
personal injury or property damage.
Do not attempt.
Do not use if the power cord is damaged or if the electrical outlet is
not grounded.
This could result in electric shock or fire.
Do not place anything on top of the machine (water, small metal or
heavy objects, candles, lit cigarettes, etc.).
This could result in electric shock or fire.
• If the machine gets overheated, it releases smoke, makes
strange noises, or generates an odd odor, immediately turn off
the power switch and unplug the machine.
• The user should be able to access the power outlet in case of
emergencies that might require the user to pull the plug out.
This could result in electric shock or fire.
Do not bend, or place heavy objects on the power cord.
Stepping on or allowing the power cord to be crushed by a heavy
object could result in electric shock or fire.
Do not remove the plug by pulling on the cord; do not handle the
plug with wet hands.
This could result in electric shock or fire.
Downloaded from www.vandenborre.be

Safety information
13
1. Introduction
Caution
5
Operating method
Caution
During an electrical storm or for a period of non-operation,
remove the power plug from the electrical outlet.
This could result in electric shock or fire.
Be careful, the paper output area is hot.
Burns could occur.
If the machine has been dropped, or if the cabinet appears
damaged, unplug the machine from all interface connections and
request assistance from qualified service personnel.
Otherwise, this could result in electric shock or fire.
If the machine does not operate properly after these instructions
have been followed, unplug the machine from all interface
connections and request assistance from qualified service
personnel.
Otherwise, this could result in electric shock or fire.
If the plug does not easily enter the electrical outlet, do not
attempt to force it in.
Call an electrician to change the electrical outlet, or this could
result in electric shock.
Do not allow pets to chew on the AC power, telephone or PC
interface cords.
This could result in electric shock or fire and/or injury to your pet.
Do not forcefully pull the paper out during printing.
It can cause damage to the machine.
Be careful not to put your hand between the machine and paper
tray.
You may get injured.
Be care when replacing paper or removing jammed paper.
New paper has sharp edges and can cause painful cuts.
When printing large quantities, the bottom part of the paper
output area may get hot. Do not allow children to touch.
Burns can occur.
When removing jammed paper, do not use tweezers or sharp metal
objects.
It can damage the machine.
Do not allow too many papers to stack up in the paper output tray.
It can damage the machine.
Downloaded from www.vandenborre.be

Safety information
14
1. Introduction
6
Installation / Moving
Warning
Caution
Do not block or push objects into the ventilation opening.
This could result in elevated component temperatures which can
cause damage or fire.
Use of controls or adjustments or performance of procedures other
than those specified herein may result in hazardous radiation
exposure.
This machine's power reception device is the power cord.
To switch off the power supply, remove the power cord from the
electrical outlet.
Do not place the machine in an area with dust, humidity, or water
leaks.
This could result in electric shock or fire.
Place the machine in the environment where it meets the
operating temperature and humidity specification.
Otherwise, quality problems can occur and cause damage to the
machine.
see "General specifications" on page 102.
Before moving the machine, turn the power off and disconnect all
cords. The information below are only suggestions based on the
units weight.If you have a medical condition that prevents you
from lifting, do not lift the machine. Ask for help, and always use
the appropriate amount of people to lift the device safety.
Then lift the machine:
• If the machine weighs under 20 kg (44.09 lbs), lift with 1 person.
• If the machine weighs 20 kg (44.09 lbs) - 40kg (88.18 lbs), lift
with 2 people.
• If the machine weighs more than 40 kg (88.18 lbs), lift with 4 or
more people.
The machine could fall, causing injury or machine damage.
Choose a flat surface with enough space for ventilation to place
the machine. Also consider the space required to open the cover
and trays.
The place should be well-ventilated and be far from direct light,
heat, and humidity.
When using the machine for a long period of time or printing a
large number of pages in a non-ventilated space, it could pollute
the air and be harmful to your health. Place the machine in a well-
ventilated space or open a window to circulate the air periodically.
Do not place the machine on an unstable surface.
The machine could fall, causing injury or machine damage.
Downloaded from www.vandenborre.be

Safety information
15
1. Introduction
7
Maintenance / Checking
Caution
Use only No.26 AWGaor larger, telephone line cord, if necessary.
Otherwise, it can cause damage to the machine.
Make sure you plug the power cord into a grounded electrical
outlet.
Otherwise, this could result in electric shock or fire.
Use the power cord supplied with your machine for safe
operation. If you are using a cord which is longer than 2 meters (6
feet) with a 110V machine, then the gauge should be 16 AWG or
larger.
Otherwise, it can cause damage to the machine, and could result
in electric shock or fire.
Do not put a cover over the machine or place it in an airtight
location, such as a closet.
If the machine is not well-ventilated, this could result in fire.
Do not overload wall outlets and extension cords.
This can diminish performance, and could result in electric shock
or fire.
The machine should be connected tothe power level which is
specified on the label.
If you are unsure and want to check the power level you are using,
contact the electrical utility company.
a. AWG: American Wire Gauge
Unplug this product from the wall outlet before cleaning the
inside of the machine. Do not clean the machine with benzene,
paint thinner or alcohol; do not spray water directly into the
machine.
This could result in electric shock or fire.
When you are working inside the machine replacing supplies or
cleaning the inside, do not operate the machine.
You could get injured.
Keep cleaning supplies away from children.
Children could get hurt.
Do not disassemble, repair or rebuild the machine by yourself.
It can damage the machine. Call a certified technician when the
machine needs repairing.
To clean and operate the machine, strictly follow the user's guide
provided with the machine.
Otherwise, you could damage the machine.
Downloaded from www.vandenborre.be

Safety information
16
1. Introduction
8
Supply usage
Caution
Keep the power cable and the contact surface of the plug clean
from dust or water.
Otherwise, this could result in electric shock or fire.
• Do not remove any covers or guards that are fastened with
screws.
• Fuser units should only be repaired by a certified service
technician. Repair by non-certified technicians could result in
fire or electric shock.
• The machine should only be repaired by a Samsung service
technician.
Do not disassemble the toner cartridge.
Toner dust can be dangerous if inhaled or ingested.
Do not burn any of the supplies such as toner cartridge or fuser
unit.
This could cause an explosion or uncontrollable fire.
When storing supplies such as toner cartridges, keep them away
from children.
Toner dust can be dangerous if inhaled or ingested.
Using recycled supplies, such as toner, can cause damage to the
machine.
In case of damage due to the use of recycled supplies, a service
fee will be charged.
For supplies that contain toner dust (toner cartridge, waste toner
bottle, imaging unit, etc.) follow the instructions below.
• When disposing of the supplies, follow the instructions for
disposal. Refer to the reseller for disposal instructions.
• Do not wash the supplies.
• For a waste toner bottle, do not reuse it after emptying the
bottle.
If you do not follow the instructions above, it may cause machine
malfunction and environmental pollution. The warranty does not
cover damages caused by a user's carelessness.
When toner gets on your clothing, do not use hot water to wash
it.
Hot water sets toner into fabric. Use cold water.
When changing the toner cartridge or removing jammed paper,
be careful not to let toner dust touch your body or clothes.
Toner dust can be dangerous if inhaled or ingested.
Downloaded from www.vandenborre.be

17
1. Introduction
Machine overview
9
Accessories
10
Front view
• This illustration may differ from your machine depending on your model. There are various types of machine.
• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 4).
Power cord Quick installation guide
Software CDa
a. The software CD contains the printer drivers and software applications.
Misc. accessoriesb
b. Miscellaneous accessories included with your machine may vary by country of purchase and specific model.
Downloaded from www.vandenborre.be

Machine overview
18
1. Introduction
Type A
1 Scanner lid 7 Output tray
2 Control panel 8 Scanner glass
3Handle 9Scan unitab
a. Close the scanner lid before opening the scan unit.
b. Be careful not to pinch your fingers.
4 Tray 10 Inner cover
5 Tray handle 11 Toner cartridge
6 Output support
9 10
11
7
6
2
5
4 3
1
8
12
Downloaded from www.vandenborre.be

Machine overview
19
1. Introduction
Type B
15
12
14
16
10
9
5
4
8
7 6
21
13
3
11
1 Document feeder cover 9 Output support
2 Document feeder guide
cover
10 Output tray
3 Document feeder output tray 11 Scanner lid
4 Document feeder output
support
12 Scanner glass
5Control panel 13 Scan unitab
a. Close the scanner lid before opening the scan unit.
b. Be careful not to pinch your fingers.
6 Handle 14 Inner cover
7 Tray 15 Toner cartridge
8 Tray handle
Downloaded from www.vandenborre.be

Machine overview
20
1. Introduction
11
Rear view
• This illustration may differ from your machine depending on your model.
There are various types of machine.
• Some features and optional goods may not be available depending on
model or country (see "Features by models" on page 4).
Type A
Type B
1USBport 2Powerreceptacle
1
2
1USBport
2Network porta
a. M207xFW series only.
3 Extension telephone socket (EXT.)
4 Telephone line socket (LINE)
5Powerreceptacle
1
3
2
5
4
Downloaded from www.vandenborre.be
