SERVICE MANUAL
SAMSUNG SV-631
MODEL

Samsung Electronics 2-1
2. Alignment and Adjustment
2-1 Reference
1) X-Point (Tracking center) adjustment, “Head switching adjustment” and “NVRAM option setting” can be adjusted with remote control.
2) When replacing the Micom (IC601) and NVRAM (IC605 ; EEPROM) be sure to adjust the “Head switching adjustment” and
“NVRAM option setting”.
3) When replacing the cylinder ass’y, be sure to adjust the “X-Point” and “Head switching adjustment”.
4) Among Samsung VCR remote control used for adjustment as a accessory, only the remote control that has figures buttons (0 ~ 9) is
available for all adjustment regardless of chassis.
5) How to adjustment.
- Press the “SW718 (TEST)” button on Main PCB to set the adjustment mode.
- If the corresponding adjustment button is pressed, the adjustment is performed automatically.
- If the adjustment is completed, be sure to turn the power off.

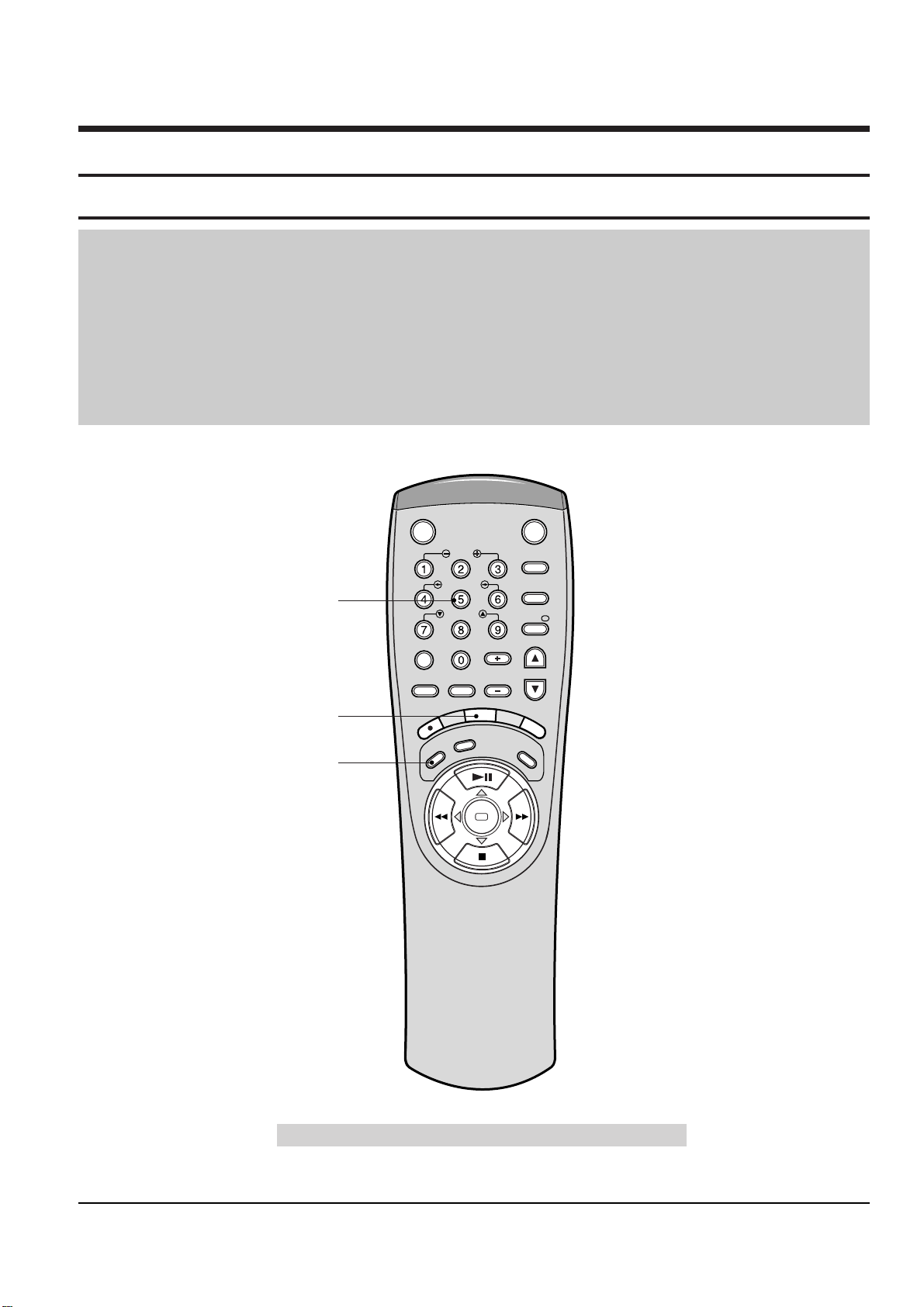

2-1-1 Location of adjustment button of remote control
Fig. 2-1
<This type of remote control can adjust.>
Remote Control for adjustment is not supplied as a Service Jig.
VCRSTANDBY/ON TVSTANDBY/ON
TV
SLOW
VCR
DISP./
SHUTTLE
V-LOCK
CLR/RST F.ADV
-/--
INPUT INDEX VOL PROG/TRK
R
E
C
M
E
N
U
A
U
D
I
O
S
P
E
E
D
D
U
B
REPEAT
OK
SAT
X-Point (Tracking Center) Adjustment
("5" Button)
Head Switching Adjustment
("SPEED" Button)
NVRAM Option Setting
("MENU" Button)

2-2 Samsung Electronics
Alignment and Adjustment
2-1-2 SW718 (TEST) location for adjustment mode setting
Fig. 2-2 Main PCB (Top View)
PRESS

Alignment and Adjustment
Samsung Electronics 2-3
2-2 Mechanical Adjustment
Note : Refer to the Mechanical Manual ÒDX-9R (AC68-00001A)Ó for the adjustment and confirmation of
assÕy full deck.
2-2-1 The number and position of test point
Test point : TP601 (H’D S/W -Trigger) TP301 (Video output)
TP602 (Control Pulse) TP302 (Audio output)
TP303 (Envelope)

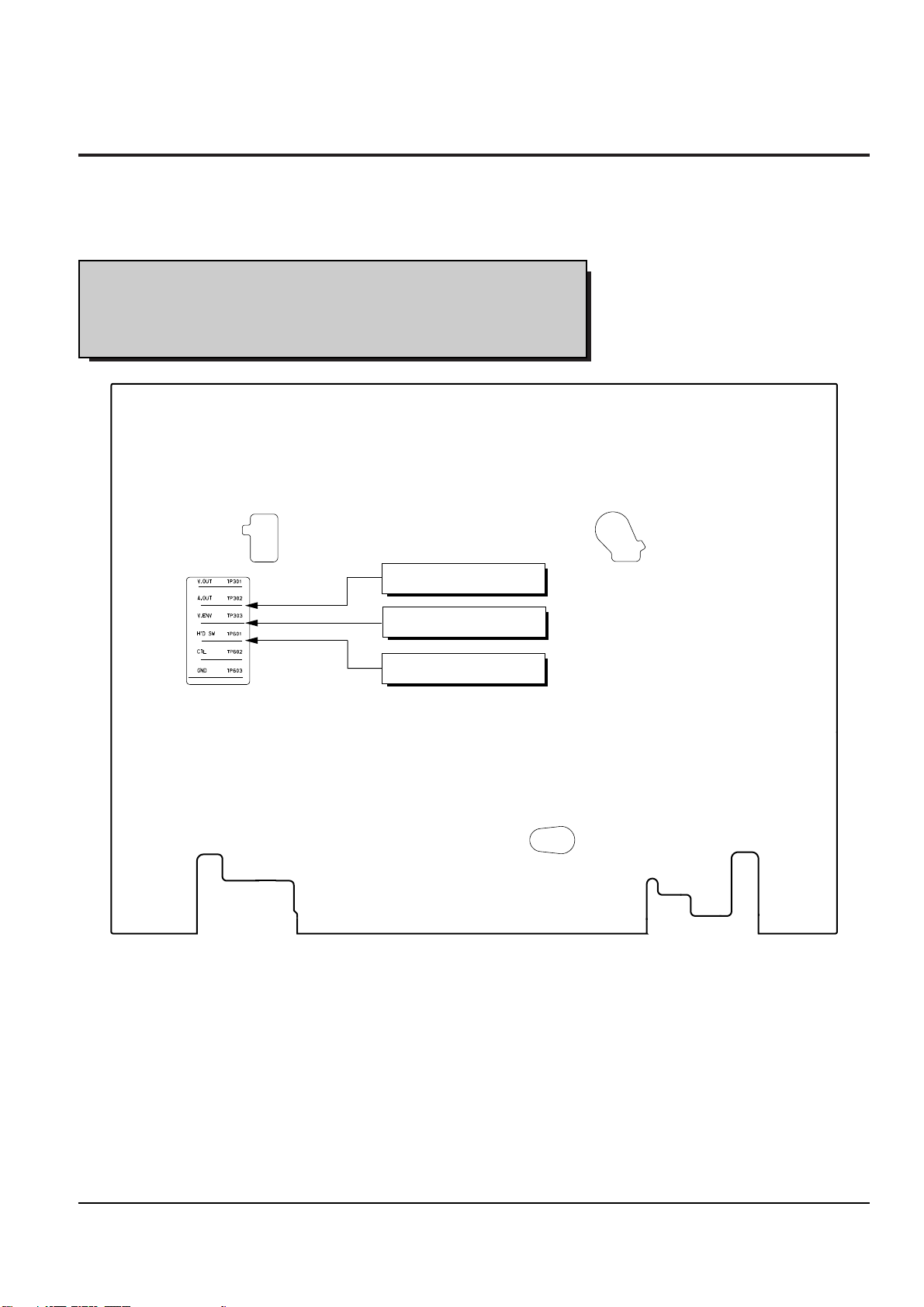

Fig. 2-3 Location of Test point (Main PCB-Top View)
AUDIO OUTPUT
HEAD SWITCHING
ENVELOPE
2-2-2 ACE Head Position (X-Point) Adjustment
(See the 2-2-1(d) ACE Head Position (X-Point) Adjustment
on page 2-2 of the Mechanical Manual)
1) Playback the alignment tape (Color bar).
2) Press the ÒSW718 (TEST)Ó button on Main PCB to
set the adjustment mode. (See Fig. 2-2)
3) Press the Ò5Ó button of remote control then
adjustment is operated automatically. (See Fig. 2-1)
4) Connect the CH-1 probe to TP303 (Envelope) the
CH-2 probe to TP601 (HÕD switching pulse) and
then trigger to CH-1.
5) Insert the (-) driver into the X-Point adjustment
hole and adjust it so that envelope waveform is
maximum.
6) Turn the Power off.

2-4 Samsung Electronics
Alignment and Adjustment
2-3 Head Switching Point Adjustment
1) Playback the alignment tape.
2) Press the ÒSW718 (TEST)Ó button on Main PCB to set the adjustment mode. (See Fig. 2-2)
3) Press the ÒSPEEDÓ button of remote control then adjustment is operated automatically. (See Fig. 2-1)
4) Turn the Power off.
2-4 NVRAM Option Setting
1) Press the ÒSW718 (TEST)Ó button on Main PCB to set the adjustment mode. (See Fig. 2-2)
2) Press the ÒMENUÓ button on the remote control about 5 seconds then option setting display is appeared.
(See Fig. 2-4)
3) Select the option number (See Table 2-1 ; Page 2-5) of corresponding model with ÒFFÓ and ÒREWÓ button on
the remote control.
4) If selecting the option number is completed, press the ÒPLAYÓ button of remote control.
(If ÒPLAYÓ button is pressed, the selected number is changes reversed color. ; See Fig. 2-4)
5) Press the ÒOKÓ button of remote control again to store the option number.
(ÒPLEASE WAITÓ is displayed for a second as shown Fig. 2-5 and this setting is completed.)
6) Turn the Power off.
1) NVRAM Option is adjusted at production line basically.
2) In case Micom (IC601) and NVRAM (IC605 ; EEPROM) is replaced, be sure to set the corresponding option number of the repaired
model. (If the option is not set, the unit is not operated.)
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40
41 42 43 44 45 46 47 48
**OPTION DIODE **
CNG : SAVE : OK
Fig. 2-4
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40
41 42 43 44 45 46 47 48
**OPTION DIODE **
CNG : SAVE : OK
PLEASE WAIT
Fig. 2-5

Alignment and Adjustment
Samsung Electronics 2-5
<Table 2-1 NVRAM Option Number>
COUNTRY MODELS OPTION NUMBER
France SV-637F 2, 4, 5, 6, 7, 8, 12, 13, 14, 15, 16, 18, 19, 22, 23, 24, 26, 29, 33, 37, 40, 41, 43, 44, 46, 49, 50, 53, 54
SV-633F 2, 5, 6, 8, 12, 13, 14, 15, 16, 18, 19, 22, 23, 26, 29, 35, 37, 38, 39, 44, 46, 50, 53, 54
SV-630F 5, 8, 12, 13, 14, 15, 18, 19, 22, 23, 26, 29, 34, 37, 38, 46, 50, 53, 54
SV-433F 2, 5, 6, 8, 12, 16, 18, 19, 22, 23, 26, 29, 35, 37, 38, 39, 50, 53, 54
SV-430F 5, 8, 12, 18, 19, 22, 23, 26, 29, 34, 37, 38, 50, 53, 54
SV-233F 2, 5, 6, 16, 18, 19, 22, 23, 26, 29, 35, 37, 38, 39, 50, 53, 54
SV-230F 5, 18, 19, 22, 23, 26, 29, 34, 37, 38, 50, 53, 54
U.K. SV-637B 3, 4, 5, 6, 7, 8, 10, 12, 13, 15, 22, 23, 24, 27, 33, 37, 38, 39, 40, 41, 43, 44, 46, 49, 50, 54
SV-633B 3, 6, 7, 8, 10, 12, 13, 15, 16, 22, 23, 24, 27, 35, 37, 39, 46, 50, 54
SV-6303B 6, 7, 8, 10, 12, 13, 15, 16, 22, 23, 24, 27, 35, 37, 39, 46, 50, 54
SV-630B 6, 7, 8, 10, 12, 13, 15, 16, 22, 23, 24, 27, 35, 37, 39, 46, 50, 54
SV-233B 3, 7, 8, 10, 22, 24, 27, 35, 37, 38, 50, 54
SV-231B 3, 8, 10, 22, 27, 35, 37, 38, 50, 54
SV-230B 8, 10, 22, 27, 35, 37, 38, 50, 54
Germany SV-637X 2, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 18, 22, 23, 24, 29, 32, 33, 37, 38, 39, 40, 41, 43, 44, 46, 49, 50, 53, 54
SV-636X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 24, 29, 32, 33, 37, 38, 39, 44, 46, 50, 53, 54
SV-435X 2, 5, 6, 7, 8, 12, 16, 18, 22, 23, 24, 29, 32, 35, 37, 38, 39, 50, 53, 54
Spain SV-637X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 24, 31, 33, 37, 41, 43, 44, 46, 49, 50, 53, 54
SV-635X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 24, 31, 35, 37, 38, 39, 41, 44, 46, 50, 53, 54
SV-633X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 24, 31, 35, 37, 38, 39, 41, 46, 50, 53, 54
SV-631X 5, 6, 8, 9, 10, 12, 13, 14, 15, 18, 22, 23, 31, 35, 38, 41, 46, 50, 53, 54
SV-530X 2, 5, 6, 7, 8, 12, 13, 16, 18, 22, 23, 24, 31, 35, 37, 38, 39, 41, 46, 50, 53, 54
SV-431X 5, 8, 12, 18, 22, 23, 31, 35, 37, 38, 50, 53, 54
SV-235X 5, 6, 7, 16, 18, 22, 23, 24, 31, 35, 37, 38, 39, 50, 53, 54
SV-231X 5, 18, 22, 23, 31, 35, 37, 38, 50, 53, 54
Italy SV-637X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 24, 29, 31, 33, 37, 41, 43, 44, 46, 49, 50, 53, 54
SV-635X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 24, 29, 31, 35, 37, 38, 39, 41, 44, 46, 50, 53, 54
SV-6315X 5, 6, 8, 9, 10, 12, 13, 14, 15, 18, 22, 23, 29, 31, 35, 38, 46, 50, 53, 54
SV-6313X 5, 6, 8, 9, 10, 12, 13, 14, 15, 18, 22, 23, 29, 31, 35, 38, 46, 50, 53, 54
SV-631X 5, 6, 8, 9, 10, 12, 13, 14, 15, 18, 22, 23, 29, 31, 35, 38, 46, 50, 53, 54
SV-530X 2, 5, 6, 7, 8, 12, 13, 18, 22, 23, 24, 29, 31, 35, 38, 46, 50, 53, 54
SV-435X 2, 5, 6, 7, 8, 12, 16, 18, 22, 23, 24, 29, 31, 35, 37, 38, 39, 50, 53, 54
SV-431X 5, 8, 12, 18, 22, 23, 29, 31, 35, 37, 38, 50, 53, 54
SV-235X 2, 5, 6, 7, 16, 18, 22, 23, 24, 29, 31, 35, 37, 38, 39, 50, 53, 54
SV-2315X 5, 18, 22, 23, 29, 31, 35, 37, 38, 50, 53, 54
SV-2313X 5, 18, 22, 23, 29, 31, 35, 37, 38, 50, 53, 54
SV-231X 5, 18, 22, 23, 29, 31, 35, 37, 38, 50, 53, 54
Portugal SV-635X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 35, 37, 38, 39, 41, 44, 46, 48, 50, 53, 54
SV-631X 5, 6, 8, 9, 10, 12, 13, 14, 15, 18, 22, 23, 35, 38, 41, 46, 48, 50, 53, 54
SV-530X 2, 5, 6, 7, 8, 12, 13, 16, 18, 22, 23, 35, 37, 38, 39, 46, 48, 50, 53, 54
SV-431X 5, 8, 12, 18, 22, 23, 35, 37, 38, 48,50, 53, 54
SV-231X 5, 18, 22, 23, 35, 37, 38, 48, 50, 53, 54
Denmark SV-636X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 24, 29, 30, 33, 37, 38, 39, 44, 46, 50, 53, 54
SV-635X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 24, 29, 30, 35, 37, 38, 39, 41, 44, 46, 50, 53, 54
SV-631X 5, 6, 8, 9, 10, 12, 13, 14, 15, 18, 22, 23, 29, 30, 35, 38, 46, 50, 53, 54
SV-435X 2, 5, 6, 7, 8, 12, 16, 18, 22, 23, 24, 29, 30, 35, 37, 38, 39, 50, 53, 54
SV-431X 5, 8, 12, 18, 22, 23, 29, 30, 35, 37, 38, 50, 53, 54
SV-235X 2, 5, 6, 7, 16, 18, 22, 23, 24, 29, 30, 35, 37, 38, 39, 50, 53, 54
SV-230X 18, 22, 29, 30, 35, 37, 38, 50, 54
Sweden/Finland SV-636X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 24, 29, 30, 31, 33, 37, 38, 39, 44, ., 46, 50, 53, 54
SV-635X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 24, 29, 30, 31, 35, 37, 38, 39, 41, 44, 46, 50, 53, 54
SV-631X 5, 6, 8, 9, 10, 12, 13, 14, 15, 18, 22, 23, 29, 30, 31, 35, 38, 46, 50, 53, 54
SV-435X 2, 5, 6, 7, 8, 12, 16, 18, 22, 23, 24, 29, 30, 31, 35, 37, 38, 39, 50, 53, 54
SV-431X 5, 8, 12, 18, 22, 23, 29, 30, 31, 35, 37, 38, 50, 53, 54

2-6 Samsung Electronics
Alignment and Adjustment
<Table 2-1 NVRAM Option Number> - Continued
COUNTRY MODELS OPTION NUMBER
Sweden/Finland SV-235X 2, 5, 6, 7, 16, 18, 22, 23, 24, 29, 30, 31, 35, 37, 38, 39, 50, 53, 54
SV-230X 18, 22, 29, 30, 31, 35, 37, 38, 50, 54
Norway SV-636X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 24, 30, 31, 33, 37, 38, 39, 44, 46, 50, 53, 54
SV-635X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 24, 30, 31, 35, 37, 38, 39, 41, 44, 46, 50, 53, 54
SV-631X 5, 6, 8, 9, 10, 12, 13, 14, 15, 18, 22, 23, 30, 31, 35, 38, 46, 50, 53, 54
SV-435X 2, 5, 6, 7, 8, 12, 16, 18, 22, 23, 24, 30, 31, 35, 37, 38, 39, 50, 53, 54
SV-431X 5, 8, 12, 18, 22, 23, 30, 31, 35,37, 38, 50, 53, 54
SV-235X 2, 5, 6, 7, 16, 18, 22, 23, 24, 30, 31,35, 37, 38, 39, 50, 53, 54
SV-230X 18, 22, 30, 31, 35, 37, 38, 50, 54
Netherlands SV-635X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 24, 29, 30, 32, 35, 37, 38, 39, 41, 44, 46, 50, 53, 54
SV-631X 5, 6, 8, 9, 10, 12, 13, 14, 15, 18, 22, 23, 29, 30, 32, 35, 38, 46, 50, 53, 54
SV-235X 2, 5, 6, 7, 16, 18, 22, 23, 24, 29, 30, 32, 35, 37, 38, 39, 50, 53, 54
SV-230X 18, 22, 29, 30, 32, 35, 37, 38, 50, 54
SV-230XD 18, 22, 29, 30, 32, 35, 37, 38, 50, 54
Belgium SV-636X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 24, 30, 33, 37, 38, 39, 44, 46, 50, 53, 54
SV-435X 2, 5, 6, 7, 8, 12, 16, 18, 22, 23, 24, 30, 35, 37, 38, 39, 50, 53, 54
SV-431X 5, 8, 12, 18, 22, 23, 30, 35, 37, 38, 50, 53, 54
Switzerland SV-637X 2, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 18, 22, 23, 24, 31, 32, 33, 37, 38, 39, 40, 41, 43, 44, 46, 49, 50, 53, 54
SV-635X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 24, 31, 32, 35, 37, 38, 39, 41, 44, 46, 50, 53, 54
SV-435X 2, 5, 6, 7, 8, 12, 16, 18, 22, 23, 24, 31, 32, 35, 37, 38, 39, 50, 53, 54
SV-433X 2, 5, 7, 8, 12, 18, 22, 23, 24, 31, 32, 35, 37, 38, 50, 53, 54
SV-233X 2, 7, 16, 18, 22, 24, 31, 32, 35, 37, 39, 50, 54
SV-230X 7, 18, 22, 24, 31, 32, 35, 37, 38, 50, 54
Austria SV-637X 2, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 18, 22, 23, 24, 32, 33, 37, 38, 39, 40, 41, 43, 44, 46, 49, 50, 53, 54
SV-635X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 24, 32, 35, 37, 38, 39, 41, 44, 46, 50, 53, 54
SV-633X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 24, 32, 35, 37, 38, 39, 41, 44, 46, 50, 53, 54
SV-435X 2, 5, 6, 7, 8, 12, 16, 18, 22, 23, 24, 32, 35, 37, 38, 39, 50, 53, 54
SV-433X 2, 5, 7, 8, 12, 18, 22, 23, 24, 32, 35, 37, 38, 50, 53, 54
SV-233X 2, 7, 16, 18, 22, 24, 32, 35, 37, 39, 50, 54
SV-230X 7, 18, 22, 24, 32, 35, 37, 38, 50, 54
Greece SV-635X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 29, 31, 32, 35, 37, 38, 39, 41, 44, 46, 50, 53, 54
SV-435X 2, 5, 6, 7, 8, 12, 16, 18, 22, 23, 29, 31, 32, 35, 37, 38, 39, 50, 53, 54
SV-431X 5, 8, 12, 18, 22, 23, 29, 31, 32, 35, 37, 38, 50, 53, 54
SV-230X 18, 22, 29, 31, 32, 35, 37, 38, 50, 54
Cyprus SV-635X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 29, 31, 32, 35, 37, 38, 39, 41, 44, 46, 50, 53, 54
SV-435X 2, 5, 6, 7, 8, 12, 16, 18, 22, 23, 29, 31, 32, 35, 37, 38, 39, 50, 53, 54
SV-431X 5, 8, 12, 18, 22, 23, 29, 31, 32, 35, 37, 38, 50, 53, 54
SV-230X 18, 22, 29, 31, 32, 35, 37, 38, 50, 54
Croatia SV-635X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 29, 31, 32, 35, 37, 38, 39, 41, 44, 46, 50, 53, 54
SV-435X 2, 5, 6, 7, 8, 12, 16, 18, 22, 23, 29, 31, 32, 35, 37, 38, 39, 50, 53, 54
SV-431X 5, 8, 12, 18, 22, 23, 29, 31, 32, 35, 37, 38, 50, 53, 54
SV-235X 2, 5, 6, 7, 16, 18, 22, 23, 29, 31, 32, 35, 37, 38, 39, 50, 53, 54
SV-230X 18, 22, 29, 31, 32, 35, 37, 38, 50, 54
Slovenia SV-635X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 29, 31, 32, 35, 37, 38, 39, 41, 44, 46, 50, 53, 54
SV-435X 2, 5, 6, 7, 8, 12, 16, 18, 22, 23, 29, 31, 32, 35, 37, 38, 39, 50, 53, 54
SV-431X 5, 8, 12, 18, 22, 23, 29, 31, 32, 35, 37, 38, 50, 53, 54
SV-233X 2, 7, 16, 18, 22, 29, 31, 32, 35, 37, 39, 50, 54
Yugo SV-635X 2, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 18, 22, 23, 29, 31, 32, 35, 37, 38, 39, 41, 44, 46, 50, 53, 54
SV-435X 2, 5, 6, 7, 8, 12, 16, 18, 22, 23, 29, 31, 32, 35, 37, 38, 39, 50, 53, 54
SV-233X 2, 7, 16, 18, 22, 29, 31, 32, 35, 37, 39, 50, 54
Hungary SV-637X 2, 5, 6, 7, 8, 11, 12, 13, 14, 15, 16, 18, 22, 23, 25, 31, 32, 33, 37, 41, 43, 44, 46, 48, 49, 50, 53, 54
SV-635X 2, 5, 6, 7, 8, 11, 12, 13, 14, 15, 16, 18, 22, 23, 25, 31, 32, 35, 37, 38, 39, 41, 44, 46, 48, 50, 53, 54
SV-631X 5, 6, 8, 11, 12, 13, 14, 15, 18, 22, 23, 25, 31, 32, 35, 38, 46, 48, 50, 53, 54
SV-435G 2, 5, 6, 7, 8, 11, 12, 16, 18, 22, 23, 25, 31, 32, 35, 37, 38, 39, 41, 48, 50, 53, 54

Alignment and Adjustment
Samsung Electronics 2-7
<Table 2-1 NVRAM Option Number> - Continued
COUNTRY MODELS OPTION NUMBER
Hungary SV-430G 8, 11, 12, 18, 22, 25, 31, 32, 35, 37, 38, 48, 50, 54
SV-235G 2, 5, 6, 7, 11, 16, 18, 22, 23, 25, 31, 32, 35, 37, 38, 39, 48, 50, 53, 54
SV-230G 11, 18, 22, 25, 31, 32, 35, 37, 38, 48, 50, 54
Romania SV-635X 2, 5, 6, 7, 8, 11, 12, 13, 14, 15, 16, 18, 22, 23, 25, 29, 31, 32, 35, 37, 38, 39, 41, 44, 46, 50, 53, 54
SV-631X 5, 6, 8, 11, 12, 13, 14, 15, 18, 22, 23, 25, 29, 31, 32, 35, 38, 46, 50, 53, 54
SV-435G 2, 5, 6, 7, 8, 11, 12, 16, 18, 22, 23, 25, 29, 31, 32, 35, 37, 38, 39, 41, 50, 53, 54
SV-430G 8, 11, 12, 18, 22, 25, 29, 31, 32, 35, 37, 38, 50, 54
SV-235G 2, 5, 6, 7, 11, 16, 18, 22, 23, 25, 29, 31, 32, 35, 37, 38, 39, 50, 53, 54
SV-230G 11, 18, 22, 25, 29, 31, 32, 35, 37, 38, 50, 54
Czech. SV-637X 2, 5, 6, 7, 8, 11, 12, 13, 14, 15, 16, 18, 22, 23, 25, 29, 31, 32, 33, 37, 41, 43, 44, 46, 49, 50, 53, 54
SV-635X 2, 5, 6, 7, 8, 11, 12, 13, 14, 15, 16, 18, 22, 23, 25, 29, 31, 32, 35, 37, 38, 39, 41, 44, 46, 50, 53, 54
SV-631X 5, 6, 8, 11, 12, 13, 14, 15, 18, 22, 23, 25, 29, 31, 32, 35, 38, 46, 50, 53, 54
SV-435G 2, 5, 6, 7, 8, 11, 12, 16, 18, 22, 23, 25, 29, 31, 32, 35, 37, 38, 39, 41, 50, 53, 54
SV-430G 8, 11, 12, 18, 22, 25, 29, 31, 32, 35, 37, 38, 50, 54
SV-235G 2, 5, 6, 7, 11, 16, 18, 22, 23, 25, 29, 31, 32, 35, 37, 38, 39, 50, 53, 54
SV-230G 11, 18, 22, 25, 29, 31, 32, 35, 37, 38, 50, 54
Bulgaria/ SV-637X 2, 5, 6, 7, 8, 11, 12, 13, 14, 15, 16, 18, 22, 23, 25, 29, 31, 32, 33, 37, 41, 43, 44, 46, 49, 50, 53, 54
Mecedonia SV-635X 2, 5, 6, 7, 8, 11, 12, 13, 14, 15, 16, 18, 22, 23, 25, 29, 31, 32, 35, 37, 38, 39, 41, 44, 46, 50, 53, 54
SV-631X 5, 6, 8, 11, 12, 13, 14, 15, 18, 22, 23, 25, 29, 31, 32, 35, 38, 46, 50, 53, 54
SV-435G 2, 5, 6, 7, 8, 11, 12, 16, 18, 22, 23, 25, 29, 31, 32, 35, 37, 38, 39, 41, 50, 53, 54
SV-430G 8, 11, 12, 18, 22, 25, 29, 31, 32, 35, 37, 38, 50, 54
SV-235G 2, 5, 6, 7, 11, 16, 18, 22, 23, 25, 29, 31, 32, 35, 37, 38, 39, 50, 53, 54
SV-230G 11, 18, 22, 25, 29, 31, 32, 35, 37, 38, 50, 54
Poland SV-637X 2, 5, 6, 7, 8, 11, 12, 13, 14, 15, 16, 18, 22, 23, 25, 31, 33, 37, 41, 43, 44, 46, 48, 49, 50, 53, 54
SV-635X 2, 5, 6, 7, 8, 11, 12, 13, 14, 15, 16, 18, 22, 23, 25, 31, 35, 37, 38, 39, 41, 44, 46, 48, 50, 53, 54
SV-631X 5, 6, 8, 11, 12, 13, 14, 15, 18, 22, 23, 25, 31, 35, 38, 46, 48, 50, 53, 54
SV-435G 2, 5, 6, 7, 8, 11, 12, 16, 18, 22, 23, 25, 31, 35, 37, 38, 39, 41, 48, 50, 53, 54
SV-430G 8, 11, 12, 18, 22, 25, 31, 35, 37, 38, 48, 50, 54
SV-235G 2, 5, 6, 7, 11, 16, 18, 22, 23, 25, 31, 35, 37, 38, 39, 48, 50, 53, 54
SV-230G 11, 18, 22, 25, 31, 35, 37, 38, 48, 50, 54

2-8 Samsung Electronics
Alignment and Adjustment
MEMO

Samsung Electronics 3-1
3. Exploded View and Parts List
3-1 Cabinet Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
3-2 Mechanical Parts (Top Side) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
3-3 Mechanical Parts (Bottom Side) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Page
3-2
3-6
3-8

Exploded View and Parts List
3-2 Samsung Electronics
3-1 Cabinet Assembly
S.N.A. : Service Not Available
157
153
FULL DECK (S.N.A.)
TM401B
200
MAIN PCB (S.N.A.)
BRACKET-FRAME
(S.N.A.)
CN602A
CN3A1S
F-A/V JACK PCB (S.N.A.)
SV-637F/633F/636X/635X/633X
SV-633B/630B/6303B/435X/435G
SV-433F/235X/235G/233X/233F
56
55
S601S
LD601S
S602S
VFD/LED PCB (S.N.A.)
102
157
1
SV-631X/6315X/6313X/630X/530X
SV-433X/431X/430G/430F/233B
SV-231X/231B/2315X/2313X/230X
SV-230XD/230G/230F/230B
A2/NICAM PCB-OPTION
(S.N.A.)
21
22
31 1
52
52
158
SV-637B/637X
101
155
156
156
1
21
22 1
21
22
UT01
VCRSTANDBY/ON
TVSTANDBY/ON
TV
SLOW
VCR
DISP./
SHUTTLE
V-LOCK
CLR/RST F.ADV
-/--
INPUT INDEX VOL PROG/TRK
R
E
C
M
E
N
U
A
U
D
I
O
S
P
E
E
D
D
U
B
REPEAT
OK
SAT
CN703A (8P)
157
SRC PCB (S.N.A.)

Exploded View and Parts List
Samsung Electronics 3-3
Loc. No Parts No. Description ; Specification Remark
1 Refer to table below ASSY-PANEL FRONT;HIPS 94HB
21 Refer to table below DOOR-CASSETTE
22 AC61-62032A SPRING-MASK;X-9,-,SUS,-,4.4,-,SV-C130
31 Refer to table below DOOR FRONT-ASSY
52 62664-0021-00 ASSY-DAMPER SV-637B/637X ONLY
55 AC61-30164D LOCKER-CODO ASSY L;-,LUCEL+SECC+SUS,-,-, (OPTIONAL)
56 AC61-30164C LOCKER-CODO ASSY R;-,LUCEL+SECC+SUS,-,BL (OPTIONAL)
101 Refer to table below CABINET-TOP;X-9,SECC,PCM,0.5,360*208*41,
102 AC63-32128A COVER-BOTTOM;SV-C140F,SECC,387.7X197.6
153 AC60-12126A SCREW-BH;-,BH,-,4*12,FE,FZY,-,-,-
155 AC60-12134A SCREW-TAP BH;-,BH,-,2-4X16,-,FE
156 AC60-00001A SCREW-MACINE;-,BH,*4X12,M4,L12,BLK,SMC
157 AC60-10063A SCREW-TAPTITE;BH,+,-,M3,L12,ZPC3,SWRCH18
158 AC60-00069A SCREW-TAP;3X10,FE, FEY
200 Refer to table below POWER CORD;KKP-419C,H03VVH2-F,VDE/KEMA-K
CN3A1S 3809-001111 CABLE-FLAT;30V,80C,130mm,7P,1.25mm,UL289
CN602A 3809-001049 CABLE-FLAT;30V,80C,100mm,5P,1.25mm,UL289
CN703A 3809-001132 CABLE-FLAT;30V,80C,130mm,5P,1.25mm,UL289 SV-637B/637X ONLY
LD601S AC61-21009A HOLDER-LED;-,POM(M90-44),-,BLK,-,X-9
S601S AC61-21008A HOLDER-SENSOR;-,POM(M90-44),-,BLK,-,X-9
S602S AC61-21008A HOLDER-SENSOR;-,POM(M90-44),-,BLK,-,X-9
TM401B Refer to table below CONNECTOR BOARD-ASSY;HIPS94
UT01 Refer to table below REMOCON-ASSY
COUNTRY MODELS 1 21 31 101 200 TM401B UT01
France SV-637F AC97-00597M AC64-00203S - AC64-30899H AC39-10019A AC61-00060L AC59-00016B
SV-633F AC97-00597A AC64-00203B - AC64-30899H AC39-10019A AC61-00060A AC59-00017J
SV-630F AC97-00831A AC64-00158B - AC64-30899H AC39-10019A AC61-00060A AC59-00017F
SV-433F AC97-00597B AC64-00203A - AC64-30899H AC39-10019A AC61-00060F AC59-00017J
SV-430F AC97-00831B AC64-00158C - AC64-30899H AC39-10019A AC61-00060F AC59-00017F
SV-233F AC97-00597D AC64-00203C - AC64-30899H AC39-10019A AC61-00060F AC59-00017J
SV-230F AC97-00596A AC64-00158A - AC64-30899H AC39-10019A AC61-00060F AC59-00017F
U.K. SV-637B AC97-00243F AC64-00097R AC64-00072P AC64-30899E AC39-12022K AC61-00060M AC59-00016E
SV-633B AC97-00597E AC64-00203D - AC64-30899H AC39-12022K AC61-00060C AC59-00017H
SV-630B AC97-00597F AC64-00203J - AC64-30899H AC39-12022K AC61-00060C AC59-00017G
SV-6303B AC97-00597P AC64-00203V - AC64-30899H AC39-12022K AC61-00060C AC59-00017G
SV-233B AC97-00831D AC64-00313A - AC64-30899H AC39-12022K AC61-00060H AC59-00017H
SV-231B AC97-00831E AC64-00313C - AC64-30899H AC39-12022K AC61-00060H AC59-00017H
SV-230B AC97-00831F AC64-00313D - AC64-30899H AC39-12022K AC61-00060H AC59-00017G
Germany SV-637X AC97-00243D AC64-00097V AC64-00072N AC64-30899E AC39-10019A AC61-00060J AC59-00016G
SV-636X AC97-00597Q AC64-00203W - AC64-30899H AC39-10019A AC61-00060J AC59-00017E
SV-435X AC97-00597J AC64-00203G - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
Spain SV-637X AC97-00243K AC64-00097V AC64-00072T AC64-30899E AC39-10019A AC61-00060J AC59-00016C
SV-635X AC97-00597G AC64-00203E - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-633X AC97-00597R AC64-00203X - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-631X AC97-00838H AC64-00158J - AC64-30899H AC39-10019A AC61-00060B AC59-00016F
SV-530X AC97-00597L AC64-00203L - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-431X AC97-00838C AC64-00158G - AC64-30899H AC39-10019A AC61-00060G AC59-00017B
SV-235X AC97-00597S AC64-00203Y - AC64-30899H AC39-10019A AC61-00060G AC59-00017G
SV-231X AC97-01049A AC64-00158M - AC64-30899H AC39-10019A AC61-00060G AC59-00017B

Exploded View and Parts List
3-4 Samsung Electronics
COUNTRY MODELS 1 21 31 101 200 TM401B UT01
Italy SV-637X AC97-00243K AC64-00097V AC64-00072T AC64-30899E AC39-10019A AC61-00060J AC59-00016C
SV-635X AC97-00597N AC64-00203U - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-631X AC97-00831P AC64-00158H - AC64-30899A AC39-10019A AC61-00060B AC59-00017B
SV-6315X AC97-01018A AC64-00343Z - AC64-30899H AC39-10019A AC61-00060B AC59-00017G
SV-6313X AC97-01019A AC64-00343Y - AC64-30899H AC39-10019A AC61-00060B AC59-00017G
SV-530X AC97-01017A AC64-00313R - AC64-30899A AC39-10019A AC61-00060B AC59-00017A
SV-435X AC97-00597H AC64-00203F - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-431X AC97-00831T AC64-00313L - AC64-30899A AC39-10019A AC61-00060G AC59-00017B
SV-235X AC97-00597C AC64-00203H - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-231X AC97-00831W AC64-00313H - AC64-30899A AC39-10019A AC61-00060G AC59-00017B
SV-2315X AC97-00831U AC64-00313M - AC64-30899H AC39-10019A AC61-00060G AC59-00017G
SV-2313X AC97-00831V AC64-00313N - AC64-30899H AC39-10019A AC61-00060G AC59-00017G
Portugal SV-635X AC97-00597N AC64-00203U - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-631X AC97-00838B AC64-00335E - AC64-30899A AC39-10019A AC61-00060B AC59-00016F
SV-530X AC97-00597K AC64-00203K - AC64-30899H AC39-10019A AC61-00060B AC59-00017E
SV-431X AC97-00838C AC64-00335C - AC64-30899A AC39-10019A AC61-00060G AC59-00017B
SV-231X AC97-00838D AC64-00335D - AC64-30899A AC39-10019A AC61-00060G AC59-00017B
Denmark SV-636X AC97-00597Q AC64-00203W - AC64-30899H AC39-10019A AC61-00060J AC59-00017E
SV-635X AC97-00597N AC64-00203U - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-631X AC97-00838E AC64-00335E - AC64-30899H AC39-10019A AC61-00060B AC59-00017G
SV-435X AC97-00597H AC64-00203F - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-431X AC97-00838C AC64-00335C - AC64-30899H AC39-10019A AC61-00060G AC59-00017G
SV-235X AC97-00597C AC64-00203H - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-230X AC97-00838G AC64-00335G - AC64-30899H AC39-10019A AC61-00060H AC59-00017G
Sweden/Finland SV-636X AC97-00597Q AC64-00203W - AC64-30899H AC39-10019A AC61-00060J AC59-00017E
SV-635X AC97-00597N AC64-00203U - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-631X AC97-00838E AC64-00158Q - AC64-30899H AC39-10019A AC61-00060B AC59-00017G
SV-435X AC97-00597H AC64-00203F - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-431X AC97-00838C AC64-00158U - AC64-30899H AC39-10019A AC61-00060G AC59-00017G
SV-235X AC97-00597C AC64-00203H - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-230X AC97-00838G AC64-00335K - AC64-30899H AC39-10019A AC61-00060H AC59-00017G
Norway SV-636X AC97-00597Q AC64-00203W - AC64-30899H AC39-10019A AC61-00060J AC59-00017E
SV-635X AC97-00597N AC64-00203U - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-631X AC97-00838E AC64-00158Q - AC64-30899H AC39-10019A AC61-00060B AC59-00017G
SV-435X AC97-00597H AC64-00203F - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-431X AC97-00838C AC64-00158U - AC64-30899H AC39-10019A AC61-00060G AC59-00017G
SV-235X AC97-00597C AC64-00203H - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-230X AC97-00838G AC64-00335K - AC64-30899H AC39-10019A AC61-00060H AC59-00017G
Netherlands SV-635X AC97-00597N AC64-00203U - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-631X AC97-00838E AC64-00158Q - AC64-30899H AC39-10019A AC61-00060B AC59-00017G
SV-235X AC97-00597C AC64-00203H - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-230X AC97-00838G AC64-00335K - AC64-30899H AC39-10019A AC61-00060H AC59-00017G
SV-230XD AC97-00838Y AC64-00335Y - AC64-30899A AC39-10019A AC61-00060H AC59-00017B
Belgium SV-636X AC97-00597Q AC64-00203W - AC64-30899H AC39-10019A AC61-00060J AC59-00017E
SV-435X AC97-00597H AC64-00203F - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-431X AC97-00838C AC64-00158U - AC64-30899H AC39-10019A AC61-00060G AC59-00017G
Switzerland SV-637X AC97-00243D AC64-00097V AC64-00072N AC64-30899E AC39-10019A AC61-00060J AC59-00016G
SV-635X AC97-00597N AC64-00203U - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-435X AC97-00597H AC64-00203F - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-433X AC97-00878A AC64-00335M - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-233X AC97-00597W AC64-00388C - AC64-30899H AC39-10019A AC61-00060H AC59-00017E
SV-230X AC97-00879A AC64-00335N - AC64-30899A AC39-10019A AC61-00060H AC59-00017B
Austria SV-637X AC97-00243D AC64-00097V AC64-00072N AC64-30899E AC39-10019A AC61-00060J AC59-00016G
SV-635X AC97-00597N AC64-00203U - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-633X AC97-00597X AC64-00388F - AC64-30899A AC39-10019A AC61-00060B AC59-00016J
SV-435X AC97-00597H AC64-00203F - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-433X AC97-00878A AC64-00335M - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-233X AC97-00597W AC64-00388C - AC64-30899H AC39-10019A AC61-00060H AC59-00017E
SV-230X AC97-00879A AC64-00335N - AC64-30899A AC39-10019A AC61-00060H AC59-00017B
Greece SV-635X AC97-00597N AC64-00203U - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-435X AC97-00597H AC64-00203F - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-431X AC97-00831T AC64-00158U - AC64-30899A AC39-10019A AC61-00060G AC59-00017B
SV-230X AC97-00838W AC64-00335K - AC64-30899A AC39-10019A AC61-00060H AC59-00017B
Cyprus SV-635X AC97-00597N AC64-00203U - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-435X AC97-00597H AC64-00203F - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-431X AC97-00831T AC64-00158U - AC64-30899A AC39-10019A AC61-00060G AC59-00017B
SV-230X AC97-00838W AC64-00335K - AC64-30899A AC39-10019A AC61-00060H AC59-00017B
<Continued>

Exploded View and Parts List
Samsung Electronics 3-5
COUNTRY MODELS 1 21 31 101 200 TM401B UT01
Croatia SV-635X AC97-00597N AC64-00203U - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-435X AC97-00597H AC64-00203F - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-431X AC97-00831T AC64-00158U - AC64-30899A AC39-10019A AC61-00060G AC59-00017B
SV-235X AC97-00597T AC64-00203Z - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-230X AC97-00838W AC64-00335K - AC64-30899A AC39-10019A AC61-00060H AC59-00017B
Slovenia SV-635X AC97-00597N AC64-00203U - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-435X AC97-00597H AC64-00203F - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-431X AC97-00831T AC64-00158U - AC64-30899A AC39-10019A AC61-00060G AC59-00017B
SV-233X AC97-00597W AC64-00388C - AC64-30899H AC39-10019A AC61-00060H AC59-00017E
Yugo SV-635X AC97-00597N AC64-00203U - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-435X AC97-00597H AC64-00203F - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-233X AC97-00597W AC64-00388C - AC64-30899H AC39-10019A AC61-00060H AC59-00017E
Hungary SV-637X AC97-00243K AC64-00097V AC64-00072T AC64-30899E AC39-10019A AC61-00060J AC59-00016C
SV-635X AC97-00597N AC64-00203U - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-631X AC97-00831P AC64-00158Q - AC64-30899A AC39-10019A AC61-00060B AC59-00017G
SV-435G AC97-00597U AC64-00388A - AC64-30899H AC39-10019A AC61-00060G AC59-00016C
SV-430G AC97-00845H AC64-00343H - AC64-30899A AC39-10019A AC61-00060H AC59-00017B
SV-235G AC97-00597V AC64-00388B - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-230G AC97-00845J AC64-00343J - AC64-30899A AC39-10019A AC61-00060H AC59-00017B
Romania SV-635X AC97-00597N AC64-00203U - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-631X AC97-00831P AC64-00158Q - AC64-30899A AC39-10019A AC61-00060B AC59-00017B
SV-435G AC97-00597U AC64-00388A - AC64-30899H AC39-10019A AC61-00060G AC59-00016C
SV-430G AC97-00845H AC64-00343H - AC64-30899A AC39-10019A AC61-00060H AC59-00017B
SV-235G AC97-00597V AC64-00388B - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-230G AC97-00845J AC64-00343J - AC64-30899A AC39-10019A AC61-00060H AC59-00017B
Czech. SV-637X AC97-00243K AC64-00097V AC64-00072T AC64-30899E AC39-10019A AC61-00060J AC59-00016C
SV-635X AC97-00597N AC64-00203U - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-631X AC97-00831P AC64-00158Q - AC64-30899A AC39-10019A AC61-00060B AC59-00017B
SV-435G AC97-00597U AC64-00388A - AC64-30899H AC39-10019A AC61-00060G AC59-00016C
SV-430G AC97-00845H AC64-00343H - AC64-30899A AC39-10019A AC61-00060H AC59-00017B
SV-235G AC97-00597V AC64-00388B - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-230G AC97-00845J AC64-00343J - AC64-30899A AC39-10019A AC61-00060H AC59-00017B
Bulgaria SV-637X AC97-00243K AC64-00097V AC64-00072T AC64-30899E AC39-10019A AC61-00060J AC59-00016C
Macedonia SV-635X AC97-00597N AC64-00203U - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-631X AC97-00831P AC64-00158H - AC64-30899A AC39-10019A AC61-00060B AC59-00017B
SV-435G AC97-00597U AC64-00388A - AC64-30899H AC39-10019A AC61-00060G AC59-00016C
SV-430G AC97-00845H AC64-00343H - AC64-30899A AC39-10019A AC61-00060H AC59-00017B
SV-235G AC97-00597V AC64-00388B - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-230G AC97-00845J AC64-00343J - AC64-30899A AC39-10019A AC61-00060H AC59-00017B
Poland SV-637X AC97-00243K AC64-00097V AC64-00072T AC64-30899E AC39-10019A AC61-00060J AC59-00016C
SV-635X AC97-00597N AC64-00203U - AC64-30899H AC39-10019A AC61-00060B AC59-00016C
SV-631X AC97-00831P AC64-00158Q - AC64-30899A AC39-10019A AC61-00060B AC59-00017B
SV-435G AC97-00597U AC64-00388A - AC64-30899H AC39-10019A AC61-00060G AC59-00016C
SV-430G AC97-00845H AC64-00343H - AC64-30899A AC39-10019A AC61-00060H AC59-00017B
SV-235G AC97-00597V AC64-00388B - AC64-30899H AC39-10019A AC61-00060G AC59-00017E
SV-230G AC97-00845J AC64-00343J - AC64-30899A AC39-10019A AC61-00060H AC59-00017B
<Continued>

Exploded View and Parts List
3-6 Samsung Electronics
3-2 Mechanical Parts (Top Side)
G001
K250 K248
K110
K502
K350 K330
K182 K140
K490
K530
K240
G532 G420
G450 K546
G510
B410
B440 B444 B446
B448 B452
G527
G520
G480
G680
S.N.A. S.N.A.
S.N.A.
S.N.A.
S.N.A.
G530
K340
B473
K188
G555
G546
S.N.A. : Service Not Available
S.N.A.

Exploded View and Parts List
Samsung Electronics 3-7
Loc. No Parts No. Description ; Specification Remark
B410 AC31-12016D MOTOR-LOADING ASSY;-,SNHNE,-,-
B440 AC60-10515A SCREW-MACHINE;-,PH,+,-,M3,L3,ZPC,-,YEL
B444 AC66-20571A GEAR-WORM;-,POM SW-01,0.5,2,-,4.5,X-9
B446 AC61-21005A HOLDER-WORM;-,POM M90-44,-,-,-,X-9
B448 AC66-20573A GEAR-WORM WHEEL;-,POM SW-01,0.6,11,-,6.6
B452 AC66-20575A GEAR-FL CAM;-,POM SW-01,M0.6,Z88,-,PCD58
B473 AC61-60559A SPRING-PINCH DRIVE;-,TS,SUS304,PI0.5,OD4
G001 AC97-00567A ASSY-CYLINDER;CX-9T,SECAM 6HD/DLC (6HD SECAM DIAMOND HEAD)
AC97-00564A ASSY-CYLINDER;CX-9T,SECAM 4HD (4HD SECAM NON-DIAMOND HEAD)
AC97-00563A ASSY-CYLINDER;CX-9T, PAL 6HD/DLC (6HD PAL DIAMOND HEAD)
AC97-00549A ASSY-CYLINDER;CX-9T, PAL 4HD (4HD PAL NON-DIAMOND HEAD)
AC97-00547A ASSY-CYLINDER;CX-9T, PAL 2HD (2HD PAL NON-DIAMOND HEAD)
AC97-00555A ASSY-CYLINDER;CX-9T, PAL 2HD(LP) (2HD PAL(LP) NON-DIAMOND HEAD)
G420 AC66-80142A SLIDER-SUPPLY ASSY;-,X-9(TS),-,-,-,X-9
G450 AC66-80141A SLIDER-TAKE UP ASSY;-,X-9(TS),-,-,-,X-9
G480 AC33-00003A HEAD-ACE ASSY;SHINHEUNG;-,-,-,-,X-9
G510 6006-001075 SCREW-ASSY TAPT;WSP,PH,+,M2.6,L5.0,ZPC
G520 AC66-30539A LEVER-#9 GUIDE ASSY;-,X-9(TS),-,-,-,X-9
G527 AC61-60553A SPRING-#9 GUIDE;-,ES,SUS304-WPB,OD3.1,0.
G530 AC33-00002A HEAD-FE;-,HVFHP0038A,-,-,-,X-9
G532 AC60-10519A SCREW-TAP TITE;-,PH,+,-,M2.6,L8,ZPC
G546 AC66-30535A LEVER-FL DOOR;-,POM M90-44,-,-,BLK,X-9
G555 AC59-90403A UNIT-PINCH ASSY;X-9,-
G680 AC66-30557A LEVER-H/CLEANER ASSY;-,POM+URETHANE,-,- (OPTIONAL)
K110 AC66-10267A REEL-DISK S;-,POM M90-44,-,-,X-9
K140 AC66-10268A REEL-DISK T;-,POM M90-44,-,-,X-9
K182 AC66-30524A LEVER-IDLER;-,POM9044,-,-,-,-
K188 AC66-20577A GEAR-IDLER;-,PEBAX 7033,-,-,-,-,X-9
K240 AC66-30538A LEVER-TENSION ASSY;-,X-9(TS),-,-,-,X-9
K248 AC61-60554A SPRING-TENSION LEVER;-,ES,SUS304-WPB,OD3
K250 AC63-12029A BAND-BRAKE ASSY;-,X-9(TS),-,-,-,X-9
K330 AC66-30550A LEVER-S.BRAKE ASSY;-,POM+SUS,-,-,-,X-9
K340 AC66-30549A LEVER-T.BRAKE ASSY;-,POM+SUS,-,-,-,X-9
K350 AC61-60564A SPRING-BRAKE;-,TENSION,SWP-A,0.25,3,-,X-
K490 AC61-21010B HOLDER-CASS ASSY;-,SECC+POM+SUS,-,-,-,X-
K502 AC61-60561A SPRING-FL.LEVER-LR;-,ES,SUS304 WPB,PI2.7
K530 AC66-30546A LEVER-FL.ARM ASS’Y;-,SECC+POM+SUS,-,-,-,
K546 AC61-50658A GUIDE-CASS. DOOR;-,POM M90-44,-,-,NTR,-,

Exploded View and Parts List
3-8 Samsung Electronics
3-3 Mechanical Parts (Bottom Side)
G542 B560
B484
B458
B500
B488
B462
(OPTIONAL)
S.N.A.
S.N.A.
S.N.A.
S.N.A.
B456
K222 K200 K225 K221
B570
B238
S.N.A. : Service Not Available

Exploded View and Parts List
Samsung Electronics 3-9
Loc. No Parts No. Description ; Specification Remark
B238 AC61-50660A SLEEVE-TENSION;-,POM M90-44,-,-,ID3,-,-,
B456 AC66-20576A GEAR-JOINT 1;-,POM SW-01,M1.0,Z22,-,PCD2
B458 AC66-20574A GEAR-JOINT 2;-,POM SW-01,M1.0,Z14,-,PCD1
B462 AC60-10517A SCREW-TAP TITE;-,PH,+,-,M2.6,L5,ZPC,-,YE
B484 AC66-20580A GEAR-LOADING DRIVE;-,POM SW-01,M1.0,Z32,
B488 AC66-30543A LEVER-S LOAD ASSY;-,-,-,-,-,X-9
B500 AC66-30542A LEVER-T LOAD ASSY;-,-,-,-,-,X-9
B560 AC31-00005A MOTOR-CAPSTAN;-,F2QSB02,-,-
B570 AC60-10514A SCREW-CAPSTAN;-,PH,+,M2.6,L6,-
G542 AC66-60051A BELT-PULLEY;-,5CM-70,2 * 2,-,71.3,-,X-9
K200 AC61-21012A HOLDER-CLUTCH ASSY;-,-,-,-,-,X-9
K221 AC66-20581A GEAR-CENTER ASSY;-,POM,M=O.5,-,HIGHT T.,
K222 AC60-30306A WASHER-SLIT;-,-,ID2.1,OD5.0,T0.5,-,POLYS
K225 AC66-30547A LEVER-UP DOWN ASSY;-,POM+SUS,-,-,-,X-9

Exploded View and Parts List
3-10 Samsung Electronics
MEMO

Loc.No Part No Description ; Specification Remark Loc.No Part No Description ; Specification Remark
Samsung Electronics 4-1
- - ASSY-PCB-MAIN;HI-FI S.N.A.
S.M.P.S. PARTS
BD1SD1 AC27-92001M INDUCTOR;70UH-M RT BFS3565R2F,-,-,-,-
BD1SF1 AC27-92001M INDUCTOR;70UH-M RT BFS3565R2F,-,-,-,-
BD1SF3 AC27-92001M INDUCTOR;70UH-M RT BFS3565R2F,-,-,-,-
BD1SR1 3301-000297 CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
BD1SS2 AC27-92001M INDUCTOR;70UH-M RT BFS3565R2F,-,-,-,-
BD1SS3 AC27-92001M INDUCTOR;70UH-M RT BFS3565R2F,-,-,-,-
C1SD03 2201-000812 C-CERAMIC,DISC;2.2nF,20%,400V,Y5U,BK,12.
C1SD04 2201-000812 C-CERAMIC,DISC;2.2nF,20%,400V,Y5U,BK,12.
C1SD11 2401-003302 C-AL;47uF,20%,400V,GP,TP,18X31.5,7.
C1SD12 2201-000445 C-CERAMIC,DISC;3.3nF,20%,400V,Y5P,TP,-,1 NON-ECOLOGY
C1SD12 2305-001029 C-FILM,MPEF;10nF,10%,630V,TP,12x9x12.5,5 ECOLOGY ONLY
C1SD13 2301-000361 C-FILM,PEF;1.2nF,10%,50V,TP,-,5mm NON-ECOLOGY
C1SD13 2201-000376 C-CERAMIC,DISC;0.22nF,5%,50V,SL,TP,6.3x3 ECOLOGY ONLY
C1SF12 2401-001200 C-AL;33uF,20%,50V,WT,TP,6.3x11,5 ECOLOGY ONLY
C1SR12 2401-000905 C-AL;22UF,20%,16V,BP,-,6X11,2.5MM NON-ECOLOGY
C1SR14 2301-000445 C-FILM,PEF;4.7nF,5%,50V,TP,5.5x7x3mm,5mm NON-ECOLOGY
C1SS01 2305-001021 C-FILM,MPEF;100nF,20%,275V,TP,17.5x7x13.
C1SS02 2305-001021 C-FILM,MPEF;100nF,20%,275V,TP,17.5x7x13.
C1SS12 2201-000129 C-CERAMIC,DISC;0.1nF,10%,1kV,Y5P,TP,7x4,
C1SS31 2401-000385 C-AL;10uF,20%,100V,GP,TP,6.3x11,5
C1SS32 2401-003046 C-AL;47uF,20%,50V,WT,TP,6.3x11,2.5
C1SS33 2401-003477 C-AL;330UF,20%,25V,LZ,TP,10X12.5MM,
C1SS34 2401-003478 C-AL;100UF,20%,25V,LZ,TP,8X11.5MM,5
C1SS35 2401-003480 C-AL;1000UF,20%,10V,LZ,TP,10X16MM,5
C1SS36 2401-001479 C-AL;470uF,20%,10V,GP,-,-,TP
C1SS37 2401-003046 C-AL;47uF,20%,50V,WT,TP,6.3x11,2.5 VFD ONLY
C1SS38 2401-001479 C-AL;470uF,20%,10V,GP,-,-,TP VFD ONLY
C1SS39 2301-000129 C-FILM,PEF;100nF,5%,50V,TP,10X9X4.3X5,5m
C1SS40 2301-000381 C-FILM,PEF;10nF,5%,50V,TP,6.5x5.5x3mm,5m VFD ONLY
CN1SS1 3711-000178 CONNECTOR-HEADER;1WALL,2P,1R,3.96mm,STRA
D1SD11 0402-001195 DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
D1SD31 0402-001195 DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
D1SD32 0402-001195 DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP VFD ONLY
D1SF05 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP ECOLOGY ONLY
D1SF12 0402-001195 DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP ECOLOGY ONLY
D1SR11 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, NON-ECOLOGY
D1SS01 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS02 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS03 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS04 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS11 0402-000276 DIODE-RECTIFIER;UF4007,1KV,1A,DO-41,TP
D1SS31 0402-001195 DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
D1SS32 0402-001194 DIODE-RECTIFIER;UG2D,200V,2A,DO-204AC,TP
D1SS33 0404-000128 DIODE-SCHOTTKY;FMB-G14L,45V,5A,TO-220F,T
D1SS44 0402-001195 DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP VFD ONLY
F1SS01 3601-001208 FUSE-CARTRIDGE;250V,1.6A,TIME-LAG,GLASS
IC1SF1 1203-001802 IC-PWM CONTROLLER;STR-G6551,TO-220F,5P,- ECOLOGY ONLY
IC1SS1 0604-001028 PHOTO-COUPLER;TR,50-600%,250mW,DIP-4,ST
IC1SS2 AC14-12006D IC;KA431Z,TO-92,TAPING
L1SS01 AC29-30050B FILTER-LINE NOISE;-,400uH,-,AC250V,TR12. NON-ECOLOGY
L1SS02 AC29-30050C FILTER-LINE NOISE;-,25MH,0.35A,AC250V,BS NON-ECOLOGY
L1SS02 AC29-00002A FILTER LINE NOISE;-,30mH,-,-,BLF-2116 ECOLOGY ONLY
L1SS31 AC27-12001N COIL-CHOKE;10UH-15%,RA,K-30,Q80,150KHZ,-
L1SS32 AC27-12001N COIL-CHOKE;10UH-15%,RA,K-30,Q80,150KHZ,-
PT1SS1 AC26-00002A TRANS SWITCHING;-,-,-,-,DEMKO,-,1.3mH,-, NON-ECPLOGY
PT1SS1 AC26-00001L TRANS-SWITCHING;-,-,-,230V,DEMCO,EE2821, ECOLOGY ONLY
Q1SR01 0502-001050 TR-POWER;2SC4517A,NPN,30W,TO-220,ST,10- NON-ECPLOGY
Q1SR02 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN,400MW,T0-9 NON-ECPLOGY
R1SD11 2001-000305 R-CARBON;110KOHM,5%,1/8W,AA,TP,1.8X3.2MM NON-ECPLOGY
R1SD12 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm NON-ECPLOGY
R1SD12 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM ECOLOGY ONLY
R1SD13 2001-000305 R-CARBON;110KOHM,5%,1/8W,AA,TP,1.8X3.2MM NON-ECPLOGY
R1SD13 2001-000319 R-CARBON;120KOHM,5%,1/8W,AA,TP,1.8X3.2M ECOLOGY ONLY
R1SD14 2001-000305 R-CARBON;110KOHM,5%,1/8W,AA,TP,1.8X3.2MM NON-ECPLOGY
R1SD14 2001-000319 R-CARBON;120KOHM,5%,1/8W,AA,TP,1.8X3.2M ECOLOGY ONLY
R1SD15 2001-000305 R-CARBON;110KOHM,5%,1/8W,AA,TP,1.8X3.2MM NON-ECPLOGY
R1SD15 2001-000319 R-CARBON;120KOHM,5%,1/8W,AA,TP,1.8X3.2M ECOLOGY ONLY
R1SD16 2006-000273 R-CEMENT;27Kohm,5%,2W,CA,BK,6.4x27x6.4m NON-ECPLOGY
R1SD16 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x ECOLOGY ONLY
R1SD31 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM NON-ECPLOGY
R1SD31 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM ECOLOGY ONLY
R1SD32 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M NON-ECPLOGY
R1SD32 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM ECOLOGY ONLY
R1SF11 2001-000319 R-CARBON;120KOHM,5%,1/8W,AA,TP,1.8X3.2M ECOLOGY ONLY
R1SF15 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M ECOLOGY ONLY
R1SF19 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM ECOLOGY ONLY
R1SF20 2003-000105 R-METAL OXIDE;0.33ohm,5%,2W,AD,TP,6x16mm ECOLOGY ONLY
R1SF21 2001-000096 R-CARBON(S);1MOHM,5%,1/2W,AA,TP,2.4X6.4M ECOLOGY ONLY
R1SR11 2003-000119 R-METAL OXIDE;0.68ohm,5%,2W,AE,TP,6x16mm NON-ECPLOGY
R1SR12 2003-000264 R-METAL OXIDE;300ohm,5%,1W,AD,TP,4.3x12m NON-ECPLOGY
R1SR14 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm NON-ECPLOGY
R1SS10 2006-000262 R-CEMENT;2.7ohm,10%,2W,CB,TP,7.5x11x20.
R1SS11 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x ECOLOGY ONLY
R1SS13 2003-000148 R-METAL OXIDE;100OHM,5%,2W,AE,TP,6X16MM
R1SS31 2001-000440 R-CARBON;1OHM,5%,1/8W,AA,TP,1.8X3.2MM VFD ONLY
R1SS32 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SS33 2004-000869 R-METAL;3Kohm,1%,1/8W,AA,TP,1.8x3.2mm
R1SS34 2004-000459 R-METAL;2.2Kohm,1%,1/8W,AA,TP,1.8x3.2m
VA1SS1 1405-001026 VARISTOR;470V,600A,9x7mm,TP
ZD1SS1 0403-000571 DIODE-ZENER;UZP43B,43V,40-46V,1W,DO-41,T NON-ECOLOGY
POWER DRIVE PARTS
C1P102 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
C1P103 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
C1P104 2401-002299 C-AL;4.7uF,20%,50V,GP,TP,5x7,5
C1P105 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5
C1P106 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5
C1P107 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5
C1P108 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5mm
C1P110 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
C1P114 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 ECOLOGY ONLY
C1P115 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
C1P116 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
D1P101 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D1P103 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D1P105 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D1P108 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D1P109 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D1P113 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D1P114 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, CANAL ONLY
D1P115 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, ECOLOGY ONLY
D1P117 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D1P119 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, ECOLOGY ONLY
D1P120 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D1P125 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
4. Electrical Parts List
4-1 Hi-Fi Models
