Samsung VR9070 User manual

VIDEO CASSETTE RECORDER
VR9070/9060/8070/8060
VR5070/5060
VR3060
VR9800C/9770C/8800C/8770C/8660C/8441C/8440C
VR5770C/5660C/5441C/5440C
VR3660C/3441C/3440C
SERVICE
1. Precautions
2. Alignment and Adjustment
3. Exploded View and Parts List
4. Electrical Parts List
5. Schematic Diagrams
Manual
VIDEO CASSETTE RECORDER CONTENTS
For mechanical disassembly and adjustment, refer to the “Mechanical Manual” (DX-9R AC68-00001A).
VR9070/9800C
VR9060/8770C
VR8070/5070/8800C
VR8060/5060/3060/8770C/5770C
VR8441C/8440C/5441C/5440C/3441C/3440C
VR8660C/5660C/3660C
TRACKING
TV/VCR
MENU
TAPE SPEED
INPUT
PLAY
TRACKING
TV/VCR
MENU
TAPE SPEED
INPUT
MENU
REW F.F
MENU
SAMTRON
POWER EJECT
POWER REC
REW F.F STOP
PLAY
SERVICE MANUAL VR9070/8070/5070/3060/9800C/8800C/5770C/3660C
ELECTRONICS
© Samsung Electronics Co., Ltd. FEB. 2000
Printed in Korea
AC68-00831A

IMPORTANT SERVICE GUIDE
MODE SWITCH (PROGRAM SWITCH) ASSEMBLY POINT
1) When installing the ass’y full deck on the Main PCB, be sure to align the assembly point of mode switch.
ASSEMBLY POINT
Fig. 1

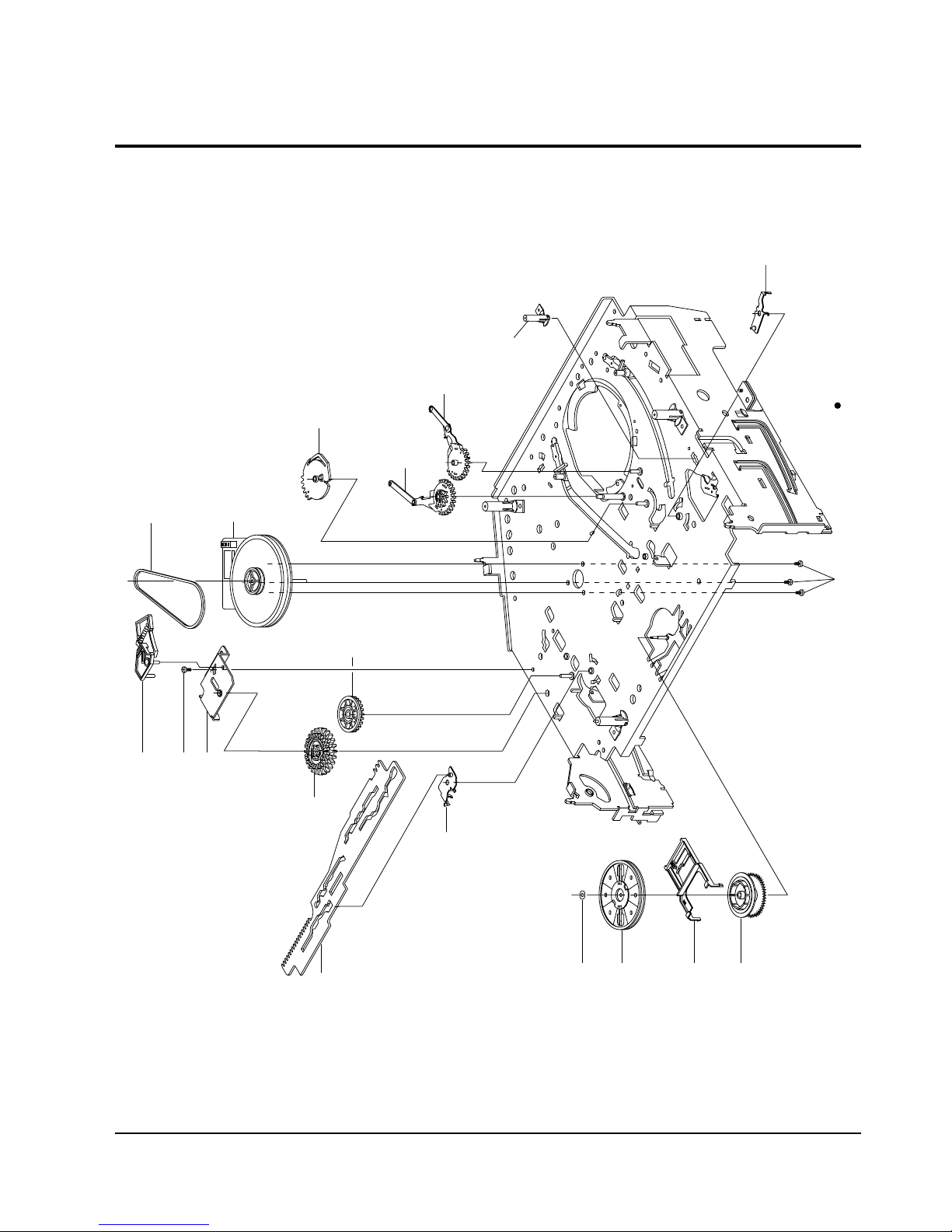

HOW TO EJECT THE CASSETTE TAPE
(If the unit does not operate on condition that tape is inserted into housing ass’y)
1) Remove the Holder Worm Œand the gear worm ´. (See Fig. 2)
2) Turn the Gear Worm Wheel ˇcounterclockwise in the direction of arrow with screw driver. (See Fig. 2)
3) When Slider S, T are approached in the position of unloading, rotate holder Clutch counterclockwise after inserting screw driver in the
hole of frame’s bottom in order to wind the unwounded tape. (Refer to Fig. 3)
(If you rotate Gear Worm Wheel continuously when tape is in state of unwinding, you may cause a tape contamination by grease and
tape damage. Be sure to wind the unwounded tape in the state of set horizontally.)
4) Rotate Gear Worm Wheel ˇcounterclockwise using screw driver again up to the state of eject mode and then pick out the tape.
(Refer to Fig. 2)
Fig. 2 Fig. 3
ΠHOLDER WORM
´ GEAR WORM
SCREW DRIVER
ˇ GEAR WORM WHEEL
FRAME

Samsung Electronics 1-1
1. Precautions
1. Be sure that all of the built-in protective devices are
replaced. Restore any missing protective shields.
2. When reinstalling the chassis and its assemblies, be
sure to restore all protective devices, including :
control knobs and compartment covers.
3. Make sure that there are no cabinet openings
through which people--particularly children
--might insert fingers and contact dangerous
voltages. Such openings include the spacing
between the picture tube and the cabinet mask,
excessively wide cabinet ventilation slots, and
improperly fitted back covers.
If the measured resistance is less than 1.0 megohm
or greater than 5.2 megohms, an abnormality exists
that must be corrected before the unit is returned
to the customer.
4. Leakage Current Hot Check (See Fig. 1-1) :
Warning : Do not use an isolation transformer
during this test. Use a leakage current tester or a
metering system that complies with American
National Standards Institute (ANSI C101.1,
Leakage Current for Appliances), and Underwriters
Laboratories (UL Publication UL1410, 59.7).
5. With the unit completely reassembled, plug the AC
line cord directly the power outlet. With the unit’s
AC switch first in the ON position and then OFF,
measure the current between a known earth
ground (metal water pipe, conduit, etc.) and all
exposed metal parts, including : antennas, handle
brackets, metal cabinets, screwheads and control
shafts. The current measured should not exceed
0.5 milliamp. Reverse the power-plug prongs in the
AC outlet and repeat the test.
6. X-ray Limits :
The picture tube is designed to prohibit X-ray
emissions. To ensure continued X-ray protection,
replace the picture tube only with one that is the
same type as the original.
Fig. 1-1 AC Leakage Test
7. Antenna Cold Check :
With the unit’s AC plug disconnected from the
AC source, connect an electrical jumper across the
two AC prongs. Connect one lead of the ohmmeter
to an AC prong.
Connect the other lead to the coaxial connector.
8. High Voltage Limit :
High voltage must be measured each time
servicing is done on the B+, horizontal deflection
or high voltage circuits.
Heed the high voltage limits. These include the
X-ray protection Specifications Label, and the
Product Safety and X-ray Warning Note on the
service data schematic.
9. Some semiconductor (“solid state”) devices are
easily damaged by static electricity.
Such components are called Electrostatically
Sensitive Devices (ESDs); examples include
integrated circuits and some field-effect transistors.
The following techniques will reduce the
occurrence of component damage caused by static
electricity.
10. Immediately before handling any semiconductor
components or assemblies, drain the electrostatic
charge from your body by touching a known
earth ground. Alternatively, wear a discharging
Wrist-strap device. (Be sure to remove it prior to
applying power--this is an electric shock
precaution.)
DEVICE
UNDER
TEST
(READING SHOULD
NOT BE ABOVE
0.5mA)
LEAKAGE
CURRENT
TESTER
EARTH
GROUND
TEST ALL
EXPOSED METER
SURFACES
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
2-WIRE CORD

Precautions
1-2 Samsung Electronics
11. High voltage is maintained within specified limits
by close-tolerance, safety-related components and
adjustments. If the high voltage exceeds the
specified limits, check each of the special
components.
12. Design Alteration Warning :
Never alter or add to the mechanical or electrical
design of this unit. Example : Do not add
auxiliary audio or video connectors.
Such alterations might create a safety hazard.
Also, any design changes or additions will void
the manufacturer’s warranty.
13. Hot Chassis Warning :
Some TV receiver chassis are electrically
connected directly to one conductor of the AC
power cord. If an isolation transformer is not
used, these units may be safely serviced only if
the AC power plug is inserted so that the chassis
is connected to the ground side of the AC source.
To confirm that the AC power plug is inserted
correctly, do the following : Using an AC
voltmeter, measure the voltage between the
chassis and a known earth ground. If the reading
is greater than 1.0V, remove the AC power plug,
reverse its polarity and reinsert. Re-measure the
voltage between the chassis and ground.
14. Some TV chassis are designed to operate with 85
volts AC between chassis and ground, regardless
of the AC plug polarity. These units can be safely
serviced only if an isolation transformer inserted
between the receiver and the power source.
15. Never defeat any of the B+ voltage interlocks.
Do not apply AC power to the unit (or any of its
assemblies) unless all solid-state heat sinks are
correctly installed.
16. Always connect a test instrument’s ground lead to
the instrument chassis ground before connecting
the positive lead; always remove the instrument’s
ground lead last.
17. Observe the original lead dress, especially near
the following areas : Antenna wiring, sharp
edges, and especially the AC and high voltage
power supplies. Always inspect for pinched, out-
of-place, or frayed wiring. Do not change the
spacing between components and the printed
circuit board. Check the AC power cord for
damage. Make sure that leads and components
do not touch thermally hot parts.
18. Picture Tube Implosion Warning :
The picture tube in this receiver employs
“integral implosion” protection. To ensure
continued implosion protection, make sure that
the replacement picture tube is the same as the
original.
19. Do not remove, install or handle the picture tube
without first putting on shatterproof goggles
equipped with side shields. Never handle the
picture tube by its neck. Some “in-line” picture
tubes are equipped with a permanently attached
deflection yoke; do not try to remove such
“permanently attached” yokes from the picture
tube.
20. Product Safety Notice :
Some electrical and mechanical parts have special
safety-related characteristics which might not be
obvious from visual inspection. These safety
features and the protection they give might be
lost if the replacement component differs from the
original--even if the replacement is rated for
higher voltage, wattage, etc.
Components that are critical for safety are
indicated in the circuit diagram by shading,
( or ).
Use replacement components that have the same
ratings, especially for flame resistance and
dielectric strength specifications. A replacement
part that does not have the same safety
characteristics as the original might create shock,
fire or other hazards.

Samsung Electronics 2-1
2. Alignment and Adjustment
2-1 Reference
1) X-Point (Tracking center) adjustment, “Head switching adjustment” and “NVRAM option setting” can be adjusted with remote control.
2) When replacing the Micom (IC601) and NVRAM (IC603 ; EEPROM) be sure to adjust the “Head switching adjustment” and
“NVRAM option setting”.
3) When replacing the cylinder ass’y, be sure to adjust the “X-Point” and “Head switching adjustment”.
4) Among Samsung VCR remote control used for adjustment as a accessory, only the remote control that has figures buttons (0 ~ 9) is
available for all adjustment regardless of chassis.
5) How to adjustment.
- Intermittently short-circuit the test point on Main PCB with pincets to set the adjustment mode.
- If the corresponding adjustment button is pressed, the adjustment is performed automatically.
- If the adjustment is completed, be sure to turn the power off.
2-1-1 Location of adjustment button of remote control
Fig. 2-1
SHUTTLE
V-LOCK
REPLAY F.ADV/SKIP
TV/VCR PREV.CH
R
E
C
R
E
C
.
S
P
E
E
D
L
I
N
E
I
N
A
U
D
I
O
S
E
A
R
C
H
/
E
X
I
T
C
L
E
A
R
D
I
S
P
L
A
Y
POWER EJECT
CH/TRK
VCR
TV
CABLE/DSS
ENTER
MENU
SLOW
VOL
100
X-Point (Tracking Center)
Adjustment
Head Switching Adjustment
NVRAM Option Setting
Remote Control for adjustment is not supplied as a Service Jig.

2-2 Samsung Electronics
Alignment and Adjustment
2-1-2 Test point location for adjustment mode setting
Fig. 2-2 Main PCB (Top View)
Short-Circuit for a seconds (Just one time)
Application Models ; VR9070/9060/9800C/9770C

Alignment and Adjustment
Samsung Electronics 2-3

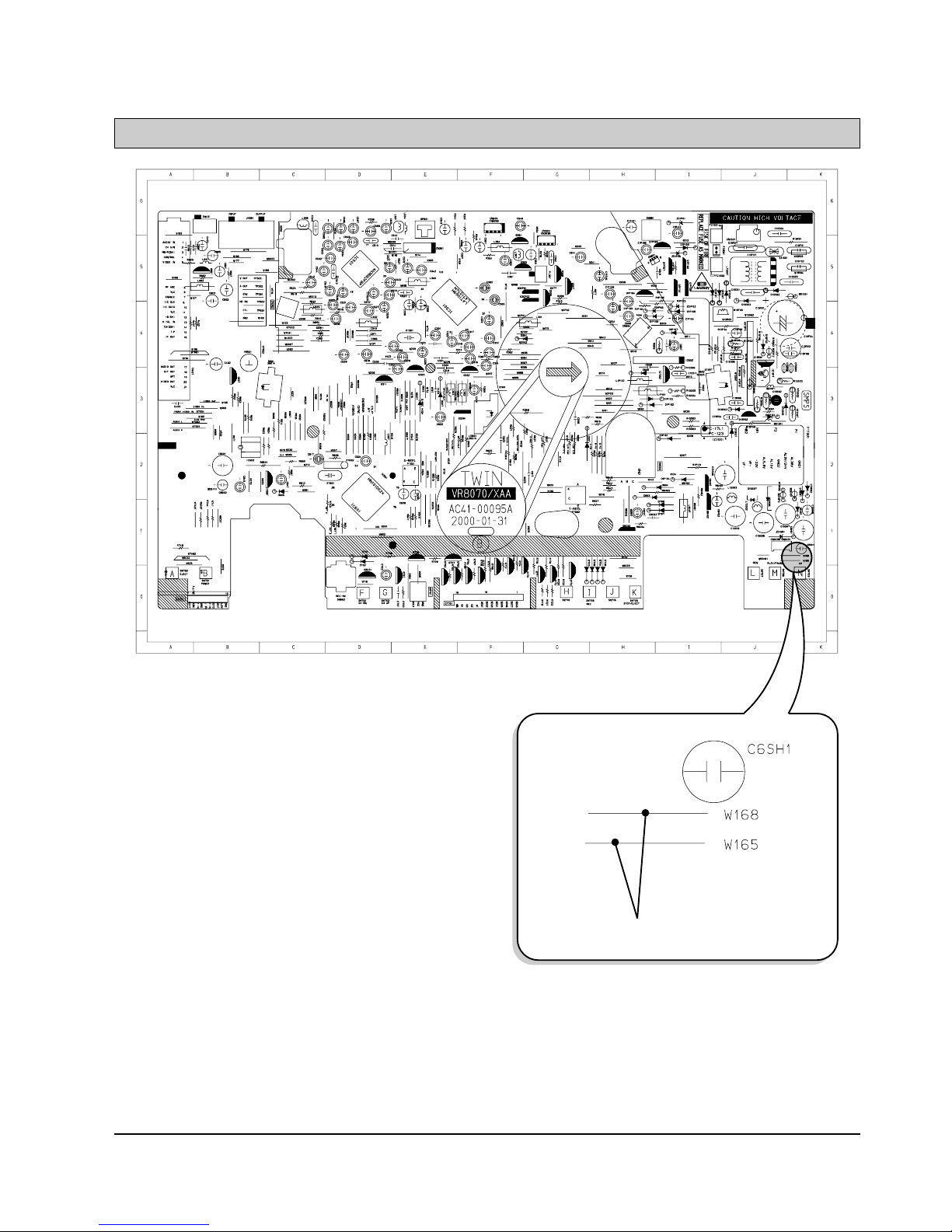

Fig. 2-3 Main PCB (Top View)
Short-Circuit for a seconds (Just one time)
Application Models ; VR8070/8060/5070/5060/3060/8800C/8770C/5770C

2-4 Samsung Electronics
Alignment and Adjustment
Fig. 2-4 Main PCB (Top View)
Short-Circuit for a seconds (Just one time)
Application Models ; VR8660C/8441C/8440C/5660C/5441C/5440C/3660C/3441C/3440C

Alignment and Adjustment
Samsung Electronics 2-5
2-2 Mechanical Adjustment
Note : Refer to the Mechanical Manual “DX-9R (AC68-00001A)” for the adjustment and confirmation of
ass’y full deck.
2-2-1 The number and position of test point
Test point : TP601 (Control Pulse)
TP602 (H’D S/W -Trigger)
TP301 (Envelope)
TP302 (Audio output)
TP303 (Video output)

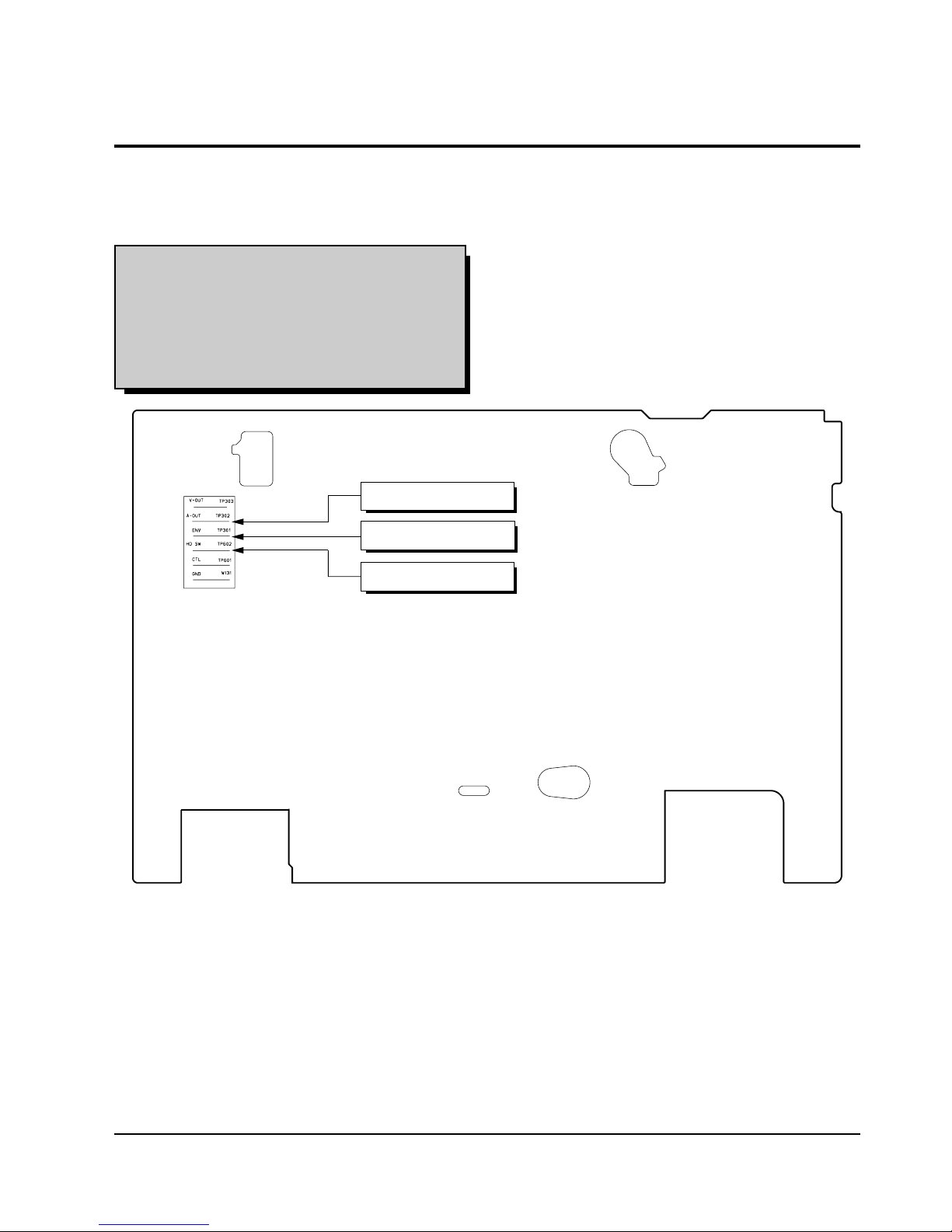

Fig. 2-5 Location of Test point (Main PCB-Top View)
AUDIO OUTPUT
HEAD SWITCHING
ENVELOPE
2-2-2 ACE Head Position (X-Point) Adjustment
(See the 2-2-1(d) ACE Head Position (X-Point) Adjustment
on page 2-2 of the Mechanical Manual)
1) Playback the alignment tape (Color bar).
2) Intermittently short-circuit the two test points on
Main PCB to set the adjustment mode.
(See Fig. 2-2, 2-3 and 2-4)
3) Press the “5” button of remote control then adjust-
ment is operated automatically. (See Fig. 2-1)
4) Connect the CH-1 probe to TP301 (Envelope) the
CH-2 probe to TP602 (H’D switching pulse) and
then trigger to CH-1.
5) Insert the (-) driver into the X-Point adjustment
hole and adjust it so that envelope waveform is
maximum.
6) Turn the Power off.

2-6 Samsung Electronics
Alignment and Adjustment
2-3 Head Switching Point Adjustment
1) Playback the alignment tape.
2) Intermittently short-circuit the two test points on Main PCB to set the adjustment mode.
(See Fig. 2-2, 2-3 and 2-4)
3) Press the “REC.SPEED” button of remote control then adjustment is operated automatically. (See Fig. 2-1)
4) Turn the Power off.
2-4 NVRAM Option Setting
1) Intermittently short-circuit the two test points on Main PCB to set the adjustment mode.
(See Fig. 2-2, 2-3 and 2-4)
2) Press the “MENU” button on the remote control about 5 seconds then option setting display is appeared.
(See Fig. 2-6)
3) Select the option number (See Table 2-1) of corresponding model with “FF” and “REW” button on the
remote control.
4) If selecting the option number is completed, press the “STOP” button of remote control.
(If “STOP” button is pressed, the selected number is changes reversed color. ; See Fig. 2-6)
5) Press the “MENU” button of remote control again to store the option number.
(“save” is displayed for a second as shown Fig. 2-7 and this setting is completed.)
6) Turn the Power off.
1) NVRAM Option is adjusted at production line basically.
2) In case Micom (IC601) and NVRAM (IC603 ; EEPROM) is replaced, be sure to set the corresponding option number of the repaired
model. (If the option is not set, the unit is not operated.)
MOVE :
SAVE : MENU
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40
Fig. 2-6
MOVE : save
SAVE : MENU
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40
Fig. 2-7
MODELS OPTION NUMBER
VR9070 2, 5, 6, 7, 9, 13, 15, 18, 32, 34, 35, 39
VR9060 2, 5, 6, 7, 13, 18, 32, 34, 39
VR8070 2, 6, 7, 8, 18, 25, 34, 39
VR8060 2, 6, 7, 18, 29, 34, 39
VR5070 6, 7, 8, 18, 25, 34, 39
VR5060 6, 7, 18, 29, 34, 39
VR3060 1, 6, 7, 18, 29, 34
VR9800C 2, 5, 6, 7, 9, 13, 15, 24, 32, 33, 34, 35, 39
VR9770C 2, 5, 6, 7, 13, 18, 32, 34, 39
VR8800C 2, 5, 6, 7, 18, 25, 33, 34, 39
VR8770C 2, 6, 7, 8, 18, 29, 34, 39
VR8660C 2, 6, 7, 18, 30, 34, 39
VR8441C 2, 6, 7, 12, 18, 30,39
VR8440C 2, 6, 7, 12, 18, 30, 39
VR5770C 6, 7, 8, 18, 29, 34, 39
VR5660C 6, 7, 18, 30, 34, 39
VR5441C 6, 7, 12, 18, 30, 39
VR5440C 6, 7, 12, 18, 30, 39
VR3660C 1, 6, 7, 18, 30, 34
VR3441C 1, 6, 7, 12, 18, 30
VR3440C 1, 6, 7, 12, 18, 30
<Table 2-1>

Samsung Electronics 3-1
3. Exploded View and Parts List
3-1 Cabinet Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
3-2 Mechanical Parts (Top Side) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
3-3 Mechanical Parts (Bottom Side) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Page
3-2
3-4
3-6

Exploded View and Parts List
3-2 Samsung Electronics
3-1 Cabinet Assembly
21
22 1
21
22 11
21
22
S.N.A. : Service Not Available
153
FULL DECK (S.N.A.)
BOTTOM-COVER (S.N.A.)
TM401B
200
MAIN PCB (S.N.A.)
157
157
BRACKET-FRAME
(S.N.A.)
S601A
LD601A S602A
CN605B
CN303B
101
155
VR8070/5070
VR8800C VR8060/5060/3060
VR8770C/5770C VR8441C/8440C/5441C/5440C
VR3441C/3440C VR8660C/5660C/3660C VR9060/9770C
VR9070/9800C
55
56
1
21
22
F-A/V JACK PCB (S.N.A.)
SHUTTLE PCB (S.N.A.)
51
1
22
21
1
22
21
UT01
SHUTTLE
V-LOCK
REPLAY F.ADV/SKIP
TV/VCR PREV.CH
R
E
C
R
E
C
.
S
P
E
E
D
L
I
N
E
I
N
A
U
D
I
O
S
E
A
R
C
H
/
E
X
I
T
C
L
E
A
R
D
I
S
P
L
A
Y
POWER EJECT
CH/TRK
VCR
TV
CABLE/DSS
ENTER
MENU
SLOW
VOL
100

Exploded View and Parts List
Samsung Electronics 3-3
Loc. No Parts No. Description ; Specification Remark
1 Refer to table below ASSY-PANEL FRONT;HIPS 94 V0,-
21 Refer to table below DOOR-CASSETTE;-,-,HIPS94HB,-,180,BLK,-,V
22 AC61-62003A SPRING;-,SUS304,(GE/RCA),-,-,-,-
51 AC64-00152A KNOB-SHUTTLE;-,ABS94HB,-,G3019,-,D-1000 VR9070/9800C ONLY
55 AC61-30164D LOCKER-CODO ASSY L;-,LUCEL+SECC+SUS,-,-, (OPTIONAL)
56 AC61-30164C LOCKER-CODO ASSY R;-,LUCEL+SECC+SUS,-,BL (OPTIONAL)
101 Refer to table below CABINET-TOP;-,PCM(SECC),-,T0.5,-,MD552,-
153 AC60-12126A SCREW-BH;-,BH,-,4*12,FE,FZY,-,-,-
155 AC60-12134A SCREW-TAP BH;-,BH,-,2-4X16,-,FE
157 AC60-10063A SCREW-TAPTITE;BH,+,-,M3,L12,ZPC3,SWRCH18
200 AC39-10200N POWER-CORD;EP2,SPT-2,AWG#18,1.8MT,WAFER,
CN303B 3809-001110 CABLE-FLAT;30V,80C,150mm,7P,1.25mm,UL289
CN605B 3809-001112 CABLE-FLAT;30V,80C,130mm,5P,1.25mm,UL289
LD601A AC61-21009A HOLDER-LED;-,POM(M90-44),-,BLK,-,X-9
S601A AC61-21008A HOLDER-SENSOR;-,POM(M90-44),-,BLK,-,X-9
S602A AC61-21008A HOLDER-SENSOR;-,POM(M90-44),-,BLK,-,X-9
TM401B Refer to table below CONNECTOR BOARD-ASSY;HIPS94+
UT01 Refer to table below REMOCON-ASSY
MODELS 1 21 101 TM401B UT01
VR9070 AC97-00858A AC64-00147C AC64-00124B AC61-11056J AC59-00012D
VR9060 AC97-00855B AC64-00147B AC64-00124B AC61-11056J AC59-00012D
VR8070 AC97-00621A AC64-00177A AC64-00293A AC61-11056R AC59-00012F
VR8060 AC97-00621C AC64-00333A AC64-00293A AC61-11056J AC59-00012F
VR5070 AC97-00621B AC64-00177B AC64-00293A AC61-11056R AC59-00012F
VR5060 AC97-00621D AC64-00333B AC64-00293A AC61-11054A AC59-00012F
VR3060 AC97-00213X AC64-52169M AC64-00293A AC61-11054A AC59-00012F
VR9800C AC97-00855C AC64-00147B AC64-00124B AC61-11056J AC59-00010H
VR9770C AC97-00855D AC64-00147B AC64-00124B AC61-11056J AC59-00012D
VR8800C AC97-00651A AC64-00359A AC64-30891B AC61-00002A AC59-00012F
VR8770C AC97-00067E AC64-00333D AC64-30892C AC61-11056R AC59-00012F
VR8660C AC97-00651A AC64-00359A AC64-30891B AC61-00002A AC59-00012F
VR8441C AC97-00996A AC64-00291L AC64-30891A AC61-00002A AC59-00012F
VR8440C AC97-00654A AC64-00291D AC64-30891A AC61-00002A AC59-00004A
VR5770C AC97-00067F AC64-00333E AC64-30892C AC61-11056Q AC59-00012F
VR5660C AC97-00652A AC64-00359B AC64-30891B AC61-00050A AC59-00012F
VR5441C AC97-00997A AC64-00291M AC64-30891A AC61-00050A AC59-00012F
VR5440C AC97-00655A AC64-00291E AC64-30891A AC61-00050A AC59-00004A
VR3660C AC97-00653A AC64-00359C AC64-30891B AC61-00050A AC59-00012F
VR3441C AC97-00998A AC64-00291N AC64-30891A AC61-00050A AC59-00012F
VR3440C AC97-00656A AC64-00291F AC64-30891A AC61-00050A AC59-00004A

Exploded View and Parts List
3-4 Samsung Electronics
3-2 Mechanical Parts (Top Side)
G001
K250 K248
K110
K502
K350 K330
K182 K140
K490
K530
K240
G532 G420
G450 K546
G510
B410
B440 B444 B446
B448 B452
G527
G520
G480
G680
S.N.A. S.N.A.
S.N.A.
S.N.A.
S.N.A.
G530
K340
B473
K188
G555
G546
S.N.A. : Service Not Available
S.N.A.

Exploded View and Parts List
Samsung Electronics 3-5
Loc. No Parts No. Description ; Specification Remark
B410 AC31-12016D MOTOR-LOADING ASSY;-,SNHNE,-,-
B440 AC60-10515A SCREW-MACHINE;-,PH,+,-,M3,L3,ZPC,-,YEL
B444 AC66-20571A GEAR-WORM;-,POM SW-01,0.5,2,-,4.5,X-9
B446 AC61-21005A HOLDER-WORM;-,POM M90-44,-,-,-,X-9
B448 AC66-20573A GEAR-WORM WHEEL;-,POM SW-01,0.6,11,-,6.6
B452 AC66-20575A GEAR-FL CAM;-,POM SW-01,M0.6,Z88,-,PCD58
B473 AC61-60559A SPRING-PINCH DRIVE;-,TS,SUS304,PI0.5,OD4
G001 Refer to table below ASSY-CYLINDER;CX-9T
G420 AC66-80142A SLIDER-SUPPLY ASSY;-,X-9(TS),-,-,-,X-9
G450 AC66-80141A SLIDER-TAKE UP ASSY;-,X-9(TS),-,-,-,X-9
G480 AC33-00003A HEAD-ACE ASSY;SHINHEUNG;-,-,-,-,X-9
G510 6006-001075 SCREW-ASSY TAPT;WSP,PH,+,M2.6,L5.0,ZPC
G520 AC66-30539A LEVER-#9 GUIDE ASSY;-,X-9(TS),-,-,-,X-9
G527 AC61-60553A SPRING-#9 GUIDE;-,ES,SUS304-WPB,OD3.1,0.
G530 AC33-00002A HEAD-FE;-,HVFHP0038A,-,-,-,X-9
G532 AC60-10519A SCREW-TAP TITE;-,PH,+,-,M2.6,L8,ZPC
G546 AC66-30535A LEVER-FL DOOR;-,POM M90-44,-,-,BLK,X-9
G555 AC59-90403A UNIT-PINCH ASSY;X-9,-
G680 AC66-30557A LEVER-H/CLEANER ASSY;-,POM+URETHANE,-,- (OPTIONAL)
K110 AC66-10267A REEL-DISK S;-,POM M90-44,-,-,X-9
K140 AC66-10268A REEL-DISK T;-,POM M90-44,-,-,X-9
K182 AC66-30524A LEVER-IDLER;-,POM9044,-,-,-,-
K188 AC66-20577A GEAR-IDLER;-,PEBAX 7033,-,-,-,-,X-9
K240 AC66-30538A LEVER-TENSION ASSY;-,X-9(TS),-,-,-,X-9
K248 AC61-60554A SPRING-TENSION LEVER;-,ES,SUS304-WPB,OD3
K250 AC63-12029A BAND-BRAKE ASSY;-,X-9(TS),-,-,-,X-9
K330 AC66-30550A LEVER-S.BRAKE ASSY;-,POM+SUS,-,-,-,X-9
K340 AC66-30549A LEVER-T.BRAKE ASSY;-,POM+SUS,-,-,-,X-9
K350 AC61-60564A SPRING-BRAKE;-,TENSION,SWP-A,0.25,3,-,X-
K490 AC61-21010B HOLDER-CASS ASSY;-,SECC+POM+SUS,-,-,-,X-
K502 AC61-60561A SPRING-FL.LEVER-LR;-,ES,SUS304 WPB,PI2.7
K530 AC66-30546A LEVER-FL.ARM ASS’Y;-,SECC+POM+SUS,-,-,-,
K546 AC61-50658A GUIDE-CASS. DOOR;-,POM M90-44,-,-,NTR,-,
Parts No. Application Models Remark
AC97-00526A VR9070/9060/9800C/9770C/8800C H6NJ/DLC
AC97-00527A VR8070/8060/8770C/8660C/8441C/8440C H6NJ/NON-DLC
AC97-00529A VR5070/5060/5770C/5660C/5441C/5440C D4NJ/NON-DLC
AC97-00546A VR3060/3660C/3441C/3440C 2HD/NON-DLC

Exploded View and Parts List
3-6 Samsung Electronics
3-3 Mechanical Parts (Bottom Side)
G542 B560
B484
B458
B500
B488
B462
(OPTIONAL)
S.N.A.
S.N.A.
S.N.A.
S.N.A.
B456
K222 K200 K225 K221
B570
B238
S.N.A. : Service Not Available

Exploded View and Parts List
Samsung Electronics 3-7
Loc. No Parts No. Description ; Specification Remark
B238 AC61-50660A SLEEVE-TENSION;-,POM M90-44,-,-,ID3,-,-,
B456 AC66-20576A GEAR-JOINT 1;-,POM SW-01,M1.0,Z22,-,PCD2
B458 AC66-20574A GEAR-JOINT 2;-,POM SW-01,M1.0,Z14,-,PCD1
B462 AC60-10517A SCREW-TAP TITE;-,PH,+,-,M2.6,L5,ZPC,-,YE
B484 AC66-20580A GEAR-LOADING DRIVE;-,POM SW-01,M1.0,Z32,
B488 AC66-30543A LEVER-S LOAD ASSY;-,-,-,-,-,X-9
B500 AC66-30542A LEVER-T LOAD ASSY;-,-,-,-,-,X-9
B560 AC31-00005A MOTOR-CAPSTAN;-,F2QSB02,-,-
B570 AC60-10514A SCREW-CAPSTAN;-,PH,+,M2.6,L6,-
G542 AC66-60051A BELT-PULLEY;-,5CM-70,2 * 2,-,71.3,-,X-9
K200 AC61-21012A HOLDER-CLUTCH ASSY;-,-,-,-,-,X-9
K221 AC66-20581A GEAR-CENTER ASSY;-,POM,M=O.5,-,HIGHT T.,
K222 AC60-30306A WASHER-SLIT;-,-,ID2.1,OD5.0,T0.5,-,POLYS
K225 AC66-30547A LEVER-UP DOWN ASSY;-,POM+SUS,-,-,-,X-9

Exploded View and Parts List
3-8 Samsung Electronics
MEMO

Loc.No Part No Description ; Specification Remark Loc.No Part No Description ; Specification Remark
Samsung Electronics 4-1
- - ASSY-PCB-MAIN;TWIN,HI-FI,120V S.N.A.
S.M.P.S. PARTS
BD1SR1 3301-000297 CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
BD1SS1 AC27-92001M INDUCTOR;70UH-M RT BFS3565R2F,-,-,-,-
C1SD01 2201-000934 C-CERAMIC,DISC;3.3nF,20%,400V,Y5U,TP,15x
C1SD05 2201-000930 C-CERAMIC,DISC;0.22nF,10%,500V,Y5P,TP,5.
C1SD06 2301-000423 C-FILM,PEF;3.3NF,5%,100V,TP,7X10X4.5MM,5
C1SR01 2401-001681 C-AL;82uF,20%,200V,GP,TP,16x26,7.5m
C1SR02 2401-000905 C-AL;22UF,20%,16V,BP,-,6X11,2.5MM
C1SR03 2401-001235 C-AL;4.7uF,20%,250V,WT,TP,10x12.5,5
C1SR04 2301-000417 C-FILM,PEF;24nF,5%,50V,TP,6.5x10.5x4mm,5
C1SR05 2301-000176 C-FILM,PEF;18nF,5%,100V,TP,10X9X4.3X5,5m
C1SR07 2201-000795 C-CERAMIC,DISC;10nF,10%,400V,Y5P,TP,15x1
C1SS03 2201-000808 C-CERAMIC,DISC;2.2nF,10%,400V,Y5U,TP,12x
C1SS04 2201-000916 C-CERAMIC,DISC;100pF,10%,400V,Y5U,TP,10x
C1SS06 2401-000385 C-AL;10uF,20%,100V,GP,TP,6.3x11,5
C1SS07 2401-002162 C-AL;1000uF,20%,25V,WT,TP,10x20,5mm
C1SS08 2401-001126 C-AL;330uF,20%,25V,WT,TP,10x12.5,5
C1SS10 2401-000118 C-AL;1000uF,20%,10V,GP,TP,10x12.5,5
C1SS11 2301-000129 C-FILM,PEF;100nF,5%,50V,TP,10X9X4.3X5,5m
C1SS35 2401-003059 C-AL;1000UF,20%,16V,WT,TP,10X16,5
CN1SS1 3711-000178 CONNECTOR-HEADER;1WALL,2P,1R,3.96mm,STRA
D1SD01 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D1SD02 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D1SR01 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D1SR02 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D1SS01 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS02 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS03 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS04 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS05 0402-000276 DIODE-RECTIFIER;UF4007,1KV,1A,DO-41,TP
D1SS06 0402-001194 DIODE-RECTIFIER;UG2D,200V,2A,DO-204AC,TP
D1SS07 0402-000431 DIODE-RECTIFIER;FML-M02S,200V,2.5A,TO-22
F1SD01 3601-001122 FUSE-CARTRIDGE;250V,1.6A,FAST-ACTING,GLA
IC1SS1 0604-001028 PHOTO-COUPLER;TR,50-600%,250mW,DIP-4,ST
IC1SS2 AC14-12006D IC;KA431Z,TO-92,TAPING
L1SS01 AC29-30050C FILTER-LINE NOISE;-,25MH,0.35A,AC250V,BS
L1SS02 AC27-12001N COIL-CHOKE;10UH-15%,RA,K-30,Q80,150KHZ,-
L1SS03 AC27-12001N COIL-CHOKE;10UH-15%,RA,K-30,Q80,150KHZ,-
PT1SD1 AC26-00001E TRANS-SWITCHING;-,230V,DEMCO,EE2821,1.3M
Q1SR01 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN,400MW,T0-9
Q1SR02 0502-001123 TR-POWER;KTC4419,NPN,30W,TO-220,ST,10-4
R1SD01 2001-000490 R-CARBON;200OHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SD02 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SD03 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SR01 2002-000320 R-COMPOSITION;1.8Mohm,10%,1/2W,AA,TP,3.5
R1SR02 2003-002117 R-METAL OXIDE(S);330Kohm,5%,1W,AA,TP,3.3
R1SR03 2003-000314 R-METAL OXIDE;47ohm,5%,2W,AE,TP,6x16mm
R1SR04 2003-000314 R-METAL OXIDE;47ohm,5%,2W,AE,TP,6x16mm
R1SR05 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R1SR06 2003-000119 R-METAL OXIDE;0.68ohm,5%,2W,AE,TP,6x16mm
R1SR07 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R1SS01 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
R1SS02 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
R1SS04 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SS05 2004-000869 R-METAL;3Kohm,1%,1/8W,AA,TP,1.8x3.2mm
R1SS06 2004-000459 R-METAL;2.2Kohm,1%,1/8W,AA,TP,1.8x3.2m
VA1SS1 1405-001026 VARISTOR;470V,600A,9x7mm,TP
ZD1SR1 0403-000571 DIODE-ZENER;UZP43B,43V,40-46V,1W,DO-41,T
POWER PARTS
C1P101 2401-001730 C-AL;10uF,20%,50V,GP,TP,5x11,2.5
C1P103 2401-002299 C-AL;4.7uF,20%,50V,GP,TP,5x7,5
C1P104 2401-002299 C-AL;4.7uF,20%,50V,GP,TP,5x7,5
C1P105 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
C1P106 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C1P108 2401-001545 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,2.5
C1P112 2401-002299 C-AL;4.7uF,20%,50V,GP,TP,5x7,5
D1P101 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D1P102 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D1P104 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D1P106 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D1P107 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D1P108 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D1P109 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
L1P101 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
L1P102 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
Q1P101 0501-000616 TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
Q1P102 0501-000616 TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
Q1P104 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
Q1P107 0501-000616 TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
Q1P108 0504-000142 TR-DIGITAL;KSR2001,PNP,300MW,4.7K/4.7K,T
Q1P109 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
R1P101 2001-000855 R-CARBON;560OHM,5%,1/4W,AA,TP,2.4X6.4MM
R1P102 2007-000493 R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R1P103 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R1P104 2007-000642 R-CHIP;270OHM,5%,1/10W,DA,TP,2012
R1P110 2001-000362 R-CARBON;150OHM,5%,1/8W,AA,TP,1.8X3.2MM
ZD1P01 0403-000390 DIODE-ZENER;UZP33B,33V,31.4-34.6V,1W,DO-
ZD1P02 0403-000717 DIODE-ZENER;MTZJ5.1B,5.1V,4.94-5.2V,500m
ZD1P03 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
ZD1P05 0403-001211 DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
LOGIC PARTS
C601 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C602 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C603 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C604 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C605 2401-001545 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,2.5
C606 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C607 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C608 2401-001545 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,2.5
C609 2203-000323 C-CERAMIC,CHIP;12nF,10%,50V,X7R,TP,2012,
C610 2203-000989 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C611 2202-000853 C-CERAMIC,MLC-AXIAL;4.7nF,30%,16V,Y5R,TP
C612 2203-000361 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,2012
C613 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C614 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C615 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C616 2203-000192 C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C617 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5mm
C618 2203-000634 C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,201
C619 2203-000683 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
C620 2203-000683 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
C621 2203-000634 C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,201
4. Electrical Parts List
4-1 VR9070/9060/9800C/9770C Only

Loc.No Part No Description ; Specification RemarkLoc.No Part No Description ; Specification Remark
4-2 Samsung Electronics
Electrical Parts List
C622 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
C623 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP
C624 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C625 2203-000192 C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C626 2203-000192 C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C627 2203-001245 C-CERAMIC,CHIP;0.082nF,5%,50V,NP0,TP,201
C628 2401-002068 C-AL;33uF,20%,16V,GP,TP,5x11,5
C629 2203-001579 C-CERAMIC,CHIP;15nF,10%,50V,NP0,TP,2012
C630 2401-002144 C-AL;47uF,20%,16V,GP,TP,5x11,5
C631 2203-000192 C-CERAMIC,CHIP;100nF,+80-20%,50V,Y5V,TP,
C632 2203-001077 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C633 2203-000716 C-CERAMIC,CHIP;3.3nF,10%,50V,X7R,TP,2012
C634 2203-001077 C-CERAMIC,CHIP;0.056nF,5%,50V,NP0,TP,201
C635 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C636 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C637 2401-001545 C-AL;47uF,20%,25V,GP,TP,6.3x7mm,2.5
C638 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C639 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C640 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C641 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5
C642 2203-000989 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C643 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C644 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C645 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C6B01 2401-000199 C-AL;1000uF,20%,6.3V,GP,TP,10x12.5,
C6C01 2401-002008 C-AL;100uF,20%,16V,GP,TP,6.3x11,2.5 VR9070/9800C ONLY
C6C02 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP, VR9070/9800C ONLY
C6SH01 2401-002036 C-AL;1uF,20%,50V,GP,TP,5x11,2.5mm VR9070/9800C ONLY
CN601 AC39-20817S LEAD CONNECTOR-ASSY;DP,SMH200-02,YBH200-
CN604 3711-003749 CONNECTOR-HEADER;BOX,8P,2R,2mm,STRAIGHT,
CN605 3708-001163 CONNECTOR-FPC/FC/PIC;5P,1.25mm,STRAIGHT,
D601 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D603 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D604 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D605 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D606 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D607 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
IC601 AC09-00095A IC-MICOM;MN101D02F-CF,MN101D02F-CF,100P VR9070/9800C ONLY
IC601 AC09-00110A IC-MICOM;MN101D02D-CB2,-,100P,QFP,QFP,- VR9060/9770C ONLY
IC602 1003-001162 IC-MOTOR DRIVER;KA3082,SIP,10PIN,25MIL,D
IC603 1103-001148 IC-EEPROM;24C021,2KBIT,DIP,8P,300MIL,10M
IC603 1103-001149 IC-EEPROM;24C041,4KBIT,DIP,8P,300MIL,10M VR9800C ONLY
IC6B1 AC14-12006C IC;KA7533,DIP,-
L601 3301-000297 CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
L6C01 2702-000106 INDUCTOR-RADIAL;100uH,10%,6.2x7.4mm VR9070/9800C ONLY
LD601 0601-000517 LED-IR;RECTANGULA,4x6.0mm,75mW,6V,950
PT601 0604-001122 PHOTO-INTERRUPTER;TR,0.065%,150mW,DIP-4,
PT602 0604-001122 PHOTO-INTERRUPTER;TR,0.065%,150mW,DIP-4,
Q6C01 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92, VR9070/9800C ONLY
Q6C02 0501-000616 TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L VR9070/9800C ONLY
R601 2007-000586 R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R602 2007-000572 R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R603 2007-000586 R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R604 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R605 2001-000111 R-CARBON;150OHM,5%,1/4W,AA,TP,2.4X6.4MM
R606 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R607 2007-000738 R-CHIP;30KOHM,5%,1/10W,DA,TP,2012
R608 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R609 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R610 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R611 2007-000282 R-CHIP;100KOHM,5%,1/10W,DA,TP,2012
R612 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R613 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP,1.8X3.2M
R614 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R615 2007-000981 R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R616 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R617 2007-000221 R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R618 2001-000633 R-CARBON;30KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R619 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R620 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R621 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R622 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R623 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R624 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R625 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R626 2001-000347 R-CARBON;13KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R627 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R628 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R629 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R630 2001-000864 R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R631 2001-000864 R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R632 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R633 2007-000565 R-CHIP;220KOHM,5%,1/10W,DA,TP,2012
R634 2007-000068 R-CHIP;470KOHM,5%,1/10W,DA,TP,2012
R635 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R636 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R637 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R638 2007-000686 R-CHIP;3.3KOHM,5%,1/10W,DA,TP,2012
R639 2007-000518 R-CHIP;2.7KOHM,5%,1/10W,DA,TP,2012
R640 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R641 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R642 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R643 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R644 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R645 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R646 2007-000981 R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R647 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R648 2001-000003 R-CARBON;330ohm,5%,1/8W,AA,TP,1.8x3.2mm
R649 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R650 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R651 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R652 2203-000444 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,- VR9070/9800C ONLY
R652 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012 VR9060/9770C ONLY
R653 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R655 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R656 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R657 2001-000837 R-CARBON;51KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R658 2007-001009 R-CHIP;51KOHM,5%,1/10W,DA,TP,2012
R659 2003-000259 R-METAL OXIDE;3.9OHM,5%,2W,AE,TP,6X16MM
R660 2007-000001 R-CHIP;68KOHM,5%,1/10W,DA,TP,2012
R661 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R662 2007-000355 R-CHIP;12KOHM,5%,1/10W,DA,TP,2012
R663 2001-000679 R-CARBON;36KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R6A01 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R6B01 2001-000458 R-CARBON;2.2OHM,5%,1/8W,AA,TP,1.8X3.2MM
R6C01 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012 VR9070/9800C ONLY
R6C02 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM VR9070/9800C ONLY
R6C03 2007-000671 R-CHIP;2KOHM,5%,1/10W,DA,TP,2012 VR9070/9800C ONLY
R6C04 2001-000598 R-CARBON;3.3OHM,5%,1/8W,AA,TP,1.8X3.2MM VR9070/9800C ONLY
R6F1 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R6F2 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R6SH01 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 VR9070/9800C ONLY
S601 0603-001011 PHOTO-TR;NPN,35V,6V,50mA,75mW,BK
S602 0603-001011 PHOTO-TR;NPN,35V,6V,50mA,75mW,BK
SW602 AC34-20100B SWITCH-REC;-,-,X-9,-
SW603 AC34-20100A SWITCH-MODE;-,-,X-9,-
XT601 2801-001384 CRYSTAL-UNIT;14.31818MHz,30ppm,28-AAA,16
XT602 2801-003318 CRYSTAL-UNIT;32.768KHz,20ppm,28-AAP,12.5
