Samsung SCZ-2273 User manual

High Resolution Zoom
Color Camera
User Manual
SCZ-2273
SCZ-2373

High Resolution Zoom Color Camera
User Manual
Copyright
©2013 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document
shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but
no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the
user’s own responsibility. Samsung Techwin shall have the right to change the contents of this manual without
prior notice for the purpose of enhanced performance.
Warranty
If the product does not operate properly in normal conditions, please let us know. Samsung Techwin will resolve
the problem for free of charge. The warranty period is 3 years. However, the followings are excluded:
If the system behaves abnormally because you run a program irrelevant to the system operation.
Deteriorated performance or natural worn-out in process of time
Design and specifications are subject to change without prior notice.
•
•
B
T
■
■

Before operating the camera, confirm the camera model and correct input power voltage.
To help you understand this manual thoroughly, we’ll introduce our model description.
■ SCZ-2273/2373 SERIES
• NTSC MODEL • PAL MODEL
SCZ-2273/2373N SCZ-2273/2373P
■ MODEL DESCRIPTION
• SCZ-2273/2373X
_
• SIGNAL SYSTEM
N→NTSC MODEL
P→PAL MODEL
SIGNAL SYSTEM

4_ safety information
safety information
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates that dangerous voltage consisting a risk of electric
shock is present within this unit.
This exclamation point symbol is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
WARNING
To prevent damage which may result in fire or electric shock hazard, do not expose this
appliance to rain or moisture.
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance
with the installation instructions.
WARNING
Be sure to use only the standard adapter that is specified in the specification sheet.
Using any other adapter could cause fire, electrical shock, or damage to the product.
Incorrectly connecting the power supply or replacing battery may cause explosion, fire,
electric shock, or damage to the product.
Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause
abnormal heat generation or fire.
Securely plug the power cord into the power receptacle. insecure connection may cause
fire.
When installing the camera, fasten it securely and firmly. The fall of camera may cause
personal injury.
•
•
1.
2.
3.
4.
5.
C
6
7
8
9
1
1
2
3
4
5
6
7
8
9
1

English_5
●SAFETY INFORMATION
c
e
s
e
e
Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers
filled with water on top of the camera. doing so may cause personal injury due to fire,
electric shock, or falling objects.
Do not install the unit in humid, dusty, or sooty locations. doing so may cause fire or
electric shock.
If any unusual smells or smoke come from the unit, stop using the product. in such case,
immediately disconnect the power source and contact the service center. continued use
in such a condition may cause fire or electric shock.
If this product fails to operate normally, contact the nearest service center. never
disassemble or modify this product in any way. (samsung is not liable for problems
caused by unauthorized modifications or attempted repair.)
When cleaning, do not spray water directly onto parts of the product. doing so may
cause fire or electric shock.
CAUTION
Do not drop objects on the product or apply strong shock to it. Keep away from a
location subject to excessive vibrationor magnetic interference.
Do not install in a location subject to high temperature (over 55°C), low temperature
(below -10°C), or high humidity. Doing so may cause fire or electric shock.
If you want to relocate the already installed product, be sure to turn off the power and
then move or reinstall it.
Remove the power plug from the outlet when then there is a lightning. Neglecting to do
so may cause fire or damage to the product.
Keep out of direct sunlight and heat radiation sources. It may cause fire.
Install it in a place with good ventilation.
Avoid aiming the camera directly towards extremely bright objects such as sun, as this
may damage the CCD image sensor.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,
such as vases, shall be placed on the apparatus.
The Mains plug is used as a disconnect device and shall stay readily operable at any
time.
Do not expose the camera to radioactivity. Radioactivity exposure may damage the CCD.
6.
7.
8.
9.
10.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.

6_ safety information
safety information
FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions :
This device may not cause harmful interference, and
This device must accept any interference received including interference that may cause
undesired operation.
CAUTION
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
IC Compliance Notice
This Class A digital apparatus meets all requirements of the Canadian
Interference.-Causing Equipment Regulations of ICES-003.
1)
2)
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be
disposed of with other household waste at the end of their working life. Where marked, the chemical symbols
Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC
Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health
or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of
waste and recycle them through your local, free battery return system.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of
their working life. To prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate these items from other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
im
1
2
3
4
5
6
7
8
9
1
1
1
1
1

English_7
●SAFETY INFORMATION
g
e
h
nt
important safety instructions
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as radiators, heat registers, or other apparatus
(including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong is provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus.
Unplug this apparatus when a card is used. Use caution when moving
the cart/ apparatus combination to avoid injury from tip-over.
Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as powersupply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.
Apparatus shall not be exposed to dripping or splashing and no
objects filled with liquids, such as vases, shall be placed on the
apparatus
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Samsung Techwin cares for the environment at all product
manufacturing stages to preserve the environment, and is taking a
number of steps to provide customers with more environment-friendly
products.The Eco mark represents Samsung Techwin’s will to create
environment-friendly products, and indicates that the product satisfies
the EU RoHS Directive.

8_ contents
contents
INTRODUCTION
9
9Features

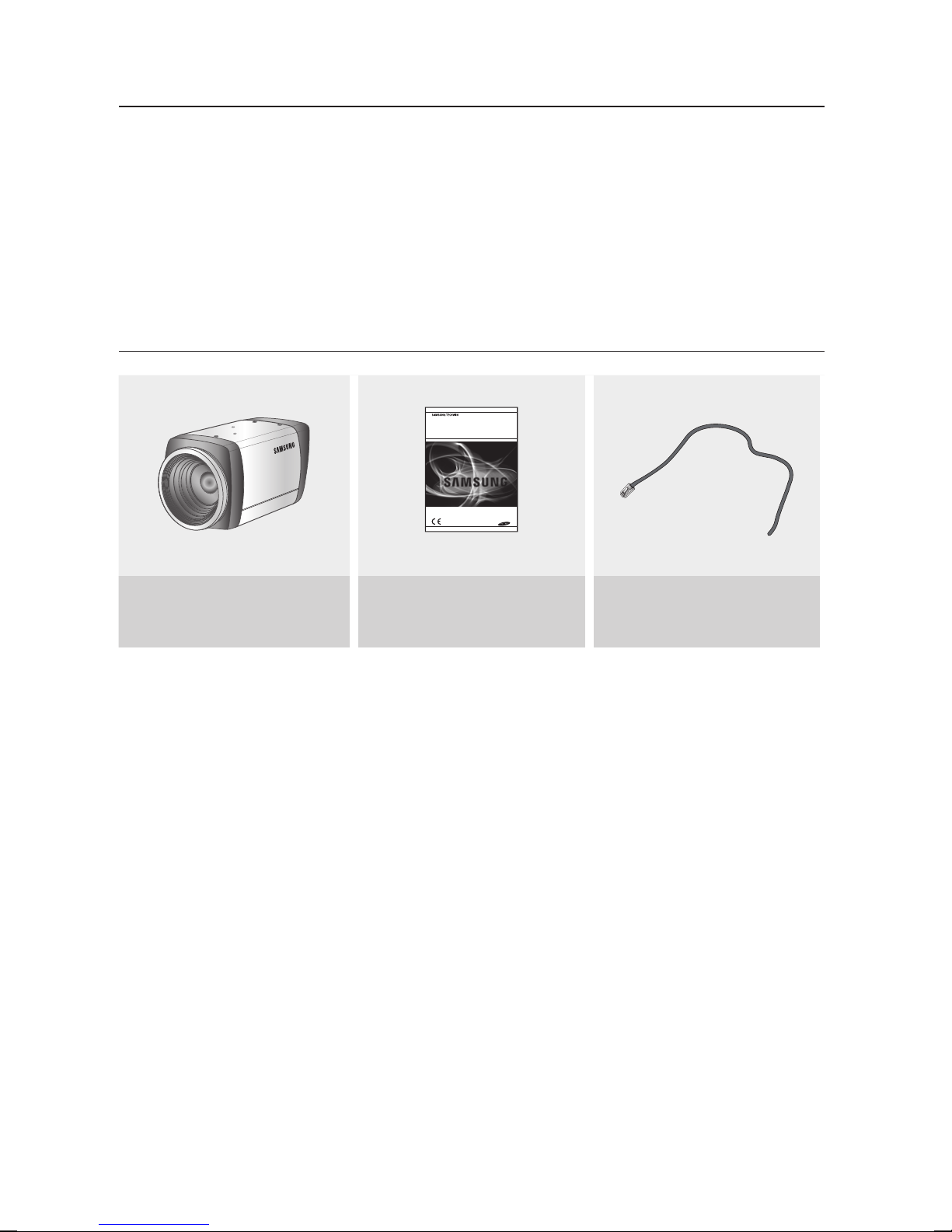

10 What’s included
11 Component names and
functions
CONNECTION
13

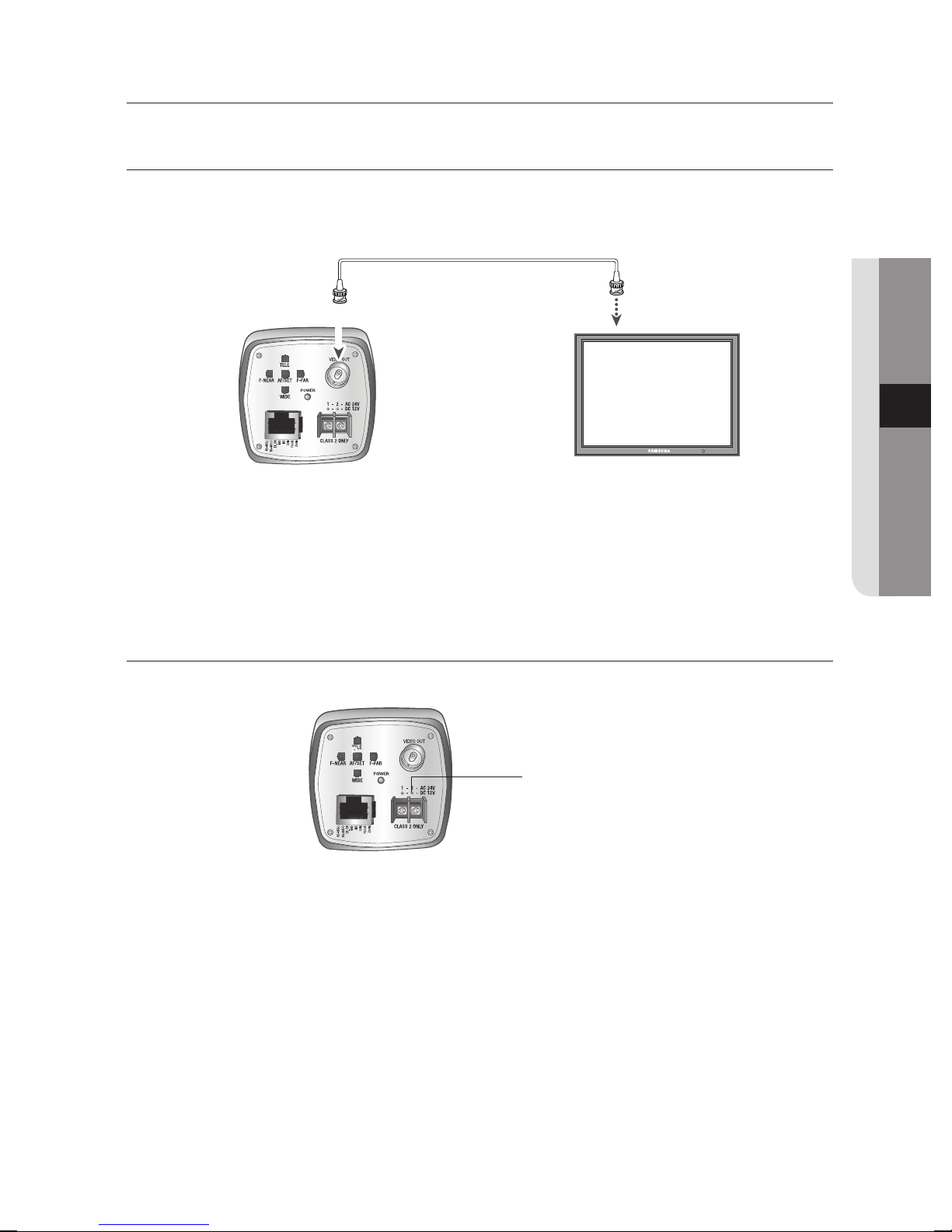

13 Connecting to Monitor
13 Connecting to Power
14 Using Coaxial Communications
15
Connecting to 8P Control Terminal
CAMERA OPERATION
17
17 Menu Configuration
18 Menu Setup
TROUBLESHOOTING
37
37 Troubleshooting
SPECIFICATIONS
38
38 Specifications
40 Dimensions
SAMSUNG-T PROTOCOL
COMMAND DESCRIPTION
42
42 SAMSUNG-T Protocol
Command Description
F
y
y
y
y
y
y
y
y
y
i

English_9
●INTRODUCTION
s
al
FEATURES
37x/27x Optical Zoom
The built-in SCZ-2373(37x)/2273(27x) optical zoom lens is a highly durable component. It
features auto focus, auto iris, and zoom functions.
High Resolution
By adopting a diagonal 6mm (1/3”) 520,000 pixel (NTSC), 610,000 pixel (PAL) Sony 960H
Exview HAD CCD II, the camera produces clear picture quality with a horizontal resolution
of 680TV lines in ER mode .
SSNR 3 (Samsung Super Noise Reduction)
The high-performance SV-V DSP chip effectively removes low-light gain noise and
ghosting to provide clear images even in dark environments.
DIS (Digital Image Stabilizer)
Digital image stabilization compensates camera shakings for enhanced image capture.

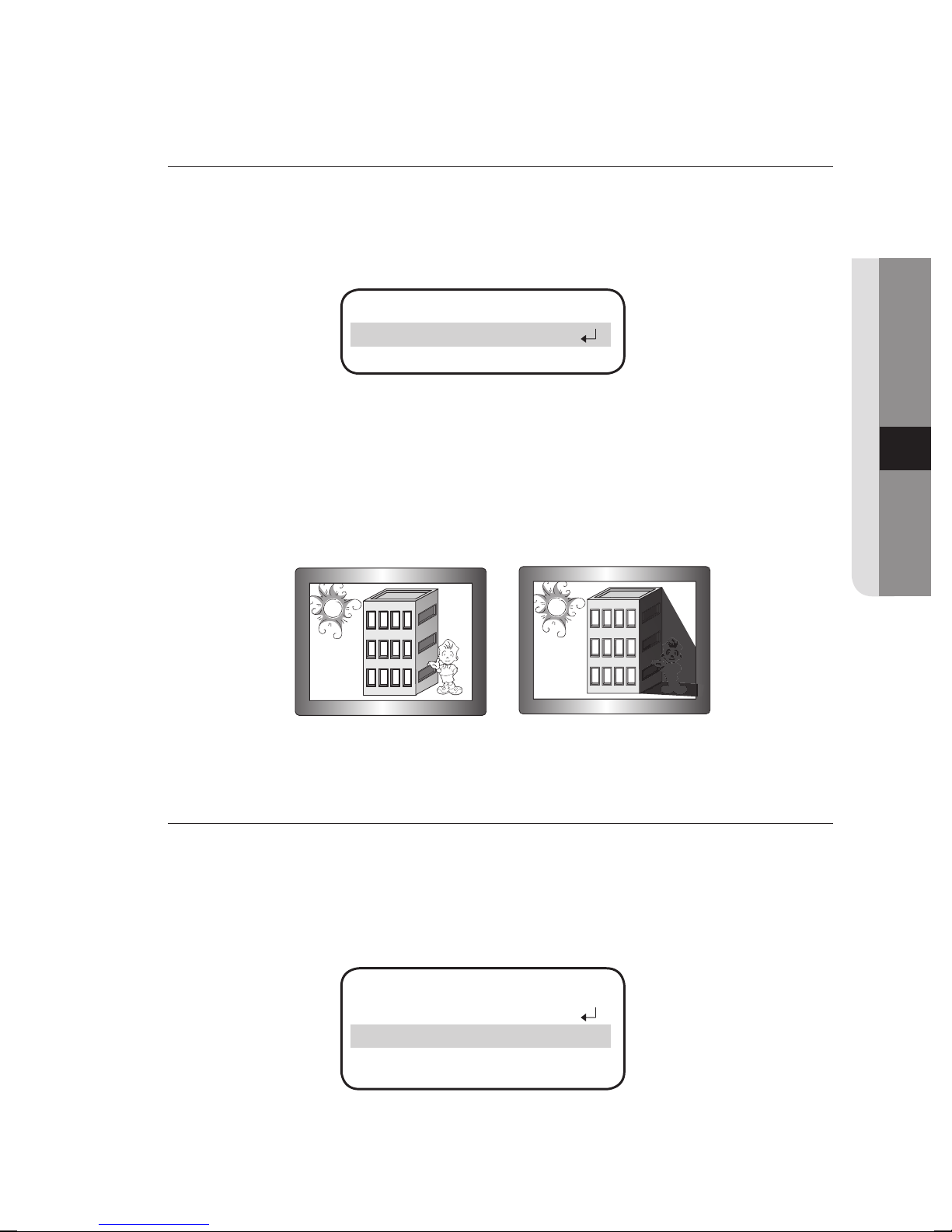

SSDR (Samsung Super Dynamic Range)
For images with high contrast between bright and dark areas from difficult lighting
conditions such as backlighting, this camera selectively illuminates darker areas while
retaining the same light level for brighter areas to even out the overall brightness.
DAY&NIGHT(ICR)
This camera has a function that automatically selects the mode that is appropriate for
daytime or night-time conditions.The COLOR mode operates in daytime conditions to
provide optimum colors, and BW mode operates in night-time conditions to enhance the
definition of the image.
Motion Detection
Since the camera detects motion without any additional external sensor, you can monitor
activity more efficient.
Miscellaneous Functions
HLC(High Light Compensation), SENS-UP, FLIP(H/V-REV), D-ZOOM, SHARPNESS,
MOTION DETECTION and PRIVACY functions are provided.
Communication
RS-485, Coaxial communication methods are supported.
- RS-485 Communications
:
SAMSUNG-T, SAMSUNG-E, Pelco-P, Pelco-D, Panasonic, Bosch, Honeywell, AD,
Vicon.
- Coaxial Communications
: Pelco Coaxitron
y
y
y
y
y
y
y
y
y
introduction

introduction
10_ introduction
OSD
The camera’s OSD is complimented by 18 foreign languages.
- NTSC : Korean, English, French, Spanish, Japanese, Portuguese
- PAL : English, French, German, Spanish, Italian, Chinese, Russian, Czech, Polish,
Portuguese, Romanian, Serbian, Swedish, Danish, Turkish
WHAT’S INCLUDED
High Resolution Zoom
Color Camera
Quick Guide
SCZ-2373
Main Body Quick Manual 8-PIN CABLE ASSY
y
C

English_11
●INTRODUCTION
COMPONENT NAMES AND FUNCTIONS
➊ Tripod Mounting Bracket Screw Hole
Used to fix tripod mounting bracket on top of the
camera.
➋ Tripod Mounting Hole
Used to install the camera on an optional tripod.
The tripod must be equipped with screws with
specifications shown on the right.
Attach the bracket to the top of the camera. Use
screws included in the package or their equivalent
(less than 6mm). Otherwise, the bracket may not
assemble to the camera properly.
I
TOP BOTTOM
1/4"-20 UNC (20 THREAD)
L:4.5mm±0.2mm (ISO standard),
or 0.197" (ASA standard)
L
➋
➊

introduction
12_ introduction
BOTTOM VIEW
➌Key Buttons
Following buttons control zoom, focus, and auto focus functions.
WIDE button : To widen the view. (ZOOM OUT)
TELE button : To close in on a far object. (ZOOM IN)
F-NEAR button : To see a near object clearly.
F-FAR button : To see a far object clearly.
Pressing the 'SET' button locks the zoom control function of these buttons and prompts
the main setup menu.
Main setup menu can be navigated using these buttons.
SET : To access the main setup menu.
UP (TELE button) : To move the arrow indicator to up.
DOWN (WIDE button) : To move the arrow indicator to down.
LEFT (F-NEAR button) : To move the arrow indicator to left.
RIGHT (F-FAR button) : To move the arrow indicator to right.
➍Power Input Terminal
Power supply terminal (DC12V±10%/AC24V±10%)
➎Power LED
Illuminates when power is supplied.
➏Video Output Jack
Used to connect an external video monitor in jack.
➐ RJ-45 JACK
Terminals, such as RS-485 communications, MD OUT, ZOOM, and FOCUS,
EX_DN are areincluded.
y
y
c
C
C
C
y
y
➌
➍
➏
➎
➐

English_13
●CONNECTION
s
S,
connection
CONNECTING TO MONITOR
Connect Video Out Jack to the monitor's Video In jack as shown below.
Connection methods may vary depending on the video equipment. Please refer
to the model specific instruction manual.
Connect cables with the unit powered down.
CONNECTING TO POWER
Use of an excessively long adaptor output line for connection to the camera may
affect the performance of the camera.
Standard voltage for camera operation : DC12V ± 10%/ AC 24V ± 10%
The wire is polarized. Match ‘+’ and ‘-’ terminals properly.
y
y
I


CCD Camera Monitor
Power Input Terminal
DC 12V, 500mA / AC24V, 500mA

14_ 연결방법
C
T
c
*
USING COAXIAL COMMUNICATIONS
The camera can be controlled by using external controllers like a Remote
controller. (RS-485 Communication)
• Coaxial Communications System
• OSD Control method
• If you set the sensitivity level of the sub menu item (of COAX) to “Low”, you have to
press the MENU/ENTER (OSD KEY) button twice in a row to access the OSD menu.
(To prevent an error by noise from the DVR)
CAMERA DVR CONTROLLER
SET MENU/ENTER OSD KEY
UP UP KEY JOYSTICK UP
DOWN DOWN KEY JOYSTICK DOWN
LEFT LEFT KEY JOYSTICK LEFT
RIGHT RIGHT KEY JOYSTICK RIGHT
• Video Cable
The camera's video output port is connected to the monitor with a BNC coaxial
cable, shown below : If the distance between the camera and the monitor exceeds
the recommended maximum, please use an auxiliary video amp.
Distance Recommended Cable Specification
300m 3C2V(RG-59/U)
450m 5C2V(RG-6/U)
600m 7C2V(RG-11/U)
It is recommended that pure copper coax cable is used and not copper coated
steel, as this will cause issues with the communication over the coaxial cable.
I
1234
5678
9101112
13 14 15 16
ALARM HDD NETWORK BACKUP REC
DVDRECORDER
REC
ZOOM
MODE
FREEZE
AUDIO
BACKUP
ALRAM
SEARCH
TELE WIDE VIEW PRESET
MENU
RETURN
USB
OPEN/CLOSE
MENU
SEARCH
MULTI
REC
MENU
PRESET
GROUP
TRACK
CAM
12345
67890
MON
CLOSEOPEN
NEARFAR
WIDETELE
PTZDVRMTXSETUP
ESC
FUNCENTER
<DVR>
• : BNC
• ---- : RS-485
<CONTROLLER>

English_15
●CONNECTION
CONNECTING TO 8P CONTROL TERMINAL
The camera can be controlled by using external controllers like a Remote
controller. (RS-485 Communication)
* 8P Control Terminal Configuration
SPC-6000
8-Pin CABLE ASSY
SPC-200
MENU
SEARCH
MULTI
REC
MENU
PRESET
GROUP
TRACK
CAM
12345
67890
MON
CLOSEOPEN
NEARFAR
WIDE TELE
PTZ DVR MTX SETUP
ESC
FUNCENTER
Name Cable color Description Name Cable color Description
ZOOM ORANGE
-
GND BLUE -
FOCUS
WHITE/ORANGE EX DN WHITE/BLUE External D/N
COM GREEN 485+ BROWN RS-485 communication
MD OUT
WHITE/GREEN 485- WHITE/BROWN RS-485 communication

connection
16_ connection
Connecto r Function Signal Level I/O
ZOOM
Tele
+6V ~ +12V
COM
I
Wide
-6V ~ -12V
COM
FOCUS
Far
+6V ~ +12V
COM
I
Near
-6V ~ -12V
COM
COM
COM
-
MD
USER Vcc
0V
5±0.5sec
←→
O
EX DN
DAY mode : D&N terminals must be OPEN to external signals.
(Do not input voltage)
NIGHT mode : D&N terminal must be connected to the ground
I
MD(Motion Detection) Output format is open collector.
When using the MD function, the 'GND' should be connected to the frame ground.
Do not simultaneously connect the RS-485 (+) (-) communication line when you
use voltage control ZOOM and FOCUS, using the RECEIVER BOX (SRX-100B).
* Match the communication setup between devices when you use the wired
controller (SPC-200) or SPC-6000.
I


ITEM SPC-200 SPC-6000(Factory Default)
MODE Serial Serial
Data Bit 8 bit 8 bit
Bit/Sec 9600bps 9600bps
Parity EVEN NONE
CAM ID NO. 0 1~255
RETURN PACKET ENABLE See the SPC-6000 manual
There is no motion There is motion
Contact an authorized technician for inspection.
I
M
c

English_17
●CAMERA OPERATION
MENU CONFIGURATION
camera operation
MAIN SETUP MENU
SSDR ⷅON
 ⷅOFF
WHITE BAL ⷅATW
 ⷅMANUAL  ⷅAWC→SET
ⷅOUTDOOR ⷅINDOOR
 ⷅMERCURY
BACKLIGHT ⷅOFF
 ⷅBLC  ⷅHLC
MOTION DET ⷅOFF
 ⷅON
FOCUS
ⷅMODE  ⷅZOOM TRACK  ⷅZOOM SPEED
ⷅD-ZOOM
 ⷅZOOM POS INIT  ⷅUSER PRESET
ⷅLENS INIT
 ⷅRETURN
EXPOSURE
ⷅBRIGHTNESS  ⷅIRIS  ⷅSHUTTER
ⷅAGC
 ⷅSSNR3  ⷅSENS-UP
ⷅRETURN
SPECIAL
ⷅPRIVACY  ⷅDAY/NIGHT  ⷅDIS
ⷅSYNC
 ⷅCOMM ADJ  ⷅIMAGE ADJ
ⷅDISPLAY
 ⷅRETURN
RESET
EXIT

18_ camera operation
camera operation
MENU SETUP
Use the five buttons on back of the camera.
1. Press the SET button for 2 seconds. (Short-pressing the button activates the AUTO FOCUS).
• Main setup menu is displayed on the monitor screen.
2. Select the desired feature using the UP or DOWN button.
• Each pressing of the UP or DOWN button moves the indicator to the next or previous
feature.
• Move the arrow indicator to the desired feature item.
3. Change the status of the selected feature using the LEFT or RIGHT button.
4. When completed, move the arrow indicator to 'EXIT' and press the SET button.
Features marked with a have an accessible submenu.
Access the submenu by pressing the SET button.
I

MAIN SETUP
䯝SSDR ON
WHITE BAL ATW
BACKLIGHT OFF
MOTION DET OFF
FOCUS
EXPOSURE
SPECIAL
RESET
EXIT
Change the status
using the LEFT or
RIGHT button.
Select feature
using the UP or
DOWN button
UP button
SET/AF button
LEFT button
DOWN button
RIGHT button

English_19
●CAMERA OPERATION
.
SSDR (SAMSUNG SUPER DYNAMIC RANGE)
SSDR illuminates darker spots of an image while retaining the same light level
for brighter spots to even out the overall brightness of images with high contrast
between bright and dark spots
When the SETUP menu screen is displayed, select ‘SSDR’ by using the
button so that the arrow indicates ‘SSDR’.
Use the button to change the SSDR level according to the contrast between
bright and dark areas.
WHITE BAL (WHITE BALANCE)
Use the White Balance function to adjust the screen color.
When the SETUP menu screen is displayed, select ‘White Bal’ by using the
Up and Down buttons so that the arrow indicates ‘White Bal’ .
Select a desired mode using the Up and Down buttons.
1.
2.
1.
2.
SSDR OFF
SSDR ON
MAIN SETUP
䯝 SSDR ON
WHITE BAL ATW
MAIN SETUP
SSDR ON
䯝 WHITE BAL ATW
BACKLIGHT OFF

20_ camera operation
camera operation
RN
⼿#
Select one of the following 6 modes, as appropriate for your purpose.
ATW : Select this when the color temperature is between 1,800˚K and
10,500˚K.
MANUAL
: Select this to fine-tune White Balance manually. Set White
Balance first by using the ATW or AWC mode. After that switch
to MANUAL mode, fine-tune the White Balance and then press
the Function Setup switch.
AWC⽍SET
: To find the optimal luminance level for the current environment,
point the camera towards a sheet of white paper and press the
Function Setup switch. If the environment changes, readjust it.
OUTDOOR : Select this when the color temperature is between 1,700˚K and
11,000˚K. (sodium light inclusion)
INDOOR
: Select this when the color temperature is between 4,500˚K and
8,500˚K.
MERCURY
: This is an auto compensation function that optimizes camera
colors for the environments such as mercury lamps. (Color
temperature : 2400°K~11000°K)
White Balance may not work properly under the following conditions. In
this case select the AWC mode.
➊ When the color temperature of the environment surrounding the subject
is out of the control range (e.g. clear sky or sunset).
➋ When the ambient illumination of the subject is dim.
➌ If the camera is directed towards a fluorescent light or is installed in a
place where illumination changes dramatically, the White Balance
operation may become unstable.
BACKLIGHT
Unlike conventional cameras, the SCZ-2373/2273
is designed to deliver a distinctive subject and
background at the same time, even when the
subject is backlight, by using the features of the
proprietary SV-V DSP chip.
When the SETUP menu screen is
displayed, select ‘Backlight’ by using the Up and Down buttons so that the
arrow indicates ‘Backlight’ .
y
y
y
y
y
y
I
1.
MAIN SETUP
SSDR ON
WHITE BAL ATW
䯝
BACKLIGHT OFF
MOTION DET OFF
