Samsung NZ64H57 Series User manual

imagine the possibilities
Thank you for purchasing this Samsung product.
Induction Hob
user manual
NZ64H57 Series
This manual is made with 100 % recycled paper.
NZ64H57479K_EU_DG68-00559A-01_EN.indd 1 2015-01-19 �� 2:19:42

English - 2
contents
USING THIS MANUAL
4
04 Important safety symbols and
precautions
SAFETY INSTRUCTIONS
5
05 Safety instructions
DISPOSAL INSTRUCTIONS
9
09 Disposing of the packaging material
09 Proper disposal of your old appliance
09 Correct disposal of this product
(Waste electrical & Electronic equipment)
INSTALLING THE HOB
10
10 Safety instructions for the installer
11 Connecting to the mains power supply
13 Installing into the countertop
PARTS AND FEATURES
16
16 Cooking zones
16 Control panel
17 Components
17 Induction heating
18 The key features of your appliance
19 Safety shuto
20 Residual heat indicator
20 Temperature detection
BEFORE YOU BEGIN
21
21 Initial cleaning
NZ64H57479K_EU_DG68-00559A-01_EN.indd 2 2015-01-19 �� 2:19:42

English - 3
CLEANING AND CARE
33
33 Hob
35 Hob frame (option)
35 To avoid damaging your appliance
WARRANTY AND SERVICE
36
36 FAQs and troubleshooting
38 Service
TECHNICAL DATA
39
39 Technical data
39 Cooking zones
40 Product information
HOB USE
21
21 Cookware for induction cooking zones
22 Suitability test
22 Size of pans
22 Operating noises
23 Using suitable cookware
24 Using the touch control sensors
24 Switching the appliance on
24 Select cooking zone and heat setting
25 Switching the appliance o
25 Switching a cooking zone o
25 Using the child safety lock
26 Timer
28 Using ready pan
29 Power boost control
30 Power management
30 Pause
31 Bridge control
31 Sound On/O
32 Suggested settings for cooking
specific foods
NZ64H57479K_EU_DG68-00559A-01_EN.indd 3 2015-01-19 �� 2:19:42

English - 4
using this manual
Please take the time to read this owner’s manual, paying particular
attention to the safety information contained in the following section,
before using your appliance. Keep this manual for future reference.
If transferring ownership of the appliance, please remember to pass
the manual on to the new owner.
IMPORTANT SAFETY SYMBOLS AND
PRECAUTIONS
The following symbols are used in the text of this Owner’s Manual :
WARNING
Hazards or unsafe practices that may result in
severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in
minor personal injury or property damage.
CAUTION
To reduce the risk of fire, explosion, electric
shock, or personal injury when using your hob,
follow these basic safety precaution
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent
electric shock.
Call the service center for help.
Note
Important
NZ64H57479K_EU_DG68-00559A-01_EN.indd 4 2015-01-19 �� 2:19:42

English - 5
safety instructions
The safety aspects of this appliance comply with all accepted
technical and safety standards. However, as manufacturers we also
believe it is our responsibility to familiarize you with the following
safety instructions.
WARNING
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Appliance should allow the disconnection of the
appliance from the supply after installation. The
disconnection may be achieved by having the plug
accessible or by incorporating a switch in the fixed
wiring in accordance with the wiring rules.
WARNING: If the surface is cracked, switch o the
appliance to avoid the possibility of electric shock.
During use the appliance becomes hot. Care should be
taken to avoid touching heating elements inside the hob.
WARNING: Accessible parts may become hot during
use. Young children should be kept away.
A steam cleaner is not to be used to clean the product.
Metallic objects such as knives, forks, spoons and lids
should not be placed on the hob surface since they
can get hot.
After use, switch o the hob element by its control and do
not rely on the pan detector.
01
USING THIS MANUAL & SAFETY INSTRUCTIONS
NZ64H57479K_EU_DG68-00559A-01_EN.indd 5 2015-01-19 �� 2:19:42

English - 6
Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the hob glass since they can scratch
the surface, which may result in shattering of the glass.
Appliance is not intended to be operated by means of
an external timer or separate remote-control system.
WARNING: The appliance and its accessible parts
become hot during use.
Care should be taken to avoid touching heating
elements inside the hob.
Children less than 8 years of age shall be kept away
unless continuously supervised.
This appliance can be used by children aged from
8years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision.
WARNING: Unattended cooking on a hob with fat or
oil can be dangerous and may result in fire.
NEVER try to extinguish a fire with water, but switch o
the appliance and then cover flame e.g. with a lid or a
fire blanket.
WARNING: Danger of fire: do not store items on the
cooking surfaces.
The temperature of accessible surfaces may be high
when the appliance is operating.
Keep the appliance and its cord out of reach of
children less than 8 years.
WARNING: Use only hob guards designed by the
manufacturer of the cooking appliance. The use of
inappropriate guards can cause accidents.
NZ64H57479K_EU_DG68-00559A-01_EN.indd 6 2015-01-19 �� 2:19:42

English - 7
CAUTION
Be sure the appliance is properly installed and
grounded by a qualified technician.
The appliance should be serviced only by qualified
service personnel. Repairs carried out by unqualified
individuals may cause injury or serious malfunction. If
your appliance is in need of repair, contact your local
service centre. Failure to follow these instructions may
result in damage and void the warranty.
Flush - mounted appliances may be operated only after
they have been installed in cabinets and workplaces that
conform to the relevant standards. This ensures sucient
protection against contact for electrical units as required
by the essential safety standards.
If your appliance malfunctions or if fractures, cracks or
splits appear:
- switch o all cooking zones;
- disconnect the hob from the mains supply; and
- contact your local service centre.
If the cooktop cracks, turn the appliance o to avoid the
possibility of electric shock. Do not use your hob until the
glass surface has been replaced.
Do not use the hob to heat aluminium foil, products
wrapped in aluminium foil or frozen foods packaged in
aluminium cookware.
Liquid between the bottom of the pan and the hob can
produce steam pressure. Which may cause the pan to
jump.
Always ensure that the hotplate and the base of the pan
are kept dry.
The cooking zones will become hot when you cook.
Always keep small children away from the appliance.
Keep all packaging materials well out of the reach of
children, as packaging materials can be dangerous to
children.
01
USING THIS MANUAL & SAFETY INSTRUCTIONS
NZ64H57479K_EU_DG68-00559A-01_EN.indd 7 2015-01-19 �� 2:19:43

English - 8
This appliance is to be used only for normal cooking
and frying in the home. It is not designed for
commercial or industrial use.
Never use the hob for heating the room.
Take care when plugging electrical appliances into
mains sockets near the hob. Mains leads must not
come into contact with the cooktop.
Overheated fat and oil can catch fire quickly. Never
leave surface units unattended when preparing foods
in fat or oil, for example, when cooking chips.
Turn the cooking zones o after use.
Always keep the control panels clean and dry.
Never place combustible items on the hob, it may
cause fire.
There is the risk of burns from the appliance if used
carelessly.
Cables from electrical appliances must not touch the
hot surface of the hob or hot cookware.
Do not use the hob to dry clothes.
WARNING : Users with Pacemakers and Active Heart
Implants must keep their upper body at a minimum
distance of 30 cm from induction cooking zones
when turned on. If in doubt, you should consult the
manufacturer of your device or your doctor. (Induction
hob model only)
Do not attempt to repair, disassemble, or modify the
appliance yourself.
Always turn the appliance o before cleaning.
Clean the hob in accordance with the cleaning and
care instructions contained in this manual.
NZ64H57479K_EU_DG68-00559A-01_EN.indd 8 2015-01-19 �� 2:19:43

English - 9English - 9
WARNING
WARNING
disposal instructions
DISPOSING OF THE PACKAGING MATERIAL
All materials used to package the appliance are fully recyclable.
Sheet and hard foam parts are appropriately marked. Please
dispose of packaging materials and old appliances with due
regard to safety and the environment.
PROPER DISPOSAL OF YOUR OLD APPLIANCE
WARNING : Before disposing of your old appliance, make it
inoperable so that it cannot be a source of danger.
To do this, have a qualified technician disconnect the appliance
from the mains supply and remove the mains lead.
The appliance may not be disposed of in the household rubbish.
Information about collection dates and public refuse disposal sites
is available from your local refuse department or council.
CORRECT DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL & ELECTRONIC EQUIPMENT)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates
that the product and its electronic accessories (e.g. charger,
headset, USB cable) should not be disposed of with other
household waste at the end of their working life. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, please separate these items from
other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their local government oce, for details
of where and how they can take these items for environmentally
safe recycling.
Business users should contact their supplier and check the terms
and conditions of the purchase contract. This product and its
electronic accessories should not be mixed with other commercial
wastes for disposal.
02 DISPOSAL INSTRUCTIONS
NZ64H57479K_EU_DG68-00559A-01_EN.indd 9 2015-01-19 �� 2:19:43

English - 10English - 10
installing the hob
WARNING Be sure the new appliance is installed and grounded only by
qualified personnel.
Please observe this instruction. The warranty will not cover any
damage that may occur as a result of improper installation.
Technical data is provided at the end of this manual.
SAFETY INSTRUCTIONS FOR THE INSTALLER
• A device must be provided in the electrical installation that allows
the appliance to be disconnected from the mains at all poles with a
contact opening width of at least 3 mm. Suitable isolation devices
include line protecting cut - outs, fuses (screw type fuses are to be
removed from the holder), earth leakage trips and contactors.
• With respect to fire protection, this appliance corresponds to EN
60335 - 2 - 6. This type of appliance may be installed with a high
cupboard or wall on one side.
• The installation must guarantee shock protection.
• The kitchen unit in which the appliance is fitted must satisfy the
stability requirements of DIN 68930.
• For protection against moisture, all cut surfaces are to be sealed
with a suitable sealant.
• On tiled work surfaces, the joints in the area where the hob sits
must be completely filled with grout.
• On natural, artificial stone, or ceramic tops, the snap action springs
must be bonded in place with a suitable artificial resin or mixed
adhesive.
• Ensure that the seal is correctly seated against the work surface
without any gaps. Additional silicon sealant must not be applied;
this would make removal more dicult when servicing.
• The hob must be pressed out from below when removed.
• A board can be installed underneath the hob.
• The ventilation gap between the worktop and front of the unit
underneath it must not be covered.
NZ64H57479K_EU_DG68-00559A-01_EN.indd 10 2015-01-19 �� 2:19:43

English - 11English - 11
CONNECTING TO THE MAINS POWER SUPPLY
Before connecting, check that the nominal voltage of the appliance,
that is, the voltage stated on the rating plate, corresponds to the
available supply voltage. The rating plate is located on the lower
casing of the hob.
WARNING Shut o power to circuit before connecting wires to
circuit.
The heating element voltage is AC 230 V~. The appliance also
works perfectly on networks with AC 220 V~ or AC 240 V~.
The hob is to be connected to the mains using a device that
allows the appliance to be disconnected from the mains at
all poles with a contact opening width of at least 3 mm, eg.
automatic line protecting cut - out, earth leakage trips or fuse.
WARNING
The cable connections must be made in accordance with
regulations and the terminal screws tightened securely.
WARNING Once the hob is connected to the mains supply, check that all
cooking zones are ready for use by briefly switching each on
in turn at the maximum setting with suitable cookware.
When the hob is powered on for the first time, all displays light
and the child safety lock is activated.
WARNING Pay attention (conformity) to phase and neutral allocation
of house connection and appliance (connection schemes);
otherwise, components can be damaged.
Warranty does not cover damage resulting from improper
installation.
WARNING If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
03 INSTALLING THE HOB
NZ64H57479K_EU_DG68-00559A-01_EN.indd 11 2015-01-19 �� 2:19:43

English - 12English - 12
• 1N ~ • 2N ~ : Separate the 2-phase
wires (L1 and L2) before
connection.
1N ~32A
L N
Brown
Black
Green/Yellow
Blue
Gray
220-240 V ~
2N ~16A
N
L1 L2
380-415 V ~
Brown
Black
Green/Yellow
Blue
Gray
220-240 V ~
2 x 1N ~ : Separate the wires before connection.
2 x 1N ~16A
L1 N1 L2 N2
Brown Gray
Blue Black
Green/Yellow
220-240 V ~ 220-240 V ~
WARNING For correct supply
connection, follow the
wiring diagram attached
near the terminals.
NZ64H57479K_EU_DG68-00559A-01_EN.indd 12 2015-01-19 �� 2:19:43

English - 13English - 13

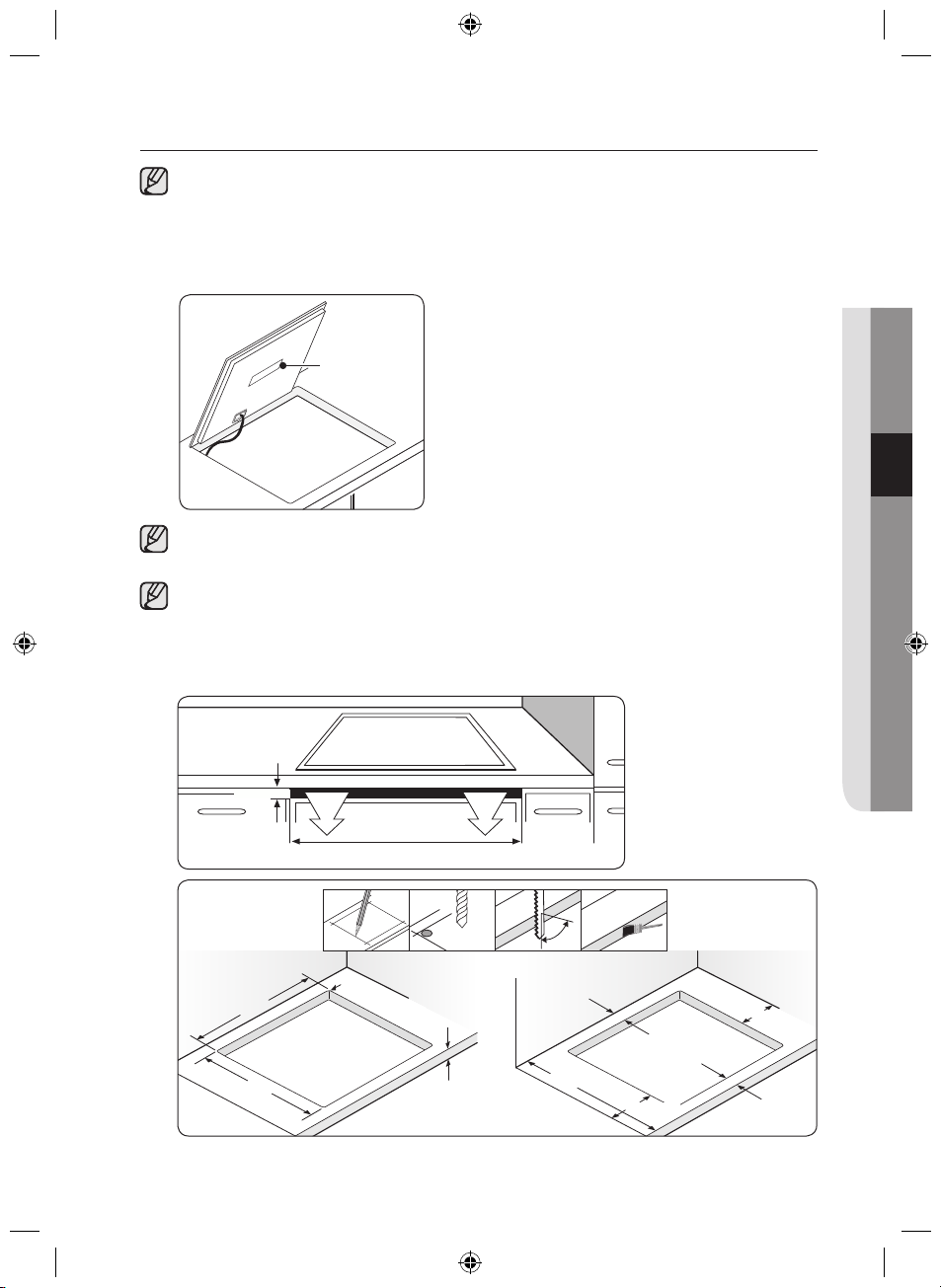

INSTALLING INTO THE COUNTERTOP
Make a note of the serial number on the appliance rating
plate prior to installation. This number will be required in the
case of requests for service and is no longer accessible after
installation, as it is on the original rating plate on the underside
of the appliance.
serial number
Pay special attention to the minimum space and clearance
requirements.
The bottom of the hob is equipped with two fans. If there is
a drawer under the hob it should not be used to store small
objects or paper, since they could damage the fan or interfere
with the cooling if they are sucked into it.
03 INSTALLING THE HOB
Min. 2 mm
560 mm
x 4
ø 6
90 °
560±1
R3
max. 50
490±1
min. 20 min. 60
min. 50
min. 60
min. 600
min. 60
NZ64H57479K_EU_DG68-00559A-01_EN.indd 13 2015-01-19 �� 2:19:44

English - 14English - 14
min. 40 min. 40
min. 50
min. 60 480
1525
520
min. 550
min. 35
min. 20
min. 2
min. 20
min. 100
min. 65
min. 5
NZ64H57479K_EU_DG68-00559A-01_EN.indd 14 2015-01-19 �� 2:19:44

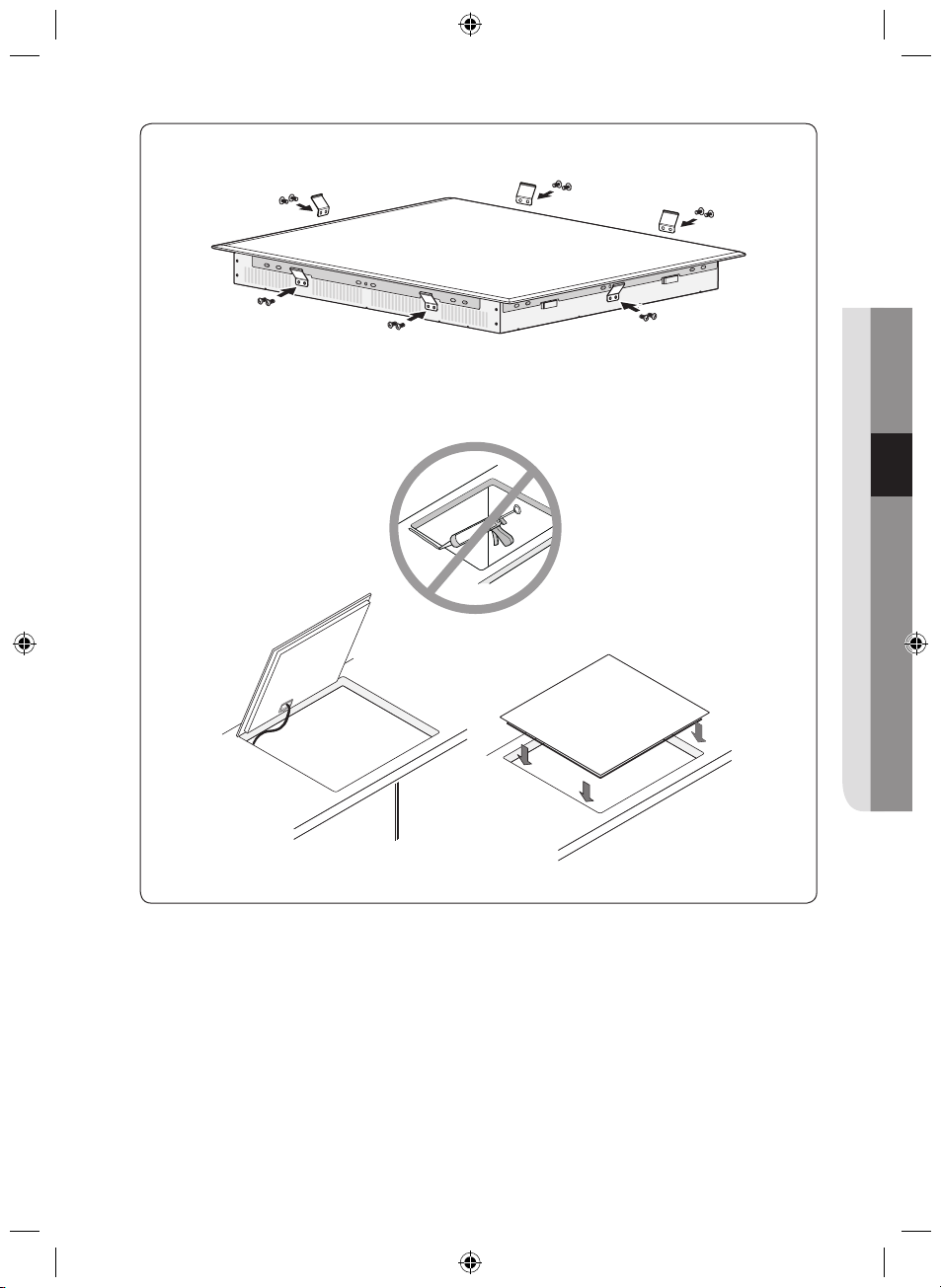

English - 15English - 15
03 INSTALLING THE HOB
NZ64H57479K_EU_DG68-00559A-01_EN.indd 15 2015-01-19 �� 2:19:44

English - 16English - 16
parts and features
COOKING ZONES
1. Induction rear Bridge zone 1800 W with Power Boost 2600 W
2. Induction front Bridge zone 1800 W with Power Boost 2600 W
3. Induction complete Bridge zone 3300 W with Power Boost
3600 W
4. Induction cooking zone 2200 W with Power Boost 3200 W
5. Induction cooking zone 1200 W with Power Boost 2000 W
6. Control panel
CONTROL PANEL
1. Cooking zone selectors
2. Heat setting selectors
3. Lock control sensor
4. On/O control sensor
1
2
4
5
6
3
210 mm
145 mm
3
5 876
29
4
1
NZ64H57479K_EU_DG68-00559A-01_EN.indd 16 2015-01-19 �� 2:19:44

English - 17English - 17
5. Timer control sensor and indicator
6. Indicators for heat settings and residual heat
7. Ready Pan
8. Pause
9. Complete Bridge zone selector

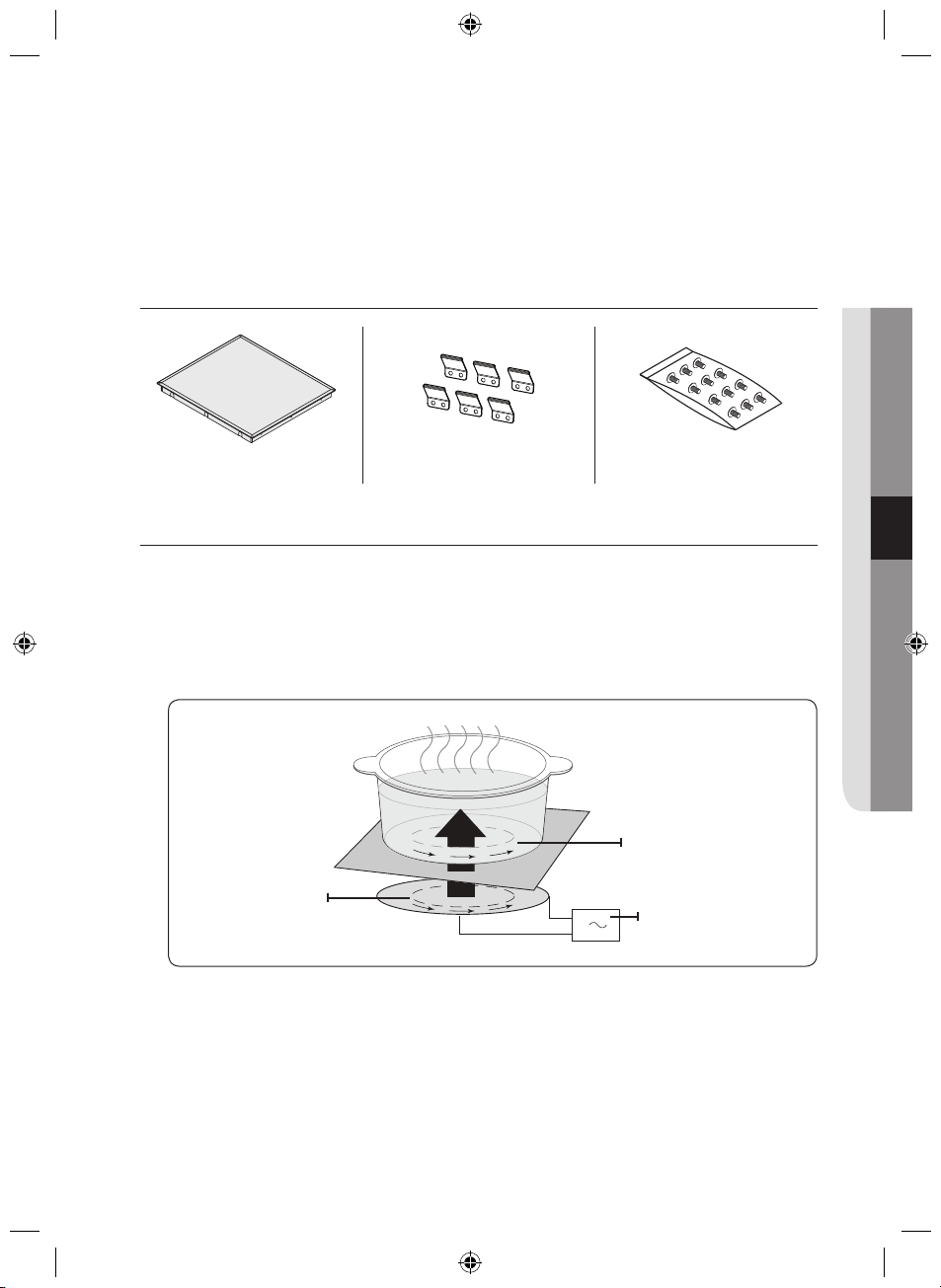

COMPONENTS
Induction hob Bracket Spring Screws
INDUCTION HEATING
• The Principle of Induction Heating: When you place your
cookware on a cooking zone and you turn it on, the electronic
circuits in your induction hob produce “induced currents” in
the bottom of the cookware which instantly raise cookware’s
temperature.
• Greater speed in cooking and frying: As the pan is heated
directly and not the glass, the eciency is greater than in other
systems because no heat is lost. Most of the energy absorbed
is transformed into heat.
04 PARTS AND FEATURES
Induction coil
Induced currents
Electronic circuits
NZ64H57479K_EU_DG68-00559A-01_EN.indd 17 2015-01-19 �� 2:19:44

English - 18English - 18
THE KEY FEATURES OF YOUR APPLIANCE
• Ceramic glass cooking surface : The appliance has a ceramic
glass cooking surface and four rapid - response cooking zones.
• Touch control sensors : Your appliance is operated using
touch control sensors.
• Easy cleaning : One advantage of the ceramic glass cooking
surface and the control sensors is their accessibility.
The smooth, flat surface is easy to clean.
• On/O sensor : The “On/O” control sensor provides the
appliance with a separate mains switch. Touching this sensor
switches the power supply on or o completely.
• Control and function indicators : Digital displays and
indicator lights provide information about settings and activated
functions, as well as the presence of residual heat in the various
cooking zones.
• Safety shuto :
A safety shuto ensures that cooking zones
switch o automatically after a period of time if the setting has
not been changed.
• Power Boost : U se this function to heat up the contents of
the pan faster than maximum power level ‘ ’. (The display will
show ‘ ’.)
• Residual heat indicator : An icon for residual heat appears in
the display if the cooking zone is so hot that there is a risk of
burning.
• Auto Pan-Detection : Each cooking zone incorporates an
automatic pan-detection system, the system is calibrated in
order to recognize pans of a diameter just slightly smaller than
the cooking zone. Pans must always be placed centrally on
each cooking zone. And you should use suitable cookware.
• Digital displays :
- the appliance has been switched on
- to , selected heat settings
- residual heat (Stay Hot)
- residual heat
- the child lock is activated
- error message, the touch sensor button has been
touched for longer than 8 seconds.
NZ64H57479K_EU_DG68-00559A-01_EN.indd 18 2015-01-19 �� 2:19:45

English - 19English - 19
- error message, when the hob is overheated because
of abnormal operation. (example : operation with empty
cookware)
- message, cookware is unsuitable or too small or no
cookware has been placed on the cooking zone.
•
Pause : Use this function to switch all cooking zones on to
the low power setting. (example : to take a telephone call)
The display will show ‘ ’.
• Complete Bridge zone selector : Use this function to
expand cooking zone into complete left side.
• Ready Pan : Use this function to preheat the pan.
SAFETY SHUTOFF
If one of the cooking zones is not switched o or the heat setting
is not adjusted after an extended period of time, that particular
cooking zone will automatically switch itself o.
Any residual warmth will be indicated with , (for “hot”) in the
digital displays corresponding to the particular cooking zones.
The cooking zones switch themselves o at the following times.
Heat setting Switch o
1-3 After 6 hours
4-6 After 5 hours
7-9 After 4 hours
10-15 After 1.5 hours
If the Hob is overheated because of abnormal operation,
will be displayed. And the Hob will be switched o.
If cookware is unsuitable or too small or no cookware has
been placed on the cooking zone, will be displayed.
And after 1 minute the corresponding cooking zone will be
switched o.
Should one or more of the cooking zones switch o before the
indicated time has elapsed, see the section “Troubleshooting”.
04 PARTS AND FEATURES
NZ64H57479K_EU_DG68-00559A-01_EN.indd 19 2015-01-19 �� 2:19:45

English - 20English - 20
Other reasons why a cooking zone will switch itself o
All cooking zones will switch themselves o if liquid boils over and
lands on the control panel.
The automatic shuto will also be activated if you place a
damp cloth on the control panel. In both of these instances,
the appliance will need to be switched on again using the main
On/O control sensor after the liquid or the cloth has been
removed.
RESIDUAL HEAT INDICATOR
When an individual cooking zone or the hob is turned o, the
presence of residual heat is shown with an , (for “hot”) in the
digital display of the appropriate cooking zones. Even after the
cooking zone has been switched o, the residual heat indicator
goes out only after the cooking zone has cooled.
You can use the residual heat for thawing or keeping food warm.
WARNING As long as the residual heat indicator is illuminated, there is a
risk of burns.
WARNING If the power supply is interrupted, the , symbol will go out
and information about residual heat will no longer be available.
However, it may still be possible to burn yourself. This can be
avoided by always taking care when near the hob.
TEMPERATURE DETECTION
If for any reason the temperatures on any of the cooking zones
were to exceed the safety levels, should this happen then the
cooking zone will automatically reduce to a lower power level.
When you have finished using the hob, the cooling fan will
continue to run until the hob’s electronics has cooled down. And
the cooling fan switched itself o depending upon the temperature
of the electronics.
NZ64H57479K_EU_DG68-00559A-01_EN.indd 20 2015-01-19 �� 2:19:46
