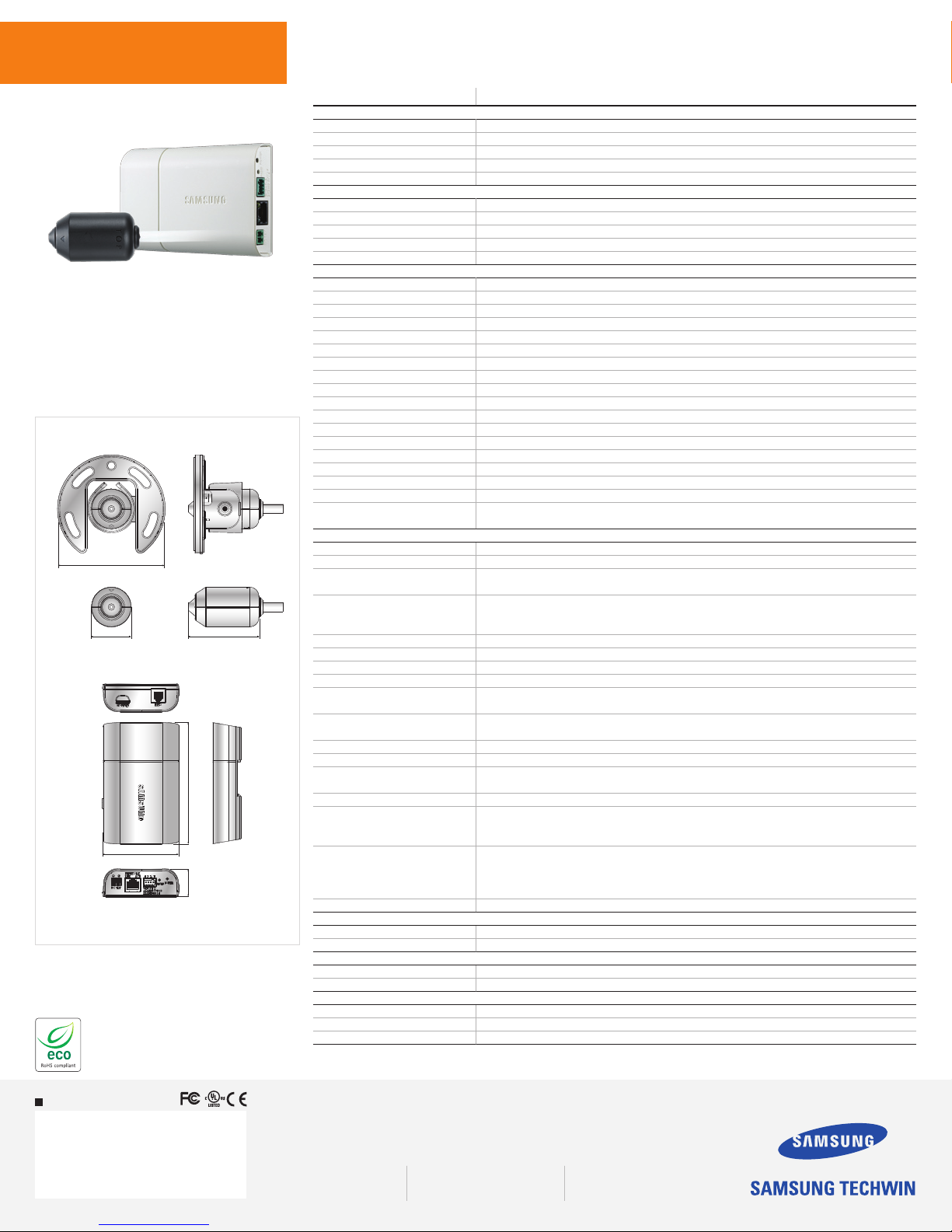

Samsung SNB-6010 User manual

www.samsungipolis.com
FIRST EDITION 05-2014
• Max. 2M (1,920 x 1,080) resolution
• WDR (120dB)
• Min. illumination [email protected] (Color)
• Advanced motion detection, Defog, VA
• Multi-crop streaming
• Extremely discreet design
2Megapixel
4.6mm Remote Head Camera
SNB-6010

I.H-1405
DISTRIBUTED BY
The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.
Design and specifications are subject to change without notice.
2Megapixel Remote Head Camera
SNB-6010
SAMSUNG TECHWIN CO., LTD.
6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, SEOUL 463-400 Rep. of KOREA
Tel : [phone]~8749, 8752~8760 Fax : [phone] www.samsungsecurity.com www.samsungcctv.com
COPYRIGHT BY SAMSUNG TECHWIN. ALL RIGHT RESERVED
SAMSUNG TECHWIN EUROPE LTD.
2nd Floor, No. 5 The Heights, Brooklands, Weybridge,
Surrey, KT13 0NY, UK
Tel : [phone] Fax: [phone]
SHANGHAI SAMSUNG TECHWIN CO., LTD.
32F, Blk B, International Business Center,
No. 391 Guiping Rd., Shanghai, China, 200233
Tel : [phone] Fax : [phone]
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Toll Free : [phone] Direct : [phone]
Fax : [phone]
Dimensions
Unit : mm (inch)
Ø24.0 (0.94")
Ø65.0 (2.56")
42.4 (1.67")
76.0 (2.99")
121.1 (4.77")28.0 (1.1")
Ø65.0 (2.56")
Ø24.0 (0.94")
76.0 (2.99")
42.4 (1.67")
121.1 (4.77")28.0 (1.1")
SNB-6010
VIDEO
Imaging Device 1/2.8" PS 2.83M CMOS
Total Pixels 1,952(H) x 1,116(V)
Effective Pixels 1,944(H) x 1,104(V)
Scanning System Progressive
Min. Illumination 0.5Lux (1/30sec, F2.5, 50IRE), 0.22Lux (1/30sec, F2.5, 30IRE)
LENS
Focal length 4.6mm pinhole
Max. Aperture ratio F2.5
Angular Field of View H : 71° / V : 38°
Min. Object Distance 0.3m
Mount Type RJ-12 connected with main unit
OPERATIONAL
Camera Title Off / On (Displayed up to 45 characters)
Day & Night Auto (Electrical) / Color / B/W / Schedule
Backlight Compensation Off / BLC / WDR
Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto / Manual
Motion Detection Off / On (4 zones with 4-sided polygon)
Privacy Masking Off / On (4 zones with 4-sided polygon)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1.2 ~ 1/10,000sec)
Flip / Mirror Off / On
Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, Appear / Disappear
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Motion detection, Tampering detection, Alarm input, Video anaytics, Network disconnection
Alarm Events File upload via FTP and E-Mail, Notification via E-Mail
local storage (SD/SDHC/SDXC) or NAS recording at Event, External output
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG
Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate
H.264 : Max. 30fps at all resolutions
MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
IP IPv4, IPv6
Protocol TTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP,
SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 15 users at unicast mode
Edge Storage micro SD/SDHC/SDXC - motion Images recorded in the SDXC/SDHC/SD memory card can be downloaded.
NAS (network attached storage)
Application Programming Interface ONVIF Profile S, SUNAPI (HTTP API), SVNP 1.2
Webpage Language
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Finnish, Norwegian
Web Viewer
Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7
Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 19),
Google Chrome (Ver. 15~25), Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7)
* Mac OS X only
Central Management Software Smart Viewer, SSM
ENVIRONMENTAL
Operating Temperature / Humidity
-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
ELECTRICAL
Input Voltage / Current PoE (IEEE802.3af), 12V DC
Power Consumption PoE : Max. 7.5W, 12V DC : Max. 6.5W
MECHANICAL
Demensions (WxHxD) Head : Ø24.0 x 42.4mm (Ø0.94" x 1.67"), Body : 76.0 x 121.1 x 28.0 (2.99" x 4.77" x 1.1")
Color / Material Head : Black / Plastic, Body : Ivory / Plastic
Weight 305g (0.67 lb)
