Samsung SCV-2081 User manual

High Resolution Vandal-Resistant
Dome Camera
User Manual
SCV-2081

High Resolution Vandal-Resistant Dome Camera
User Manual
Copyright
©2011 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document
shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but
no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on
the user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document
without prior notice.
Warranty
If the product does not operate properly in normal conditions, please let us know. Samsung Techwin will resolve
the problem for free of charge. The warranty period is 3 years. However, the followings are excluded:
If the system behaves abnormally because you run a program irrelevant to the system operation.
Deteriorated performance or natural worn-out in process of time
•
•
B
T
■
■

Before operating the camera, confirm the camera model and correct input power voltage.
To help you understand this manual thoroughly, we’ll introduce our model description.
■ SCV-2081 SERIES
• NTSC MODEL • PAL MODEL
SCV-2081N SCV-2081P
■ MODEL DESCRIPTION
• SCV-2081X
_
• SIGNAL SYSTEM
N→NTSC MODEL
P→PAL MODEL
SIGNAL SYSTEMSIGNAL SYSTEM

4_ safety information
safety information
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates that dangerous voltage consisting a risk of electric
shock is present within this unit.
This exclamation point symbol is intended to alert the user to the presence
of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING
To prevent damage which may result in fire or electric shock hazard, do not expose this
appliance to rain or moisture.
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance
with the installation instructions.
WARNING
Be sure to use only the standard adapter that is specified in the specification sheet.
Using any other adapter could cause fire, electrical shock, or damage to the product.
Incorrectly connecting the power supply or replacing battery may cause explosion, fire,
electric shock, or damage to the product.
Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause
abnormal heat generation or fire.
Securely plug the power cord into the power receptacle. insecure connection may cause
fire.
When installing the camera, fasten it securely and firmly. The fall of camera may cause
personal injury.
•
•
1.
2.
3.
4.
5.
C
6
7
8
9
1
2
3
4
5
6
7
8
9
1

English_5
●SAFETY INFORMATION
c
e
e
Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers
filled with water on top of the camera. doing so may cause personal injury due to fire,
electric shock, or falling objects.
If any unusual smells or smoke come from the unit, stop using the product. in such case,
immediately disconnect the power source and contact the service center. continued use in
such a condition may cause fire or electric shock.
If this product fails to operate normally, contact the nearest service center. never
disassemble or modify this product in any way. (samsung is not liable for problems caused
by unauthorized modifications or attempted repair.)
When cleaning, do not spray water directly onto parts of the product. doing so may cause
fire or electric shock.
CAUTION
Do not drop objects on the product or apply strong shock to it. Keep away from a location
subject to excessive vibrationor magnetic interference.
Do not install in a location subject to high temperature (over 50°C), low temperature (below
-10°C), or high humidity. Doing so may cause fire or electric shock.
If you want to relocate the already installed product, be sure to turn off the power and then
move or reinstall it.
Remove the power plug from the outlet when then there is a lightning. Neglecting to do so
may cause fire or damage to the product.
Keep out of direct sunlight and heat radiation sources. It may cause fire.
Install it in a place with good ventilation.
Avoid aiming the camera directly towards extremely bright objects such as sun, as this
may damage the CCD image sensor.
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,
such as vases, shall be placed on the apparatus.
The Mains plug is used as a disconnect device and shall stay readily operable at any time.
Do not expose the camera to radioactivity. Radioactivity exposure may damage the CCD.
6.
7.
8.
9.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.

safety information
6_ safety information
FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions :
This device may not cause harmful interference, and
This device must accept any interference received including interference that may cause
undesired operation.
CAUTION
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his own expense.
IC Compliance Notice
This Class A digital apparatus meets all requirements of the Canadian
Interference.-Causing Equipment Regulations of ICES-003.
1.
2.
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be
disposed of with other household waste at the end of their working life. Where marked, the chemical symbols
Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC
Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health
or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of waste
and recycle them through your local, free battery return system.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their
working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal,
please separate these items from other types of waste and recycle them responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
im
1
2
3
4
5
6
7
8
9
1
1
1
1
1

English_7
●SAFETY INFORMATION
o
e
e
e
t
important safety instructions
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as radiators, heat registers, or other apparatus
(including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong is provided for your safety. If
the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus.
Unplug this apparatus when a card is used. Use caution when moving
the cart/ apparatus combination to avoid injury from tip-over.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as powersupply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.

8_ contents
INTRODUCTION
9
9Features
10 What’s included
11 Component names and
Functions
INSTALLATION
12
12 Disassembling
12 Installing the camera on a ceiling
or wall

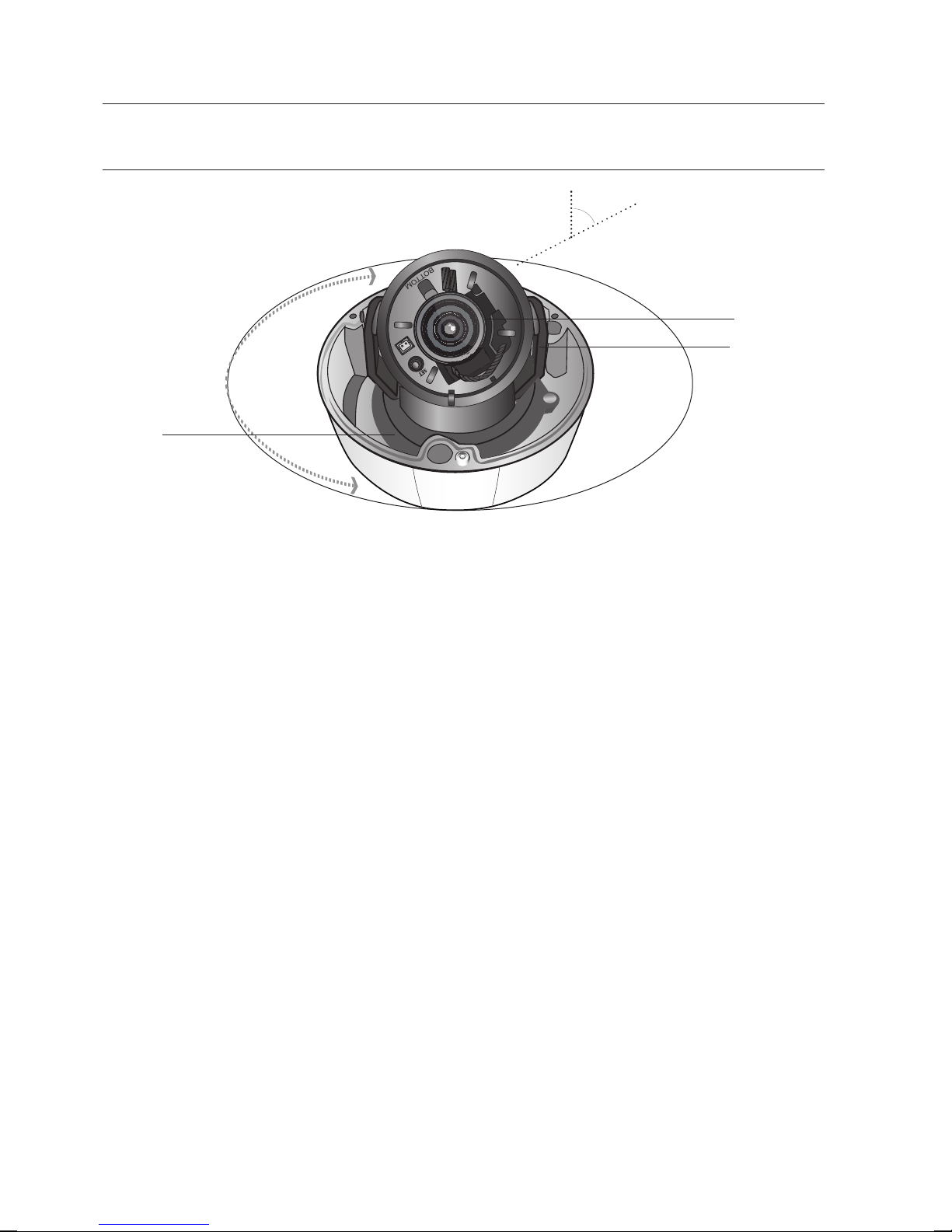

14 Adjust the panning and tilting
while watching the monitor
CONNECTION
15
15 Connecting to Monitor
15 Connecting to Power
16 Using Coaxial Communications
SETUP
17
17 Menu Configration
17 Menu Setup
contents
TROUBLESHOOTING
30
30 Troubleshooting
SPECIFICATIONS
31
31 Specifications
33 Dimension
F
y
y
y
y
y
y
y
y
y
in

English_9
●INTRODUCTION
g
FEATURES
IP66 Approved/Dust and Rain Resistant
With dust and rain resistant design, the camera can be installed outside under building
eaves or places that are exposed to the dust and rain.
Excellent Sensitivity
The built-in high sensitivity COLOR CCD produces a clear image.
- Color : 0.15Lux(50IRE, @F1.2), 0.0003LUX(SENS-UP, x512)
- B/W : 0.001Lux(50IRE, @F1.2), 0.000002LUX(SENS-UP, x512)
Ultra High Resolution
By adopting a diagonal 6mm(1/3") 410,000 (NTSC) pixels, 470,000(PAL) pixels SONY
CCD, the camera produces clear picture quality with a horizontal resolution of 600 TV
lines for color and 700 TV lines for BW.
SSNR3 (Samsung Super Noise Reduction) Function
The high-performance W-V DSP chip effectively removes low-light gain noise and
afterimage to provide clear images even in dark environments.
Day & Night
The camera identifies whether it is day or night and automatically switches to the
appropriate mode, depending on its environment. By day, the camera switches to color
mode in order to maintain optimal color. At night, it switches to B/W mode so as to obtain
better picture definition.
DIS (Digital Image Stabilizer)
The DIS function compensates for any camera movement, to produce more stable
pictures.
SSDR(Samsung Super Dynamic Range)
For images with high contrast between bright and dark areas from difficult lighting
conditions such as backlighting, this camera selectively illuminates darker areas while
retaining the same light level for brighter areas to even out the overall brightness.
OSD
The camera control is convenient by using 18 different foreign language O.S.D.
- NTSC : English, Japanese, Spanish, French, Portuguese, Korean, Taiwanese
- PAL : English, French, German, Spanish, Italian, Chinese, Russian, Polish, Czech,
Romanian, Serbian, Swedish, Danish, Turkish, Portuguese
Miscellaneous Functions
HLC(High Light Compensation), SENS-UP, FLIP (H/V-REV), D-ZOOM, SHARPNESS,
Motion Dection and PRIVACY functions are provided.
y
y
y
y
y
y
y
y
y
introduction

10_ introduction
introduction
WHAT’S INCLUDED
Check if the following items are included in the product package.
SCV-2081 User Manual Quick Set-up Guide
M4 Tapping Screw 3EA Video Output Cable Template
Wrench
C
High Resolution Vandal-Resistant
Dome Camera
User Manual
SCV-2081
High Resolution Vandal-Resistant
Dome Camera
Quick Set-up Guide
SCV-2081

English_11
●INTRODUCTION
COMPONENT NAMES AND FUNCTIONS
FRONT
❶
Dome Cover
❷ Shield case
❸
Pan Base : control panning angle of camera
❹
3.6 Vari-focal Lens Module 2.8 ~ 10.0mm (F1.2)
❺
Tilt Base : control tilting angle of camera
❻
Function Setup Switch : displays the OSD menu and moves the cursor up, down,
left,and right amend or confirm changes.
➐
Video Output Terminal to Monitor
➑
Power Input Connector
➒
Video Output Jack
❶➋➌➍
➏
➐
➑
➎
➒

12_ installation
DISASSEMBLING
Using the L-wrench provided, loosen 3 screws by turning them counterclockwise
and separate the dome cover.
installation
Dome Cover
INSTALLING THE CAMERA ON A CEILING OR WALL
Drill holes on the ceiling by matching to the holes on the case bed,and
insert plastic anchors (HUD 5) (not included )fully into the holes. Fix the case
bed on the ceiling by using Tapping Screws (TH M4xL30). (3 places)
1.
Tapping screw

English_13
●INSTALLATION
e
e
Connect power and video cables and arrange them through the hole you
want to pass when mounting the main body on the mounting bracket, note
that not to damage or squeeze the cables.
Adjust the lens in a desired direction.
Secure the Sheild case to the main unit.
Assemble the camera on its mounting bracket
with the three screws using L Wrench(included)
.
The installation should be done by qualified service personnel or system installers.
If the ceiling material is not strong enough to hold the installation screws, the camera may fall off.
Reinforce the ceiling as needed.
2.
3.
4.
5.


Power input terminal Video output jack
M
Shield case
Dome Cover

installation
14_ installation
ADJUST THE PANNING, TILTING & ROTATION WHILE WATCHING THE MONITOR
You can adjust camera to any direction by using Pan, Tilt, Rotate mechanism.
Pan Base moves by 176˚ to each side direction and 352˚ on the whole.
Tilt Base covers total 73˚ angle(0˚ ~ 73˚).
Rotate Base moves by 174° to each side direction and 348° on the whole.
Methods of adjustment
The case of wall installation
➊ After mounting the camera on a wall, adjust the panning angle so that the
correct viewing angle is attained and the titling is correctly orientated.
➋ And then adjust the tilting angle by rotating the tilt base.
➌ Loosen the rotate base hold screw and adjust rotate base for the best view
➍Tighten rotate base securing screw.
The case of ceiling installation
➊ After mounting the camera on a ceiling, adjusting the panning angle to the
correct viewing position by rotating the pan base.
➋ And then adjust the tilting angle by rotating the tilt base.
➌ Loosen the rotate base hold screw and adjust rotate base for the best view
➍ Tighten pan and tilt securing screw.
When you want to adjust the Pan/Tilt/Rotate Base, loosen, adjust and then tighten the Pan/Tilt/
Rotate Base screws.
1.
y
y
y
2.
y
y

c
C
C
C
C
T
W
y
y
y
176˚
Pan Base
174˚
Rotate Base
Tilt Base
73˚
M

English_15
●CONNECTION
connection
CONNECTING TO MONITOR
Connect the VIDEO-OUT jack to the VIDEO-IN jack of monitor.
As the connecting method varies with the instruments, refer to the manual supplied
with the instrument.
Only connect the cable when the power is turned off.
CONNECTING TO POWER
Connect the adaptor to the power input connector as shown in the figure below.
The recommended adaptor specification for SCV-2081N/P is DC 12V / 500mA or AC 24V / 500mA.
When the resistance value of copper wire is at [20°C(68°F)]
Copper wire size
(AWG)
#24
(0.22mm
2
)
#22
(0.33mm
2
)
#20
(0.52mm
2
)
#18
(0.83mm
2
)
Resistance (Ω/m) 0.078 0.050 0.030 0.018
Voltage Drop (V/m) 0.028 0.018 0.011 0.006
As shown in the table above, voltage decreases as the wire gets longer. Therefore use of
an excessively long adaptor output line for connection to the camera may
affect the performance of the camera.
y
y
y
CCTV Camera Monitor
se
---- Power Input Terminal

16_ connection
connection
* Standard voltage for camera operation : DC 12V ±10%, AC 24V ± 10%
* There may be some deviation in voltage drop depending on the type of wire and the
manufacturer.
Be sure to connect power only after all the installation is complete.
Note that DC adaptor is not supplied with camera.
Ground should be connected to the GND terminal.
USING COAXIAL COMMUNICATIONS
Coaxial Communications System
OSD Control method
CAMERA DVR CONTROLLER
SET MENU/ENTER OSD KEY
UP UP KEY JOYSTICK UP
DOWN DOWN KEY JOYSTICK DOWN
LEFT LEFT KEY JOYSTICK LEFT
RIGHT RIGHT KEY JOYSTICK RIGHT
- Video Cable
The camera’s video output port is connected to the monitor with a BNC coaxial
cable, shown below : If the distance between the camera and the monitor exceeds
the recommended maximum, please use an auxiliary video amp.
If the camera is controlled through coaxial communication, please use a video amp intended for
coaxial communications. Regular video amps do not transfer coaxial signals.



y
y

Distance Recommended Cable Specification
300m 3C2V(RG-59/U)
450m 5C2V(RG-6/U)
600m 7C2V(RG-11/U)
DVR
• : BNC
• ---- : RS-485
s
M
M
U
MENU
SEARCH
MUL
TI
REC
MENU
PRESET
GROUP
TRACK
CAM
12345
67890
MON
CLOSEOPEN
NEARFAR
WIDETELE
PTZDVRMTXSETUP
ESC
FUNCENTER
1234
5678
9101112
13 14 15 16
ALARM HDD NETWORK BACKUP REC
DVDRECORDER
REC
ZOOM
MODE
FREEZE
AUDIO
BACKUP
ALRAM
SEARCH
TELE WIDE VIEW
MENU
RETURN
USB
OPEN/CLOSE
M
M

English_17
●SETUP
r
setup
MENU CONFIGRATION
Setup Menu
LENS
●
DC
EXPOSURE
●
BRIGHTNESS
●
SHUTTER
●
AGC
●
SENS-UP
●
RETURN
WHITE BALANCE
●
ATW
●
OUTDOOR
●
INDOOR
●
MANUAL
●
AWC→SET
SSDR
●
OFF
●
ON
BACKLIGHT
●
OFF
●
BLC
●
HLC
SSNR3
●
ON
●
OFF
DAY/NIGHT
●
AUTO
●
COLOR
●
B/W
SPECIAL
●
IMAGE ADJ
●
MONITOR
●
CAM TITLE
●
SYNC ● MOTION DET
●
PRIVACY
●
DIS
●
LANGUAGE
●
RETURN
EXIT
●
SAVE
●
NOT SAVE
●
RESET
MENU SETUP
Use the Function Setup switch beside of the lens.
Press the Function Setup switch.
Main setup menu is displayed on the monitor screen.
1.
y
Function Setup switch

18_ setup
setup
MAIN SETUP
▶1.LENS DC
2.EXPOSURE
3.WHITE BAL ATW
4.SSDR OFF
5.BACKLIGHT OFF
6.SSNR3 ON
7.DAY/NIGHT AUTO
8.SPECIAL
9.EXIT SAVE
Change the status
by moving the
setup switch left or
right.
Select the function
by moving up or
down direction of
function setup switch.
Select a desired function using the Function Setup switch.
Place the cursor over a desired item.
Set up a selected item by using the Function Setup switch.
To finish the setting, select ‘EXIT’ and press the Function Setup switch.
An item with the icon also has sub menus. To select a sub menu, select an item with the icon
and press the Function Setup switch.
An item with the - - - icon is unavailable due to function settings.
LENS
Using this function, you can control the screen brightness.
When the SETUP menu screen is displayed,
select‘LENS’by using the Function Setup
switch so that the arrow indicates‘LENS’.
The Lens mode has sub menu site as listed
below.
- BRIGHTNESS : Adjusts the video brightness.
- FOCUS ADJ : To adjust the lens focus correctly, you must activate the Focus
Settings mode. To activate the Focus Settings mode, adjust the lens focus,
and then deactivate the settings mode.
- You can adjust the shutter value of ESC shutter mode.
2.
y
3.
4.


1.
2.
MAIN SETUP
▶1.LENS DC
2.EXPOSURE
M

English_19
●SETUP
EXPOSURE
When the SETUP menu screen is displayed,
select EXPOSURE by using the Function
Setup switch so that the arrow indicates
'EXPOSURE'.
Select a desired mode using the Function
Setup switch.
BRIGHTNESS : Adjusts the video brightness.
SHUTTER : You can select shutter mode.
ESC : Select this to control the shutter
speed automatically. If ESC
is selected, the shutter speed
is automatically controlled
depending on the ambient
illumination of the subject.
MANUAL : You can control shutter speed manually.
(NTSC MODEL : 1/60~1/120,000, PAL MODEL : 1/50~1/120,000)
A.FLK : Select this when you experience picture flicker, this happens when
there is a clash with the installed lighting frequency.
---: Shutter speed is fixed at 1/60sec(1/50sec).
When the SHUTTER is set to ESC after selecting the Internal Synchronization Type, the picture may
become unstable if the camera faces a bright fluorescent light. Therefore, take care when
choosing the installation position.
When the SHUTTER is set to MANUAL or A.FLK mode, SENS-UP will be disabled.
Set the shutter mode to --- if color rolling occurs.
AGC (AUTO GAIN CONTROL) : The higher the gain level, the brighter the screen
but the higher the noise.
OFF : Deactivates the AGC function.
LOW : Allows automatic gain control from 5.3dB to 32dB.
HIGH : Allows automatic gain control from 5.3dB to 37dB.
1.
2.
y
y
-
-
-
-



y
-
-
-
s
r
on
s
MAIN SETUP
1.LENS DC
▶2.EXPOSURE
3.WHITE BAL ATW
EXPOSURE SETUP
▶1.
BRIGHTNESS
IIIIIÂIIIIIIIIIIIIIIII
25
2.SHUTTER ---
3.AGC HIGH
4.SENS-UP OFF
5.RETURN
M

20_ setup
setup
SENS-UP : When it is night or dark, the
camera automatically detects the
light level and maintains a clear
picture if this mode is activated.
OFF : Deactivates the SENS-UP function.
AUTO : Activates the SENS-UP function.
RETURN : Select this to save the changes in the EXPOSURE menu and return to
the SETUP menu.
If you set the Function Setup switch to ‘AUTO’ mode, You can adjust the brightness by
increasing or decreasing the shutter speed. (x2 ~ x512)
Note that the higher the SENS-UP level, the brighter the screen, but the more likely it is that an
after-image will appear.
Although Noise, Spots, and Whitish symptoms may occur in SENS-UP operation when the
sens-up level is increased, this is normal.
WHITE BAL (WHITE BALANCE)
Use the White Balance function to adjust the screen color.
When the SETUP menu screen is displayed,
select ‘White Bal.’ by using the Function
Setup switch so that the arrow indicates
‘White Bal.’.
Select a desired mode using the Function
Setup switch.
※Select one of the following 5 modes, as appropriate for your purpose.
ATW
: Select this when the color temperature is between 1,700°K and 11,000°K.
OUTDOOR : Select this when the color temperature is between 1,700°K and
11,000°K.(sodium light inclusion)
Select this When the color temperature of environment surrounding
the subject is out of the control range (e.g. clear sky, or sunset)
INDOOR : Select this when the color temperature is between 4,500°K and 8,500°K.
MANUAL : Select this to fine-tune White
Balance manually. Set White
Balance first by using the ATW
or AWC mode. After that switch
to MANUAL mode, fine-tune the
White Balance and then press
the Function Setup switch.
y
-
-
y



1.
2.
y
y
y
y
MAIN SETUP
1.LENS DC
2.EXPOSURE
▶3.WHITE BAL ATW
4.SSDR OFF
LIMIT
▶AUTO x2
Press SET to Return
WB MANUAL
▶RGAIN
IIIIIIIIIIIIIIIIÂIIIIIIIIIIIIII
529
BGAIN
IIIIIIIIIIIIIIIIÂIIIIIIIIIIIIII
532
Press SET to Return
M
