Samsung IAB Series Manual

LED R&D Lab(VD)
LED Display Install Manual
IAB Series
LH008IAB***
LH012IAB***
LH016IAB***
Ver. 1.4

LED R&D Lab(VD)
1
Revision History
Version Date (Y/M/D) Description
0.9 2022. 04. 23 P1.68 standard release
1.0 2022. 05. 16 P1.26 update
1.1 2022. 07. 08 Add data updates when replacing modules (P138),
Add screen settings when installing Side by Side (P139-P142)
1.2 2022. 07. 25 When installing SET, Tilt adjustment contents using Deco are added (P43-45 / P58-60)
Added C / REAR bottom hole and SPACER utilization method (P31~32 / P 50~51)
1.3 2022. 08. 30 Side By Side Content Modification (P150-151)
1.4 2022. 09. 07 Dehumidification mode-LSM content modification (P80-81)

LED R&D Lab(VD)
2
1. Product and installation information
2. preparation of Cabinet installation
3. Wall Mount
4. FRAME installation and cable connection
5. Frame Bezel Installation
6. Dehumidification mode guide
7. IP Manual setting Guide
※ Appendix1 -LED Module and Circuit replacement method
※ Appendix2 –Update data when replacing TCON
※ Appendix3 –Screen Settings for Side by Side Installation
※ Appendix4 –Gradation Calibration (SMC)
Table of contents

LED R&D Lab(VD)
3
Model Product appearance and information
IAB series
REMARK IAB Series : CoB Type / 120Hz Refresh Rate
1. Product and installation information
◆Model specification
-This manual is an installation manual for IAB and can be applied to the model below..
(Installation specifications for each pitch are the same)

LED R&D Lab(VD)
4
◆Model specification (IAB)
Specification
146” 110”
P0.84 (146”) P1.68 (146”) P1.26 (110”)
Cabinet
Size
(mm)
Horizontal 3229.1 2422.7
Vertical 1826.1 1372.5
Pixels
Horizontal 3840 1920 1920
Vertical 2160 1080 1080
Module quantity
(EA) 48 X 4 (192) 36 X 3 (108)
Weight (kg)
(Cabinet) 26.5 26.5 20.5
SET weight (kg) 168 99
Total weight (kg) 244 154
Power consumption
(W) 1700(Max) / 1100(Typ)1240(Max) / 860(Typ)TBD
Luminance
(nit)
Max 500 500 500
Peak 1600 1400 1600
1. Product and installation information

LED R&D Lab(VD)
5
◆Cabinet information
1826.1
49.5
146”
3229.1
1372.5
49.5
110”
2422.7
1. Product and installation information

LED R&D Lab(VD)
6
◆Installation precautions (LED damage)
precautions Image
[External impact, fall caution]
1 Remove the cover-corner of the product before installation and do not
impact the LED surface or drop it on the floor.
2 Do not place the product on the vibrator and do not place the LED
surface facing the floor.
3 Make sure that the edge of the LED module is not damaged by external
contact.
4 Do not load more than 12 steps.
① ②
③ ④
[Watch out for LED damage caused by static electricity]
▶Do not work by touching the LED surface with hands without gloves.
[Caution of LED damage caused by metal]
▶Be careful not to get metal on the front of the LED.
▶When attaching the metal, separate the module and remove it using a
magnet.
MODULE
Front
metal
1. Product and installation information

LED R&D Lab(VD)
7
precautions Image
[Caution of LED damage caused by liquid]
When water or various chemicals touch the LED, the inside of the LED may be damaged.
①Water, dew, air conditioner condensate, sprayer, sweat, and saliva do not directly touch the
product.
-Be careful not to sweat on the product. (※ Maintain proper temperature so as not to sweat)
-Be careful not to spit on the product, and it is recommended to wear a mask.
②The following substances should not be directly in contact with the product, and
the case of exposure of the steam to the product should be minimized.
-Detergent or disinfectant : carpet cleaning detergent, glass cleaner, 84 disinfectant, etc.
(※ When cleaning the floor or wall with detergent or water, it is recommended to install a screen so that it does not touch the
product)
-Various chemicals: paints, mosquito repellents, cinnabar, benzene, toluene, solvents, surfactants, halogens (chlorine, bromine),
and substances containing these ingredients;
③If liquid touches the product
-If there is water on the product, turn off the product immediately, dry it enough for more than a day, and run the
dehumidification mode to remove moisture from the LED. (※ P74, refer to "Dehumidification mode using LSM")
-If there is any liquid other than water on it, remove it with alcohol and run the dehumidification mode.
[Precautions related to construction]
①In the case of installation at the construction site, the product must be installed after construction and
cleaning are completed.
②If the product is under construction in the installed space, take the following measures.
-Shielding film should be installed to protect the product by sealing the entire product so that it is not exposed to dust and
various liquids.
-Operates a video or 100 gray scale white for more than 2 hours every day.
-After the construction is completed, remove enough dust, various liquids, and steam, remove the shield, and execute the
dehumidification mode.
카펫
클리너 유리
세정제
Taping Shielding film
84
Disinfectant
※ Only use for IWA
◆Installation precautions (LED damage)
1. Product and installation information

◇Precautions for Appearance Washing
8
-It is recommended to wipe with a soft cleaning cloth provided with the
product, and to wash with a small amount of glass cleaning agent
provided with surfactant-based glass cleaning agent only if there is a
contaminated area that is not easily removed. (However, do not spray
glass cleaning agent directly on the screen)
-If there is hard dust on the surface during cleaning, there may be
damage to the surface film and LED, so remove the dust from the surface
and wash it.
★caution ★
1. Product and installation information
-Be careful of damage when cleaning with a gap between Half-Cabinet.
-Be careful of damage when cleaning between modules and modules in Half-Cabinet.
-Do not put cloth or other substances between the gaps or spray detergent directly.
-Do not sweep or wipe the LED surface with hard materials such as paper
towels, brushes such as combs and brushes, and sponges made of acrylic or
iron.
-Do not use chemicals such as wax, benzene, mosquito repellents, air fresheners,
lubricants, cleaning agents, etc. in products.

LED R&D Lab(VD)
9
◆Heat dissipation guide
Installation condition
-Conditions for using SAMSUNG WALL MOUNT
-Solar direct sunlight conditions cannot be installed (including glass window passage conditions)
-It is recommended to use room temperature below 25°C
-Effect of Cold/Hot Air Conditioning System
-When cold / hot air is the same air conditioning system,
∙Be careful not to let the warm air touch the product.
-Outside temperature measurement position
Measured at a distance of 300mm from the center of the product
Air vent aperture ratio
-use mesh type air vent
-If the aperture ratio is not 100%, the separation distance =
Minimum distance
aperture ratio(%) /100
-aperture ratio (%) =    .  ℎ
  
※ It is written based on Full white, back light 7
Video, created based on back light 10
A
B
d
c
wall
Outside
temperature
measurement
position
300mm
1. Product and installation information

LED R&D Lab(VD)
10

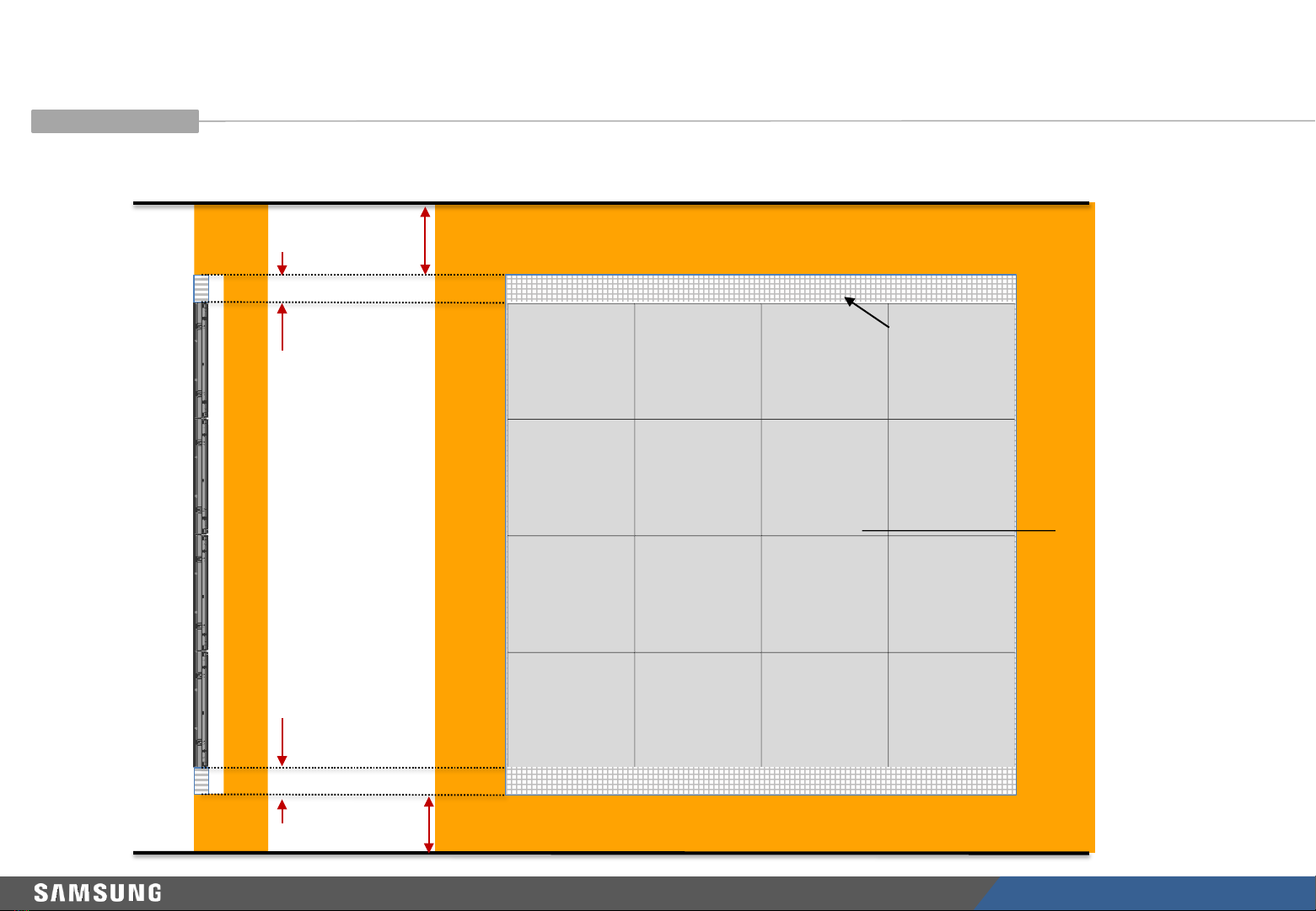

•Vertical wall installation (if Fan is not applied)
WALL
Air vent area
minimum 30mm
set ~ ceiling
set ~ floor
1. Product and installation information
minimum 30mm

LED R&D Lab(VD)
11
•Vertical landfill installation (when Fan is not applied)
Air vent area
At least 30mm (opening rate 100%)
At least 30mm (opening rate 100%)
Recommended conditions: 500mm or more
set ~ floor
Recommended conditions: 500mm or more
set ~ ceiling
WALL
If the aperture ratio is not 100%, the separation distance =
Minimum distance
aperture ratio(%) /100
1. Product and installation information

LED R&D Lab(VD)
12

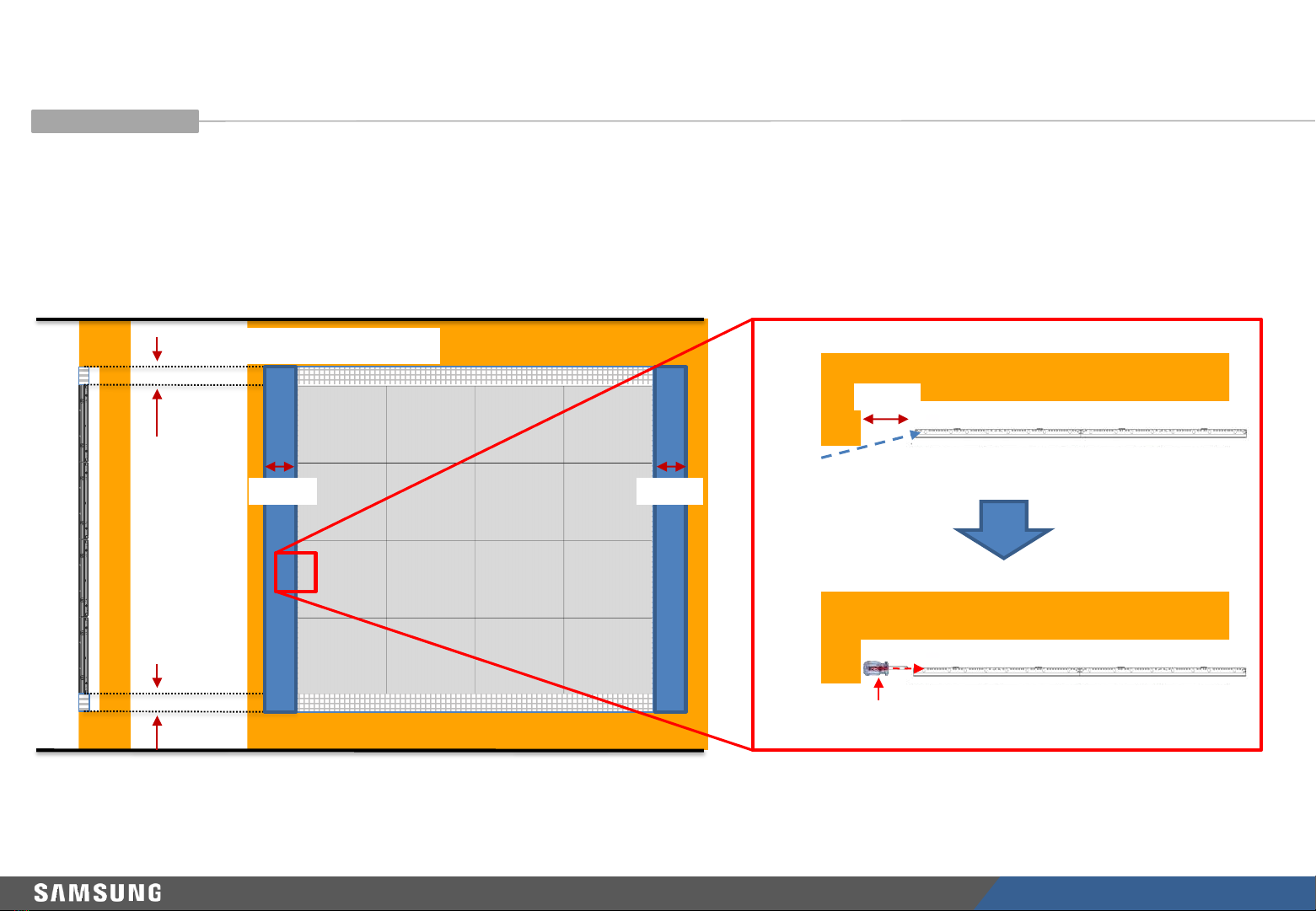

•Precautions for Landfill Installation
150mm left and right space is required for service. (Fig.1)
Fixed screws are placed inside. , it is necessary to secure a field of view of about 150mm. (Fig. 2)
* Like heat dissipation specifications, space of 30mm or more is required up and down
WALL
150mm 150mm
150mm
Need space for side screw positioning
Work with a fist driver
Fig.1 Left and right spaces over 150mm Fig.2 working guide
Minimum 30mm or more
1. Product and installation information

LED R&D Lab(VD)
13

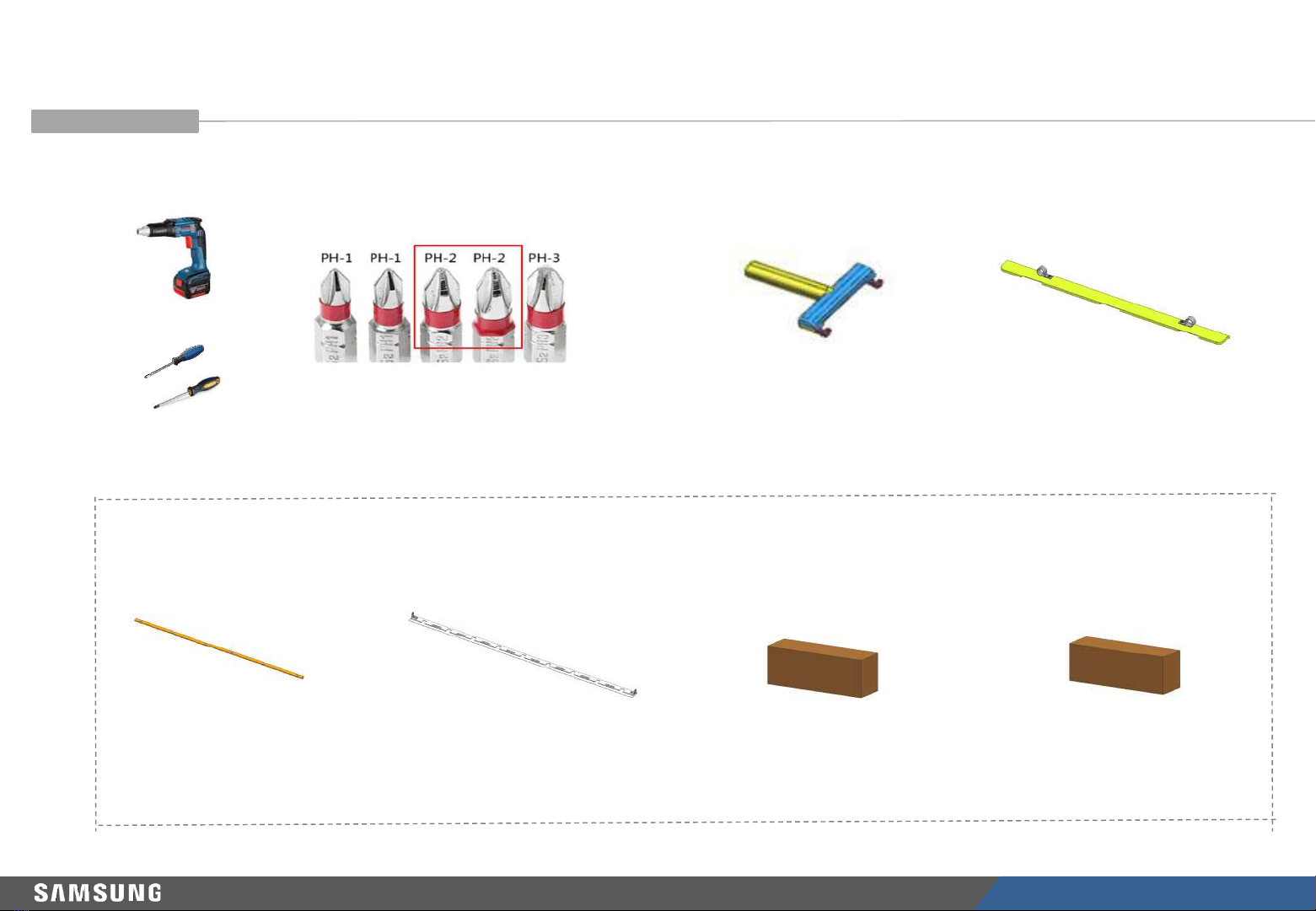

◆Setup ready.
(-) (+) driver
Electric driver
※ Recommended Specifications
•It is provided for Set accessories. (BN92-31412Y).
x2
BRACKET-LINK
(BN61-18825A)
ASSY COVER P-
DECORATION
(BN96-55520A~55523A)
ASSY ACC-WALL MOUNT
(BN96-54014F) ASSY ACC-WALL MOUNT
(BN96-54014E)
ASSY COVER P-HANDLE
BN96-55707A
PROTECTION JIG
1. Product and installation information

LED R&D Lab(VD)
14
◆Cabinet Accessories
1. Product and installation information
Quick setup guide Product warranty
(It is not provided in some areas. ) Specification guide
SMPS SVC
BN69-23942A
T-CON SVC
BN69-23942A
WALL MOUNT ACC
(BN96-54014E/F)MODULE SVC
BN69-24152A
ACC MANUAL CABLE
(BN96-55412J)
BRACKET-LINK
(BN61-18825A)
ASSY COVER P-
DECORATION
(BN96-55520A~55523A)

LED R&D Lab(VD)
15
▶Connection structure: Connection of signal cable (OCM) and power cable between
P-FRAME and P-FRONT
1) P-FRAME Left/Right Connection
-Cable Connection between AC Inlet Boards for Power On
-Speaker Left/Right Cable Connection
2) Cable connection between P-FRAME + P-FRONT
-Connect 4 OCM cables to the video output port of the main board
→ After assembling the OCM cable according to each P-FRONT location, connect it
to the Lower Board OCM connector at the bottom of the P-FRONT
-Connect SMPS output cable and screen power input cable in P-FRONT
□Features when configuring the screen
(differential specifications compared to the existing ones)
1. Product and installation information

LED R&D Lab(VD)
16
1. Product and installation information
2. preparation of Cabinet installation
3. Wall Mount
4. FRAME installation and cable connection
5. Frame Bezel Installation
6. Dehumidification mode guide
7. IP Manual setting Guide
※ Appendix1 -LED Module and Circuit replacement method
※ Appendix2 –Update data when replacing TCON
※ Appendix3 –Screen Settings for Side by Side Installation
※ Appendix4 –Gradation Calibration (SMC)
Table of contents

LED R&D Lab(VD)
17
◆Pre-prepare before installation
①Remove the tape of the top BOX and open it. (Fig.2)
②Remove the top–cushion.
③Check the set status. (Two rear parts and four front parts) (Fig.3)
Fig.1 Packing Fig. 2 Packing out Fig.3 check the SET
LED set
Box
Top-Cushion
Bottom-Cushion
Accessory
Left2
Left1
Right1
Right2
2. preparation of Cabinet installation 146”

LED R&D Lab(VD)
18
2. preparation of Cabinet installation
◆Pre-prepare before installation
①Remove the tape of the upper BOX and open it. (Fig.2)
②Remove the top–cushion and PAD.
③Check the configuration status of 3 sets. (REAR1, MODULE SET 3) (Fig. 3)
Fig.1 Packing
Fig. 2 Open the packing
※ Please be sure to comply with the dismantling order
(for the purpose of preventing conduction)
1. Pulling out the Module
2. Pulling out the REAR
Fig.3 Check the set
materials
MODULE
110”
PAD-EPE FRONT
TOP CUSHION
②①

LED R&D Lab(VD)
19
◆Pre-prepare before installation
④Open the bag shielding of the front module. Hold the internal COVER-CORNER, take
out the set, and open the AL-Bag and disconnect the AL screws (4 in total). (Fig.4)
⑤Disconnect the screw of the COVER-CORNER part. (4 locations) (Fig.5)
※ When removing the cover-corner,
install the white PAD without disassembling it to prevent damage to the front module.
Fig.4 Before screen check,
remove PAD and attach SPACER-EVA
Fig.5 Cover Corner remove
Al-Bag
Bag Zipper open
SCREW POINT
PAD
2. preparation of Cabinet installation
With the module vertical, two people
hold the red point and move it, and
then carefully lay it down on the PAD.
