Samsung SAMTRON 58V User manual

Install drivers
SAMTRON 591S/58V/59E/78E/78DF/78BDF/98PDF

Failure to follow directions noted by this symbol could result in bodily harm or damage to
equipment.
Prohibited Important to read and understand at
all times
Do not disassemble Disconnect the plug from the outlet
Do not touch Grounding to prevent an electric
shock
Power
When not used for extended period of time, set your computer to DPMS. If using a
screen saver, set it to the active screen mode.
zIf the size of your monitor is small, or if the same image is present for long periods of
time, you may see afterimages due to damage to the fluorescent substance on the
inside of the CDT.
Do not use a damaged or loose plug.

zThis may cause an electric shock or fire.
Do not pull the plug out by the wire nor touch the plug with wet hands.
zThis may cause an electric shock or fire.
Use only a properly grounded plug and receptacle.
zAn improper ground may cause electric shock or equipment damage.
Do not excessively bend the plug and wire nor place heavy objects upon them,
which could cause damage.
zThis may cause an electric shock or fire.
Disconnect the plug from the outlet during storms or lightening or if it is not
used for a long period of time.
zThis may cause an electric shock or fire.
Do not connect too many extension cords or plugs to an outlet.
zThis may cause fire.
Installation
Do not cover the vents on the monitor cabinet.
zBad ventilation may cause a breakdown or fire.
Put your monitor in a location with low humidity and a minimum of dust.
zAn electric shock or fire could result inside the monitor.

Do not drop the monitor when moving it.
zThis may cause damage to the product or human body.
Place the monitor on a flat and stable surface.
zThe monitor may cause injury by falling.
Set down the monitor carefully.
zThe monitor could be damaged or broken.
Do not place the monitor face down.
zThe CDT surface may be damaged.
Do not use the monitor without the monitor stand.
zIt could break down or cause fire due to bad ventilation.
zIf the monitor must be used without the supplied stand, take steps to insure
proper ventilation.
Clean
When cleaning the monitor case or the surface of the CDT, wipe with a slightly
moistened, soft fabric.
Do not clean Flat monitor with water. Use a water-diluted mild detergent.
(Some detergents contain significant amounts of alcohol-based solvents, which can
damage (color change) or crack the monitor case. The antiglare/anti-static surface
coating on the CDT may also be affected.)
Dilute the detergent (1:10 ratio) with water before using.
Do not spray water or detergent directly on the monitor.
Use the recommended detergent with a smooth cloth.
zYou may prevent the coated CDT from being damaged or the monitor cabinet
from being dissolved, cracked or discolored.

zYou may buy a recommended detergent at any Service Center.
If the connector between the plug and the pin is dusty or dirty, clean it
properly with a dry cloth.
zA dirty connector may cause an electric shock or fire.
Do not set a glass of water, chemicals or any small metal objects on the
monitor.
zThis may cause damage, electric shock or fire.
zIf a foreign substance gets into the monitor, disconnect the plug and then
contact a service center.
Others
Do not remove cover(or back).
zThis may cause an electric shock or fire.
zRefer servicing to qualified service personnel.
If your monitor does not operate normally - in particular, if there are any
unusual sounds or smells coming from it - unplug it immediately and
contact an authorized dealer or service.
zThis may cause an electric shock or fire.
Do not place any heavy objects on the monitor.
zThis may cause an electric shock or fire.
For each hour of looking at the monitor, you should let your eyes rest for 5
minutes.
zThis will reduce eye fatigue.

Do not use or store inflammable substances near the monitor.
zThis may cause an explosion or fire.
Do not try to move the monitor by pulling only the wire or the signal cable.
zThis may cause a breakdown, electric shock or fire due to damage to the
cable.
Do not move the monitor right or left by pulling only the wire or the signal
cable.
zThis may cause a breakdown, electric shock or fire due to damage to the
cable.
Never insert anything metallic into the monitor openings.
zThis may cause an electric shock, fire or injury.
Keep the monitor away from any magnetic substances.
zThis may cause discoloring or distortion of the image.

Please make sure the following items are included with your monitor.
If an
y
items are missin
g
, contact
y
our deale
r
.
Unpacking
Monitor
Manual
Quick Setup Guide Warranty Card (Not available in all
locations) User's Guide, Monitor
Driver
Cable
Power Cord
SAMTRON 591S/58V/59E

Stand
Stand
For Multimedia model (Option)
Manual
User Guide
Cable
Sound Cables
(
2each
)
DC Power Cord
Stand
Multimedia S
p
eaker Stand
Front

Menu button [ ]
Opens the OSD menu. Also used to exit the OSD menu or
return to the previous menu.
Adjust buttons [ ] These buttons allow you to highlight and adjust items in the
menu.
Enter button [ ] Used to select the OSD menu.
Power button Use this button for turn the monitor on and off.
Power indicator This light glows green during normal operation, and blinks green
once as the monitor saves your adjustments.
See PowerSaver described in the manual for further information regarding power saving
functions. For energy conservation, turn your monitor OFF when it is not needed, or when
leaving it unattended for long periods.
Rear

(The configuration at the back of the monitor may vary from product to product.)
Power port Connect the power cord for your monitor to the power port on
the back of the monitor.
Signal Cable Connect the signal cable to the video port on your computer,
video board, video card, or graphics card.
See Connecting the Monitor for further information regarding cable connections.
Bottom
Signal Cable Connect the signal cable to the video port on your computer,
video board, video card, or graphics card.
Power port Connect the power cord for your monitor to the power port on
the back of the monitor.
Tilt/Swivel Base You can separate the base from the monitor.

Please make sure the following items are included with your monitor.
If an
y
items are missin
g
, contact
y
our deale
r
.
Unpacking
Monitor
Manual
Quick Setup Guide Warranty Card (Not available in all
locations) User's Guide, Monitor
Driver
Cable
Power Cord
SAMTRON 78E/78DF/78BDF/98PDF

Stand
Stand
For Multimedia model (Option)
Manual
User Guide
Cable
Sound Cables
(
2each
)
DC Power Cord
Stand
Multimedia S
p
eaker Stand
Front

Menu button [ ]
Opens the OSD menu. Also used to exit the OSD menu or
return to the previous menu.
Adjust buttons [ ] These buttons allow you to highlight and adjust items in the
menu.
Enter button [ ] Used to select the OSD menu.
Power button Use this button for turn the monitor on and off.
Power indicator This light glows green during normal operation, and blinks green
once as the monitor saves your adjustments.
See PowerSaver described in the manual for further information regarding power saving
functions. For energy conservation, turn your monitor OFF when it is not needed, or when
leaving it unattended for long periods.
Rear
(The configuration at the back of the monitor may vary from product to product.)
Power port Connect the power cord for your monitor to the power port on
the back of the monitor.

Signal Cable Connect the signal cable to the video port on your computer,
video board, video card, or graphics card.
See Connecting the Monitor for further information regarding cable connections.
Bottom
Signal Cable Connect the signal cable to the video port on your computer,
video board, video card, or graphics card.
Power port Connect the power cord for your monitor to the power port on
the back of the monitor.
Tilt/Swivel Base You can separate the base from the monitor.

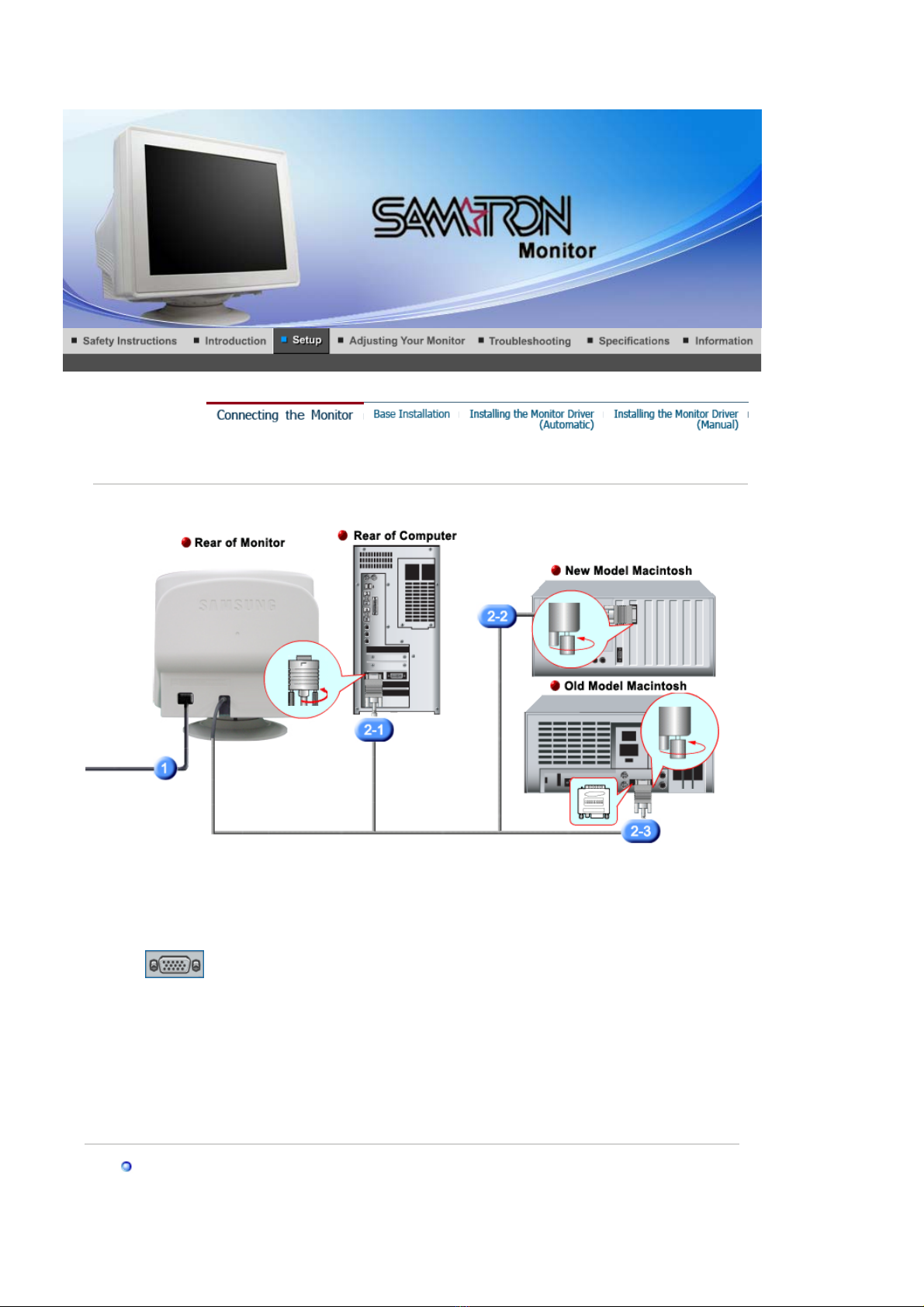

Setup-For Multimedia model | Multimedia Speaker Stand
1. Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
2-1. Connecting to a computer
Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor.
2-2. Connecting to a new Macintosh
Connect the monitor to the Macintosh computer using the D-SUB connection cable.
2-3. Connecting to an old Macintosh
Connect your monitor to the Macintosh using the adapter for Macintosh (sold separately).
3. Turn on your computer and monitor. If your monitor displays an image, installation is
complete.
Setu
p
-For Multimedia model
SAMTRON 591S/58V/59E

1. Turn off your computer and unplug the power cord.
2. Connect the end of the signal cable to your computer's video port(video board, video card or
graphics card).
3. Connect one end of the other sound cable to the Mic Input jack on your sound card or
computer.Connect the other end of this cable to the Mic By-pass jack on the back of the
monitor stand.
4. Plug the DC power cord from the stand into a nearby outlet.
5. Connect the power cord for your monitor to the power port on the back of the monitor.
6. Plug the power cord for the monitor and the power cord for your computer into a nearby
outlet.
7. Turn on your computer and monitor.
8. Turn up or down the On-Off control terminal on the stand of the monitor until it clicks.
9. Execute a sound program, music or sound effect in your computer and then adjust the volume
by turning up or down until the sound volume is appropriate.
10. Adjust the treble and bass.
Sound distortion may occur when the monitor is placed on top of a mostly hollow cabinet
such as your computer. If this occurs, place a pad or magazine beneath the monitor stand.
High sound volume may also cause sound distortion; lower the volume.
Multimedia S
p
eaker Stand 1. Mic By-pass Jack
To transmit your voice,connect a sound cable from
the Mic By-pass jack to the mic in jack on the sound
card slot in your computer.
2. Stereo Input Jack
Connect a sound cable from the input source(sound
card,computer,CD-ROM drive).
3. DC Power Cord
Connect DC power cord to monitor DC 12V output
jack.
4. Power Indicator
Glows green when the speakers are turned on.

5. On/Off Volume
Turns On/Off and adjusts the output volume.
6. Treble Control
Use to control high frequencies.
7. Bass Control
Use to control low frequencies.
8. Mic Input Jack
To transmit your voice,connect a microphone to this
jack.
9. Headphone Jack
To listen in privacy,connect headphones here.
10.
Detachable Stand Top
Tilt/Swivel Base | Attaching and Removing the Base
Tilt/Swivel Base
With the built-in pedestal, you can tilt and/or swivel the monitor for the most comfortable
viewing angle.
The base is detachable.

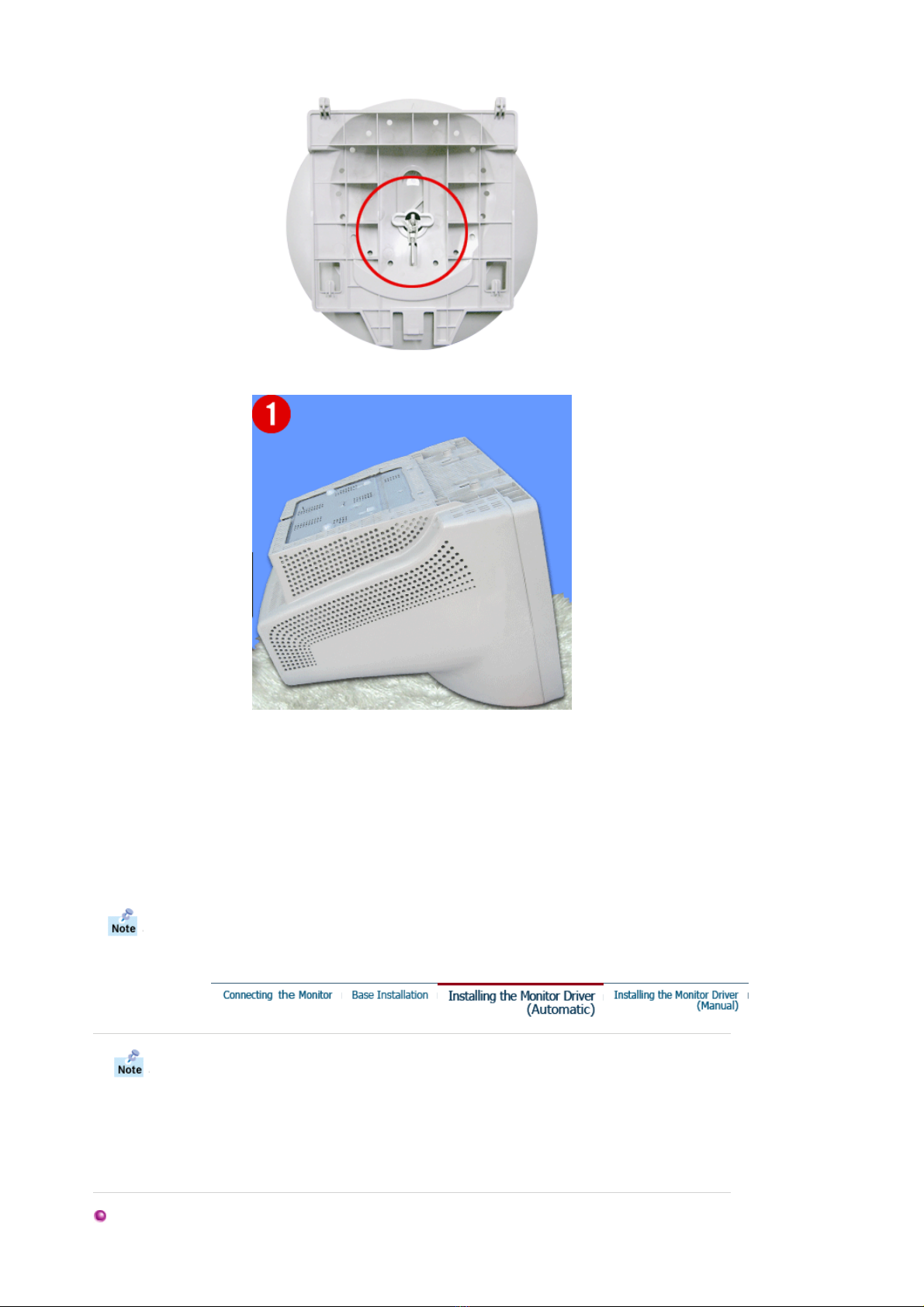

Attaching and Removing the Base
If your monitor was supplied with the base detached, attach the base as follows.

Remove the twist-tie before attaching the base to the monitor.
Attaching the Base
1. Place the monitor upside-down on a flat work surface.
2. Align the tabs on the base with the corresponding slots on the bottom of the monitor.
3. Press the base onto the monitor until the tabs are fully engaged in the slots.
4. Push the base toward the front of the monitor until the release latch clicks into the locked
position.
* Do not bend the snap.
Removing the Base
5. Squeeze and pull up on the release latch on the base.
6. Push the base toward the back of the monitor and lift up to remove the base.
The base will align with the monitor slots in only one position.

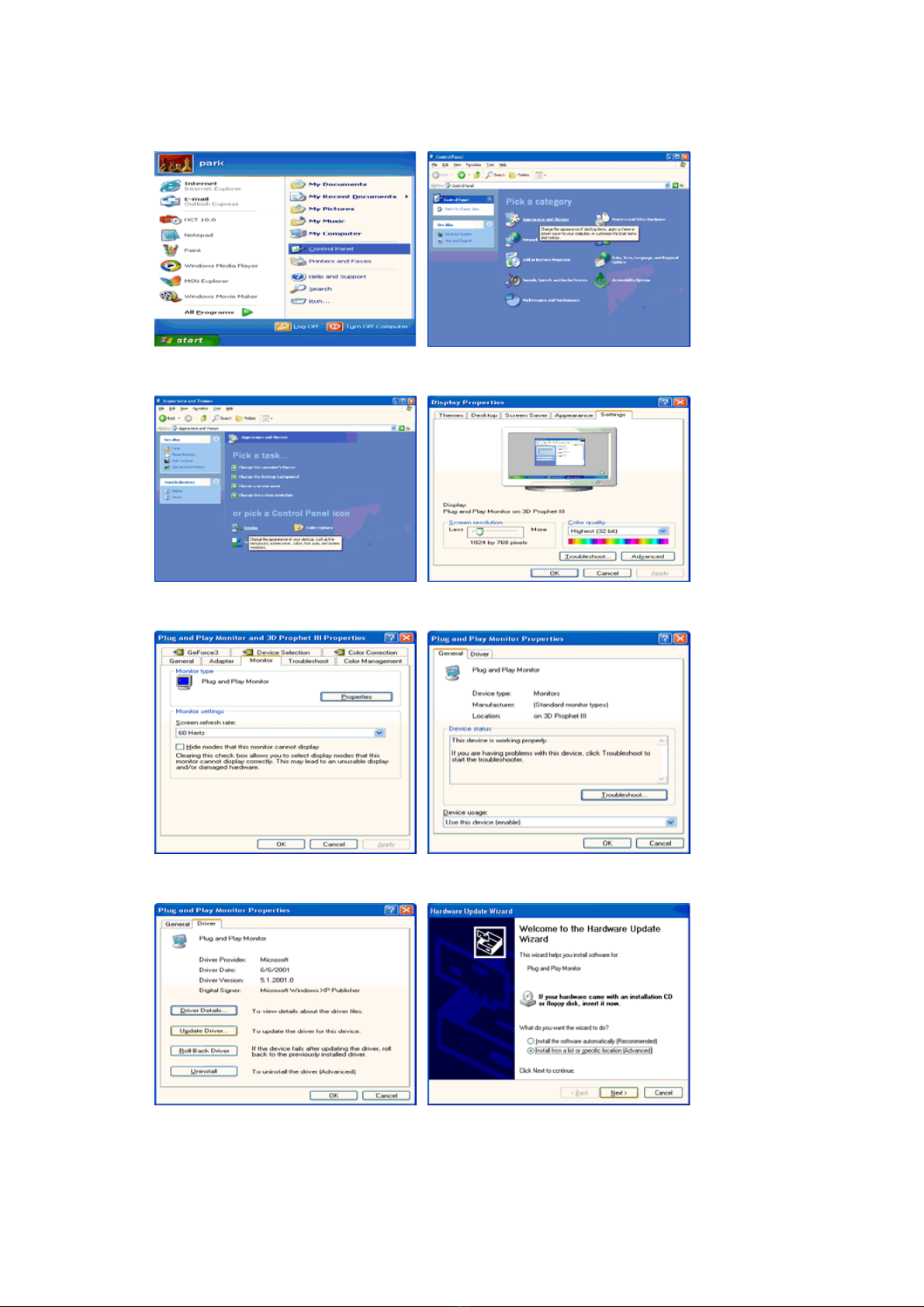

When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site shown
here.
zInternet web site : http://www.samtron.com/
Windows XP/2000

1. Insert CD into the CD-ROM driver.
2. Click "Windows XP/2000 Driver".
3. Choose your monitor model in the model list, then click the "OK" button.
4. Click the "Install" button in the "Warning" window.
5. If you can see following "Message" window, then click the "Continue Anyway" button. Then
click "OK" button.
This monitor driver is under certifying MS logo,and this installation don't damage your system.The
certified driver will be posted on Monitor Homepage
http://www.samtron.com/.
6. Monitor driver installation is completed.
Windows XP | Windows 2000 | Windows NT | Linux
When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site shown
here.
zInternet web site : http://www.samtron.com/
Microsoft®Windows®XP Operating System
1. Insert CD into the CD-ROM driver.
2. Click "Start" —> "Control Panel" then click the "Appearance and Themes" Icon.

3. Click "Display" icon and choose the "Settings" tab then click "Advanced..".
4. Click the "Properties" button on the "Monitor" tab and select "Driver" tab.
5. Click "Update Driver.." and select "Install from a list or.." then click "Next" button.
6. Select "Don't search ,I will.." then click "Next" and then click "Have disk".
