Revision History
1
Version Date (Y/M/D)
Description
2.0 2020/03/20
New
Release

Samsung Electronics
When humidity get into LED package because of high humidity, it is
possible to cause ‘Line defect’ by electrical short in side of LED
Package.
For keeping quality of products during installation, please refer below
cautions.
-If one of below case meet before installation, MUST do dehumidification process.
∙Case when vacuum packaging is broken before unpacking.
∙Case when environment condition is exceed Samsung recommended operation condition.
(Please refer Operation condition from User manual)
∙Case when period between unpacking and turning on the power of products is spent
more than 7days, even though it is under Samsung recommended storage condition.
∙Case when production date on the label is exceed more than 6 months, even though
vacuum packaging is no problem.
-When Volatile chemicals such as oil paint, solvent are used or operation condition
is exceed around of products installed place, MUST play video more than 2 hours
everyday.
-If it is not meet with upper cases, it is helpful to play video more than 2 hours
everyday for protection for humidity getting into LED Package.
Dehumidification guidance –during installation

Samsung Electronics
Electrical short in package is possible to happen during products are
working.
For keeping quality of products during installation, please refer below
cautions.
-If one of below case meet during operation, MUST do dehumidification process.
∙Case when environment condition is exceed operation condition.
∙Case when products are not working more than 1 month, even though environment
condition is under operation condition.
-When environment condition is exceed operation condition, products are out of
warranty. Please check environment condition.
-Even products are operating, if the installed place have extra construction such as
interior modification, MUST do dehumidification following installation condition.
-It is possible to happen dew condensation on surface of products, even though
working on operating condition. When happening dew condensation, MUST
operate after cleaning the dew condensation & dehumidification.
Dehumidification guidance –during operation

Samsung Electronics
Dew condensation due to overcooling
Even though meet with Samsung recommended operation
condition, dew condensation is possible to happen when
surface of products is colder than environment temperature or
hot & humid air blow to cooled surface of products.
(cf : Principle of happening dew on surface of glass which have ice)
Case when dew condensation is happen on products, it is
possible to be the root of defect. In this case, it is possible to
be out of warranty.

Samsung Electronics
When install products, please update latest firmware on online
-You can download latest firmware from SLM site.
∙URL of SLM Page : https://www.secslm.com
∙After login Help Download Center에서 Download
∙Before you download firmware, you MUST check same firmware of model (marked red
letter in below) & upper number of version (marked blue in below).
-You can update firmware through LSM.
∙ Please refer ‘7-1 PC control program’ for the way to update firmware.
5
Guidance of latest firmware
Cabinet : Main - L-xxxMWWAC-nnnn.n xxx = Pan name, nnnn.n = version
FPGA - aabbb_ddddd aa = pixel pitch, bbb = LED package type, ddddd= version
Example : IER P2.5 Cabinet : L-IERMWWAC-1003.1, FPGA : 25252-31046
S-box : TB-KTM2SBMDWWC_100x.x

Samsung Electronics
Table of Contents
1. Product information and precautions for installation
2. Check point about the radiant heat
3. Frame installation
4. Preparation for cabinet installation
5. Cabinet + Frame installation
6. Cabinet + Frame + Bezel installation
7. Disassembly & Front Service
8. Media Box installation and connection
9. LSM Setting & Instructions
10. How to use The Wall
6

Samsung Electronics
Product installation flow
7
Check product installation precautions (4~11page)
Check heat dissipation inspection (12~20page)
Installation frame (21~37page)
Installation cabinets and cables (48~83page)
Check cabinet operation (45~47page)
Installation bezel and sensors (84~102page)
Installation Media Box and LSM (125~166page)
Calibration cabinets (167~169page)
Product and peripheral devices operation (172~201page)

Samsung Electronics
8
1. Product information and precautions for installation
2. Check point about the radiant heat
3. Frame installation
4. Preparation for cabinet installation
5. Cabinet + Frame installation
6. Cabinet + Frame + Bezel installation
7. Disassembly & Front Service
8. Media Box installation and connection
9. LSM Setting & Instructions
10.How to use The Wall

Samsung Electronics

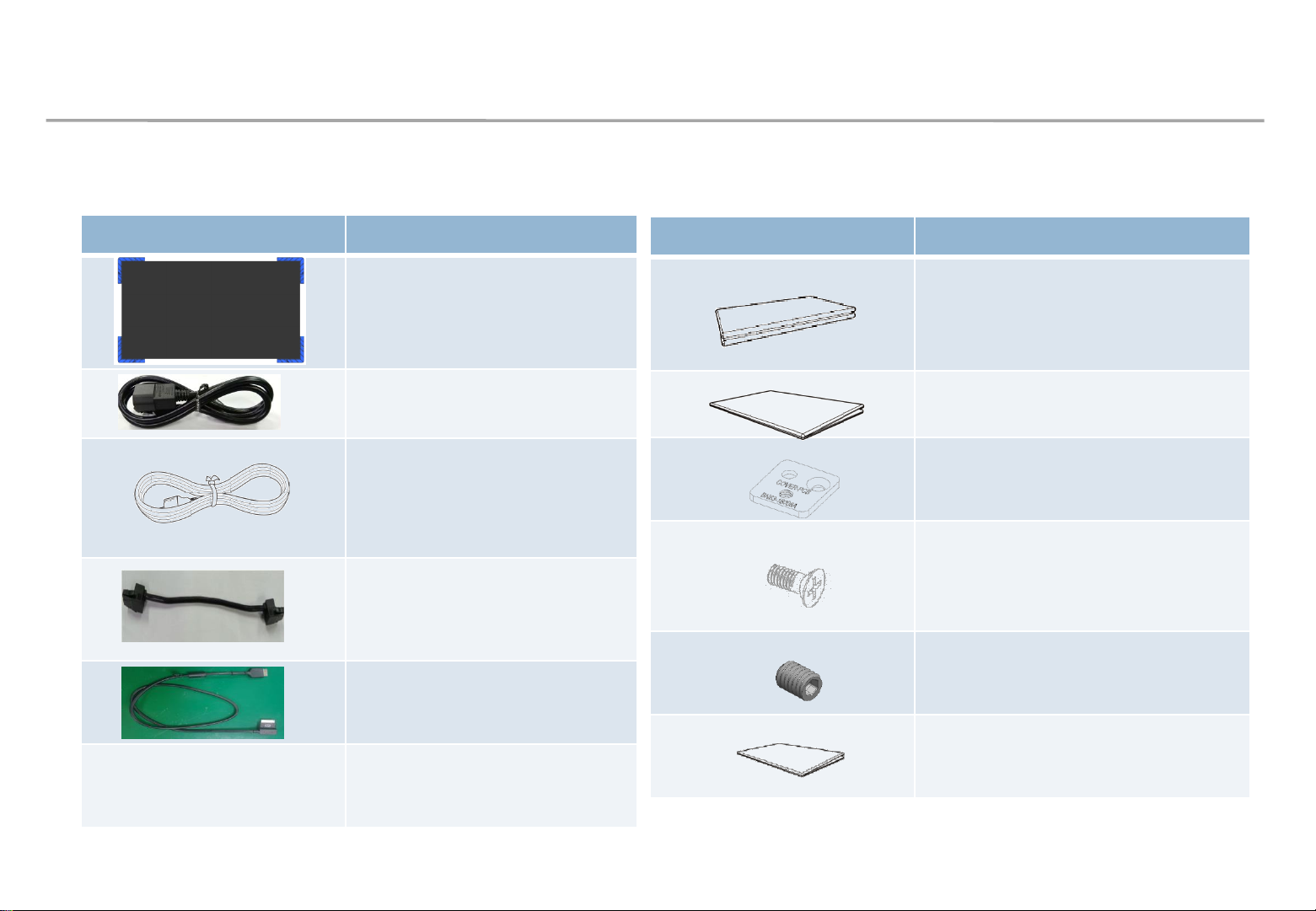

◇Cabinet Installation Components
1. Product Information and Precautions for Installation
9
Description
Product Certification
Standard guide
Cover
-PCB x1ea
Screw
-Machine (M3*L5)
x1ea
Holder
-Screw (M4*L5) x1ea
Holder
-Screw (M4*L6) x3ea
Cloth
-Clean x1ea
Description
Cabinet
LH008IWR
AC Extension Power
Cable (to Cabinet)
AC Power Cord
(to Wall Outlet)
※ Not included on LH008IWR**/XU
model.
AC Power Cable
(Cabinet to Cabinet)
OCM Cable

Samsung Electronics
1. Product Information and Precautions for Installation

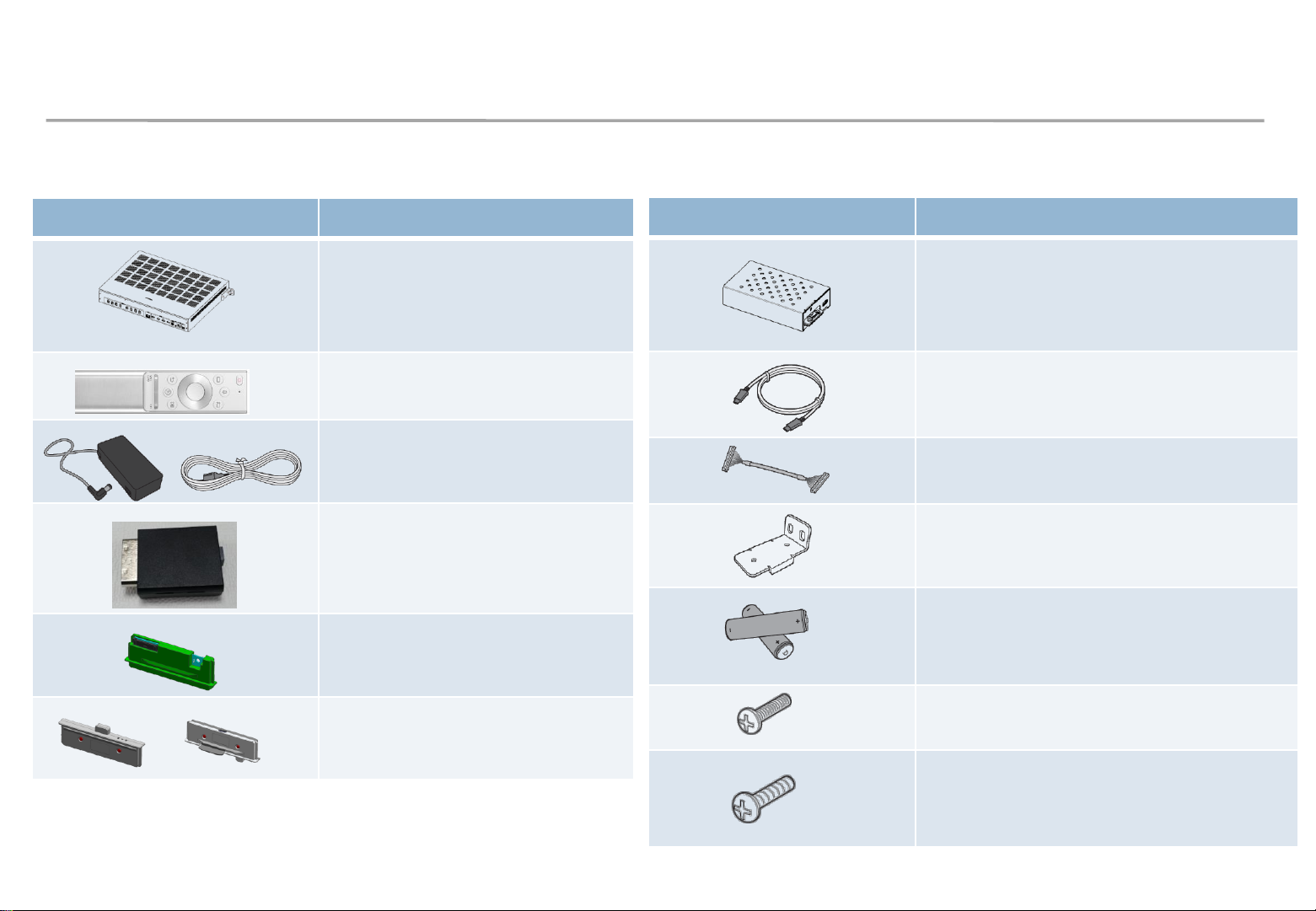

• Media Box Installation Components
Picture Description
Bridge Box
24pin system cable x 5
Bluetooth/Wi
-Fi module cable
Rack case mounting bracket x 2
Batteries
x 2
Screw
(M4 x L8) x 4
Screw
(M5 x L12) x 4
Picture Description
Media
Box
SBB
-MBOXR48
Remote control
AC/DC Adaptor,
Power
cable
Module Rx
x 8
Bluetooth/Wi
-Fi Module
Sensor Top
x 2
Sensor Bottom x 2
10

Samsung Electronics
◇Frame Kit (refer to page 22,23)
1. Product Information and Precautions for Installation
Frame Kit Installation
configuration Note
VG-LFR08SWW 1x1 (1 Set) -
VG-LFR08FWW 2x2 (4 Set) 2K (FHD)
VG-LFR08TWW 3x3 (9 Set) -
VG-LFR08UWW 4x4 (16 Set) 4K (UHD)
VG-LFR08FWW x2
VG-LFR08TWW x2 5x5 (25 Set)
VG-LFR08UWW x2 6x4 (24 Set) 21:9
VG-LFR08TWW x4 6x6 (36 Set) 6K
VG-LFR08TWW x2
VG-LFR08UWW x2 7x7 (49 Set)
VG-LFR08UWW x4 8x8 (64 Set) 8K
<1x1> <2x2> <3x3> <4x4>
11

Samsung Electronics
◇Storage Condition
1. Product Information and Precautions for Installation
12
◇Pre-heating Process
If you do not operate for more than 30 days, you need to dehumidify it before operation. (refer to page 46)
Condition Value Recommend
Temperature -20℃~ +45℃-20℃~ +45℃
Humidity 5~95% 5~65%
Hight 3000m 3000m
Step condition Brightness Time
1 Lighting up display with 10 gray scale 5% 2 hr
2 Lighting up display with 20 gray scale 8% 2 hr
3 Lighting up display with 30 gray scale 10% 2 hr
4 Lighting up display with 40 gray scale 15% 2 hr
5 Lighting up display with 50 gray scale 20% 2 hr
6 Lighting up display with 70 gray scale 25% 2 hr
7 Lighting up display with 90 gray scale 35% 2 hr
8 Lighting up display with 120 gray scale 45% 2 hr
9 Lighting up display with 150 gray scale 60% 2 hr
10 Lighting up display with 180 gray scale 70% 2 hr
11 Lighting up display with 200 gray scale 80% 2 hr
12 Lighting up display with 255 gray scale 100% 2 hr

Samsung Electronics
1. Product Information and Precautions for Installation
• Precautions for Installation (LED damage)
13
Caution Image

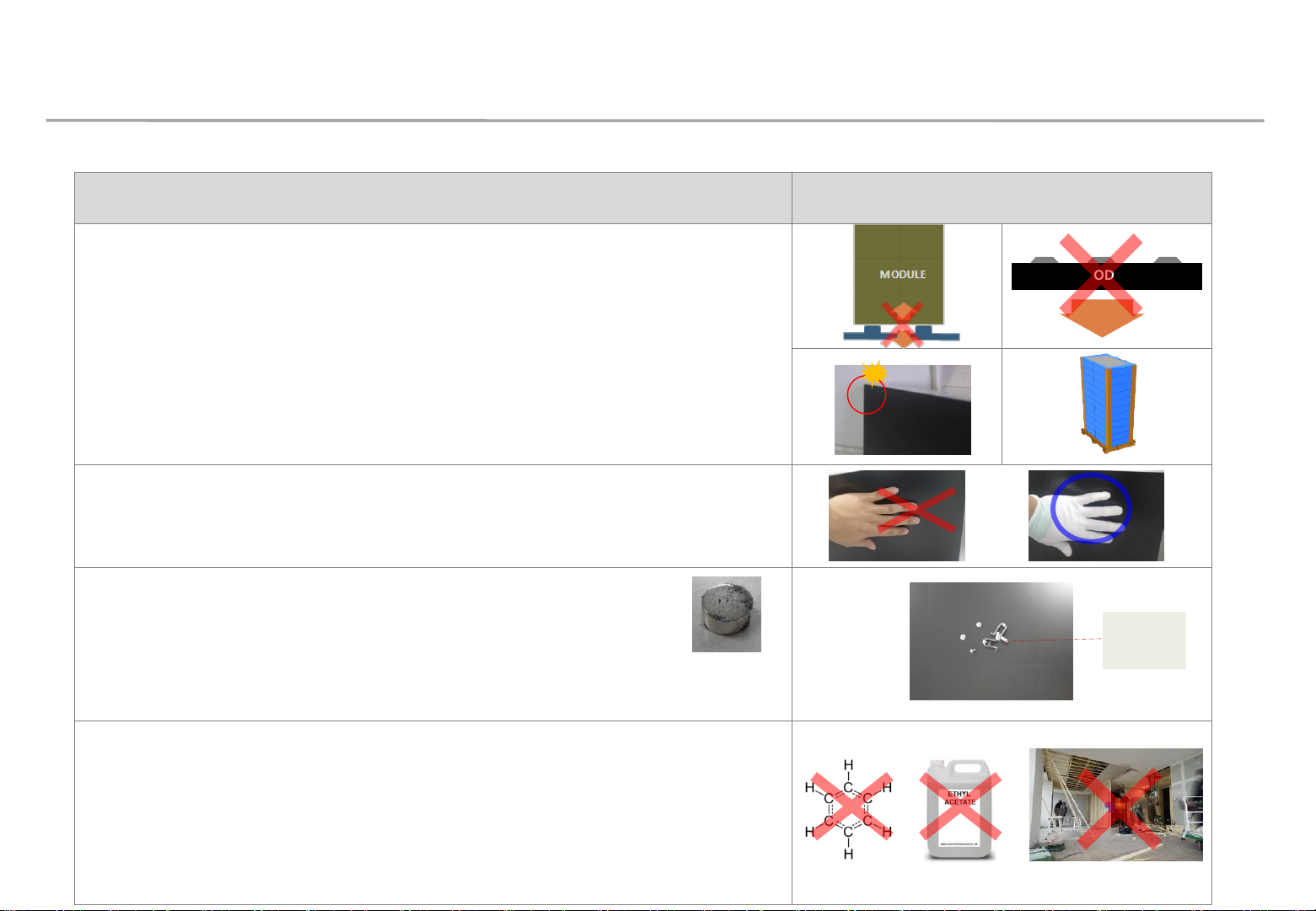

[ Beware of Outside Impact, Fall]
①Beware not to cause any impact on the LED screen or drop the product on the floor
after the protection gets taken off for installation.
②Beware not to put the LED side headed downwards to the floor after the protection
gets taken off for installation.
③Beware not to have the corner area of LED module be damaged due to the contact
with the outside.
④
Beware not to put more than 12 layers.
①
②
③
④
[Beware of LED Damage due to Static Electricity]
▶
Beware not to touch LED screen with bare hands without putting gloves on.
[Beware of LED & Film Damage due to Metallic Substances]
▶
Beware not to have metallic substances pulled in to the surface
due to the magnetic force on the front side of the LED.
▶
If any metallic substances get drawn in on the surface, please remove the
pollutants by using a magnet.
[Beware of LED Damage due to chemicals.]
▶
Beware not to contact water, waxes, benzene, thinners, mosquito repellents,
lubricants, cleaners, solvents or surfactants on edge of LED Module.
▶
When installing on the construction site, it should be installed after construction & cleaning.
▶
If the installation site requires construction work, the product is covered with a
curtain and operated 50% white or video for 2 hours every day.
MODULE
Front
LED &
Film

Samsung Electronics
1. Product Information and Precautions for Installation
◇Caution for cleaning screen
14
-Wipe lightly with the soft cleaning cloth provided with the product
(Watch out for surface LED damage)
-Hard stuff on screen surface can damage LED chip and film during
cleaning. Clear screen surface before cleaning
-It is recommended to wipe with soft cleaning cloth provided with
the product, and if there is a contaminant area that is not well
removed, it should be injected into a cleaning cloth provided with
a glass detergent of the surfactant and washed. (However, do not
spray the glass detergent directly on the screen)
- Watch out for damage when cleaning gap between Half-
Cabinets
- Watch out for damage when cleaning gap between Modules
- Do not insert any cleaning tool or spay cleaner directly into
the gap
- Do not wipe the LED surface with hard materials such as
paper towels, brushes comb or brush, acrylic or steel.
- Do not use chemicals such as wax, benzene, cinna, mosquito
repellent, air freshener, lubricant, and detergent in products
★Caution★

Samsung Electronics
1. Product Information and Precautions for Installation
15
•The power cable must have a click sound, and the WDM module must be pushed into the rear fixing
holder.
The OCM cable and the USB-C cable should be inserted into the fixing holder.
•Do not mix cabinet which have different project number, each cabinet have its own project number
Module Cabinet Box
ex) Project No : A0022
AC Power Cable WDM Module OCM & USB-C Cable
0

Samsung Electronics
1. Product Information and Precautions for Installation
◇Installation preparation
(-) (+) driver
•Provided in accessory kit. (CY-WJJPWP).
PROTECTION
(BN81-17111A)
EDGE PROTECTION V/H
(BN81-17514A/BN81-17515A)
PLIER
(BN81-17541A)
Adsorber
(BN81-17124A)
Latex gloves
(RA00400E-002539)
MODULE
SEPARATE JIG
(BN81-17904A)
MAGNET JIG
(BN81-17114A)
GAP TOOL
(BN81-17113A)
Step control JIG
(BN81-17112A)
•Provided in accessory kit
(CY-WJRPWP).
Electric driver
•Provided in the set accessory
(BN96-49595A).
x2 x4
※ Recommended standard
※ It should be purchased together when purchasing the product separately.
※ It should be purchased
together when purchasing
the product separately.
•It is on the Prepare Frame kit installation page(p.22) included in Frame Kit (IWJPA-WL008F).
※ wrapped in a small zipper bag.
Cover-PCB
(BN63-18008A)
x3
SCREW-MACHINE
(6001-002996)
x3
HOLDER-SCREW
(BN61-16452A)
x3
HOLDER-SCREW
(BN61-16452B)
x3
M4, L5 M4, L6
16

Samsung Electronics
1. Product information and precautions for installation
2. Check point about the radiant heat
3. Frame installation
4. Preparation for cabinet installation
5. Cabinet + Frame installation
6. Cabinet + Frame + Bezel installation
7. Disassembly & Front Service
8. Media Box installation and connection
9. LSM Setting & Instructions
10.How to use The Wall –Setting
17

Samsung Electronics
Installation condition
-SAMSUNG FRAME usage condition
-The installation of direct solar window conditions is avoided. (If it is inevitable to install directly, make sure to contact our technical
team)
. Window side adjacent installation case,
. Weak solar survey at the time of work except noon time is allowed.
. If windows adjacent installation is inevitable, use UV blocking /light blocking film.
-Room temperature recommended using 0 to 25 ℃ conditions
-Effect of Air Conditioning System on Cold / Hot Wind
∙If the cold / warm wind is the same air conditioning system,
Be careful not to let warm air get into the products
-Ambient temperature measurement position
∙Measure at a distance of 0.3m from the center of the product
Air vent specification
-More than 60% opening rate, mesh air vent should be used
-Opening ratio (%) = 𝑐 𝑋 𝑑 𝑋 𝑁𝑜.𝑜𝑓 𝑣𝑒𝑛𝑡 ℎ𝑜𝑙𝑒
𝐴 𝑋 𝐵
wall
Ambient temperature
measurement position
2. Check Point about the Radiant Heat
A
B
d
c
18

Samsung Electronics
2. Check Point about the Radiant Heat
Heat generation during screen installation (Additional air conditioning)
- Heat generation value is according to the screen size and should be added to the existing air conditioning amount.
Minimum height when installing the screen
- Minimum height considering upper and lower air vent height
Screen size Additional air conditioning load
Watt∙h BTU
4K 2,720 9,281
6K 6,120 20,882
8K 10,880 37,124
Screen size Temperature Min. height Upper air vent Set height Lower air vent
4K
Air conditioning
not operation 2.41m 0.5m
1.81m
0.1m
Air conditioning
operation (25℃) 2.01m 0.1m
6K
Air conditioning
not operation 3.32m 0.5m
2.72m
Air conditioning
operation (25℃) 2.93m 0.1m
8K
Air conditioning
not operation 4.23m 0.5m
3.63m
Air conditioning
operation (25℃) 3.82m 0.1m 19
