Introduction
Package Contents
Note
Please make sure the following items are included with your monitor.
If any items are missing, contact your dealer.
Contact a local dealer to buy optional items.
Unpacking
Without stand With stand
Monitor Monitor
Manuals
Quick Setup Guide Warranty Card
(Not available in all loca-
tions)
User's Guide
Cables
D-Sub Cable Power Cord USB Cable
Sold separately
DVI Cable HDMI Cable Headphones

Others
Cleaning Cloth
Note
This is only provided for highly polished black products as a product feature.
Your Monitor
Initial Settings
Select the language using the up or down key.
The displayed content will disappear after 40 seconds.
Turn the Power button off and on. It will be displayed again.
It can be displayed up to three (3) times. Make sure to adjust the resolution of your PC before reaching
the maximum count.
Note
The resolution displayed on the screen is the optimal resolution for this product.
Adjust your PC resolution so that it is the same as the optimal resolution for this product.
Introduction

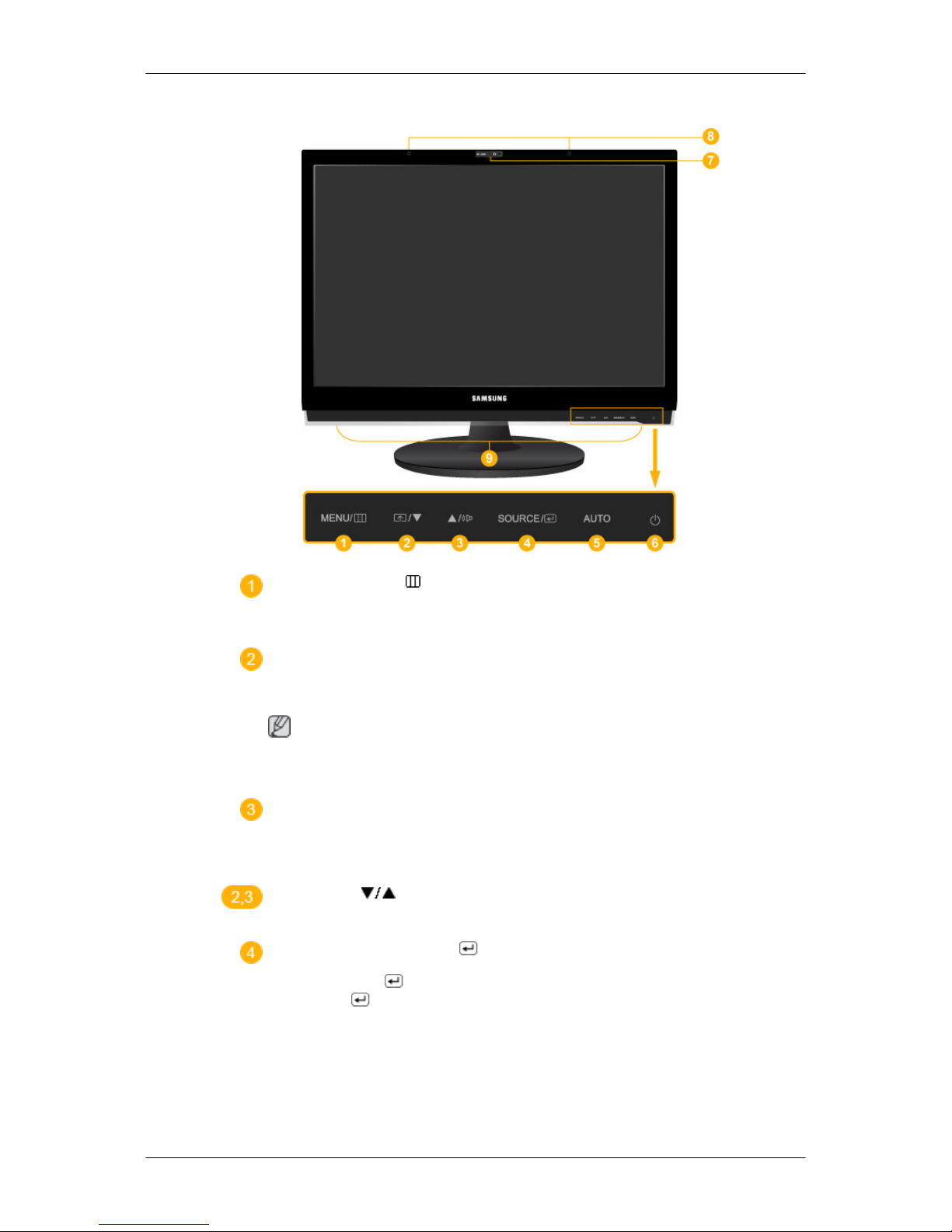

Front
MENU button [MENU/ ]
Opens the on-screen menu and exits from the menu. Also use to exit the OSD menu
or return to the previous menu.
Customized Key
You can customize key assignment for the Custom button according to your pref-
erences.
Note
You can configure the Customized key for a required function via Setup > Cus-
tomized Key.
Volume button
When OSD is not on the screen, push the button to adjust volume.
>> Click here to see an animation clip
Adjust buttons [ ]
Adjust items in the menu.
SOURCE button / Enter button [ ]
Push the 'SOURCE/ ', then selects the video signal while the OSD is off. (When
the SOURCE/ button is pressed to change the input mode, a message appears
in the upper left of the screen displaying the current mode -- analog or digital input
signal.)
/ Activates a highlighted menu item.
Introduction

Note
If you select the digital mode, you must connect your monitor to the graphic card's
DVI port using the DVI cable.
>> Click here to see an animation clip
AUTO button
Use this button for auto adjustment.
(Available in Analog mode only)
>> Click here to see an animation clip
Power button [ ] / Power indicator
Use this button for turning the monitor on and off.
/ This light glows blue during normal operation, and blinking blue once as the
monitor saves your adjustments.
Camera
Using this camera, you can view and send video for video chatting.
Mic
Using this microphone, you can view and send audio for video chatting.
Speaker
You can hear sound by connecting the soundcard of your PC to the monitor.
Rear
Note
The configuration at the back of the monitor may vary from product to product.
POWER
Introduction

POWER
Connect the power cord for your monitor to the
POWER port on the back of the monitor.
DVI IN / RGB IN
DVI IN
Connect the DVI cable to the DVI IN port on the
back of your monitor.
RGB IN
Connect the RGB IN terminal at the back of your
monitor to your computer.
USB connection termi-
nal (Option)
UP (USB upstream port)
Connect the UP port of the monitor and the
USB port of the computer with the USB cable.
DOWN (USB downstream port)
Connect the DOWN port of the USB monitor
and a USB device with the USB cable.
Note
To use DOWN (Downstream Port), you have
to connect the UP (Upstream Cable ) to the
PC.
Make sure to use the USB cable supplied with this
monitor to connect the monitor's UP port
and your computer's USB port.
Introduction

Kensington Lock
The Kensington Lock is a device used to physi-
cally fix the system when using it in a public
place. The locking device has to be purchased
separately. The appearance and locking method
may differ from the illustration depending on the
manufacturer. Refer to the manual provided with
the Kensington Lock for proper use. The locking
device has to be purchased separately.
Note
The location of the Kensington Lock may be dif-
ferent depending on its model.
Using the Anti-Theft Kensington Lock
1. Insert the locking device into the Kensington
slot on the Monitor ( ) and turn it in the
locking direction ( ).
2. Connect the Kensington Lock cable.
3. Fix the Kensington Lock to a desk or a heavy
stationary object.
/ MIC
Headphone output terminal
MIC
Connect a microphone to the MIC terminal.
Cable holding ring
Fix the cables using the holding ring, as shown in
the figure.
Introduction

Note
See
{963UW}
Connecting Cables for further information regarding cable connections.
Introduction

Connections
{963UW}

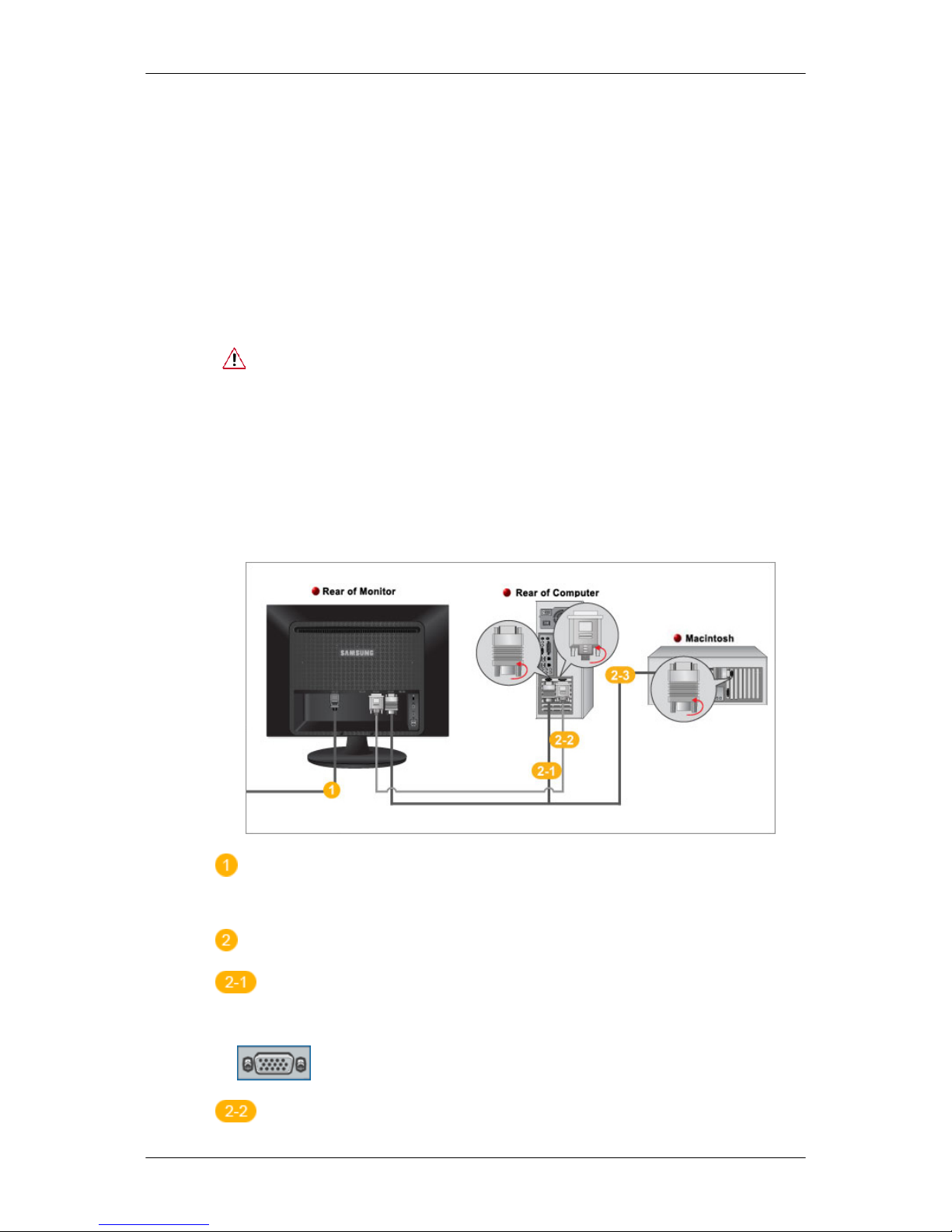

Connecting Cables
Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
Use a connection appropriate for your computer.
Using the D-sub (Analog) connector on the video card.
• Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.
[RGB IN]
Using the DVI (Digital) connector on the video card.
• Connect the DVI Cable to the DVI IN Port on the back of your Monitor.
[DVI IN]
Connected to a Macintosh.
• Connect the monitor to the Macintosh computer using the D-sub connection cable.
Note
If the monitor and the computer are connected, you can turn them on and use them.

{963UW}

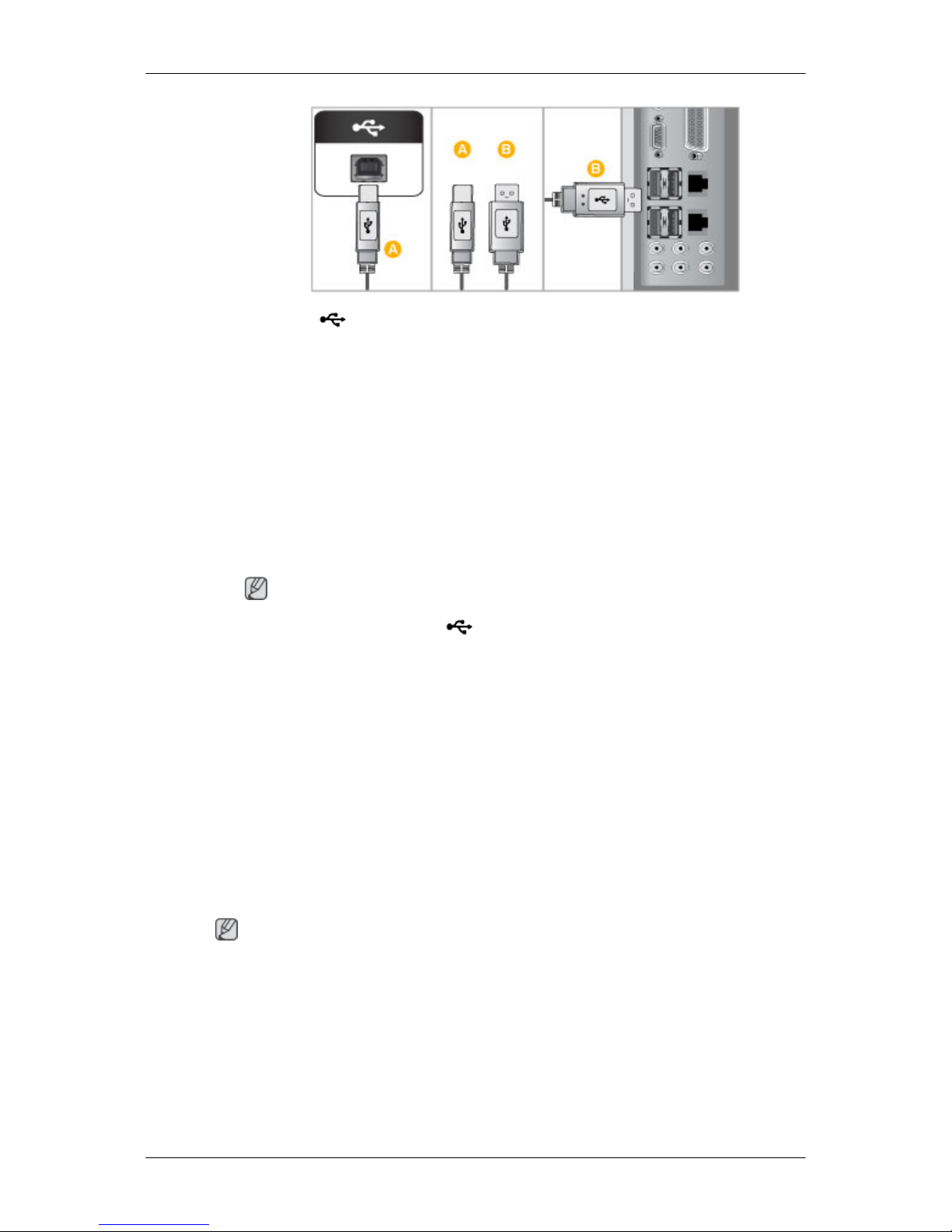

Connecting USB
Note
You can use a USB device such as a mouse, keyboard, Memory Stick, or external hard disk drive by
connecting them to the DOWN port of the monitor without connecting them to the PC.
The USB port of the monitor supports High-Speed Certified USB 2.0.
High speed Full speed Low speed
Data Rate 480 Mbps 12 Mbps 1.5 Mbps
Power Consumption 2.5 W
(Max., each port)
2.5 W
(Max., each port)
2.5 W
(Max., each port)
1. Connect the UP port of the monitor and the USB port of the computer with the USB cable.
Note
To use DOWN port, you have to connect the UP (Upstream Cable) to the PC.
Make sure to use the USB cable supplied with this monitor to connect the monitor's UP port
and your computer's USB port.
2. Connect the DOWN port of the USB monitor and a USB device with the USB cable.
3. The use procedures are as the same as those for using an external device connecting to the PC.
• You can connect and use a keyboard and mouse.
• You can play a file from a media device.
(Examples of media devices: MP3, digital camera, etc.)
Connections

• You can run, move, copy or delete the files on the storage device.
(Examples of storage devices: external memory, memory card, memory reader, HDD-type
MP3 player, etc.)
• You can use other USB devices that can be connected to a computer.
Note
When connecting a device to the DOWN port of the monitor, connect the device using a
cable appropriate to the device.
(For the purchase of the cable and external devices, ask the service center of the corresponding
product.)
The company is not liable for problems or damages to an external device caused by using an
unauthorized cable for the connection.
Some products do not follow the USB standard, and it may cause a malfunction of the device.
If the device malfunctions even if it is connected to the computer, contact the service center of
the device/computer.
{963UW}

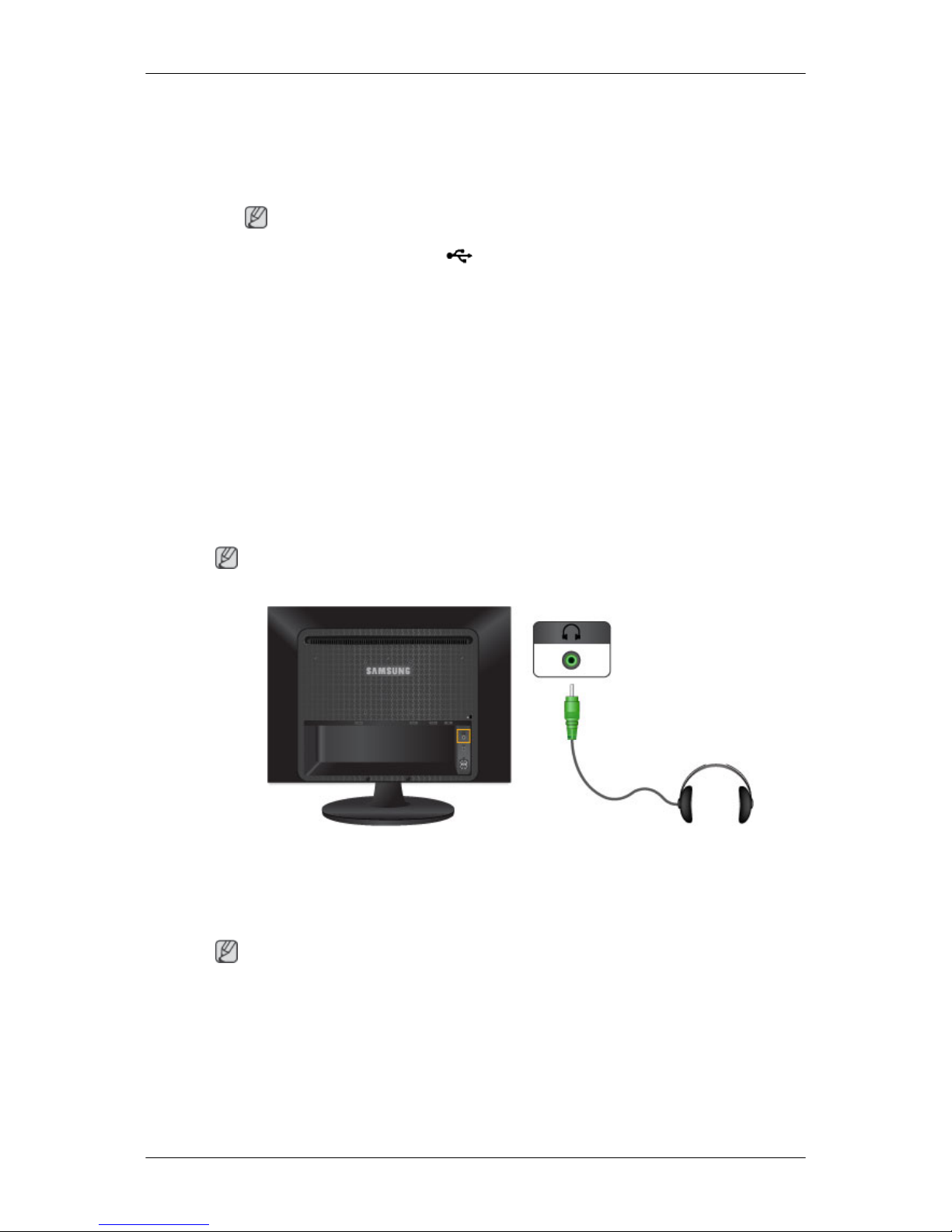

Connecting Headphone
Note
You may connect your headphones to the monitor.
1. Connect your headphones to the Headphone connection terminal.
{963UW}

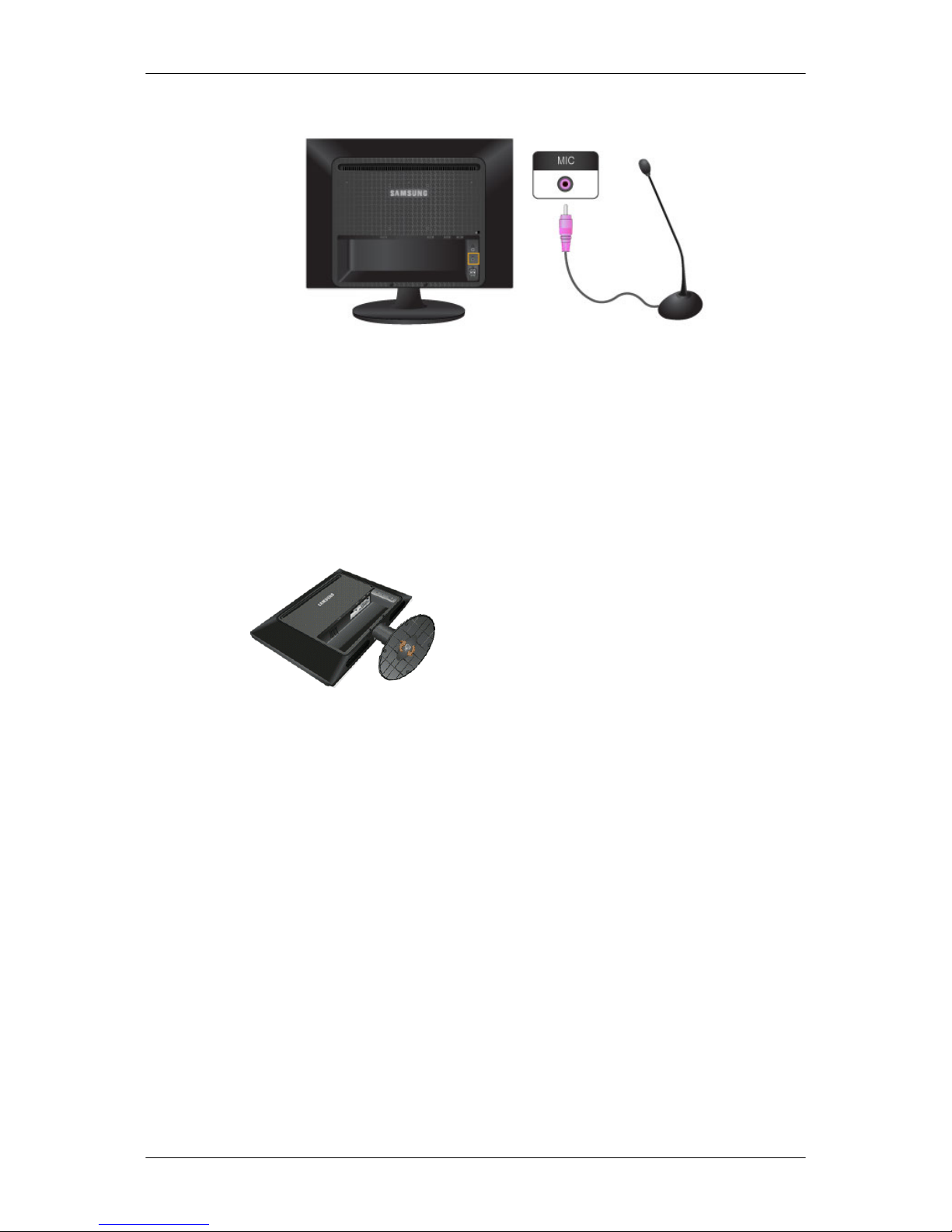

Connecting MIC
Note
You may connect your microphone to the monitor.
Connections

1. Connect the microphone cable to the MIC port on the monitor.
{963UW}
Using the Stand
Monitor Assembly
Simple Stand
Monitor and Bottom
Connections

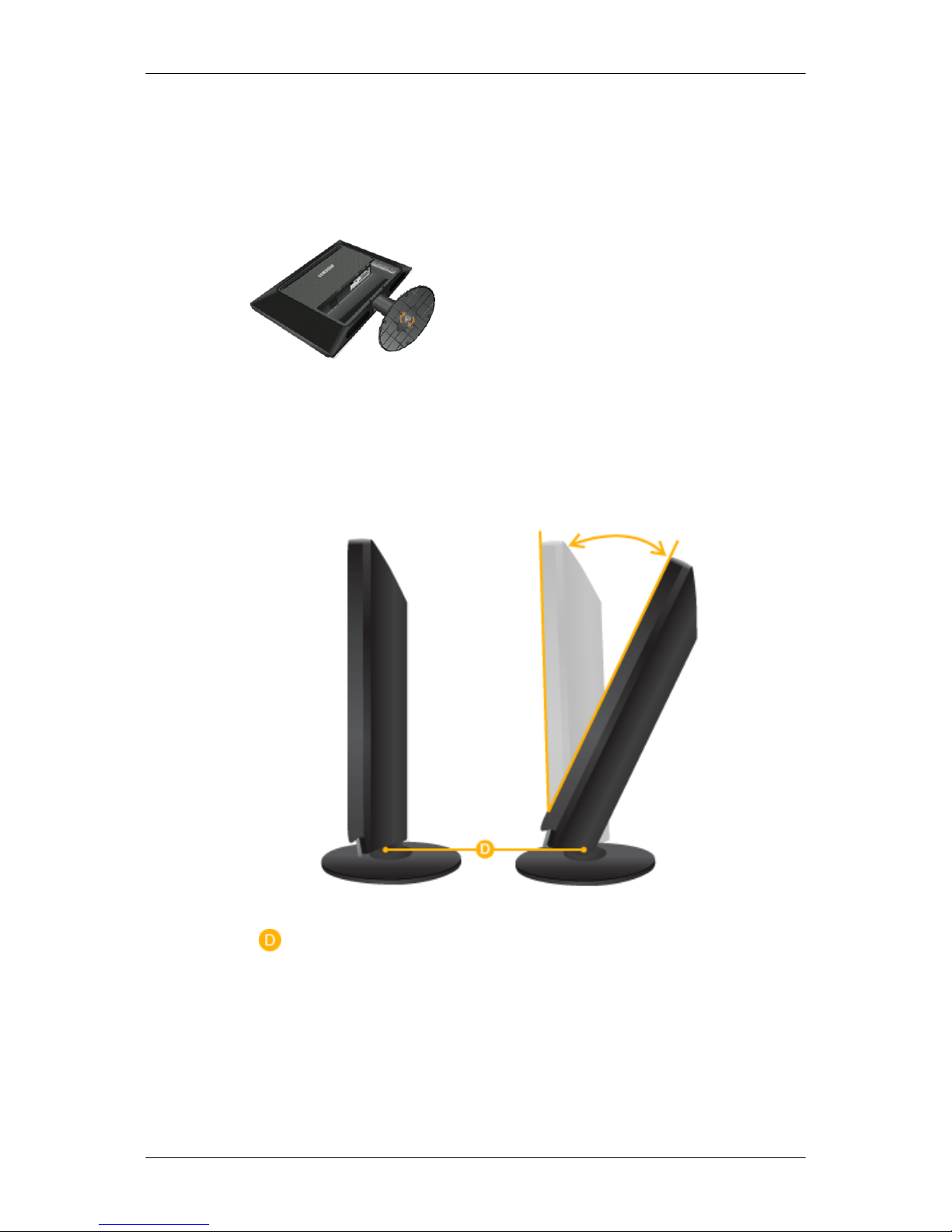

Tilt angle
Using ( ), You can adjust the tilt angle within a range of -3° forward to 24° backward for the most
comfortable viewing angle.
Attaching a Base

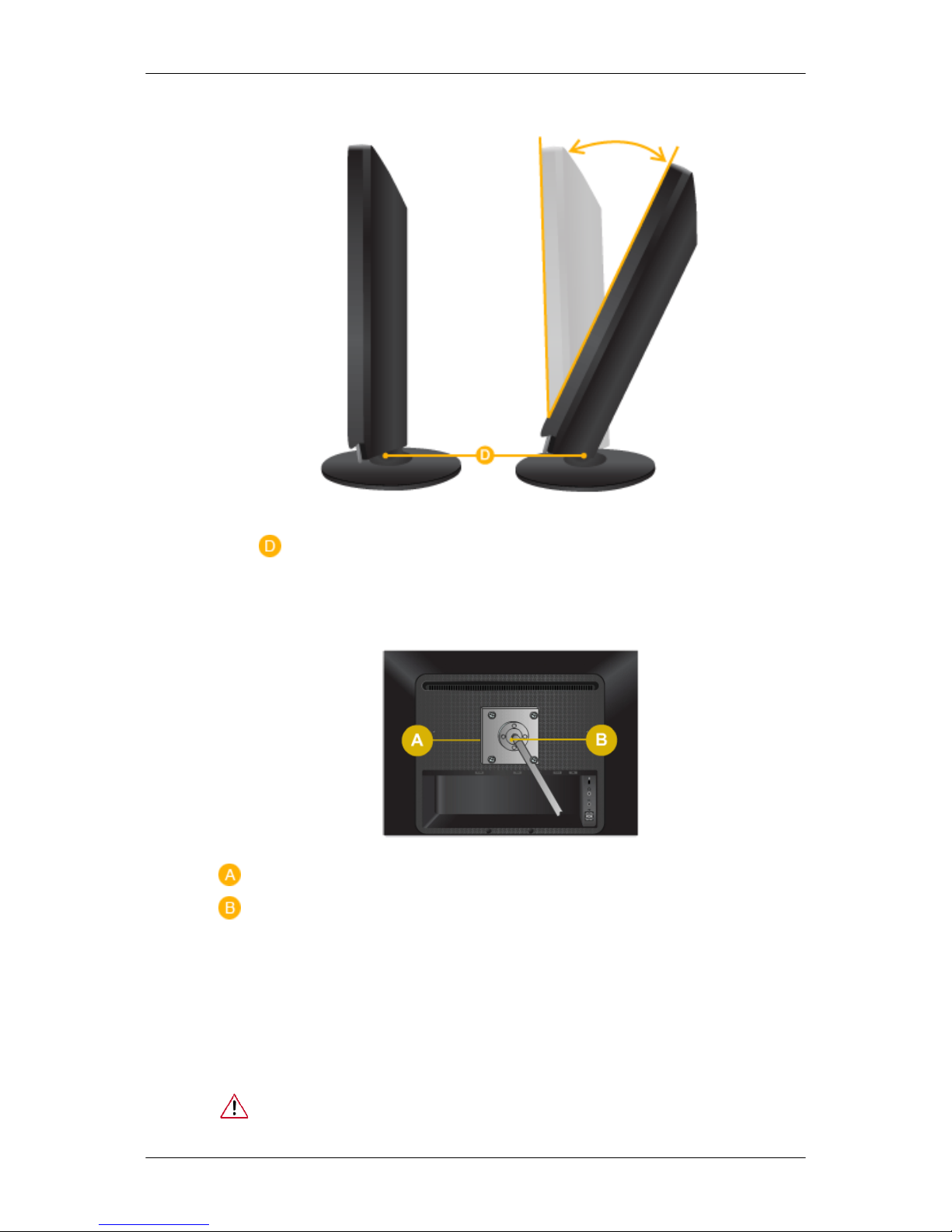

This monitor accepts a 75 mm x 75 mm VESA-compliant mounting interface pad.
Monitor
Mounting interface pad (Sold separately)
1. Turn off your monitor and unplug its power cord.
2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.
3. Remove four screws and then remove the stand from the LCD monitor.
4. Align the mounting interface pad with the holes in the rear cover mounting pad and secure it with
four screws that came with the arm-type base, wall mount hanger or other base.
• Do not use screws longer than the standard dimension, as they may damage the
inside of the Monitor.
Connections

• For wall mounts that do not comply with VESA standard screw specifications,
the length of the screws may differ depending on their specifications.
• Do not use screws that do not comply with the VESA standard screw specifica-
tions.
Do not fasten the screws too tightly, as this may damage the product or cause the
product to fall, leading to personal injury.
Samsung is not liable for these kinds of accidents.
• Samsung is not liable for product damage or personal injury when a non-VESA
or non-specified wall mount is used or the consumer fails to follow the product
installation instructions.
• To mount the monitor on a wall, you should purchase the wall mounting kit that
allows you to mount the monitor at least 10 cm away from the wall surface.
• Contact the nearest Samsung Service Center for more information. Samsung
Electronics will not be responsible for damages caused by using a base other than
those specified.
• Please use Wall Mount according to the International standards.
{2063UW}
Connecting Cables
Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
Use a connection appropriate for your computer.
Using the D-sub (Analog) connector on the video card.
• Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.
[RGB IN]
Using the DVI (Digital) connector on the video card.
Connections

• Connect the DVI Cable to the DVI IN Port on the back of your Monitor.
[DVI IN]
Connected to a Macintosh.
• Connect the monitor to the Macintosh computer using the D-sub connection cable.
Note
If the monitor and the computer are connected, you can turn them on and use them.
{2063UW}
Connecting USB
Note
You can use a USB device such as a mouse, keyboard, Memory Stick, or external hard disk drive by
connecting them to the DOWN port of the monitor without connecting them to the PC.
The USB port of the monitor supports High-Speed Certified USB 2.0.
High speed Full speed Low speed
Data Rate 480 Mbps 12 Mbps 1.5 Mbps
Power Consumption 2.5 W
(Max., each port)
2.5 W
(Max., each port)
2.5 W
(Max., each port)
1. Connect the UP port of the monitor and the USB port of the computer with the USB cable.
Note
To use DOWN port, you have to connect the UP (Upstream Cable) to the PC.
Make sure to use the USB cable supplied with this monitor to connect the monitor's UP port
and your computer's USB port.
Connections

2. Connect the DOWN port of the USB monitor and a USB device with the USB cable.
3. The use procedures are as the same as those for using an external device connecting to the PC.
• You can connect and use a keyboard and mouse.
• You can play a file from a media device.
(Examples of media devices: MP3, digital camera, etc.)
• You can run, move, copy or delete the files on the storage device.
(Examples of storage devices: external memory, memory card, memory reader, HDD-type
MP3 player, etc.)
• You can use other USB devices that can be connected to a computer.
Note
When connecting a device to the DOWN port of the monitor, connect the device using a
cable appropriate to the device.
(For the purchase of the cable and external devices, ask the service center of the corresponding
product.)
The company is not liable for problems or damages to an external device caused by using an
unauthorized cable for the connection.
Some products do not follow the USB standard, and it may cause a malfunction of the device.
If the device malfunctions even if it is connected to the computer, contact the service center of
the device/computer.
{2063UW}
Connecting Headphone
Note
You may connect your headphones to the monitor.
Connections

1. Connect your headphones to the Headphone connection terminal.
{2063UW}
Connecting MIC
Note
You may connect your microphone to the monitor.
1. Connect the microphone cable to the MIC port on the monitor.
Connections

{2063UW}
Using the Stand
Monitor Assembly
Simple Stand
Monitor and Bottom
Tilt angle
Using ( ), You can adjust the tilt angle within a range of -3° forward to 24° backward for the most
comfortable viewing angle.
Attaching a Base
This monitor accepts a 100 mm x 100 mm VESA-compliant mounting interface pad.
Connections

Monitor
Mounting interface pad (Sold separately)
1. Turn off your monitor and unplug its power cord.
2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.
3. Remove four screws and then remove the stand from the LCD monitor.
4. Align the mounting interface pad with the holes in the rear cover mounting pad and secure it with
four screws that came with the arm-type base, wall mount hanger or other base.
• Do not use screws longer than the standard dimension, as they may damage the
inside of the Monitor.
• For wall mounts that do not comply with VESA standard screw specifications,
the length of the screws may differ depending on their specifications.
• Do not use screws that do not comply with the VESA standard screw specifica-
tions.
Do not fasten the screws too tightly, as this may damage the product or cause the
product to fall, leading to personal injury.
Samsung is not liable for these kinds of accidents.
• Samsung is not liable for product damage or personal injury when a non-VESA
or non-specified wall mount is used or the consumer fails to follow the product
installation instructions.
• To mount the monitor on a wall, you should purchase the wall mounting kit that
allows you to mount the monitor at least 10 cm away from the wall surface.
• Contact the nearest Samsung Service Center for more information. Samsung
Electronics will not be responsible for damages caused by using a base other than
those specified.
• Please use Wall Mount according to the International standards.
Connections

Troubleshooting
{963UW}
Self-Test Feature Check
Note
Your monitor provides a self test feature that allows you to check whether your monitor is functioning
properly.
Self-Test Feature Check
1. Turn off both your computer and the monitor.
2. Unplug the video cable from the back of the computer.
3. Turn on the monitor.
If the monitor is functioning properly, you will see a box in the illustration below.
This box appears during normal operation if the video cable becomes disconnected or damaged.
4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the
monitor.
If your monitor screen remains blank after using the previous procedure, check your video controller
and computer system; your monitor is functioning properly.
Warning Messages
If there is something wrong with the input signal, a message appears on the screen or the screen goes
blank although the power indicator LED is still on. The message may indicate that the monitor is out
of scan range or that you need to check the signal cable.
Environment
The location and the position of the monitor may influence the quality and other features of the monitor.
If there are any sub woofer speakers near the monitor, unplug and relocate the woofer to another room.
Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet (one
meter) of the monitor.
