Samsung SyncMaster 510 MP User manual

SyncMaster 510MP / 710MP

INDEX
Main Page
Safety Instructions
Notational
Power
Installation
Cleaning
Other
Introduction
Unpacking
Front
Rear
Remote Control
Setup
Connecting Your Monitor
Installing the Monitor Driver
Installing a VESA Base
Adjusting Your LCD Monitor
User Controls
On-Screen Display
Troubleshooting
Check before Calling for Service
Problems and Solutions
Q & A
Specifications
General Specifications
PowerSaver
Preset Timing Modes
Information
Service Center
Terms
Regulatory
Natural Color
For Better Display
Authority

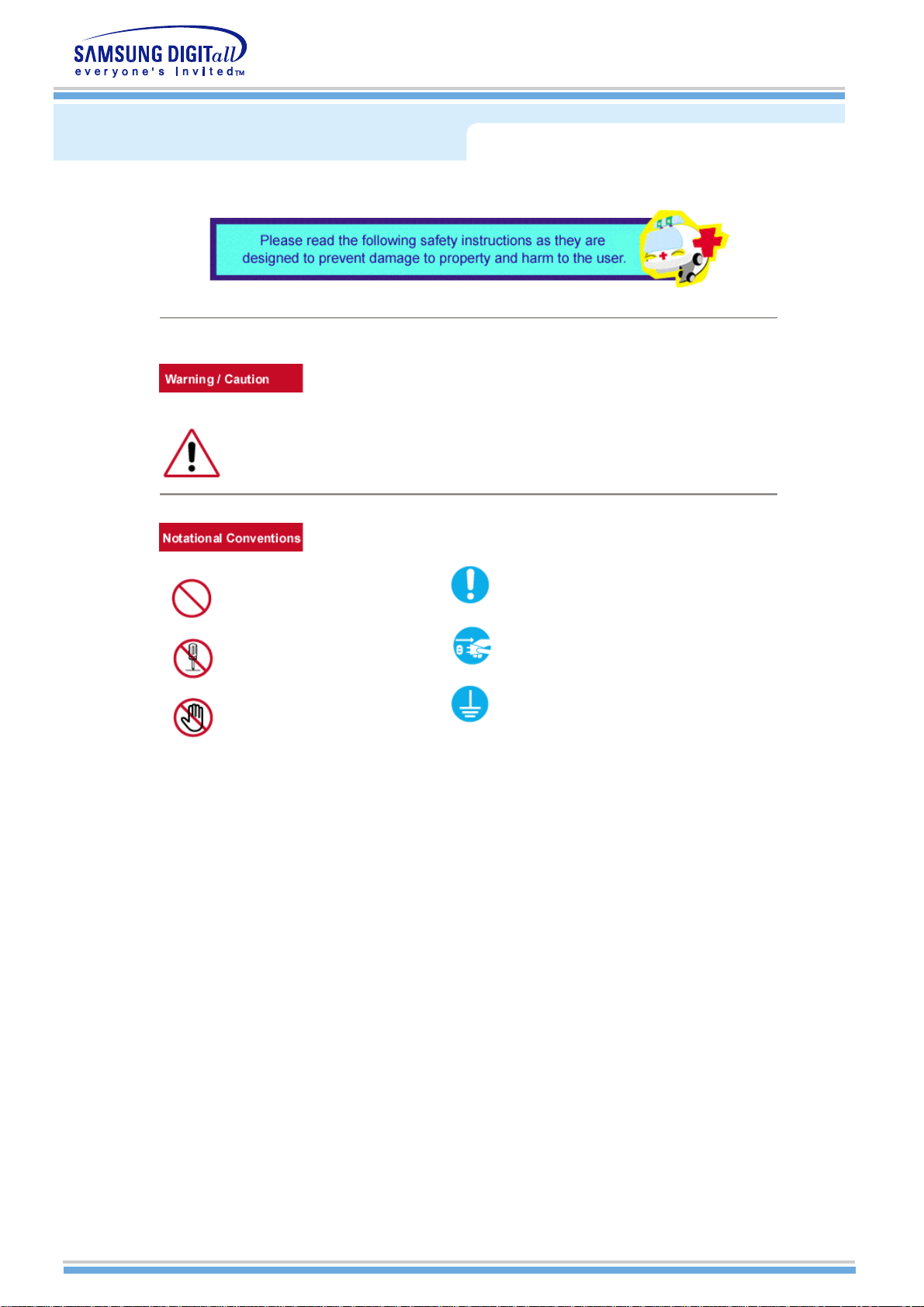

Notational
Failure to follow directions noted by this symbol could result in bodily harm or damage to
equipment.
Prohibited Important to read and understand at all times
Do not disassemble Disconnect the plug from the outlet
Do not touch Grounding to prevent an electric shock

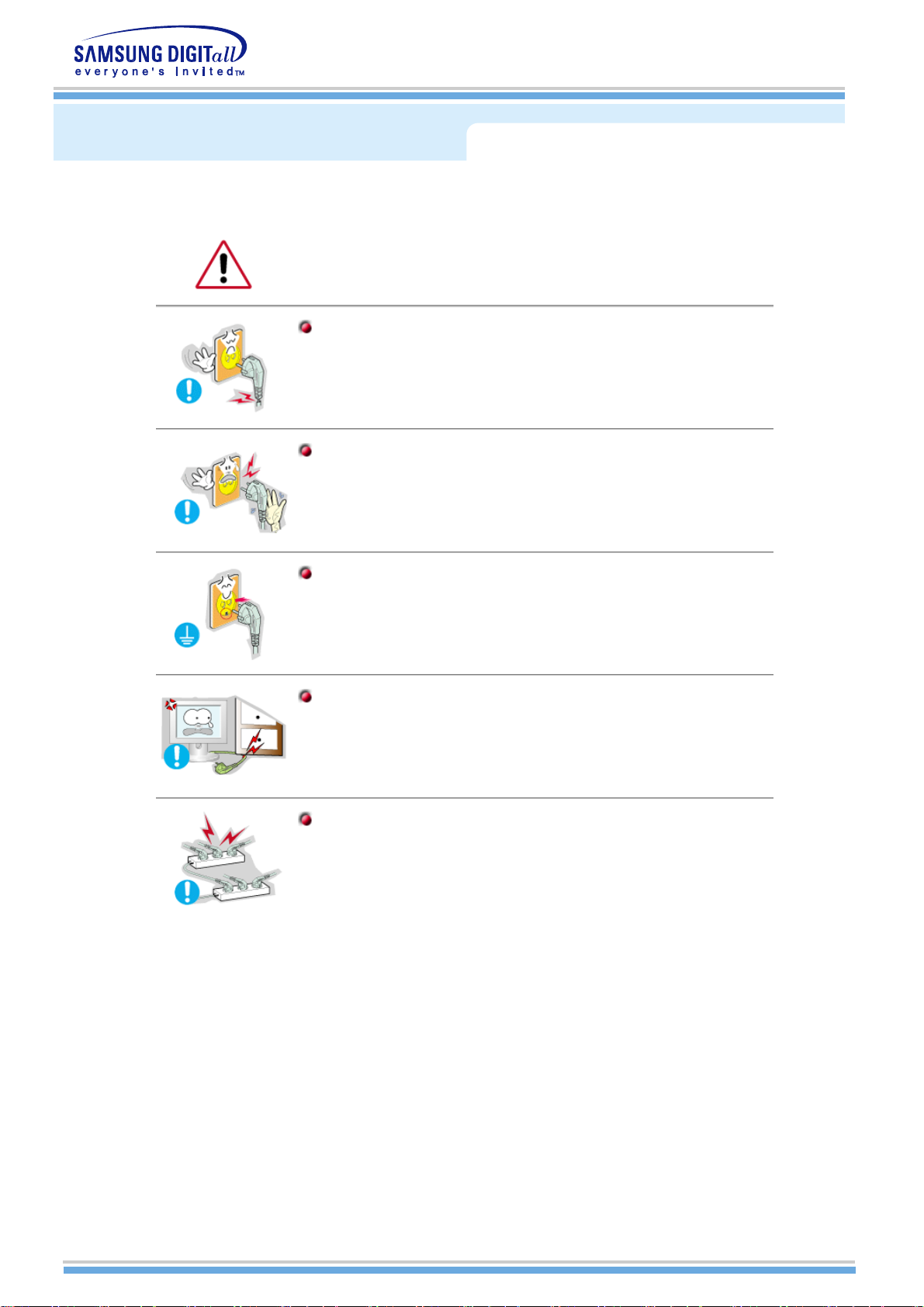

Power
When not used for extended periods of time, set your PC to DPMS. If using a
screen saver, set it to the active screen mode.
Do not use a damaged or loose plug.
zThis may cause an electric shock or fire.
Do not pull the plug out by the wire nor touch the plug with wet hands.
zThis may cause an electric shock or fire.
Use only a properly grounded plug and receptacle.
zAn improper ground may cause electric shock or equipment damage.
Do not excessively bend the plug and wire nor place heavy objects upon
them, which could cause damage.
zThis may cause an electric shock or fire.
Do not connect too many extension cords or plugs to an outlet.
zThis may cause a fire.

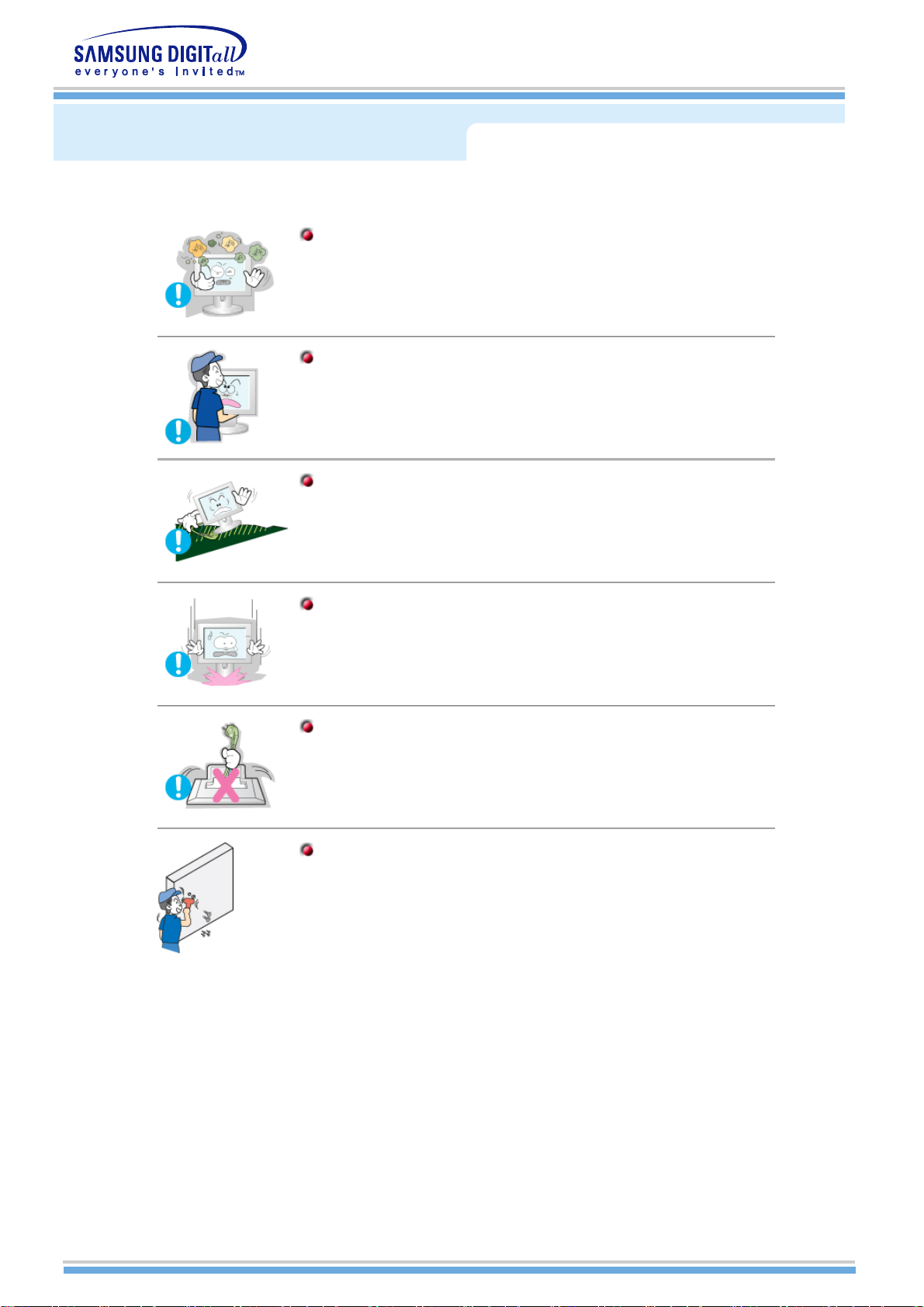

Installation
Put your monitor in a location with low humidity and a minimum of dust.
zAn electric shock or fire could result inside the monitor.
Do not drop the monitor when moving it.
zThis may cause damage to the product or human body.
Place the monitor on a flat and stable surface.
zThe monitor can cause injury by falling.
Set down the monitor carefully.
zIt could be damaged or broken.
Do not place the monitor face down.
zThe TFT-LCD surface may be damaged.
Installing a wall bracket must be done by a qualified professional.
zInstallation by unqualified personnel may result in injury.
zAlways use the mounting device specified in the owner's manual.

Cleaning
When cleaning the monitor case or the surface of the TFT-LCD, wipe with a slightly
moistened, soft fabric.
Do not spray water or detergent directly on the monitor.
zThis may cause damage, electric shock or a fire.
Use the recommended detergent with a smooth cloth.
If the connector between the plug and the pin is dusty or dirty, clean it
properly with a dry cloth.
zA dirty connector can cause an electric shock or fire.

타Ohther
Do not remove cover(or back). No user serviceable parts inside.
zThis may cause an electric shock or a fire.
zRefer servicing to qualified service personnel.

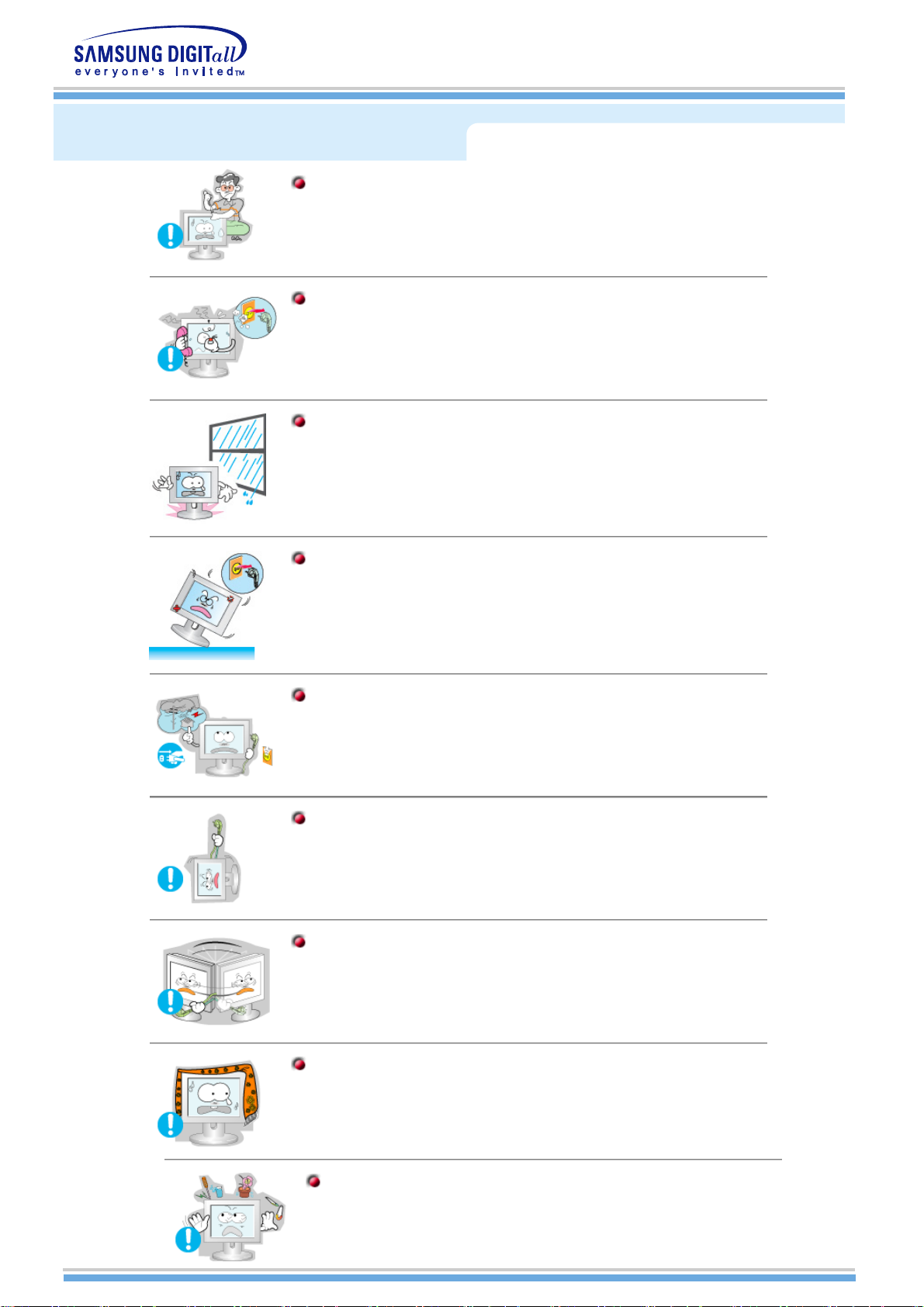

If your monitor does not operate normally - in particular, if there are any
unusual sounds or smells coming from it - unplug it immediately and
contact an authorized dealer or service.
zThis may cause an electric shock or fire.
Be careful not to let water drip into the monitor or expose the monitor to
moisture.
zThis may cause malfunction, an electric shock or a fire.
zEspecially avoid operating the monitor near water or outdoors where it
could be exposed to snow or rain.
If the monitor is dropped or the casing is damaged, turn the monitor off
and unplug the power cord.
zThe monitor may malfunction, causing an electric shock or a fire.
zThen contact the Service Center.
Keep the power off when there is thunder and lightening outside, or let the
monitor remain unused for an extended period of time.
zThe monitor may malfunction, causing an electric shock or a fire.
Do not try to move the monitor by pulling on the wire or the signal cable.
zThis may cause a breakdown, electric shock or a fire due to damage to
the cable.
Do not move the monitor right or left by pulling only the wire or the signal
cable.
zThis may cause a breakdown, electric shock or a fire due to damage to
the cable.
Do not cover the vents on the monitor cabinet.
zBad ventilation may cause a breakdown or fire.
Do not place water containers, chemical products or small metal objects
on the monitor.
zThis may cause malfunction, an electric shock or a fire.
zIf a foreign substance enters the monitor, unplug the power cord and
contact the Service Center.

Ohther
Do not use or store inflammable substances near the monitor.
zThis may cause an explosion or fire.
Never insert anything metallic into the monitor openings.
zThis may cause an electric shock, fire or injury.
Do not insert metal objects such as utensils, wire or drill bits, or things
that catch fire easily, such as pieces of paper or matches, into the vents or
the headphone or A/V ports on the monitor.
zThis may cause malfunction, an electric shock or a fire.
zAlways contact the Service Center if foreign substances/objects enter into
the monitor.
If you view a fixed screen for an extended period of time, residual image
or blurriness may appear.
zChange the mode to energy save or set a screensaver to moving picture
when you need to be away from the monitor for an extended period of
time.
Be careful when adjusting the stand angle.
zApplying too much force may cause the monitor topple over or fall,
resulting in injury.
zYour hand or finger(s) may get caught between the monitor and the
stand, causing injury.
Keep the volume at a proper level when you use the headphones.
zExcessively loud volume levels may damage hearing.
Keep a proper distance between your eyes and the monitor screen.
zSitting too close to the monitor on a continuous basis may damage
eyesight.
Adjust the resolution and frequency to the levels appropriate for the
model.
zInappropriate levels of resolution and frequency may damage your
eyesight.
15" - 1024 x 768
17,18 and 19" -
1280 x 1024
17" Wide - 1280 X 768
21" - 1600 x 1200
24" - 1920 x 1200

Unpacking
Please make sure the following items are included with your monitor. If any items are missing, contact
your dealer.
User's Guide and Natural
Color/Driver Installation CD Power Cord Signal Cable(15 pin D-Sub)
Monitor
Remote Control /
Batteries (CR2025) Audio Cable
Quick Setup Guide Warranty Card (Not available in all locations)

Front
For detailed information concerning the monitor functions, refer to User Controls under Adjusting Your
Monitor. The monitor's front configuration may vary slightly depending on the monitor model.
1. SOURCE button 5. Left-Right / Volume button
2. MagicBright™ button 6. MENU button
3. AUTO / EXIT button 7. Power button
4. Up-Down / Channel button 8. Power indicator

Rear
For detailed information concerning cable connections, refer to Connecting Cables under Setup.
The monitor's rear configuration may vary slightly depending on the monitor model.
Remove the cover to connect the cables. (Pull the joining part to remove the cover.)
A. Power port
Connect the power cord for your monitor to the
power port on the back of the monitor.
B. Signal port
Connect the signal cable to the 15-pin, D-sub
connector on the back of your monitor.
C. Antenna Connection Terminal
(When TV is connected)
D. PC sound(Stereo) connection terminal
E. AV Connection Terminal
1. Headphone connection terminal (Output)
2. Right(R) / Left(L) audio connection terminal (Input)
3. Video connection terminal (Input)
4. S-Video connection terminal (Input)

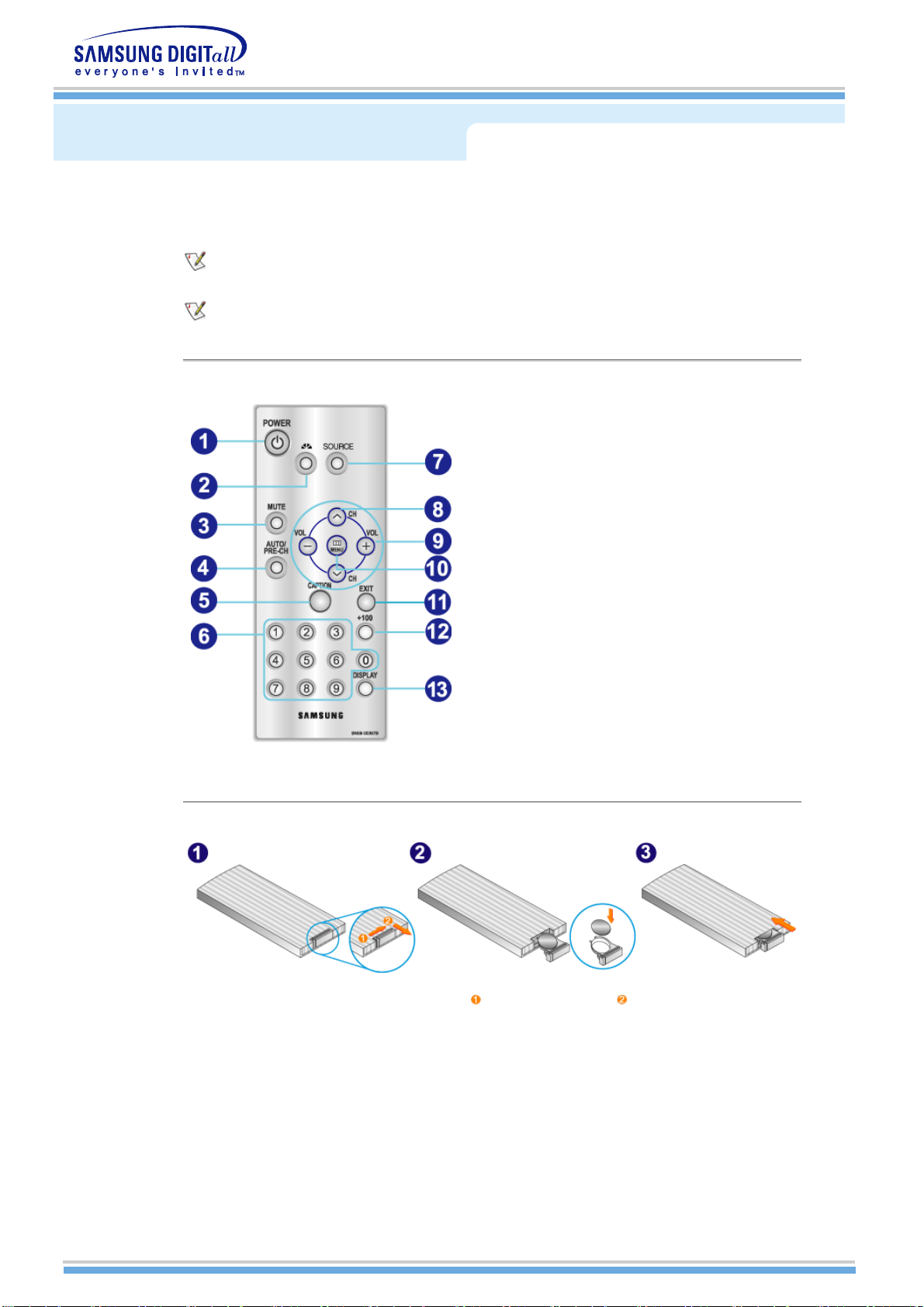

Remote Control
For detailed information of the Remote Control Unit functions, refer to Adjusting Your Monitor > User
Controls > User Control Buttons > Remote Control buttons.
The remote control's configuration may vary slightly depending on the monitor model.
The Remote control may function within a range of 0.23 to 33 feet (7cm to 10m) and 30 degrees to the
left and right of the monitor's Remote Control Reception sensor.
1. Button Names
2. Replacing Batteries
1. To open, slide the tray handle to the right and then pull it forward .
2. Place the battery on the tray with the right side up.
3. Push the tray back in in the arrow direction.
1. POWER button
2. MagicBright™ button
3. MUTE button
4. AUTO / Previous channel button
5. CAPTION button
6. CHANNEL button
7. SOURCE button
8. Up-Down / Channel button
9. Left-Right / Volume button
10. MENU button
11. EXIT button
12. +100 button
13. DISPLAY button

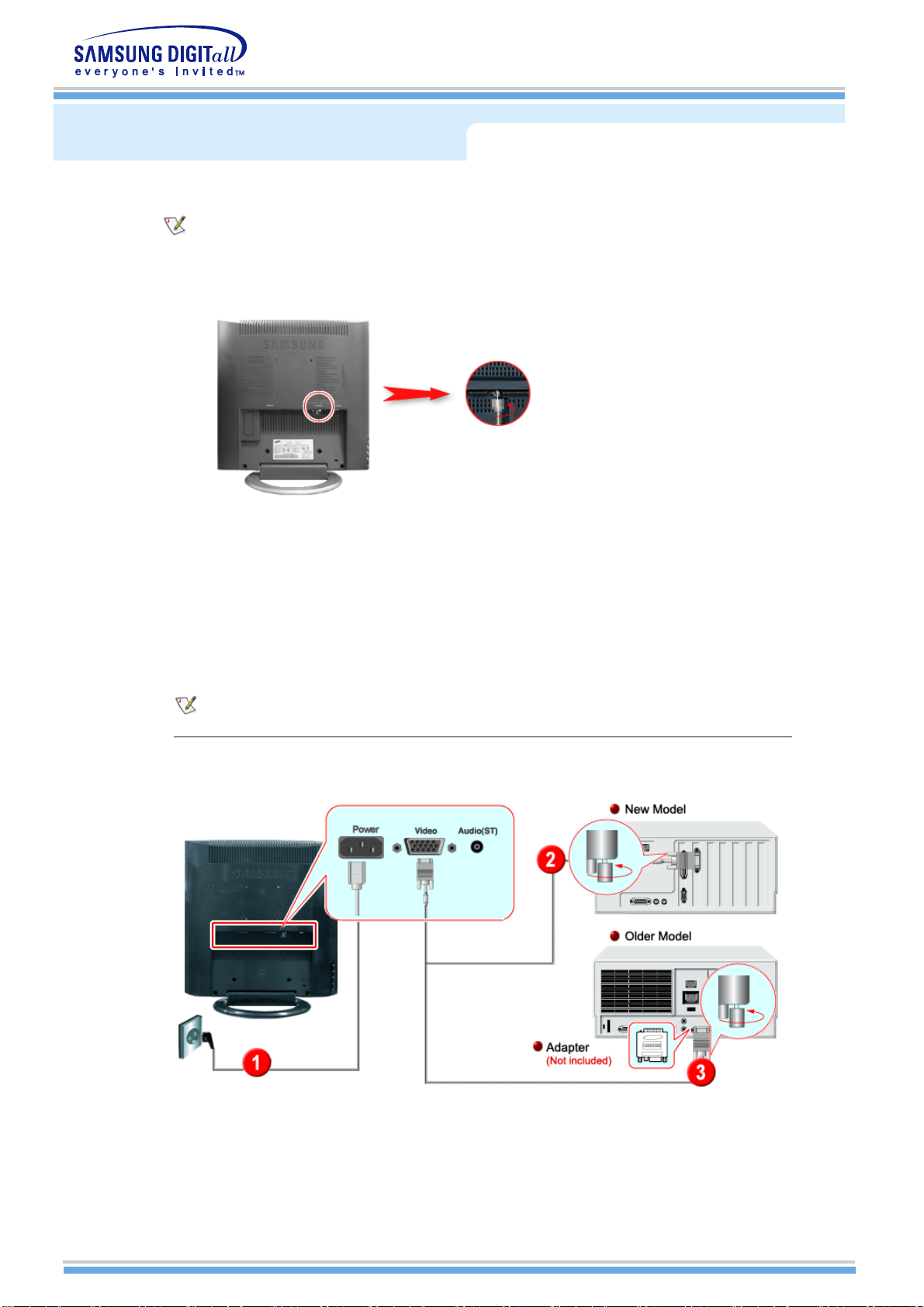

Connecting to a Computer
Turn on your computer and monitor. If your monitor displays an image, installation is complete.
1. Connecting to a Computer
1. Connect the power cord for your monitor to the power port on the back of the monitor.
2. Connect the signal cable to the video port on your computer.
3. Connect the audio cable for your monitor to the audio port on the back of your computer.
4. Turn on both your computer and the monitor.
5. You may enjoy clear and quality sound from the computer sound card using the monitor speakers.
(You don't need to install any separate speakers for your computer.)
Contact a local Samsung Electronics service center to buy optional items.

Connecting to other devices
AV input devices like DVDs, VCRs or Camcorders as well as your computer may be connected to the
monitor. For detailed information on connecting AV input devices, refer to User Controls under
Adjusting Your Monitor.
1. Connecting AV Devices
The monitor has AV connection terminals to connect AV input devices like DVDs, VCRs or
Camcorders. You may enjoy AV signals as long as the monitor is turned on.
1. AV input devices like DVDs, VCRs or Camcorders are connected to the S-Video (V1) or Video (V2)
terminal of the monitor using the S-VHS or RCA cable.
S-VHS or RCA cable is optional.
2. Connect the Audio (L) and Audio (R) terminals of a DVD, VCR or Camcorders to the monitor's L
and R audio input terminals using audio cables.
3. Select Video or S-Video that is connected to a DVD, VCR or Camcorders using the Source button
on the monitor's front.
4. Then, start the DVD, VCR or Camcorders with a DVD disc or tape inserted.

Connecting to other devices
2. Connecting TV
You may view television programs on the monitor if it is connected to an antenna or CATV cable
without installing any separate TV reception hardware or software on your computer.
1. Connect the CATV or antenna coaxial cable to the Antenna terminal on the rear of the monitor.
You need to use a coaxial antenna cable.
2. Turn on the monitor.
3. Select TV using Source button among the external signal adjustment buttons.
4. Select a desired TV channel.
As this product is designed for NTSC signals only, you cannot view TV programs in countries
where PAL or SECAM signals are used.
3. Connecting to a Macintosh
1. Connect the power cord for your monitor to the power port on the back of the monitor.
2. Connect the signal cable to the D-SUB port on the Macintosh computer.
3. For older model Macintoshes, you need to adjust the resolution control DIP switch on the Macintosh
adapter (Not included) referring to the switch configuration table shown on its rear.
4. Turn on the monitor and Macintosh.
Contact a local Samsung Electronics service center to buy optional items.

Connecting to other devices
4. Connecting Headphones
You may connect your headphones to the monitor.
1. Connect your headphones to the Headphone-out port.

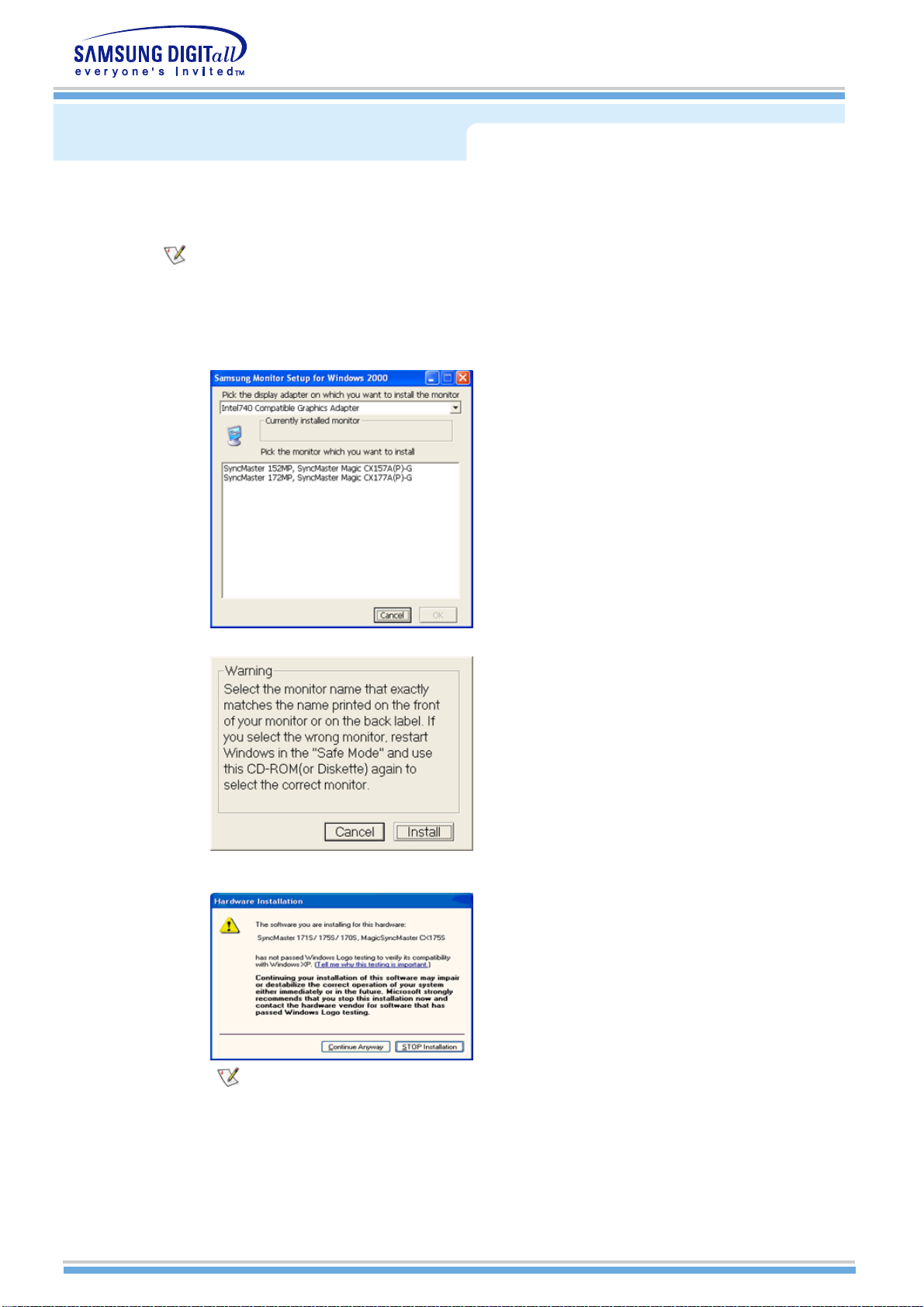

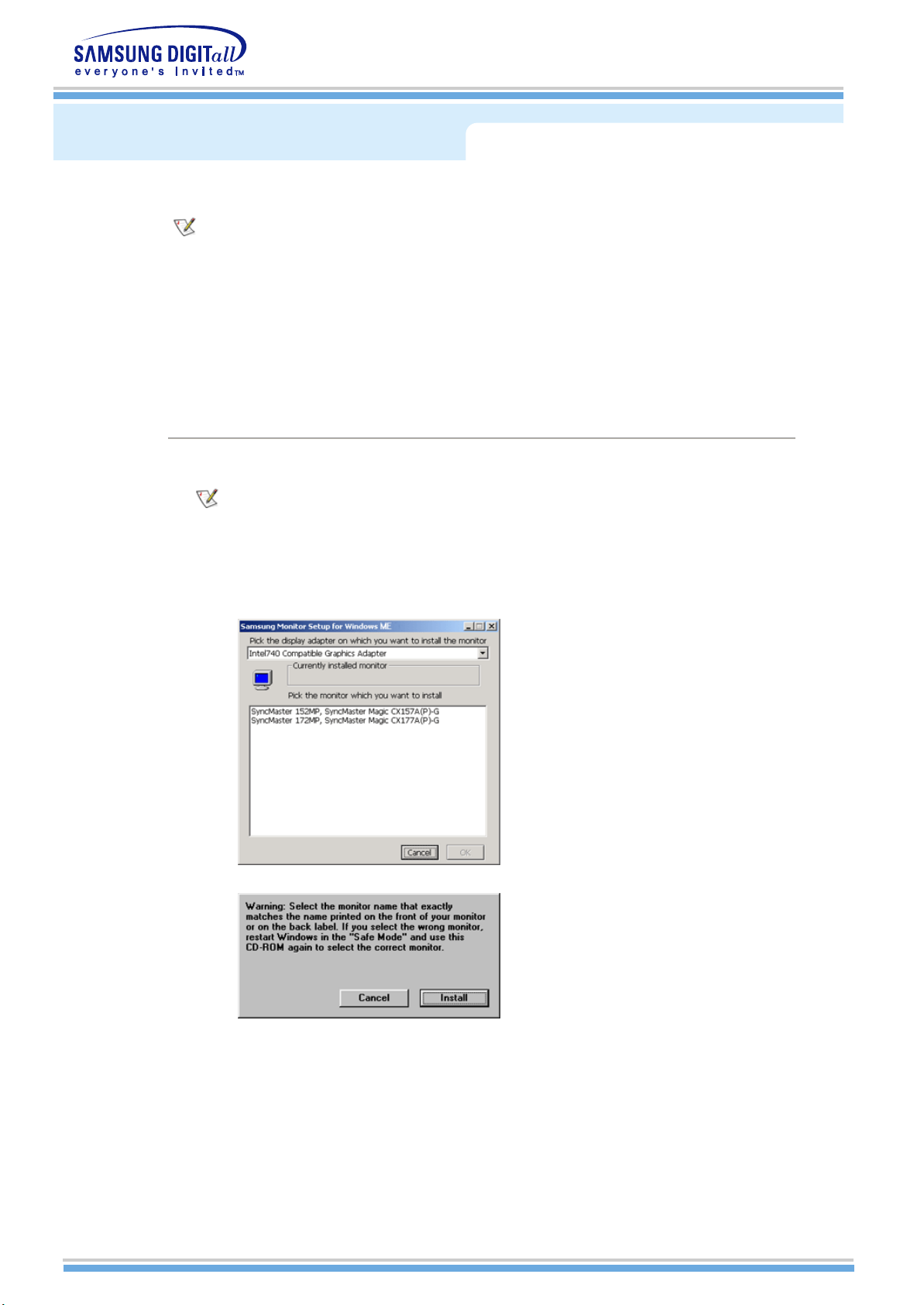

Installing the Monitor Driver
When prompted by the operating system for the monitor driver, insert the CD-
ROM included with
this monitor. Driver installation is slightly different from one operating system to another. Follow
the directions as appropriate for the operating system you have.
Prepare a blank disk and download the driver program file at the Internet web site shown here.
z
Internet web site :
http://www.samsung-monitor.com/ (Worldwide)
http://www.samsungusa.com/monitor/ (USA)
http://www.sec.co.kr/monitor/ (Korea)
http://www.samsungmonitor.com.cn/ (China)
1. Windows ME
Refer to " Installing the Monitor Driver and User Manual" CD-ROM supplied with the monitor.
When inserted into the computer CD drive, the CD-ROM boots up automatically. If it fails to boot up
automatically, click monsetup.exe twice in the CD-ROM drive folder of Windows Explorer.
1. Insert CD into the CD-ROM driver.
2. Click " Windows ME Driver"
3. Choose your monitor model in the model list, then click the " OK" button.
4. Click the " Install" button in the " Warning" window.
5. Monitor driver installation is completed.

2. Windows XP/2000
Refer to "Installing the Monitor Driver and User Manual" CD-ROM supplied with the monitor.
When inserted into the computer CD drive, the CD-ROM boots up automatically. If it fails to boot up
automatically, click monsetup.exe twice in the CD-ROM drive folder of Windows Explorer.
Installing the Monitor Driver
1. Insert CD into the CD-ROM driver.
2. Click " Windows XP/2000 Driver".
3. Choose your monitor model in the model list, then click the " OK" button.
4. Click the " Install" button in the " Warning" window.
5. If you can see following Message window, then click the " Continue Anyway" button. Then click " OK"
button.
6. Monitor driver installation is completed.
This monitor driver is under certifying MS logo,and this installation don't damage your system.
The certified driver will be posted on Samsung Monitor Homepage
http://www.samsung-monitor.com/

Installing the Monitor Driver
When prompted by the operating system for the monitor driver, insert the CD-ROM included with
this monitor. Driver installation is slightly different from one operating system to another. Follow
the directions as appropriate for the operating system you have.
Prepare a blank disk and download the driver program file at the Internet web site shown here.
zInternet web site : http://www.samsung-monitor.com/ (Worldwide)
http://www.samsungusa.com/monitor/ (USA)
http://www.sec.co.kr/monitor/ (Korea)
http://www.samsungmonitor.com.cn/ (China)
To install the monitor driver manually, follow the procedures explained below after checking your
operating system.
1. Microsoft®Windows®XP Operating System
1. Insert CD intothe CD-RO M driver.
2. Click " Start" "-->" Control Panel"then click the " Appearance and Themes" Icon.
3. Click " Display" icon and choose the " Settings" tab then click " Advanced..".
4. Click the Properties" button on the " Monitor" tab and select "
Driver" tab.

Installing the Monitor Driver
5. Click " Update Driver.." and select " Install from a list or.." then click " Next" button.
6. Select " Don't search ,I will.." then click " Next" and then click " Have disk".
7. Click the " Browse" button then choose A:(D:\Driver) and choose your monitor model in the model list
and click the " Next" button.
4. Click the Properties" button on the " Monitor" tab and select " Driver" tab.
