Samsung SyncMaster 753Ms User manual

SyncMaster 753s/753v/750s/753Ms

Main > Index
Main Page On-Screen Display
Safety Instructions Troubleshooting
Notational Check List
Power Q & A
Installation Self-Test Feature Check
Cleaning
Other
Introduction Specifications
Unpacking General Specifications
Front Preset Timing Modes
Rear PowerSaver
Bottom
Setup Information
Connecting Your Monitor Service
Installing the Monitor Driver Terms
Automatic Regulatory
Manual Natural Color
Base Installation Authority

Main > Safety Instructions > Notational
Notational
Power
Installation
Clean
Other
Failure to follow directions noted by this symbol could result in bodily harm or damage to
equipment.
Prohibited Important to read and understand at all times
Do not disassemble Disconnect the plug from the outlet
Do not touch Grounding to prevent an electric shock

Main > Safety Instructions > Power
Notational
Power
Installation
Clean
Other
When not used for extended periods of time, set your PC to DPMS. If using
a screen saver, set it to the active screen mode.
zIf the size of your monitor is small, or if the same image is present for long
periods of time, you may see afterimages due to damage to the
fluorescent substance on the inside of the CRT.
Do not use a damaged or loose plug.
zThis may cause an electric shock or fire.
Do not pull the plug out by the wire nor touch the plug with wet
hands.
zThis may cause an electric shock or fire.
Use only a properly grounded plug and recepticle.
zAn improper ground may cause electric shock or equipment
damage.
Do not excessively bend the plug and wire nor place heavy objects
upon them, which could cause damage.
zFailure to do so may cause an electric shock or fire.
Disconnect the plug from the outlet during storms or lightening or
if it is not used for a long period of time.
zFailure to do so may cause an electric shock or fire.
Do not connect too many extension cords or plugs to an outlet.
zThis may cause a fire.

Main > Safety Instructions > Installation
Notational
Power
Installation
Clean
Other
Do not cover the vents on the monitor cabinet.
zBad ventilation may cause a breakdown or fire.
Put your monitor in a location with low humidity and a minimum of
dust.
zAn electric shock or fire could result inside the monitor.
Do not drop the monitor when moving it.
zThis may cause damage to the product or human body.
Place the monitor on a flat and stable surface.
zThe monitor can cause injury by falling.
Set down the monitor carefully.
zIt could be damaged or broken.
Do not place the monitor face down.
zThe CRT surface may be damaged.
Do not use the monitor without the monitor stand.
zIt could break down or cause a fire due to bad ventilation.
zIf the monitor must be used without the supplied stand, take steps
to insure proper ventilation.

Main > Safety Instructions > Clean
Notational
Power
Installation
Clean
Other

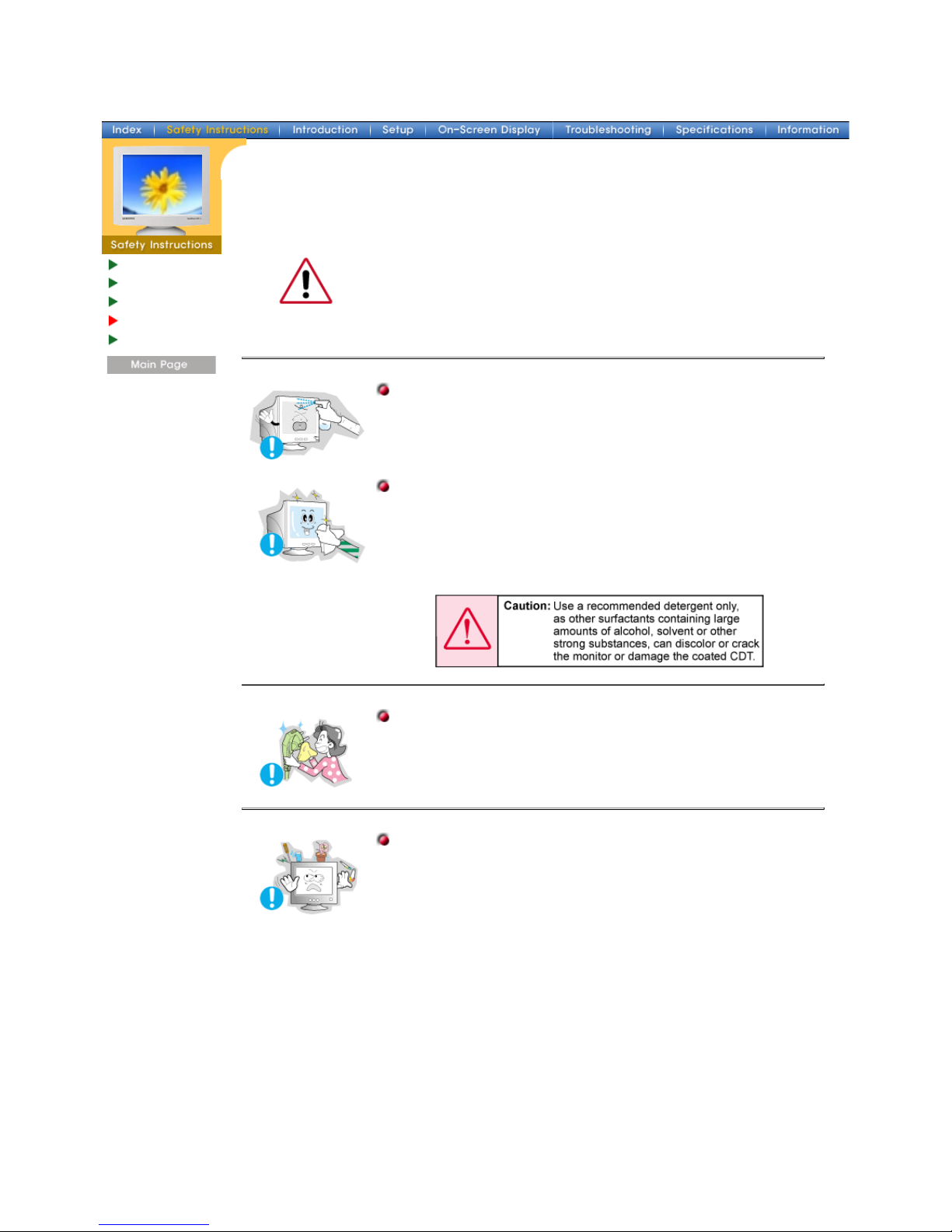

When cleaning the monitor case or the surface of the CRT, wipe with a
slightly moistened, soft fabric.
Do not clean Flat monitor with water. Use a water-diluted mild
detergent.
(Some detergents contain significant amounts of alcohol-based solvents,
which can damage (color change) or crack the monitor case. The
antiglare/anti-static surface coating on the CRT may also be affected.)
Dilute the detergent (1:10 ratio) with water before using.
Do not spray detergent directly on the monitor.
Use the recommended detergent with a smooth cloth.
zYou can prevent the coated CRT from being damaged or the
monitor cabinet from being dissolved, cracked or discolored.
zYou can buy a recommended detergent at any Samsung Service
Center.
If the connector between the plug and the pin is dusty or dirty,
clean it properly with a dry cloth.
zA dirty connector can cause an electric shock or fire.
Do not set a glass of water, chemicals or any small metal objects
on the monitor.
zThis may cause damage, electric shock or a fire.
zIf a foreign substance gets into the monitor, disconnect the plug
and then contact a service center.

Main > Safety Instructions > Other
Notational
Power
Installation
Clean
Other
Do not remove cover(or back). No user serviceable parts inside.
zThis may cause an electric shock or a fire.
zRefer servicing to qualified service personnel.
If your monitor does not operate normally - in particular, if there are
any unusual sounds or smells coming from it - unplug it
immediately and contact an authorized dealer or service.
zThis may cause an electric shock or a fire.
Do not place any heavy objects on the monitor.
zThis may cause an electric shock or a fire.
For each hour of looking at the monitor, you should let your eyes
rest for 5 minutes.
zThis will reduce eye fatigue.
Do not use or store inflammable substances near the monitor.
zThis may cause an explosion or fire.
Do not try to move the monitor by pulling on the wire or the signal
cable.
zThis may cause a breakdown, electric shock or a fire due to
damage to the cable.
Do not move the monitor right or left by pulling only the wire or the
signal cable.
zThis may cause a breakdown, electric shock or a fire due to
damage to the cable.
Never insert anything metallic into the monitor openings.
zThis may cause an electric shock, fire or injury.

Keep the monitor away from any magnetic substances.
zThis may cause discoloring or distortion of the image.

Unpacking
Front
Rear
Bottom
Monitor and Stand
(Some models include a stand attached. )
Please make sure the following items are
included with your monitor. If any items are
missing,
contact your dealer.
Power Cord
Stand
Quick Setup Guide
Warranty Card
(Not available in all locations)
User's Guide and
Driver Installation CD
USB Hub (Option)

Main > Introduction > Unpacking
Unpacking
Front
Rear
Bottom
Monitor and Stand
(Some models include a stand attached. )
Please make sure the following items are included
with your monitor. If any items are missing,
contact your dealer.
Power Cord
Stand
Quick Setup Guide
Warranty Card
(Not available in all locations)
User's Guide and
Driver Installation CD
USB Hub (Option)
For Multimedia model (Option)
Multimedia Speaker Stand Sound Cables(2each)
DC Power Cord (Option)
User Guide
SyncMaster 753Ms

Unpacking
Front
Rear
Bottom

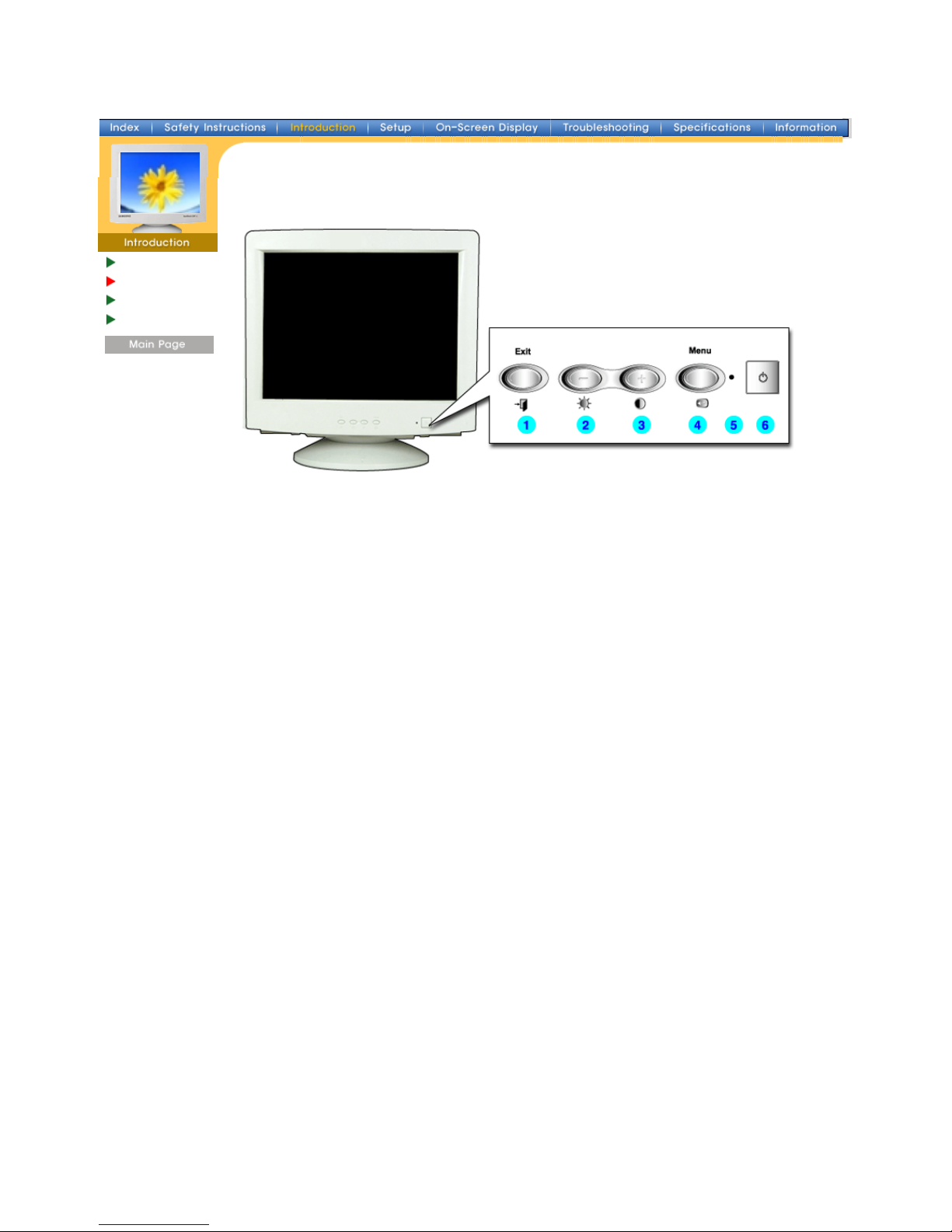

1. Exit button Use this button to Exit the active menu or the OSD.
2,3. Adjust buttons These buttons allow you to highlight and adjust items in the menu.
4. Menu button Use this button to open the OSD and activate a highlighted menu item.
5. Power indicator This light glows green during normal operation, and blinks green once as
the monitor saves your adjustments.
6. Power button Use this button to turn the monitor on and off.
Note: See PowerSaver described in the manual for further information regarding power saving
functions. For energy conservation, turn your monitor OFF when it is not needed, or when
leaving it unattended for long periods.

Unpacking
Front
Rear
Bottom

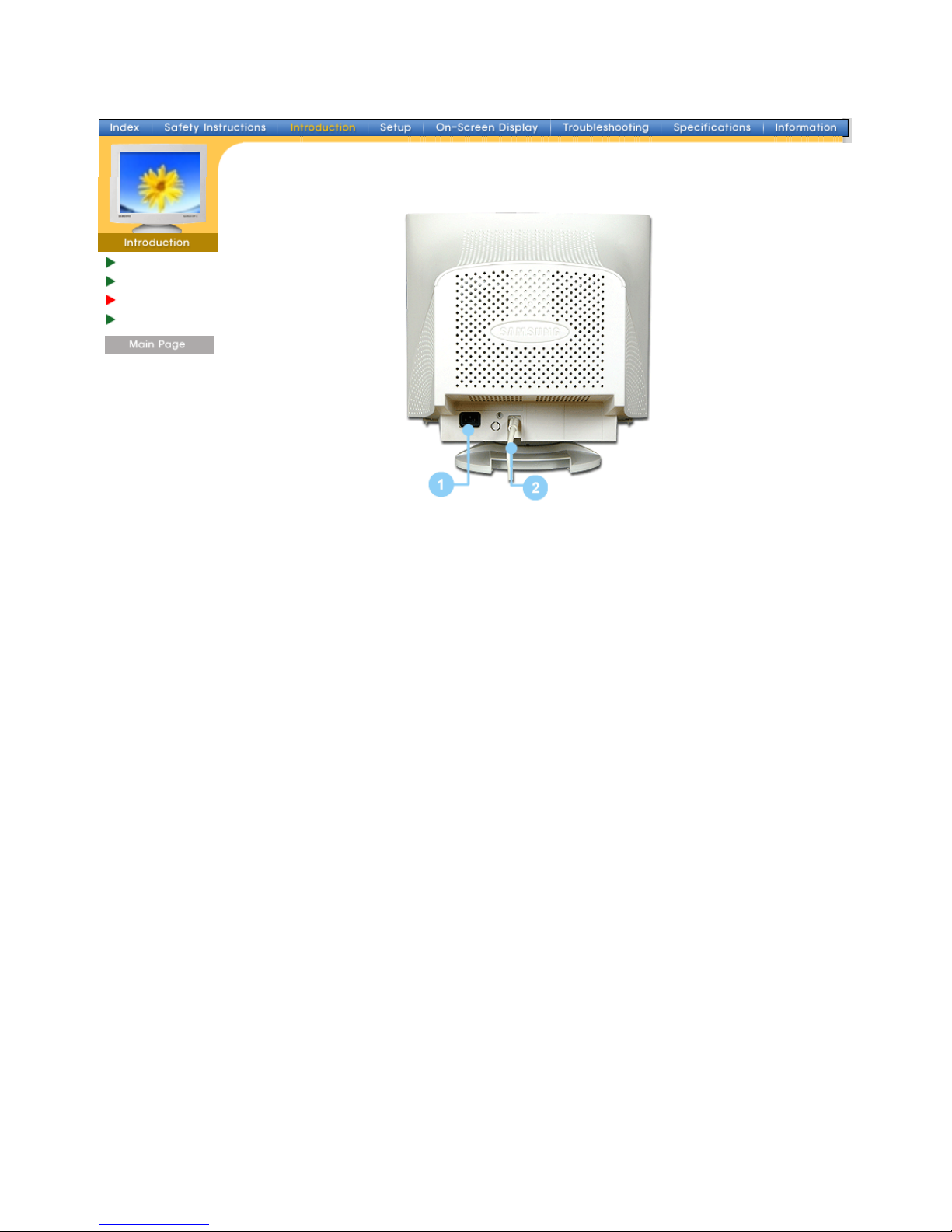

(The configuration at the back of the monitor may vary from product to product.)
1. Power port Connect the power cord for your monitor to the power port on the back of
the monitor.
2. Signal Cable Connect the signal cable to the video port on your computer, video board,
video card, or graphics card.
Note: See Connecting Your Monitor for further information regarding cable connections.

Unpacking
Front
Rear
Bottom
1. Signal Cable Connect the signal cable to the video port on your computer, video board,
video card, or graphics card.
2. Power port Connect the power cord for your monitor to the power port on the back of
the monitor.
3. Tilt/Swivel Base You can separate the base from the monitor.

Connecting
Your Monitor
Installing the
Monitor Driver
Base Installation

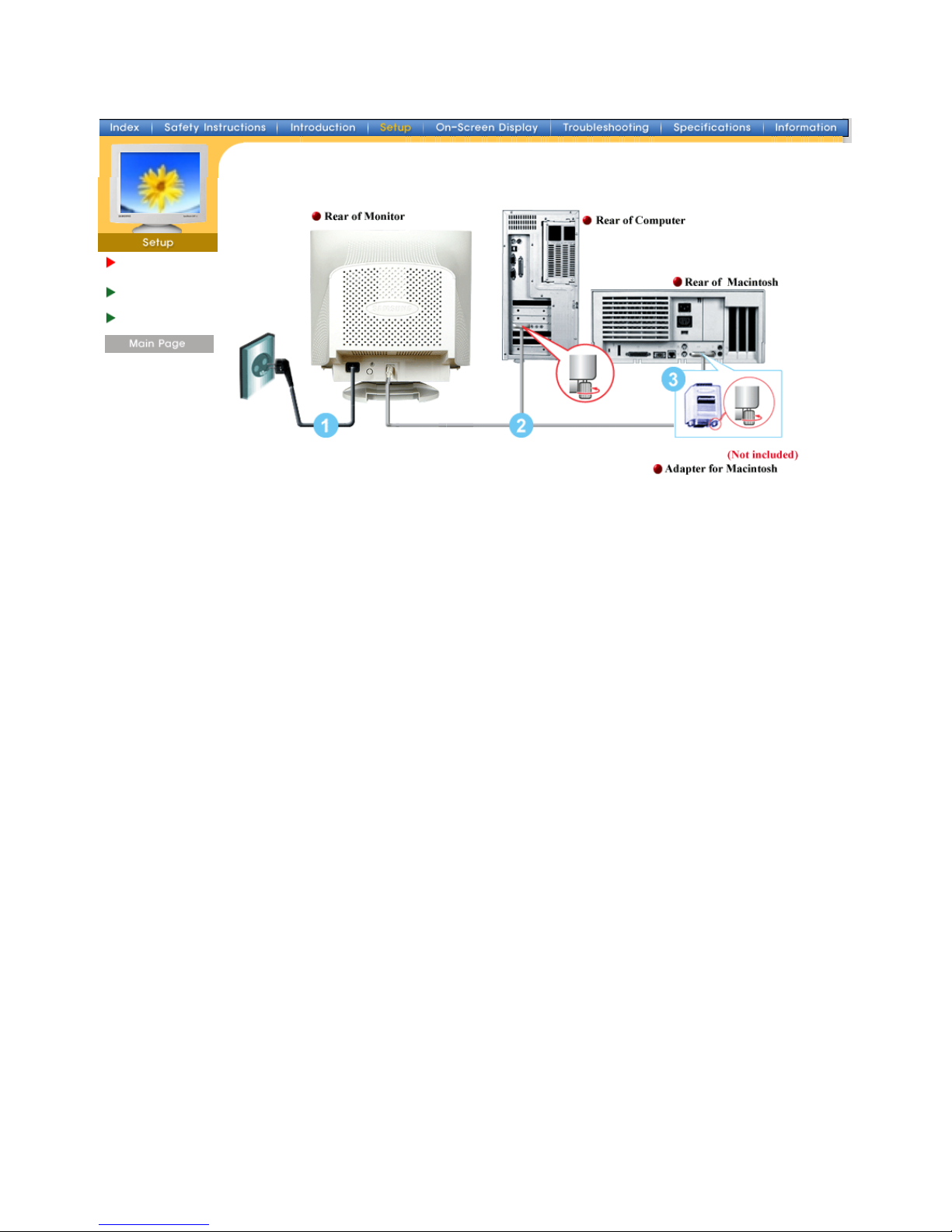

1. Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
2. Connect the signal cable to the video port on your computer, video board, video card, or
graphics card.
3. If you are using a Macintosh computer, connect the cable to a Macintosh adapter, and set the
pins on your adapter(Adapter not included). A PC-compatible computer does not need an
adapter.
4. Turn on your computer and monitor. If your monitor displays an image, installation is complete.

Main > Setup > Connecting Your Monitor
Connecting
Your Monito
r
Installing the
Monitor Drive
r
Base Installation
1. Setup-General | 2. Setup-For Multimedia model | 3. Multimedia Speaker Stand

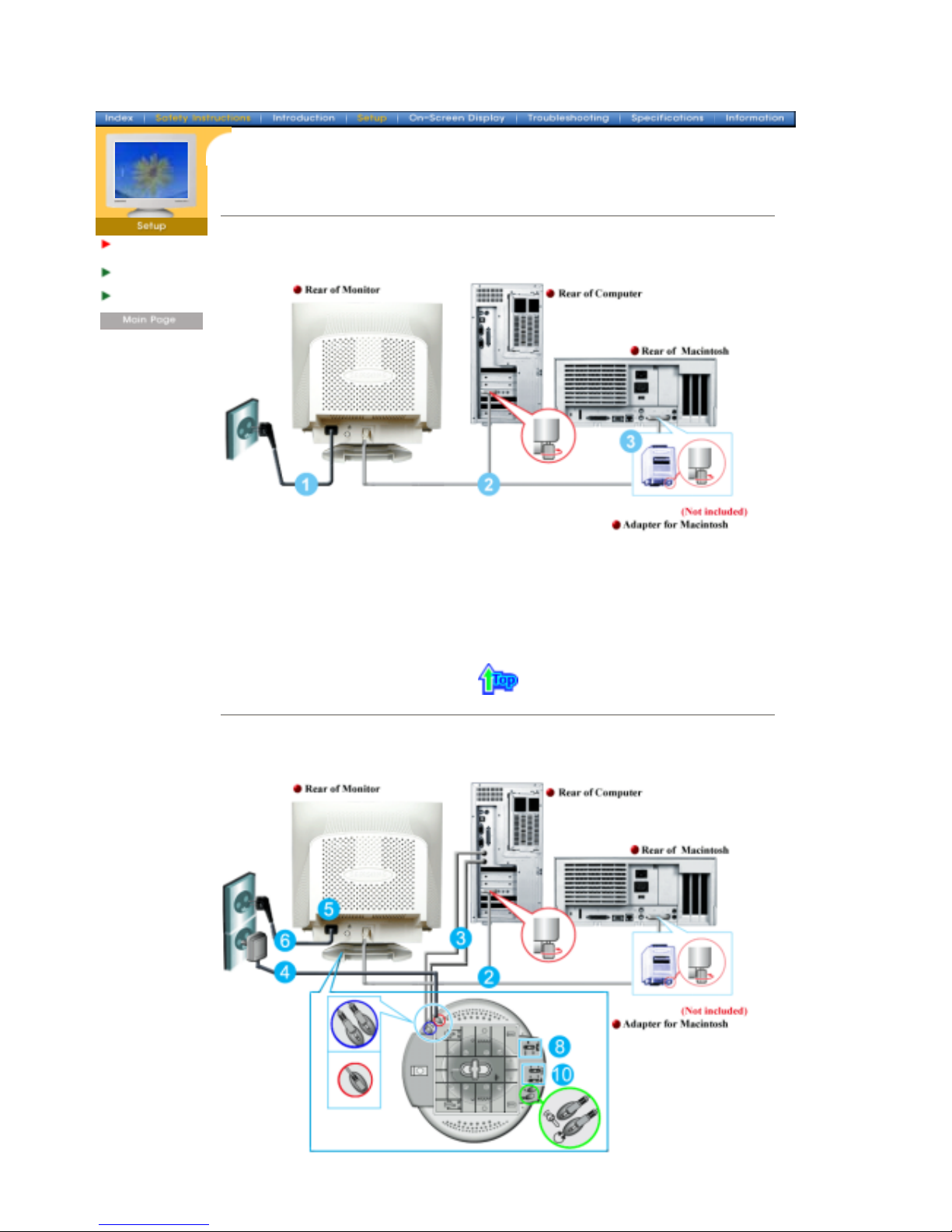

1. Setup-General
1. Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
2. Connect the end of the signal cable to your computer's video port(video board, video card or
graphics card).
3. If you are using a Macintosh computer, connect the cable to a Macintosh adapter, and set the
pins on your adapter(Adapter not included). A PC-compatible computer does not need an
adapter.
4. Turn on your computer and monitor. If your monitor displays an image, installation is complete.
2. Setup-For Multimedia model
SyncMaster 753Ms

1. Turn off your computer and unplug the power cord.
2. Connect the end of the signal cable to your computer's video port(video board, video card or
graphics card).
3. Connect one end of a sound cable to the Stereo Output jack on your sound card or
computer.Connect the other end of the cable to the Stereo Input jack on the back of the monitor
stand
Connect one end of the other sound cable to the Mic Input jack on your sound card or
computer.Connect the other end of this cable to the Mic By-pass jack on the back of the nonitor
stand.
4. Plug the DC power cord from the stand into a nearby outlet.
5. Connect the power cord for your monitor to the power port on the back of the monitor.
6. Plug the power cord for the monitor and the power cord for your computer into a nearby outlet.
7. Turn on your computer and monitor.
8. Turn up or down the On-Off control terminal on the stand of the monitor until it clicks.
9. Execute a sound program, music or sound effect in your computer and then adjust the volume
by turning up or down until the sound volume is appropriate.
10. Adjust the treble and bass.
Note: Sound distortion may occur when the monitor is placed on top of a mostly hollow cabinet
such as your computer. If this occurs, place a pad or magazine beneath the monitor stand.
High sound volume may also cause sound distortion; lower the volume.
3. Multimedia Speaker Stand
1. Mic By-pass Jack
To transmit your voice,connect a sound cable from
the Mic By-pass jack to the mic in jack on the sound
card slot in your computer.
2. Stereo Input Jack
Connect a sound cable from the input source(sound
card,computer,CD-ROM drive).
3. DC Power Cord
Connect DC power cord to monitor DC 12V output
j
ack.
4. Power Indicator
Glows green when the speakers are turned on.
5. On/Off Volume
Turns On/Off and adjusts the output volume.
6. Treble Control
Use to control high frequencies.
7. Bass Control
Use to control low frequencies.
8. Mic Input Jack
To transmit your voice,connect a microphone to this
j
ack.
9. Headphone Jack
To listen in privacy,connect headphones here.
10. Detachable Stand Top

Connecting Your
Monitor
Installing the
Monitor Driver
Base Installation

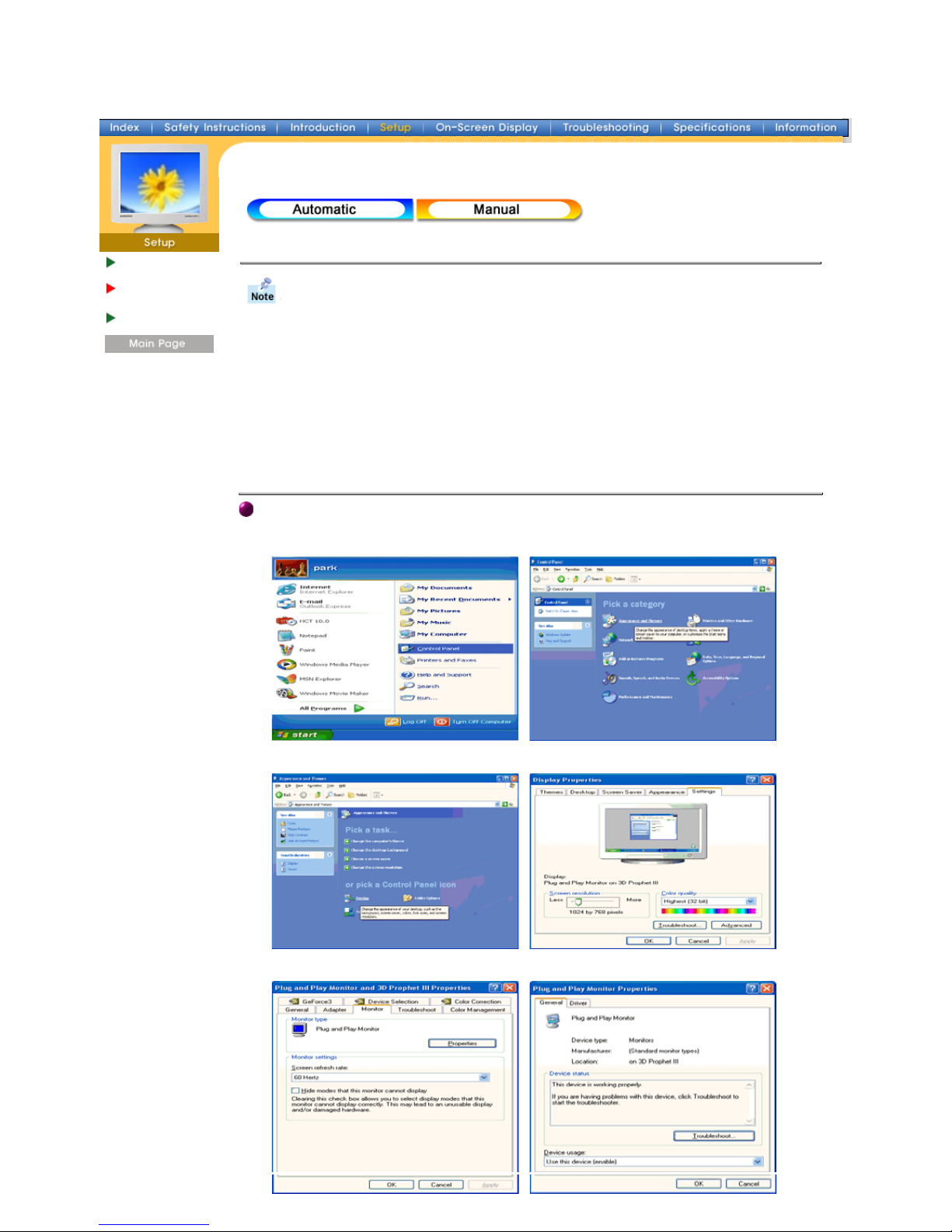

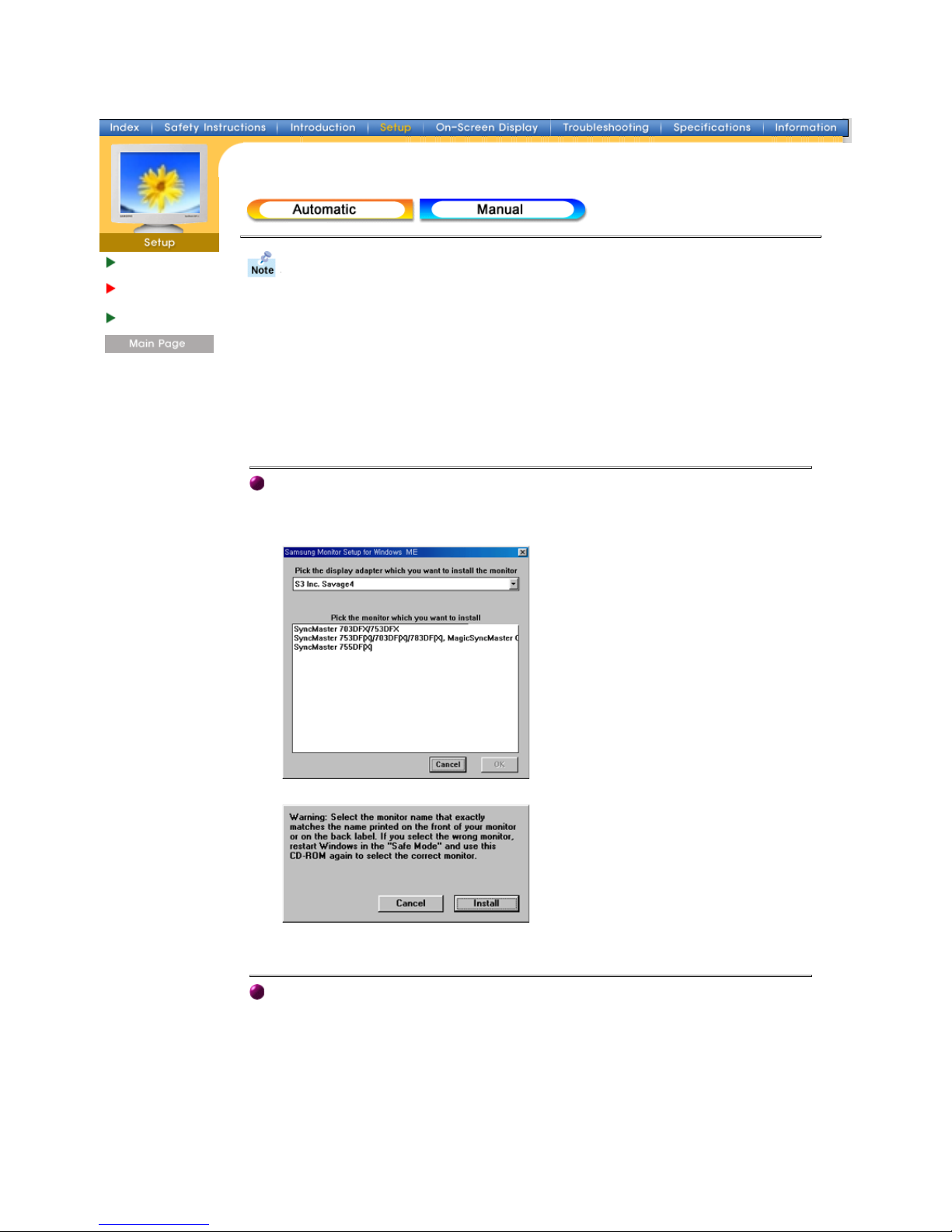

When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions as appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site shown
here.
z
Internet web site : http://www.samsung-monitor.com/ (WorldWide)
http://www.samsungusa.com/monitor/ (USA)
http://www.sec.co.kr/monitor/ (Korea)
http://www.samsungmonitor.com.cn/ (China)
Windows ME
1. Insert CD into the CD-ROM driver.
2. Click "Windows ME Driver".
3. Choose your monitor model in the model list, then click the "OK" button.
4. Click the "Install" button in the "Warning" window.
5. Monitor driver installation is completed.
Windows XP/2000
1. Insert CD into the CD-ROM driver.
2. Click "Windows XP/2000 Driver".
3. Choose your monitor model in the model list, then click the "OK" button.

4. Click the "Install" button in the "Warning" window.
5. If you can see following "Message" window, then click the "Continue Anyway" button.
Then click "OK" button.
This monitor driver is under certifying MS logo,and this installation don't damage your
system.The certified driver will be posted on Samsung Monitor Homepage
http://www.samsung-monitor.com/.
6. Monitor driver installation is completed.

Connecting Your
Monitor
Installing the
Monitor Driver
Base Installation
Windows XP | Windows 2000 | Windows Me | Windows NT | Linux
When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions as appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site shown
here.
z
Internet web site : http://www.samsung-monitor.com/ (WorldWide)
http://www.samsungusa.com/monitor/ (USA)
http://www.sec.co.kr/monitor/ (Korea)
http://www.samsungmonitor.com.cn/ (China)
Microsoft®Windows®XP Operating System
1. Insert CD into the CD-ROM driver.
2. Click "Start" —> "Control Panel" then click the "Appearance and Themes" Icon.
3. Click "Display" icon and choose the "Settings" tab then click "Advanced..".
4. Click the "Properties" button on the "Monitor" tab and select "Driver" tab.

5. Click "Update Driver.." and select "Install from a list or.." then click "Next" button.
6. Select "Don't search ,I will.." then click "Next" and then click "Have disk".
7. Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the
model list and click the "Next" button.
8. If you can see following "Message" window, then click the "Continue Anyway" button. Then
click "OK" button.
This monitor driver is under certifying MS logo,and this installation don't damage your
system.The certified driver will be posted on Samsung Monitor Homepage
http://www.samsung-monitor.com/.
9. Click the "Close" button then click "OK" button continually.
