Samsung SyncMaster 959NF User manual

SyncMaster 959NF/900NF

User’s Manual 2
Index
Main Page On-Screen Display
General
Highlight Zone
MouScreen™S/W
Safety Instructions Troubleshooting
Natational Check List
Power Q & A
Installation Self-Test Feature Check
Cleaning
Other
Introduction Specifications
Unpacking General Specifications
Front Preset Display Modes
Rear PowerSaver
Bottom
Setup Information
Connecting Your Monitor Service
Installing the Monitor Driver Terms
—Automatic Regulatory
— Manual Natural Color
Base Installation MouScreen™
S/W
Authority

User’s Manual 3
Safety Instructions
Failure to follow directions noted by this symbol could result in bodily harm or damage to equip-
ment.
Notational
Warning/Caution
Notation Conventions
Prohibited Important to read and understand at all times
Do not disassemble Disconnect the plug from the outlet
Do not touch Grounding to prevent an electric shock

User’s Manual 4
Safety Instructions

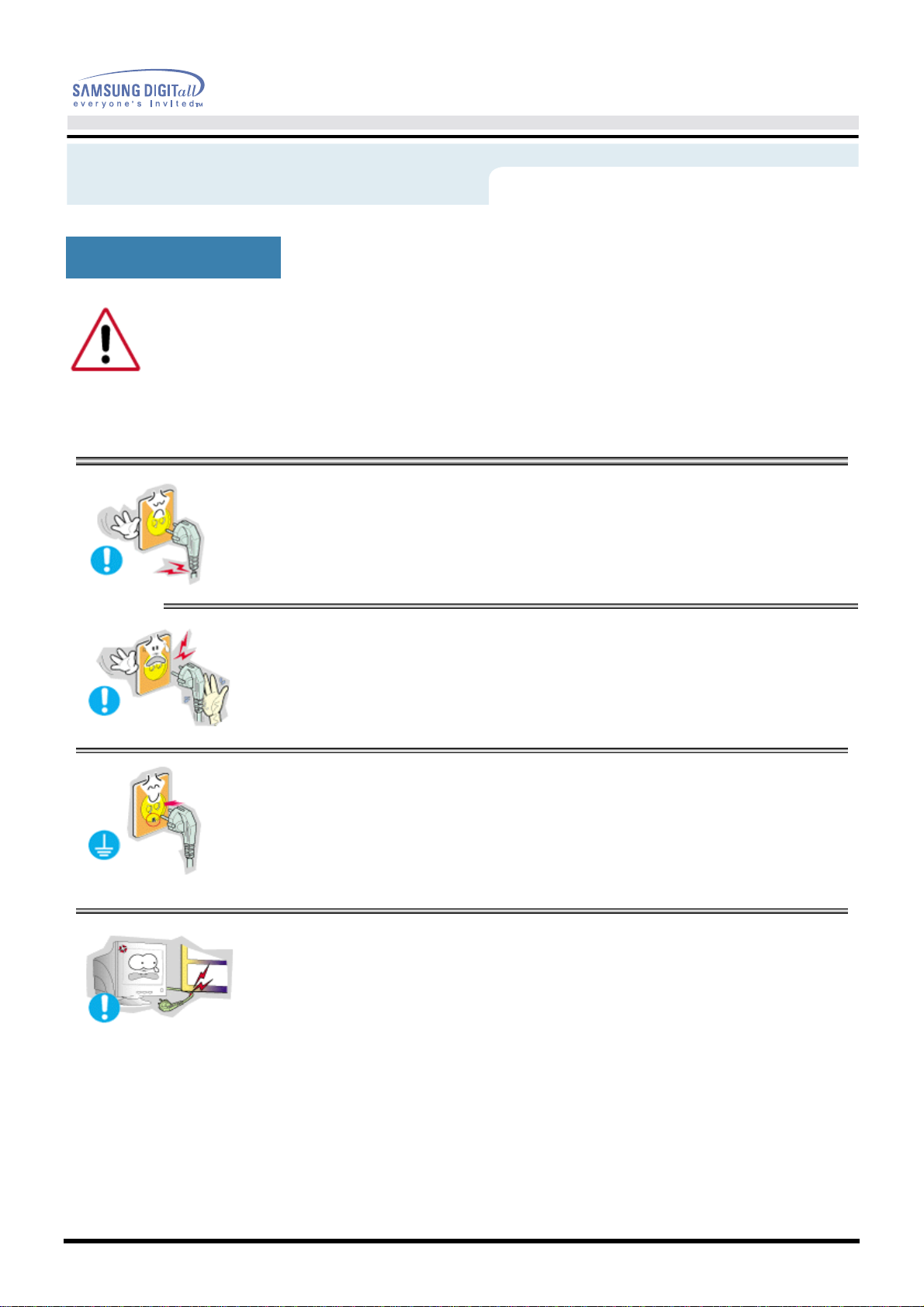

When not used for extended periods of time, set yourPC to DPMS. If using a screen saver, set it to
the active screen mode.
If the size of your monitor is small, or if the same image is present for long periods of time, you
may see afterimages due to damage to the flourescent substance on the inside of the CDT.
•Do not use a damaged or loose plug.
•This may cause an electric shock or fire.
•Do not pull the plug out by thewire nor touchthe plug with wet
hands.
•This may cause an electric shock or fire.
•Use only a properly grounded plug and recepticle.
•An improper ground may cause electric shock or equipment damage
•Do not excessively bend the plug and wire nor place heavy ob-
jects upon them, which could cause damage.
•Failure to do so may cause an electric shock or fire.
Power

User’s Manual 5

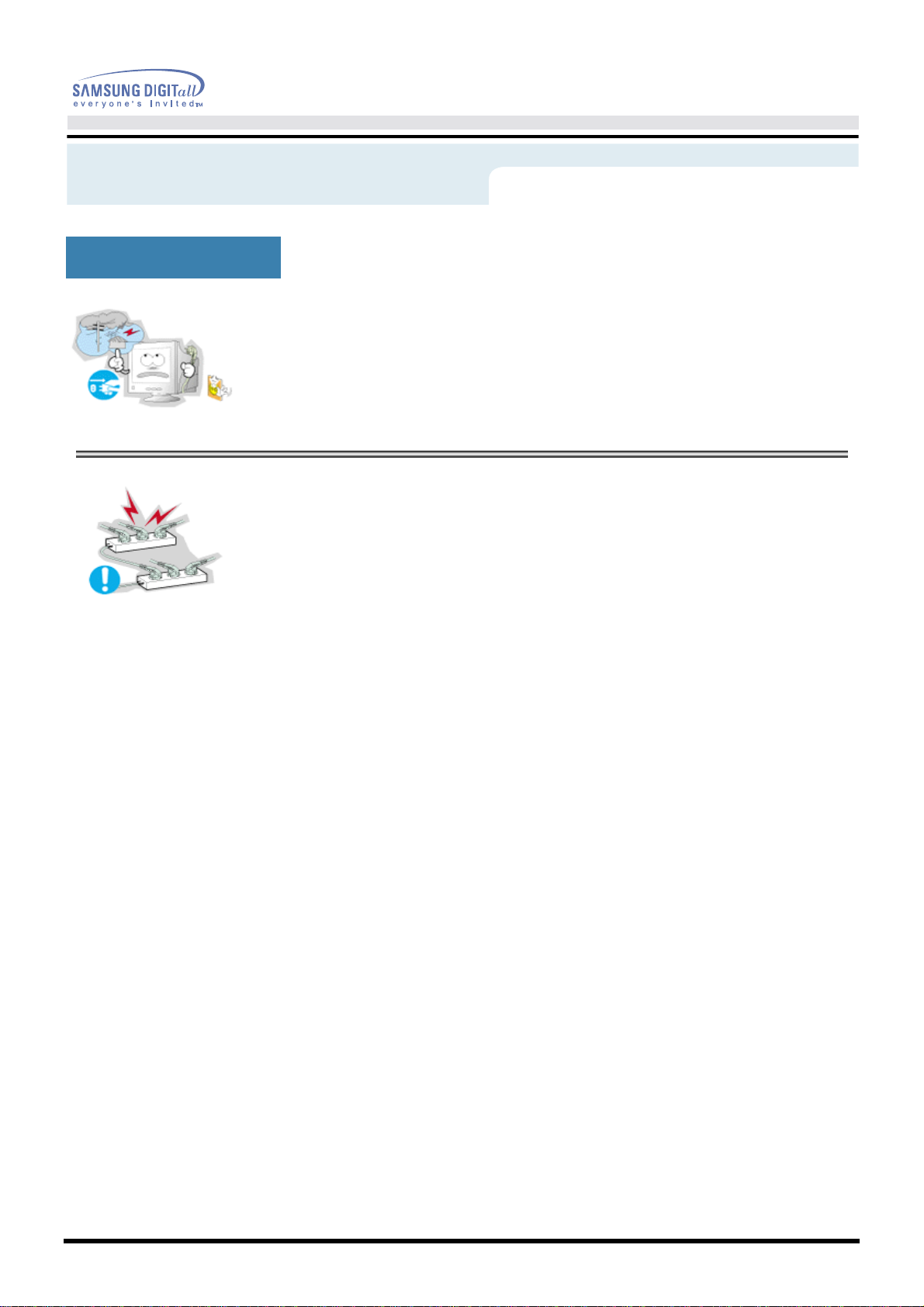

Safety Instructions
•Disconnect the plug from the outlet during storms or lightening
or if it is not used for a long period of time.
•Failure to do so may cause an electric shock or fire.
•Do not connect too many extension cords or plugs to an outlet.
•This may cause a fire.
Power

User’s Manual 6
Safety Instructions
•Do not cover the vents on the monitor cabinet.
•Bad ventilation may cause a breakdown or fire.
•Put your monitor in a location with low humidity and a mini-
mum of dust.
•An electric shock or fire could result inside the monitor.
•Do not drop the monitor when moving it.
•This may cause damage to the product or human body.
•Place the monitor on a flat and stable surface.
•The monitor can cause injury by falling.
•Set down the monitor carefully.
•It could be damaged or broken.
Installation

User’s Manual 7
Safety Instructions
•Do not place the monitor face down.
•The CDT surface may be damaged.
•Do not use the monitor without the monitor stand.
•It could break down or cause a fire due to bad ventilation.
•If the monitor must be used without the supplied stand, take steps to insure
proper ventilation.
Installation

User’s Manual 8

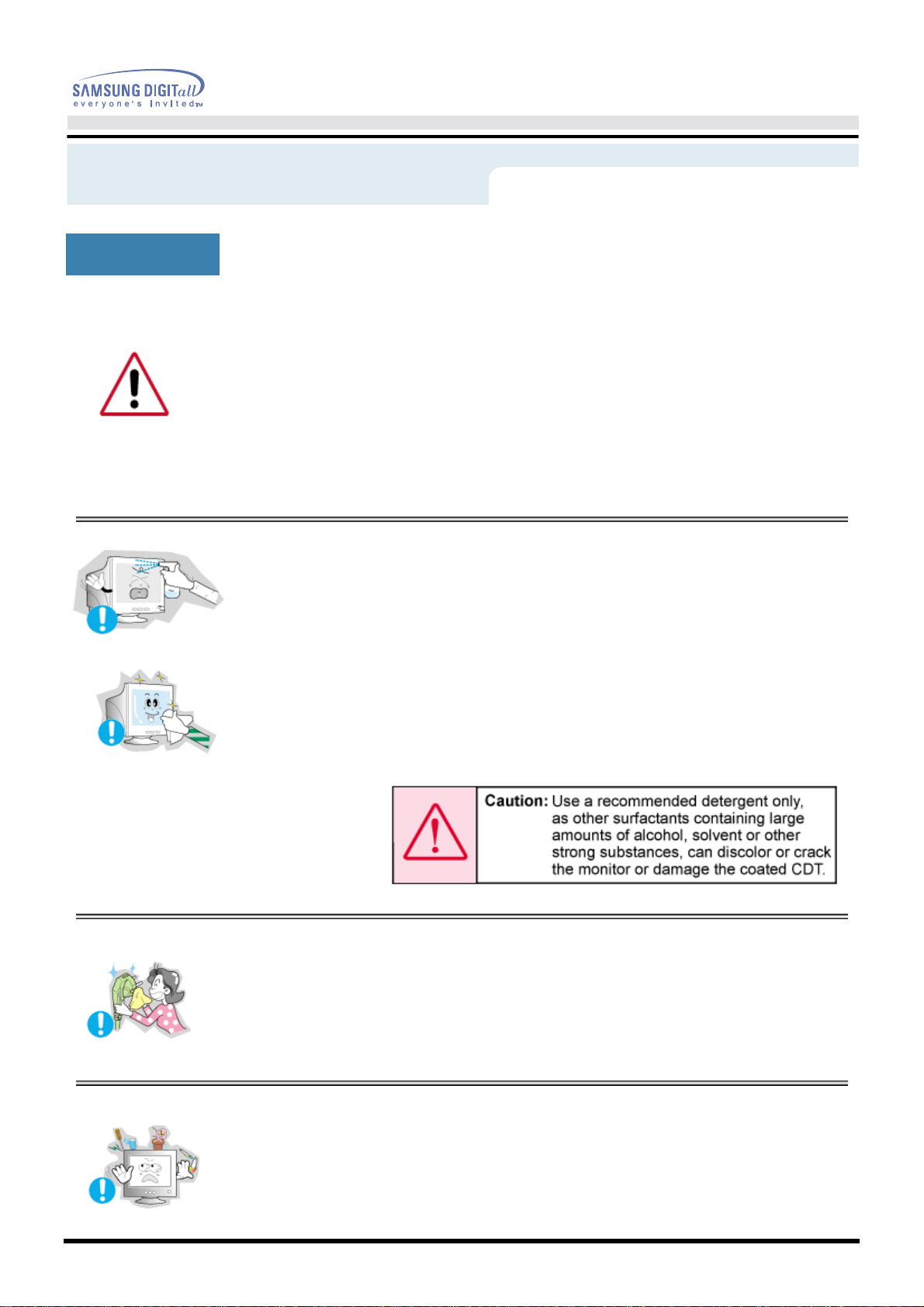

Safety Instructions
•Do not spray detergent directly on the monitor.
•Use the recommended detergent with a smooth cloth.
•You can prevent the coated CDT from being damaged or the monitor cabinet
from being dissolved, cracked or discolored.
•You can buy a recommended detergent at any Samsung Service Center.
•If the connector between the plug and the pin is dusty or dirty,
clean it properly with a dry cloth.
•A dirty connector can cause an electric shock or fire.
•Do not seta glass of water, chemicals or any smallmetal objects
on the monitor.
•This may cause damage, electric shock or a fire.
•If a foreign substance gets into the monitor, disconnect the plug and then
contact a service center.
Clean
When cleaning the monitor case or the surface of the CDT, wipe with a
slightly moistened, soft fabric.
Do not clean Flat monitor with water. Use a water-diluted mild
detergent.
(Some detergents contain significant amounts of alcohol-based solvents,
which can damage (color change) or crack the monitor case. The
antiglare/anti-static surface coating on the CDT may also be affected.)
Dilute the detergent (1:10 ratio) with water before using.

User’s Manual 9

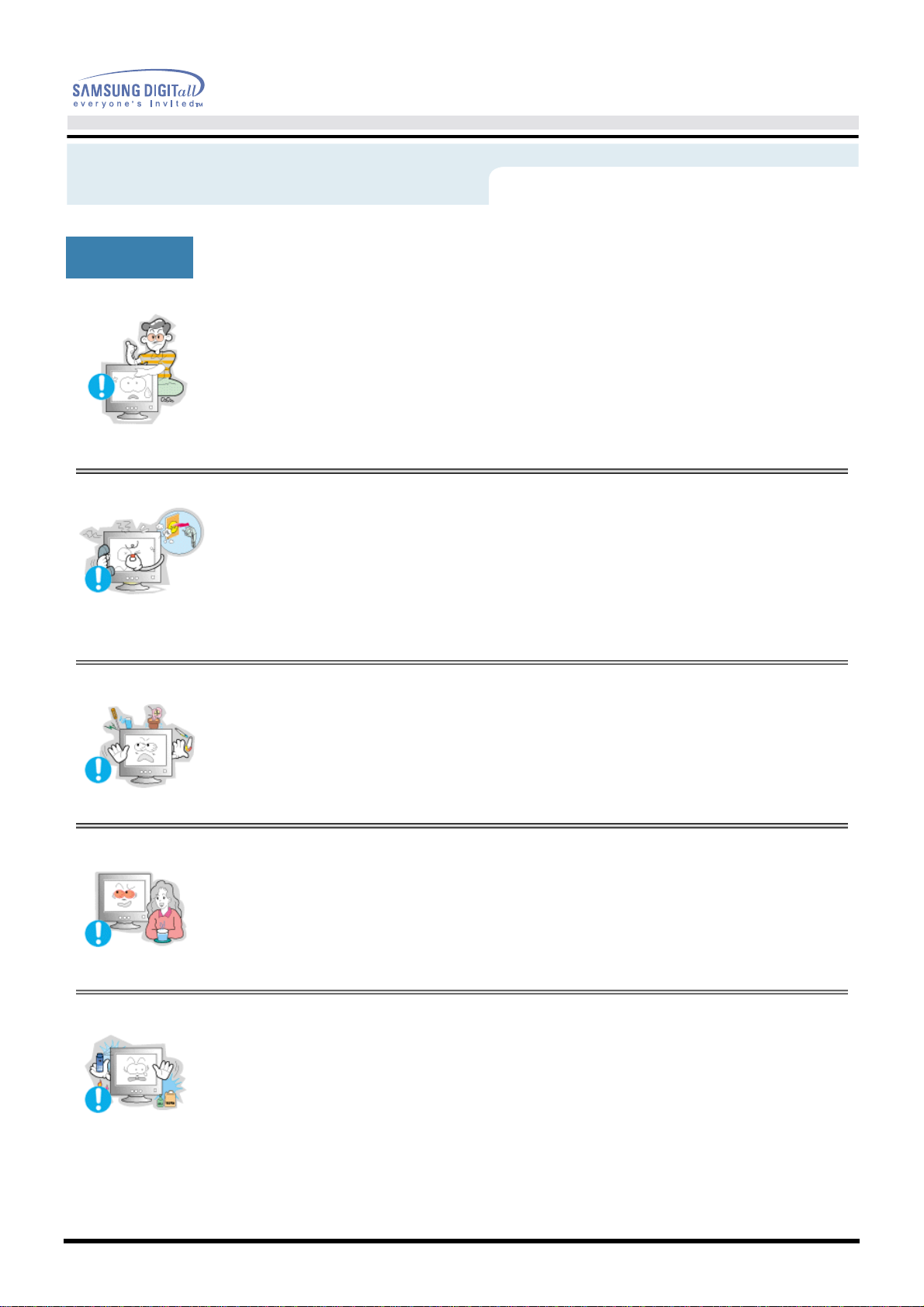

Safety Instructions
•Do not remove cover(or back). No user serviceable parts inside.
•This may cause an electric shock or a fire.
•Refer servicing to qualified service personnel.
•If your monitor does not operate normally - in particular, if
there are any unusual sounds or smells coming from
it - unplug it immediately and contact an authorized dealer or
service.
•This may cause an electric shock or a fire.
•Do not place any heavy objects on the monitor.
•This may cause an electric shock or a fire.
•For each hour of looking at the monitor, you should let your
eyes rest for 5 minutes.
•This will reduce eye fatigue.
•Do not use or store inflammable substances near the monitor.
•This may cause an explosion or fire.
Other

User’s Manual 10
Safety Instructions
•Do not try to move the monitor by pulling on the wire or the
signal cable.
•This may cause a breakdown, electric shock or a fire due to damage to the
cable.
•Do not move the monitor right or left by pulling only the wire
or the signal cable.
•This may cause a breakdown, electric shock or a fire due to damage to the
cable.
•Never insert anything metallic into the monitor openings.
•This may cause an electric shock, fire or injury.
•Keep the monitor away from any magnetic substances.
•This may cause discoloring or distortion of the image.
Other

User’s Manual 11
Introduction
•Monitor and Stand
Unparking
(Some models include a stand attached. )
Please make sure the following items are included with
your monitor. If any items are missing, contact your
dealer.
•Power Cord
•Stand
•Signal Cable (Option)
•Quick Setup Guide
•Warranty Card
(Not available in all locations)
•User's Guide and
Driver Installation CD
•USB Cable
•USB Hub(Option)

User’s Manual 12
Introduction

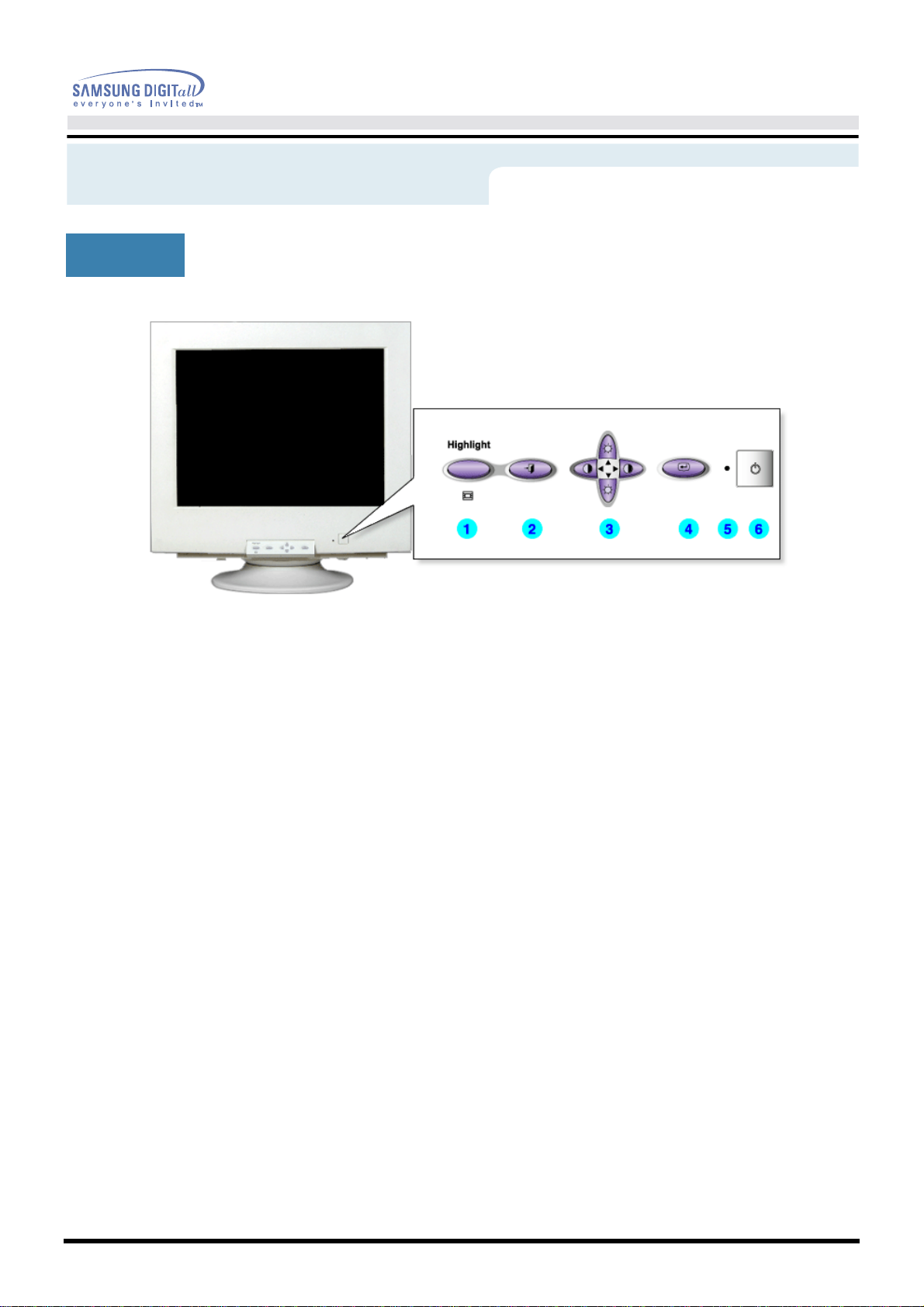

1. Highlight button The Highlight Zone ensures clear images on TVs, video conferencing systems or
photos by emphasizing a certain area on the screen.
2. Exit button Use this button to Exit the active menu or the OSD.
3. Adjust buttons These buttons allow you to highlight and adjust items in the menu.
4. Menu button Use this button to open the OSD and activate a highlighted menu item.
5. Power indicator This light glows green during normal operation, and blinks green once as the monitor
saves your adjustments.
6. Power button Use this button to turn the monitor on and off.
Note: See PowerSaver described in the manual for further information regarding power saving functions.
For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended
for long periods.
Front

User’s Manual 13
Introduction
(The configuration at the back of the monitor may vary from product to product.)
1. Power port Connect the power cord for your monitor to the power port on the back of the monitor.
2. Signal port
Connect the signal cabletothe video porton your computer, video board, video card, or
graphics card.
3. BNC Connectors(Option) Connect the signal cable to the BNC signal port on the back of your monitor.
4. USB Connector Connect the USB cable to the USB port on the back of your monitor.
Note: See Connecting Your Monitor for further information regarding cable connections.
Rear

User’s Manual 14
Introduction
1.Signal port
Connect the signal cabletothe video porton your computer, video board, video card, or
graphics card.
2.Power Port Connect the power cord for your monitor to the power port on the back of the
monitor.
3.Tilt/Swivel Base You can separate the base from the monitor.
Bottom

User’s Manual 15

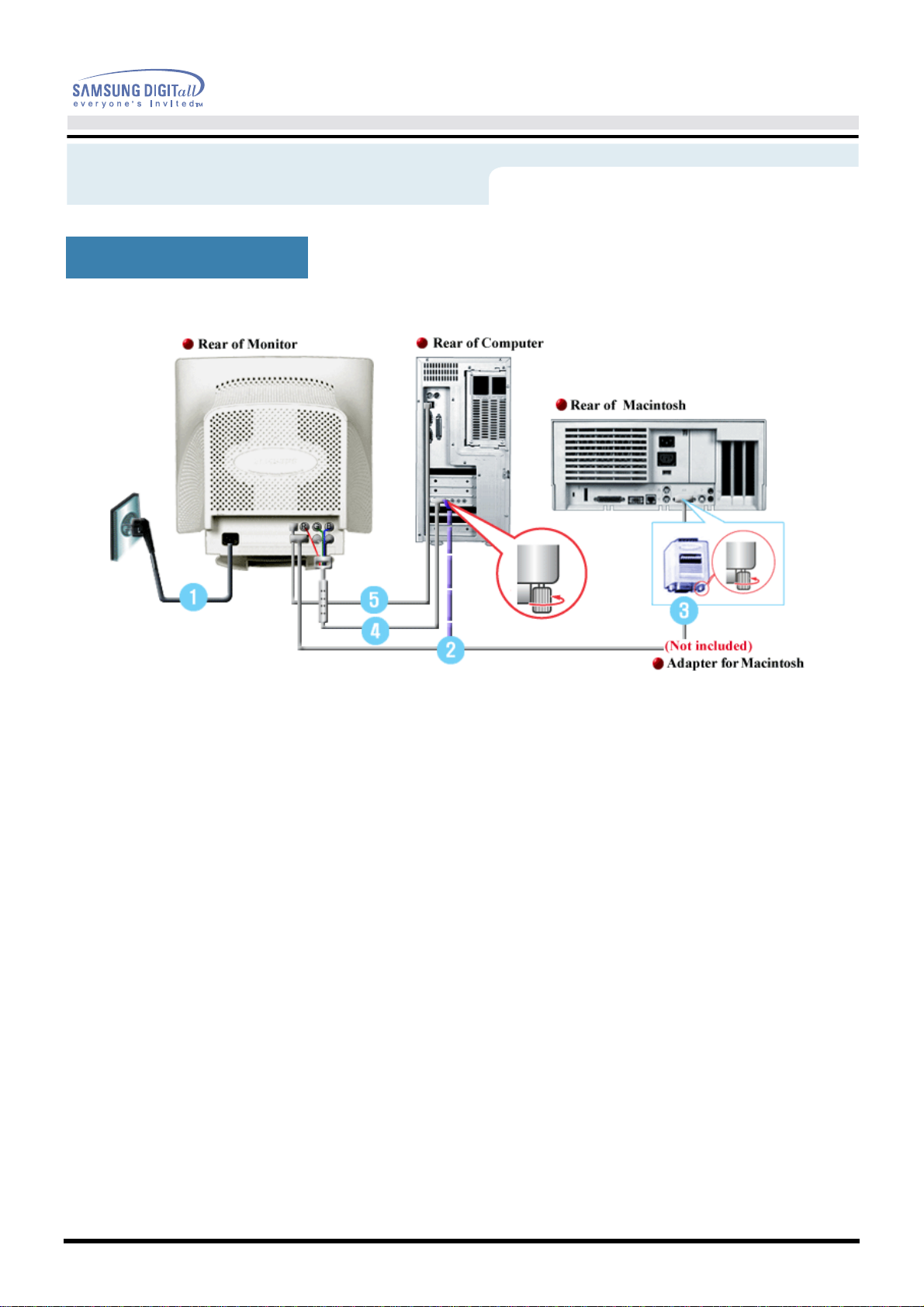

Setup
1. Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
2. Connect the signal cable to the video port on your computer, video board, video card, or graphics card.
3. If you are using a Macintosh computer, connect the cable to a Macintosh adapter, and set the pins on your
adapter (Adapter not included). A PC-compatible computer does not need an adapter.
4. Connect the signal cable to the BNC signal port on the back of your monitor/computer.
5. Connect the USB cable to the USB port on the back of your monitor/computer.
6. Turn on your computer and monitor. If your monitor displays an image, installation is complete.
Connecting Your Monitor

Setup
When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions as appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site shown
here.
zInternet web site : http://www.samsung-monitor.com/ (Worldwide)
http://www.samsungusa.com/monitor/ (USA)
http://www.sec.co.kr/monitor/ (Korea)
http://www.samsungmonitor.com.cn/ (China)

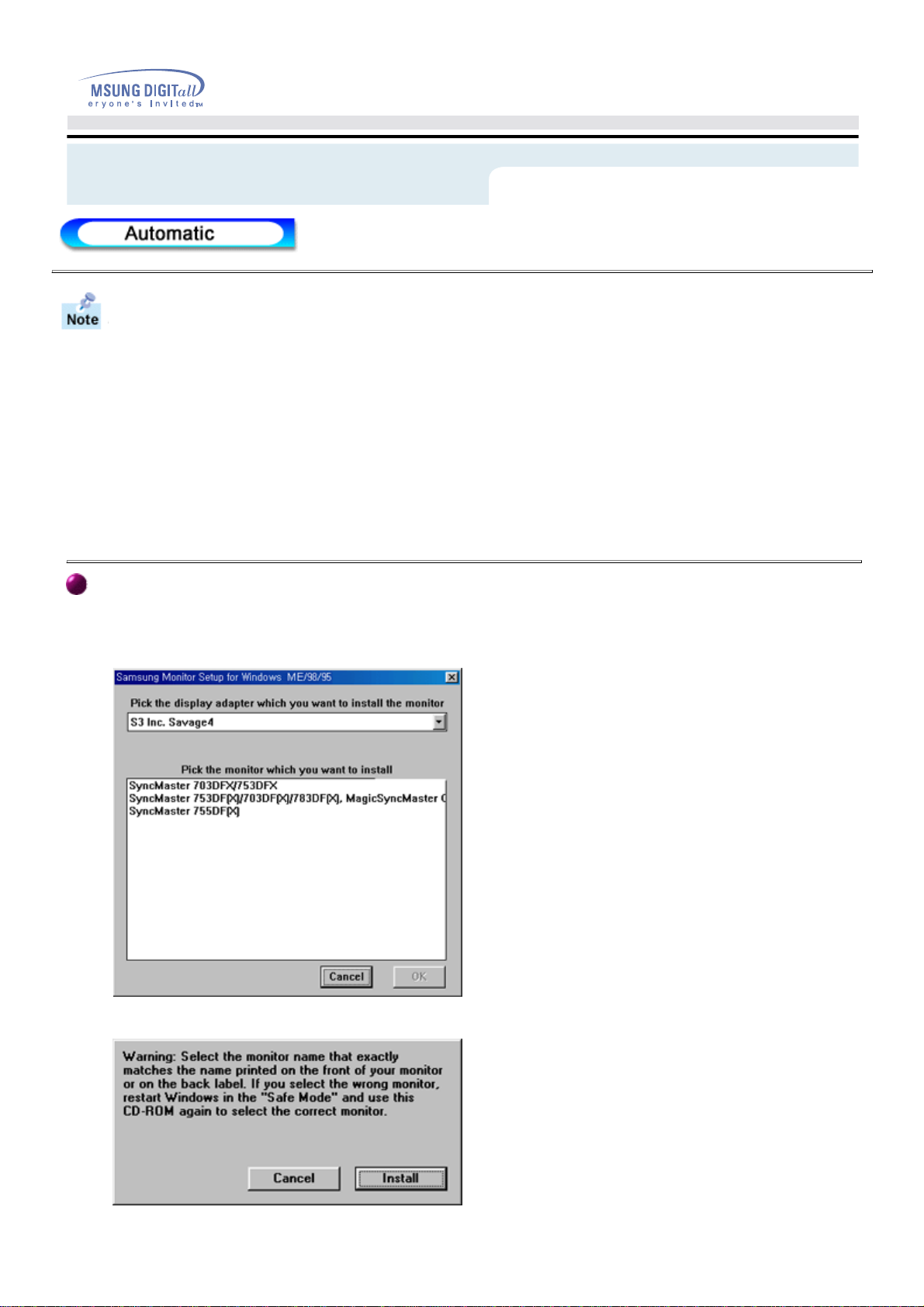

Windows ME/98/95
1. Insert CD into the CD-ROM driver.
2. Click "Windows ME/98/95 Driver".
3. Choose your monitor model in the model list, then click the "OK" button.
4. Click the "Install" button in the "Warning" window.
5. Monitor driver installation is completed.

Setup

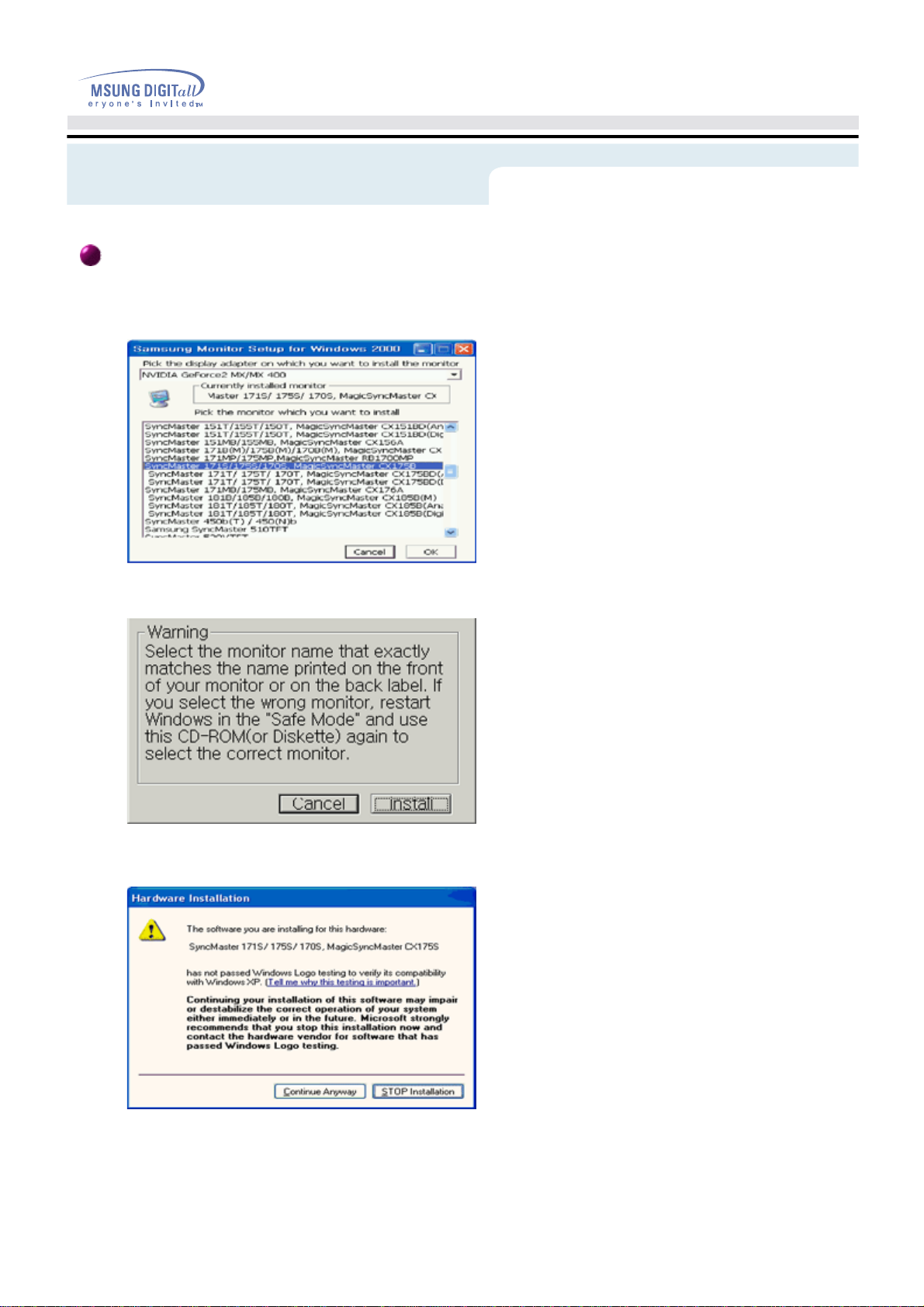

Windows XP/2000
1. Insert CD into the CD-ROM driver.
2. Click "Windows XP/2000 Driver".
3. Choose your monitor model in the model list, then click the "OK" button.
4. Click the "Install" button in the "Warning" window.
5. If you can see following "Message" window, then click the "Continue Anyway" button.
Then click "OK" button.
This monitor driver is under certifying MS logo,and this installation don't damage your
system.The certified driver will be posted on Samsung Monitor Homepage
http://www.samsung-monitor.com/.
6. Monitor driver installation is completed.

When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions as appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site shown
here.
zInternet web site : http://www.samsung-monitor.com/ (Europe)
http://www.samsungusa.com/monitor/ (USA)
http://www.sec.co.kr/monitor/ (Korea)
http://www.samsungmonitor.com.cn/ (China)

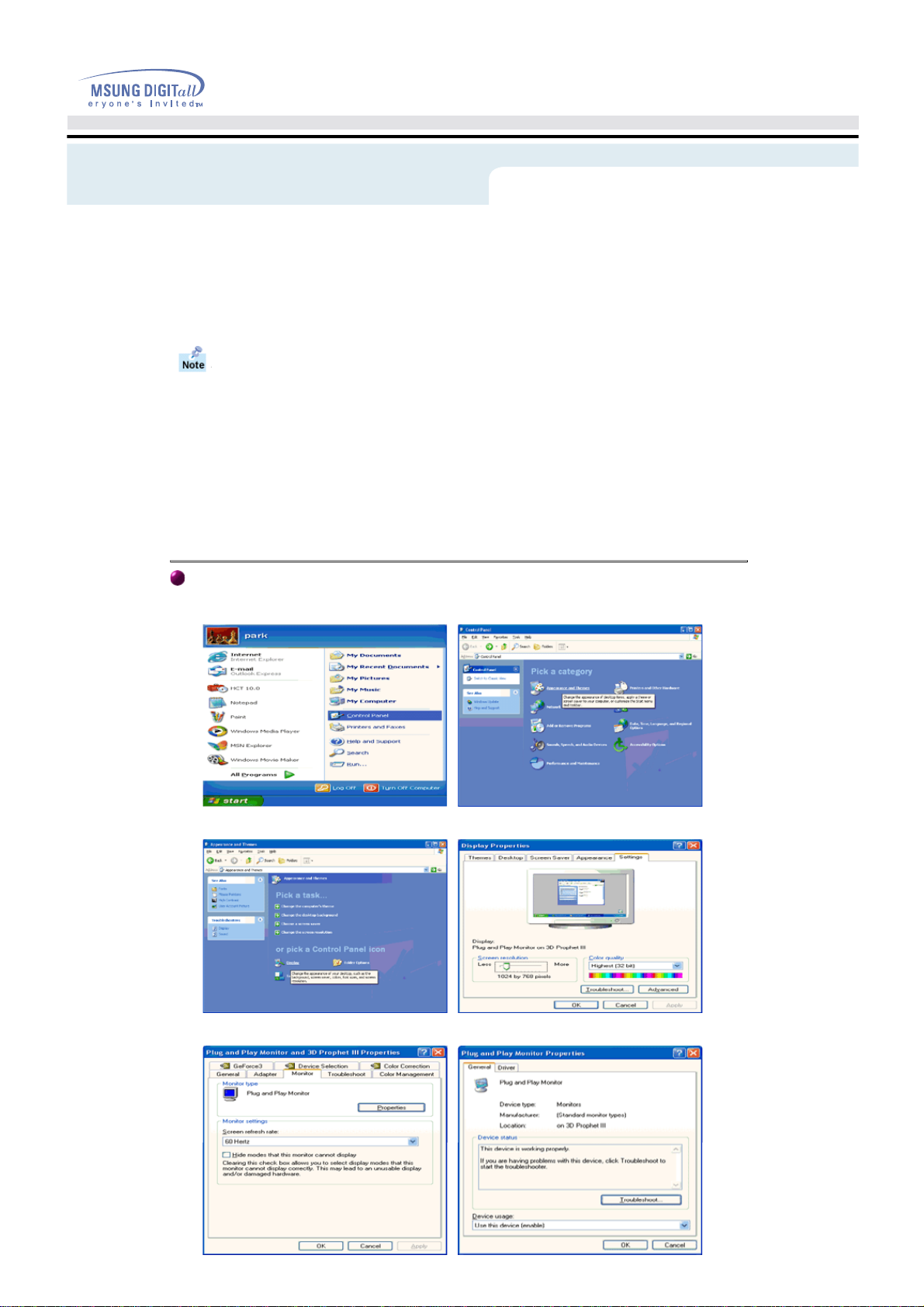

Microsoft®Windows®XP Operating System
1. Insert CD into the CD-ROM driver.
2. Click "Start" —> "Control Panel" then click the "Appearance and Themes" Icon.
3. Click "Display" icon and choose the "Settings" tab then click "Advanced..".
4. Click the "Properties" button on the "Monitor" tab and select "Driver" tab.
Setup

5. Click "Update Driver.." and select "Install from a list or.." then click "Next" button.
6. Select "Don't search ,I will.." then click "Next" and then click "Have disk".
7. Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the
model list and click the "Next" button.
8. If you can see following "Message" window, then click the "Continue Anyway" button. Then
click "OK" button.
Setup

Thi
s mon
it
or
d
r
i
ver
i
s un
d
er cer
tif
y
i
ng
MS
l
ogo,an
d
thi
s
i
ns
t
a
ll
a
ti
on
d
on
't
d
amage your
system.The certified driver will be posted on Samsung Monitor Homepage
http://www.samsung-monitor.com/.

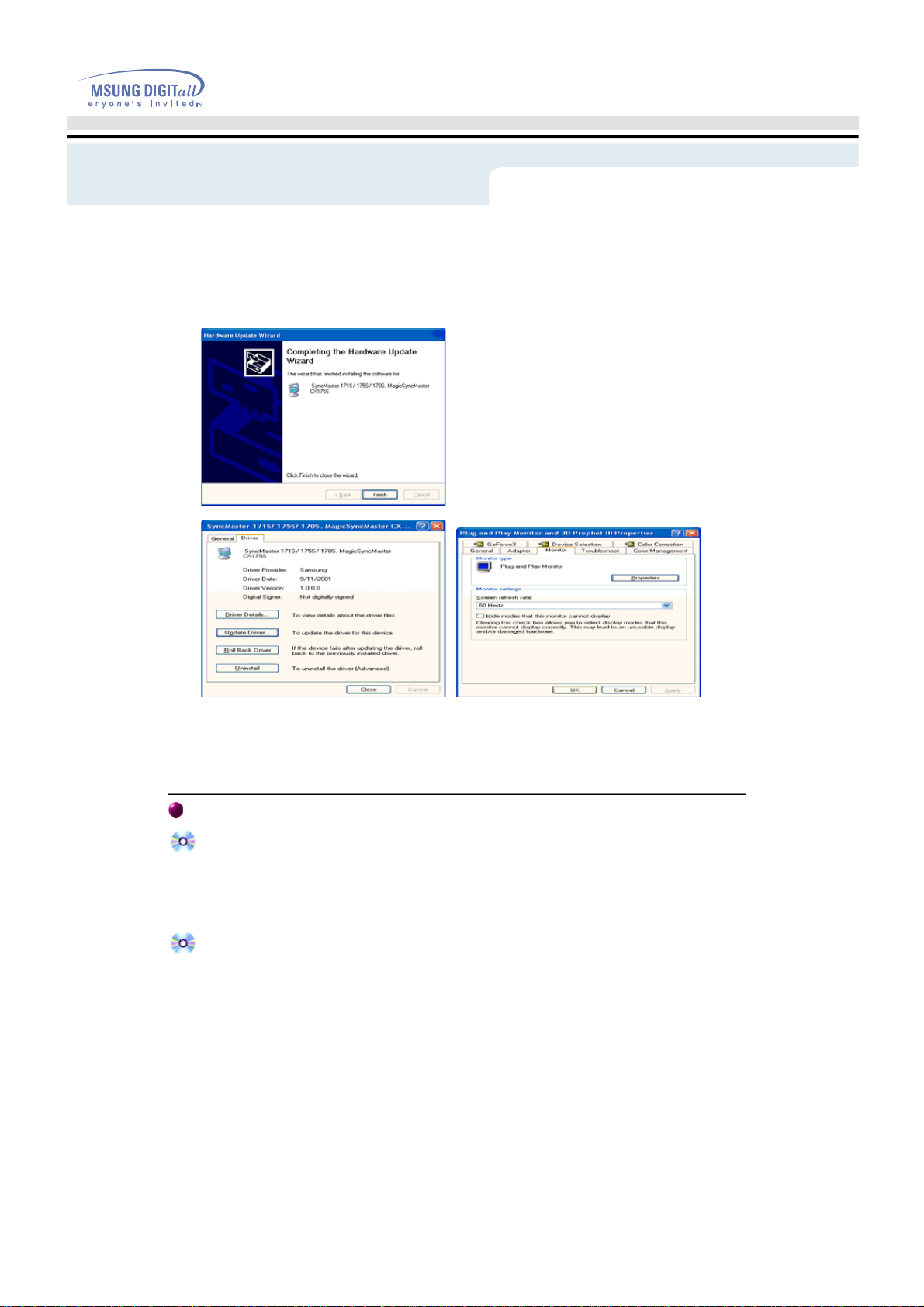

9. Click the "Close" button then click "OK" button continually.
10. Monitor driver installation is completed.
Microsoft®Windows®2000 Operating System
When you can see "Digital Signature Not Found" on your monitor, follow these steps.
1. Choose "OK" button on the "Insert disk" window.
2. Click the "Browse" button on the "File Needed" window.
3. Choose A:(D:\Driver) then click the "Open" button and then click "OK" button.
How to install
1. Click "Start" , "Setting" , "Control Panel".
2. Double click the "Display" Icon.
3. Choose the "Settings" tab and then click "Advanced..".
4. Choose "Monitor".
5. Click "Driver" and then click on "Update Driver.." then click on the "Next" button.
6. Choose "Display a list of the known drivers for this device so that I can choose a
specific driver" then click "Next" and then click "Have disk".
7. Click the "Browse" button then choose A:(D:\Driver).
8. Click the "Open" button, then click "OK" button.
9. Choose your monitor model and click the "Next" button then click "Next" button.
10. Click the "Finish" button then the "Close" button.
If you can see the "Digital Signature Not Found" window then click the "Yes"button.
And click the "Finish" button then the "Close" button.
Case1: If the "Properties" button is inactive, it means your monitor is properly configured.
Please stop installation
Case2: If the "Properties" button is active, click the "Properties" button then follow next
steps continually.
Thi it d i i d tif i MS l d thi i t ll ti d 't d
Setup
